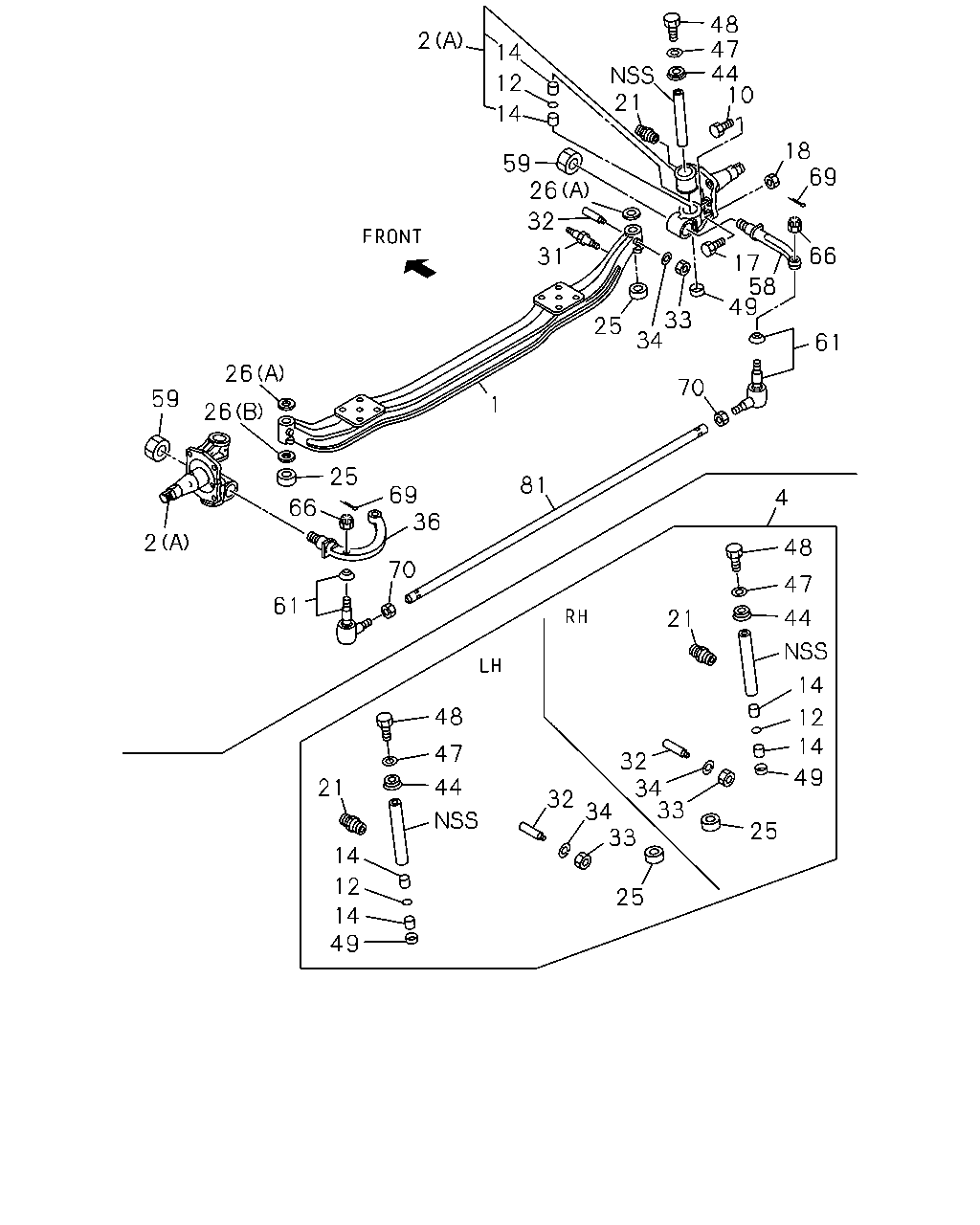

4-10 — FRONT AXLE (#42062) — 87 parça

48 47 44 10 2 14 21 12 14 18 69 59 26 32 66 31 17 58 49 33 34 25 61 26 70 59 1 26 25 81 69 36 4 66 2 48 70 47 61 21 44 14 48 12 14 47 32 34 33 49 21 44 32 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.008 AXLE; FRT	8-97137-585-2	01	1	0302-	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97320-368-1	01	1	0302-0606			●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97350-240-3	01	1	0607-			●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97320-367-1	01	1	0302-0606			●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97350-239-2	01	1	0607-			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97320-366-1	01	1	0302-0606			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97350-242-3	01	1	0607-			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97320-365-1	01	1	0302-0606			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97350-241-2	01	1	0607-			●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-550-1	01	1	0302-	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-549-1	01	1	0302-	●	●
4	06.203 KING PIN KIT	5-87831-608-2	01	1	0302-0506	●	●
4	06.203 KING PIN KIT	5-87832-183-2	01	1	0507-0610	●	●
4	06.203 KING PIN KIT	5-87832-209-0	01	1	0611-0707	●	●
4	06.203 KING PIN KIT	5-87832-220-0	01	1	0708-	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	0302-0610	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0611-	●	●
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	0302-0707	●	●
12	06.021 GASKET; KNUCKLE	8-98084-500-0	02	1	0708-	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-3	04	1	0302-	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	0302-	●	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0302-0611	●	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	8-97360-059-0	03	1	0612-	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	0302-0512	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 04.439 M12	0-91111-512-0	03	1	0601-	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	0302-0607	●	●
21	06.166 NIPPLE; GREASE,KING PIN 05.601 M6 STRAIGHT	0-90301-406-0	04	1	0608-	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-2	01	1	0302-	●	●
25	06.210 BEARING; THRUST,KING PIN	8-97141-943-0	01	1	0302-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.50	8-94162-574-0	AR	1	0302-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.55	8-94162-575-0	AR	1	0302-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.60	8-94162-576-0	AR	1	0302-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.65	8-94162-577-0	AR	1	0302-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.70	8-94174-352-0	AR	1	0302-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.80	8-94174-354-0	AR	1	0302-	●	●
26	06.022 SHIM; KING PIN,BRG (A) T=0.90	8-94174-356-0	AR	1	0302-	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 (B) T=1.95	8-94168-490-0	01	1	0302-	●	●
31	07.347 PIN; S/ABS,LWR	8-97141-944-0	02	1	0302-	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	0302-	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	0302-0512	●	●
33	06.216 NUT; KEY BOLT 00.833 M10	0-91110-510-0	02	1	0601-	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	0302-0603	●	●
34	06.216 WASHER; LK,KEY BOLT 06.606 ID=10.2	0-91510-510-0	02	1	0604-	●	●
36	06.103 ARM; KNUCKLE	8-97168-291-3	01	1	0302-	●	●
44	06.225 COVER; KING PIN OD=36	8-94248-675-1	02	1	0302-0611	●	●
44	06.225 COVER; KING PIN OD=36	8-97360-023-0	02	1	0612-	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	0302-0402	●	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	0302-0402	●	●
48	06.225 BOLT; COVER 04.640 M10X12 FLANGE	0-28081-012-0	02	1	0403-0512	●	●
48	06.225 BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0601-	●	●
49	06.225 CAP; KNUCKLE	8-97261-587-0	02	1	0302-0611	●	●
49	06.225 CAP; KNUCKLE	8-97360-024-0	02	1	0612-	●	●
58	06.103 ARM; TIE ROD	8-97168-292-0	01	1	0302-	●	●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	0302-0611	●	●
59	06.104 NUT; TIE ROD ARM	8-97360-123-0	02	1	0612-	●	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0302-	●	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0302-	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	0302-0605	●	●
66	06.234 NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0606-	●	●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	0302-0606	●	●
69	06.255 PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0607-	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0302-	●	●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	0302-0512	●	●
70	06.234 NUT; TIE ROD END M20	0-91111-520-0	01	1	0601-0610	●	●
70	06.234 NUT; TIE ROD END M20	8-98043-530-0	01	1	0611-	●	●
81	06.230 ROD; TIE	8-97142-023-0	01	1	0302-	●	●

132 352 129 131 86 2 86 2 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97320-368-1	01	1	0302-0606			●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97350-240-3	01	1	0607-			●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97320-367-1	01	1	0302-0606			●
2	06.020 KNUCKLE; FRT AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97350-239-2	01	1	0607-			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97320-366-1	01	1	0302-0606			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97350-242-3	01	1	0607-			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97320-365-1	01	1	0302-0606			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97350-241-2	01	1	0607-			●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-550-1	01	1	0302-	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-549-1	01	1	0302-	●	●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT	8-97081-578-2	02	1	0302-0606			●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT	8-97354-973-2	02	1	0607-0610			●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT	8-98021-824-0	02	1	0611-0711			●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT	8-98088-329-0	02	1	0712-			●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-592-0	01	1	0302-0606			●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-591-0	01	1	0302-0606			●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-208-3	01	1	0302-0606			●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-207-3	01	1	0302-0606			●
132	07.436 COLLAR; TORSION BAR FRT INDEPENDENT SUSPENSION(6PP)	8-94336-145-0	02	1	0302-0606			●
352	07.436 PLUG; PLATE FRT INDEPENDENT SUSPENSION(6PP)	8-97325-053-0	02	1	0302-0606			●
354	06.234 NUT; TORSION BAR,HEIGHT CONT M24	0-91111-524-0	02	1	0607-			●
