3-60 — BRAKE PIPING; VACUUM (#42060) — 157 parça

201 184 200 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-3	01	1	0302-	●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0302-	●	●	●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	0302-	●	●	●
201	04.686 SCREW; BRKT 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0302-0604	●	●	●
201	04.686 SCREW; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-	●	●	●
202	04.686 SEAL 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0302-	●	●	●

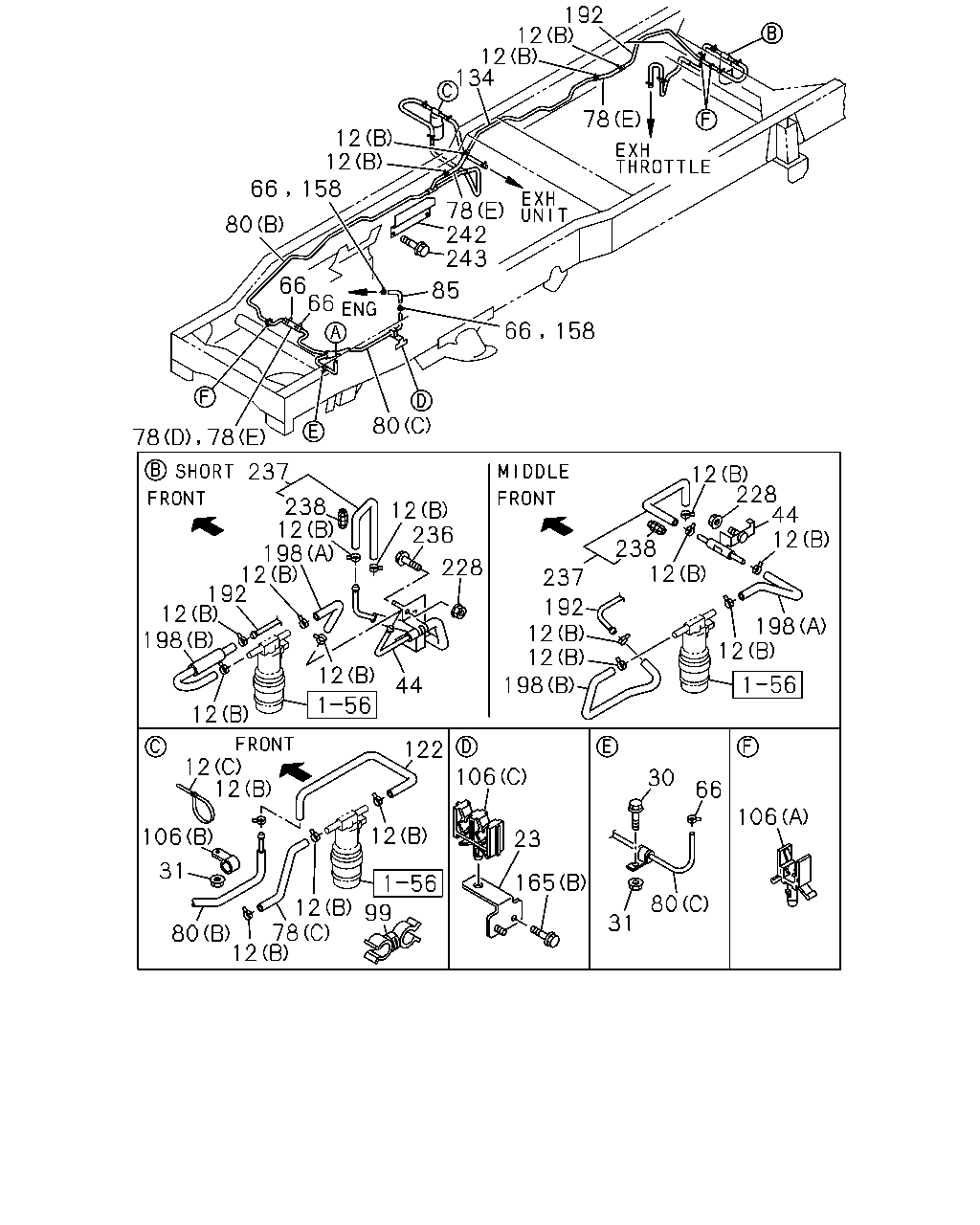

192 12 12 134 78 12 12 158 66 78 242 243 80 66 66 85 66 158 80 237 12 228 44 12 238 12 198 12 192 12 198 12 236 238 12 228 237 192 12 12 198 198 12 12 44 12 12 12 122 106 30 66 106 12 106 23 31 165 80 12 80 78 12 99 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 02.559 (C) L=250	5-09707-030-1	01	1	0607-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0302-	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0302-0606	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0607-0705	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	12	1	0706-0711	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0712-	●	●	●
23	04.686 BRACKET; VAC PIPE	8-98000-460-1	01	1	0607-		●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0302-0512	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
44	04.930 PIPE; VAC,MAG VLV	8-98000-455-2	01	1	0607-	●	●
44	04.930 PIPE; VAC,MAG VLV	8-98019-530-1	01	1	0607-			●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0302-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0302-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0606	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0606	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (B) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0606		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0607-0712		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98095-815-0	01	1	0801-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0606			●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-137-2	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (A)	8-97325-989-0	01	1	0302-0606	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-136-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-323-2	01	1	0607-		●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (A)	8-97325-988-0	01	1	0302-0606		●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-324-2	01	1	0607-		●	●
85	04.931 HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0302-0606	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-601-2	01	1	0607-	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-966-1	01	1	0607-		●	●
99	04.930 CLIP; VAC HOSE TO VAC HOSE 02.559 ID=16.5 & 16.5	8-94473-320-0	01	1	0609-	●	●	●
106	04.930 CLIP; PIPE 02.343 (B) ID=13 L=20	9-09525-232-0	01	1	0607-0607	●	●	●
106	04.930 CLIP; PIPE (B) ID=13 L=20	0-95235-232-0	01	1	0607-	●	●	●
106	04.930 CLIP; PIPE (A) ID=10 H=40	8-94462-219-0	01	1	0607-	●	●	●
106	04.930 CLIP; PIPE (A) ID=10 H=40	8-94462-219-0	01	1	0607-	●		●
106	04.930 CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0607-		●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0302-0606	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-602-1	01	1	0607-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0302-0606			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-967-0	01	1	0607-		●	●
134	04.685 PIPE; VAC,3 WAY TO HOSE	8-98031-167-1	01	1	0607-	●
134	04.685 PIPE; VAC,3 WAY TO HOSE	8-98036-784-0	01	1	0607-		●	●
158	04.681 CLIP; HOSE 04.930 ID=16	8-94238-568-0	02	1	0607-	●	●	●
165	04.686 BOLT; BRKT 04.439 (A) M6X16 FLANGE	0-28680-616-0	02	1	0302-0512	●	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●
165	04.686 BOLT; BRKT 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0607-		●	●
192	04.685 PIPE; VAC,HOSE TO MAG VLV	8-98000-139-2	01	1	0607-	●
192	04.685 PIPE; VAC,HOSE TO MAG VLV	8-98000-325-2	01	1	0607-		●
192	04.685 PIPE; VAC,HOSE TO MAG VLV	8-98019-526-1	01	1	0607-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (B)	8-97373-197-0	01	1	0607-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (A)	8-97373-199-0	01	1	0607-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (B)	8-98036-849-0	01	1	0607-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV (A)	8-98036-850-0	01	1	0607-			●
228	04.930 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98000-603-0	01	1	0607-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98000-968-0	01	1	0607-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98036-851-0	01	1	0607-			●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0607-	●	●	●
242	04.931 PROTECTOR; HEAT	8-98044-698-0	01	1	0607-	●
243	04.930 BOLT; PROTECTOR 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●

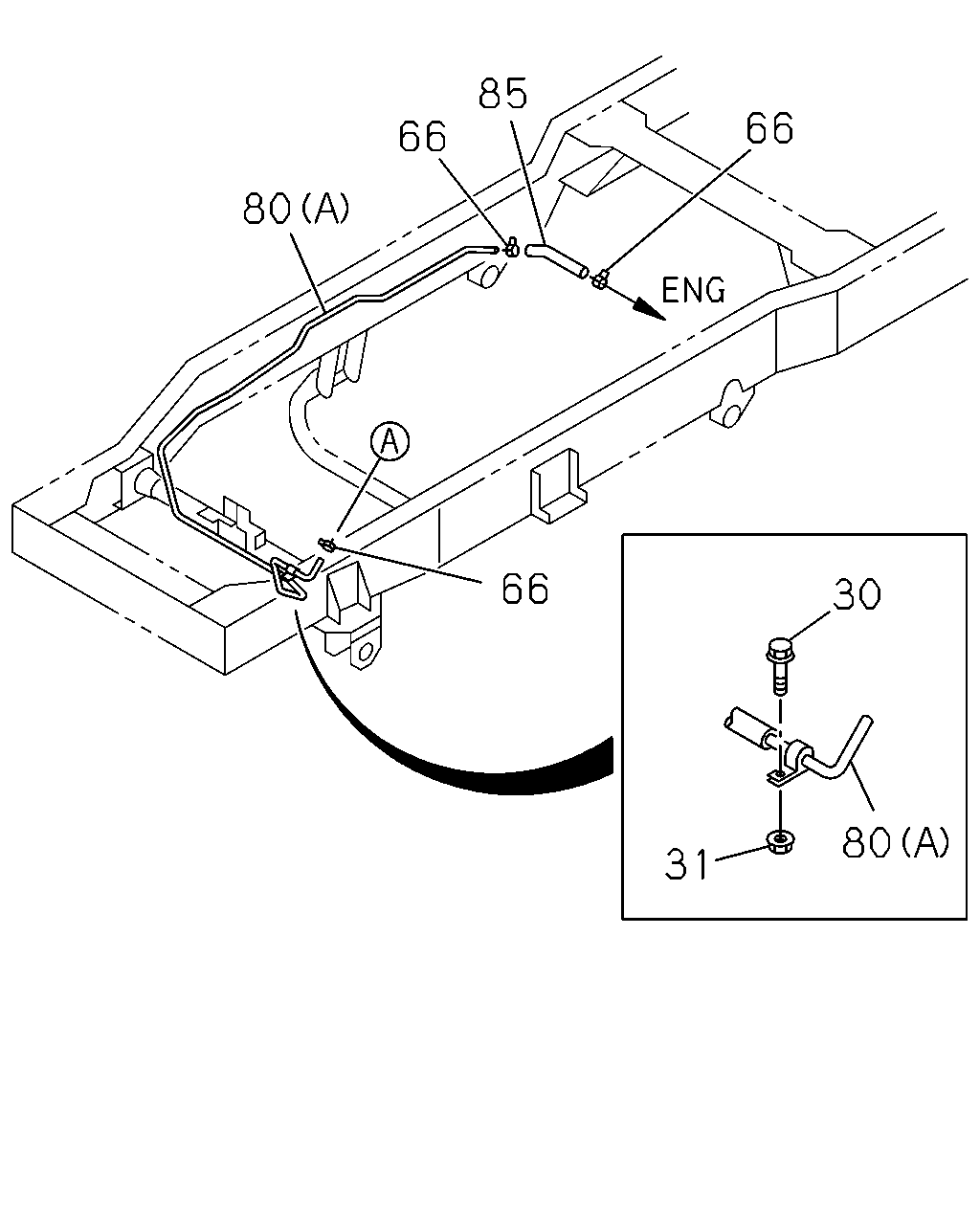

85 66 66 80 66 30 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0302-0512	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0302-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0302-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0607-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-137-2	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (A)	8-97325-989-0	01	1	0302-0606	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-136-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-323-2	01	1	0607-		●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (A)	8-97325-988-0	01	1	0302-0606		●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-324-2	01	1	0607-		●	●
85	04.931 HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0302-0606	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-601-2	01	1	0607-	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-966-1	01	1	0607-		●	●

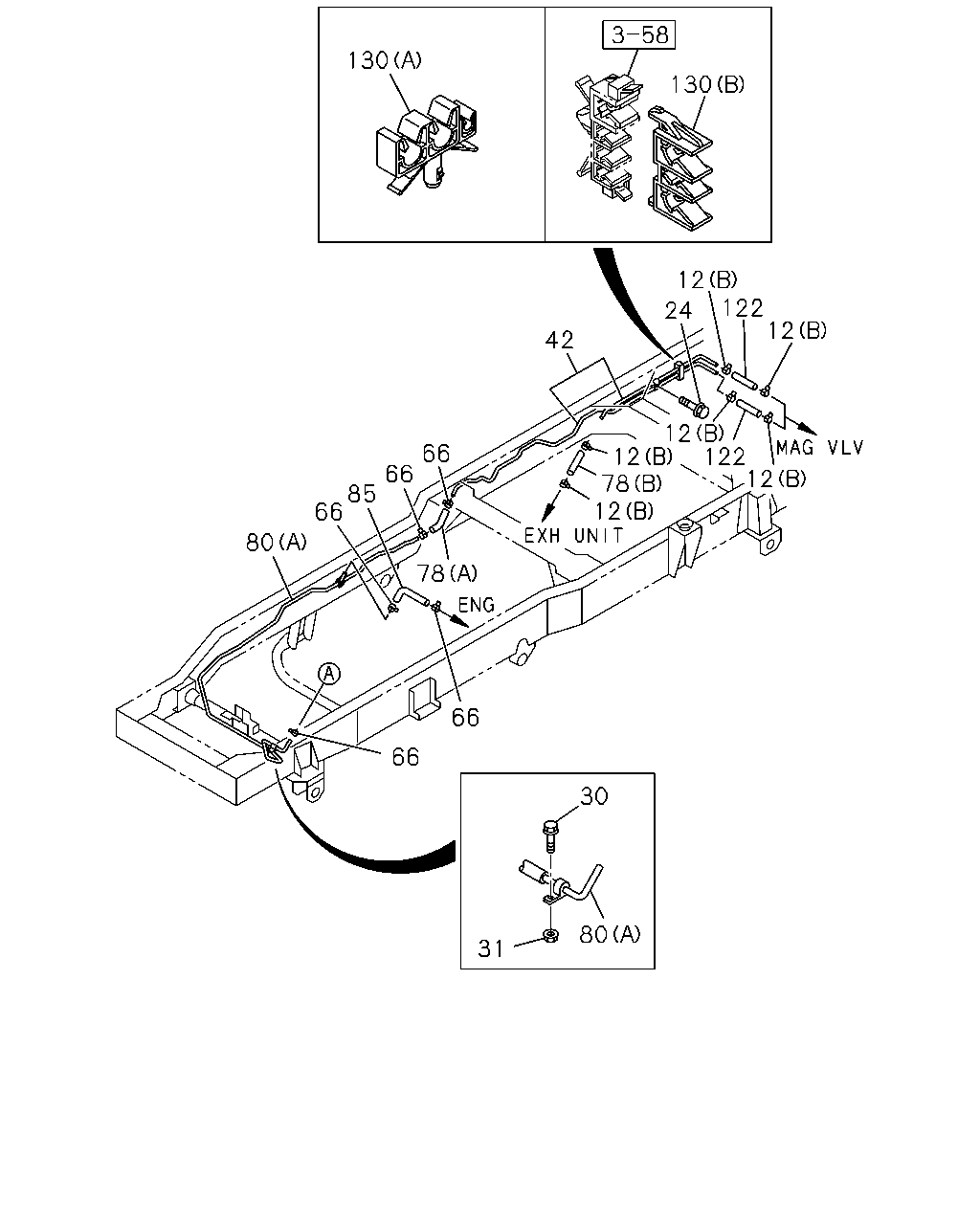

130 130 12 122 12 24 42 12 12 122 12 78 12 66 66 85 66 80 78 66 66 30 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 02.559 (C) L=250	5-09707-030-1	01	1	0607-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0302-	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0302-0606	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0607-0705	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	12	1	0706-0711	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0712-	●	●	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0512		●	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606		●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0302-0512	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	8-97325-995-1	01	1	0302-0606	●
42	04.685 PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	8-97325-999-1	01	1	0302-0606		●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0302-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0302-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0606	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0606	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (B) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0606		●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0607-0712		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE (D)	8-98095-815-0	01	1	0801-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0606			●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-137-2	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (A)	8-97325-989-0	01	1	0302-0606	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-136-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-323-2	01	1	0607-		●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (A)	8-97325-988-0	01	1	0302-0606		●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-324-2	01	1	0607-		●	●
85	04.931 HOSE; VAC,ENG SIDE L=130	8-94438-246-0	01	1	0302-0606	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-601-2	01	1	0607-	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-966-1	01	1	0607-		●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0302-0606	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-602-1	01	1	0607-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0302-0606			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-967-0	01	1	0607-		●	●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (A) ID=10X2 & 4.76	8-97170-259-0	02	1	0302-0606	●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0606		●	●

116 12 203 12 12 13 39 39 184 39 39 165 39 175 162 173 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 02.559 (C) L=250	5-09707-030-1	01	1	0607-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0302-	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0302-0606	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0607-0705	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	12	1	0706-0711	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0712-	●	●	●
13	04.681 JOINT; HOSE,VAC 04.686 3WAY	8-94441-184-0	01	1	0302-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	0302-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	0302-	●	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0302-	●	●	●
116	04.931 HOSE; VAC,M/VAC	8-97314-597-1	01	1	0302-	●	●	●
162	04.931 HOSE; VAC	8-97102-999-0	01	1	0302-	●
162	04.931 HOSE; VAC	8-97078-785-0	01	1	0302-		●	●
165	04.686 BOLT; BRKT 04.439 (A) M6X16 FLANGE	0-28680-616-0	02	1	0302-0512	●	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●
165	04.686 BOLT; BRKT 00.685 (B) M6X25 FLANGE	0-28650-625-0	01	1	0607-		●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	0302-	●	●	●
175	04.930 CLIP; BAND,VAC HOSE 02.559 L=219.5	1-09987-136-0	01	1	0302-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-3	01	1	0302-	●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	0302-	●	●	●
203	04.690 VALVE; CHECK	8-94386-540-0	01	1	0302-	●	●	●
