Sayfa 0-50A - Isuzu EPC

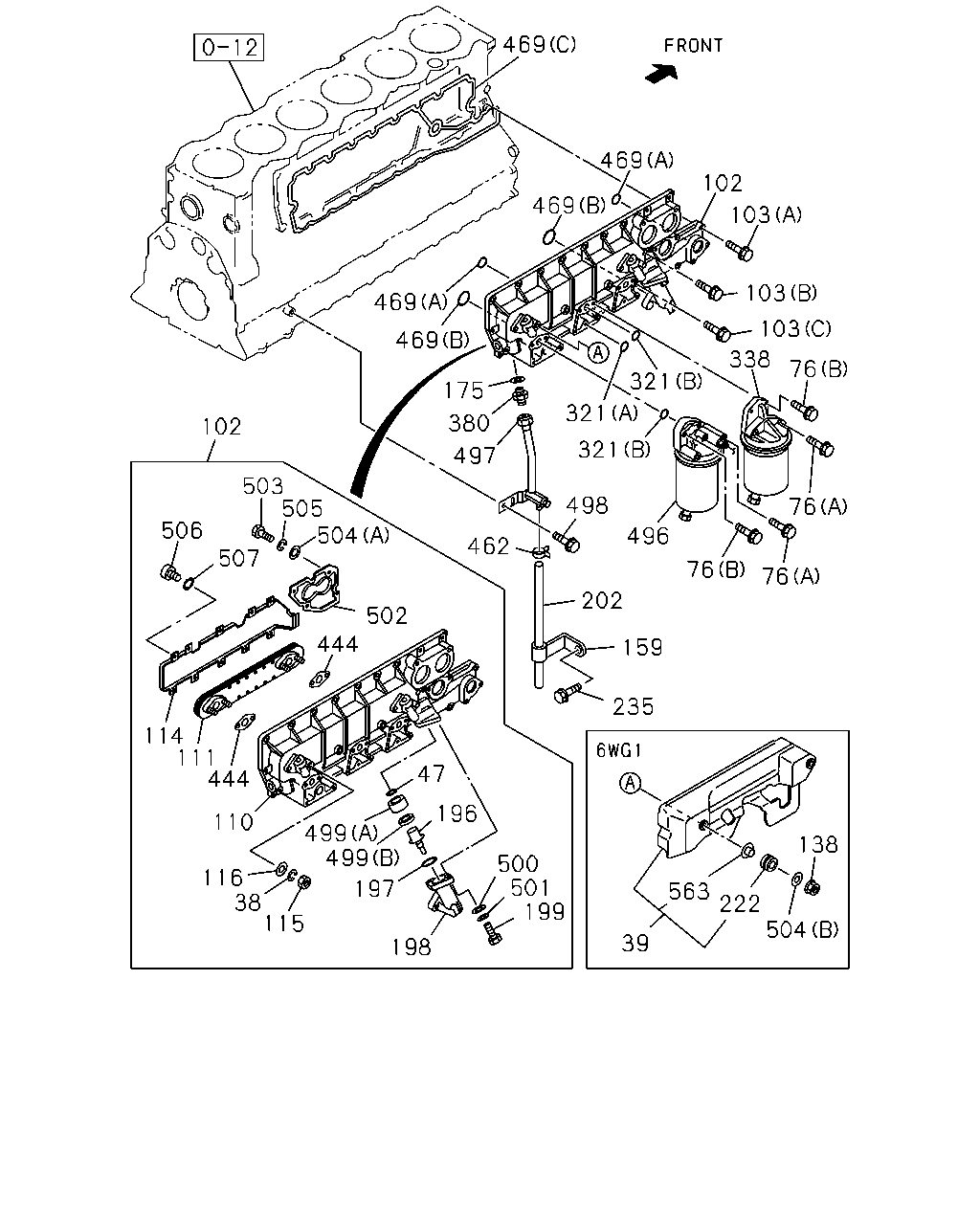

0-50A — OIL COOLER AND OIL FILTER (#4206) — 342 parça

469 469 102 469 103 103 469 103 469 338 76 321 175 321 380 102 321 497 503 505 504 498 76 506 496 462 507 76 76 202 502 444 159 235 114 111 444 47 196 110 499 499 138 500 501 199 116 38 115 197 563 222 504 39 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
38	WASHER; LK,OIL COOLER ID=10.2	9-09150-510-0	04	1	9603-9901	●
38	WASHER; LK,OIL COOLER ID=10.2	9-09150-510-0	04	1	9902-9904		●	●
38	WASHER; LK,OIL COOLER ID=10.2	9-09150-510-0	04	1	9905-9907		●	●	●	●
39	COVER; OIL COOLER FRAME ENG MTG SEPARATE TYPE<SGM>	1-19380-151-0	01	1	9905-9909					●
39	COVER; OIL COOLER FRAME ENG MTG SEPARATE TYPE<SGM>	1-19380-151-1	01	1	9910-					●	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	9902-9904		●	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	9905-9909		●	●	●	●
47	RING; SEAL,THERMO VLV	1-21779-001-0	01	1	9910-		●	●	●	●	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	9603-9901	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	9902-9904		●	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	9905-9909		●	●	●	●
76	BOLT; OIL FILTER (B) M10X50 FLANGE	0-28181-050-0	04	1	9910-		●	●	●	●	●
76	BOLT; OIL FILTER (A) M10X95 FLANGE	8-94397-027-1	04	1	9603-9901	●
76	BOLT; OIL FILTER (A) M10X95 FLANGE	8-94397-027-1	04	1	9902-9904		●	●
76	BOLT; OIL FILTER (A) M10X95 FLANGE	8-94397-027-1	04	1	9905-		●	●	●
76	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	04	1	9905-9909					●
76	BOLT; OIL FILTER (A) M10X90 FLANGE	0-28181-090-0	04	1	9910-					●	●
102	COOLER ASM; OIL	1-21700-307-0	01	1	9603-9703	●
102	COOLER ASM; OIL	1-21700-319-0	01	1	9703-9901	●
102	COOLER ASM; OIL	1-21700-337-0	01	1	9902-9904		●	●
102	COOLER ASM; OIL	1-21700-337-1	01	1	9905-9909		●	●	●
102	COOLER ASM; OIL	1-21700-337-2	01	1	9910-		●	●	●		●
102	COOLER ASM; OIL	1-21700-353-2	01	1	9905-					●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	9603-9901	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	9902-9904		●	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	9905-9909		●	●	●	●
103	BOLT; OIL COOLER (A) M10X30 FLANGE	0-28181-030-0	17	1	9910-		●	●	●	●	●
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	9603-9901	●
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	9902-9904		●	●
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	9905-9909		●	●	●	●
103	BOLT; OIL COOLER (B) M10X65 FLANGE	8-94344-540-1	08	1	9910-		●	●	●	●	●
103	BOLT; OIL COOLER (C) M10X107 FLANGE	8-94399-488-1	01	1	9603-9604	●
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	9605-9901	●
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	9902-9904		●	●
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	9905-9909		●	●	●	●
103	BOLT; OIL COOLER (C) M10X110 FLANGE	0-28186-011-0	01	1	9910-		●	●	●	●	●
110	BODY; CASE,OIL COOLER	1-21721-089-0	01	1	9603-9703	●
110	BODY; CASE,OIL COOLER	1-21721-092-0	01	1	9703-9901	●
110	BODY; CASE,OIL COOLER	1-21721-092-0	01	1	9902-9904		●	●
110	BODY; CASE,OIL COOLER	1-21721-092-1	01	1	9905-9909		●	●	●	●
110	BODY; CASE,OIL COOLER	1-21721-092-2	01	1	9910-		●	●	●	●	●
111	CORE; OIL COOLER	1-21723-047-0	01	1	9603-9901	●
111	CORE; OIL COOLER	1-21723-053-0	01	1	9902-9904		●	●
111	CORE; OIL COOLER	1-21723-053-1	01	1	9905-9909		●	●	●	●
111	CORE; OIL COOLER	1-21723-053-1	01	1	9910-		●	●	●	●	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	9603-9901	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	9902-9904		●	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	9905-9909		●	●	●	●
114	PLATE; BAFFLE,OIL COOLER	1-21729-086-1	01	1	9910-		●	●	●	●	●
115	NUT; ELEMENT M10	9-09120-410-0	04	1	9603-9901	●
115	NUT; ELEMENT M10	9-09120-410-0	04	1	9902-9904		●	●
115	NUT; ELEMENT M10	9-09120-410-0	04	1	9905-9907		●	●	●	●
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	9908-9909		●	●	●	●
115	NUT; ELEMENT M10 FLANGE	0-91150-110-0	04	1	9910-		●	●	●	●	●
116	WASHER; PL,ELEMENT ID=10.5 OD=22	9-09160-610-0	04	1	9603-9901	●
116	WASHER; PL,ELEMENT ID=10.5 OD=22	9-09160-610-0	04	1	9902-9904		●	●
116	WASHER; PL,ELEMENT ID=10.5 OD=22	9-09160-610-0	04	1	9905-9907		●	●	●	●
138	NUT FRAME ENG MTG SEPARATE TYPE<SGM> M10 FLANGE	0-91150-110-0	02	1	9905-9909					●
138	NUT FRAME ENG MTG SEPARATE TYPE<SGM> M10 FLANGE	0-91150-110-0	02	1	9910-					●	●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	9603-9901	●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	9902-9904		●	●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	9905-9909		●	●	●	●
159	CLIP; CABLE HARNESS,OIL COOLER L=20 H=31	1-09700-770-0	01	1	9910-		●	●	●	●	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	9603-9901	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	9902-9904		●	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	9905-9909		●	●	●	●
175	GASKET; DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4	1-09630-087-0	01	1	9910-		●	●	●	●	●
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	9603-9901	●
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	9902-9904		●	●
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	9905-9909		●	●	●
196	THERMOSTAT; OIL COOLER	1-21770-004-0	01	1	9910-		●	●	●		●
196	THERMOSTAT; OIL COOLER	1-21770-010-0	01	1	9905-					●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	9603-9901	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	9902-9904		●	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	9905-9909		●	●	●	●
197	GASKET; THERMOSTAT	1-09623-419-0	01	1	9910-		●	●	●	●	●
198	JOINT; THERMOSTAT	1-21726-054-0	01	1	9603-9901	●
198	JOINT; THERMOSTAT	1-21726-054-0	01	1	9902-9904		●	●
198	JOINT; THERMOSTAT	1-21726-054-0	01	1	9905-9907		●	●	●	●
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	9908-9909		●	●	●	●
198	JOINT; THERMOSTAT	1-21726-053-2	01	1	9910-		●	●	●	●	●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	9603-9901	●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	9902-9904		●	●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	9905-9909		●	●	●	●
199	BOLT; JOINT,THERMOSTAT M10X35	0-20801-035-0	02	1	9910-		●	●	●	●	●
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9603-9901	●
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9902-9904		●	●
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9905-9909		●	●	●	●
202	HOSE; WATER,WATER DRAIN L=310 SERVICED BY L=3000	0-03259-300-0	01	1	9910-		●	●	●	●	●
222	RUBBER; MTG,OIL COOLER FRAME ENG MTG SEPARATE TYPE<SGM>	1-09337-020-0	02	1	9905-9909					●
222	RUBBER; MTG,OIL COOLER FRAME ENG MTG SEPARATE TYPE<SGM>	1-09337-020-0	02	1	9910-					●	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	9603-9901	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	9902-9904		●	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	9905-9909		●	●	●	●
235	BOLT; CLIP TO OIL COOLER M10X20 FLANGE	0-28181-020-0	01	1	9910-		●	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	9603-9901	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	9902-9904		●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	9905-9909		●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	01	1	9910-		●	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	9603-9901	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	9902-9904		●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	9905-9909		●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	03	1	9910-		●	●	●	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9603-9901	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9902-9904		●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9905-9909		●	●	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9910-		●	●	●	●	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	9603-9901	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	9902-9904		●	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	9905-9909		●	●	●	●
380	CONNECTOR; WATER	1-09660-011-1	01	1	9910-		●	●	●	●	●
444	GASKET; ELEMENT TO BODY OIL COOLER	1-21729-093-1	02	1	9603-9901	●
444	GASKET; ELEMENT TO BODY OIL COOLER	1-21729-093-1	02	1	9902-9904		●	●
444	GASKET; ELEMENT TO BODY OIL COOLER	1-21729-093-1	02	1	9905-9909		●	●	●	●
444	GASKET; ELEMENT TO BODY OIL COOLER	1-21729-093-1	02	1	9910-		●	●	●	●	●
462	CLIP; HOSE,DRAIN ID=14	5-09707-004-1	01	1	9603-9901	●
462	CLIP; HOSE,DRAIN ID=14	5-09707-004-1	01	1	9902-9904		●	●
462	CLIP; HOSE,DRAIN ID=14	5-09707-004-1	01	1	9905-9909		●	●	●	●
462	CLIP; HOSE,DRAIN ID=14	5-09707-004-1	01	1	9910-		●	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	9603-9901	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	9902-9904		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	9905-9909		●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8	1-09623-478-0	02	1	9910-		●	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	9603-9901	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	9902-9904		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	9905-9909		●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2	1-09623-479-0	02	1	9910-		●	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-180-0	01	1	9703-9709	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	9710-9901	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	9902-9904		●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	9905-9909		●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C)	1-11219-186-0	01	1	9910-		●	●	●	●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9603-9901	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9902-9904		●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9905-9909		●	●	●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9910-		●	●	●	●	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	9603-9901	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	9902-9904		●	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	9905-9909		●	●	●	●
497	PIPE; WATER DRAIN W/COCK	1-13721-496-3	01	1	9910-		●	●	●	●	●
498	BOLT; WATER PIPE M10X18 FLANGE	0-28181-018-0	01	1	9603-9604	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	9605-9901	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	9902-9904		●	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	9905-9909		●	●	●	●
498	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	01	1	9910-		●	●	●	●	●
499	SUPPORT; THERMOSTAT (A)	1-21720-011-0	01	1	9603-9901	●
499	SUPPORT; THERMOSTAT (A)	1-21729-101-0	01	1	9902-9904		●	●
499	SUPPORT; THERMOSTAT (A)	1-21729-101-0	01	1	9905-9907		●	●	●	●
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	9908-9909		●	●	●	●
499	SUPPORT; THERMOSTAT (A)	1-21729-085-4	01	1	9910-		●	●	●	●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-102-0	01	1	9902-9904		●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-102-0	01	1	9905-9907		●	●	●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	9908-9909		●	●	●	●
499	SUPPORT; THERMOSTAT (B)	1-21729-094-1	01	1	9910-		●	●	●	●	●
500	WASHER; PL,JOINT OIL COOLER ID=10.5 OD=22	9-09160-610-0	02	1	9603-9901	●
500	WASHER; PL,JOINT OIL COOLER ID=10.5 OD=22	9-09160-610-0	02	1	9902-9904		●	●
500	WASHER; PL,JOINT OIL COOLER ID=10.5 OD=22	9-09160-610-0	02	1	9905-9909		●	●	●	●
500	WASHER; PL,JOINT OIL COOLER ID=10.5 OD=22	9-09160-610-0	02	1	9910-		●	●	●	●	●
501	WASHER; LK,JOINT OIL COOLER ID=10.2	9-09150-510-0	02	1	9603-9901	●
501	WASHER; LK,JOINT OIL COOLER ID=10.2	9-09150-510-0	02	1	9902-9904		●	●
501	WASHER; LK,JOINT OIL COOLER ID=10.2	9-09150-510-0	02	1	9905-9909		●	●	●	●
501	WASHER; LK,JOINT OIL COOLER ID=10.2	9-09150-510-0	02	1	9910-		●	●	●	●	●
502	COVER; THERMOSTAT OIL COOLER	1-21722-032-0	01	1	9603-9702	●
502	COVER; THERMOSTAT OIL COOLER	1-21722-041-0	01	1	9703-9901	●
502	COVER; THERMOSTAT OIL COOLER	1-21722-041-0	01	1	9902-9904		●	●
502	COVER; THERMOSTAT OIL COOLER	1-21722-041-0	01	1	9905-9909		●	●	●	●
502	COVER; THERMOSTAT OIL COOLER	1-21722-041-0	01	1	9910-		●	●	●	●	●
503	BOLT; COVER OIL COOLER	1-21729-089-0	04	1	9603-9901	●
503	BOLT; COVER OIL COOLER	1-21729-089-0	04	1	9902-9904		●	●
503	BOLT; COVER OIL COOLER	1-21729-089-0	04	1	9905-9909		●	●	●	●
503	BOLT; COVER OIL COOLER	1-21729-089-0	04	1	9910-		●	●	●	●	●
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	9603-9901	●
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	9902-9904		●	●
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	9905-9909		●	●	●	●
504	WASHER; PL,COVER (A)	1-21729-090-0	04	1	9910-		●	●	●	●	●
504	WASHER; PL,COVER FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9905-9909					●
504	WASHER; PL,COVER FRAME ENG MTG SEPARATE TYPE<SGM> (B) ID=10.5 OD=26	9-09160-710-0	02	1	9910-					●	●
505	WASHER; LK,COVER OIL COOLER	1-21729-091-0	04	1	9603-9901	●
505	WASHER; LK,COVER OIL COOLER	1-21729-091-0	04	1	9902-9904		●	●
505	WASHER; LK,COVER OIL COOLER	1-21729-091-0	04	1	9905-9907		●	●	●	●
506	SCREW; BAFFLE OIL COOLER M6X10	9-03486-608-0	10	1	9603-9901	●
506	SCREW; BAFFLE OIL COOLER M6X10	9-03486-608-0	10	1	9902-9904		●	●
506	SCREW; BAFFLE OIL COOLER M6X10	9-03486-608-0	10	1	9905-9909		●	●	●	●
506	SCREW; BAFFLE OIL COOLER M6X10	9-03486-608-0	10	1	9910-		●	●	●	●	●
507	WASHER; LK,BAFFLE OIL COOLER	1-21729-092-0	10	1	9603-9901	●
507	WASHER; LK,BAFFLE OIL COOLER	1-21729-092-0	10	1	9902-9904		●	●
507	WASHER; LK,BAFFLE OIL COOLER	1-21729-092-0	10	1	9905-9909		●	●	●	●
507	WASHER; LK,BAFFLE OIL COOLER	1-21729-092-0	10	1	9910-		●	●	●	●	●
563	TUBE; DISTANCE FRAME ENG MTG SEPARATE TYPE<SGM>	1-19389-134-1	02	1	9905-9909					●
563	TUBE; DISTANCE FRAME ENG MTG SEPARATE TYPE<SGM>	1-19389-134-1	02	1	9910-					●	●

338 390 2 282 282 269 292 390 290 287 290 132 287 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9603-9901	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9902-9904		●	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9905-9905		●	●	●	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9905-9909		●	●	●	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9910-		●	●	●	●	●
2	ELEMENT; OIL FILTER (B) TSUCHIYA	1-13240-166-0	01	1	9603-9707	●
2	ELEMENT; OIL FILTER (B) TSUCHIYA	1-13240-200-0	01	1	9708-9901	●
2	ELEMENT; OIL FILTER (B) TSUCHIYA	1-13240-200-0	01	1	9902-9904		●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9905-9909		●	●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9910-		●	●	●	●	●
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	9603-9901	●
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	9902-9904		●	●
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	9905-9909		●	●	●	●
132	PLUG; PARTIAL OIL FILTER	1-13219-272-0	01	1	9910-		●	●	●	●	●
269	WASHER; ELEMENT,OIL FILTER PARTIAL	1-13234-005-0	01	1	9603-9901	●
269	WASHER; ELEMENT,OIL FILTER PARTIAL	1-13234-005-0	01	1	9902-9904		●	●
269	WASHER; ELEMENT,OIL FILTER PARTIAL	1-13234-005-0	01	1	9905-9909		●	●	●	●
269	WASHER; ELEMENT,OIL FILTER PARTIAL	1-13234-005-0	01	1	9910-		●	●	●	●	●
282	GASKET; BODY TO CASE (A) MAIN	1-09623-548-0	01	1	9603-9901	●
282	GASKET; BODY TO CASE (A) MAIN	1-09623-548-0	01	1	9902-9904		●	●
282	GASKET; BODY TO CASE (A) MAIN	1-09623-548-0	01	1	9905-9909		●	●	●	●
282	GASKET; BODY TO CASE (A) MAIN	1-09623-548-0	01	1	9910-		●	●	●	●	●
282	GASKET; BODY TO CASE (B) PARTIAL	1-09623-552-0	01	1	9603-9901	●
282	GASKET; BODY TO CASE (B) PARTIAL	1-09623-552-0	01	1	9902-9904		●	●
282	GASKET; BODY TO CASE (B) PARTIAL	1-09623-552-0	01	1	9905-9909		●	●	●	●
282	GASKET; BODY TO CASE (B) PARTIAL	1-09623-552-0	01	1	9910-		●	●	●	●	●
284	BOLT; CENTER,OIL FILTER (A) MAIN	1-13219-281-1	01	1	9603-9901	●
284	BOLT; CENTER,OIL FILTER (A) MAIN	1-13219-281-1	01	1	9902-9904		●	●
284	BOLT; CENTER,OIL FILTER (A) MAIN	1-13219-281-1	01	1	9905-9909		●	●	●	●
284	BOLT; CENTER,OIL FILTER (A) MAIN	1-13219-281-1	01	1	9910-		●	●	●	●	●
284	BOLT; CENTER,OIL FILTER (B) PARTIAL	1-13231-075-0	01	1	9603-9901	●
284	BOLT; CENTER,OIL FILTER (B) PARTIAL	1-13231-075-0	01	1	9902-9904		●	●
284	BOLT; CENTER,OIL FILTER (B) PARTIAL	1-13231-075-0	01	1	9905-9909		●	●	●	●
284	BOLT; CENTER,OIL FILTER (B) PARTIAL	1-13231-075-0	01	1	9910-		●	●	●	●	●
287	GASKET; CENTER BOLT (A) MAIN	1-09623-549-0	01	1	9603-9901	●
287	GASKET; CENTER BOLT (A) MAIN	1-09623-549-0	01	1	9902-9904		●	●
287	GASKET; CENTER BOLT (A) MAIN	1-09623-549-0	01	1	9905-9909		●	●	●	●
287	GASKET; CENTER BOLT (A) MAIN	1-09623-549-0	01	1	9910-		●	●	●	●	●
287	GASKET; CENTER BOLT (B) PARTIAL	1-09623-551-0	01	1	9603-9901	●
287	GASKET; CENTER BOLT (B) PARTIAL	1-09623-551-0	01	1	9902-9904		●	●
287	GASKET; CENTER BOLT (B) PARTIAL	1-09623-551-0	01	1	9905-9909		●	●	●	●
287	GASKET; CENTER BOLT (B) PARTIAL	1-09623-551-0	01	1	9910-		●	●	●	●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9603-9901	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9902-9904		●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9905-9909		●	●	●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9910-		●	●	●	●	●
292	SPRING; ELEMENT (A) MAIN	1-09580-387-0	01	1	9603-9901	●
292	SPRING; ELEMENT (A) MAIN	1-09580-387-0	01	1	9902-9904		●	●
292	SPRING; ELEMENT (A) MAIN	1-09580-387-0	01	1	9905-9909		●	●	●	●
292	SPRING; ELEMENT (A) MAIN	1-09580-387-0	01	1	9910-		●	●	●	●	●
292	SPRING; ELEMENT (B) PARTIAL	1-09580-484-0	01	1	9603-9901	●
292	SPRING; ELEMENT (B) PARTIAL	1-09580-484-0	01	1	9902-9904		●	●
292	SPRING; ELEMENT (B) PARTIAL	1-09580-484-0	01	1	9905-9909		●	●	●	●
292	SPRING; ELEMENT (B) PARTIAL	1-09580-484-0	01	1	9910-		●	●	●	●	●
292	SPRING; ELEMENT (C) MAIN	1-13263-007-0	01	1	9603-9901	●
292	SPRING; ELEMENT (A) MAIN	1-13263-007-0	01	1	9902-9904		●	●
292	SPRING; ELEMENT (A) MAIN	1-13263-007-0	01	1	9905-9909		●	●	●	●
292	SPRING; ELEMENT (A) MAIN	1-13263-007-0	01	1	9910-		●	●	●	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9603-9901	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9902-9904		●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9905-9909		●	●	●	●
338	FILTER ASM; OIL PARTIAL	1-13200-863-4	01	1	9910-		●	●	●	●	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	9603-9901	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	9902-9904		●	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	9905-9909		●	●	●	●
390	BODY; OIL FILTER,PARTIAL (A)	1-13211-217-1	01	1	9910-		●	●	●	●	●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	9603-9901	●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	9902-9904		●	●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	9905-9909		●	●	●	●
390	BODY; OIL FILTER,PARTIAL (B)	1-13211-218-1	01	1	9910-		●	●	●	●	●

496 265 2 71 292 282 509 508 282 292 280 281 290 287 288 290 287 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9603-9901	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9902-9904		●	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9905-9905		●	●	●	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9905-9909		●	●	●	●
2	ELEMENT; OIL FILTER (A) TSUCHIYA	1-13240-165-0	01	1	9910-		●	●	●	●	●
2	ELEMENT; OIL FILTER (B) TSUCHIYA	1-13240-166-0	01	1	9603-9707	●
2	ELEMENT; OIL FILTER (B) TSUCHIYA	1-13240-200-0	01	1	9708-9901	●
2	ELEMENT; OIL FILTER (B) TSUCHIYA	1-13240-200-0	01	1	9902-9904		●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9905-9909		●	●	●	●
2	ELEMENT; OIL FILTER (B) PARTIAL TSUCHIYA	1-13240-200-0	01	1	9910-		●	●	●	●	●
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	9603-9901	●
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	9902-9904		●	●
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	9905-9909		●	●	●	●
71	VALVE ASM; RELIEF,OIL FILTER	1-13262-005-0	01	1	9910-		●	●	●	●	●
265	BODY; OIL FILTER MAIN	1-13211-216-1	01	1	9603-9901	●
265	BODY; OIL FILTER MAIN	1-13211-216-1	01	1	9902-9904		●	●
265	BODY; OIL FILTER MAIN	1-13211-216-1	01	1	9905-9909		●	●	●	●
265	BODY; OIL FILTER MAIN	1-13211-216-1	01	1	9910-		●	●	●	●	●
280	CASE ASM; OIL FILTER MAIN	1-13210-038-2	01	1	9603-9901	●
280	CASE ASM; OIL FILTER MAIN	1-13210-038-2	01	1	9902-9904		●	●
280	CASE ASM; OIL FILTER MAIN	1-13210-038-2	01	1	9905-9909		●	●	●	●
280	CASE ASM; OIL FILTER MAIN	1-13210-038-2	01	1	9910-		●	●	●	●	●
281	COVER; OIL FILTER MAIN	1-13211-206-1	01	1	9603-9901	●
281	COVER; OIL FILTER MAIN	1-13211-206-1	01	1	9902-9904		●	●
281	COVER; OIL FILTER MAIN	1-13211-206-1	01	1	9905-9909		●	●	●	●
281	COVER; OIL FILTER MAIN	1-13211-206-1	01	1	9910-		●	●	●	●	●
282	GASKET; BODY TO CASE (A) MAIN	1-09623-548-0	01	1	9603-9901	●
282	GASKET; BODY TO CASE (A) MAIN	1-09623-548-0	01	1	9902-9904		●	●
282	GASKET; BODY TO CASE (A) MAIN	1-09623-548-0	01	1	9905-9909		●	●	●	●
282	GASKET; BODY TO CASE (A) MAIN	1-09623-548-0	01	1	9910-		●	●	●	●	●
282	GASKET; BODY TO CASE (B) PARTIAL	1-09623-552-0	01	1	9603-9901	●
282	GASKET; BODY TO CASE (B) PARTIAL	1-09623-552-0	01	1	9902-9904		●	●
282	GASKET; BODY TO CASE (B) PARTIAL	1-09623-552-0	01	1	9905-9909		●	●	●	●
282	GASKET; BODY TO CASE (B) PARTIAL	1-09623-552-0	01	1	9910-		●	●	●	●	●
284	BOLT; CENTER,OIL FILTER (A) MAIN	1-13219-281-1	01	1	9603-9901	●
284	BOLT; CENTER,OIL FILTER (A) MAIN	1-13219-281-1	01	1	9902-9904		●	●
284	BOLT; CENTER,OIL FILTER (A) MAIN	1-13219-281-1	01	1	9905-9909		●	●	●	●
284	BOLT; CENTER,OIL FILTER (A) MAIN	1-13219-281-1	01	1	9910-		●	●	●	●	●
284	BOLT; CENTER,OIL FILTER (B) PARTIAL	1-13231-075-0	01	1	9603-9901	●
284	BOLT; CENTER,OIL FILTER (B) PARTIAL	1-13231-075-0	01	1	9902-9904		●	●
284	BOLT; CENTER,OIL FILTER (B) PARTIAL	1-13231-075-0	01	1	9905-9909		●	●	●	●
284	BOLT; CENTER,OIL FILTER (B) PARTIAL	1-13231-075-0	01	1	9910-		●	●	●	●	●
287	GASKET; CENTER BOLT (A) MAIN	1-09623-549-0	01	1	9603-9901	●
287	GASKET; CENTER BOLT (A) MAIN	1-09623-549-0	01	1	9902-9904		●	●
287	GASKET; CENTER BOLT (A) MAIN	1-09623-549-0	01	1	9905-9909		●	●	●	●
287	GASKET; CENTER BOLT (A) MAIN	1-09623-549-0	01	1	9910-		●	●	●	●	●
287	GASKET; CENTER BOLT (B) PARTIAL	1-09623-551-0	01	1	9603-9901	●
287	GASKET; CENTER BOLT (B) PARTIAL	1-09623-551-0	01	1	9902-9904		●	●
287	GASKET; CENTER BOLT (B) PARTIAL	1-09623-551-0	01	1	9905-9909		●	●	●	●
287	GASKET; CENTER BOLT (B) PARTIAL	1-09623-551-0	01	1	9910-		●	●	●	●	●
288	PLUG; OIL DRAIN MAIN	1-13219-272-0	01	1	9603-9901	●
288	PLUG; OIL DRAIN MAIN	1-13219-272-0	01	1	9902-9904		●	●
288	PLUG; OIL DRAIN MAIN	1-13219-272-0	01	1	9905-9909		●	●	●	●
288	PLUG; OIL DRAIN MAIN	1-13219-272-0	01	1	9910-		●	●	●	●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9603-9901	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9902-9904		●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9905-9909		●	●	●	●
290	GASKET; PLUG,OIL DRAIN	1-09623-550-0	02	1	9910-		●	●	●	●	●
292	SPRING; ELEMENT (A) MAIN	1-09580-387-0	01	1	9603-9901	●
292	SPRING; ELEMENT (A) MAIN	1-09580-387-0	01	1	9902-9904		●	●
292	SPRING; ELEMENT (A) MAIN	1-09580-387-0	01	1	9905-9909		●	●	●	●
292	SPRING; ELEMENT (A) MAIN	1-09580-387-0	01	1	9910-		●	●	●	●	●
292	SPRING; ELEMENT (B) PARTIAL	1-09580-484-0	01	1	9603-9901	●
292	SPRING; ELEMENT (B) PARTIAL	1-09580-484-0	01	1	9902-9904		●	●
292	SPRING; ELEMENT (B) PARTIAL	1-09580-484-0	01	1	9905-9909		●	●	●	●
292	SPRING; ELEMENT (B) PARTIAL	1-09580-484-0	01	1	9910-		●	●	●	●	●
292	SPRING; ELEMENT (C) MAIN	1-13263-007-0	01	1	9603-9901	●
292	SPRING; ELEMENT (A) MAIN	1-13263-007-0	01	1	9902-9904		●	●
292	SPRING; ELEMENT (A) MAIN	1-13263-007-0	01	1	9905-9909		●	●	●	●
292	SPRING; ELEMENT (A) MAIN	1-13263-007-0	01	1	9910-		●	●	●	●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9603-9901	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9902-9904		●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9905-9909		●	●	●	●
496	FILTER ASM; OIL	1-13200-862-7	01	1	9910-		●	●	●	●	●
508	CHAMBER ASM; SW,FILTER MAIN	1-13260-107-1	01	1	9603-9901	●
508	CHAMBER ASM; SW,FILTER MAIN	1-13260-107-1	01	1	9902-9904		●	●
508	CHAMBER ASM; SW,FILTER MAIN	1-13260-107-1	01	1	9905-9909		●	●	●	●
508	CHAMBER ASM; SW,FILTER MAIN	1-13260-107-1	01	1	9910-		●	●	●	●	●
509	GASKET; SW MAIN	1-09630-114-0	01	1	9703-9901	●
509	GASKET; SW MAIN	1-09630-114-0	01	1	9902-9904		●	●
509	GASKET; SW MAIN	1-09630-114-0	01	1	9905-9909		●	●	●	●
509	GASKET; SW MAIN	1-09630-114-0	01	1	9910-		●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
