3-58 — FIXING PARTS; OIL PIPING (#42059) — 143 parça

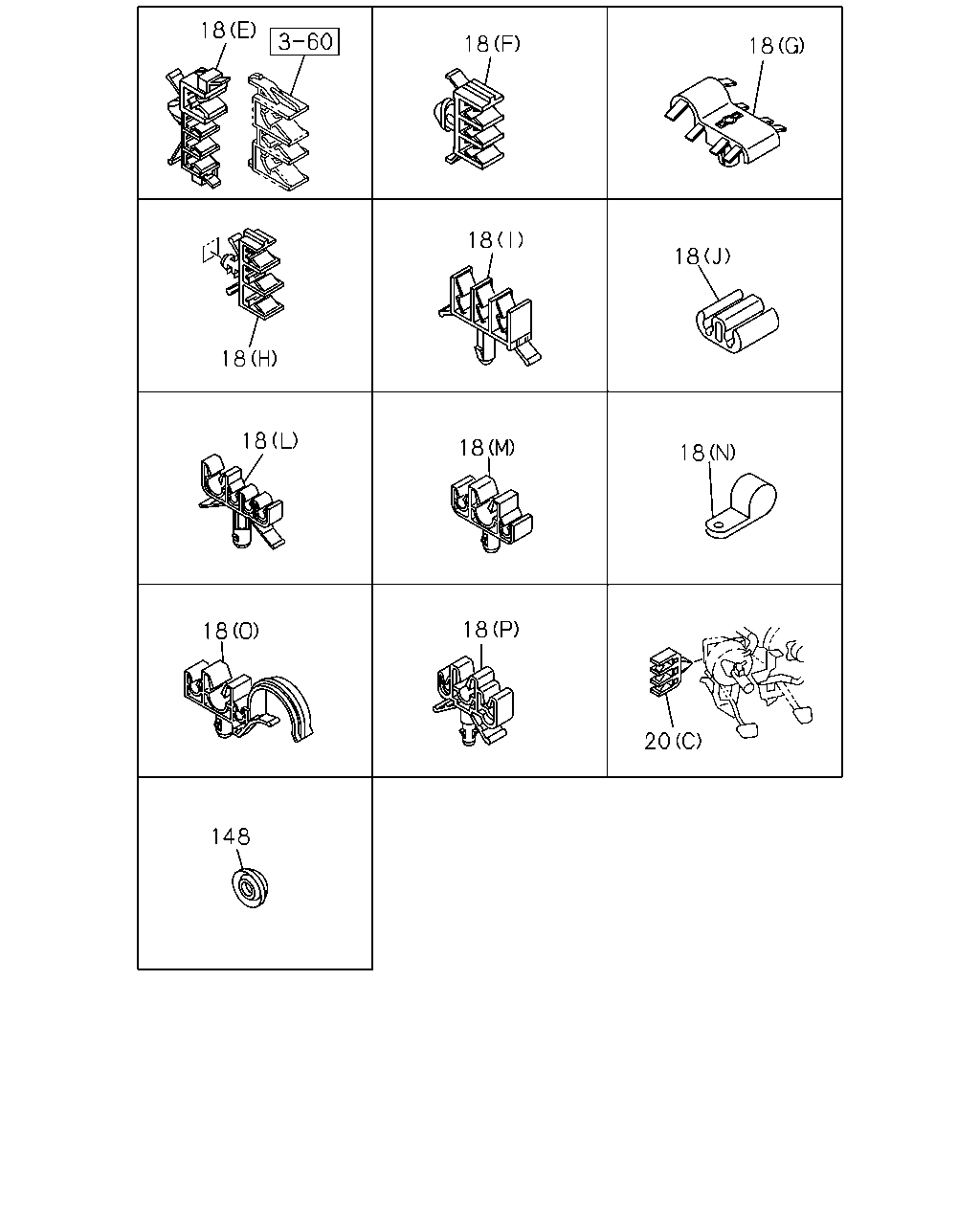

çizim 50333
18 18 18 18 18 18 18 18 18 18 18 20 148
BalonParca AdiParca NoAdetTipApplied Date A B C
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0607-0608 ● ●
18 04.686 CLIP; BRK PIPE
(L) ID=10 & 4.76X3 		8-97168-820-0 03 1 0607- ●
18 04.686 CLIP; BRK PIPE
(M) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0607- ●
18 04.686 CLIP; BRK PIPE
03.162 (N) ID=16 L=20 		9-09525-532-0 02 1 0607-0607 ●
18 04.686 CLIP; BRK PIPE
(N) ID=16 L=20 		0-95235-532-0 02 1 0607- ●
18 04.686 CLIP; BRK PIPE
00.785 (A) B=14 L=16 		9-09916-996-0 02 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3 		8-97168-819-0 01 1 0607- ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 02 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-1 02 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-1 02 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-1 02 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-1 02 1 0607- ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 03 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 03 1 0607- ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
(P) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 0607- ●
18 04.686 CLIP; BRK PIPE
(G) 		8-97074-319-1 02 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-97074-319-1 02 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
(O) ID=30 & 12 & 6.35 & 4.76 		8-97202-953-0 03 1 0607- ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.8X2 		8-94316-410-0 03 1 0607- ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0507-0606 ●
18 04.686 CLIP; BRK PIPE
(L) ID=10 & 4.76X3 		8-97168-820-0 01 1 0607- ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0302-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0302-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0302-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0607- ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0302-0307 ● ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0308-0506 ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0308-0506 ●
18 04.686 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0507-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=12 & 6.35 & 4.76 		8-97254-201-0 02 1 0302-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 08 1 0607- ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0302-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 0607- ● ● ●
18 04.686 CLIP; BRK PIPE
(A) B=18 L=20 		1-09700-372-0 02 1 0302- ● ●
18 04.686 CLIP; BRK PIPE
(J) ID=4.8X2 		8-94389-060-0 01 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=10 & 4.76X3 		8-97168-820-0 02 1 0607- ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 05 1 0302- ● ●
18 04.686 CLIP; BRK PIPE
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0607-0607 ● ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0607-0608 ● ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0609- ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=12 & 6.35 & 4.76 		8-97254-201-0 01 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=10X2 & 4.76 		8-97305-170-0 02 1 0607- ● ● ●
18 04.686 CLIP; BRK PIPE
(D) ID=10X2 & 4.76 		8-97305-170-0 02 1 0607- ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-0 01 1 0302-0302 ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-0 01 1 0302-0302 ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 01 1 0302- ● ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-1 01 1 0302- ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 01 1 0302- ●
20 04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 0302-0606 ● ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0607- ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0302- ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0302- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0607- ● ● ●
148 04.686 GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.483 		8-94294-358-0 01 1 0607- ● ● ●

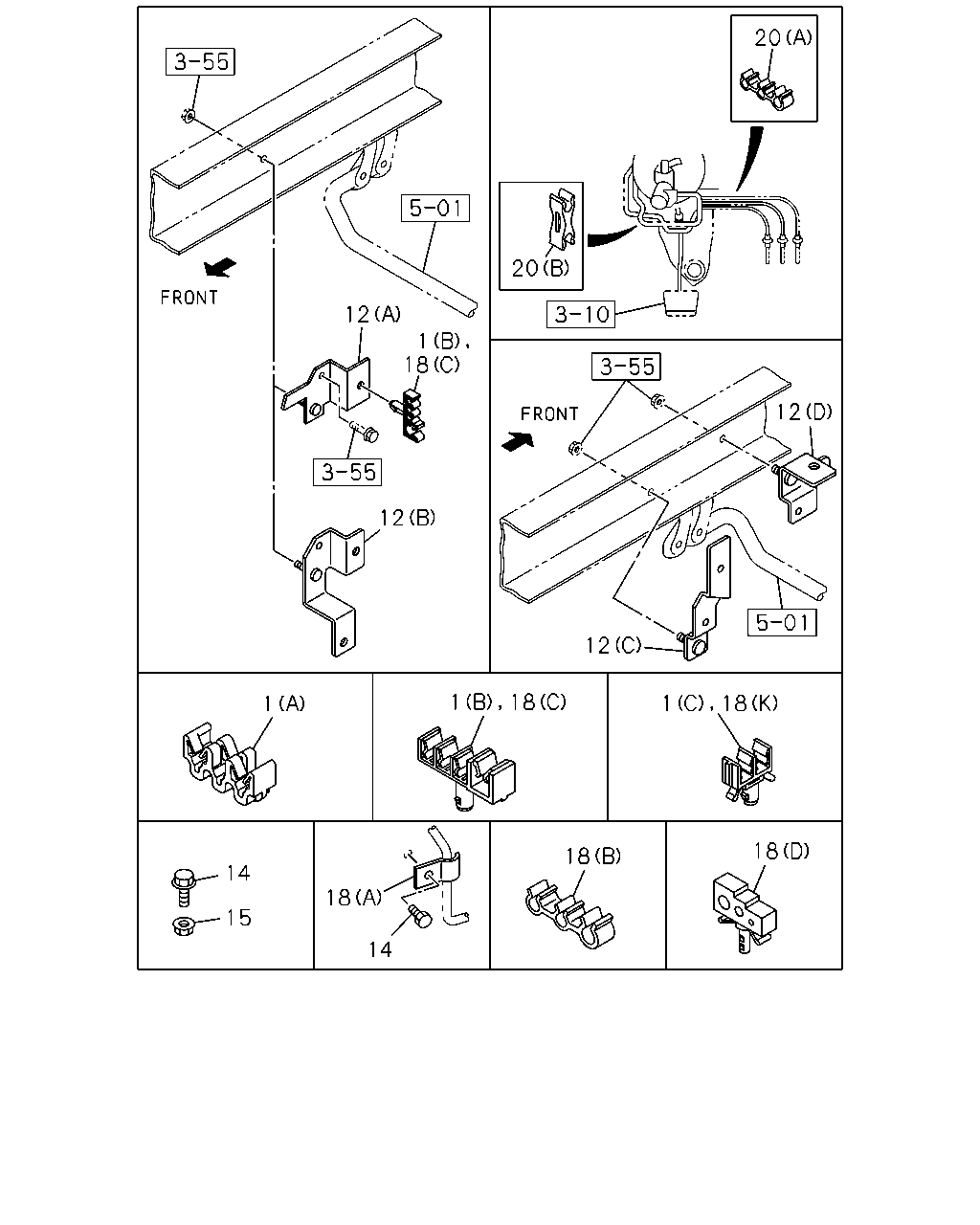

çizim 51040
20 20 12 1 18 12 12 12 1 18 1 18 1 18 18 14 18 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.686 CLIP; OIL PIPE TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2 		8-94316-410-0 01 1 0607- ●
1 04.686 CLIP; OIL PIPE TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97168-819-0 01 1 0607- ●
1 04.686 CLIP; OIL PIPE TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 		8-94487-369-0 01 1 0302-0606 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3 		8-94487-369-0 01 1 0607- ● ●
1 04.686 CLIP; OIL PIPE TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97168-819-0 02 1 0302-0606 ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97168-819-0 02 1 0607- ● ●
12 04.686 BRACKET; OIL PIPE
(C) 		8-98000-461-2 01 1 0607- ● ●
12 04.686 BRACKET; OIL PIPE
(D) 		8-98000-462-2 01 1 0607- ● ●
12 04.686 BRACKET; OIL PIPE
(A) 		8-97349-917-0 01 1 0302-0606 ● ●
12 04.686 BRACKET; OIL PIPE
(B) 		8-98000-459-1 01 1 0607- ● ●
14 04.686 BOLT; CLIP,OIL PIPE
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0302-0512 ●
14 04.686 BOLT; CLIP,OIL PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
14 04.686 BOLT; CLIP,OIL PIPE
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0302-0512 ● ●
14 04.686 BOLT; CLIP,OIL PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
15 04.686 NUT; CLIP,OIL PIPE
07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ● ●
15 04.686 NUT; CLIP,OIL PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 02 1 0607-0608 ● ●
18 04.686 CLIP; BRK PIPE
(L) ID=10 & 4.76X3 		8-97168-820-0 03 1 0607- ●
18 04.686 CLIP; BRK PIPE
(M) ID=12 & 6.35 & 4.76 		8-97305-169-1 01 1 0607- ●
18 04.686 CLIP; BRK PIPE
03.162 (N) ID=16 L=20 		9-09525-532-0 02 1 0607-0607 ●
18 04.686 CLIP; BRK PIPE
(N) ID=16 L=20 		0-95235-532-0 02 1 0607- ●
18 04.686 CLIP; BRK PIPE
00.785 (A) B=14 L=16 		9-09916-996-0 02 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3 		8-97168-819-0 01 1 0607- ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 02 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-1 02 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-1 02 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-1 02 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-1 02 1 0607- ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 03 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 03 1 0607- ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
(P) ID=12 & 6.35 & 4.76 		8-97202-954-1 01 1 0607- ●
18 04.686 CLIP; BRK PIPE
(G) 		8-97074-319-1 02 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) 		8-97074-319-1 02 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
(O) ID=30 & 12 & 6.35 & 4.76 		8-97202-953-0 03 1 0607- ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.8X2 		8-94316-410-0 03 1 0607- ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0507-0606 ●
18 04.686 CLIP; BRK PIPE
(L) ID=10 & 4.76X3 		8-97168-820-0 01 1 0607- ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0302-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0302-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0302-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0607- ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3 		8-97168-819-0 02 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0302-0307 ● ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0308-0506 ● ● ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0308-0506 ●
18 04.686 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0507-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=12 & 6.35 & 4.76 		8-97254-201-0 02 1 0302-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
(C) ID=10 & 4.76X3 		8-97168-819-0 08 1 0607- ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0302-0606 ● ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0302-0606 ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0607- ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 02 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=12 & 6.35 & 4.76 		8-97305-169-1 02 1 0607- ● ● ●
18 04.686 CLIP; BRK PIPE
(A) B=18 L=20 		1-09700-372-0 02 1 0302- ● ●
18 04.686 CLIP; BRK PIPE
(J) ID=4.8X2 		8-94389-060-0 01 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=10 & 4.76X3 		8-97168-820-0 02 1 0607- ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 05 1 0302- ● ●
18 04.686 CLIP; BRK PIPE
(I) ID=6.5 & 4.8X2 		8-94131-710-2 01 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0607-0607 ● ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0607-0608 ● ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 03 1 0609- ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=12 & 6.35 & 4.76 		8-97254-201-0 01 1 0302-0606 ● ●
18 04.686 CLIP; BRK PIPE
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=10X2 & 4.76 		8-97305-170-0 02 1 0607- ● ● ●
18 04.686 CLIP; BRK PIPE
(D) ID=10X2 & 4.76 		8-97305-170-0 02 1 0607- ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-0 01 1 0302-0302 ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-0 01 1 0302-0302 ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 01 1 0302- ● ●
18 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3 		8-97326-158-1 01 1 0302- ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=10 & 4.76X3 		8-97326-158-1 01 1 0302- ●
20 04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 		8-94146-043-0 03 1 0302-0606 ● ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=6.4 & 4.8X2 		8-94146-043-0 02 1 0607- ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0302- ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0302- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0607- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
