Sayfa 3-52 - Isuzu EPC

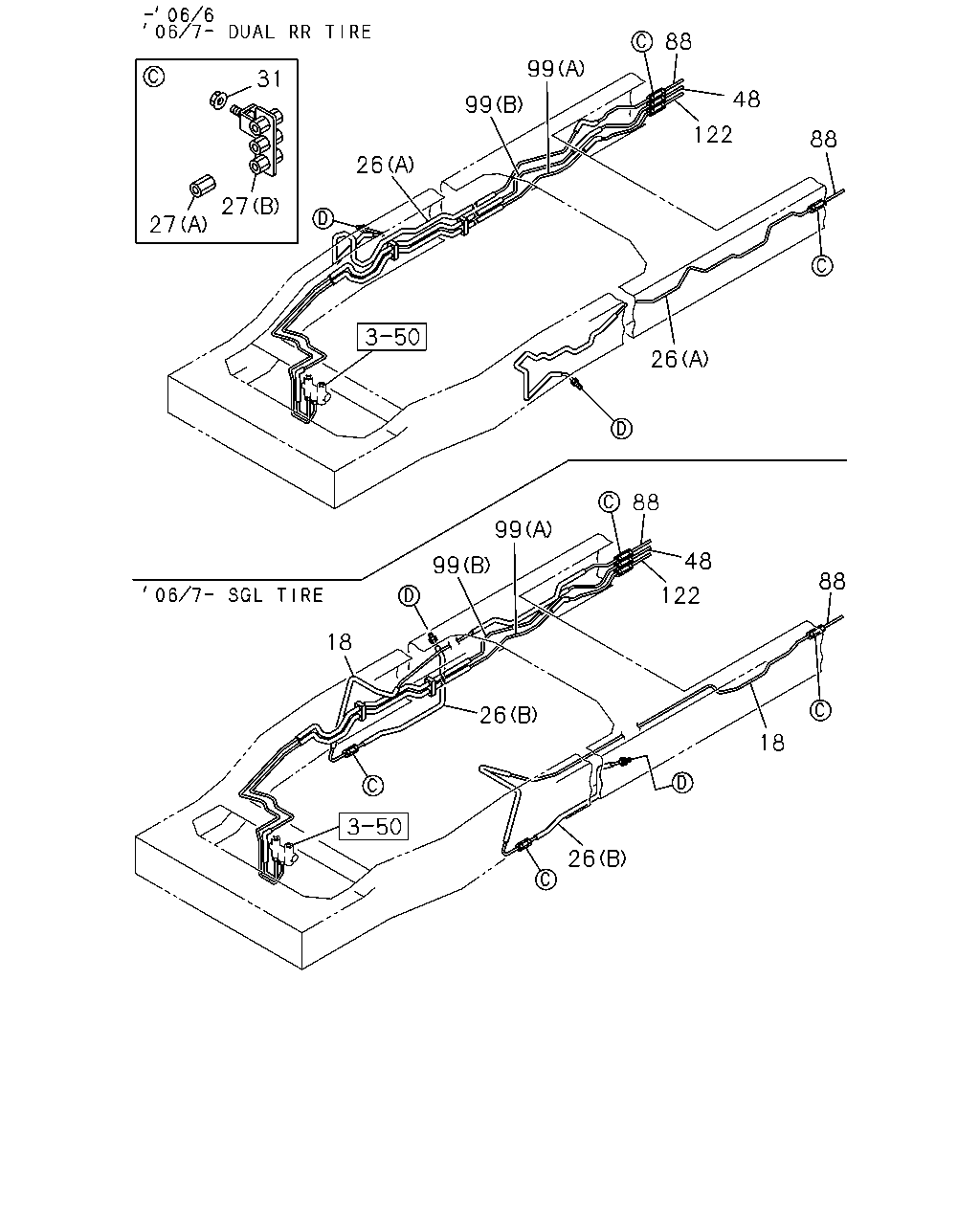

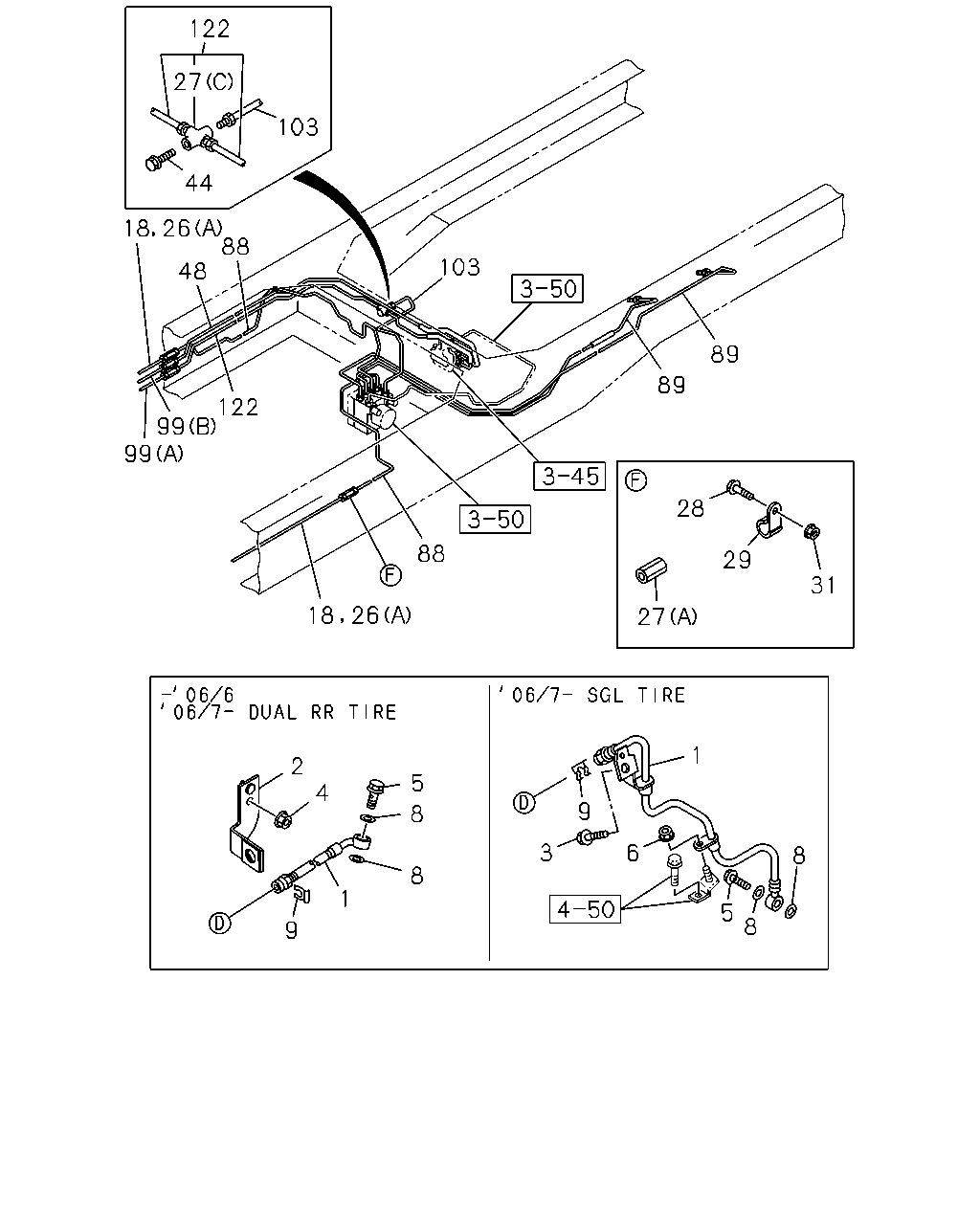

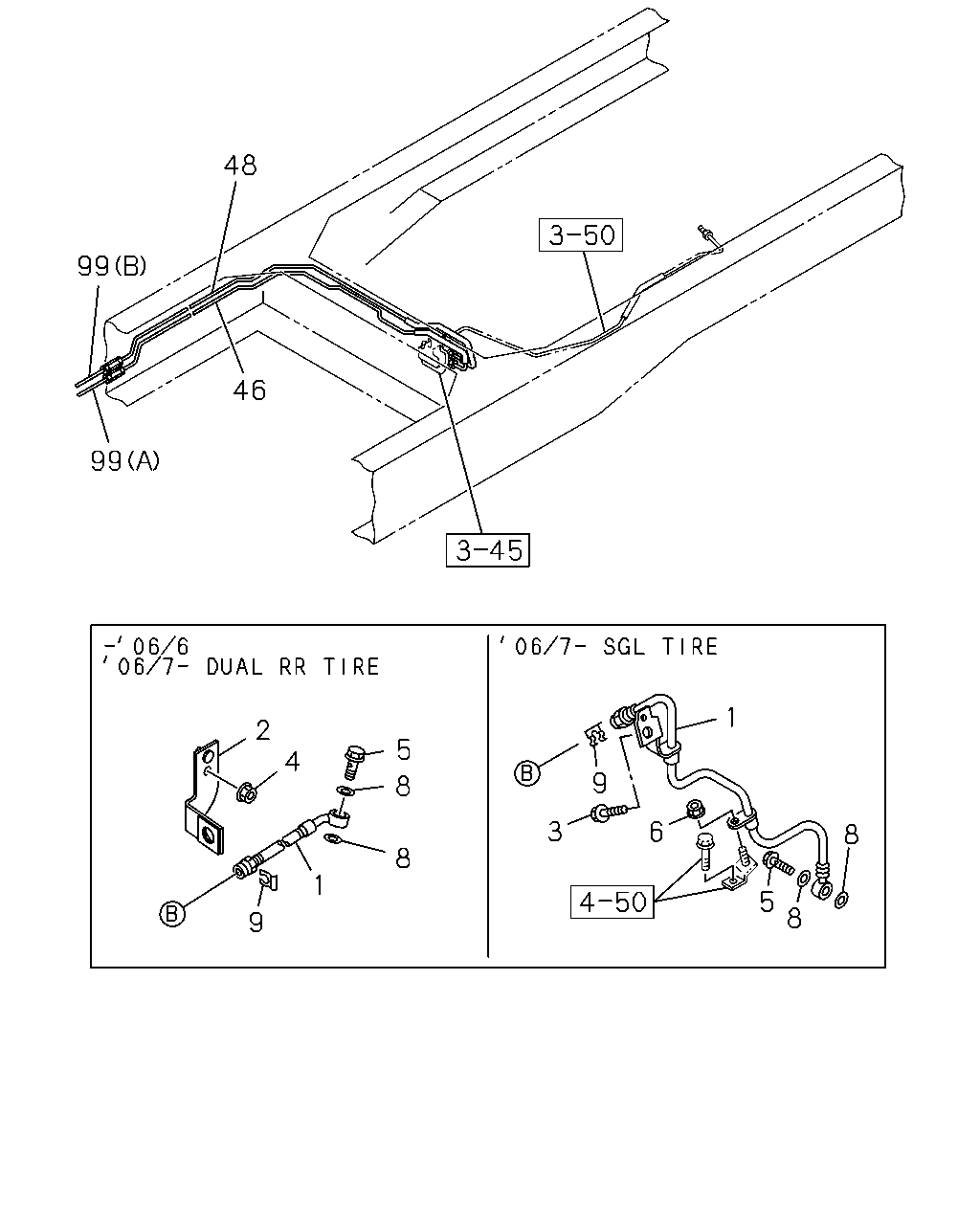

3-52 — BRAKE PIPING; OIL,FRONT (#42057) — 271 parça

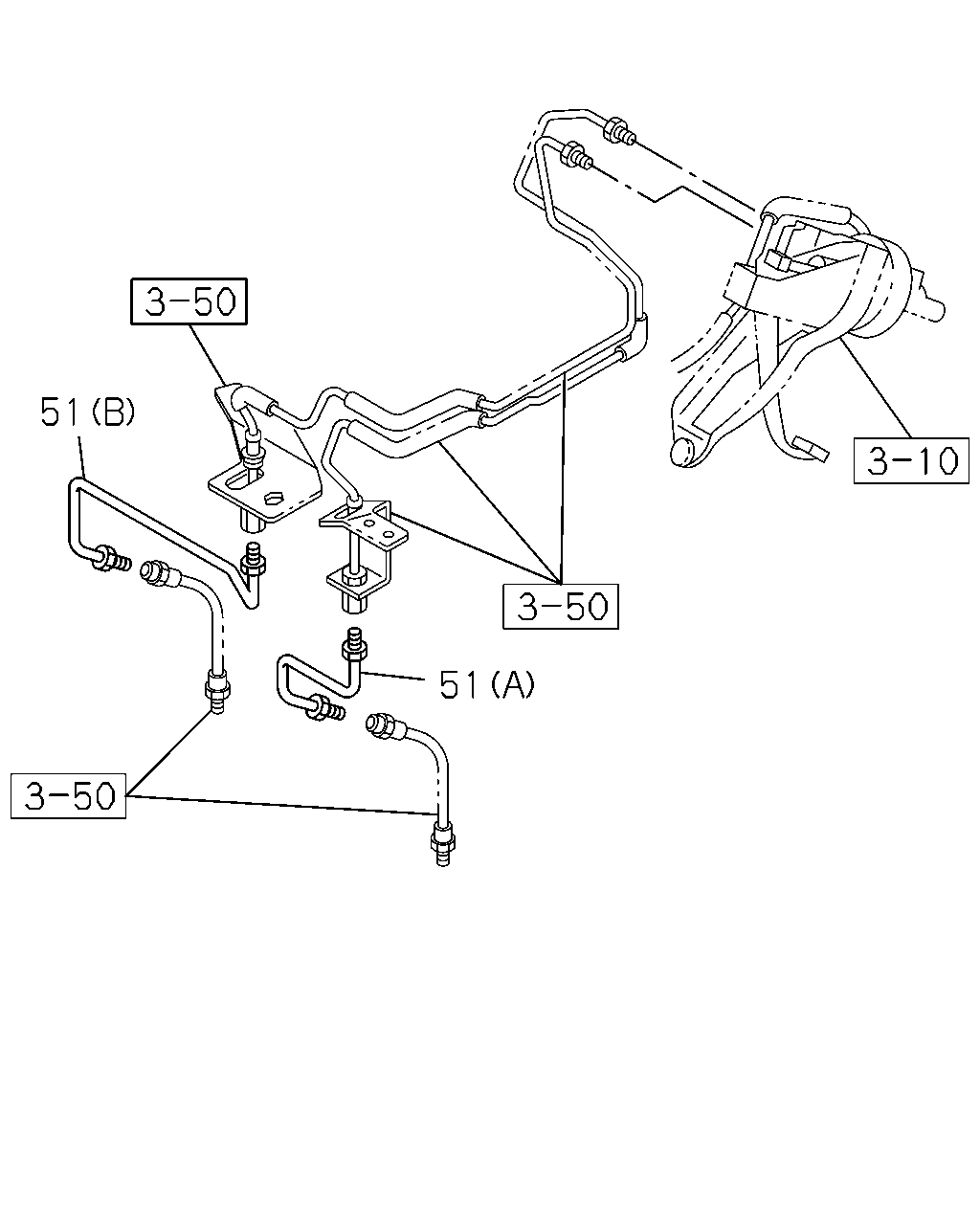

51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	04.685 PIPE; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97380-469-0	01	1	0607-	●
51	04.685 PIPE; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97380-468-0	01	1	0607-	●
51	04.685 PIPE; BRK (B) FRONT	5-47411-763-0	01	1	0302-	●	●	●
51	04.685 PIPE; BRK (A) REAR	8-97070-296-2	01	1	0302-	●	●	●

122 27 103 44 88 103 48 89 89 122 99 99 28 88 29 31 27 1 2 5 4 9 8 3 6 8 8 1 5 8 9 18 26 18 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,FRT BRK	8-97358-771-2	01	1	0607-	●
1	04.680 HOSE; FLEX,FRT BRK	8-97035-064-0	02	1	0302-0606	●
1	04.680 HOSE; FLEX,FRT BRK	8-97358-770-2	01	1	0607-	●
1	04.680 HOSE; FLEX,FRT BRK	8-97316-734-0	02	1	0302-0506		●	●
1	04.680 HOSE; FLEX,FRT BRK	8-97366-925-0	02	1	0507-		●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98002-746-0	01	1	0507-		●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98002-747-0	01	1	0507-		●	●
3	04.686 BOLT; BRKT,FLEX HOSE,FRT BRK 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0607-	●
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	02	1	0302-0410	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-97381-454-0	02	1	0411-0610	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	0611-	●	●	●
6	04.686 NUT; FLEX HOSE,FRT BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0302-	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0302-0610	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97381-145-0	01	1	0607-	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97381-144-0	01	1	0607-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-925-0	01	1	0302-0606	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (B)	8-97369-076-1	01	1	0607-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-923-0	01	1	0302-0606	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (B)	8-97369-075-1	01	1	0607-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-924-0	01	1	0302-0506		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-753-1	01	1	0507-0606		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98000-413-3	01	1	0607-		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-922-0	01	1	0302-0302		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97363-967-0	01	1	0302-0506		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-751-1	01	1	0507-0606		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98020-855-3	01	1	0607-		●	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	04	1	0607-0607	●
27	04.686 UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	04	1	0608-	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0607-0609	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0610-	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-1	01	1	0607-		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0607-0607		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0607-0607	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97259-943-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97259-943-1	01	1	0607-		●	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0512	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0302-0512		●	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0601-		●	●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 ID=16 H=30 L=30	1-09701-080-0	01	1	0302-0606	●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 ID=16 H=24 L=20	9-09527-015-0	01	1	0302-0606		●	●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 ID=16 H=24 L=20	0-95207-315-0	01	1	0607-		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602	●	●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602		●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606	●	●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
44	04.686 BOLT; JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0302-0512	●	●	●
44	04.686 BOLT; JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-943-1	01	1	0302-0606	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97307-226-0	01	1	0607-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-944-0	01	1	0302-0606		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98030-514-0	01	1	0607-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-945-0	01	1	0302-0606			●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98037-745-0	01	1	0607-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-964-1	01	1	0302-0606	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97351-683-0	01	1	0607-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-961-0	01	1	0302-0606	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97351-673-0	01	1	0607-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-965-0	01	1	0302-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-962-0	01	1	0302-0606		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98000-434-0	01	1	0607-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-966-0	01	1	0302-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-963-0	01	1	0302-			●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-970-0	01	1	0302-0606	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97351-686-0	01	1	0607-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-967-0	01	1	0302-0606	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97351-684-0	01	1	0607-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-971-0	01	1	0302-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-968-0	01	1	0302-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-972-0	01	1	0302-			●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-969-0	01	1	0302-			●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97325-928-0	01	1	0302-0606	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97380-470-0	01	1	0607-	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97325-931-0	01	1	0302-0606	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97380-471-0	01	1	0607-	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97325-926-1	01	1	0302-0302		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97363-950-0	01	1	0302-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97325-929-1	01	1	0302-0302		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97363-974-0	01	1	0302-		●	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-957-0	01	1	0302-0606	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97351-677-0	01	1	0607-	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-958-0	01	1	0302-		●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-959-0	01	1	0302-			●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-940-1	01	1	0302-0606	●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97307-251-1	01	1	0607-	●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-941-0	01	1	0302-0606		●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-98030-513-0	01	1	0607-		●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-942-0	01	1	0302-0606			●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-98037-746-0	01	1	0607-			●

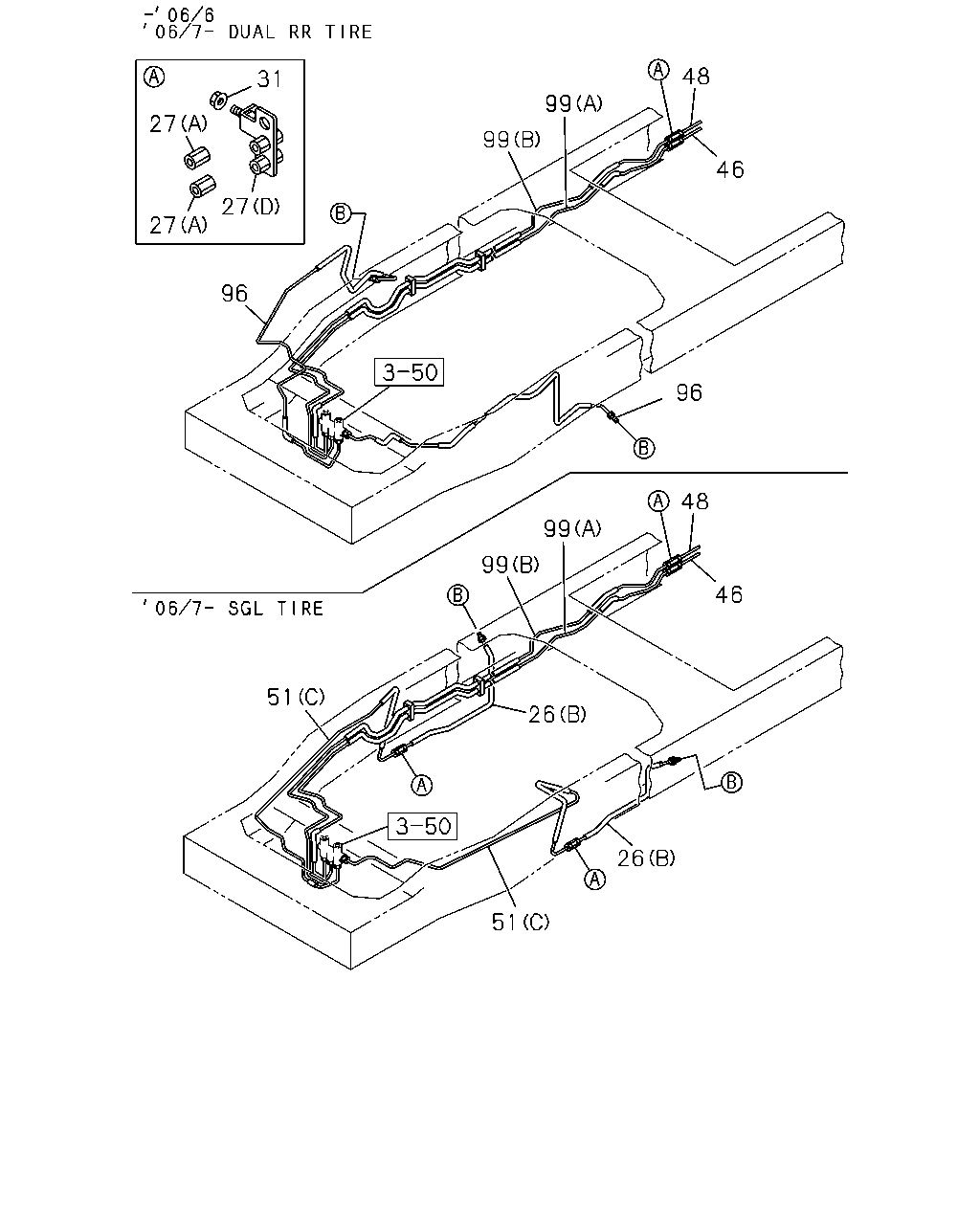

48 31 99 27 99 46 27 27 96 96 48 99 99 46 51 26 26 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-925-0	01	1	0302-0606	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (B)	8-97369-076-1	01	1	0607-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-923-0	01	1	0302-0606	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (B)	8-97369-075-1	01	1	0607-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-924-0	01	1	0302-0506		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-753-1	01	1	0507-0606		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98000-413-3	01	1	0607-		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-922-0	01	1	0302-0302		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97363-967-0	01	1	0302-0506		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-751-1	01	1	0507-0606		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98020-855-3	01	1	0607-		●	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	04	1	0607-0607	●
27	04.686 UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	04	1	0608-	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0607-0609	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0610-	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-1	01	1	0607-		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0607-0607		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0607-0607	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97259-943-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97259-943-1	01	1	0607-		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602	●	●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602		●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606	●	●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-937-1	01	1	0302-0606	●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97310-191-0	01	1	0607-	●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-938-0	01	1	0302-0606		●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-98037-743-0	01	1	0607-		●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-939-0	01	1	0302-0606			●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-98037-744-0	01	1	0607-			●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-943-1	01	1	0302-0606	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97307-226-0	01	1	0607-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-944-0	01	1	0302-0606		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98030-514-0	01	1	0607-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-945-0	01	1	0302-0606			●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98037-745-0	01	1	0607-			●
51	04.685 PIPE; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97380-469-0	01	1	0607-	●
51	04.685 PIPE; BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97380-468-0	01	1	0607-	●
51	04.685 PIPE; BRK (B) FRONT	5-47411-763-0	01	1	0302-	●	●	●
51	04.685 PIPE; BRK (A) REAR	8-97070-296-2	01	1	0302-	●	●	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-920-0	01	1	0302-0606	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-916-0	01	1	0302-0606	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-918-1	01	1	0302-0506		●	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98002-749-1	01	1	0507-		●	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-914-1	01	1	0302-0506		●	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98002-748-1	01	1	0507-0606		●	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98027-857-3	01	1	0607-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97325-928-0	01	1	0302-0606	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97380-470-0	01	1	0607-	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97325-931-0	01	1	0302-0606	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97380-471-0	01	1	0607-	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97325-926-1	01	1	0302-0302		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97363-950-0	01	1	0302-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97325-929-1	01	1	0302-0302		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97363-974-0	01	1	0302-		●	●

88 99 31 48 99 122 88 26 27 27 26 88 99 48 99 88 122 18 26 18 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97381-145-0	01	1	0607-	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97381-144-0	01	1	0607-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-925-0	01	1	0302-0606	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (B)	8-97369-076-1	01	1	0607-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-923-0	01	1	0302-0606	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (B)	8-97369-075-1	01	1	0607-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-924-0	01	1	0302-0506		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-753-1	01	1	0507-0606		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98000-413-3	01	1	0607-		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97325-922-0	01	1	0302-0302		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97363-967-0	01	1	0302-0506		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-751-1	01	1	0507-0606		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98020-855-3	01	1	0607-		●	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	04	1	0607-0607	●
27	04.686 UNION; BRK PIPE (A) M10 STRAIGHT	0-92107-005-0	04	1	0608-	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0607-0609	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0610-	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97257-650-1	01	1	0607-		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97314-636-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0607-0607		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	01	1	0608-		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0607-0607	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M10 STRAIGHT	0-92107-005-0	02	1	0608-	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97259-943-0	01	1	0302-0606	●	●	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97259-943-1	01	1	0607-		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602	●	●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602		●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606	●	●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●	●
31	04.686 NUT; UNION CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-943-1	01	1	0302-0606	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97307-226-0	01	1	0607-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-944-0	01	1	0302-0606		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98030-514-0	01	1	0607-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-945-0	01	1	0302-0606			●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98037-745-0	01	1	0607-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-964-1	01	1	0302-0606	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97351-683-0	01	1	0607-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-961-0	01	1	0302-0606	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97351-673-0	01	1	0607-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-965-0	01	1	0302-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-962-0	01	1	0302-0606		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98000-434-0	01	1	0607-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-966-0	01	1	0302-			●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97325-963-0	01	1	0302-			●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97325-928-0	01	1	0302-0606	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97380-470-0	01	1	0607-	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97325-931-0	01	1	0302-0606	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97380-471-0	01	1	0607-	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97325-926-1	01	1	0302-0302		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97363-950-0	01	1	0302-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97325-929-1	01	1	0302-0302		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97363-974-0	01	1	0302-		●	●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-940-1	01	1	0302-0606	●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97307-251-1	01	1	0607-	●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-941-0	01	1	0302-0606		●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-98030-513-0	01	1	0607-		●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-942-0	01	1	0302-0606			●
122	04.685 PIPE ASM; BRK,2 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-98037-746-0	01	1	0607-			●

48 99 46 99 1 2 5 4 9 8 3 6 8 8 1 5 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,FRT BRK	8-97358-771-2	01	1	0607-	●
1	04.680 HOSE; FLEX,FRT BRK	8-97035-064-0	02	1	0302-0606	●
1	04.680 HOSE; FLEX,FRT BRK	8-97358-770-2	01	1	0607-	●
1	04.680 HOSE; FLEX,FRT BRK	8-97316-734-0	02	1	0302-0506		●	●
1	04.680 HOSE; FLEX,FRT BRK	8-97366-925-0	02	1	0507-		●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98002-746-0	01	1	0507-		●	●
2	04.681 BRACKET; FLEX HOSE,FRT BRK	8-98002-747-0	01	1	0507-		●	●
3	04.686 BOLT; BRKT,FLEX HOSE,FRT BRK 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0607-	●
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
4	04.686 NUT; FLEX HOSE BRKT,FRT BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	02	1	0302-0410	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-97381-454-0	02	1	0411-0610	●	●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK M10X22	8-98014-005-0	02	1	0611-	●	●	●
6	04.686 NUT; FLEX HOSE,FRT BRK 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	0302-	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	0302-0610	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	0611-	●	●	●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-937-1	01	1	0302-0606	●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97310-191-0	01	1	0607-	●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-938-0	01	1	0302-0606		●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-98037-743-0	01	1	0607-		●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-97325-939-0	01	1	0302-0606			●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT	8-98037-744-0	01	1	0607-			●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-943-1	01	1	0302-0606	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97307-226-0	01	1	0607-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-944-0	01	1	0302-0606		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98030-514-0	01	1	0607-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-97325-945-0	01	1	0302-0606			●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN REAR	8-98037-745-0	01	1	0607-			●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97325-928-0	01	1	0302-0606	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97380-470-0	01	1	0607-	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97325-931-0	01	1	0302-0606	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97380-471-0	01	1	0607-	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97325-926-1	01	1	0302-0302		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (A) FRONT	8-97363-950-0	01	1	0302-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97325-929-1	01	1	0302-0302		●	●
99	04.686 PIPE ASM; 4/5/6 WAY (B) REAR	8-97363-974-0	01	1	0302-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
