3-30 — BRAKE MASTER CYLINDER (#42053) — 24 parça

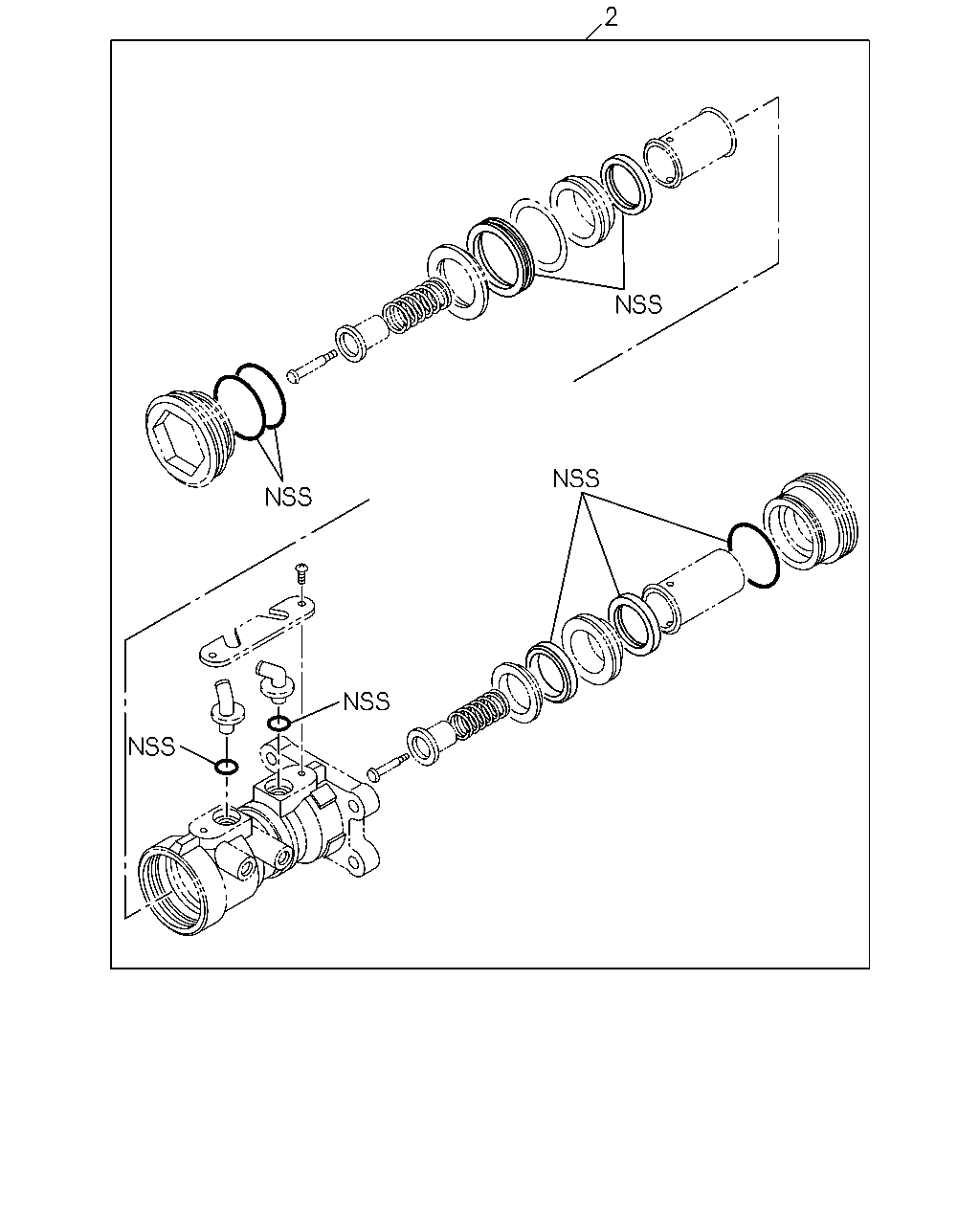

çizim 9859
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 0302- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97141-423-0 01 1 0302- ● ●

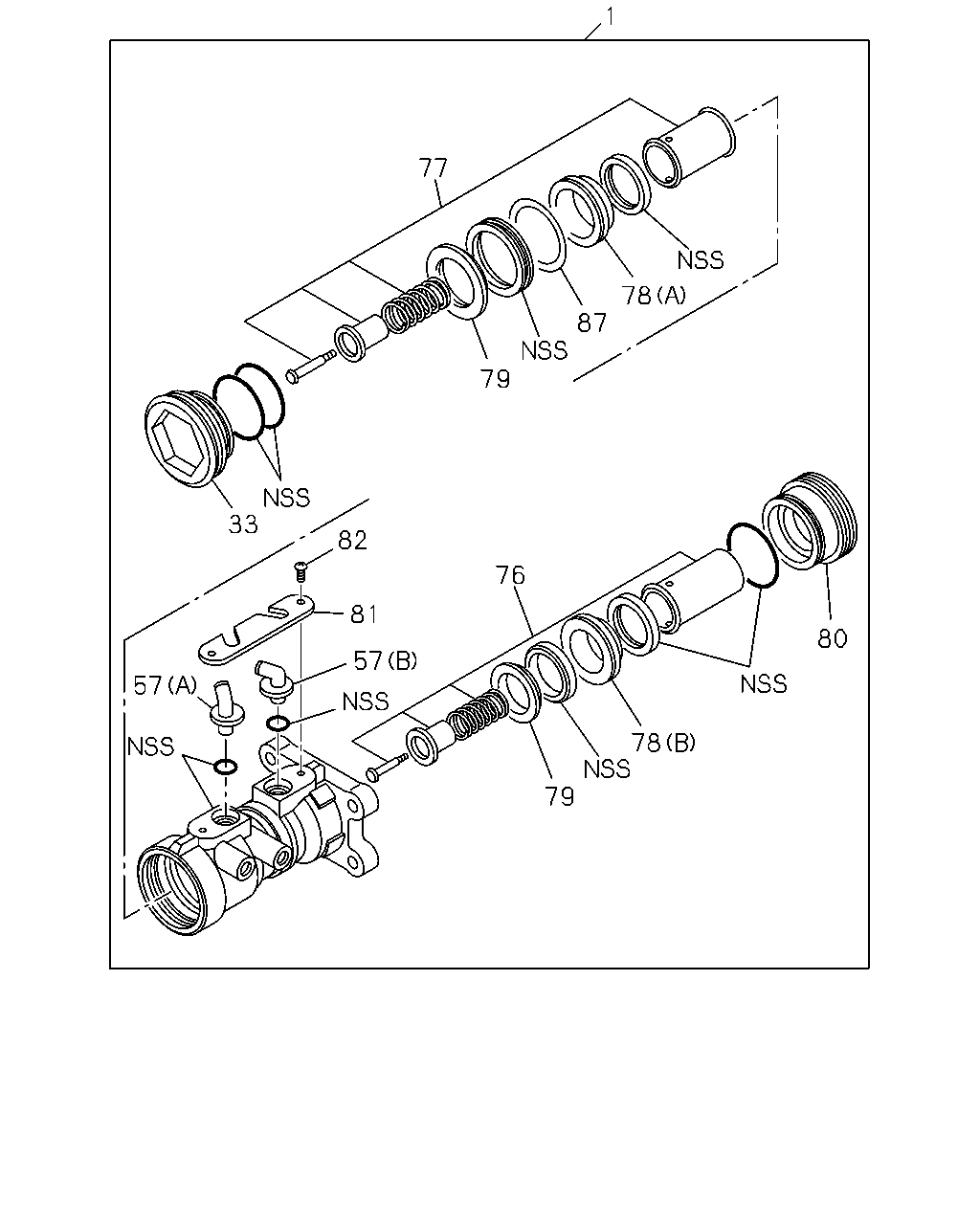

çizim 52360
1 77 78 87 79 33 82 76 81 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.650 CYLINDER ASM; BRK MASTER 8-97315-164-0 01 1 0302- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97315-165-0 01 1 0302- ● ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 0302- ●
33 04.661 PLUG; END,M/CYL 8-97186-698-0 01 1 0302- ● ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 0302- ● ● ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 0302- ● ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 0302- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-639-0 01 1 0302- ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 0302- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-637-0 01 1 0302- ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 0302- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 0302- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97141-410-0 01 1 0302- ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97217-830-0 01 1 0302- ● ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 0302- ●
79 04.651 SUPPORTER; CUP 8-97141-417-0 02 1 0302- ● ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 0302- ●
80 04.651 COVER; MASTER CYL 8-97141-404-0 01 1 0302- ● ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 0302- ● ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 0302- ● ● ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 0302- ●
87 04.662 SPACER; CUP 8-97141-413-0 01 1 0302- ● ●
