◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50945 - NKR(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#42050) — 178 parça

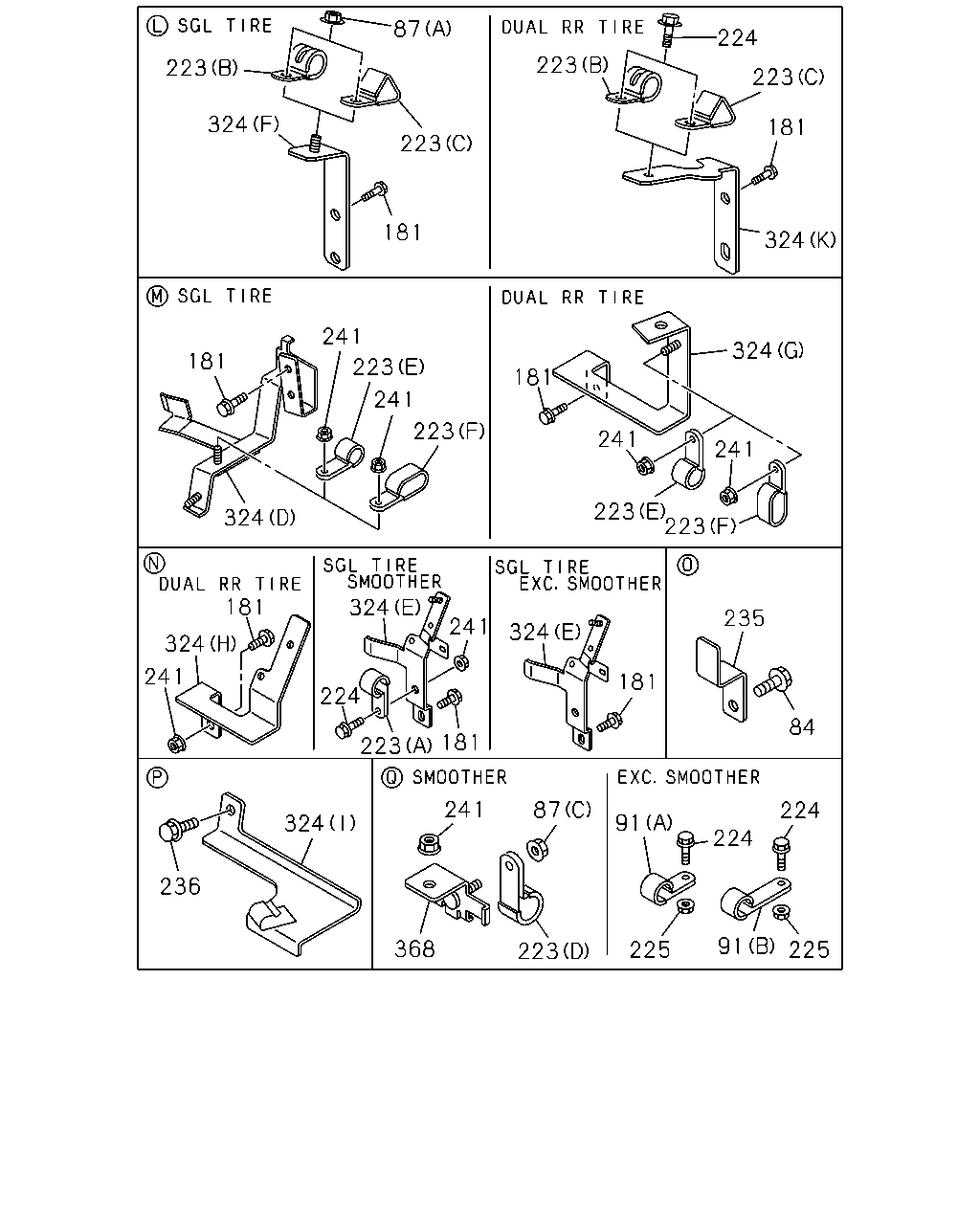

çizim 11713
87 224 223 223 223 324 181 223 181 324 241 324 181 223 181 241 223 241 241 223 223 324 324 181 235 241 324 324 241 181 224 84 181 223 241 87 224 91 324 224 236 91 368 225 225 223
BalonParca AdiParca NoAdetTipApplied Date A B C
84 04.790 BOLT; CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0607- ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0607- ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 0302-0310 ● ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0611 ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0607- ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=50 		9-09525-286-0 01 1 0607-0607 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=50 		0-95235-286-0 01 1 0607- ●
91 04.785 CLIP; PARKING BRK CABLE
00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0302-0606 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0607- ● ●
181 04.785 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0607- ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0512 ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0607- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
181 04.785 BOLT; BRKT
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0607- ● ●
181 04.785 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=14.5 L=20 		1-09701-012-0 01 1 0607- ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 08.846 (A) ID=24 L=32 		1-09700-766-1 01 1 0607- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (D) ID=13 L=20 		1-09701-138-1 01 1 0607- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (E) ID=16 L=28 		9-09525-556-0 01 1 0607-0607 ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.672 (E) ID=16 L=28 		0-95235-556-0 01 1 0607- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (C) 		8-97036-333-1 01 1 0607- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.047 (F) 		8-97137-589-0 01 1 0607- ● ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.334 (B) ID=16 		9-09525-552-0 01 1 0607-0607 ● ●
223 04.785 CLIP; PARKING BRK CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=16 L=28 		0-95235-552-0 01 1 0607- ● ●
224 04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
224 04.785 BOLT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0302-0512 ● ● ●
224 04.785 BOLT; CABLE CLIP
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-0606 ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0607- ● ●
224 04.785 BOLT; CABLE CLIP
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0607- ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ●
225 04.785 NUT; CABLE CLIP
M10 FLANGE 		0-91150-110-0 01 1 0302-0602 ● ● ●
225 04.785 NUT; CABLE CLIP
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ● ●
235 04.785 BRACKET; CONT CABLE TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98037-097-0 01 1 0607- ● ● ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0302-0512 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ●
241 04.785 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0607- ● ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
241 04.785 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ●
324 04.785 BRACKET
(D) 		8-97380-242-1 01 1 0607- ●
324 04.785 BRACKET
(E) 		8-98000-600-1 01 1 0607- ●
324 04.785 BRACKET
(F) 		8-98001-269-0 01 1 0607- ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97101-814-2 01 1 0302-0606 ●
324 04.785 BRACKET
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97101-814-2 01 1 0607- ●
324 04.785 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (J) ID=19 L=39 H=21 		1-09700-972-1 01 1 0607- ●
324 04.785 BRACKET
(C) 		8-97289-364-0 01 1 0302-0606 ● ● ●
324 04.785 BRACKET
(I) 		8-98019-522-1 01 1 0607- ● ● ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0302- ● ●
324 04.785 BRACKET
04.047 (K) 		8-97101-709-1 01 1 0607- ● ●
324 04.785 BRACKET
(G) 		8-98001-270-0 01 1 0607- ● ●
324 04.785 BRACKET
(H) 		8-98001-271-1 01 1 0607- ● ●
368 04.785 BRACKET; T/M SIDE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97372-863-1 01 1 0607- ● ● ●

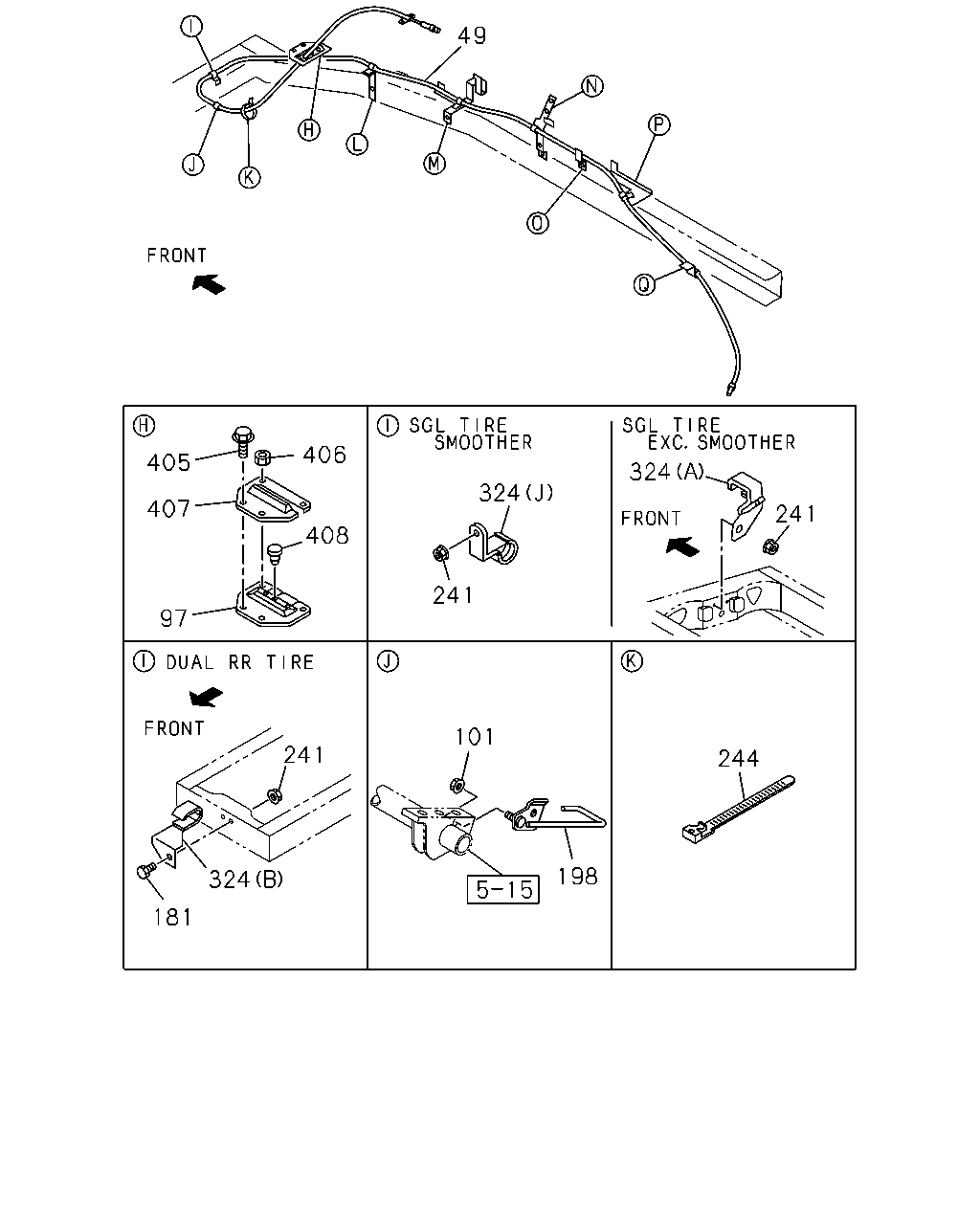

çizim 50294
49 406 405 324 324 407 241 408 241 97 101 241 244 198 324 181
BalonParca AdiParca NoAdetTipApplied Date A B C
49 04.779 CABLE; PARKING BRK 8-97351-562-0 01 1 0302-0606 ● ● ●
49 04.779 CABLE; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98001-030-1 01 1 0607-0703 ● ● ●
49 04.779 CABLE; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-025-0 01 1 0704- ● ● ●
49 04.779 CABLE; PARKING BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98001-029-1 01 1 0607- ● ● ●
97 04.785 GROMMET; PARKING BRK CABLE
04.010 		8-97089-851-0 01 1 0607- ● ● ●
101 04.785 NUT; CABLE TO LEVER
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ●
101 04.785 NUT; CABLE TO LEVER
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
181 04.785 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0607- ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0512 ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0607- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
181 04.785 BOLT; BRKT
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0607- ● ●
181 04.785 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ● ●
198 04.785 BRACKET; CABLE 8-97109-818-0 01 1 0302- ●
241 04.785 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0607- ● ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
241 04.785 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ●
244 04.785 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 0302-0606 ● ● ●
244 04.785 CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0607- ● ● ●
324 04.785 BRACKET
(D) 		8-97380-242-1 01 1 0607- ●
324 04.785 BRACKET
(E) 		8-98000-600-1 01 1 0607- ●
324 04.785 BRACKET
(F) 		8-98001-269-0 01 1 0607- ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97101-814-2 01 1 0302-0606 ●
324 04.785 BRACKET
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97101-814-2 01 1 0607- ●
324 04.785 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (J) ID=19 L=39 H=21 		1-09700-972-1 01 1 0607- ●
324 04.785 BRACKET
(C) 		8-97289-364-0 01 1 0302-0606 ● ● ●
324 04.785 BRACKET
(I) 		8-98019-522-1 01 1 0607- ● ● ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0302- ● ●
324 04.785 BRACKET
04.047 (K) 		8-97101-709-1 01 1 0607- ● ●
324 04.785 BRACKET
(G) 		8-98001-270-0 01 1 0607- ● ●
324 04.785 BRACKET
(H) 		8-98001-271-1 01 1 0607- ● ●
405 04.785 BOLT; GROMMET
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 0607- ● ● ●
406 04.785 NUT; GROMMET
01.540 M6 FLANGE 		0-91180-206-0 02 1 0607-0711 ● ● ●
406 04.785 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 0712- ● ● ●
407 04.785 RETAINER; GROMMET
04.047 		8-97048-319-1 01 1 0607- ● ● ●
408 04.785 CAP; GROMMET
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.010 		8-97371-108-0 02 1 0607- ● ● ●

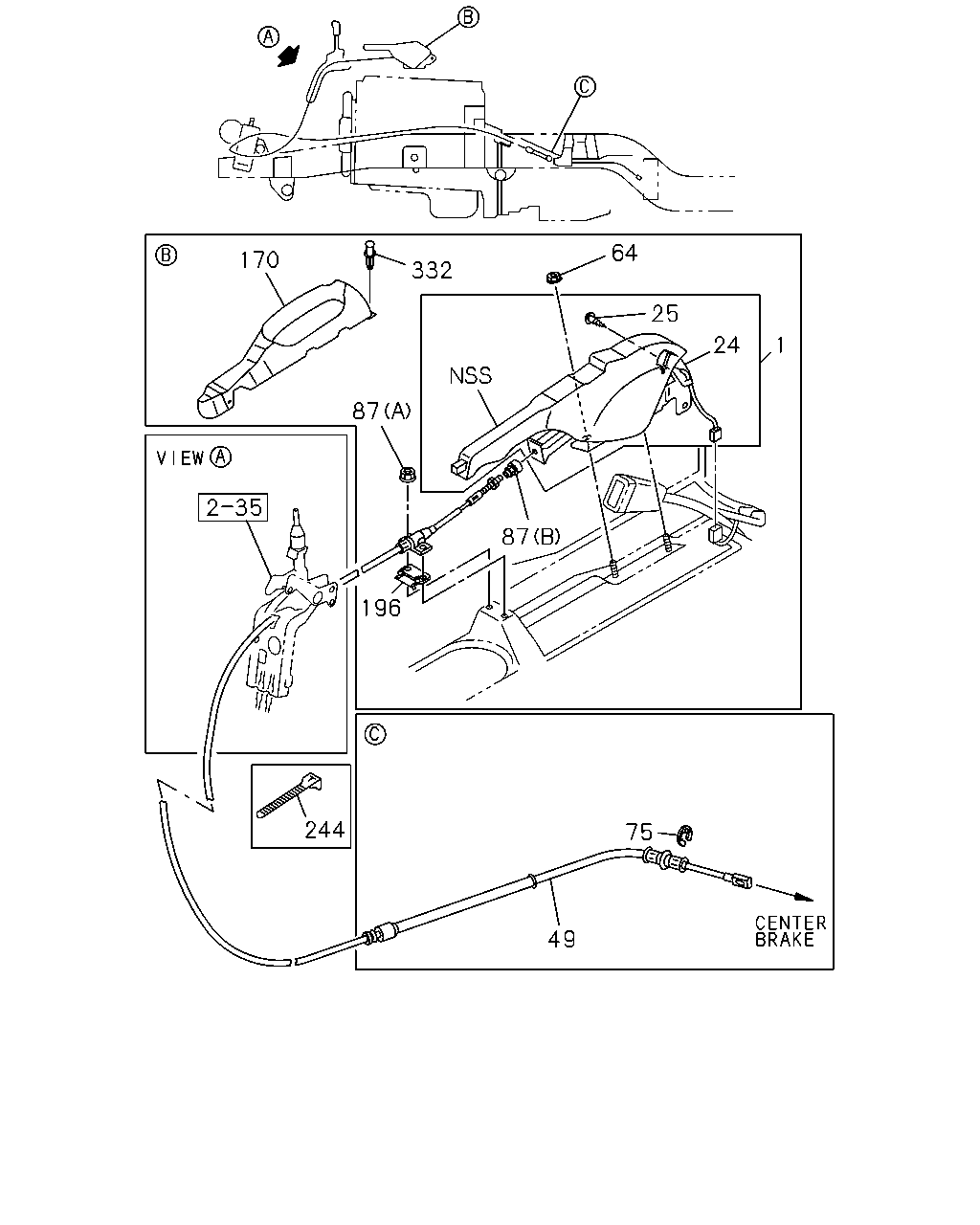

çizim 53123
64 170 332 25 24 1 87 87 196 244 75 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.592 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-543-2 01 1 0302-0506 ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97585-445-2 01 1 0507-0610 ● ● ●
1 04.592 STEM ASM; PARKING BRK
GRAY 		8-97409-385-0 01 1 0611- ● ● ●
24 04.589 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0302- ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0302- ● ● ●
49 04.779 CABLE; PARKING BRK 8-97351-562-0 01 1 0302-0606 ● ● ●
49 04.779 CABLE; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98001-030-1 01 1 0607-0703 ● ● ●
49 04.779 CABLE; PARKING BRK
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98079-025-0 01 1 0704- ● ● ●
49 04.779 CABLE; PARKING BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98001-029-1 01 1 0607- ● ● ●
64 04.595 NUT; PARKING BRK
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0302-0610 ● ● ●
64 04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
04.681 ID=12 		9-09185-412-0 01 1 0302-0604 ● ● ●
75 04.790 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0605- ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0607- ●
87 04.785 NUT
07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 0302-0602 ● ● ●
87 04.785 NUT
01.062 (A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
87 04.785 NUT
(B) M6 		8-97088-730-1 01 1 0302-0310 ● ● ●
87 04.785 NUT
(B) M6 		1-71996-312-0 01 1 0311-0611 ● ● ●
87 04.785 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ● ●
87 04.785 NUT
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (C) M10 FLANGE 		0-91180-110-0 01 1 0607- ● ● ●
170 04.595 COVER; PARKING BRK LEVER
DARK GRAY 		8-97158-915-0 01 1 0302-0506 ● ● ●
170 04.595 COVER; PARKING BRK LEVER
GRAY 		8-97400-347-1 01 1 0507- ● ● ●
196 04.784 SPACER; CABLE TO LEVER 8-97095-464-2 01 1 0302- ● ● ●
244 04.785 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 0302-0606 ● ● ●
244 04.785 CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0607- ● ● ●
332 04.785 CLIP; COVER
03.602 D6X12.5 		8-94146-425-0 01 1 0302- ● ● ●

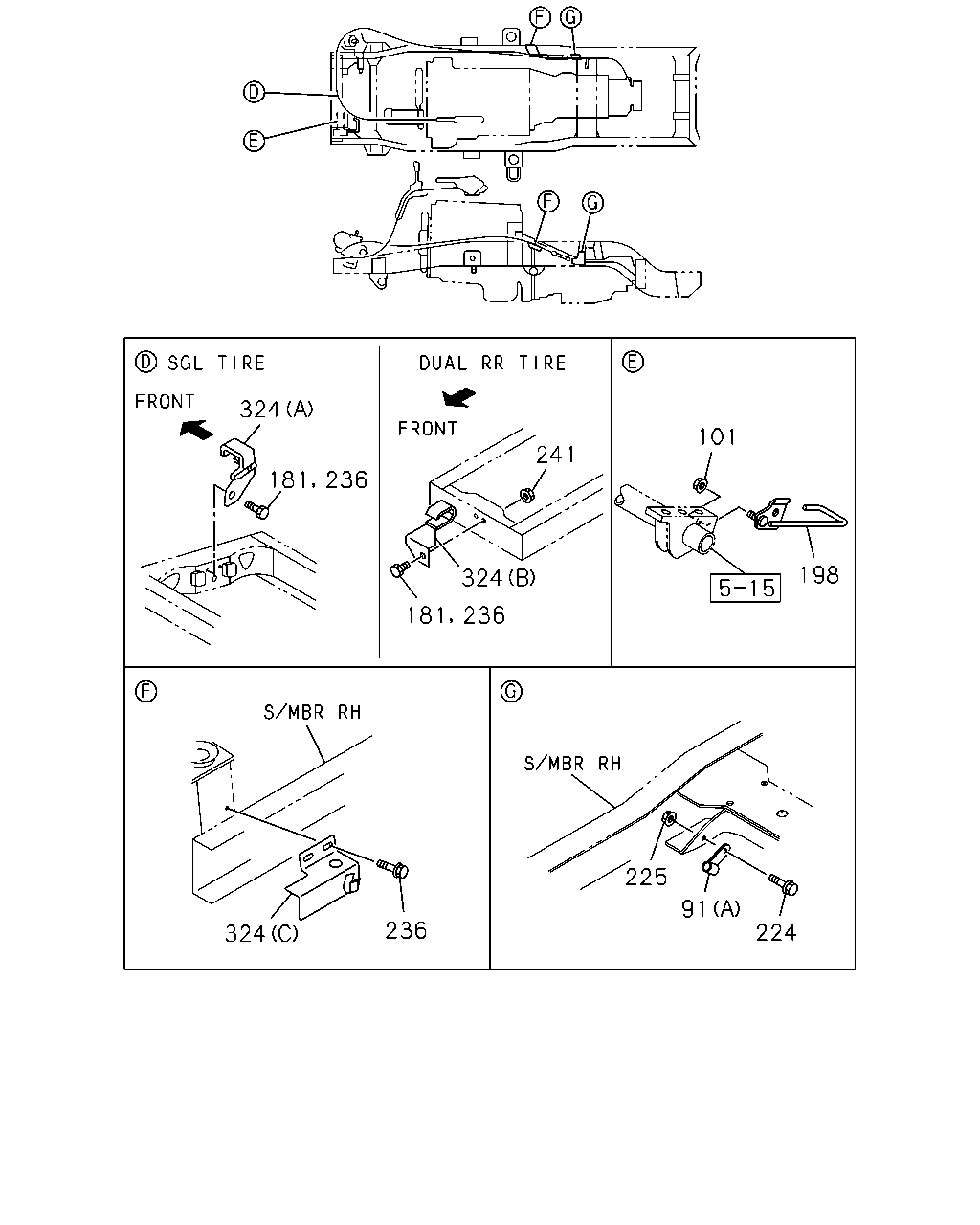

çizim 53124
324 101 241 198 324 225 91 236 224 324 181 236 181 236
BalonParca AdiParca NoAdetTipApplied Date A B C
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=50 		9-09525-286-0 01 1 0607-0607 ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=13 L=50 		0-95235-286-0 01 1 0607- ●
91 04.785 CLIP; PARKING BRK CABLE
00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0302-0606 ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.799 (A) ID=13 L=20 		1-09701-138-1 01 1 0607- ● ●
101 04.785 NUT; CABLE TO LEVER
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ●
101 04.785 NUT; CABLE TO LEVER
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
181 04.785 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0607- ●
181 04.785 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0512 ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606 ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0607- ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ●
181 04.785 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
181 04.785 BOLT; BRKT
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0607- ● ●
181 04.785 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607- ● ●
198 04.785 BRACKET; CABLE 8-97109-818-0 01 1 0302- ●
224 04.785 BOLT; CABLE CLIP
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
224 04.785 BOLT; CABLE CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ●
224 04.785 BOLT; CABLE CLIP
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0302-0512 ● ● ●
224 04.785 BOLT; CABLE CLIP
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-0606 ● ● ●
224 04.785 BOLT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0607- ● ●
224 04.785 BOLT; CABLE CLIP
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0607- ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ●
225 04.785 NUT; CABLE CLIP
M10 FLANGE 		0-91150-110-0 01 1 0302-0602 ● ● ●
225 04.785 NUT; CABLE CLIP
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ● ●
225 04.785 NUT; CABLE CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0607- ● ●
236 04.785 BOLT; BRKT TO FRAME
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0302-0512 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601-0606 ● ● ●
236 04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ● ● ●
241 04.785 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0607- ● ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ●
241 04.785 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ●
241 04.785 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0602 ● ●
241 04.785 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ●
241 04.785 NUT; BRKT
03.162 M10 FLANGE 		0-91180-110-0 02 1 0607- ● ●
324 04.785 BRACKET
(D) 		8-97380-242-1 01 1 0607- ●
324 04.785 BRACKET
(E) 		8-98000-600-1 01 1 0607- ●
324 04.785 BRACKET
(F) 		8-98001-269-0 01 1 0607- ●
324 04.785 BRACKET
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97101-814-2 01 1 0302-0606 ●
324 04.785 BRACKET
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97101-814-2 01 1 0607- ●
324 04.785 BRACKET
TRANSMISSION CONTROL-SMOOTHER(8GF) (J) ID=19 L=39 H=21 		1-09700-972-1 01 1 0607- ●
324 04.785 BRACKET
(C) 		8-97289-364-0 01 1 0302-0606 ● ● ●
324 04.785 BRACKET
(I) 		8-98019-522-1 01 1 0607- ● ● ●
324 04.785 BRACKET
(B) 		8-97101-815-2 01 1 0302- ● ●
324 04.785 BRACKET
04.047 (K) 		8-97101-709-1 01 1 0607- ● ●
324 04.785 BRACKET
(G) 		8-98001-270-0 01 1 0607- ● ●
324 04.785 BRACKET
(H) 		8-98001-271-1 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
