Sayfa 0-42B - Isuzu EPC

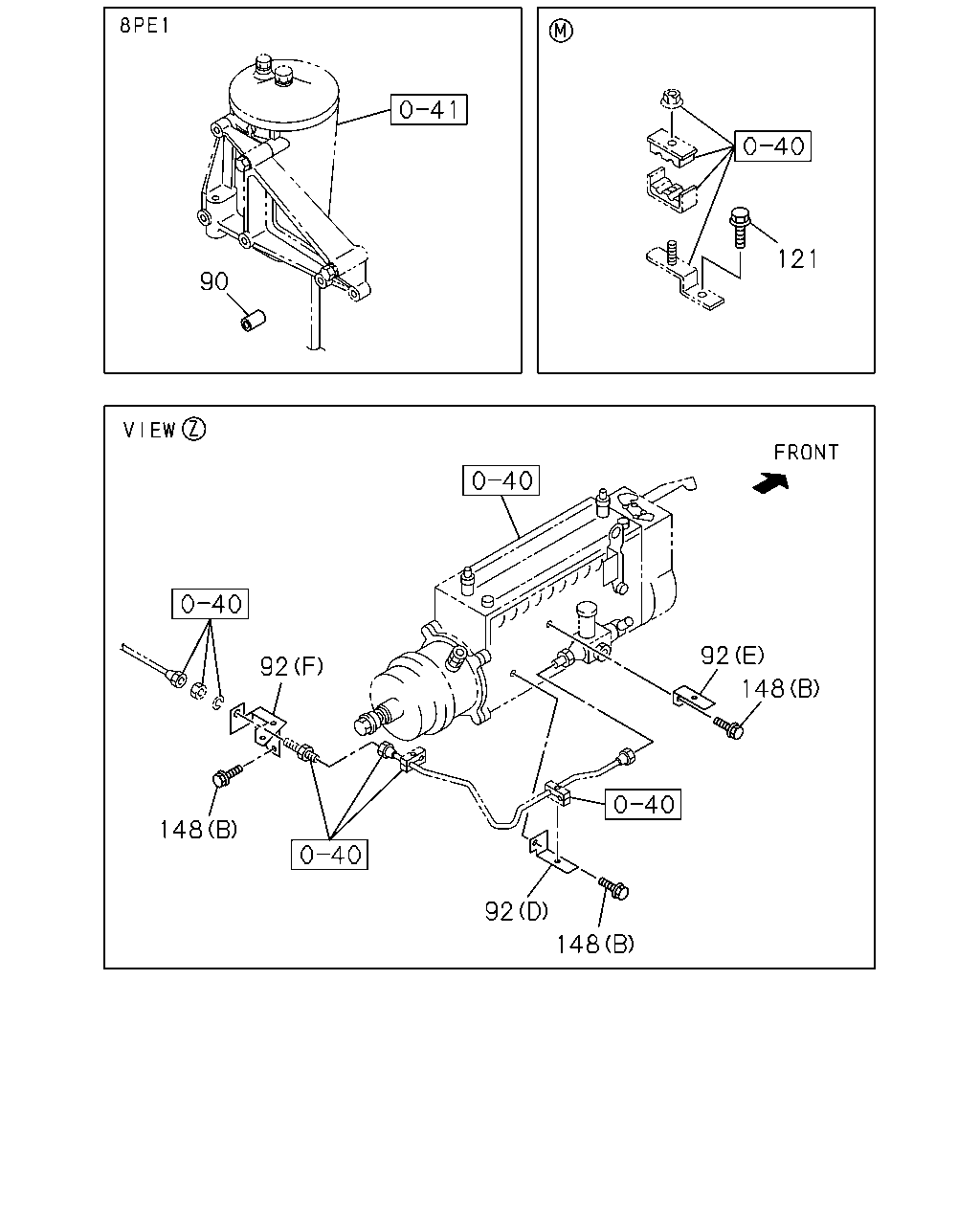

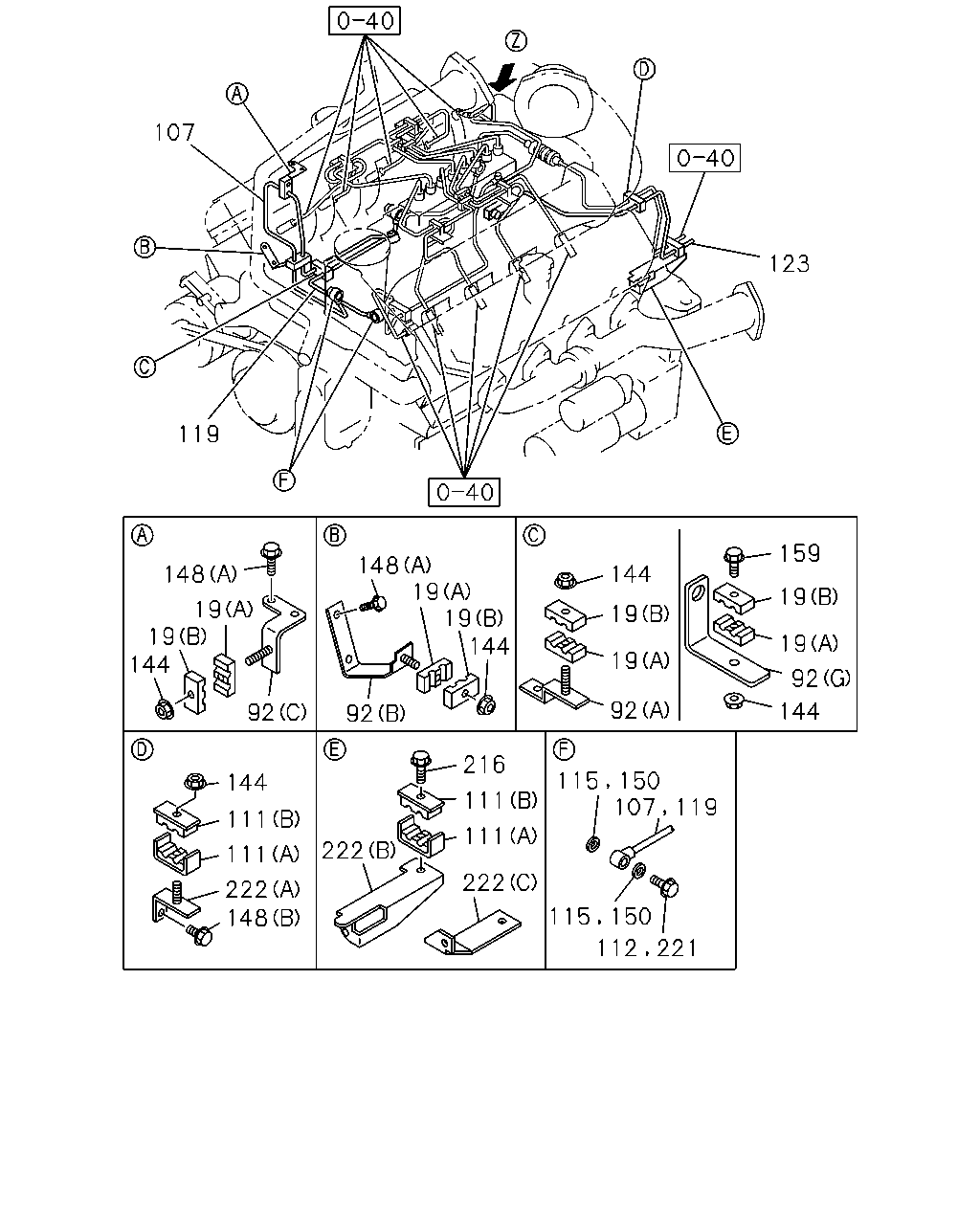

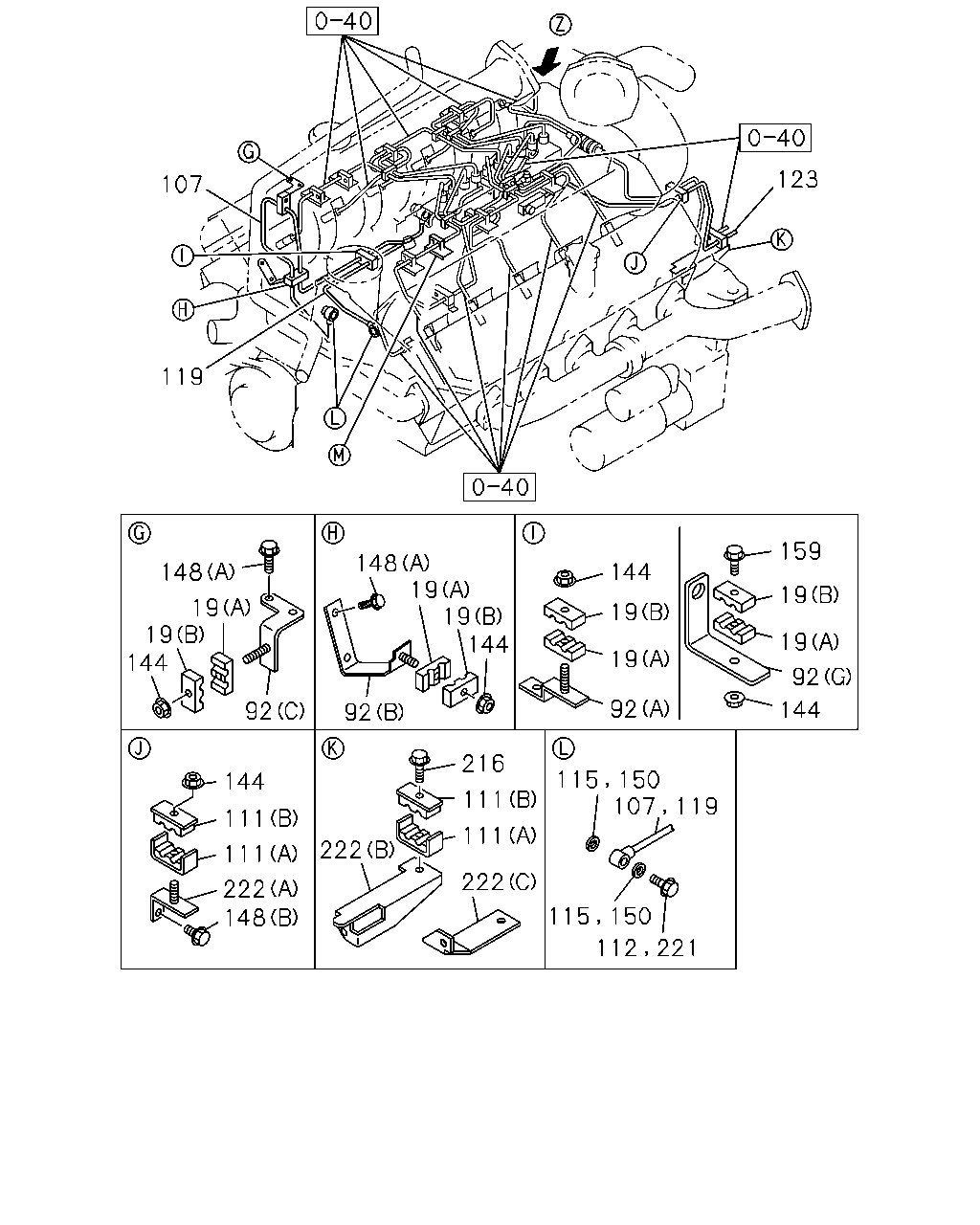

0-42B — FUEL PUMP AND PIPE (#4205) — 305 parça

123 107 119 159 148 19 19 144 148 144 19 19 19 144 19 19 19 92 92 144 92 92 216 107 144 111 119 111 111 222 111 222 222 148 115 150 115 150 112 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9603-9901	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9603-9901	●	●
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9905-	●	●	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-463-0	01	1	9603-9901	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-463-0	01	1	9905-9910	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-623-0	01	1	9911-	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-465-0	01	1	9905-	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9603-9901	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9603-9901	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9901	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9905-9905	●	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9905-	●	●		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9703-9901		●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9703-9901		●
92	BRACKET; FUEL PIPE ENGINE OIL TEMPERATURE GAUGE<UG3>	1-15419-466-0	01	1	9905-9905		●	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9905-0003		●
92	BRACKET; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (G)	1-15419-466-0	01	1	0004-		●	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9905-9910		●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910			●	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-622-0	01	1	9911-0003		●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-0003			●	●
92	BRACKET; FUEL PIPE EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-15419-622-0	01	1	0004-		●	●	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9603-9809		●
92	BRACKET; FUEL PIPE SHORT CHASSIS(CX***C) (A)	1-15419-363-1	01	1	9810-9901		●
92	BRACKET; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9810-9901		●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9603-9901		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9905-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-009-0	01	1	9603-9901	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-009-0	01	1	9905-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-1	01	1	9603-9901		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-1	01	1	9905-		●	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9603-9901	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-0	02	1	9603-9901	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9905-	●	●	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-0	02	1	9905-	●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9603-9901	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9901	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-9909	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9910-	●	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-643-0	01	1	9603-9901	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-643-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-007-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP ENGINE OIL TEMPERATURE GAUGE<UG3>	1-15416-008-0	01	1	9905-9905		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-008-0	01	1	9905-0003		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP CXZ&LONG CHASSIS(CXZ6MF) CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-15416-008-0	01	1	0004-		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-641-0	01	1	9905-0003		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-0	01	1	9905-0003			●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-15415-641-0	01	1	0004-		●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-641-0	01	1	9603-9901		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-008-0	01	1	9603-9901		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ENGINE REAR PTO(SV1)	1-15415-723-1	01	1	9603-9901	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE REAR PTO(SV1)	1-15415-660-1	01	1	9603-9901	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF MIXER TRUCK<RA2>	1-15415-723-1	01	1	9905-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. MIXER TRUCK<RA2>	1-15415-660-1	01	1	9905-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	1-15415-722-1	01	1	9603-9901		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1)	1-15415-659-1	01	1	9603-9901		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF CXZ&LONG CHASSIS(CXZ6MF)	1-15415-659-1	01	1	9603-9901		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF MIXER TRUCK<RA2>	1-15415-722-1	01	1	9905-		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. MIXER TRUCK<RA2>	1-15415-659-1	01	1	9905-		●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9603-9901	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9905-	●	●	●	●
144	NUT; CLIP EXC. GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9905-	●	●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9603-9901		●
144	NUT; CLIP EXC. GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9603-9901		●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9603-9603	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9604-9604	●	●
148	BOLT; BRKT EXC. ENGINE REAR PTO(SV1),GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9605-9901	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9905-	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9603-9702	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9703-9901	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9901	●	●
148	BOLT; BRKT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9801	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9801		●
148	BOLT; BRKT ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9802-9901	●	●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9802-9901		●
148	BOLT; BRKT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-9905	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-9905	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-9905		●
148	BOLT; BRKT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●
148	BOLT; BRKT SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-		●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-		●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-	●	●	●	●
148	BOLT; BRKT SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1) (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●		●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. TROPICAL ZONE KIT<WB6>,GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT EXC. TROPICAL ZONE KIT<WB6> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT EXC. TROPICAL ZONE KIT<WB6> (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001				●
148	BOLT; BRKT EXC. TROPICAL ZONE KIT<WB6> (A) M10X20 FLANGE	0-28181-020-0	02	1	0002-	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28181-020-0	02	1	0002-	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	0002-				●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9703-9901		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-		●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9901	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●	●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	9905-0003	●	●
159	BOLT; CLIP EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M6X30 FLANGE	0-28080-630-0	01	1	0004-	●	●	●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	9603-9901		●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9603-9901	●	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9905-	●	●	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-9901	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9603-9901	●	●
222	BRACKET; CLIP ENGINE REAR PTO(SV1) (B)	1-13319-027-0	01	1	9603-9901	●	●
222	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	1-15419-402-1	01	1	9603-9901	●	●
222	BRACKET; CLIP ENGINE REAR PTO(SV1) (C)	1-13319-027-0	01	1	9905-	●	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9905-	●	●	●	●
222	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	1-15419-402-1	01	1	9905-	●	●	●	●

107 123 119 159 148 19 19 144 148 144 19 19 19 144 19 19 19 92 92 144 92 92 216 107 144 111 119 111 111 222 111 222 222 148 115 150 115 150 112 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9603-9901	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9603-9901	●	●
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9905-	●	●	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-463-0	01	1	9603-9901	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-463-0	01	1	9905-9910	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-623-0	01	1	9911-	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-465-0	01	1	9905-	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9603-9901	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9603-9901	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9901	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9905-9905	●	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9905-	●	●		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9703-9901		●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9703-9901		●
92	BRACKET; FUEL PIPE ENGINE OIL TEMPERATURE GAUGE<UG3>	1-15419-466-0	01	1	9905-9905		●	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9905-0003		●
92	BRACKET; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (G)	1-15419-466-0	01	1	0004-		●	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9905-9910		●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910			●	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-622-0	01	1	9911-0003		●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-0003			●	●
92	BRACKET; FUEL PIPE EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-15419-622-0	01	1	0004-		●	●	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9603-9809		●
92	BRACKET; FUEL PIPE SHORT CHASSIS(CX***C) (A)	1-15419-363-1	01	1	9810-9901		●
92	BRACKET; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9810-9901		●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9603-9901		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9905-			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-009-0	01	1	9603-9901	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-009-0	01	1	9905-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-1	01	1	9603-9901		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-1	01	1	9905-		●	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9603-9901	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-0	02	1	9603-9901	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9905-	●	●	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-0	02	1	9905-	●	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9603-9901	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9901	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-9909	●	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9910-	●	●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-643-0	01	1	9603-9901	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-643-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-007-0	01	1	9905-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP ENGINE OIL TEMPERATURE GAUGE<UG3>	1-15416-008-0	01	1	9905-9905		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-008-0	01	1	9905-0003		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP CXZ&LONG CHASSIS(CXZ6MF) CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-15416-008-0	01	1	0004-		●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-641-0	01	1	9905-0003		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-0	01	1	9905-0003			●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9>	1-15415-641-0	01	1	0004-		●	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. GOVERNOR CONTROL<W69>	1-15415-641-0	01	1	9603-9901		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP GOVERNOR CONTROL<W69>	1-15416-008-0	01	1	9603-9901		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF ENGINE REAR PTO(SV1)	1-15415-723-1	01	1	9603-9901	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE REAR PTO(SV1)	1-15415-660-1	01	1	9603-9901	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF MIXER TRUCK<RA2>	1-15415-723-1	01	1	9905-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. MIXER TRUCK<RA2>	1-15415-660-1	01	1	9905-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	1-15415-722-1	01	1	9603-9901		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1)	1-15415-659-1	01	1	9603-9901		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF CXZ&LONG CHASSIS(CXZ6MF)	1-15415-659-1	01	1	9603-9901		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF MIXER TRUCK<RA2>	1-15415-722-1	01	1	9905-		●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. MIXER TRUCK<RA2>	1-15415-659-1	01	1	9905-		●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9603-9901	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9905-	●	●	●	●
144	NUT; CLIP EXC. GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9905-	●	●	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9603-9901		●
144	NUT; CLIP EXC. GOVERNOR CONTROL<W69> M6 FLANGE	0-91150-106-0	01	1	9603-9901		●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9603-9603	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9604-9604	●	●
148	BOLT; BRKT EXC. ENGINE REAR PTO(SV1),GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9605-9901	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9905-	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9603-9702	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9703-9901	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9901	●	●
148	BOLT; BRKT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9801	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9801		●
148	BOLT; BRKT ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9802-9901	●	●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9802-9901		●
148	BOLT; BRKT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-9905	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-9905	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-9905		●
148	BOLT; BRKT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●
148	BOLT; BRKT SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-		●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-		●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-	●	●	●	●
148	BOLT; BRKT SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1) (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●		●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. TROPICAL ZONE KIT<WB6>,GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT EXC. TROPICAL ZONE KIT<WB6> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT EXC. TROPICAL ZONE KIT<WB6> (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001				●
148	BOLT; BRKT EXC. TROPICAL ZONE KIT<WB6> (A) M10X20 FLANGE	0-28181-020-0	02	1	0002-	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28181-020-0	02	1	0002-	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	0002-				●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9703-9901		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-		●	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9901	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●	●	●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	9905-0003	●	●
159	BOLT; CLIP EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M6X30 FLANGE	0-28080-630-0	01	1	0004-	●	●	●
159	BOLT; CLIP GOVERNOR CONTROL<W69> M6X30 FLANGE	0-28080-630-0	01	1	9603-9901		●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9603-9901	●	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9905-	●	●	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-9901	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9603-9901	●	●
222	BRACKET; CLIP ENGINE REAR PTO(SV1) (B)	1-13319-027-0	01	1	9603-9901	●	●
222	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	1-15419-402-1	01	1	9603-9901	●	●
222	BRACKET; CLIP ENGINE REAR PTO(SV1) (C)	1-13319-027-0	01	1	9905-	●	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9905-	●	●	●	●
222	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	1-15419-402-1	01	1	9905-	●	●	●	●

121 90 92 92 148 148 92 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
90	TUBE; DIST	1-13219-121-0	01	1	9603-9901	●
90	TUBE; DIST	1-13219-121-0	01	1	9905-	●
92	BRACKET; FUEL PIPE (A)	1-15419-463-0	01	1	9603-9901	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-463-0	01	1	9905-9910	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-623-0	01	1	9911-	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-465-0	01	1	9905-	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9603-9901	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9603-9901	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9901	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9905-9905	●	●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9905-	●	●		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9703-9901		●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9703-9901		●
92	BRACKET; FUEL PIPE ENGINE OIL TEMPERATURE GAUGE<UG3>	1-15419-466-0	01	1	9905-9905		●	●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9905-0003		●
92	BRACKET; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (G)	1-15419-466-0	01	1	0004-		●	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9905-9910		●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910			●	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-622-0	01	1	9911-0003		●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-0003			●	●
92	BRACKET; FUEL PIPE EXC. CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A)	1-15419-622-0	01	1	0004-		●	●	●
92	BRACKET; FUEL PIPE EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9603-9809		●
92	BRACKET; FUEL PIPE SHORT CHASSIS(CX***C) (A)	1-15419-363-1	01	1	9810-9901		●
92	BRACKET; FUEL PIPE CXZ&LONG CHASSIS(CXZ6MF) EXC. GOVERNOR CONTROL<W69> (A)	1-15419-363-1	01	1	9810-9901		●
92	BRACKET; FUEL PIPE GOVERNOR CONTROL<W69> (G)	1-15419-466-0	01	1	9603-9901		●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-		●	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9905-			●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9604-9901		●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9905-9909		●	●	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9910-		●	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9603-9603	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9604-9604	●	●
148	BOLT; BRKT EXC. ENGINE REAR PTO(SV1),GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9605-9901	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9905-	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9603-9702	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	04	1	9703-9901	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9901	●	●
148	BOLT; BRKT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9801	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9604-9801		●
148	BOLT; BRKT ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9802-9901	●	●
148	BOLT; BRKT GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9802-9901		●
148	BOLT; BRKT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-9905	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-9905	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-9905		●
148	BOLT; BRKT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-	●	●
148	BOLT; BRKT SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-		●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (A) M10X25 FLANGE	0-28181-025-0	02	1	9905-		●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-	●	●	●	●
148	BOLT; BRKT SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1) (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●		●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) EXC. TROPICAL ZONE KIT<WB6>,GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),GOVERNOR CONTROL<W69> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT EXC. TROPICAL ZONE KIT<WB6> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28181-020-0	02	1	9905-9905	●	●
148	BOLT; BRKT EXC. TROPICAL ZONE KIT<WB6> (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	9906-0001				●
148	BOLT; BRKT EXC. TROPICAL ZONE KIT<WB6> (A) M10X20 FLANGE	0-28181-020-0	02	1	0002-	●	●
148	BOLT; BRKT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A) M10X20 FLANGE	0-28181-020-0	02	1	0002-	●	●
148	BOLT; BRKT (A) M10X20 FLANGE	0-28181-020-0	02	1	0002-				●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9703-9901		●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
