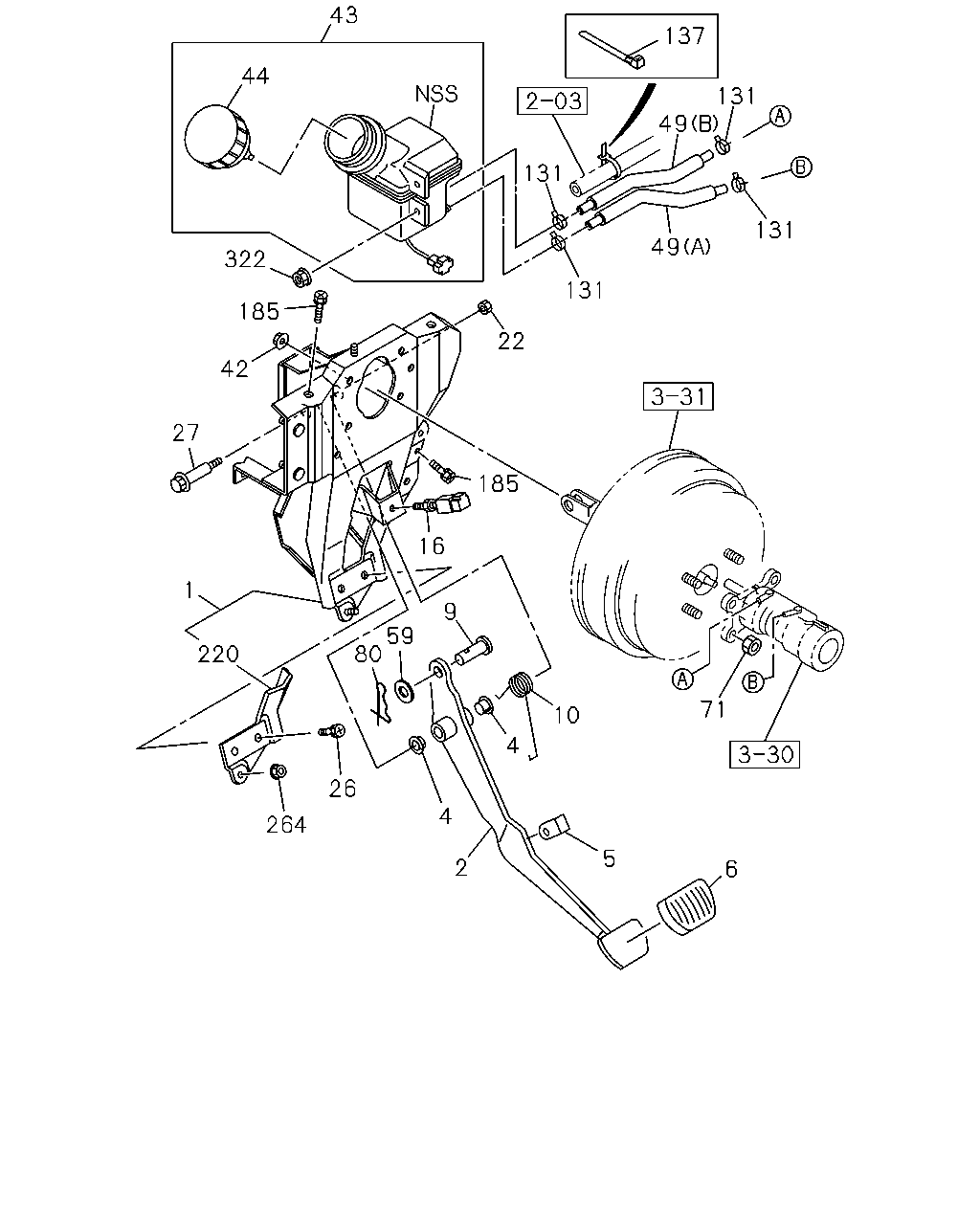

1 |
04.634 BRACKET ASM; PEDAL
|
8-97896-969-3 |
01 |
1 |
0302-0412 |
● |
● |
● |
| |
1 |
04.634 BRACKET ASM; PEDAL
|
8-97410-026-1 |
01 |
1 |
0501-0606 |
● |
● |
● |
| |
1 |
04.634 BRACKET ASM; PEDAL
|
8-97896-969-5 |
01 |
1 |
0607- |
● |
● |
● |
| |
2 |
04.625 PEDAL; BRK
|
8-97856-336-2 |
01 |
1 |
0302- |
● |
● |
● |
| |
4 |
04.634 BUSHING; BRK PEDAL
04.792
|
8-94238-596-0 |
02 |
1 |
0302- |
● |
● |
● |
| |
5 |
04.634 STOPPER; BRK PEDAL
|
8-97853-602-1 |
01 |
1 |
0302- |
● |
● |
● |
| |
6 |
04.630 COVER; BRK PEDAL
00.829
|
8-97853-413-2 |
01 |
1 |
0302- |
● |
● |
● |
| |
9 |
04.634 PIN; JAW JOINT
|
8-94410-276-0 |
01 |
1 |
0302- |
● |
● |
● |
| |
10 |
04.639 SPRING; RETURN,BRK PEDAL
|
8-97853-212-1 |
01 |
1 |
0302- |
● |
● |
● |
| |
16 |
02.447 SWITCH; STOP LAMP
03.340
|
8-94337-761-0 |
01 |
1 |
0302-0606 |
● |
● |
● |
| |
16 |
02.447 SWITCH; STOP LAMP
|
8-97855-187-0 |
01 |
1 |
0607- |
● |
● |
● |
| |
22 |
04.634 NUT; SHAFT
00.833
M10 FLANGE
|
1-09440-022-0 |
01 |
1 |
0302- |
● |
● |
● |
| |
26 |
04.634 BOLT; PEDAL
00.833
M10X22 W/PL WASHER
|
8-97313-188-0 |
02 |
1 |
0302- |
● |
● |
● |
| |
27 |
04.634 SHAFT; BRK PEDAL
|
8-97866-667-0 |
01 |
1 |
0302- |
● |
● |
● |
| |
42 |
04.898 NUT; BRK PEDAL
00.777
M8 W/LK WASHER
|
8-94279-050-0 |
04 |
1 |
0302- |
● |
● |
● |
| |
43 |
04.651 TANK ASM; OIL
|
8-97178-245-1 |
01 |
1 |
0302-0606 |
● |
● |
● |
| |
43 |
04.651 TANK ASM; OIL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97178-245-1 |
01 |
1 |
0607- |
● |
● |
● |
| |
43 |
04.651 TANK ASM; OIL
TRANSMISSION CONTROL-SMOOTHER(8GF)
|
8-97178-246-1 |
01 |
1 |
0607- |
● |
● |
● |
| |
44 |
04.651 CAP; OIL TANK
|
8-97178-291-1 |
01 |
1 |
0302- |
● |
● |
● |
| |
49 |
04.680 HOSE; OIL TANK TO BRK M/CYL
(B)
L=315
|
8-97129-584-0 |
01 |
1 |
0302- |
● |
● |
● |
| |
49 |
04.680 HOSE; OIL TANK TO BRK M/CYL
(A)
L=320
|
8-97129-585-0 |
01 |
1 |
0302- |
● |
● |
● |
| |
59 |
04.634 WASHER; PL,JAW JOINT
02.575
ID=15
|
9-09160-514-0 |
01 |
1 |
0302-0605 |
● |
● |
● |
| |
59 |
04.634 WASHER; PL,JAW JOINT
ID=15
|
0-91610-514-0 |
01 |
1 |
0606- |
● |
● |
● |
| |
71 |
04.650 NUT; BRK M/CYL
00.777
M8 W/LK WASHER
|
8-94279-050-0 |
04 |
1 |
0302- |
● |
● |
● |
| |
80 |
04.634 PIN; SNAP,BRK PEDAL
|
8-94279-912-0 |
01 |
1 |
0302- |
● |
● |
● |
| |
131 |
04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
|
8-97130-480-0 |
04 |
1 |
0302- |
● |
● |
● |
| |
137 |
04.681 CLIP; BAND,RUBBER HOSE
02.559
L=250
|
5-09707-030-1 |
01 |
1 |
0302- |
● |
● |
● |
| |
185 |
04.634 BOLT; BRKT
09.003
M10X25 FLANGE
|
0-28691-025-0 |
02 |
1 |
0302-0512 |
● |
● |
● |
| |
185 |
04.634 BOLT; BRKT
07.833
M10X25 FLANGE
|
0-28661-025-0 |
02 |
1 |
0601- |
● |
● |
● |
| |
220 |
04.634 BRACKET; STRG SHAFT
|
8-97857-044-1 |
01 |
1 |
0302- |
● |
● |
● |
| |
264 |
04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
04.010
M8 FLANGE
|
8-97046-127-0 |
01 |
1 |
0302-0610 |
● |
● |
● |
| |
264 |
04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
01.840
M8 W/DISHED WASHER
|
8-97329-625-0 |
01 |
1 |
0611- |
● |
● |
● |
| |
322 |
04.651 NUT; OIL TANK
04.594
M6 FLANGE
|
0-91150-106-0 |
02 |
1 |
0302-0602 |
● |
● |
● |
| |
322 |
04.651 NUT; OIL TANK
01.062
M6 FLANGE
|
0-91180-106-0 |
02 |
1 |
0603- |
● |
● |
● |
