2-85 — POWER TAKE OFF CONTROL (#42044) — 127 parça

70 15 71 18 79 19 245 256 79 121 16 83 24 21 222 256 31 192 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	0302-
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	0302-
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0302-
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	0302-0605
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	0606-
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0302-0605
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-
21	04.439 WASHER; PL,CONT LEVER 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0302-0506
21	04.439 WASHER; PL,CONT LEVER 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0507-0605
21	04.439 WASHER; PL,CONT LEVER 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-0606
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0607-
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2907	8-98019-194-1	01	1	0607-
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-943-0	01	1	0302-0506
24	04.439 CABLE; PTO CONT 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-943-1	01	1	0507-0606
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) L=2981	8-98019-195-1	01	1	0607-
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 02.559 L=300	1-09707-001-1	01	1	0302-
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	0302-
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	0302-
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0302-
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	0302-
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 08.934 ID=10	9-09185-410-0	01	1	0302-0604
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 04.008 ID=10	0-91805-510-0	01	1	0605-
155	04.439 CLIP; CABLE 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.240 T=5.5	5-09709-047-0	01	1	0607-
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28680-616-0	01	1	0302-0512
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0601-
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0302-
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0302-0604
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 02.559 M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	0302-
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	0302-

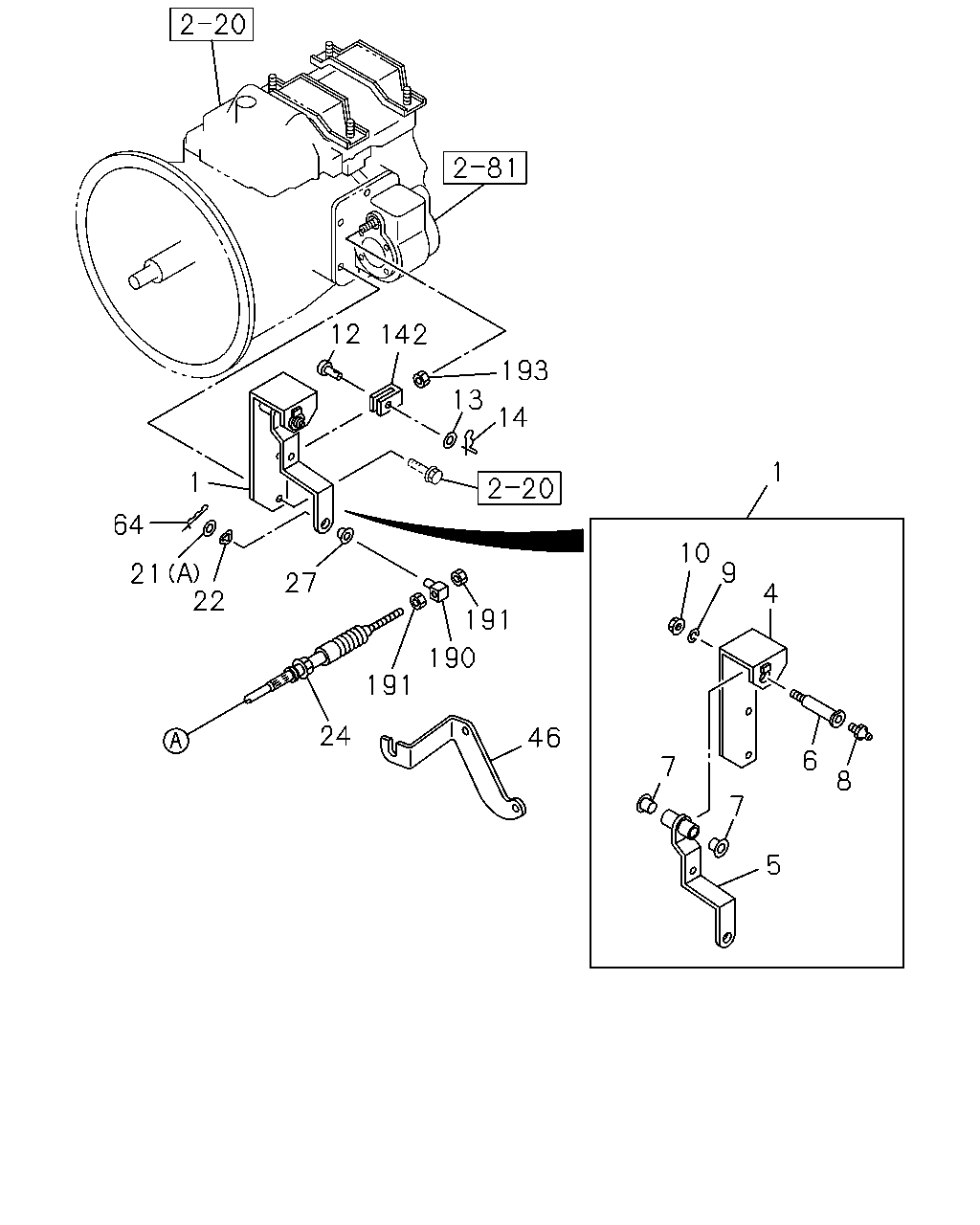

12 142 193 13 14 1 1 64 10 9 21 22 27 4 191 190 191 24 46 6 7 8 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 LEVER ASM; PTO & DUMP CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66)	8-97357-219-0	01	1	0302-0506
1	04.439 LEVER ASM; PTO & DUMP CONT 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66)	8-97357-219-0	01	1	0507-0606
1	04.439 LEVER ASM; PTO & DUMP CONT 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-219-0	01	1	0607-
1	04.439 LEVER ASM; PTO & DUMP CONT 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97310-741-0	01	1	0607-
4	04.439 BRACKET; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0302-0506
4	04.439 BRACKET; PTO CONT 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0507-0606
4	04.439 BRACKET; PTO CONT 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-97310-740-0	01	1	0607-
5	04.439 LEVER; PTO SHIFT CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66)	8-97357-218-0	01	1	0302-0506
5	04.439 LEVER; PTO SHIFT CONT 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66)	8-97357-218-0	01	1	0507-0606
5	04.439 LEVER; PTO SHIFT CONT 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-218-0	01	1	0607-
5	04.439 LEVER; PTO SHIFT CONT 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97310-747-0	01	1	0607-
6	04.439 SHAFT; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0302-0506
6	04.439 SHAFT; PTO CONT 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0507-0606
6	04.439 SHAFT; PTO CONT 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-97204-596-0	01	1	0607-
7	04.439 BUSHING; LEVER,PTO 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0302-0506
7	04.439 BUSHING; LEVER,PTO 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0507-0606
7	04.439 BUSHING; LEVER,PTO 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0607-
8	04.439 NIPPLE; GREASE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0302-0506
8	04.439 NIPPLE; GREASE 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0507-0606
8	04.439 NIPPLE; GREASE 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0607-0607
8	04.439 NIPPLE; GREASE 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0608-
9	04.439 WASHER; LK,SHAFT,PTO 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0302-0506
9	04.439 WASHER; LK,SHAFT,PTO 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0507-0603
9	04.439 WASHER; LK,SHAFT,PTO 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0604-0606
9	04.439 WASHER; LK,SHAFT,PTO 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0607-
10	04.439 NUT; SHAFT,PTO 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0302-0506
10	04.439 NUT; SHAFT,PTO 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0507-0512
10	04.439 NUT; SHAFT,PTO 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0601-0606
10	04.439 NUT; SHAFT,PTO 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0607-
12	04.439 JOINT; PIN,YOKE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0302-0506
12	04.439 JOINT; PIN,YOKE 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0507-0606
12	04.439 JOINT; PIN,YOKE 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0607-0610
12	04.439 JOINT; PIN,YOKE 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0611-
13	04.439 WASHER; PL,YOKE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0302-0506
13	04.439 WASHER; PL,YOKE 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0507-0605
13	04.439 WASHER; PL,YOKE 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0606-0606
13	04.439 WASHER; PL,YOKE 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0607-
14	04.439 PIN; SPLIT,YOKE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0302-0506
14	04.439 PIN; SPLIT,YOKE 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0507-0606
14	04.439 PIN; SPLIT,YOKE 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0607-
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0302-0605
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 04.595 (B) ID=8.4 OD=22	0-91610-708-0	01	1	0606-
21	04.439 WASHER; PL,CONT LEVER 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0302-0506
21	04.439 WASHER; PL,CONT LEVER 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0507-0605
21	04.439 WASHER; PL,CONT LEVER 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0606-0606
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0607-
22	04.439 WASHER; LK,LEVER 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0302-0506
22	04.439 WASHER; LK,LEVER 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0507-0606
22	04.439 WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0607-
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2907	8-98019-194-1	01	1	0607-
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-943-0	01	1	0302-0506
24	04.439 CABLE; PTO CONT 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-943-1	01	1	0507-0606
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) L=2981	8-98019-195-1	01	1	0607-
27	04.439 BUSHING; LEVER,PTO 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0302-0506
27	04.439 BUSHING; LEVER,PTO 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0507-0606
27	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0607-
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97264-954-1	01	1	0607-0608
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-083-0	01	1	0609-
46	04.439 BRACKET; PTO,TRANS SIDE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66)	8-97357-083-0	01	1	0302-0506
46	04.439 BRACKET; PTO,TRANS SIDE 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66)	8-97357-083-0	01	1	0507-0606
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97366-039-0	01	1	0607-
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0302-
142	04.439 CLEVIS; CONT BOX 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0302-0506
142	04.439 CLEVIS; CONT BOX 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0507-0606
142	04.439 CLEVIS; CONT BOX 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66)	8-97327-588-0	01	1	0607-
190	04.439 BOSS; LEVER,PTO 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	0302-0506
190	04.439 BOSS; LEVER,PTO 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	0507-0606
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-2	01	1	0607-
191	04.439 NUT; BOSS 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0302-0506
191	04.439 NUT; BOSS 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0507-0512
191	04.439 NUT; BOSS 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 03.330 M6	0-91110-506-0	02	1	0601-0606
191	04.439 NUT; BOSS PTO TRANSMISSION SIDE(V66) 03.330 M6	0-91110-506-0	02	1	0607-
193	04.439 NUT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0302-0506
193	04.439 NUT 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0507-0512
193	04.439 NUT 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0601-0606
193	04.439 NUT 4JJ1 ENG(LFB) PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0607-

24 172 172 172 195 195 173 173 195 195 173 195 172 195 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2907	8-98019-194-1	01	1	0607-
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-943-0	01	1	0302-0506
24	04.439 CABLE; PTO CONT 4JH1-TC ENG(RDM) PTO TRANSMISSION SIDE(V66) L=2760	8-97351-943-1	01	1	0507-0606
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) L=2981	8-98019-195-1	01	1	0607-
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0302-0512
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-0606
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0512
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-0607
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0607-
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-0607
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (F)	8-98054-639-1	01	1	0607-
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98057-738-1	01	1	0609-
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0302-0606
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (C)	8-98019-196-1	01	1	0607-
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	0302-0606
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (D)	8-98019-197-0	01	1	0607-0608
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98057-737-1	01	1	0609-
