0-42A — FUEL PUMP AND PIPE (#4204) — 120 parça

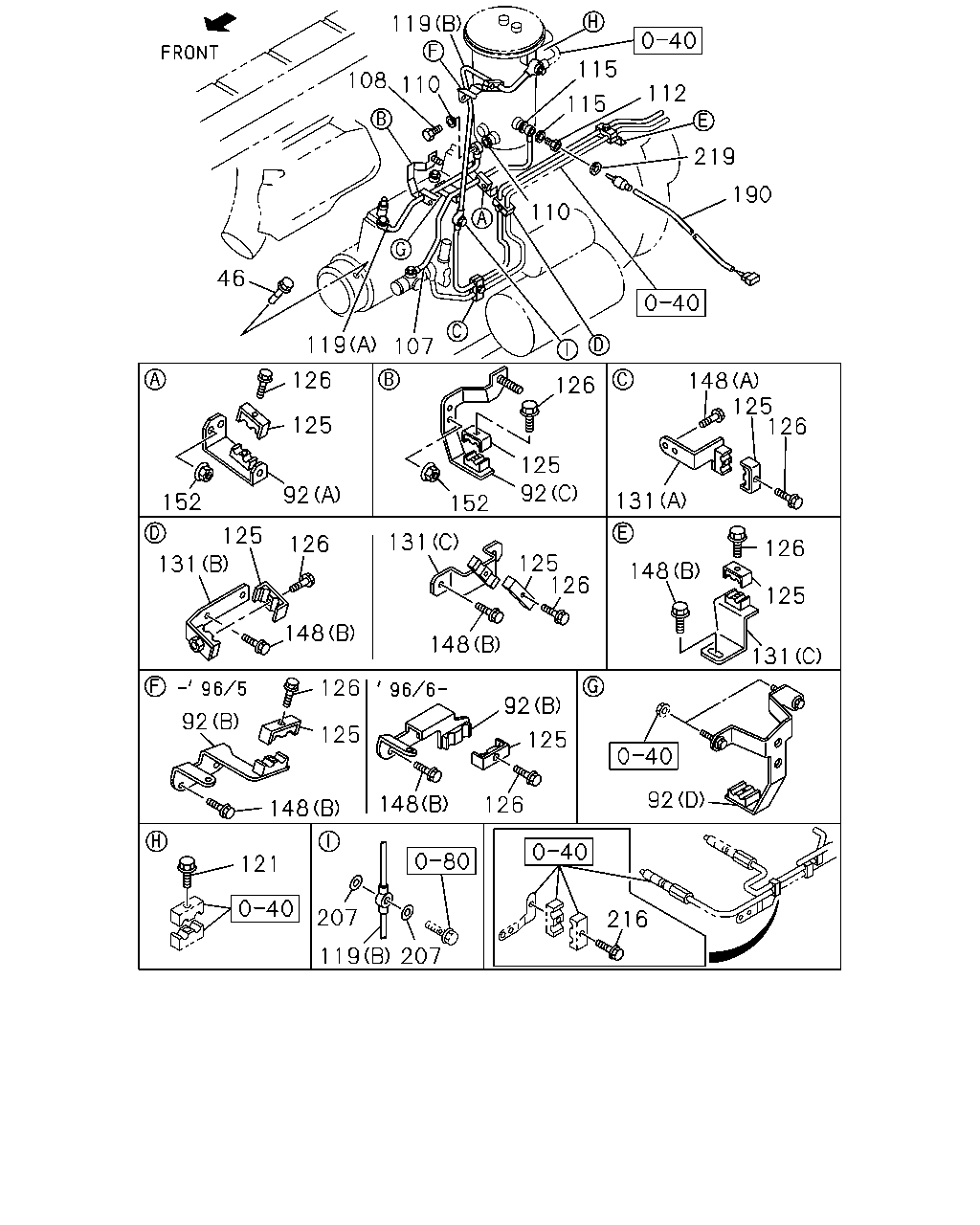

çizim 6429
119 115 108 110 112 115 219 190 110 46 119 107 126 148 125 126 126 125 125 92 92 131 152 152 125 131 126 126 125 126 131 148 125 148 148 131 126 92 92 125 125 92 148 126 148 121 207 216 119 207
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
46 PLUG
M14X9 		9-99202-314-0 01 1 9603-9901 ●
46 PLUG
EXC. ELECTRONIC GOV RED3(KG5) M14X9 		9-99202-314-0 01 1 9902-9904 ● ●
46 PLUG
EXC. ELECTRONIC GOV RED3(KG5) M14X9 		9-99202-314-0 01 1 9905- ● ● ●
92 BRACKET; FUEL PIPE
(C) 		1-15419-427-0 01 1 9603-9901 ●
92 BRACKET; FUEL PIPE
(C) 		1-15419-427-0 01 1 9902-9904 ● ●
92 BRACKET; FUEL PIPE
(C) 		1-15419-427-0 01 1 9905-9909 ● ● ●
92 BRACKET; FUEL PIPE
(C) 		1-15419-427-0 01 1 9910- ● ● ● ●
92 BRACKET; FUEL PIPE
(B) 		1-15419-468-0 01 1 9603-9605 ●
92 BRACKET; FUEL PIPE
(B) 		1-15419-474-1 01 1 9606-9901 ●
92 BRACKET; FUEL PIPE
(B) 		1-15419-474-1 01 1 9902-9904 ● ●
92 BRACKET; FUEL PIPE
(B) 		1-15419-474-1 01 1 9905-9909 ● ● ● ●
92 BRACKET; FUEL PIPE
(B) 		1-15419-474-1 01 1 9910- ● ● ● ● ●
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 9703-9901 ●
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 9902-9904 ● ●
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 9905-9909 ● ● ● ●
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 9910- ● ● ● ● ●
92 BRACKET; FUEL PIPE
(D) 		1-15419-592-0 01 1 9905- ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 9603-9901 ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 9902-9904 ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 9905-9909 ● ● ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 9910- ● ● ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9603-9901 ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9902-9904 ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9905-9909 ● ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9910- ● ● ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9901 ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9902-9904 ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905-9909 ● ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9910- ● ● ● ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9603-9901 ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9902-9904 ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9905- ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27,HOLE M12 		1-09675-156-1 01 1 9902-9904 ●
112 BOLT; JOINT,FUEL FILTER
M14X27,HOLE M12 		1-09675-156-1 01 1 9905-9909 ● ●
112 BOLT; JOINT,FUEL FILTER 1-09675-156-1 01 1 9910- ● ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9901 ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9902-9904 ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905-9909 ● ● ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9910- ● ● ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-538-1 01 1 9603-9901 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-538-1 01 1 9902-9904 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-538-1 01 1 9905- ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 		1-15415-540-1 01 1 9603-9605 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 		1-15416-091-0 01 1 9606-9901 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-090-0 01 1 9902-9909 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-090-0 01 1 9910- ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> (B) 		1-15416-020-0 01 1 9603-9605 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> (B) 		1-15416-092-0 01 1 9606-9611 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> (B) 		1-15416-137-0 01 1 9612-9901 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-137-0 01 1 9902-9904 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-15416-137-0 01 1 9905- ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-137-0 01 1 9905- ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-15416-091-0 01 1 9905-9905 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-15416-091-0 01 1 9905- ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-402-0 01 1 9905- ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-539-1 01 1 9902-9904 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-539-1 01 1 9905-9909 ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-539-1 01 1 9910- ● ● ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 9603-9603 ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 9604-9901 ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 9902-9904 ● ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 9905-9909 ● ● ● ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 9910- ● ● ● ● ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-1 06 1 9603-9901 ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-1 06 1 9902-9904 ● ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-1 06 1 9905-9909 ● ● ● ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-2 06 1 9910- ● ● ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 9603-9901 ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 9902-9904 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 9905-9909 ● ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 9910- ● ● ● ● ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 9603-9901 ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 9902-9904 ● ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 9905-9909 ● ● ● ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 9910- ● ● ● ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 9603-9901 ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 9902-9904 ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 9905-9909 ● ● ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 9910- ● ● ● ● ●
131 BRACKET; FUEL PIPE CLIP
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 		1-15419-372-0 01 1 9603-9901 ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-372-0 01 1 9902-9904 ●
131 BRACKET; FUEL PIPE CLIP
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-15419-372-0 01 1 9905-9909 ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-372-0 01 1 9905-9909 ● ●
131 BRACKET; FUEL PIPE CLIP
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-15419-372-0 01 1 9910- ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-372-0 01 1 9910- ● ● ●
131 BRACKET; FUEL PIPE CLIP
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> (C) 		1-15419-467-0 01 1 9603-9611 ●
131 BRACKET; FUEL PIPE CLIP
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> (C) 		1-15419-484-0 01 1 9612-9901 ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-484-0 01 1 9902-9904 ●
131 BRACKET; FUEL PIPE CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) 		1-15419-484-0 01 1 9905- ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-484-0 01 1 9905- ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9603-9901 ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9902-9904 ● ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9905-9909 ● ● ● ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9910- ● ● ● ● ●
148 BOLT; BRKT
(B) M10X18 FLANGE 		0-28181-018-0 03 1 9603-9604 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 9605-9901 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 9902-9904 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 9905-9909 ● ● ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 9910- ● ● ● ● ●
148 BOLT; BRKT
(A) M10X20 FLANGE 		0-28181-020-0 02 1 9603-9603 ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9603-9710 ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9603-9710 ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9711-9901 ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9902-9904 ● ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9905-9909 ● ● ● ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9910- ● ● ● ● ●
190 SENSOR; FUEL TEMP 1-81535-036-5 01 1 9902-9904 ●
190 SENSOR; FUEL TEMP 1-81535-036-5 01 1 9905-9909 ● ●
190 SENSOR; FUEL TEMP 1-81535-036-6 01 1 9910- ● ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9902-9904 ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905-9909 ● ● ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9910- ● ● ● ● ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9603-9901 ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9902-9904 ● ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9905-9909 ● ● ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9910- ● ● ● ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 02 1 9905- ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9902-9904 ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9905-9909 ● ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9910- ● ● ●
