2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#42038) — 187 parça

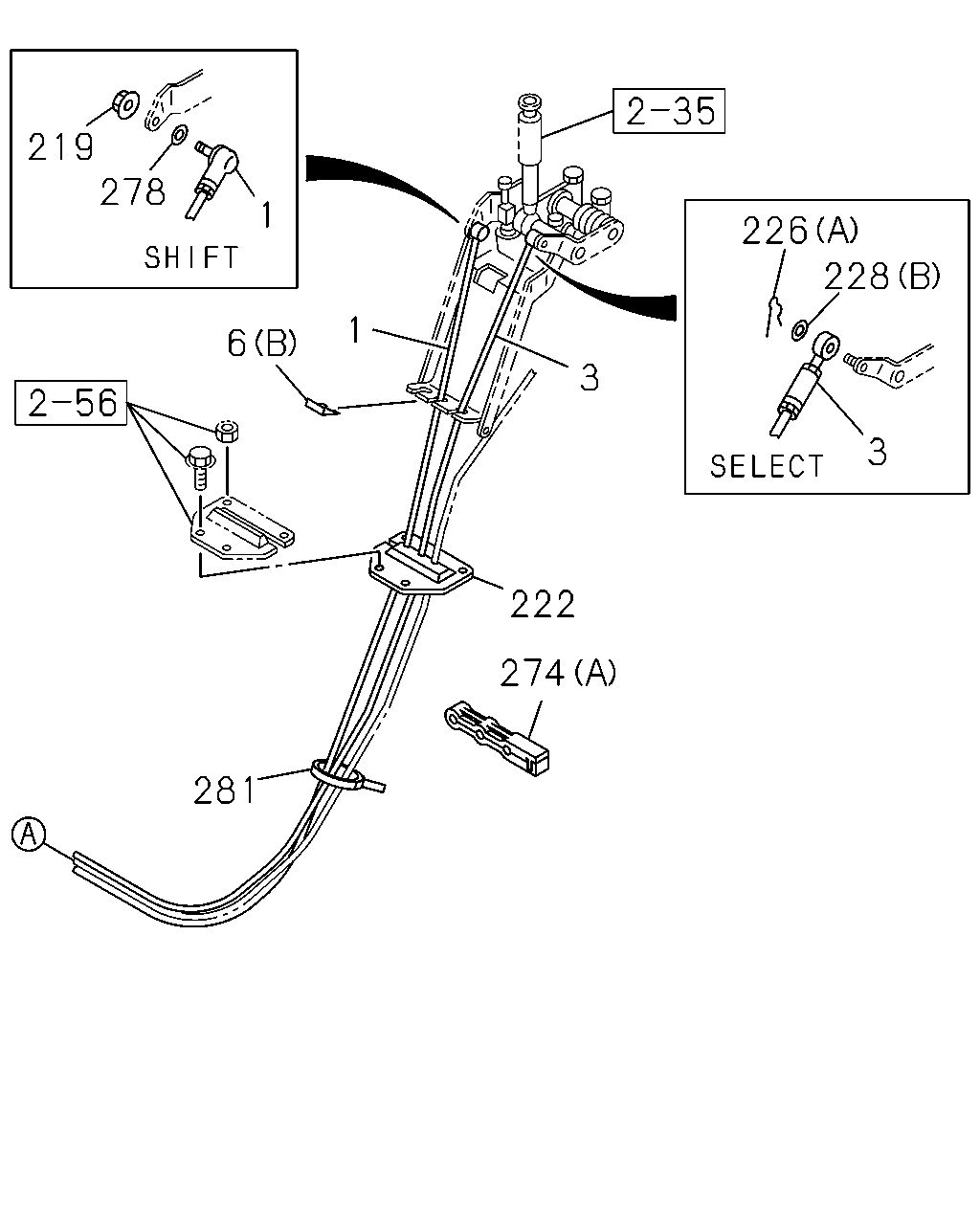

çizim 50686
219 278 1 226 228 1 6 3 3 222 274 281
BalonParca AdiParca NoAdetTipApplied Date
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1 ENG(RJX) L=2674 		8-97309-853-1 01 1 0302-0506
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1-TC ENG(RDM) L=2674 		8-97309-853-1 01 1 0507-0606
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2695 		8-97388-717-2 01 1 0607-
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) L=2720 		8-97309-854-0 01 1 0302-0506
3 00.852 CABLE; SELECT,TRANS CONT
4JH1-TC ENG(RDM) L=2720 		8-97309-854-0 01 1 0507-0606
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2785 		8-97388-726-2 01 1 0607-
6 04.047 CLIP; CABLE
00.854 (C) ID=22.2 		1-09701-209-1 01 1 0302-0606
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=22.2 		1-09701-209-1 01 1 0607-
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0302-0606
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97011-448-0 02 1 0607-
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 0302-0606
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 01 1 0302-0606
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=19.2 		8-97211-011-0 01 1 0607-
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (E) ID=21 L=24 		8-94176-807-1 01 1 0302-0506
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) 04.686 (E) ID=21 L=24 		8-94176-807-1 01 1 0507-0606
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (D) 		8-94458-385-1 01 1 0302-0506
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) 04.785 (D) 		8-94458-385-1 01 1 0507-0606
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0302-0506
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0507-0606
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 0302-0606
219 04.047 NUT; FLANGE,SHAFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.037 M8 T=8.0 		8-94363-045-0 01 1 0607-
222 04.010 GROMMET; CABLE 8-97089-851-0 01 1 0302-0606
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0302-0606
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7 		8-94111-137-0 01 1 0607-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0302-0606
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23 		8-94170-378-0 01 1 0607-
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0302-0606
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.2 OD=40 		8-97182-975-0 02 1 0607-
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0302-0605
228 04.047 WASHER; PL,SHIFT CABLE
06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606-0606
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0607-
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 0302-0606
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97093-491-1 01 1 0607-
274 04.008 CLIP; CONT CABLE
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B) 		8-97036-333-1 01 1 0302-0506
274 04.008 CLIP; CONT CABLE
4JH1-TC ENG(RDM) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B) 		8-97036-333-1 01 1 0507-0606
278 00.854 WASHER; LK,SHIFT WIRE
01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 0302-0604
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0605-0606
278 00.854 WASHER; LK,SHIFT WIRE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0607-
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 0302-0606
281 04.042 CLIP; BAND
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0607-

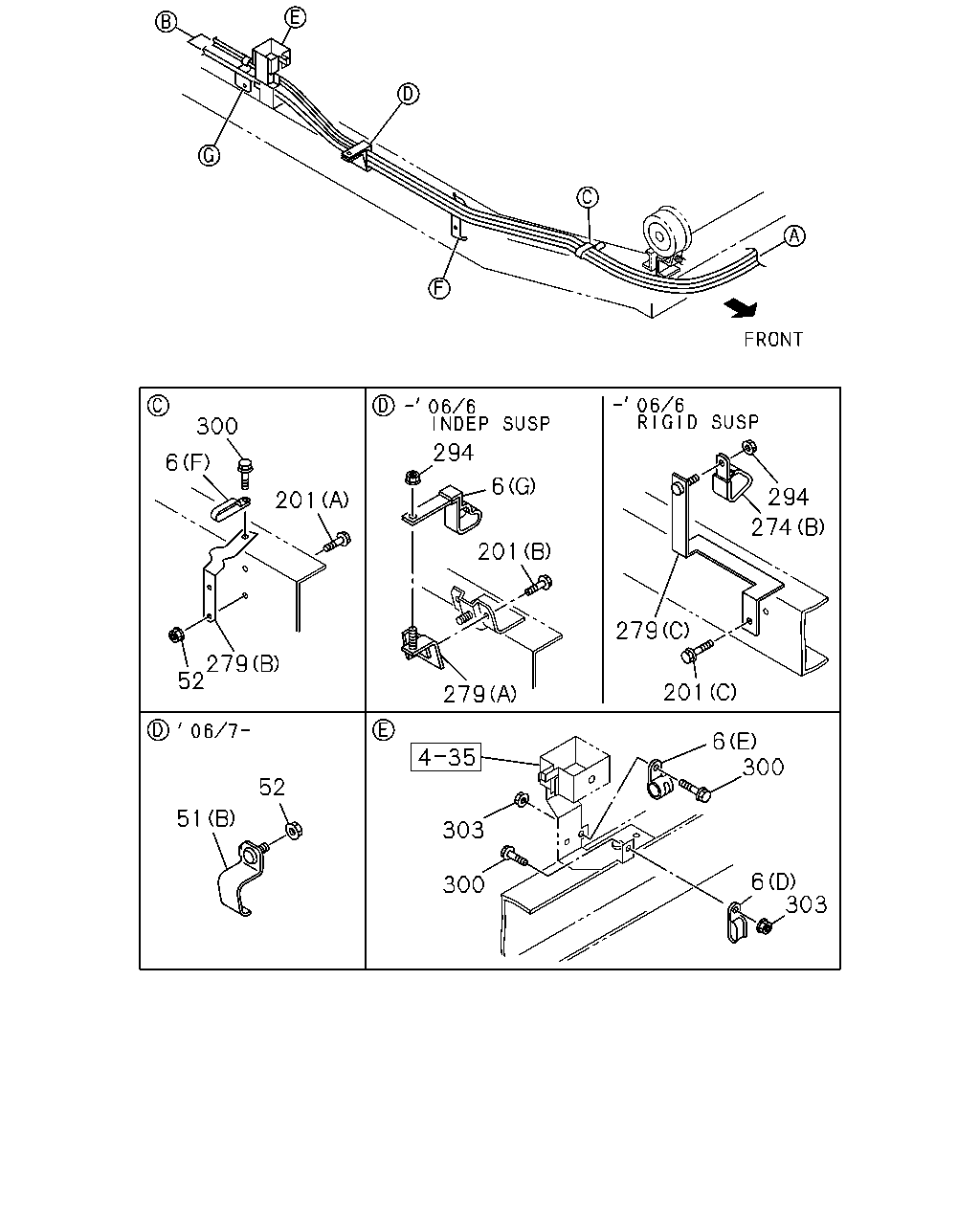

çizim 53696
300 294 6 6 294 201 274 201 279 279 52 201 279 6 300 52 51 303 6 303 300
BalonParca AdiParca NoAdetTipApplied Date
6 04.047 CLIP; CABLE
00.854 (C) ID=22.2 		1-09701-209-1 01 1 0302-0606
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=22.2 		1-09701-209-1 01 1 0607-
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0302-0606
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97011-448-0 02 1 0607-
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 0302-0606
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 01 1 0302-0606
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=19.2 		8-97211-011-0 01 1 0607-
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (E) ID=21 L=24 		8-94176-807-1 01 1 0302-0506
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) 04.686 (E) ID=21 L=24 		8-94176-807-1 01 1 0507-0606
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (D) 		8-94458-385-1 01 1 0302-0506
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) 04.785 (D) 		8-94458-385-1 01 1 0507-0606
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0302-0506
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0507-0606
51 04.010 BRACKET; GEAR CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98030-604-0 01 1 0607-0703
51 04.010 BRACKET; GEAR CONT
(A) 		8-98030-604-0 01 1 0704-
51 04.010 BRACKET; GEAR CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98032-072-0 01 1 0607-
52 04.047 NUT; BRKT
DUAL RR TIRE(NKC***) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0302-0602
52 04.047 NUT; BRKT
DUAL RR TIRE(NKC***) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606
52 04.047 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0703
52 04.047 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0703
52 04.047 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0704-
52 04.047 NUT; BRKT
DUAL RR TIRE(NKC***) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0704-
201 04.032 BOLT; BRKT
DUAL RR TIRE(NKC***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0708-
201 04.032 BOLT; BRKT
03.405 (A) M10X25 FLANGE 		0-28681-025-0 02 1 0302-0506
201 04.032 BOLT; BRKT
03.405 (A) M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512
201 04.032 BOLT; BRKT
00.029 (A) M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 01 1 0302-0512
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0601-0606
201 04.032 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM) EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606
201 04.032 BOLT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0607-0703
201 04.032 BOLT; BRKT
01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0704-0707
201 04.032 BOLT; BRKT
SGL TIRE(NKB***) 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0708-
201 04.032 BOLT; BRKT
DUAL RR TIRE(NKC***) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0708-
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 0302-0606
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97093-491-1 01 1 0607-
274 04.008 CLIP; CONT CABLE
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B) 		8-97036-333-1 01 1 0302-0506
274 04.008 CLIP; CONT CABLE
4JH1-TC ENG(RDM) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B) 		8-97036-333-1 01 1 0507-0606
279 04.047 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97066-629-5 01 1 0302-0606
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97106-662-0 01 1 0302-0506
279 04.047 BRACKET; CABLE TO FRAME
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97106-662-0 01 1 0507-0606
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97351-828-0 01 1 0302-0506
279 04.047 BRACKET; CABLE TO FRAME
4JH1-TC ENG(RDM) EXC. FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97351-828-0 01 1 0507-0606
279 04.047 BRACKET; CABLE TO FRAME
DUAL RR TIRE(NKC***) 4JH1 ENG(RJX) (B) 		8-97101-709-1 01 1 0302-0506
279 04.047 BRACKET; CABLE TO FRAME
DUAL RR TIRE(NKC***) 4JH1-TC ENG(RDM) (B) 		8-97101-709-1 01 1 0507-0606
294 00.854 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0602
294 00.854 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0302-0512
300 00.854 BOLT; CLIP
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601-0606
300 00.854 BOLT; CLIP
4JH1 ENG(RJX) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601-0606
300 00.854 BOLT; CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607-
300 00.854 BOLT; CLIP
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606
303 00.855 NUT; CLIP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506
303 00.855 NUT; CLIP
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602
303 00.855 NUT; CLIP
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606
303 00.855 NUT; CLIP
DUAL RR TIRE(NKC***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-

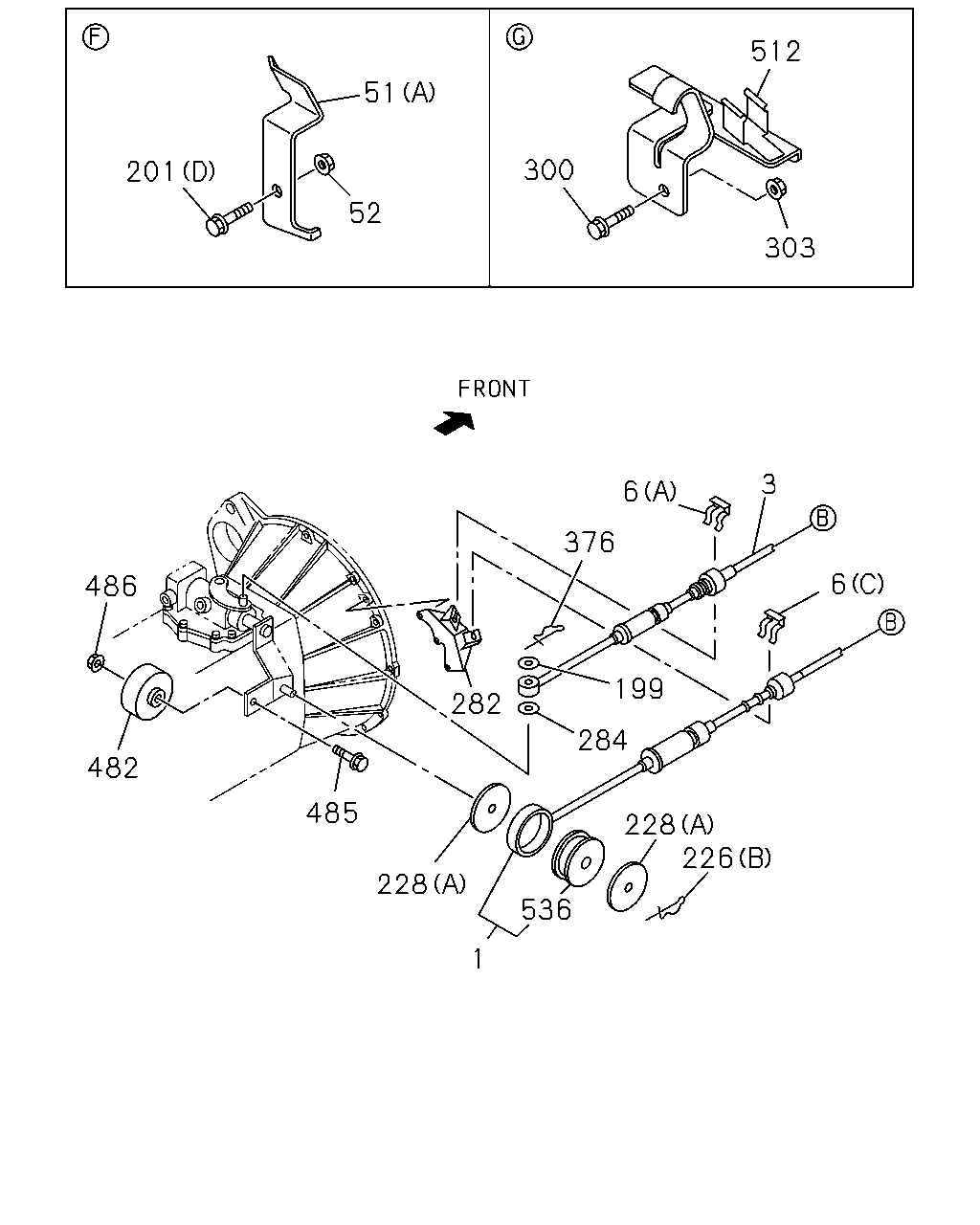

çizim 53749
512 51 300 201 52 303 3 6 376 6 486 199 282 284 482 485 228 226 228 536 1
BalonParca AdiParca NoAdetTipApplied Date
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1 ENG(RJX) L=2674 		8-97309-853-1 01 1 0302-0506
1 00.854 CABLE; SHIFT,TRANS CONT
4JH1-TC ENG(RDM) L=2674 		8-97309-853-1 01 1 0507-0606
1 00.854 CABLE; SHIFT,TRANS CONT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2695 		8-97388-717-2 01 1 0607-
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) L=2720 		8-97309-854-0 01 1 0302-0506
3 00.852 CABLE; SELECT,TRANS CONT
4JH1-TC ENG(RDM) L=2720 		8-97309-854-0 01 1 0507-0606
3 00.852 CABLE; SELECT,TRANS CONT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2785 		8-97388-726-2 01 1 0607-
6 04.047 CLIP; CABLE
00.854 (C) ID=22.2 		1-09701-209-1 01 1 0302-0606
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.854 (C) ID=22.2 		1-09701-209-1 01 1 0607-
6 04.047 CLIP; CABLE
(B) 		8-97011-448-0 02 1 0302-0606
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97011-448-0 02 1 0607-
6 04.047 CLIP; CABLE
(F) 		8-97137-589-0 01 1 0302-0606
6 04.047 CLIP; CABLE
(A) ID=19.2 		8-97211-011-0 01 1 0302-0606
6 04.047 CLIP; CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=19.2 		8-97211-011-0 01 1 0607-
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (E) ID=21 L=24 		8-94176-807-1 01 1 0302-0506
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) 04.686 (E) ID=21 L=24 		8-94176-807-1 01 1 0507-0606
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (D) 		8-94458-385-1 01 1 0302-0506
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) 04.785 (D) 		8-94458-385-1 01 1 0507-0606
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0302-0506
6 04.047 CLIP; CABLE
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (G) 		8-97036-330-1 01 1 0507-0606
51 04.010 BRACKET; GEAR CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98030-604-0 01 1 0607-0703
51 04.010 BRACKET; GEAR CONT
(A) 		8-98030-604-0 01 1 0704-
51 04.010 BRACKET; GEAR CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-98032-072-0 01 1 0607-
52 04.047 NUT; BRKT
DUAL RR TIRE(NKC***) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0302-0602
52 04.047 NUT; BRKT
DUAL RR TIRE(NKC***) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0603-0606
52 04.047 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0703
52 04.047 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-0703
52 04.047 NUT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0704-
52 04.047 NUT; BRKT
DUAL RR TIRE(NKC***) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0704-
199 04.012 WASHER; PL,SELECT
16.674 ID=8.4 		9-09160-508-0 01 1 0302-0605
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 0606-0606
199 04.012 WASHER; PL,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 0607-
201 04.032 BOLT; BRKT
DUAL RR TIRE(NKC***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 01 1 0708-
201 04.032 BOLT; BRKT
03.405 (A) M10X25 FLANGE 		0-28681-025-0 02 1 0302-0506
201 04.032 BOLT; BRKT
03.405 (A) M10X25 FLANGE 		0-28681-025-0 02 1 0507-0512
201 04.032 BOLT; BRKT
00.029 (A) M10X25 FLANGE 		0-28651-025-0 02 1 0601-0606
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 (B) M6X12 FLANGE 		0-28080-612-0 01 1 0302-0512
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0601-0606
201 04.032 BOLT; BRKT
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM) EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (C) M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
201 04.032 BOLT; BRKT
4JH1-TC ENG(RDM) EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606
201 04.032 BOLT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0607-0703
201 04.032 BOLT; BRKT
01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0704-0707
201 04.032 BOLT; BRKT
SGL TIRE(NKB***) 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0708-
201 04.032 BOLT; BRKT
DUAL RR TIRE(NKC***) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 (D) M8X20 FLANGE 		0-28650-820-0 01 1 0708-
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 0302-0606
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (A) L=27.7 		8-94111-137-0 01 1 0607-
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 0302-0606
226 04.047 PIN; SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=23 		8-94170-378-0 01 1 0607-
228 04.047 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 0302-0606
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=8.2 OD=40 		8-97182-975-0 02 1 0607-
228 04.047 WASHER; PL,SHIFT CABLE
00.206 (B) ID=8.4 		9-09164-508-0 01 1 0302-0605
228 04.047 WASHER; PL,SHIFT CABLE
06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606-0606
228 04.047 WASHER; PL,SHIFT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.056 (B) ID=8.4 OD=16 		0-91614-508-0 01 1 0607-
282 04.010 BRACKET; TRANS SIDE
4JH1 ENG(RJX) 		8-97350-449-0 01 1 0302-0506
282 04.010 BRACKET; TRANS SIDE
4JH1-TC ENG(RDM) 		8-97350-449-0 01 1 0507-0606
282 04.010 BRACKET; TRANS SIDE
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97350-449-0 01 1 0607-
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 0302-0606
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8.4 OD=14 		5-09550-002-0 01 1 0607-
300 00.854 BOLT; CLIP
04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0302-0512
300 00.854 BOLT; CLIP
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0601-0606
300 00.854 BOLT; CLIP
4JH1 ENG(RJX) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601-0606
300 00.854 BOLT; CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607-
300 00.854 BOLT; CLIP
4JH1 ENG(RJX) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0506
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0507-0512
300 00.854 BOLT; CLIP
4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0606
303 00.855 NUT; CLIP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506
303 00.855 NUT; CLIP
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602
303 00.855 NUT; CLIP
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606
303 00.855 NUT; CLIP
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606
303 00.855 NUT; CLIP
DUAL RR TIRE(NKC***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607-
376 04.047 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 0302-0606
376 04.047 PIN; SNAP,SELECT CABLE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=23 		8-94170-378-0 01 1 0607-
482 04.047 WEIGHT; SHIFT CABLE 8-97066-730-2 01 1 0302-0305
485 04.047 BOLT; WEIGHT
M12X60 FLANGE 		0-28091-260-0 01 1 0302-0305
486 04.047 NUT; WEIGHT
06.509 M12 FLANGE 		8-94436-194-0 01 1 0302-0305
512 04.012 GUIDE; CABLE,GEAR CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98023-054-2 01 1 0607-
536 00.854 DAMPER; CABLE
4JH1 ENG(RJX) 		8-98097-681-0 01 1 0302-0506
536 00.854 DAMPER; CABLE
4JH1-TC ENG(RDM) 		8-98097-681-0 01 1 0507-0606
536 00.854 DAMPER; CABLE
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98097-681-0 01 1 0607-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
