2-26 — MANUAL TRANSMISSION GEAR (#42035) — 229 parça

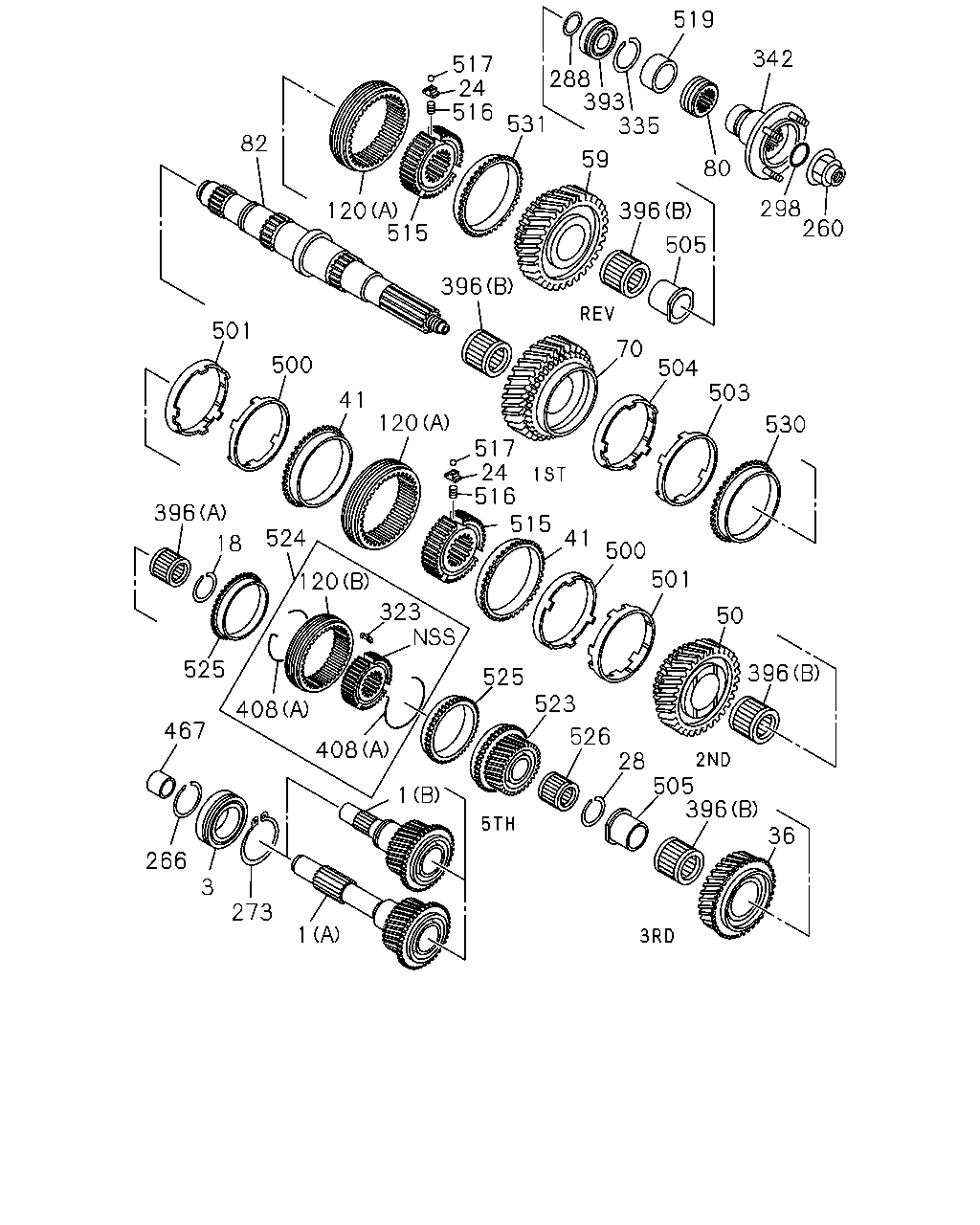

çizim 11057
519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 515 396 505 396 501 70 500 504 503 41 120 530 517 24 516 515 396 524 41 18 500 501 120 323 50 396 525 525 523 408 467 526 28 505 396 36 408 1 266 3 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 04.351 SHAFT; TOP GEAR,TRANS
4JH1 ENG(RJX) (A) Z=28 		8-97252-924-1 01 1 0302-0506
1 04.351 SHAFT; TOP GEAR,TRANS
4JH1-TC ENG(RDM) (A) Z=28 		8-97252-924-1 01 1 0507-0606
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=28 		8-97252-924-1 01 1 0607-
1 04.351 SHAFT; TOP GEAR,TRANS
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=28 		8-97253-543-2 01 1 0607-
3 04.403 BEARING; TOP GEAR SHAFT
4JH1 ENG(RJX) NSK 		8-97253-098-1 01 1 0302-0506
3 04.403 BEARING; TOP GEAR SHAFT
4JH1-TC ENG(RDM) NSK 		8-97253-098-1 01 1 0507-0606
3 04.403 BEARING; TOP GEAR SHAFT
4JJ1 ENG(LFB) NSK 		8-97253-098-1 01 1 0607-
18 04.384 RING; SNAP,CLU HUB
4JH1 ENG(RJX) ID=30.7 T=1.8 		8-97254-728-0 01 1 0302-0506
18 04.384 RING; SNAP,CLU HUB
4JH1-TC ENG(RDM) ID=30.7 T=1.8 		8-97254-728-0 01 1 0507-0606
18 04.384 RING; SNAP,CLU HUB
4JJ1 ENG(LFB) ID=30.7 T=1.8 		8-97254-728-0 01 1 0607-
24 04.383 BLOCK; INDEX,SYN
4JH1 ENG(RJX) 		8-97241-313-1 06 1 0302-0506
24 04.383 BLOCK; INDEX,SYN
4JH1-TC ENG(RDM) 		8-97241-313-1 06 1 0507-0606
24 04.383 BLOCK; INDEX,SYN
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-313-1 03 1 0607-
24 04.383 BLOCK; INDEX,SYN
4JJ1 ENG(LFB) 		8-97241-313-1 03 1 0607-
28 04.416 RING; SNAP,3RD GEAR
4JH1 ENG(RJX) ID=46.5 T=1.8 		8-97254-743-0 01 1 0302-0506
28 04.416 RING; SNAP,3RD GEAR
4JH1-TC ENG(RDM) ID=46.5 T=1.8 		8-97254-743-0 01 1 0507-0606
28 04.416 RING; SNAP,3RD GEAR
4JJ1 ENG(LFB) ID=46.5 T=1.8 		8-97254-743-0 01 1 0607-
36 04.415 GEAR; 3RD,MAINSHAFT
4JH1 ENG(RJX) Z=34 		8-97241-234-0 01 1 0302-0506
36 04.415 GEAR; 3RD,MAINSHAFT
4JH1-TC ENG(RDM) Z=34 		8-97241-234-0 01 1 0507-0606
36 04.415 GEAR; 3RD,MAINSHAFT
4JJ1 ENG(LFB) Z=34 		8-97241-234-0 01 1 0607-
41 04.383 RING; BLOCK,2ND & 3RD
4JH1 ENG(RJX) Z=45 		8-97241-306-1 02 1 0302-0506
41 04.383 RING; BLOCK,2ND & 3RD
4JH1-TC ENG(RDM) Z=45 		8-97241-306-1 02 1 0507-0606
41 04.383 RING; BLOCK,2ND & 3RD
4JJ1 ENG(LFB) Z=45 		8-97241-306-1 02 1 0607-
50 04.395 GEAR; 2ND,MAINSHAFT
4JH1 ENG(RJX) Z=38 		8-97241-237-1 01 1 0302-0506
50 04.395 GEAR; 2ND,MAINSHAFT
4JH1-TC ENG(RDM) Z=38 		8-97241-237-1 01 1 0507-0606
50 04.395 GEAR; 2ND,MAINSHAFT
4JJ1 ENG(LFB) Z=38 		8-97241-237-1 01 1 0607-
59 04.417 GEAR; REV MAINSHAFT
4JH1 ENG(RJX) Z=41 		8-97241-244-0 01 1 0302-0506
59 04.417 GEAR; REV MAINSHAFT
4JH1-TC ENG(RDM) Z=41 		8-97241-244-0 01 1 0507-0606
59 04.417 GEAR; REV MAINSHAFT
4JJ1 ENG(LFB) Z=41 		8-97241-244-0 01 1 0607-
70 04.417 GEAR; 1ST,MAINSHAFT
4JH1 ENG(RJX) Z=43 		8-97241-242-1 01 1 0302-0404
70 04.417 GEAR; 1ST,MAINSHAFT
4JH1 ENG(RJX) Z=43 		8-97350-010-0 01 1 0405-0506
70 04.417 GEAR; 1ST,MAINSHAFT
4JH1-TC ENG(RDM) Z=43 		8-97350-010-0 01 1 0507-0606
70 04.417 GEAR; 1ST,MAINSHAFT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97350-010-0 01 1 0607-
70 04.417 GEAR; 1ST,MAINSHAFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=43 		8-97352-815-0 01 1 0607-
80 04.343 GEAR; SPD DRIVE
4JH1 ENG(RJX) Z=4 		8-97253-556-0 01 1 0302-0506
80 04.343 GEAR; SPD DRIVE
4JH1-TC ENG(RDM) Z=4 		8-97253-556-0 01 1 0507-0606
80 04.343 GEAR; SPD DRIVE
4JJ1 ENG(LFB) Z=4 		8-97253-556-0 01 1 0607-
82 04.403 SHAFT; MAIN,TRANS
4JH1 ENG(RJX) Z=28-42-42-21 		8-97253-117-3 01 1 0302-0506
82 04.403 SHAFT; MAIN,TRANS
4JH1-TC ENG(RDM) Z=28-42-42-21 		8-97253-117-3 01 1 0507-0606
82 04.403 SHAFT; MAIN,TRANS
4JJ1 ENG(LFB) Z=28-42-42-21 		8-97253-117-3 01 1 0607-
120 04.383 SLEEVE
4JJ1 ENG(LFB) 04.535 (B) Z=45 		8-94421-871-1 01 1 0607-
120 04.383 SLEEVE
4JH1 ENG(RJX) (A) Z=45 		8-97241-296-1 02 1 0302-0506
120 04.383 SLEEVE
4JH1-TC ENG(RDM) (A) Z=45 		8-97241-296-1 02 1 0507-0606
120 04.383 SLEEVE
4JJ1 ENG(LFB) (A) Z=45 		8-97241-296-1 01 1 0607-
120 04.383 SLEEVE
4JJ1 ENG(LFB) (A) Z=45 		8-97241-296-1 01 1 0607-
260 04.412 NUT; MAINSHAFT END
4JH1 ENG(RJX) M27 H=25 		8-97253-126-0 01 1 0302-0506
260 04.412 NUT; MAINSHAFT END
4JH1-TC ENG(RDM) M27 H=25 		8-97253-126-0 01 1 0507-0604
260 04.412 NUT; MAINSHAFT END
4JH1-TC ENG(RDM) 04.525 M27 H=25 		8-97360-410-0 01 1 0605-0606
260 04.412 NUT; MAINSHAFT END
4JJ1 ENG(LFB) 04.525 M27 H=25 		8-97360-410-0 01 1 0607-
266 04.525 RING; SNAP,BRG INNER
4JH1 ENG(RJX) 		8-97286-916-0 01 1 0302-0506
266 04.525 RING; SNAP,BRG INNER
4JH1-TC ENG(RDM) 		8-97286-916-0 01 1 0507-0606
266 04.525 RING; SNAP,BRG INNER
4JJ1 ENG(LFB) 		8-97286-916-0 01 1 0607-
273 04.525 RING; SNAP,BRG OUTER
4JH1 ENG(RJX) 		8-97254-610-0 01 1 0302-0506
273 04.525 RING; SNAP,BRG OUTER
4JH1-TC ENG(RDM) 		8-97254-610-0 01 1 0507-0606
273 04.525 RING; SNAP,BRG OUTER
4JJ1 ENG(LFB) 		8-97254-610-0 01 1 0607-
288 04.399 SPACER; BRG,MAINSHAFT
4JH1 ENG(RJX) 		8-97252-942-0 01 1 0302-0506
288 04.399 SPACER; BRG,MAINSHAFT
4JH1-TC ENG(RDM) 		8-97252-942-0 01 1 0507-0606
288 04.399 SPACER; BRG,MAINSHAFT
4JJ1 ENG(LFB) 		8-97252-942-0 01 1 0607-
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) 04.164 ID=30.6 T=5.7 		8-94481-411-0 01 1 0302-0506
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 4JH1-TC ENG(RDM) 04.164 ID=30.6 T=5.7 		8-94481-411-0 01 1 0507-0507
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 4JH1-TC ENG(RDM) ID=30.6 T=5.7 		8-98028-226-0 01 1 0508-0606
298 04.412 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG(LFB) ID=30.6 T=5.7 		8-98028-226-0 01 1 0607-
323 04.384 INSERT
4JH1 ENG(RJX) 		8-94448-202-2 03 1 0302-0506
323 04.384 INSERT
4JH1-TC ENG(RDM) 		8-94448-202-2 03 1 0507-0606
323 04.384 INSERT
4JJ1 ENG(LFB) 		8-94448-202-2 03 1 0607-
335 04.383 RING; SNAP,BEARING
4JH1 ENG(RJX) 		8-97254-722-0 01 1 0302-0506
335 04.383 RING; SNAP,BEARING
4JH1-TC ENG(RDM) 		8-97254-722-0 01 1 0507-0606
335 04.383 RING; SNAP,BEARING
4JJ1 ENG(LFB) 		8-97254-722-0 01 1 0607-
342 05.545 FLANGE; OUTPUT
4JH1 ENG(RJX) 		8-97252-814-1 01 1 0302-0506
342 05.545 FLANGE; OUTPUT
4JH1-TC ENG(RDM) 		8-97252-814-1 01 1 0507-0604
342 05.545 FLANGE; OUTPUT
4JH1-TC ENG(RDM) 		8-98031-640-0 01 1 0605-0606
342 05.545 FLANGE; OUTPUT
4JJ1 ENG(LFB) 		8-98031-640-0 01 1 0607-
393 04.352 BEARING; MAINSHAFT END
4JH1 ENG(RJX) 		8-97253-105-1 01 1 0302-0506
393 04.352 BEARING; MAINSHAFT END
4JH1-TC ENG(RDM) 		8-97253-105-1 01 1 0507-0606
393 04.352 BEARING; MAINSHAFT END
4JJ1 ENG(LFB) 		8-97253-105-1 01 1 0607-
396 04.352 BEARING; NEEDLE,MAINSHAFT
4JH1 ENG(RJX) (A) 		8-97253-102-1 01 1 0302-0506
396 04.352 BEARING; NEEDLE,MAINSHAFT
4JH1-TC ENG(RDM) (A) 		8-97253-102-1 01 1 0507-0606
396 04.352 BEARING; NEEDLE,MAINSHAFT
4JJ1 ENG(LFB) (A) 		8-97253-102-1 01 1 0607-
396 04.352 BEARING; NEEDLE,MAINSHAFT
4JH1 ENG(RJX) (B) 		8-97253-110-0 04 1 0302-0506
396 04.352 BEARING; NEEDLE,MAINSHAFT
4JH1-TC ENG(RDM) (B) 		8-97253-110-0 04 1 0507-0606
396 04.352 BEARING; NEEDLE,MAINSHAFT
4JJ1 ENG(LFB) (B) 		8-97253-110-0 04 1 0607-
408 04.384 SPRING
4JH1 ENG(RJX) 04.422 (B) 		8-94148-196-0 03 1 0302-0506
408 04.384 SPRING
4JH1-TC ENG(RDM) 04.422 (B) 		8-94148-196-0 03 1 0507-0606
408 04.384 SPRING
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.422 (B) 		8-94148-196-0 03 1 0607-
408 04.384 SPRING
4JH1 ENG(RJX) (A) 		8-94422-075-0 02 1 0302-0404
408 04.384 SPRING
4JH1 ENG(RJX) (A) 		8-97366-040-0 02 1 0405-0506
408 04.384 SPRING
4JH1-TC ENG(RDM) (A) 		8-97366-040-1 02 1 0507-0606
408 04.384 SPRING
4JJ1 ENG(LFB) (A) 		8-97366-040-1 02 1 0607-
467 04.317 COLLAR; SHAFT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97255-183-1 01 1 0607-
500 04.383 RING; OUTSIDE,3RD & 2ND
4JH1 ENG(RJX) 		8-97241-309-1 02 1 0302-0506
500 04.383 RING; OUTSIDE,3RD & 2ND
4JH1-TC ENG(RDM) 		8-97241-309-1 02 1 0507-0606
500 04.383 RING; OUTSIDE,3RD & 2ND
4JJ1 ENG(LFB) 		8-97241-309-1 02 1 0607-
501 04.383 RING; INSIDE,3RD & 2ND
4JH1 ENG(RJX) 		8-97241-312-1 02 1 0302-0506
501 04.383 RING; INSIDE,3RD & 2ND
4JH1-TC ENG(RDM) 		8-97241-312-1 02 1 0507-0606
501 04.383 RING; INSIDE,3RD & 2ND
4JJ1 ENG(LFB) 		8-97241-312-1 02 1 0607-
503 04.383 RING; OUTSIDE,LOW & REV
4JH1 ENG(RJX) 		8-97241-309-1 01 1 0302-0506
503 04.383 RING; OUTSIDE,LOW & REV
4JH1-TC ENG(RDM) 		8-97241-309-1 01 1 0507-0606
503 04.383 RING; OUTSIDE,LOW & REV
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-309-1 01 1 0607-
504 04.383 RING; INSIDE,LOW & REV
4JH1 ENG(RJX) 		8-97241-312-1 01 1 0302-0506
504 04.383 RING; INSIDE,LOW & REV
4JH1-TC ENG(RDM) 		8-97241-312-1 01 1 0507-0606
504 04.383 RING; INSIDE,LOW & REV
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97241-312-1 01 1 0607-
505 04.419 COLLAR; 3RD & REV
4JH1 ENG(RJX) 		8-97253-119-2 02 1 0302-0506
505 04.419 COLLAR; 3RD & REV
4JH1-TC ENG(RDM) 		8-97253-119-2 02 1 0507-0606
505 04.419 COLLAR; 3RD & REV
4JJ1 ENG(LFB) 		8-97253-119-2 02 1 0607-
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD
4JH1 ENG(RJX) 		8-97241-298-2 02 1 0302-0506
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD
4JH1-TC ENG(RDM) 		8-97241-298-2 02 1 0507-0606
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD
4JJ1 ENG(LFB) 		8-97241-298-3 01 1 0607-
515 04.384 HUB; CLU,1ST & REV,2ND & 3RD
4JJ1 ENG(LFB) 		8-97241-298-3 01 1 0607-
516 04.384 SPRING; SYNCHRO,INDEX
4JH1 ENG(RJX) 		8-97254-835-0 06 1 0302-0506
516 04.384 SPRING; SYNCHRO,INDEX
4JH1-TC ENG(RDM) 		8-97254-835-0 06 1 0507-0606
516 04.384 SPRING; SYNCHRO,INDEX
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-835-0 03 1 0607-
516 04.384 SPRING; SYNCHRO,INDEX
4JJ1 ENG(LFB) 		8-97254-835-0 03 1 0607-
517 04.384 BALL; SYNCHRO,INDEX
4JH1 ENG(RJX) 		8-97252-935-0 06 1 0302-0506
517 04.384 BALL; SYNCHRO,INDEX
4JH1-TC ENG(RDM) 		8-97252-935-0 06 1 0507-0606
517 04.384 BALL; SYNCHRO,INDEX
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97252-935-0 03 1 0607-
517 04.384 BALL; SYNCHRO,INDEX
4JJ1 ENG(LFB) 		8-97252-935-0 03 1 0607-
519 04.419 COLLAR; MAINSHAFT END,5TH
4JH1 ENG(RJX) 04.415 		8-97252-940-0 01 1 0302-0506
519 04.419 COLLAR; MAINSHAFT END,5TH
4JH1-TC ENG(RDM) 04.415 		8-97252-940-0 01 1 0507-0606
519 04.419 COLLAR; MAINSHAFT END,5TH
4JJ1 ENG(LFB) 04.415 		8-97252-940-0 01 1 0607-
523 04.395 GEAR; OD,MAINSHAFT
4JH1 ENG(RJX) Z=22 		8-97241-231-0 01 1 0302-0506
523 04.395 GEAR; OD,MAINSHAFT
4JH1-TC ENG(RDM) Z=22 		8-97241-231-0 01 1 0507-0606
523 04.395 GEAR; OD,MAINSHAFT
4JJ1 ENG(LFB) Z=22 		8-97241-231-0 01 1 0607-
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD
4JH1 ENG(RJX) 		8-97300-195-0 01 1 0302-0404
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD
4JH1 ENG(RJX) 		8-97366-526-0 01 1 0405-0506
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD
4JH1-TC ENG(RDM) 		8-97366-526-0 01 1 0507-0606
524 04.395 SLEEVE & HUB ASM; TOP-4TH,OD
4JJ1 ENG(LFB) 		8-97366-526-0 01 1 0607-
525 04.395 RING; BLOCK,TOP & 4TH,OD
4JH1 ENG(RJX) Z=45 		8-97309-532-0 02 1 0302-0506
525 04.395 RING; BLOCK,TOP & 4TH,OD
4JH1-TC ENG(RDM) Z=45 		8-97309-532-0 02 1 0507-0606
525 04.395 RING; BLOCK,TOP & 4TH,OD
4JJ1 ENG(LFB) Z=45 		8-97309-532-0 02 1 0607-
526 04.352 BEARING; NEEDLE,4TH & 5TH
4JH1 ENG(RJX) 		8-97253-112-0 01 1 0302-0506
526 04.352 BEARING; NEEDLE,4TH & 5TH
4JH1-TC ENG(RDM) 		8-97253-112-0 01 1 0507-0606
526 04.352 BEARING; NEEDLE,4TH & 5TH
4JJ1 ENG(LFB) 		8-97253-112-0 01 1 0607-
530 04.383 RING; BLOCK,LOW
4JH1 ENG(RJX) Z=45 		8-97241-306-1 01 1 0302-0506
530 04.383 RING; BLOCK,LOW
4JH1-TC ENG(RDM) Z=45 		8-97241-306-1 01 1 0507-0606
530 04.383 RING; BLOCK,LOW
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-97241-306-1 01 1 0607-
531 04.383 RING; BLOCK,REV
4JH1 ENG(RJX) Z=45 		8-97328-151-1 01 1 0302-0305
531 04.383 RING; BLOCK,REV
4JH1 ENG(RJX) Z=45 		8-97368-343-0 01 1 0306-0506
531 04.383 RING; BLOCK,REV
4JH1-TC ENG(RDM) Z=45 		8-97368-343-0 01 1 0507-0606
531 04.383 RING; BLOCK,REV
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45 		8-97368-343-0 01 1 0607-

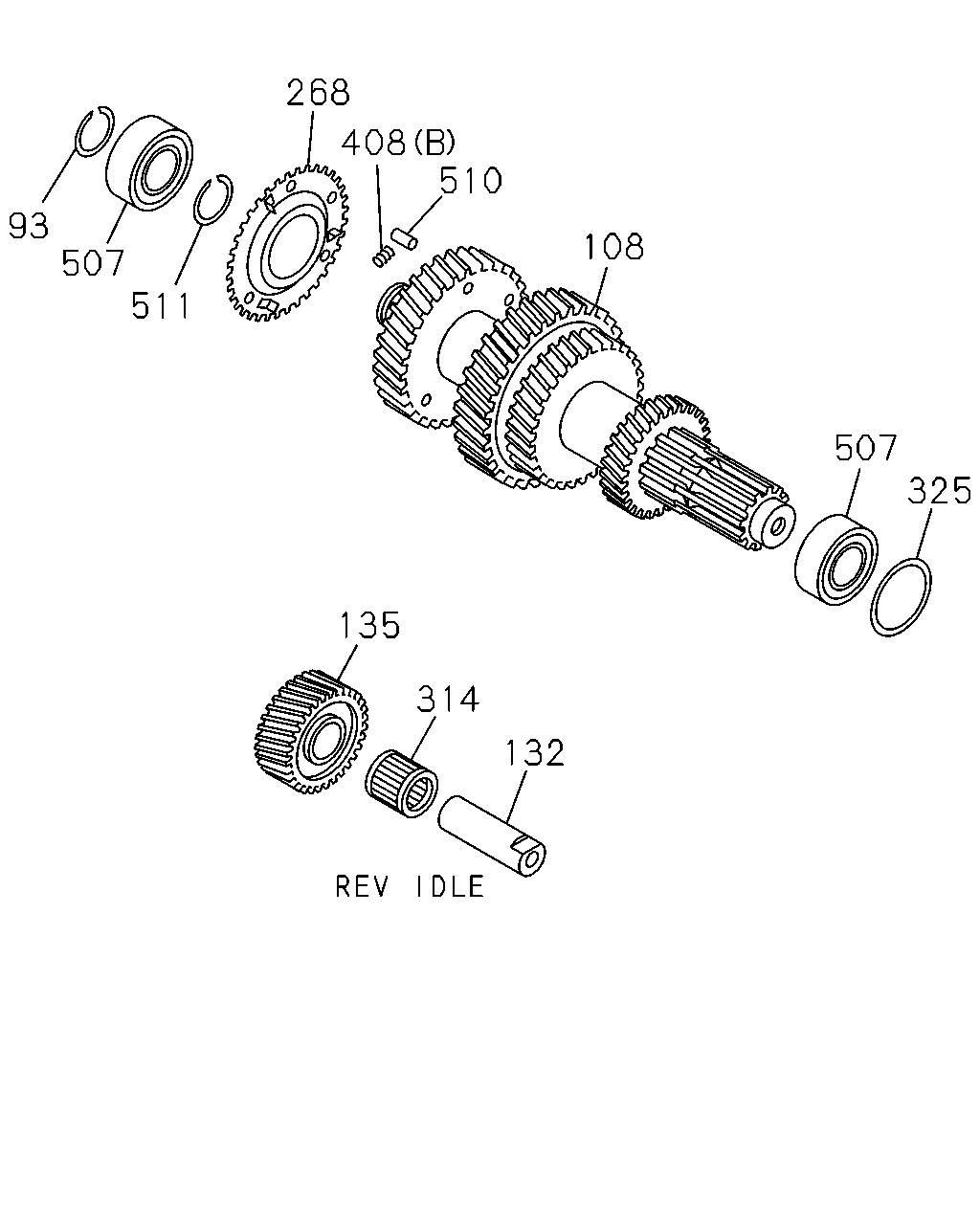

çizim 53672
268 408 510 93 507 511 108 507 325 135 314 132
BalonParca AdiParca NoAdetTipApplied Date
93 04.422 RING; SNAP,COUNTER FRT BRG
4JH1 ENG(RJX) ID=30.7 T=1.9 		8-97254-734-0 01 1 0302-0506
93 04.422 RING; SNAP,COUNTER FRT BRG
4JH1-TC ENG(RDM) ID=30.7 T=1.9 		8-97254-734-0 01 1 0507-0606
93 04.422 RING; SNAP,COUNTER FRT BRG
4JJ1 ENG(LFB) ID=30.7 T=1.9 		8-97254-734-0 01 1 0607-
93 04.422 RING; SNAP,COUNTER FRT BRG
4JH1 ENG(RJX) ID=30.7 T=2.1 		8-97254-740-0 01 1 0302-0506
93 04.422 RING; SNAP,COUNTER FRT BRG
4JH1-TC ENG(RDM) ID=30.7 T=2.1 		8-97254-740-0 01 1 0507-0606
93 04.422 RING; SNAP,COUNTER FRT BRG
4JJ1 ENG(LFB) ID=30.7 T=2.1 		8-97254-740-0 01 1 0607-
93 04.422 RING; SNAP,COUNTER FRT BRG
4JH1 ENG(RJX) ID=30.7 T=2.3 		8-97254-742-0 01 1 0302-0506
93 04.422 RING; SNAP,COUNTER FRT BRG
4JH1-TC ENG(RDM) ID=30.7 T=2.3 		8-97254-742-0 01 1 0507-0606
93 04.422 RING; SNAP,COUNTER FRT BRG
4JJ1 ENG(LFB) ID=30.7 T=2.3 		8-97254-742-0 01 1 0607-
108 04.428 SHAFT; COUNTER
4JH1 ENG(RJX) Z=45-49-33-20 		8-97326-590-0 01 1 0302-0404
108 04.428 SHAFT; COUNTER
4JH1 ENG(RJX) Z=45-49-33-20 		8-97380-630-0 01 1 0405-0506
108 04.428 SHAFT; COUNTER
4JH1-TC ENG(RDM) Z=45-49-33-20 		8-97380-630-1 01 1 0507-0606
108 04.428 SHAFT; COUNTER
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20 		8-97380-630-1 01 1 0607-
108 04.428 SHAFT; COUNTER
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45-49-33-20 		8-97326-590-1 01 1 0607-
132 04.433 SHAFT; REV
4JH1 ENG(RJX) 		8-97252-655-0 01 1 0302-0506
132 04.433 SHAFT; REV
4JH1-TC ENG(RDM) 		8-97252-655-0 01 1 0507-0606
132 04.433 SHAFT; REV
4JJ1 ENG(LFB) 		8-97252-655-0 01 1 0607-
135 04.430 GEAR; REV IDLER
4JH1 ENG(RJX) Z=25 		8-97241-293-0 01 1 0302-0506
135 04.430 GEAR; REV IDLER
4JH1-TC ENG(RDM) Z=25 		8-97241-293-0 01 1 0507-0512
135 04.430 GEAR; REV IDLER
4JH1-TC ENG(RDM) Z=25 		8-98031-869-0 01 1 0601-0606
135 04.430 GEAR; REV IDLER
4JJ1 ENG(LFB) Z=25 		8-98031-869-1 01 1 0607-
268 04.537 PLATE; ANTI LASH,COUNTER
4JH1 ENG(RJX) 		8-97257-300-1 01 1 0302-0506
268 04.537 PLATE; ANTI LASH,COUNTER
4JH1-TC ENG(RDM) 		8-97257-300-1 01 1 0507-0606
268 04.537 PLATE; ANTI LASH,COUNTER
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97257-300-1 01 1 0607-
314 04.419 BEARING; NEEDLE,REV GEAR
4JH1 ENG(RJX) NSK 		8-97253-114-0 01 1 0302-0506
314 04.419 BEARING; NEEDLE,REV GEAR
4JH1-TC ENG(RDM) NSK 		8-97253-114-0 01 1 0507-0606
314 04.419 BEARING; NEEDLE,REV GEAR
4JJ1 ENG(LFB) NSK 		8-97253-114-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.41 		8-97252-668-0 01 1 0302-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.41 		8-97252-668-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.41 		8-97252-668-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.47 		8-97252-669-0 01 1 0302-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.47 		8-97252-669-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.47 		8-97252-669-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.53 		8-97252-670-0 01 1 0302-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.53 		8-97252-670-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.53 		8-97252-670-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.59 		8-97252-671-0 01 1 0302-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.59 		8-97252-671-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.59 		8-97252-671-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.65 		8-97252-672-0 01 1 0302-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.65 		8-97252-672-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.65 		8-97252-672-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.71 		8-97252-673-0 01 1 0302-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.71 		8-97252-673-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.71 		8-97252-673-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.77 		8-97252-674-0 01 1 0302-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.77 		8-97252-674-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.77 		8-97252-674-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.83 		8-97252-675-0 01 1 0302-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.83 		8-97252-675-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.83 		8-97252-675-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.89 		8-97257-622-0 01 1 0302-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.89 		8-97257-622-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.89 		8-97257-622-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.95 		8-97320-549-0 01 1 0302-0404
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.29 		8-97252-666-0 01 1 0405-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.29 		8-97252-666-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.29 		8-97252-666-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=3.01 		8-97320-550-0 01 1 0302-0404
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.35 		8-97252-667-0 01 1 0405-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.35 		8-97252-667-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.35 		8-97252-667-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=3.07 		8-97320-551-0 01 1 0302-0404
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.11 		8-97306-188-0 01 1 0405-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.11 		8-97306-188-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.11 		8-97306-188-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=3.13 		8-97320-552-0 01 1 0302-0404
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.17 		8-97306-189-0 01 1 0405-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.17 		8-97306-189-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.17 		8-97306-189-0 01 1 0607-
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=3.19 		8-97320-553-0 01 1 0302-0404
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1 ENG(RJX) ID=62.7 T=2.23 		8-97306-190-0 01 1 0405-0506
325 04.423 SHIM; COUNTER SHAFT BRG
4JH1-TC ENG(RDM) ID=62.7 T=2.23 		8-97306-190-0 01 1 0507-0606
325 04.423 SHIM; COUNTER SHAFT BRG
4JJ1 ENG(LFB) ID=62.7 T=2.23 		8-97306-190-0 01 1 0607-
408 04.384 SPRING
4JH1 ENG(RJX) 04.422 (B) 		8-94148-196-0 03 1 0302-0506
408 04.384 SPRING
4JH1-TC ENG(RDM) 04.422 (B) 		8-94148-196-0 03 1 0507-0606
408 04.384 SPRING
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 04.422 (B) 		8-94148-196-0 03 1 0607-
408 04.384 SPRING
4JH1 ENG(RJX) (A) 		8-94422-075-0 02 1 0302-0404
408 04.384 SPRING
4JH1 ENG(RJX) (A) 		8-97366-040-0 02 1 0405-0506
408 04.384 SPRING
4JH1-TC ENG(RDM) (A) 		8-97366-040-1 02 1 0507-0606
408 04.384 SPRING
4JJ1 ENG(LFB) (A) 		8-97366-040-1 02 1 0607-
507 04.422 BEARING; COUNTER SHAFT,FRT & RR
4JH1 ENG(RJX) 		8-97253-107-0 02 1 0302-0506
507 04.422 BEARING; COUNTER SHAFT,FRT & RR
4JH1-TC ENG(RDM) 		8-97253-107-0 02 1 0507-0606
507 04.422 BEARING; COUNTER SHAFT,FRT & RR
4JJ1 ENG(LFB) 		8-97253-107-0 02 1 0607-
510 04.540 PIN; STRAIGHT,ANTI LASH
4JH1 ENG(RJX) 00.862 		9-08160-825-0 03 1 0302-0506
510 04.540 PIN; STRAIGHT,ANTI LASH
4JH1-TC ENG(RDM) 00.862 		9-08160-825-0 03 1 0507-0606
510 04.540 PIN; STRAIGHT,ANTI LASH
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 00.862 		9-08160-825-0 03 1 0607-
511 04.416 RING; SNAP,ANTI LASH PLATE
4JH1 ENG(RJX) 		8-97254-767-0 01 1 0302-0506
511 04.416 RING; SNAP,ANTI LASH PLATE
4JH1-TC ENG(RDM) 		8-97254-767-0 01 1 0507-0606
511 04.416 RING; SNAP,ANTI LASH PLATE
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97254-767-0 01 1 0607-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
