◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50945 - NKR(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#42034) — 36 parça

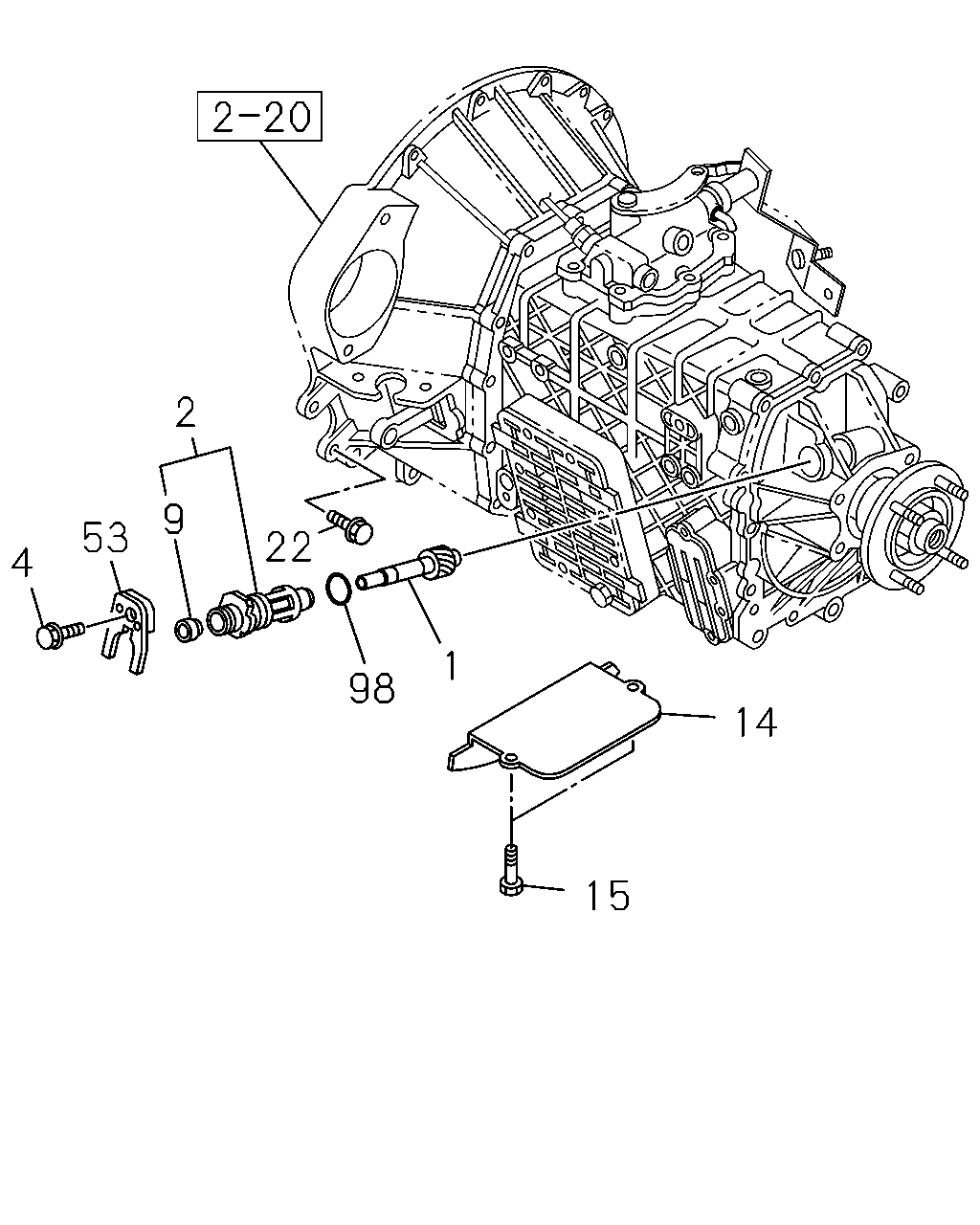

çizim 52358
2 9 53 22 4 1 98 14 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.337 GEAR; DRIVEN,SPD
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) Z=11 		8-97253-559-1 01 1 0607- ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) Z=14 		8-97253-561-1 01 1 0302-0302 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) Z=14 		8-97253-561-1 01 1 0302-0302 ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) Z=14 		8-97253-561-1 01 1 0303-0606 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) Z=14 		8-97253-561-1 01 1 0303-0606 ● ●
1 04.337 GEAR; DRIVEN,SPD
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) Z=12 		8-97253-563-1 01 1 0607- ● ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) Z=13 		8-97253-562-1 01 1 0302-0302 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) Z=13 		8-97253-562-1 01 1 0303-0606 ●
1 04.337 GEAR; DRIVEN,SPD
FINAL GEAR RATIO 41/8(RU1) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) Z=15 		8-97253-560-1 01 1 0302-0606 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) MARK "10,11,16,17" 		8-97253-124-0 01 1 0607- ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) MARK "12,13,14,15" 		8-97253-125-0 01 1 0302-0302 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) MARK "12,13,14,15" 		8-97253-125-0 01 1 0302-0302 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) MARK "12,13,14,15" 		8-97253-125-0 01 1 0303-0606 ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) MARK "12,13,14,15" 		8-97253-125-0 01 1 0303-0606 ● ●
2 04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) MARK "12,13,14,15" 		8-97253-125-0 01 1 0607- ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512 ● ● ●
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) NOK 		8-97131-328-1 01 1 0302-0302 ●
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) NOK 		8-97131-328-1 01 1 0302-0302 ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) NOK 		8-97131-328-1 01 1 0303-0606 ●
9 04.338 SEAL; OIL,DRIVEN GEAR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) NOK 		8-97131-328-1 01 1 0303-0606 ● ●
9 04.338 SEAL; OIL,DRIVEN GEAR
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) NOK 		8-97131-328-1 01 1 0607- ●
9 04.338 SEAL; OIL,DRIVEN GEAR
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) NOK 		8-97131-328-1 01 1 0607- ● ●
14 00.679 COVER; UNDER,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97308-233-0 01 1 0607- ● ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0607- ● ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JH1 ENG(RJX) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0302-0506 ● ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JH1-TC ENG(RDM) 03.162 M10X35 FLANGE 		0-28681-035-0 04 1 0507-0512 ● ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JH1-TC ENG(RDM) 02.277 M10X35 FLANGE 		0-28651-035-0 04 1 0601-0606 ● ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-97252-679-2 01 1 0302-0604 ● ● ●
53 04.338 PLATE; LOCK,DRIVEN GEAR 8-98046-217-0 01 1 0605- ● ● ●
98 04.338 SEAL; OIL,BUSH
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB),FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) 04.439 		9-09561-324-0 01 1 0302-0302 ●
98 04.338 SEAL; OIL,BUSH
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) 04.439 		9-09561-324-0 01 1 0302-0302 ● ●
98 04.338 SEAL; OIL,BUSH
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) 04.439 		9-09561-324-0 01 1 0303-0606 ●
98 04.338 SEAL; OIL,BUSH
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) 04.439 		9-09561-324-0 01 1 0303-0606 ● ●
98 04.338 SEAL; OIL,BUSH
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) 04.439 		9-09561-324-0 01 1 0607- ●
98 04.338 SEAL; OIL,BUSH
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) 04.439 		9-09561-324-0 01 1 0607- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
