1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#42025) — 134 parça

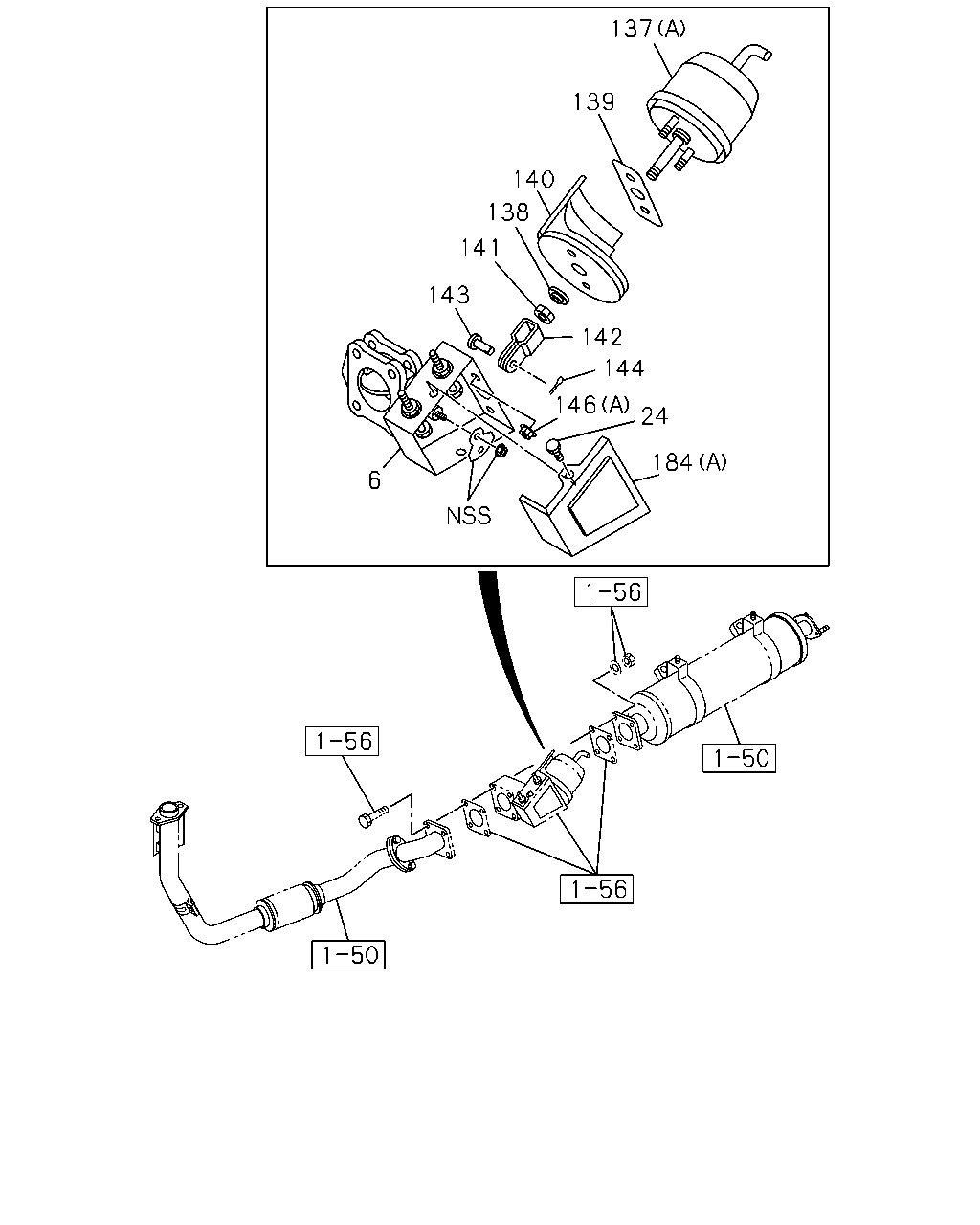

137 139 140 138 141 143 142 144 146 24 184 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	03.632 VALVE; EXH BRAKE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97177-309-0	01	1	0302-0506	●	●
6	03.632 VALVE; EXH BRAKE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97177-309-0	01	1	0507-0606	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98043-594-0	01	1	0607-0610	●	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98067-485-0	01	1	0611-0611	●	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98069-291-0	01	1	0612-	●	●	●
6	03.632 VALVE; EXH BRAKE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97360-025-0	01	1	0302-0506			●
6	03.632 VALVE; EXH BRAKE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97360-025-0	01	1	0507-0606			●
24	03.634 BOLT; COVER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	0302-0506	●	●	●
24	03.634 BOLT; COVER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	0507-0606	●	●	●
24	03.634 BOLT; COVER 4JJ1 ENG(LFB) 03.444	8-97065-029-0	04	1	0607-	●	●	●
137	03.634 CHAMBER; POWER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97173-327-0	01	1	0302-0506	●	●
137	03.634 CHAMBER; POWER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97173-327-0	01	1	0507-0606	●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (C)	8-98038-348-0	01	1	0607-	●	●	●
137	03.634 CHAMBER; POWER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97257-279-0	01	1	0302-0506			●
137	03.634 CHAMBER; POWER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97257-279-0	01	1	0507-0606			●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (B)	8-98043-596-0	01	1	0607-	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	0302-0506	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	0507-0606	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB)	5-22189-004-0	02	1	0607-	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	0302-0506	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	0507-0606	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1 ENG(LFB)	8-94328-234-0	02	1	0607-	●	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97093-854-0	01	1	0302-0506	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97093-854-0	01	1	0507-0606	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JJ1 ENG(LFB)	8-98037-494-0	01	1	0607-	●	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97257-283-0	01	1	0302-0506			●
140	03.634 INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97257-283-0	01	1	0507-0606			●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	0302-0506	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	0507-0606	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB) 05.122	8-94311-428-0	02	1	0607-	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	0302-0506	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	0507-0606	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB)	8-97177-311-0	02	1	0607-	●	●	●
143	03.636 PIN; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	0302-0506	●	●	●
143	03.636 PIN; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	0507-0606	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB)	8-94311-452-0	02	1	0607-	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	0302-0506	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	0507-0606	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB)	8-97029-428-0	02	1	0607-	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●
146	03.634 NUT; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
146	03.634 NUT; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0507-0606	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0607-0611	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-	●	●	●
184	03.634 COVER; BRKT 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97311-447-0	01	1	0302-0506	●	●	●
184	03.634 COVER; BRKT 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97311-447-0	01	1	0507-0606	●	●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (B)	8-97370-068-0	01	1	0607-	●	●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (C)	8-98037-493-0	01	1	0607-	●	●	●

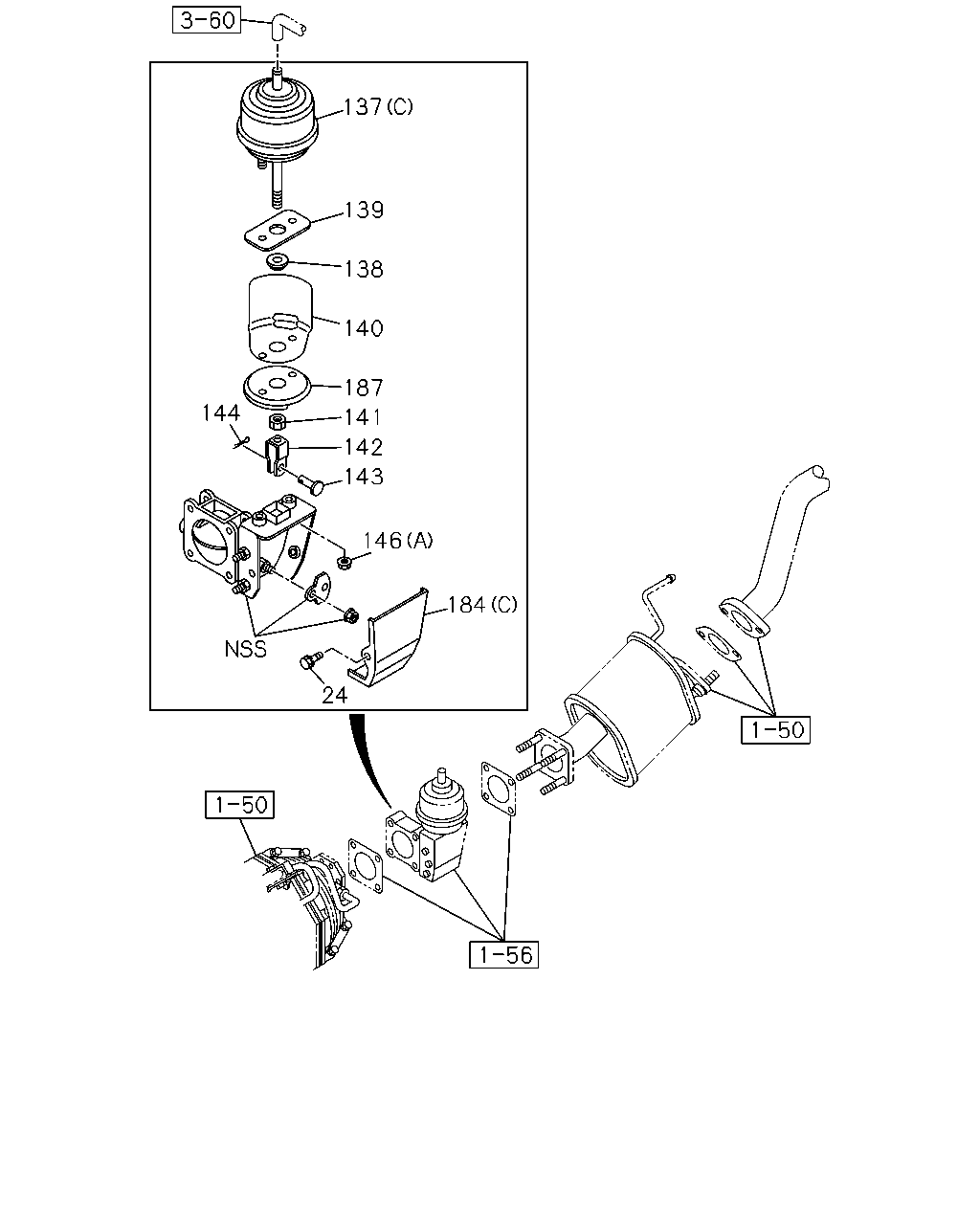

137 139 138 140 187 144 141 142 143 146 184 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.634 BOLT; COVER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	0302-0506	●	●	●
24	03.634 BOLT; COVER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	0507-0606	●	●	●
24	03.634 BOLT; COVER 4JJ1 ENG(LFB) 03.444	8-97065-029-0	04	1	0607-	●	●	●
137	03.634 CHAMBER; POWER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97173-327-0	01	1	0302-0506	●	●
137	03.634 CHAMBER; POWER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97173-327-0	01	1	0507-0606	●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (C)	8-98038-348-0	01	1	0607-	●	●	●
137	03.634 CHAMBER; POWER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97257-279-0	01	1	0302-0506			●
137	03.634 CHAMBER; POWER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97257-279-0	01	1	0507-0606			●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (B)	8-98043-596-0	01	1	0607-	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	0302-0506	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	0507-0606	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB)	5-22189-004-0	02	1	0607-	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	0302-0506	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	0507-0606	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1 ENG(LFB)	8-94328-234-0	02	1	0607-	●	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97093-854-0	01	1	0302-0506	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97093-854-0	01	1	0507-0606	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JJ1 ENG(LFB)	8-98037-494-0	01	1	0607-	●	●	●
140	03.634 INSULATOR; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97257-283-0	01	1	0302-0506			●
140	03.634 INSULATOR; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97257-283-0	01	1	0507-0606			●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	0302-0506	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	0507-0606	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB) 05.122	8-94311-428-0	02	1	0607-	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	0302-0506	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	0507-0606	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB)	8-97177-311-0	02	1	0607-	●	●	●
143	03.636 PIN; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	0302-0506	●	●	●
143	03.636 PIN; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	0507-0606	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB)	8-94311-452-0	02	1	0607-	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	0302-0506	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	0507-0606	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB)	8-97029-428-0	02	1	0607-	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●
146	03.634 NUT; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
146	03.634 NUT; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0507-0606	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0607-0611	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-	●	●	●
184	03.634 COVER; BRKT 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97311-447-0	01	1	0302-0506	●	●	●
184	03.634 COVER; BRKT 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97311-447-0	01	1	0507-0606	●	●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (B)	8-97370-068-0	01	1	0607-	●	●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (C)	8-98037-493-0	01	1	0607-	●	●	●
187	03.685 PROTECTOR; EXH BRK VLV 4JJ1 ENG(LFB)	8-98037-495-0	01	1	0607-	●	●	●

137 142 139 184 144 138 24 141 143 146 146 186 6 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	03.632 VALVE; EXH BRAKE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97177-309-0	01	1	0302-0506	●	●
6	03.632 VALVE; EXH BRAKE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97177-309-0	01	1	0507-0606	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98043-594-0	01	1	0607-0610	●	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98067-485-0	01	1	0611-0611	●	●	●
6	03.632 VALVE; EXH BRAKE 4JJ1 ENG(LFB)	8-98069-291-0	01	1	0612-	●	●	●
6	03.632 VALVE; EXH BRAKE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97360-025-0	01	1	0302-0506			●
6	03.632 VALVE; EXH BRAKE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97360-025-0	01	1	0507-0606			●
24	03.634 BOLT; COVER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	0302-0506	●	●	●
24	03.634 BOLT; COVER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	0507-0606	●	●	●
24	03.634 BOLT; COVER 4JJ1 ENG(LFB) 03.444	8-97065-029-0	04	1	0607-	●	●	●
137	03.634 CHAMBER; POWER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97173-327-0	01	1	0302-0506	●	●
137	03.634 CHAMBER; POWER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97173-327-0	01	1	0507-0606	●	●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (C)	8-98038-348-0	01	1	0607-	●	●	●
137	03.634 CHAMBER; POWER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97257-279-0	01	1	0302-0506			●
137	03.634 CHAMBER; POWER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97257-279-0	01	1	0507-0606			●
137	03.634 CHAMBER; POWER 4JJ1 ENG(LFB) (B)	8-98043-596-0	01	1	0607-	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	0302-0506	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	0507-0606	●	●	●
138	03.634 BEARING; EXH BRK VLV 4JJ1 ENG(LFB)	5-22189-004-0	02	1	0607-	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	0302-0506	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	0507-0606	●	●	●
139	03.634 GASKET; EXH BRK VLV 4JJ1 ENG(LFB)	8-94328-234-0	02	1	0607-	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	0302-0506	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	0507-0606	●	●	●
141	03.636 NUT; CLEVIS,EXH BRK VLV 4JJ1 ENG(LFB) 05.122	8-94311-428-0	02	1	0607-	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	0302-0506	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	0507-0606	●	●	●
142	03.636 CLEVIS; EXH BRK VLV 4JJ1 ENG(LFB)	8-97177-311-0	02	1	0607-	●	●	●
143	03.636 PIN; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	0302-0506	●	●	●
143	03.636 PIN; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	0507-0606	●	●	●
143	03.636 PIN; EXH BRK VLV 4JJ1 ENG(LFB)	8-94311-452-0	02	1	0607-	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	0302-0506	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	0507-0606	●	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JJ1 ENG(LFB)	8-97029-428-0	02	1	0607-	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0612-	●	●	●
146	03.634 NUT; EXH BRK VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
146	03.634 NUT; EXH BRK VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0507-0606	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0607-0611	●	●	●
146	03.634 NUT; EXH BRK VLV 4JJ1 ENG(LFB) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0612-	●	●	●
184	03.634 COVER; BRKT 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97311-447-0	01	1	0302-0506	●	●	●
184	03.634 COVER; BRKT 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97311-447-0	01	1	0507-0606	●	●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (B)	8-97370-068-0	01	1	0607-	●	●	●
184	03.634 COVER; BRKT 4JJ1 ENG(LFB) (C)	8-98037-493-0	01	1	0607-	●	●	●
186	03.611 GASKET; EXH BRK VLV,BODY 4JJ1 ENG(LFB)	8-98022-713-0	02	1	0607-	●	●	●
