Sayfa 1-50 - Isuzu EPC

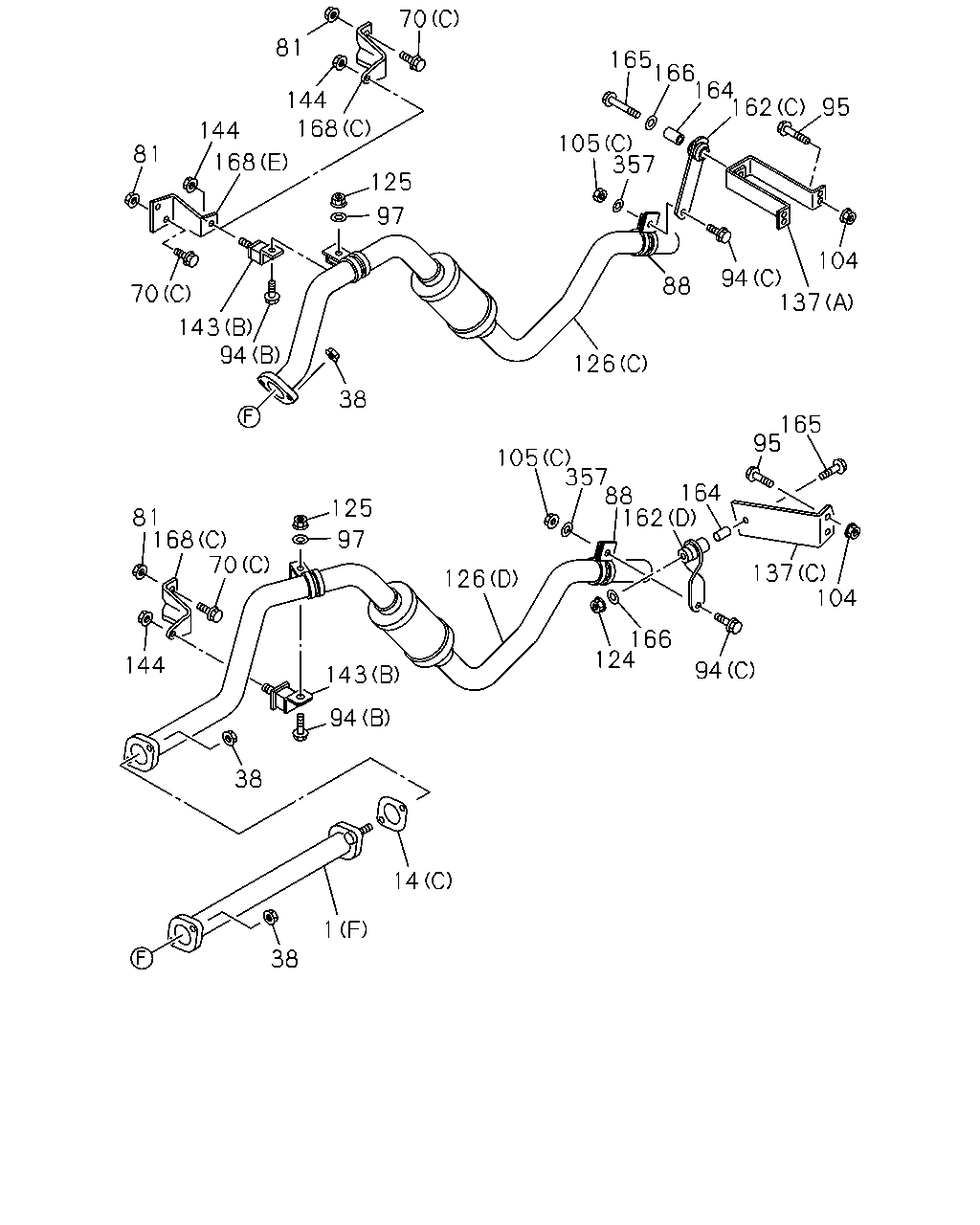

1-50 — EXHAUST PIPE AND SILENCER (#42024) — 632 parça

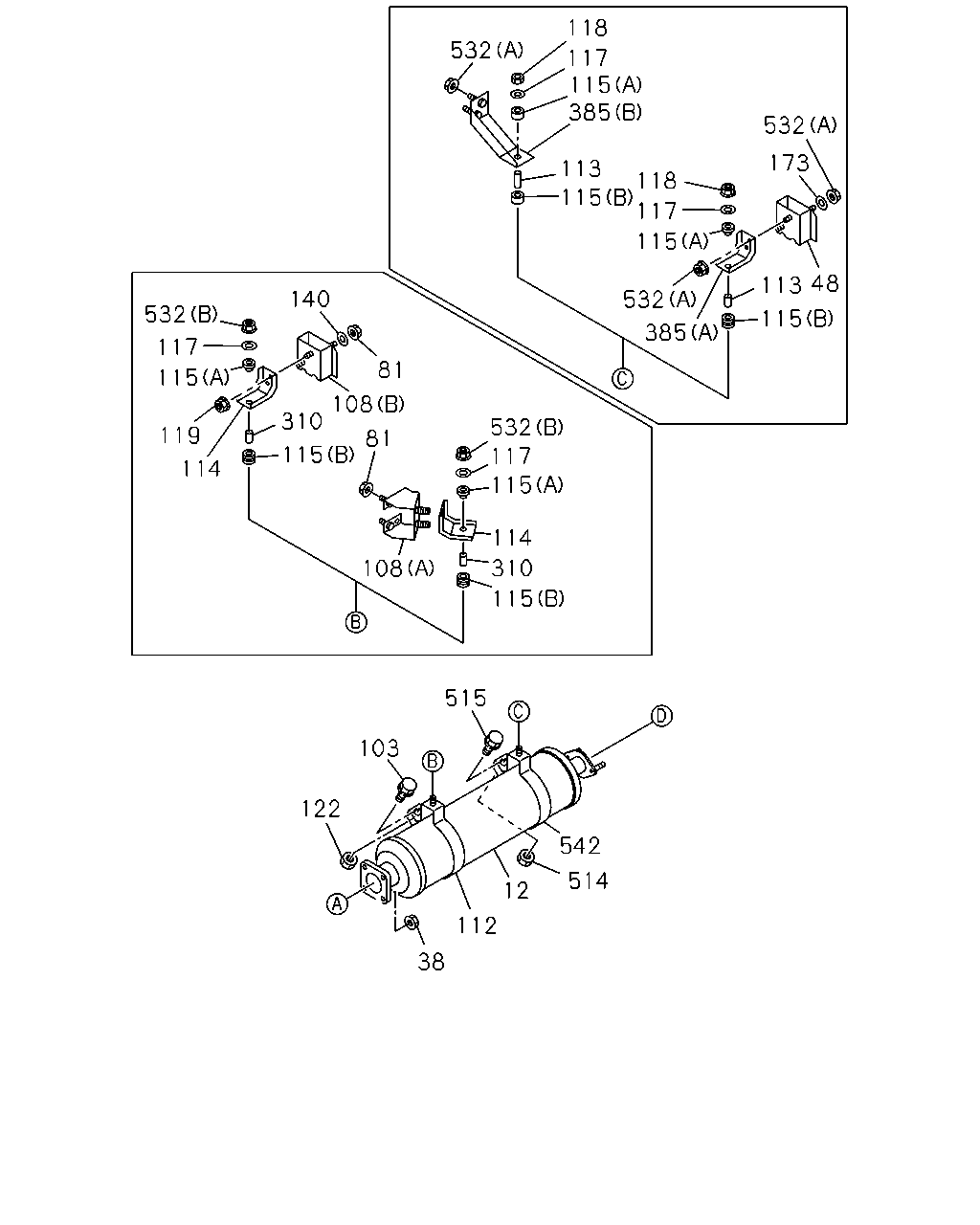

118 532 117 115 385 532 173 113 118 115 117 115 140 532 532 115 385 117 81 115 108 310 532 117 119 81 115 114 115 114 310 108 115 515 103 122 542 514 12 112 38 113 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	03.701 SILENCER ASM; EXH 4JH1 ENG(RJX)	8-97259-999-1	01	1	0302-0506	●	●	●
12	03.701 SILENCER ASM; EXH 4JH1-TC ENG(RDM)	8-97259-999-1	01	1	0507-0606	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1 ENG(LFB)	8-98001-836-1	01	1	0607-	●	●
12	03.701 SILENCER ASM; EXH 4JJ1 ENG(LFB)	8-98021-917-1	01	1	0607-			●
38	00.002 NUT; SILENCER 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	04	1	0302-0506	●	●
38	00.002 NUT; SILENCER 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	04	1	0302-0506			●
38	00.002 NUT; SILENCER 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	04	1	0507-0602			●
38	00.002 NUT; SILENCER 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-0606			●
38	00.002 NUT; SILENCER 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-	●	●	●
38	00.002 NUT; SILENCER 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-			●
48	03.704 BRACKET; EXH PIPE TO MTG 4JH1 ENG(RJX)	8-97179-737-0	01	1	0302-0506	●	●
48	03.704 BRACKET; EXH PIPE TO MTG 4JH1-TC ENG(RDM)	8-97179-737-0	01	1	0507-0606	●	●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	01	1	0302-0506	●	●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●
81	03.704 NUT; BRKT 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506			●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506			●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602			●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602			●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606			●
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606			●
81	03.704 NUT; BRKT 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0302-0606	●	●	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1 ENG(RJX) (A)	8-97312-902-0	01	1	0302-0506	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1-TC ENG(RDM) (A)	8-97312-902-0	01	1	0507-0606	●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1 ENG(RJX) (A)	8-97288-425-0	01	1	0302-0506		●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1-TC ENG(RDM) (A)	8-97288-425-0	01	1	0507-0606		●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1 ENG(RJX) (B)	8-97179-737-0	01	1	0302-0506			●
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4JH1-TC ENG(RDM) (B)	8-97179-737-0	01	1	0507-0606			●
112	03.706 BRACKET; HANGER 4JH1 ENG(RJX)	8-97260-021-0	01	1	0302-0506	●	●	●
112	03.706 BRACKET; HANGER 4JH1-TC ENG(RDM)	8-97260-021-0	01	1	0507-0606	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0302-0606	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1 ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	0607-	●	●	●
114	03.704 BRACKET; EXH SILENCER 4JH1 ENG(RJX)	8-97073-758-0	01	1	0302-0506	●
114	03.704 BRACKET; EXH SILENCER 4JH1-TC ENG(RDM)	8-97073-758-0	01	1	0507-0606	●
114	03.704 BRACKET; EXH SILENCER 4JH1 ENG(RJX)	8-97172-313-0	01	1	0302-0506		●	●
114	03.704 BRACKET; EXH SILENCER 4JH1-TC ENG(RDM)	8-97172-313-0	01	1	0507-0606		●	●
115	03.704 RUBBER; MTG,SILENCER 4JH1 ENG(RJX) (A)	8-94457-277-1	01	1	0302-0506	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0302-0506	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JH1-TC ENG(RDM) (A)	8-94457-277-1	01	1	0507-0606	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0507-0606	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB) (A)	8-94457-277-1	02	1	0607-	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JH1 ENG(RJX) (B)	8-94457-278-1	01	1	0302-0506	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0302-0506	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JH1-TC ENG(RDM) (B)	8-94457-278-1	01	1	0507-0606	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0507-0606	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB) (B)	8-94457-278-1	02	1	0607-	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JH1 ENG(RJX) OD=55	9-09852-169-0	01	1	0302-0506	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0302-0506	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JH1-TC ENG(RDM) OD=55	9-09852-169-0	01	1	0507-0606	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0507-0606	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1 ENG(LFB) OD=55	9-09852-169-0	02	1	0607-	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0302-0606	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1 ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	0607-	●	●	●
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0602	●	●	●
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0302-0512	●	●	●
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-0606	●	●	●
140	03.275 WASHER; LK,BRKT TO FRAME 4JH1 ENG(RJX) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0302-0506			●
140	03.275 WASHER; LK,BRKT TO FRAME 4JH1-TC ENG(RDM) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0507-0605			●
140	03.275 WASHER; LK,BRKT TO FRAME 4JH1-TC ENG(RDM) 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	0606-0606			●
173	03.685 WASHER; PL 4JH1 ENG(RJX) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0302-0506	●	●
173	03.685 WASHER; PL 4JH1-TC ENG(RDM) 02.334 ID=8.4 OD=26	9-09164-808-0	02	1	0507-0605	●	●
173	03.685 WASHER; PL 4JH1-TC ENG(RDM) 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	0606-0606	●	●
310	03.706 TUBE; DIST,EXH PIPE 4JH1 ENG(RJX) L=37.5	9-22151-217-0	01	1	0302-0506	●	●	●
310	03.706 TUBE; DIST,EXH PIPE 4JH1-TC ENG(RDM) L=37.5	9-22151-217-0	01	1	0507-0606	●	●	●
385	03.704 BRACKET; SILENCER MTG 4JH1 ENG(RJX) (A)	8-97172-313-0	01	1	0302-0506	●
385	03.704 BRACKET; SILENCER MTG 4JH1-TC ENG(RDM) (A)	8-97172-313-0	01	1	0507-0606	●
385	03.704 BRACKET; SILENCER MTG 4JJ1 ENG(LFB) (C)	8-98018-970-1	01	1	0607-	●
385	03.704 BRACKET; SILENCER MTG 4JH1 ENG(RJX) (A)	8-94329-857-0	01	1	0302-0506		●
385	03.704 BRACKET; SILENCER MTG 4JH1-TC ENG(RDM) (A)	8-94329-857-0	01	1	0507-0606		●
385	03.704 BRACKET; SILENCER MTG 4JJ1 ENG(LFB) (C)	8-98018-971-1	01	1	0607-		●
385	03.704 BRACKET; SILENCER MTG 4JH1 ENG(RJX) (B)	8-97260-094-1	01	1	0302-0506			●
385	03.704 BRACKET; SILENCER MTG 4JH1-TC ENG(RDM) (B)	8-97260-094-1	01	1	0507-0606			●
385	03.704 BRACKET; SILENCER MTG 4JJ1 ENG(LFB) (C)	8-98018-972-1	01	1	0607-			●
514	03.704 NUT; BAND 4JH1 ENG(RJX) 02.559 M8	9-09110-408-0	01	1	0302-0506	●	●	●
514	03.704 NUT; BAND 4JH1-TC ENG(RDM) 02.559 M8	9-09110-408-0	01	1	0507-0512	●	●	●
514	03.704 NUT; BAND 4JH1-TC ENG(RDM) 02.334 M8	0-91110-508-0	01	1	0601-0606	●	●	●
515	03.704 BOLT; BAND 4JH1 ENG(RJX) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0302-0506	●	●	●
515	03.704 BOLT; BAND 4JH1-TC ENG(RDM) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0507-0606	●	●	●
532	03.704 NUT 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
532	03.704 NUT 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●
532	03.704 NUT 4JH1 ENG(RJX) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0302-0506	●	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0507-0606	●	●	●
532	03.704 NUT 4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
542	03.704 BRACKET 4JH1 ENG(RJX) 03.706	8-97260-021-0	01	1	0302-0506	●	●	●
542	03.704 BRACKET 4JH1-TC ENG(RDM) 03.706	8-97260-021-0	01	1	0507-0606	●	●	●
542	03.704 BRACKET 4JJ1 ENG(LFB)	8-98018-933-1	01	1	0607-	●	●	●

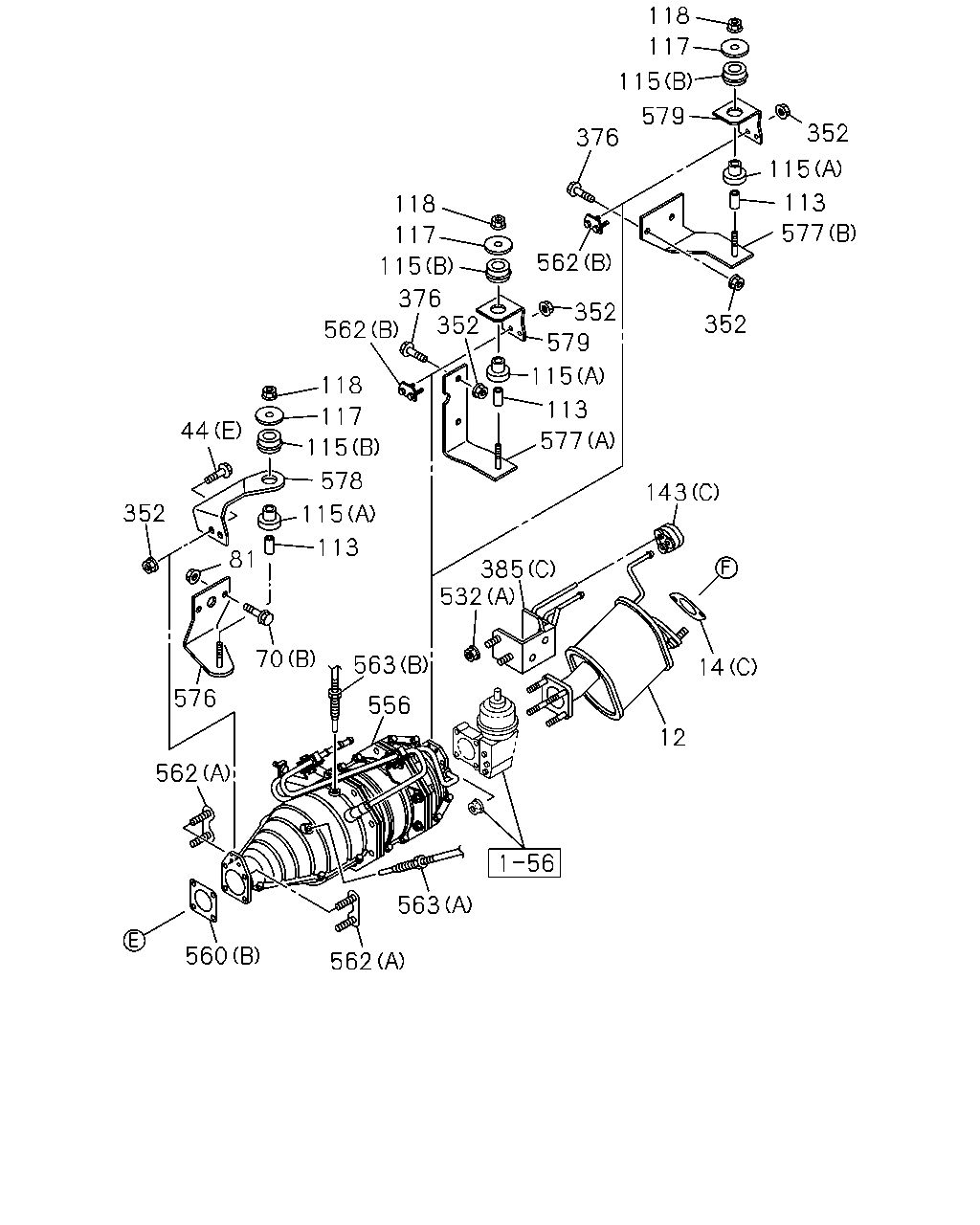

118 117 115 579 352 376 115 113 118 577 117 562 115 376 352 352 352 562 579 115 118 113 117 44 577 115 578 143 352 115 81 113 385 532 70 563 14 576 556 12 562 563 560 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	03.701 SILENCER ASM; EXH 4JH1 ENG(RJX)	8-97259-999-1	01	1	0302-0506	●	●	●
12	03.701 SILENCER ASM; EXH 4JH1-TC ENG(RDM)	8-97259-999-1	01	1	0507-0606	●	●	●
12	03.701 SILENCER ASM; EXH 4JJ1 ENG(LFB)	8-98001-836-1	01	1	0607-	●	●
12	03.701 SILENCER ASM; EXH 4JJ1 ENG(LFB)	8-98021-917-1	01	1	0607-			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> 03.634 (B) ID=54	8-94328-354-0	01	1	0302-0506	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) 03.634 (B) ID=54	8-94328-354-0	01	1	0302-0506			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1-TC ENG(RDM) 03.634 (B) ID=54	8-94328-354-0	01	1	0507-0606			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) (A) ID=64.7	8-94328-352-0	01	1	0302-0506	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	0507-0606	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (C) ID=65	8-97148-757-1	01	1	0607-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (C) ID=65	8-97148-757-1	01	1	0607-			●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0302-0506	●	●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606		●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (D) M10X30 FLANGE	0-28651-030-0	02	1	0607-	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0302-0401	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0402-0506	●	●	●
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0507-0606	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	0607-	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.277 (E) M10X35 FLANGE	0-28651-035-0	02	1	0607-	●	●	●
70	03.706 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0607-	●	●	●
70	03.706 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0512			●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606			●
70	03.706 BOLT; BRKT 4JJ1 ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	01	1	0302-0506	●	●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●
81	03.704 NUT; BRKT 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506			●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506			●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602			●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602			●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606			●
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606			●
81	03.704 NUT; BRKT 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0302-0606	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1 ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	0607-	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JH1 ENG(RJX) (A)	8-94457-277-1	01	1	0302-0506	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0302-0506	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JH1-TC ENG(RDM) (A)	8-94457-277-1	01	1	0507-0606	●	●	●
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0507-0606	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB) (A)	8-94457-277-1	02	1	0607-	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JH1 ENG(RJX) (B)	8-94457-278-1	01	1	0302-0506	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0302-0506	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JH1-TC ENG(RDM) (B)	8-94457-278-1	01	1	0507-0606	●	●	●
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0507-0606	●	●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1 ENG(LFB) (B)	8-94457-278-1	02	1	0607-	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JH1 ENG(RJX) OD=55	9-09852-169-0	01	1	0302-0506	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0302-0506	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JH1-TC ENG(RDM) OD=55	9-09852-169-0	01	1	0507-0606	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0507-0606	●	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1 ENG(LFB) OD=55	9-09852-169-0	02	1	0607-	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0302-0606	●	●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1 ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	0607-	●	●	●
143	03.704 RUBBER; SUPPORT 4JJ1 ENG(LFB) (B)	8-98034-767-0	01	1	0607-	●	●	●
143	03.704 RUBBER; SUPPORT (A)	8-97229-586-0	01	1	0302-0308			●
143	03.704 RUBBER; SUPPORT (A)	8-97371-655-0	01	1	0309-0606			●
143	03.704 RUBBER; SUPPORT 4JJ1 ENG(LFB) (C)	8-97080-694-0	01	1	0607-	●	●	●
352	03.613 NUT; BRKT 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	06	1	0607-	●	●	●
376	03.708 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0607-	●	●	●
385	03.704 BRACKET; SILENCER MTG 4JH1 ENG(RJX) (A)	8-97172-313-0	01	1	0302-0506	●
385	03.704 BRACKET; SILENCER MTG 4JH1-TC ENG(RDM) (A)	8-97172-313-0	01	1	0507-0606	●
385	03.704 BRACKET; SILENCER MTG 4JJ1 ENG(LFB) (C)	8-98018-970-1	01	1	0607-	●
385	03.704 BRACKET; SILENCER MTG 4JH1 ENG(RJX) (A)	8-94329-857-0	01	1	0302-0506		●
385	03.704 BRACKET; SILENCER MTG 4JH1-TC ENG(RDM) (A)	8-94329-857-0	01	1	0507-0606		●
385	03.704 BRACKET; SILENCER MTG 4JJ1 ENG(LFB) (C)	8-98018-971-1	01	1	0607-		●
385	03.704 BRACKET; SILENCER MTG 4JH1 ENG(RJX) (B)	8-97260-094-1	01	1	0302-0506			●
385	03.704 BRACKET; SILENCER MTG 4JH1-TC ENG(RDM) (B)	8-97260-094-1	01	1	0507-0606			●
385	03.704 BRACKET; SILENCER MTG 4JJ1 ENG(LFB) (C)	8-98018-972-1	01	1	0607-			●
532	03.704 NUT 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
532	03.704 NUT 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●
532	03.704 NUT 4JH1 ENG(RJX) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0302-0506	●	●	●
532	03.704 NUT 4JH1-TC ENG(RDM) 07.874 (B) M10 FLANGE	5-09440-006-0	01	1	0507-0606	●	●	●
532	03.704 NUT 4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●

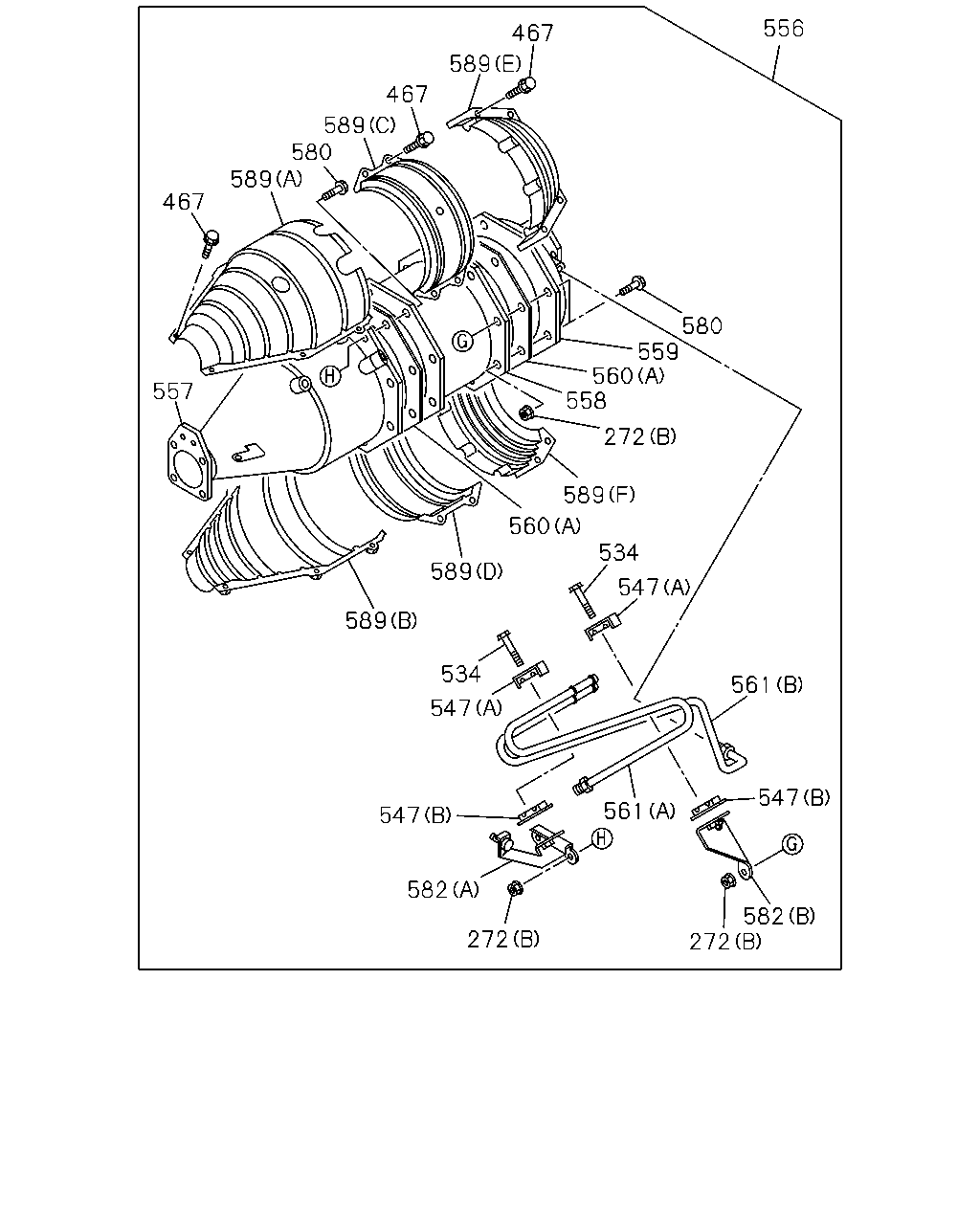

556	03.701 DPD ASM 4JJ1 ENG(LFB)	8-98036-810-6	01	1	0607-	●	●	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB) (A)	8-97331-947-0	02	1	0607-	●	●	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB) (B) ID=64	8-97373-108-0	01	1	0607-	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB) (A)	8-97373-966-0	02	1	0607-	●	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1 ENG(LFB) (B)	8-98005-985-0	01	1	0607-	●	●	●

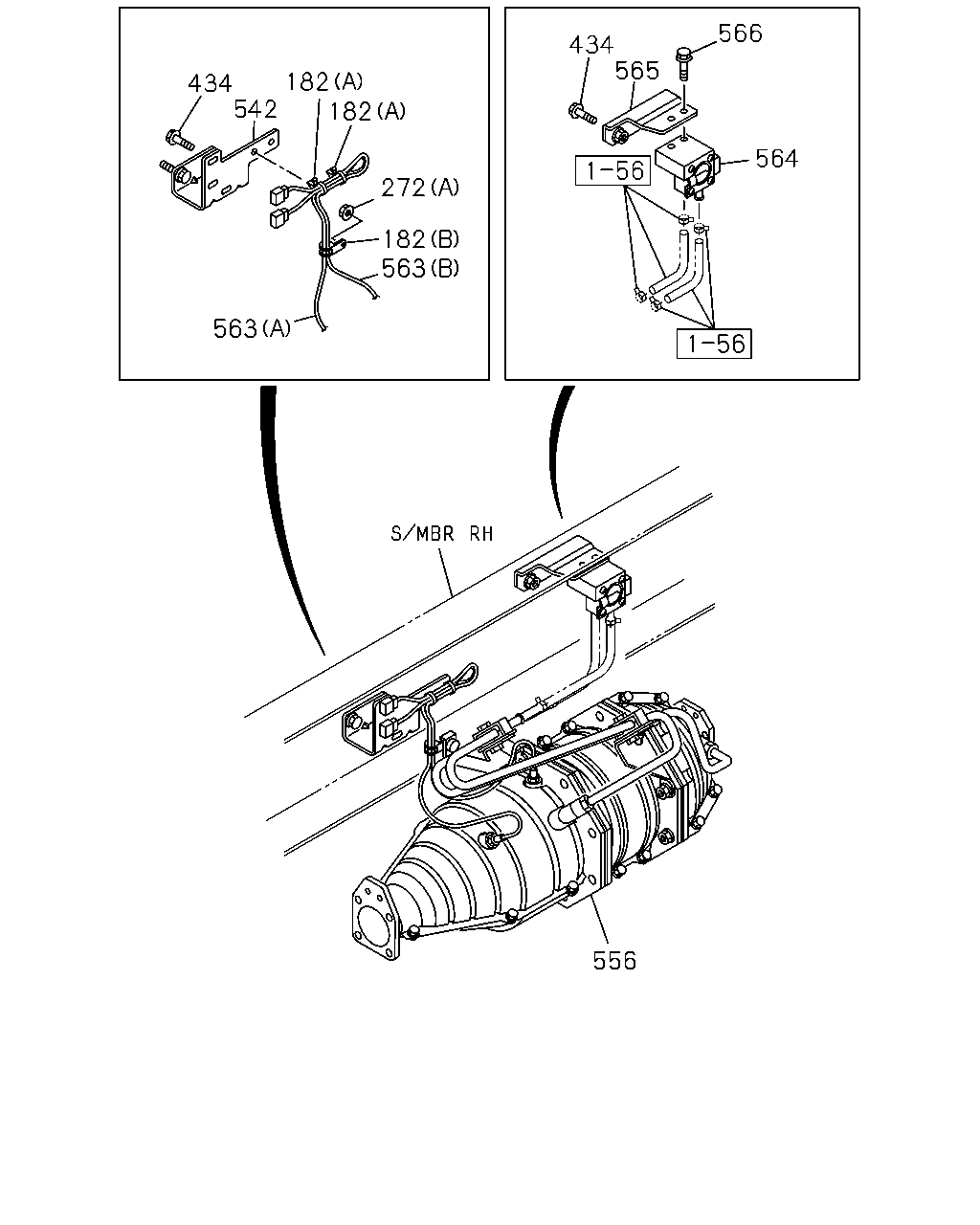

563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1 ENG(LFB) (A)	8-98004-329-0	01	1	0607-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1 ENG(LFB) (B)	8-98004-330-0	01	1	0607-	●	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1 ENG(LFB)	8-98018-965-0	01	1	0607-	●	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1 ENG(LFB) (A)	8-98018-968-0	01	1	0607-	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1 ENG(LFB) (B)	8-98018-969-0	01	1	0607-			●
578	03.706 BRACKET; DPD FRT 4JJ1 ENG(LFB)	8-98001-873-1	01	1	0607-	●	●	●
579	03.704 BRACKET; DPD RR 4JJ1 ENG(LFB)	8-98001-883-1	01	1	0607-	●	●	●

70 81 165 166 164 162 144 168 95 144 105 357 81 168 125 97 104 94 137 88 70 143 94 126 38 165 95 105 357 88 164 162 125 81 168 70 97 137 104 126 166 124 144 94 143 94 38 14 1 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

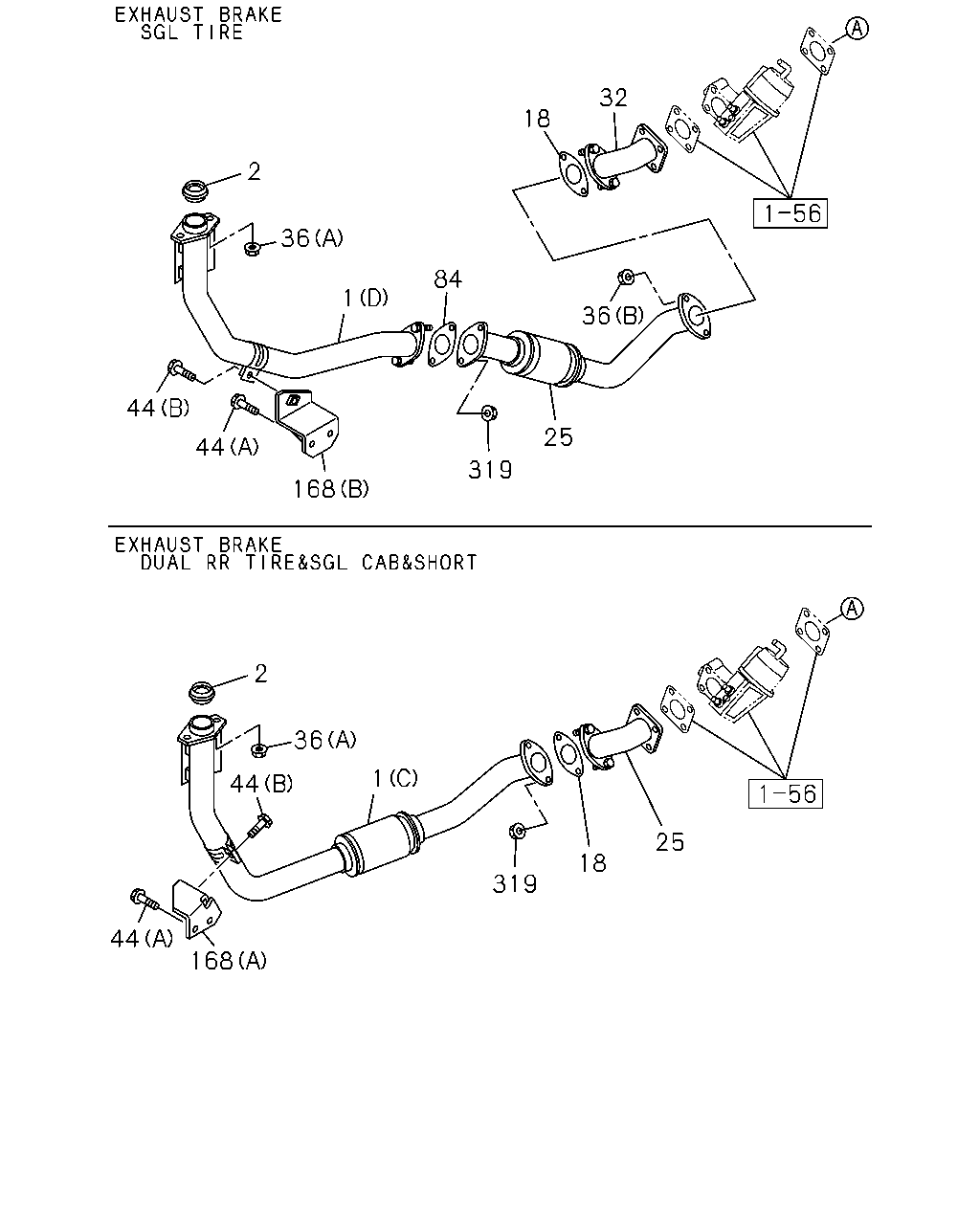

1	03.609 PIPE; EXH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97305-629-0	01	1	0302-0506	●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97305-629-0	01	1	0507-0606	●

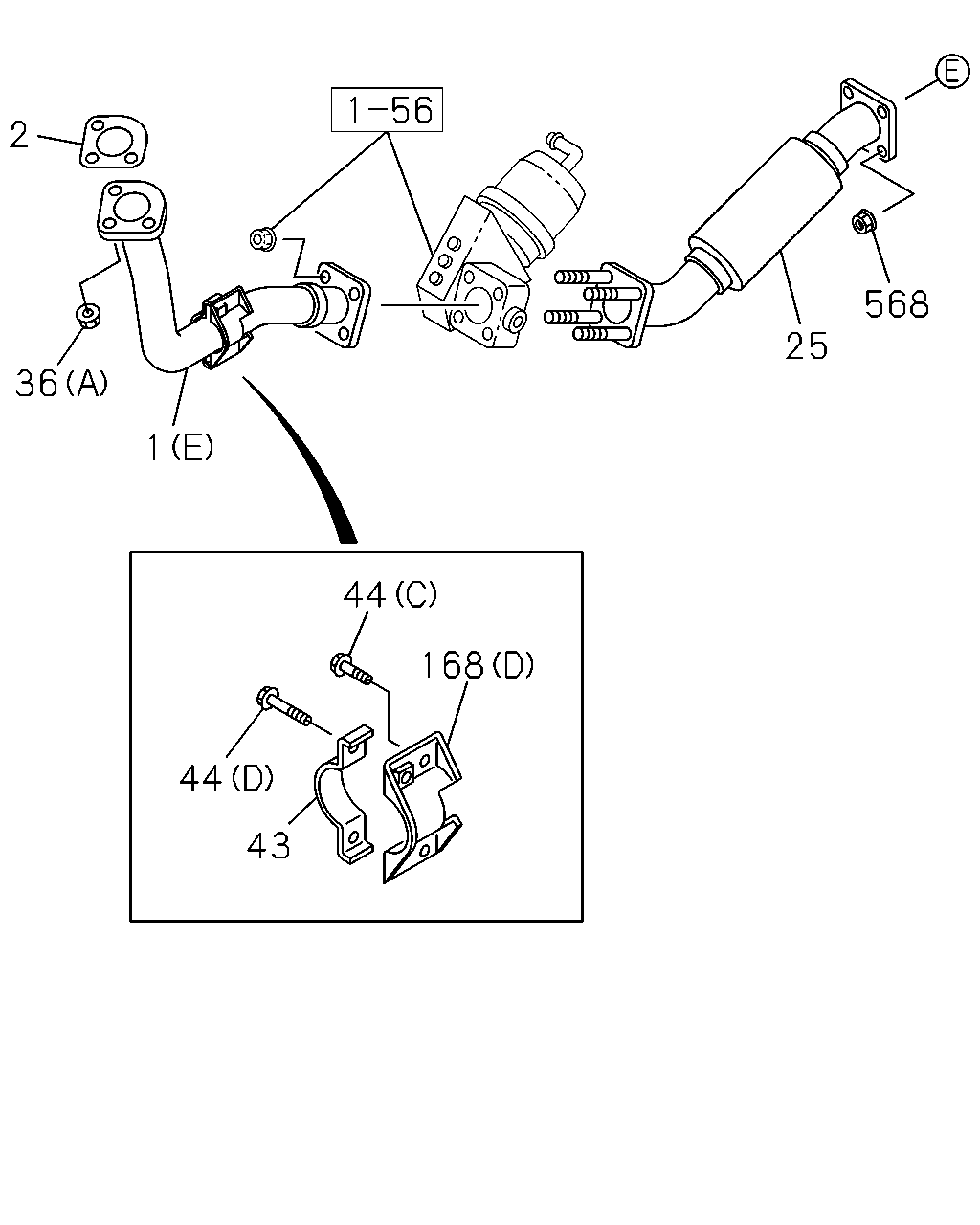

1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (E)	8-98026-060-0	01	1	0607-	●	●	●

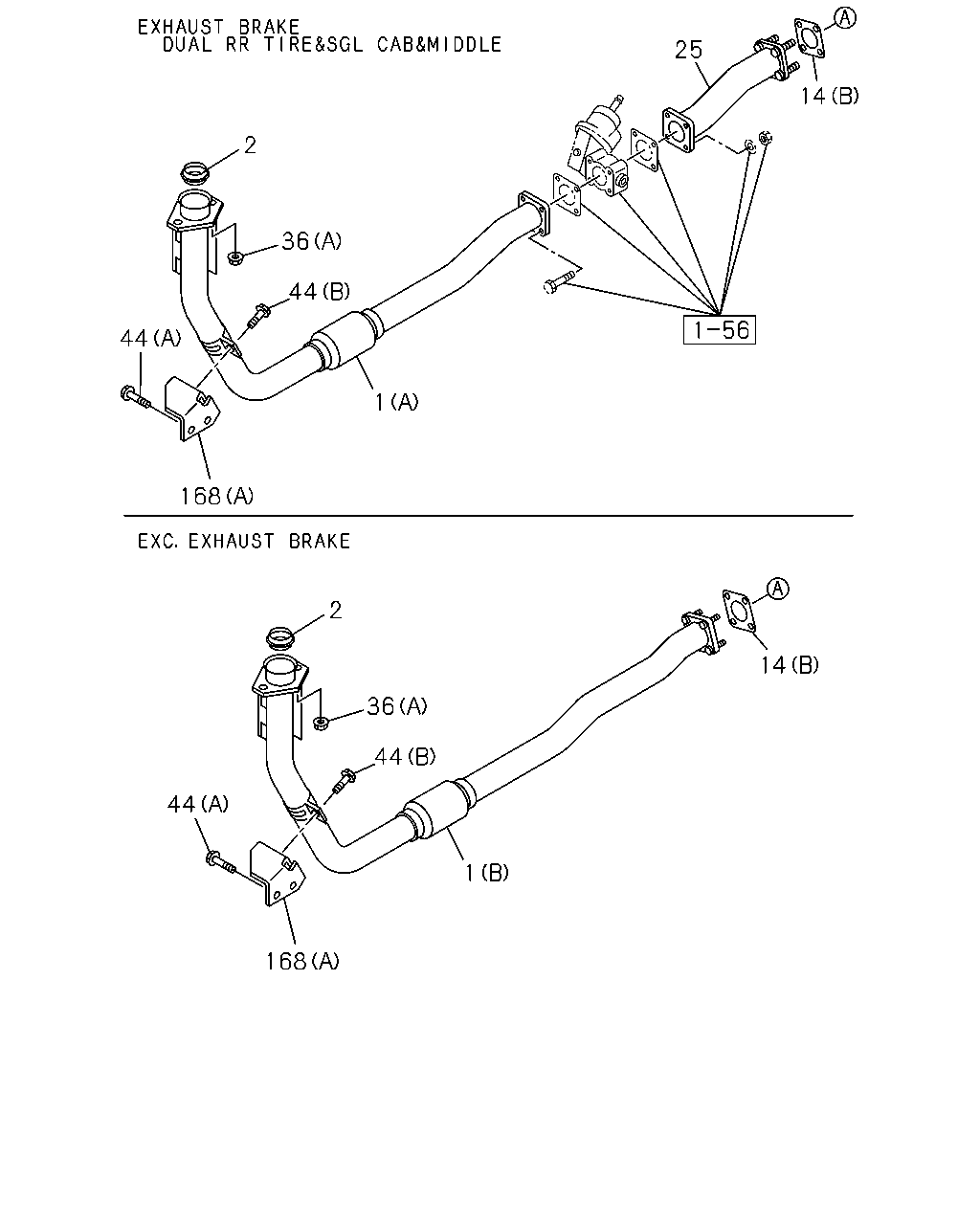

1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0302-0506		●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0507-0606		●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (F)	8-98005-237-0	01	1	0607-			●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97288-421-1	01	1	0302-0506		●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0302-0506			●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0507-0606			●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97259-992-3	01	1	0302-0506			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> 03.634 (B) ID=54	8-94328-354-0	01	1	0302-0506	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) 03.634 (B) ID=54	8-94328-354-0	01	1	0302-0506			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1-TC ENG(RDM) 03.634 (B) ID=54	8-94328-354-0	01	1	0507-0606			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) (A) ID=64.7	8-94328-352-0	01	1	0302-0506	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	0507-0606	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (C) ID=65	8-97148-757-1	01	1	0607-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (C) ID=65	8-97148-757-1	01	1	0607-			●
38	00.002 NUT; SILENCER 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	04	1	0302-0506	●	●
38	00.002 NUT; SILENCER 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	04	1	0302-0506			●
38	00.002 NUT; SILENCER 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	04	1	0507-0602			●
38	00.002 NUT; SILENCER 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-0606			●
38	00.002 NUT; SILENCER 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-	●	●	●
38	00.002 NUT; SILENCER 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-			●
70	03.706 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0607-	●	●	●
70	03.706 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0512			●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606			●
70	03.706 BOLT; BRKT 4JJ1 ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	01	1	0302-0506	●	●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●
81	03.704 NUT; BRKT 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506			●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506			●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602			●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602			●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606			●
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606			●
81	03.704 NUT; BRKT 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
88	03.708 CLAMP; EXH PIPE 4JH1 ENG(RJX) ID=61.6	8-97010-307-0	01	1	0302-0506	●	●	●
88	03.708 CLAMP; EXH PIPE 4JH1 ENG(RJX) ID=61.6	8-97010-307-0	01	1	0302-0506			●
88	03.708 CLAMP; EXH PIPE 4JH1-TC ENG(RDM) ID=61.6	8-97010-307-0	01	1	0507-0606	●	●	●
88	03.708 CLAMP; EXH PIPE 4JH1-TC ENG(RDM) ID=61.6	8-97010-307-0	01	1	0507-0606			●
88	03.708 CLAMP; EXH PIPE 4JJ1 ENG(LFB)	8-97373-158-0	01	1	0607-	●	●	●
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0302-0606	●	●	●
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0302-0606			●
94	03.704 BOLT; CLAMP 4JJ1 ENG(LFB) 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	0607-	●	●	●
94	03.704 BOLT; CLAMP 4JJ1 ENG(LFB) 00.685 (C) M10X45 FLANGE	0-28051-045-0	01	1	0607-	●	●	●
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0512	●		●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●		●
95	03.708 BOLT; BRKT 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●		●
95	03.708 BOLT; BRKT 4JH1 ENG(RJX) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0302-0506		●
95	03.708 BOLT; BRKT 4JH1-TC ENG(RDM) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512		●
95	03.708 BOLT; BRKT 4JH1-TC ENG(RDM) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-0606		●
95	03.708 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0607-		●
97	03.708 WASHER; PL,CLAMP 4JJ1 ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0607-	●	●	●
97	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0302-0605			●
97	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0606			●
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0602	●		●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●		●
104	03.704 NUT; BRKT 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●		●
104	03.704 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0506		●
104	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602		●
104	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0606		●
104	03.704 NUT; BRKT 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-		●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0302-0512	●	●	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0601-0606	●	●	●
105	03.704 NUT; CLAMP 4JJ1 ENG(LFB) 00.833 (C) M10	0-91110-510-0	01	1	0607-	●	●	●
105	03.704 NUT; CLAMP 4JH1 ENG(RJX) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0302-0506	●	●	●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0507-0602	●	●	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-0606	●	●	●
124	03.704 NUT; SUPPORT RUBBER 4JH1 ENG(RJX) 09.011 M10	9-09110-410-0	01	1	0302-0506		●
124	03.704 NUT; SUPPORT RUBBER 09.011 M10	9-09110-410-0	01	1	0302-0506			●
124	03.704 NUT; SUPPORT RUBBER 09.011 M10	9-09110-410-0	01	1	0507-0512			●
124	03.704 NUT; SUPPORT RUBBER 00.833 M10	0-91110-510-0	01	1	0601-0606			●
124	03.704 NUT; SUPPORT RUBBER 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-			●
125	03.708 NUT; CLAMP 02.559 M8	9-09110-408-0	01	1	0302-0512			●
125	03.708 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	0601-0606			●
125	03.708 NUT; CLAMP 4JJ1 ENG(LFB) 00.833 M10	0-91110-510-0	01	1	0607-	●	●	●

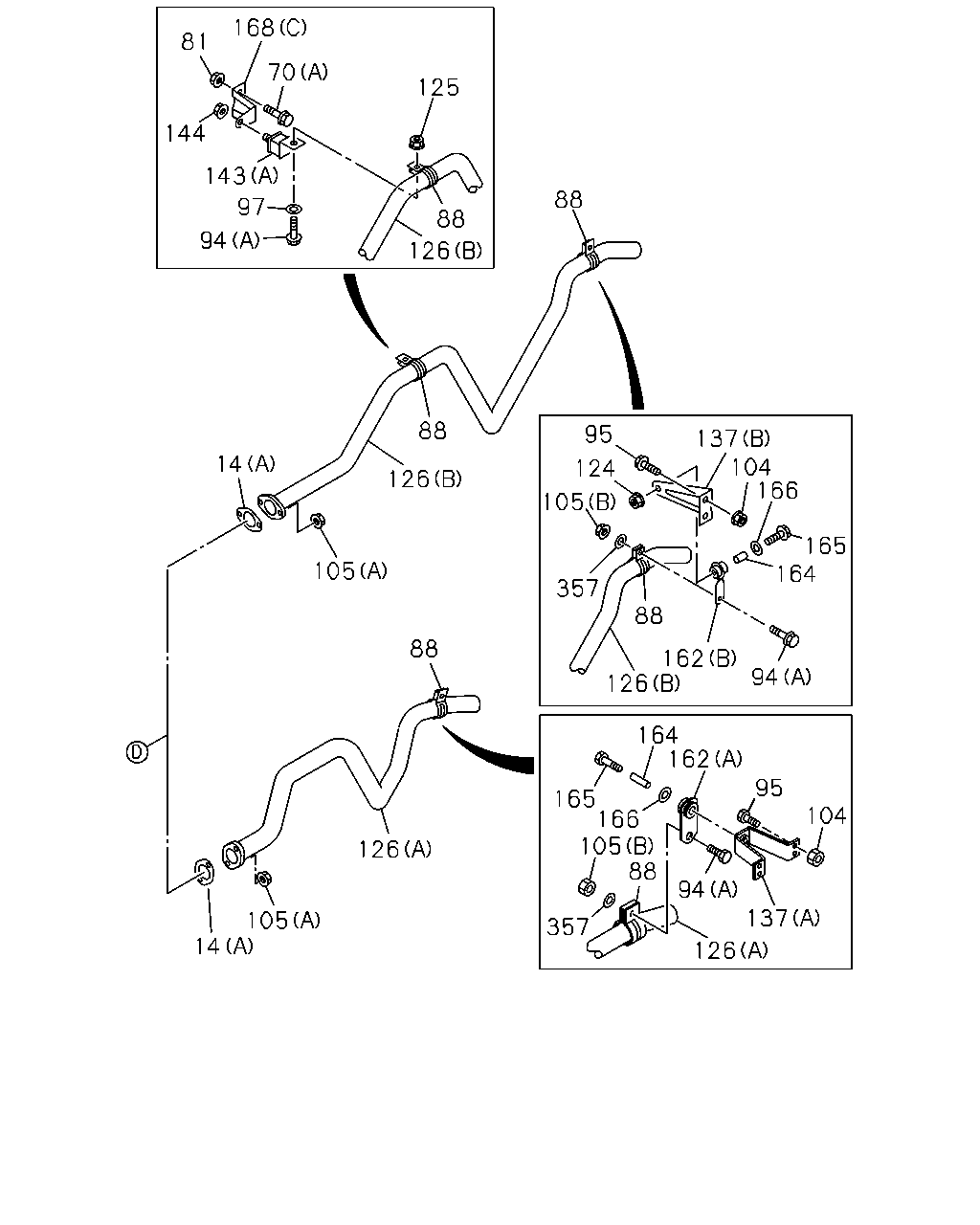

126	03.705 PIPE; EXH,RR 4JH1 ENG(RJX) (A)	8-97353-308-0	01	1	0302-0506	●
126	03.705 PIPE; EXH,RR 4JH1-TC ENG(RDM) (A)	8-97353-308-0	01	1	0507-0606	●
126	03.705 PIPE; EXH,RR 4JJ1 ENG(LFB) (C)	8-98018-960-1	01	1	0607-	●
126	03.705 PIPE; EXH,RR 4JH1 ENG(RJX) (A)	8-97328-800-0	01	1	0302-0506		●
126	03.705 PIPE; EXH,RR 4JH1-TC ENG(RDM) (A)	8-97328-800-0	01	1	0507-0606		●
126	03.705 PIPE; EXH,RR 4JJ1 ENG(LFB) (C)	8-98018-961-1	01	1	0607-		●
126	03.705 PIPE; EXH,RR 4JH1 ENG(RJX) (B)	8-97260-001-1	01	1	0302-0506			●
126	03.705 PIPE; EXH,RR 4JH1-TC ENG(RDM) (B)	8-97260-001-1	01	1	0507-0606			●
126	03.705 PIPE; EXH,RR 4JJ1 ENG(LFB) (D)	8-98025-643-1	01	1	0607-			●
137	03.706 BRACKET; TAIL PIPE 4JH1 ENG(RJX) (A)	9-22121-146-1	01	1	0302-0506	●
137	03.706 BRACKET; TAIL PIPE (A)	9-22121-146-1	01	1	0507-0606	●
137	03.706 BRACKET; TAIL PIPE 4JJ1 ENG(LFB) (A)	8-97373-129-0	01	1	0607-	●
137	03.706 BRACKET; TAIL PIPE 4JH1 ENG(RJX) (A)	8-97209-186-0	01	1	0302-0506		●
137	03.706 BRACKET; TAIL PIPE 4JH1-TC ENG(RDM) (A)	8-97209-186-0	01	1	0507-0606		●
137	03.706 BRACKET; TAIL PIPE 4JJ1 ENG(LFB) (A)	8-97209-186-0	01	1	0607-		●
137	03.706 BRACKET; TAIL PIPE (B)	8-94468-175-0	01	1	0302-0606			●
137	03.706 BRACKET; TAIL PIPE 4JJ1 ENG(LFB) (C)	8-97252-492-0	01	1	0607-			●
143	03.704 RUBBER; SUPPORT 4JJ1 ENG(LFB) (B)	8-98034-767-0	01	1	0607-	●	●	●
143	03.704 RUBBER; SUPPORT (A)	8-97229-586-0	01	1	0302-0308			●
143	03.704 RUBBER; SUPPORT (A)	8-97371-655-0	01	1	0309-0606			●
143	03.704 RUBBER; SUPPORT 4JJ1 ENG(LFB) (C)	8-97080-694-0	01	1	0607-	●	●	●
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602			●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606			●
144	03.613 NUT; MTG RUBBER 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=180	8-97222-646-0	01	1	0302-0606	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1 ENG(LFB) (C) L=150	8-97373-139-1	01	1	0607-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=148	8-97145-971-0	01	1	0302-0606		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1 ENG(LFB) (C) L=115	8-97370-154-1	01	1	0607-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	0302-0606			●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1 ENG(LFB) (D) L=115	8-98034-765-0	01	1	0607-			●
164	03.706 COLLAR; DIST,TAIL PIPE 03.616 L=23	9-22151-175-0	01	1	0302-0606	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1 ENG(LFB) L=23	8-98006-011-0	01	1	0607-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0302-0606		●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1 ENG(LFB) L=37.5	9-22151-217-0	01	1	0607-			●
165	03.706 BOLT; SUPPORT RUBBER 01.540 M8X45 FLANGE	0-28080-845-0	01	1	0302-0512	●
165	03.706 BOLT; SUPPORT RUBBER 09.173 M8X45 FLANGE	0-28050-845-0	01	1	0601-0606	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1 ENG(LFB) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	0607-	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0302-0512		●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-0606		●	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1 ENG(LFB) M10X70 FLANGE	0-28051-070-0	01	1	0607-			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0302-0605	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=8.4 OD=26	0-91614-808-0	01	1	0606-0606	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=10.5 OD=32	9-09164-810-0	01	1	0302-0605		●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-0606		●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1 ENG(LFB) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0607-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97240-858-1	01	1	0302-0506	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97240-858-1	01	1	0507-0606	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (D)	8-98026-063-0	01	1	0607-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) (A)	8-97240-857-0	01	1	0302-0506		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) (A)	8-97240-857-0	01	1	0507-0606		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (E)	8-97190-556-0	01	1	0607-	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (C)	8-94468-174-1	01	1	0302-0606			●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) 03.704 (C)	8-94468-174-1	01	1	0607-		●	●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0302-0605	●	●	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0606	●	●	●
357	03.708 WASHER; PL,CLAMP 4JJ1 ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0607-	●	●	●

168 81 70 125 144 143 88 97 88 94 126 88 95 137 104 166 14 124 126 105 165 164 105 357 88 88 162 126 94 164 162 95 165 166 105 88 104 126 94 137 105 357 14 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> 03.634 (B) ID=54	8-94328-354-0	01	1	0302-0506	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) 03.634 (B) ID=54	8-94328-354-0	01	1	0302-0506			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1-TC ENG(RDM) 03.634 (B) ID=54	8-94328-354-0	01	1	0507-0606			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) (A) ID=64.7	8-94328-352-0	01	1	0302-0506	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	0507-0606	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (C) ID=65	8-97148-757-1	01	1	0607-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (C) ID=65	8-97148-757-1	01	1	0607-			●
70	03.706 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	0607-	●	●	●
70	03.706 BOLT; BRKT 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0512			●
70	03.706 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606			●
70	03.706 BOLT; BRKT 4JJ1 ENG(LFB) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	01	1	0302-0506	●	●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602	●	●
81	03.704 NUT; BRKT 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●
81	03.704 NUT; BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506			●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506			●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602			●
81	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602			●
81	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606			●
81	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606			●
81	03.704 NUT; BRKT 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●	●	●
88	03.708 CLAMP; EXH PIPE 4JH1 ENG(RJX) ID=61.6	8-97010-307-0	01	1	0302-0506	●	●	●
88	03.708 CLAMP; EXH PIPE 4JH1 ENG(RJX) ID=61.6	8-97010-307-0	01	1	0302-0506			●
88	03.708 CLAMP; EXH PIPE 4JH1-TC ENG(RDM) ID=61.6	8-97010-307-0	01	1	0507-0606	●	●	●
88	03.708 CLAMP; EXH PIPE 4JH1-TC ENG(RDM) ID=61.6	8-97010-307-0	01	1	0507-0606			●
88	03.708 CLAMP; EXH PIPE 4JJ1 ENG(LFB)	8-97373-158-0	01	1	0607-	●	●	●
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0302-0606	●	●	●
94	03.704 BOLT; CLAMP 03.708 (A) M8X45	0-20800-845-0	01	1	0302-0606			●
94	03.704 BOLT; CLAMP 4JJ1 ENG(LFB) 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	0607-	●	●	●
94	03.704 BOLT; CLAMP 4JJ1 ENG(LFB) 00.685 (C) M10X45 FLANGE	0-28051-045-0	01	1	0607-	●	●	●
95	03.708 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0512	●		●
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●		●
95	03.708 BOLT; BRKT 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●		●
95	03.708 BOLT; BRKT 4JH1 ENG(RJX) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0302-0506		●
95	03.708 BOLT; BRKT 4JH1-TC ENG(RDM) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512		●
95	03.708 BOLT; BRKT 4JH1-TC ENG(RDM) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-0606		●
95	03.708 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0607-		●
97	03.708 WASHER; PL,CLAMP 4JJ1 ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0607-	●	●	●
97	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0302-0605			●
97	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0606			●
104	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0602	●		●
104	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●		●
104	03.704 NUT; BRKT 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-	●		●
104	03.704 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0506		●
104	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602		●
104	03.704 NUT; BRKT 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0606		●
104	03.704 NUT; BRKT 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-		●
105	03.704 NUT; CLAMP 02.559 (B) M8	9-09110-408-0	01	1	0302-0512	●	●	●
105	03.704 NUT; CLAMP 02.334 (B) M8	0-91110-508-0	01	1	0601-0606	●	●	●
105	03.704 NUT; CLAMP 4JJ1 ENG(LFB) 00.833 (C) M10	0-91110-510-0	01	1	0607-	●	●	●
105	03.704 NUT; CLAMP 4JH1 ENG(RJX) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0302-0506	●	●	●
105	03.704 NUT; CLAMP 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0507-0602	●	●	●
105	03.704 NUT; CLAMP 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-0606	●	●	●
124	03.704 NUT; SUPPORT RUBBER 4JH1 ENG(RJX) 09.011 M10	9-09110-410-0	01	1	0302-0506		●
124	03.704 NUT; SUPPORT RUBBER 09.011 M10	9-09110-410-0	01	1	0302-0506			●
124	03.704 NUT; SUPPORT RUBBER 09.011 M10	9-09110-410-0	01	1	0507-0512			●
124	03.704 NUT; SUPPORT RUBBER 00.833 M10	0-91110-510-0	01	1	0601-0606			●
124	03.704 NUT; SUPPORT RUBBER 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-			●
125	03.708 NUT; CLAMP 02.559 M8	9-09110-408-0	01	1	0302-0512			●
125	03.708 NUT; CLAMP 02.334 M8	0-91110-508-0	01	1	0601-0606			●
125	03.708 NUT; CLAMP 4JJ1 ENG(LFB) 00.833 M10	0-91110-510-0	01	1	0607-	●	●	●
126	03.705 PIPE; EXH,RR 4JH1 ENG(RJX) (A)	8-97353-308-0	01	1	0302-0506	●
126	03.705 PIPE; EXH,RR 4JH1-TC ENG(RDM) (A)	8-97353-308-0	01	1	0507-0606	●
126	03.705 PIPE; EXH,RR 4JJ1 ENG(LFB) (C)	8-98018-960-1	01	1	0607-	●
126	03.705 PIPE; EXH,RR 4JH1 ENG(RJX) (A)	8-97328-800-0	01	1	0302-0506		●
126	03.705 PIPE; EXH,RR 4JH1-TC ENG(RDM) (A)	8-97328-800-0	01	1	0507-0606		●
126	03.705 PIPE; EXH,RR 4JJ1 ENG(LFB) (C)	8-98018-961-1	01	1	0607-		●
126	03.705 PIPE; EXH,RR 4JH1 ENG(RJX) (B)	8-97260-001-1	01	1	0302-0506			●
126	03.705 PIPE; EXH,RR 4JH1-TC ENG(RDM) (B)	8-97260-001-1	01	1	0507-0606			●
126	03.705 PIPE; EXH,RR 4JJ1 ENG(LFB) (D)	8-98025-643-1	01	1	0607-			●
137	03.706 BRACKET; TAIL PIPE 4JH1 ENG(RJX) (A)	9-22121-146-1	01	1	0302-0506	●
137	03.706 BRACKET; TAIL PIPE (A)	9-22121-146-1	01	1	0507-0606	●
137	03.706 BRACKET; TAIL PIPE 4JJ1 ENG(LFB) (A)	8-97373-129-0	01	1	0607-	●
137	03.706 BRACKET; TAIL PIPE 4JH1 ENG(RJX) (A)	8-97209-186-0	01	1	0302-0506		●
137	03.706 BRACKET; TAIL PIPE 4JH1-TC ENG(RDM) (A)	8-97209-186-0	01	1	0507-0606		●
137	03.706 BRACKET; TAIL PIPE 4JJ1 ENG(LFB) (A)	8-97209-186-0	01	1	0607-		●
137	03.706 BRACKET; TAIL PIPE (B)	8-94468-175-0	01	1	0302-0606			●
137	03.706 BRACKET; TAIL PIPE 4JJ1 ENG(LFB) (C)	8-97252-492-0	01	1	0607-			●
143	03.704 RUBBER; SUPPORT 4JJ1 ENG(LFB) (B)	8-98034-767-0	01	1	0607-	●	●	●
143	03.704 RUBBER; SUPPORT (A)	8-97229-586-0	01	1	0302-0308			●
143	03.704 RUBBER; SUPPORT (A)	8-97371-655-0	01	1	0309-0606			●
143	03.704 RUBBER; SUPPORT 4JJ1 ENG(LFB) (C)	8-97080-694-0	01	1	0607-	●	●	●
144	03.613 NUT; MTG RUBBER 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0602			●
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606			●
144	03.613 NUT; MTG RUBBER 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=180	8-97222-646-0	01	1	0302-0606	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1 ENG(LFB) (C) L=150	8-97373-139-1	01	1	0607-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (A) L=148	8-97145-971-0	01	1	0302-0606		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1 ENG(LFB) (C) L=115	8-97370-154-1	01	1	0607-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-94156-256-0	01	1	0302-0606			●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1 ENG(LFB) (D) L=115	8-98034-765-0	01	1	0607-			●
164	03.706 COLLAR; DIST,TAIL PIPE 03.616 L=23	9-22151-175-0	01	1	0302-0606	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1 ENG(LFB) L=23	8-98006-011-0	01	1	0607-	●	●
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	0302-0606		●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1 ENG(LFB) L=37.5	9-22151-217-0	01	1	0607-			●
165	03.706 BOLT; SUPPORT RUBBER 01.540 M8X45 FLANGE	0-28080-845-0	01	1	0302-0512	●
165	03.706 BOLT; SUPPORT RUBBER 09.173 M8X45 FLANGE	0-28050-845-0	01	1	0601-0606	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1 ENG(LFB) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	0607-	●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0302-0512		●	●
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	0601-0606		●	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1 ENG(LFB) M10X70 FLANGE	0-28051-070-0	01	1	0607-			●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 02.334 ID=8.4 OD=26	9-09164-808-0	01	1	0302-0605	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=8.4 OD=26	0-91614-808-0	01	1	0606-0606	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI ID=10.5 OD=32	9-09164-810-0	01	1	0302-0605		●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-0606		●	●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4JJ1 ENG(LFB) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0607-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97240-858-1	01	1	0302-0506	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97240-858-1	01	1	0507-0606	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (D)	8-98026-063-0	01	1	0607-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) (A)	8-97240-857-0	01	1	0302-0506		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) (A)	8-97240-857-0	01	1	0507-0606		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (E)	8-97190-556-0	01	1	0607-	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (C)	8-94468-174-1	01	1	0302-0606			●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) 03.704 (C)	8-94468-174-1	01	1	0607-		●	●
357	03.708 WASHER; PL,CLAMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0302-0605	●	●	●
357	03.708 WASHER; PL,CLAMP 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0606	●	●	●
357	03.708 WASHER; PL,CLAMP 4JJ1 ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0607-	●	●	●

566 434 565 182 182 434 542 564 272 182 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
182	03.682 CLIP; HARNESS 4JJ1 ENG(LFB) 02.587 (A) L=112	8-94232-618-0	02	1	0607-	●	●	●
182	03.682 CLIP; HARNESS 4JJ1 ENG(LFB) (B) ID=7	8-98002-767-0	01	1	0607-	●	●	●
272	03.685 NUT; FLANGE 4JJ1 ENG(LFB) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
272	03.685 NUT; FLANGE 4JJ1 ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0607-	●	●	●
434	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0607-	●	●	●
434	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0607-	●	●
434	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0607-			●
542	03.704 BRACKET 4JH1 ENG(RJX) 03.706	8-97260-021-0	01	1	0302-0506	●	●	●
542	03.704 BRACKET 4JH1-TC ENG(RDM) 03.706	8-97260-021-0	01	1	0507-0606	●	●	●
542	03.704 BRACKET 4JJ1 ENG(LFB)	8-98018-933-1	01	1	0607-	●	●	●
556	03.701 DPD ASM 4JJ1 ENG(LFB)	8-98036-810-6	01	1	0607-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1 ENG(LFB) (A)	8-98004-329-0	01	1	0607-	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD 4JJ1 ENG(LFB) (B)	8-98004-330-0	01	1	0607-	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1 ENG(LFB)	8-97359-985-2	01	1	0607-	●	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1 ENG(LFB)	8-98018-923-1	01	1	0607-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1 ENG(LFB)	8-98018-924-1	01	1	0607-			●
566	03.706 BOLT; SENSOR 4JJ1 ENG(LFB) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0607-	●	●	●

2 568 25 36 1 44 168 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97305-629-0	01	1	0302-0506	●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97305-629-0	01	1	0507-0606	●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (E)	8-98026-060-0	01	1	0607-	●	●	●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0302-0506		●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0507-0606		●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (F)	8-98005-237-0	01	1	0607-			●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97288-421-1	01	1	0302-0506		●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0302-0506			●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0507-0606			●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97259-992-3	01	1	0302-0506			●
2	03.611 GASKET; PIPE TO MANIF 4JH1 ENG(RJX)	8-97180-750-2	01	1	0302-0408	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JH1 ENG(RJX)	8-97381-456-0	01	1	0409-0506	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JH1-TC ENG(RDM)	8-97381-456-0	01	1	0507-0606	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1 ENG(LFB)	8-97384-590-0	01	1	0607-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97353-306-1	01	1	0302-0506	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97353-306-1	01	1	0507-0606	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1 ENG(LFB)	8-98026-061-2	01	1	0607-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97320-579-0	01	1	0302-0506		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97320-579-0	01	1	0507-0606		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX)	8-97320-578-0	01	1	0302-0506			●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM)	8-97320-578-0	01	1	0507-0606			●
36	03.613 NUT; EXH PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0302-0506	●
36	03.613 NUT; EXH PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0507-0602	●
36	03.613 NUT; EXH PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-0606	●
36	03.613 NUT; EXH PIPE 4JH1 ENG(RJX) (A) M10 FLANGE	8-97096-192-1	02	1	0302-0506	●	●	●
36	03.613 NUT; EXH PIPE 4JH1-TC ENG(RDM) (A) M10 FLANGE	8-97096-192-1	02	1	0507-0606	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1 ENG(LFB) (A) M10 FLANGE	8-97096-192-1	03	1	0607-	●	●	●
43	03.611 CLAMP; EXH PIPE 4JJ1 ENG(LFB)	8-97351-200-1	01	1	0607-	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0302-0506	●	●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606		●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (D) M10X30 FLANGE	0-28651-030-0	02	1	0607-	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0302-0401	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0402-0506	●	●	●
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0507-0606	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	0607-	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.277 (E) M10X35 FLANGE	0-28651-035-0	02	1	0607-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97240-858-1	01	1	0302-0506	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97240-858-1	01	1	0507-0606	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (D)	8-98026-063-0	01	1	0607-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) (A)	8-97240-857-0	01	1	0302-0506		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) (A)	8-97240-857-0	01	1	0507-0606		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (E)	8-97190-556-0	01	1	0607-	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (C)	8-94468-174-1	01	1	0302-0606			●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) 03.704 (C)	8-94468-174-1	01	1	0607-		●	●
568	03.704 NUT; DPD 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	0607-	●	●	●

556 467 589 467 589 580 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
272	03.685 NUT; FLANGE 4JJ1 ENG(LFB) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
272	03.685 NUT; FLANGE 4JJ1 ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0607-	●	●	●
467	03.685 BOLT; PROTECTOR 4JJ1 ENG(LFB) M6X16	8-98019-179-0	14	1	0607-	●	●	●
534	03.704 BOLT; CLIP 4JJ1 ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0607-	●	●	●
547	03.682 CLIP; PIPE 4JJ1 ENG(LFB) (A)	8-97381-635-0	02	1	0607-	●	●	●
547	03.682 CLIP; PIPE 4JJ1 ENG(LFB) (B)	8-97381-636-0	02	1	0607-	●	●	●
556	03.701 DPD ASM 4JJ1 ENG(LFB)	8-98036-810-6	01	1	0607-	●	●	●
557	03.701 CATALYST ASM 4JJ1 ENG(LFB)	8-98036-815-3	01	1	0607-	●	●	●
558	03.634 FILTER ASM 4JJ1 ENG(LFB)	8-98032-908-2	01	1	0607-	●	●	●
559	03.602 COVER; RR 4JJ1 ENG(LFB)	8-98032-909-0	01	1	0607-0708	●	●	●
559	03.602 COVER; RR 4JJ1 ENG(LFB)	8-98084-599-0	01	1	0709-	●	●	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB) (A)	8-97331-947-0	02	1	0607-	●	●	●
560	03.611 GASKET; DPD 4JJ1 ENG(LFB) (B) ID=64	8-97373-108-0	01	1	0607-	●	●	●
561	03.609 PIPE; DPD 4JJ1 ENG(LFB) (A)	8-98032-910-0	01	1	0607-	●	●	●
561	03.609 PIPE; DPD 4JJ1 ENG(LFB) (B)	8-98032-911-1	01	1	0607-	●	●	●
580	03.704 BOLT; FLANGE 4JJ1 ENG(LFB) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0607-	●	●	●
582	03.706 BRACKET; PIPE 4JJ1 ENG(LFB) (A)	8-98032-919-0	01	1	0607-	●	●	●
582	03.706 BRACKET; PIPE 4JJ1 ENG(LFB) (B)	8-98032-920-0	01	1	0607-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB) (C)	8-97383-660-0	01	1	0607-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB) (F)	8-97383-663-0	01	1	0607-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB) (A)	8-98032-921-0	01	1	0607-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB) (B)	8-98032-923-0	01	1	0607-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB) (D)	8-98032-924-0	01	1	0607-	●	●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1 ENG(LFB) (E)	8-98032-926-0	01	1	0607-	●	●	●

25 14 2 36 44 44 1 168 2 14 36 44 44 1 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97305-629-0	01	1	0302-0506	●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97305-629-0	01	1	0507-0606	●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (E)	8-98026-060-0	01	1	0607-	●	●	●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0302-0506		●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0507-0606		●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (F)	8-98005-237-0	01	1	0607-			●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97288-421-1	01	1	0302-0506		●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0302-0506			●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0507-0606			●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97259-992-3	01	1	0302-0506			●
2	03.611 GASKET; PIPE TO MANIF 4JH1 ENG(RJX)	8-97180-750-2	01	1	0302-0408	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JH1 ENG(RJX)	8-97381-456-0	01	1	0409-0506	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JH1-TC ENG(RDM)	8-97381-456-0	01	1	0507-0606	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1 ENG(LFB)	8-97384-590-0	01	1	0607-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> 03.634 (B) ID=54	8-94328-354-0	01	1	0302-0506	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) 03.634 (B) ID=54	8-94328-354-0	01	1	0302-0506			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1-TC ENG(RDM) 03.634 (B) ID=54	8-94328-354-0	01	1	0507-0606			●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JH1 ENG(RJX) (A) ID=64.7	8-94328-352-0	01	1	0302-0506	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE (A) ID=64.7	8-94328-352-0	01	1	0507-0606	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (C) ID=65	8-97148-757-1	01	1	0607-	●	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1 ENG(LFB) 03.611 (C) ID=65	8-97148-757-1	01	1	0607-			●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97353-306-1	01	1	0302-0506	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97353-306-1	01	1	0507-0606	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1 ENG(LFB)	8-98026-061-2	01	1	0607-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97320-579-0	01	1	0302-0506		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97320-579-0	01	1	0507-0606		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX)	8-97320-578-0	01	1	0302-0506			●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM)	8-97320-578-0	01	1	0507-0606			●
36	03.613 NUT; EXH PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0302-0506	●
36	03.613 NUT; EXH PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0507-0602	●
36	03.613 NUT; EXH PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-0606	●
36	03.613 NUT; EXH PIPE 4JH1 ENG(RJX) (A) M10 FLANGE	8-97096-192-1	02	1	0302-0506	●	●	●
36	03.613 NUT; EXH PIPE 4JH1-TC ENG(RDM) (A) M10 FLANGE	8-97096-192-1	02	1	0507-0606	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1 ENG(LFB) (A) M10 FLANGE	8-97096-192-1	03	1	0607-	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0302-0506	●	●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606		●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (D) M10X30 FLANGE	0-28651-030-0	02	1	0607-	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0302-0401	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0402-0506	●	●	●
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0507-0606	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	0607-	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.277 (E) M10X35 FLANGE	0-28651-035-0	02	1	0607-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97240-858-1	01	1	0302-0506	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97240-858-1	01	1	0507-0606	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (D)	8-98026-063-0	01	1	0607-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) (A)	8-97240-857-0	01	1	0302-0506		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) (A)	8-97240-857-0	01	1	0507-0606		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (E)	8-97190-556-0	01	1	0607-	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (C)	8-94468-174-1	01	1	0302-0606			●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) 03.704 (C)	8-94468-174-1	01	1	0607-		●	●

32 18 2 36 84 1 36 44 25 44 319 168 2 36 1 44 25 18 319 44 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.609 PIPE; EXH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97305-629-0	01	1	0302-0506	●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97305-629-0	01	1	0507-0606	●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (E)	8-98026-060-0	01	1	0607-	●	●	●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0302-0506		●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (C)	8-97288-420-1	01	1	0507-0606		●
1	03.609 PIPE; EXH 4JJ1 ENG(LFB) (F)	8-98005-237-0	01	1	0607-			●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97288-421-1	01	1	0302-0506		●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0302-0506			●
1	03.609 PIPE; EXH 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97305-630-1	01	1	0507-0606			●
1	03.609 PIPE; EXH 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (B)	8-97259-992-3	01	1	0302-0506			●
2	03.611 GASKET; PIPE TO MANIF 4JH1 ENG(RJX)	8-97180-750-2	01	1	0302-0408	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JH1 ENG(RJX)	8-97381-456-0	01	1	0409-0506	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JH1-TC ENG(RDM)	8-97381-456-0	01	1	0507-0606	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1 ENG(LFB)	8-97384-590-0	01	1	0607-	●	●	●
18	03.611 GASKET; EXH PIPE TO PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0302-0506	●
18	03.611 GASKET; EXH PIPE TO PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0302-0506		●
18	03.611 GASKET; EXH PIPE TO PIPE 4JH1-TC ENG(RDM) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0507-0606	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97353-306-1	01	1	0302-0506	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97353-306-1	01	1	0507-0606	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1 ENG(LFB)	8-98026-061-2	01	1	0607-	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97320-579-0	01	1	0302-0506		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97320-579-0	01	1	0507-0606		●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1 ENG(RJX)	8-97320-578-0	01	1	0302-0506			●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JH1-TC ENG(RDM)	8-97320-578-0	01	1	0507-0606			●
32	03.609 PIPE; EXH,FRT 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97320-579-0	01	1	0302-0506	●
32	03.609 PIPE; EXH,FRT 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97320-579-0	01	1	0507-0606	●
36	03.613 NUT; EXH PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0302-0506	●
36	03.613 NUT; EXH PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0507-0602	●
36	03.613 NUT; EXH PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-0606	●
36	03.613 NUT; EXH PIPE 4JH1 ENG(RJX) (A) M10 FLANGE	8-97096-192-1	02	1	0302-0506	●	●	●
36	03.613 NUT; EXH PIPE 4JH1-TC ENG(RDM) (A) M10 FLANGE	8-97096-192-1	02	1	0507-0606	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1 ENG(LFB) (A) M10 FLANGE	8-97096-192-1	03	1	0607-	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0302-0506	●	●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606	●
44	03.613 BOLT; BRKT 4JH1-TC ENG(RDM) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-0606		●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 00.029 (D) M10X30 FLANGE	0-28651-030-0	02	1	0607-	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 03.706 (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0302-0401	●	●	●
44	03.613 BOLT; BRKT 4JH1 ENG(RJX) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0402-0506	●	●	●
44	03.613 BOLT; BRKT 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0507-0606	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.042 (C) M10X25 FLANGE	0-28151-025-0	02	1	0607-	●	●	●
44	03.613 BOLT; BRKT 4JJ1 ENG(LFB) 02.277 (E) M10X35 FLANGE	0-28651-035-0	02	1	0607-	●	●	●
84	03.611 GASKET; EXH PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0302-0506	●
84	03.611 GASKET; EXH PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.704 ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0507-0606	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97240-858-1	01	1	0302-0506	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97240-858-1	01	1	0507-0606	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (D)	8-98026-063-0	01	1	0607-	●	●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1 ENG(RJX) (A)	8-97240-857-0	01	1	0302-0506		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JH1-TC ENG(RDM) (A)	8-97240-857-0	01	1	0507-0606		●	●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) (E)	8-97190-556-0	01	1	0607-	●
168	03.613 BRACKET; EXH PIPE,FRT 03.704 (C)	8-94468-174-1	01	1	0302-0606			●
168	03.613 BRACKET; EXH PIPE,FRT 4JJ1 ENG(LFB) 03.704 (C)	8-94468-174-1	01	1	0607-		●	●
319	03.602 NUT; PROTECTOR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0506	●
319	03.602 NUT; PROTECTOR 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0506		●
319	03.602 NUT; PROTECTOR 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602	●	●
319	03.602 NUT; PROTECTOR 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0606	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
