Sayfa 1-41 - Isuzu EPC

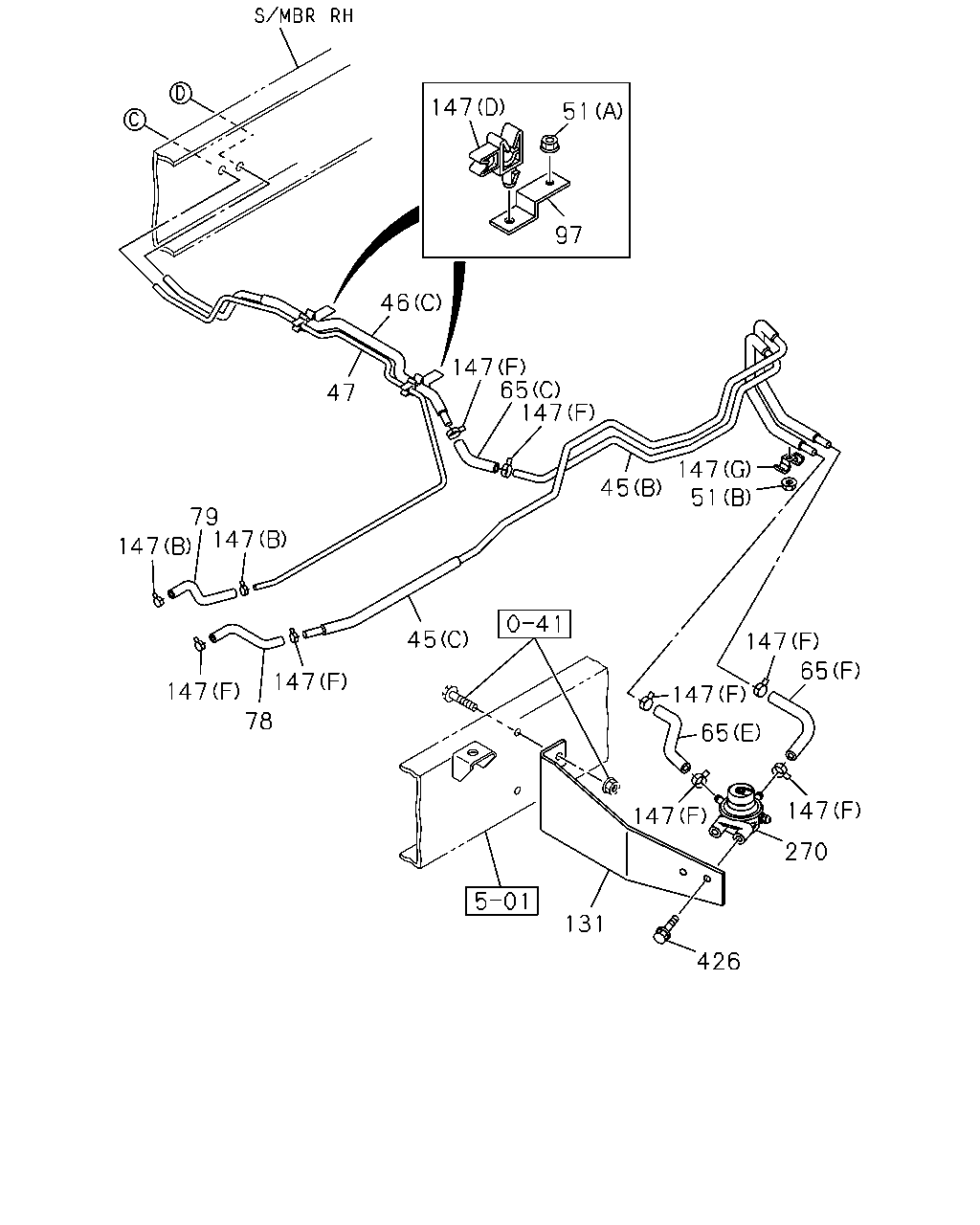

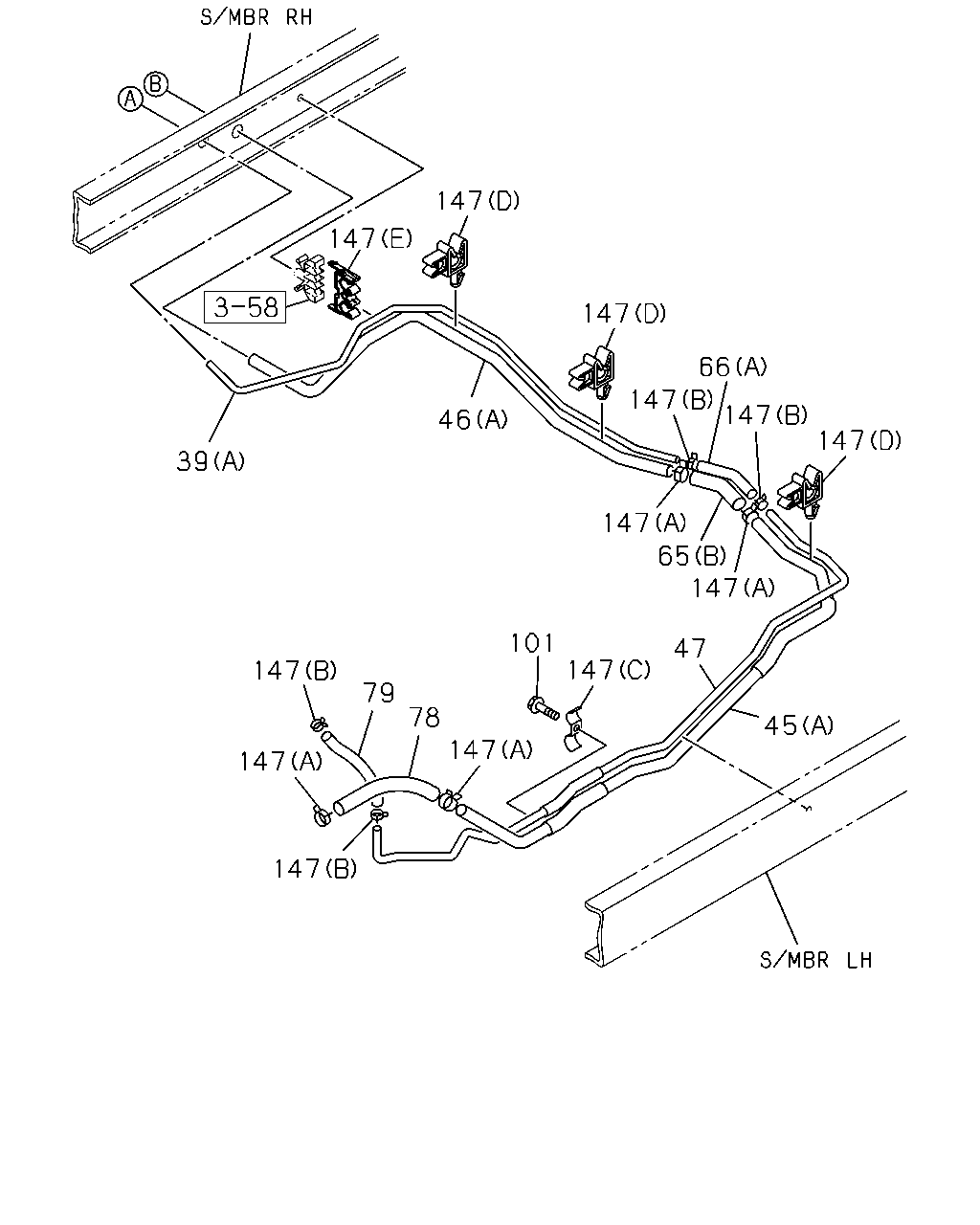

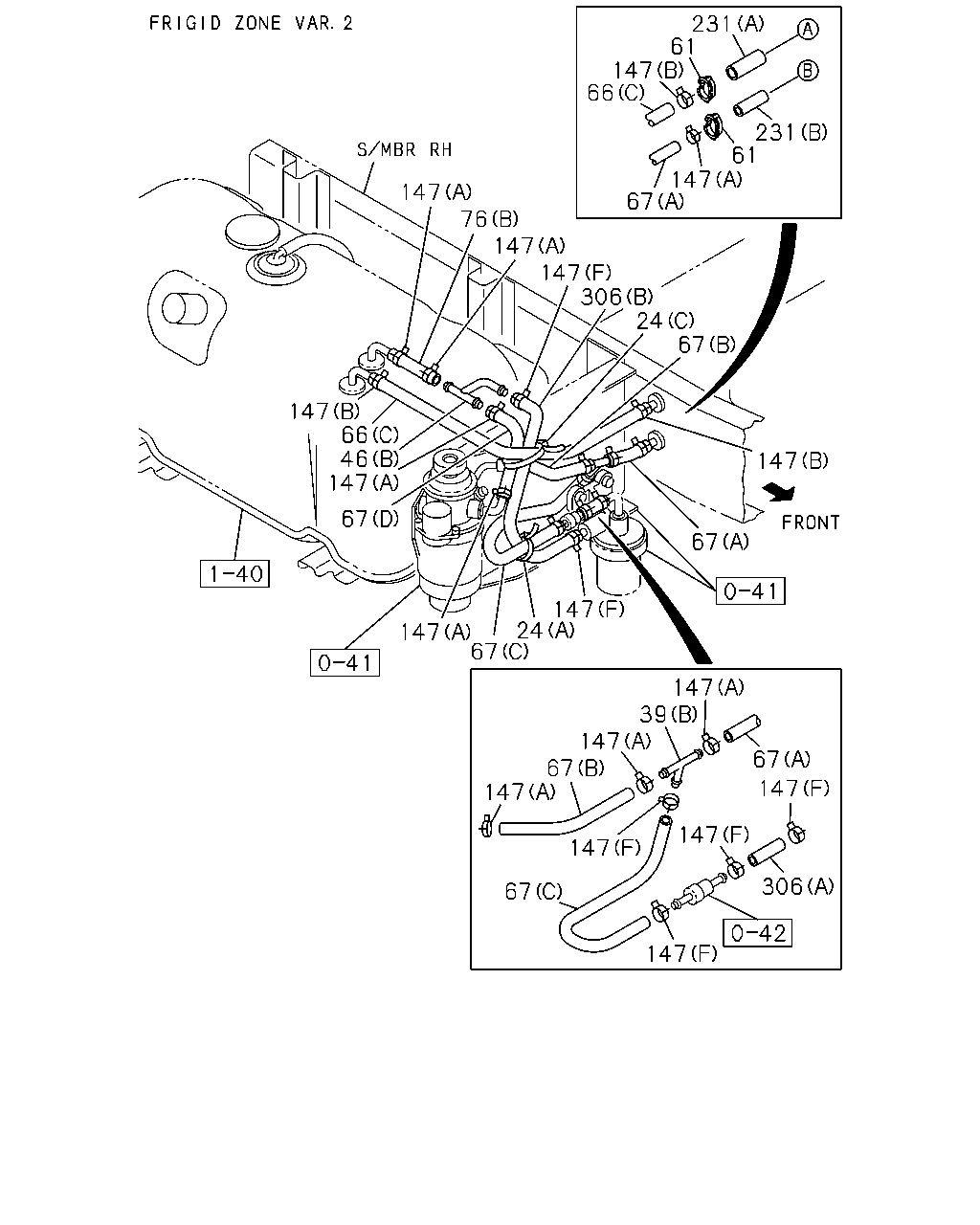

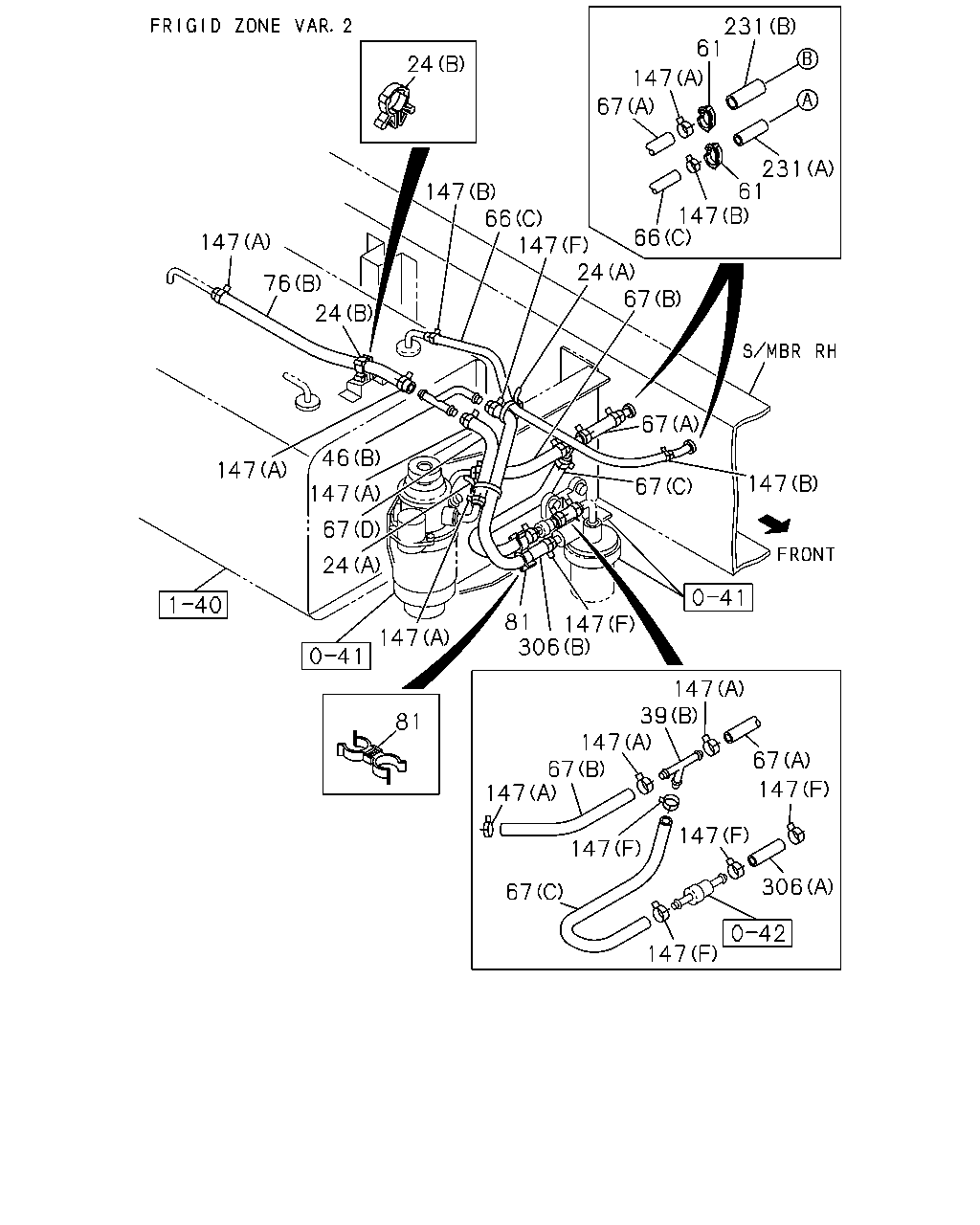

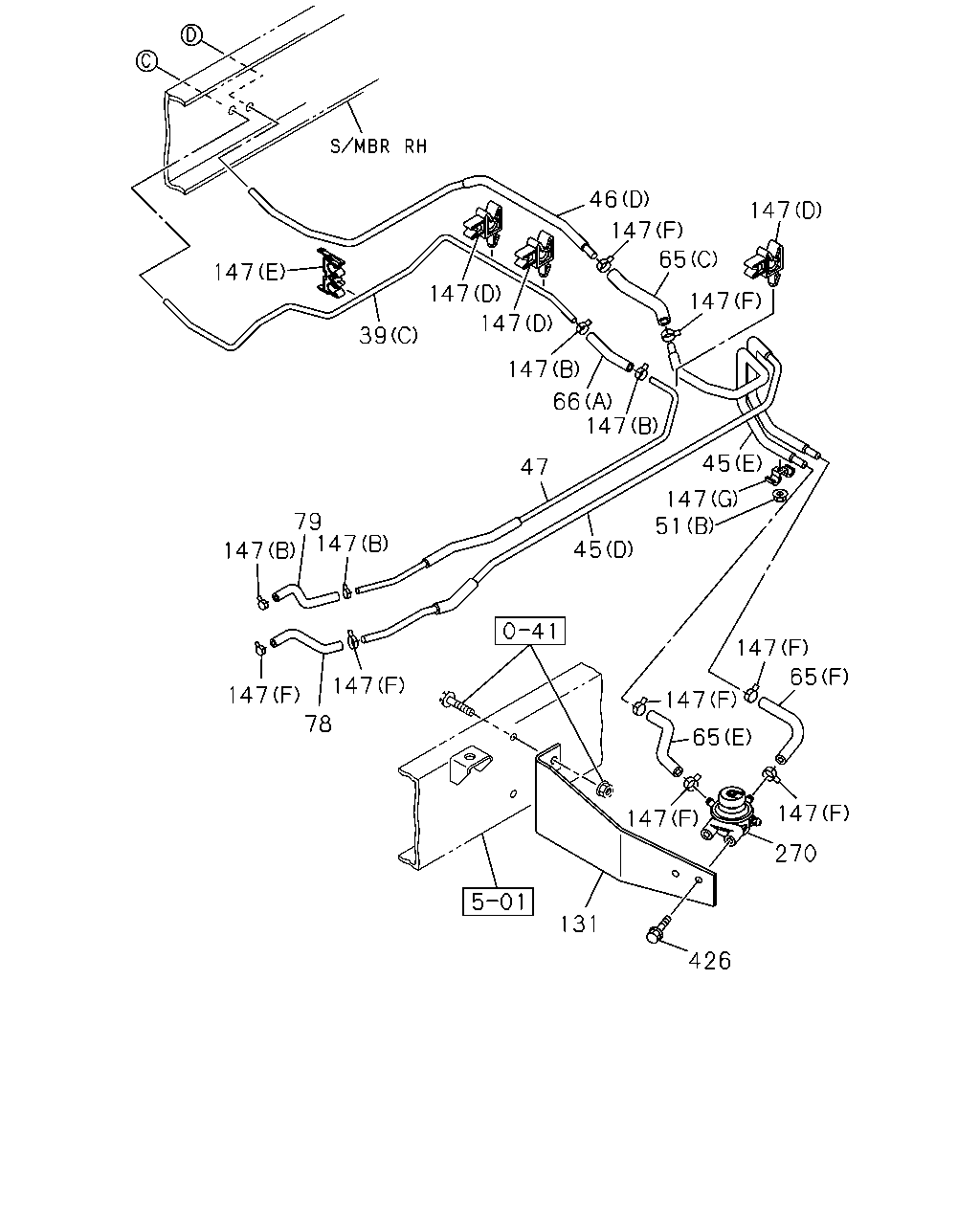

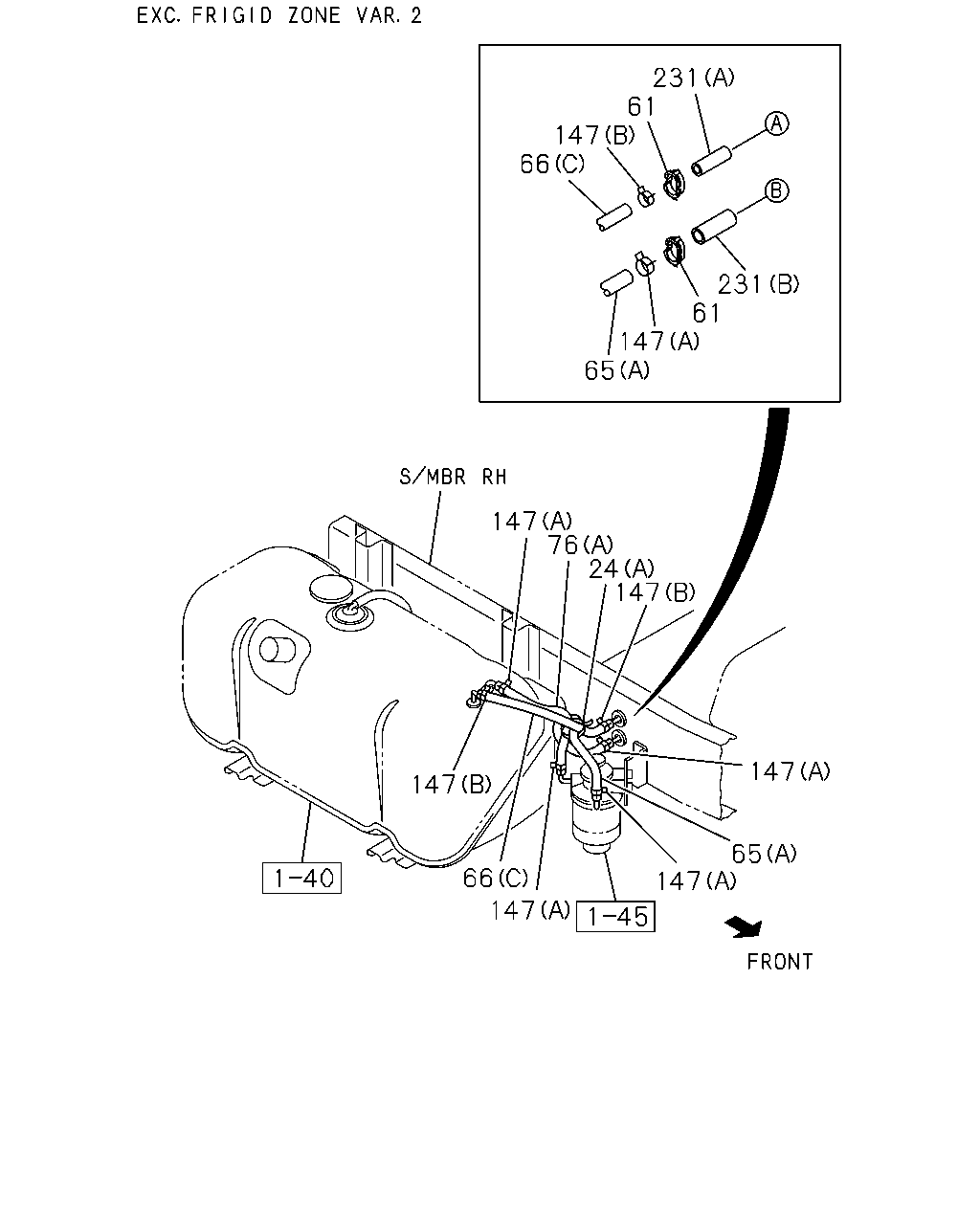

1-41 — FUEL PIPING; CHASSIS (#42022) — 735 parça

231 61 24 147 67 231 61 147 66 147 66 147 24 67 147 76 24 67 46 147 147 67 147 67 24 81 147 306 147 147 39 147 67 81 67 147 147 147 147 306 67 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0302-0307	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0308-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (A) L=140	5-09707-031-1	01	1	0308-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 02.559 (C) L=250	5-09707-030-1	01	1	0507-0606	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0302-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (A) L=140	5-09707-031-1	01	1	0507-0606	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0607-		●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) (A)	8-97326-012-0	01	1	0302-0506	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) (A)	8-97326-012-0	01	1	0507-0606	●
39	03.163 PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-542-0	01	1	0607-		●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B)	8-97368-876-0	01	1	0308-0506	●	●	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B)	8-97368-876-0	01	1	0507-0606	●	●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) (A)	8-97363-971-1	01	1	0302-0506		●	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) (A)	8-97363-971-1	01	1	0507-0606		●	●
39	03.163 PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98027-869-0	01	1	0607-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (A)	8-97326-010-0	01	1	0302-0506	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (A)	8-97326-010-0	01	1	0507-0606	●
46	03.163 PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-808-1	01	1	0607-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B)	8-97369-749-0	01	1	0308-0506	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B)	8-97369-749-0	01	1	0507-0606	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98022-966-1	01	1	0607-	●
46	03.163 PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98000-535-1	01	1	0607-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (A)	8-97363-970-0	01	1	0302-0506		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (A)	8-97363-970-0	01	1	0507-0606		●	●
46	03.163 PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98027-868-1	01	1	0607-		●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0302-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0307	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01855-300-0	01	1	0702-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (A) SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (A) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C)	8-97369-750-0	01	1	0308-0506	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C)	8-97369-750-0	01	1	0507-0606	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●		●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (D) L=180 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506		●
67	03.163 HOSE; FUEL,DELIVERY 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (D) L=180 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606		●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307			●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506			●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606			●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B) L=400 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506			●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●		●
81	03.162 CLIP; FUEL HOSE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 02.559 ID=16.5 & 16.5	8-94473-320-0	01	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	02	1	0607-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0302-0506	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0507-0606	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	0607-0701	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	04	1	0702-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.762 (A) ID=19	8-94238-569-0	08	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.219 (B) ID=13	8-94238-571-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0607-0701		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	06	1	0702-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (D) ID=12 & 6.35	8-97215-437-0	03	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (D) ID=12 & 6.35	8-97215-437-0	03	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	03	1	0607-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	09	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.047 (G) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0506		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0507-0606		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0607-		●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0302-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0302-0506	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1-TC ENG(RDM) (B) OD=16.5 L=50	8-97214-235-0	01	1	0507-0606	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0607-	●	●	●
306	03.145 HOSE; FUEL,FILTER 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 03.003 (B) L=400 SERVICED BY L=3000	0-01259-300-0	01	1	0507-0606	●
306	03.145 HOSE; FUEL,FILTER 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 03.003 (A) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0308-0506	●	●	●
306	03.145 HOSE; FUEL,FILTER 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 03.003 (A) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0507-0606	●	●	●
306	03.145 HOSE; FUEL,FILTER 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 03.003 (B) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0308-0506	●	●	●
306	03.145 HOSE; FUEL,FILTER 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 03.003 (B) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0507-0606		●	●

231 61 147 66 231 61 147 67 147 76 147 147 306 24 67 147 66 46 147 147 67 67 147 24 67 147 147 39 147 67 67 147 147 147 147 306 67 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0302-0307	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0308-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (A) L=140	5-09707-031-1	01	1	0308-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 02.559 (C) L=250	5-09707-030-1	01	1	0507-0606	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0302-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (A) L=140	5-09707-031-1	01	1	0507-0606	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0607-		●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) (A)	8-97326-012-0	01	1	0302-0506	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) (A)	8-97326-012-0	01	1	0507-0606	●
39	03.163 PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-542-0	01	1	0607-		●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B)	8-97368-876-0	01	1	0308-0506	●	●	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B)	8-97368-876-0	01	1	0507-0606	●	●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) (A)	8-97363-971-1	01	1	0302-0506		●	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) (A)	8-97363-971-1	01	1	0507-0606		●	●
39	03.163 PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98027-869-0	01	1	0607-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (A)	8-97326-010-0	01	1	0302-0506	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (A)	8-97326-010-0	01	1	0507-0606	●
46	03.163 PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-808-1	01	1	0607-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B)	8-97369-749-0	01	1	0308-0506	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B)	8-97369-749-0	01	1	0507-0606	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98022-966-1	01	1	0607-	●
46	03.163 PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98000-535-1	01	1	0607-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (A)	8-97363-970-0	01	1	0302-0506		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (A)	8-97363-970-0	01	1	0507-0606		●	●
46	03.163 PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98027-868-1	01	1	0607-		●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0302-	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0307	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01855-300-0	01	1	0702-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (A) SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (A) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C)	8-97369-750-0	01	1	0308-0506	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C)	8-97369-750-0	01	1	0507-0606	●	●	●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (D) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●		●
67	03.163 HOSE; FUEL,DELIVERY 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (D) L=180 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506		●
67	03.163 HOSE; FUEL,DELIVERY 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (D) L=180 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606		●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307			●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506			●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606			●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B) L=400 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506			●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	02	1	0607-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0302-0506	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0507-0606	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	0607-0701	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	04	1	0702-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.762 (A) ID=19	8-94238-569-0	08	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.219 (B) ID=13	8-94238-571-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0607-0701		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	06	1	0702-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (D) ID=12 & 6.35	8-97215-437-0	03	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (D) ID=12 & 6.35	8-97215-437-0	03	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	03	1	0607-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	09	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.047 (G) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0506		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0507-0606		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0607-		●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0302-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0302-0506	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1-TC ENG(RDM) (B) OD=16.5 L=50	8-97214-235-0	01	1	0507-0606	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0607-	●	●	●
306	03.145 HOSE; FUEL,FILTER 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 03.003 (B) L=400 SERVICED BY L=3000	0-01259-300-0	01	1	0507-0606	●
306	03.145 HOSE; FUEL,FILTER 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 03.003 (A) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0308-0506	●	●	●
306	03.145 HOSE; FUEL,FILTER 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 03.003 (A) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0507-0606	●	●	●
306	03.145 HOSE; FUEL,FILTER 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 03.003 (B) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0308-0506	●	●	●
306	03.145 HOSE; FUEL,FILTER 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 03.003 (B) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0507-0606		●	●

147 51 97 46 147 65 147 47 147 51 45 79 147 147 45 147 65 147 147 147 78 65 147 147 270 131 426

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
45	03.163 PIPE; FUEL,DELIVERY (C)	8-98022-970-3	01	1	0607-	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97326-019-0	01	1	0302-0506	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97326-019-0	01	1	0507-0606	●
45	03.163 PIPE; FUEL,DELIVERY (B)	8-98022-968-2	01	1	0607-	●
45	03.163 PIPE; FUEL,DELIVERY (D)	8-98000-534-2	01	1	0607-		●	●
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-729-0	01	1	0607-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (A)	8-97326-020-0	01	1	0302-0506		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (A)	8-97326-020-0	01	1	0507-0606		●	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98027-871-0	01	1	0607-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (A)	8-97326-010-0	01	1	0302-0506	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (A)	8-97326-010-0	01	1	0507-0606	●
46	03.163 PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-808-1	01	1	0607-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B)	8-97369-749-0	01	1	0308-0506	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B)	8-97369-749-0	01	1	0507-0606	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98022-966-1	01	1	0607-	●
46	03.163 PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98000-535-1	01	1	0607-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (A)	8-97363-970-0	01	1	0302-0506		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (A)	8-97363-970-0	01	1	0507-0606		●	●
46	03.163 PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98027-868-1	01	1	0607-		●	●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-809-0	01	1	0607-	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97326-025-0	01	1	0302-0506	●
47	03.163 PIPE; FUEL,RETURN 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97326-025-0	01	1	0507-0606	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-810-0	01	1	0607-	●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-541-0	01	1	0607-		●	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX)	8-97326-026-0	01	1	0302-0506		●	●
47	03.163 PIPE; FUEL,RETURN 4JH1-TC ENG(RDM)	8-97326-026-0	01	1	0507-0606		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98027-870-0	01	1	0607-		●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0607-	●
51	03.162 NUT; CLIP,PIPE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=400	8-97363-056-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98037-217-1	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0607-0609	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1 ENG(LFB) 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0610-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (D) L=340	8-97354-288-0	01	1	0607-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0607-			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=310 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) L=310 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506		●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1-TC ENG(RDM) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606		●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506		●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1-TC ENG(RDM) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98023-329-1	01	1	0607-0701	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98065-039-1	01	1	0702-	●	●	●
97	03.162 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97367-789-0	02	1	0607-0611	●
97	03.162 BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-396-1	02	1	0612-	●
97	03.162 BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97227-671-0	02	1	0607-0611	●
97	03.162 BRACKET; CLIP EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98034-748-1	02	1	0612-	●
131	03.162 BRACKET; SUB PUMP	8-98025-989-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	02	1	0607-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0302-0506	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0507-0606	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	0607-0701	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	04	1	0702-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.762 (A) ID=19	8-94238-569-0	08	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.219 (B) ID=13	8-94238-571-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0607-0701		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	06	1	0702-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (D) ID=12 & 6.35	8-97215-437-0	03	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (D) ID=12 & 6.35	8-97215-437-0	03	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	03	1	0607-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	09	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.047 (G) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0506		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0507-0606		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0607-		●	●
270	03.900 PUMP ASM; FUEL 4JJ1 ENG(LFB)	8-98018-187-2	01	1	0607-	●	●	●
426	03.330 BOLT; FUEL PUMP 4JJ1 ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-	●	●	●

46 147 147 65 147 147 147 147 39 147 66 147 45 47 147 51 79 147 45 147 147 65 147 147 147 78 65 147 147 270 131 426

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) (A)	8-97326-012-0	01	1	0302-0506	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) (A)	8-97326-012-0	01	1	0507-0606	●
39	03.163 PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-542-0	01	1	0607-		●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B)	8-97368-876-0	01	1	0308-0506	●	●	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B)	8-97368-876-0	01	1	0507-0606	●	●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) (A)	8-97363-971-1	01	1	0302-0506		●	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) (A)	8-97363-971-1	01	1	0507-0606		●	●
39	03.163 PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98027-869-0	01	1	0607-		●	●
45	03.163 PIPE; FUEL,DELIVERY (C)	8-98022-970-3	01	1	0607-	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97326-019-0	01	1	0302-0506	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97326-019-0	01	1	0507-0606	●
45	03.163 PIPE; FUEL,DELIVERY (B)	8-98022-968-2	01	1	0607-	●
45	03.163 PIPE; FUEL,DELIVERY (D)	8-98000-534-2	01	1	0607-		●	●
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-729-0	01	1	0607-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (A)	8-97326-020-0	01	1	0302-0506		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (A)	8-97326-020-0	01	1	0507-0606		●	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98027-871-0	01	1	0607-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (A)	8-97326-010-0	01	1	0302-0506	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (A)	8-97326-010-0	01	1	0507-0606	●
46	03.163 PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-808-1	01	1	0607-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B)	8-97369-749-0	01	1	0308-0506	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B)	8-97369-749-0	01	1	0507-0606	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98022-966-1	01	1	0607-	●
46	03.163 PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98000-535-1	01	1	0607-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (A)	8-97363-970-0	01	1	0302-0506		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (A)	8-97363-970-0	01	1	0507-0606		●	●
46	03.163 PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98027-868-1	01	1	0607-		●	●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-809-0	01	1	0607-	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97326-025-0	01	1	0302-0506	●
47	03.163 PIPE; FUEL,RETURN 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97326-025-0	01	1	0507-0606	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-810-0	01	1	0607-	●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-541-0	01	1	0607-		●	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX)	8-97326-026-0	01	1	0302-0506		●	●
47	03.163 PIPE; FUEL,RETURN 4JH1-TC ENG(RDM)	8-97326-026-0	01	1	0507-0606		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98027-870-0	01	1	0607-		●	●
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0607-	●
51	03.162 NUT; CLIP,PIPE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=400	8-97363-056-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98037-217-1	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0607-0609	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1 ENG(LFB) 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0610-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (D) L=340	8-97354-288-0	01	1	0607-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0607-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0307	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01855-300-0	01	1	0702-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=310 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) L=310 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506		●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1-TC ENG(RDM) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606		●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506		●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1-TC ENG(RDM) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98023-329-1	01	1	0607-0701	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98065-039-1	01	1	0702-	●	●	●
131	03.162 BRACKET; SUB PUMP	8-98025-989-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	02	1	0607-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0302-0506	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0507-0606	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	0607-0701	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	04	1	0702-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.762 (A) ID=19	8-94238-569-0	08	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.219 (B) ID=13	8-94238-571-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0607-0701		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	06	1	0702-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (D) ID=12 & 6.35	8-97215-437-0	03	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (D) ID=12 & 6.35	8-97215-437-0	03	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	03	1	0607-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	09	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.047 (G) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0506		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0507-0606		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0607-		●	●
270	03.900 PUMP ASM; FUEL 4JJ1 ENG(LFB)	8-98018-187-2	01	1	0607-	●	●	●
426	03.330 BOLT; FUEL PUMP 4JJ1 ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-	●	●	●

231 61 147 66 231 61 147 65 147 65 24 147 147 147 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0302-0307	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0308-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (A) L=140	5-09707-031-1	01	1	0308-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 02.559 (C) L=250	5-09707-030-1	01	1	0507-0606	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0302-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (A) L=140	5-09707-031-1	01	1	0507-0606	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0607-		●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0302-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=400	8-97363-056-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98037-217-1	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0607-0609	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1 ENG(LFB) 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0610-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (D) L=340	8-97354-288-0	01	1	0607-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0607-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0307	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01855-300-0	01	1	0702-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	02	1	0607-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0302-0506	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0507-0606	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	0607-0701	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	04	1	0702-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.762 (A) ID=19	8-94238-569-0	08	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.219 (B) ID=13	8-94238-571-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0607-0701		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	06	1	0702-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (D) ID=12 & 6.35	8-97215-437-0	03	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (D) ID=12 & 6.35	8-97215-437-0	03	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	03	1	0607-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	09	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.047 (G) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0506		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0507-0606		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0607-		●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0302-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0302-0506	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1-TC ENG(RDM) (B) OD=16.5 L=50	8-97214-235-0	01	1	0507-0606	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0607-	●	●	●

231 61 147 66 231 61 147 65 65 76 66 147 147 147 147 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0302-0307	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0308-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (A) L=140	5-09707-031-1	01	1	0308-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 02.559 (C) L=250	5-09707-030-1	01	1	0507-0606	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0302-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (A) L=140	5-09707-031-1	01	1	0507-0606	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0607-		●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0302-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=400	8-97363-056-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98037-217-1	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0607-0609	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1 ENG(LFB) 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0610-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (D) L=340	8-97354-288-0	01	1	0607-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0607-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0307	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01855-300-0	01	1	0702-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606		●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307			●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506			●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606			●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B) L=400 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506			●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	02	1	0607-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0302-0506	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0507-0606	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	0607-0701	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	04	1	0702-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.762 (A) ID=19	8-94238-569-0	08	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.219 (B) ID=13	8-94238-571-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0607-0701		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	06	1	0702-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (D) ID=12 & 6.35	8-97215-437-0	03	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (D) ID=12 & 6.35	8-97215-437-0	03	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	03	1	0607-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	09	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.047 (G) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0506		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0507-0606		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0607-		●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0302-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0302-0506	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1-TC ENG(RDM) (B) OD=16.5 L=50	8-97214-235-0	01	1	0507-0606	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0607-	●	●	●

231 61 147 66 231 61 147 65 147 76 24 147 147 147 65 66 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0302-0307	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (A) L=140	5-09707-031-1	01	1	0308-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (A) L=140	5-09707-031-1	01	1	0308-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 02.559 (C) L=250	5-09707-030-1	01	1	0507-0606	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1 ENG(RJX) (B)	8-97254-204-1	01	1	0302-0506	●	●	●
24	03.162 CLIP; FUEL HOSE 4JH1-TC ENG(RDM) (A) L=140	5-09707-031-1	01	1	0507-0606	●	●	●
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	0607-		●	●
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	0302-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=400	8-97363-056-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98037-217-1	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0607-0609	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1 ENG(LFB) 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0610-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (D) L=340	8-97354-288-0	01	1	0607-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0607-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0307	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01855-300-0	01	1	0702-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=500 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606		●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307			●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=600 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506			●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) (A) L=250 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606			●
76	03.163 HOSE; FUEL,TANK 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B) L=400 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506			●
76	03.163 HOSE; FUEL,TANK 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B) SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●		●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	02	1	0607-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0302-0506	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0507-0606	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	0607-0701	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	04	1	0702-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.762 (A) ID=19	8-94238-569-0	08	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.219 (B) ID=13	8-94238-571-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0607-0701		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	06	1	0702-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (D) ID=12 & 6.35	8-97215-437-0	03	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (D) ID=12 & 6.35	8-97215-437-0	03	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	03	1	0607-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	09	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.047 (G) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0506		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0507-0606		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0607-		●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0302-	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1 ENG(RJX) (B) OD=16.5 L=50	8-97214-235-0	01	1	0302-0506	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE 4JH1-TC ENG(RDM) (B) OD=16.5 L=50	8-97214-235-0	01	1	0507-0606	●	●	●
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0607-	●	●	●

147 147 147 66 147 147 46 147 39 147 65 147 101 47 147 147 79 78 147 45 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) (A)	8-97326-012-0	01	1	0302-0506	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) (A)	8-97326-012-0	01	1	0507-0606	●
39	03.163 PIPE; FUEL EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-542-0	01	1	0607-		●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B)	8-97368-876-0	01	1	0308-0506	●	●	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B)	8-97368-876-0	01	1	0507-0606	●	●	●
39	03.163 PIPE; FUEL 4JH1 ENG(RJX) (A)	8-97363-971-1	01	1	0302-0506		●	●
39	03.163 PIPE; FUEL 4JH1-TC ENG(RDM) (A)	8-97363-971-1	01	1	0507-0606		●	●
39	03.163 PIPE; FUEL TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98027-869-0	01	1	0607-		●	●
45	03.163 PIPE; FUEL,DELIVERY (C)	8-98022-970-3	01	1	0607-	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97326-019-0	01	1	0302-0506	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97326-019-0	01	1	0507-0606	●
45	03.163 PIPE; FUEL,DELIVERY (B)	8-98022-968-2	01	1	0607-	●
45	03.163 PIPE; FUEL,DELIVERY (D)	8-98000-534-2	01	1	0607-		●	●
45	03.163 PIPE; FUEL,DELIVERY EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98023-729-0	01	1	0607-		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1 ENG(RJX) (A)	8-97326-020-0	01	1	0302-0506		●	●
45	03.163 PIPE; FUEL,DELIVERY 4JH1-TC ENG(RDM) (A)	8-97326-020-0	01	1	0507-0606		●	●
45	03.163 PIPE; FUEL,DELIVERY TRANSMISSION CONTROL-SMOOTHER(8GF) (E)	8-98027-871-0	01	1	0607-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (A)	8-97326-010-0	01	1	0302-0506	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (A)	8-97326-010-0	01	1	0507-0606	●
46	03.163 PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-808-1	01	1	0607-	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (B)	8-97369-749-0	01	1	0308-0506	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (B)	8-97369-749-0	01	1	0507-0606	●	●	●
46	03.163 PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98022-966-1	01	1	0607-	●
46	03.163 PIPE; FUEL,TANK SIDE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98000-535-1	01	1	0607-		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1 ENG(RJX) (A)	8-97363-970-0	01	1	0302-0506		●	●
46	03.163 PIPE; FUEL,TANK SIDE 4JH1-TC ENG(RDM) (A)	8-97363-970-0	01	1	0507-0606		●	●
46	03.163 PIPE; FUEL,TANK SIDE TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98027-868-1	01	1	0607-		●	●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-809-0	01	1	0607-	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97326-025-0	01	1	0302-0506	●
47	03.163 PIPE; FUEL,RETURN 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97326-025-0	01	1	0507-0606	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-810-0	01	1	0607-	●
47	03.163 PIPE; FUEL,RETURN EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-541-0	01	1	0607-		●	●
47	03.163 PIPE; FUEL,RETURN 4JH1 ENG(RJX)	8-97326-026-0	01	1	0302-0506		●	●
47	03.163 PIPE; FUEL,RETURN 4JH1-TC ENG(RDM)	8-97326-026-0	01	1	0507-0606		●	●
47	03.163 PIPE; FUEL,RETURN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98027-870-0	01	1	0607-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=400	8-97363-056-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98037-217-1	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (C) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0607-		●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (E) L=220 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0307	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0308-0506	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JH1-TC ENG(RDM) EXC. FRIGID ZONE VAR.2(W54) (A) L=220 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0607-0609	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4JJ1 ENG(LFB) 03.003 (F) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0610-	●	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE REAR WIDE TREAD(V4T) (D) L=340	8-97354-288-0	01	1	0607-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE (D) L=320	8-97363-055-0	01	1	0607-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=350 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=380 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701	●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=480 SERVICED BY L=3000	0-01855-300-0	01	1	0702-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●	●
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0307	●	●	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) EXC. FRIGID ZONE VAR.2(W54) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506	●		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701		●
66	03.163 HOSE; FUEL,RETURN PIPE REAR WIDE TREAD(V4T) (C) L=500 SERVICED BY L=3000	0-01855-300-0	01	1	0702-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) (C) L=370 SERVICED BY L=3000	0-01256-300-0	01	1	0308-0506			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) (C) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	0607-0701			●
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=440 SERVICED BY L=3000	0-01855-300-0	01	1	0702-			●
66	03.163 HOSE; FUEL,RETURN PIPE 4JH1-TC ENG(RDM) (C) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606			●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=310 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) L=310 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1 ENG(RJX) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0302-0506		●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 4JH1-TC ENG(RDM) L=300 SERVICED BY L=3000	0-01262-300-0	01	1	0507-0606		●	●
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0607-	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1 ENG(RJX) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506		●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN 4JH1-TC ENG(RDM) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0507-0606		●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98023-329-1	01	1	0607-0701	●	●	●
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98065-039-1	01	1	0702-	●	●	●
101	03.162 BOLT; CLIP,FUEL PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0302-0506	●
101	03.162 BOLT; CLIP,FUEL PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0507-0512	●
101	03.162 BOLT; CLIP,FUEL PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) M6X20 FLANGE	0-28650-620-0	02	1	0601-0606	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	02	1	0607-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0302-0506	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16 & 9 L=18 & 17	1-09700-669-0	02	1	0507-0606	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	04	1	0607-0701	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	04	1	0702-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.762 (A) ID=19	8-94238-569-0	08	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.762 (A) ID=19	8-94238-569-0	08	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 01.219 (B) ID=13	8-94238-571-0	06	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 01.219 (B) ID=13	8-94238-571-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=13	8-94238-571-0	06	1	0607-0701		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 01.219 (B) ID=12	8-94238-610-0	06	1	0702-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) (D) ID=12 & 6.35	8-97215-437-0	03	1	0302-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) (D) ID=12 & 6.35	8-97215-437-0	03	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (D) ID=12 & 6.35	8-97215-437-0	03	1	0607-		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 04.930 (F) ID=16	8-94238-568-0	06	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (F) ID=16	8-94238-568-0	09	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0308-0506	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) FRIGID ZONE VAR.2(W54) 01.762 (A) ID=19	8-94238-569-0	04	1	0507-0606	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.047 (G) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0607-	●	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1 ENG(RJX) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0506		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4JH1-TC ENG(RDM) 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0507-0606		●	●
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 (E) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0607-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
