◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50945 - NKR(EUROPE)-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶
1-35 — CHARGE AIR COOLER (#42020) — 20 parça

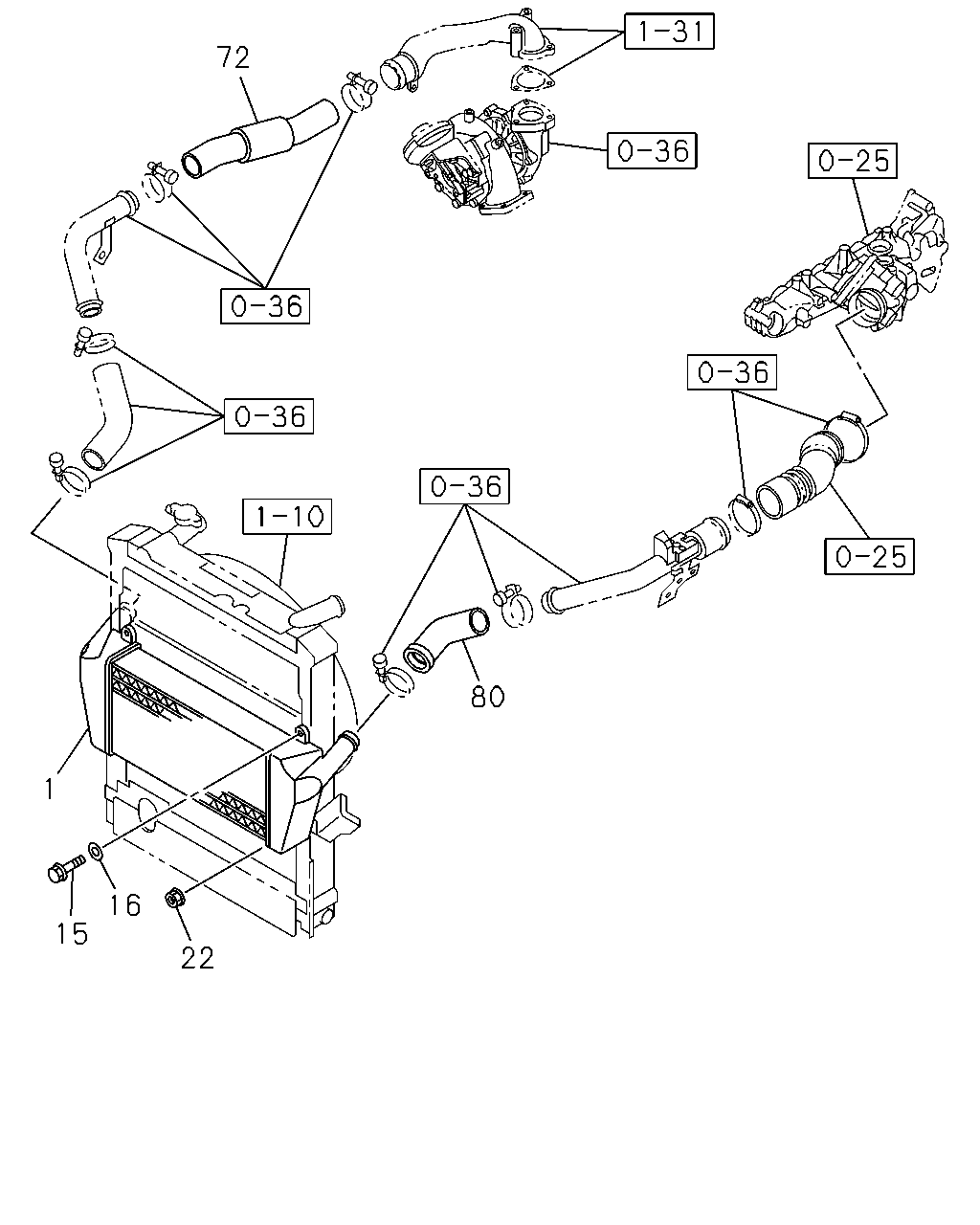

çizim 9405
72 80 1 16 15 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97240-039-2 01 1 0302-0506 ●
1 03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) 		8-97240-039-2 01 1 0302-0506 ● ●
1 03.374 COOLER; CHARGE AIR
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 		8-97240-039-2 01 1 0507-0606 ●
1 03.374 COOLER; CHARGE AIR
4JH1-TC ENG(RDM) 		8-97240-039-2 01 1 0507-0606 ● ●
1 03.374 COOLER; CHARGE AIR
4JJ1 ENG(LFB) 		8-97387-033-0 01 1 0607- ● ● ●
15 03.374 BOLT; CHARGE AIR COOLER
4JJ1 ENG(LFB) 03.275 M8X25 FLANGE 		0-28050-825-0 02 1 0607- ● ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4JJ1 ENG(LFB) 03.417 ID=8.4 OD=16 		0-91610-508-0 02 1 0607- ● ● ●
22 03.374 NUT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ●
22 03.374 NUT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4JJ1 ENG(LFB) 		8-98048-142-1 01 1 0607- ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4JJ1 ENG(LFB) 		8-98018-532-2 01 1 0607- ● ● ●

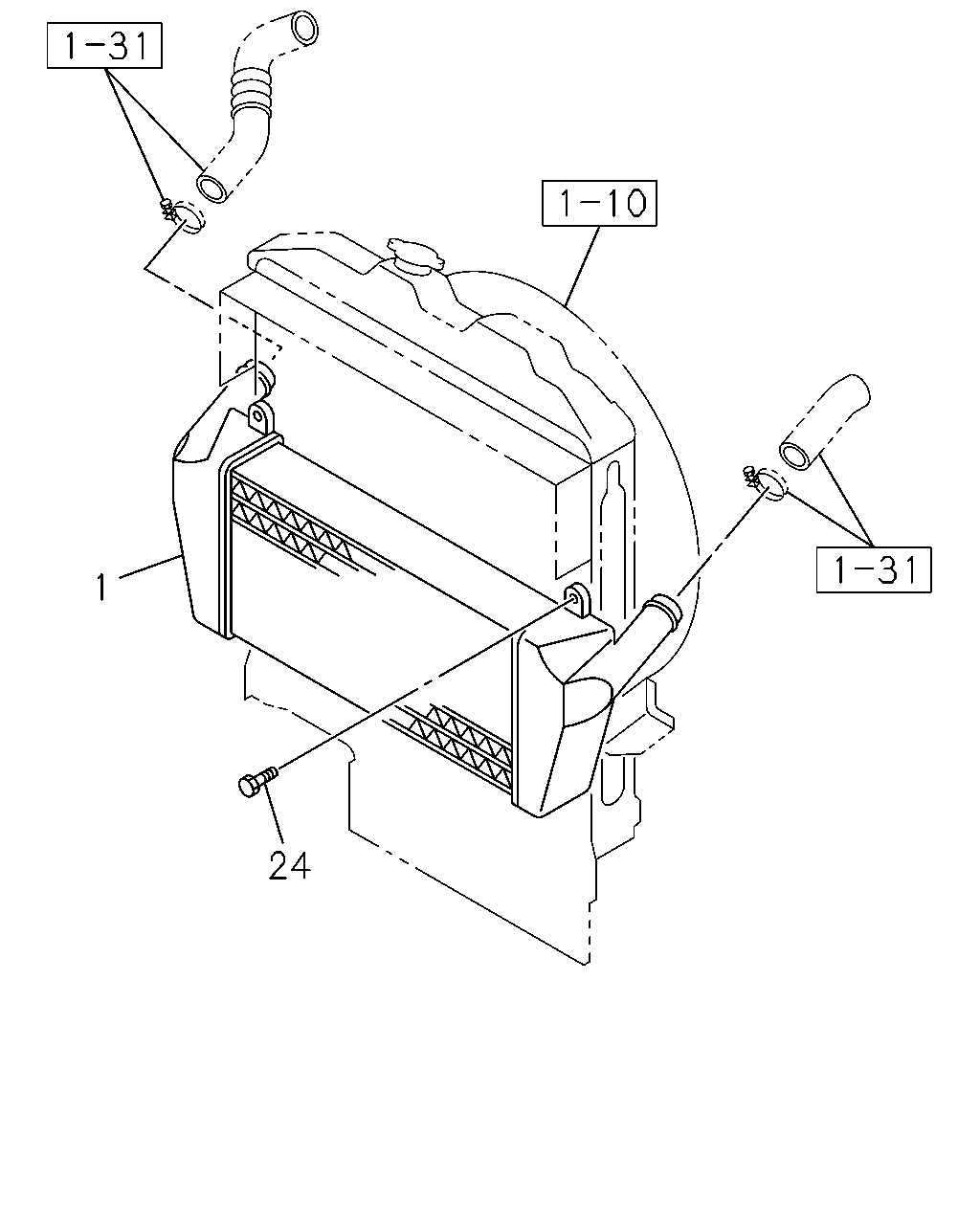

çizim 9638
1 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 		8-97240-039-2 01 1 0302-0506 ●
1 03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) 		8-97240-039-2 01 1 0302-0506 ● ●
1 03.374 COOLER; CHARGE AIR
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 		8-97240-039-2 01 1 0507-0606 ●
1 03.374 COOLER; CHARGE AIR
4JH1-TC ENG(RDM) 		8-97240-039-2 01 1 0507-0606 ● ●
1 03.374 COOLER; CHARGE AIR
4JJ1 ENG(LFB) 		8-97387-033-0 01 1 0607- ● ● ●
24 03.374 BOLT; COOLER TO RAD
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0302-0506 ●
24 03.374 BOLT; COOLER TO RAD
4JH1 ENG(RJX) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0302-0506 ● ●
24 03.374 BOLT; COOLER TO RAD
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0507-0606 ●
24 03.374 BOLT; COOLER TO RAD
4JH1-TC ENG(RDM) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0507-0606 ● ●
