◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50945 - NKR(EUROPE)-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#42019) — 182 parça

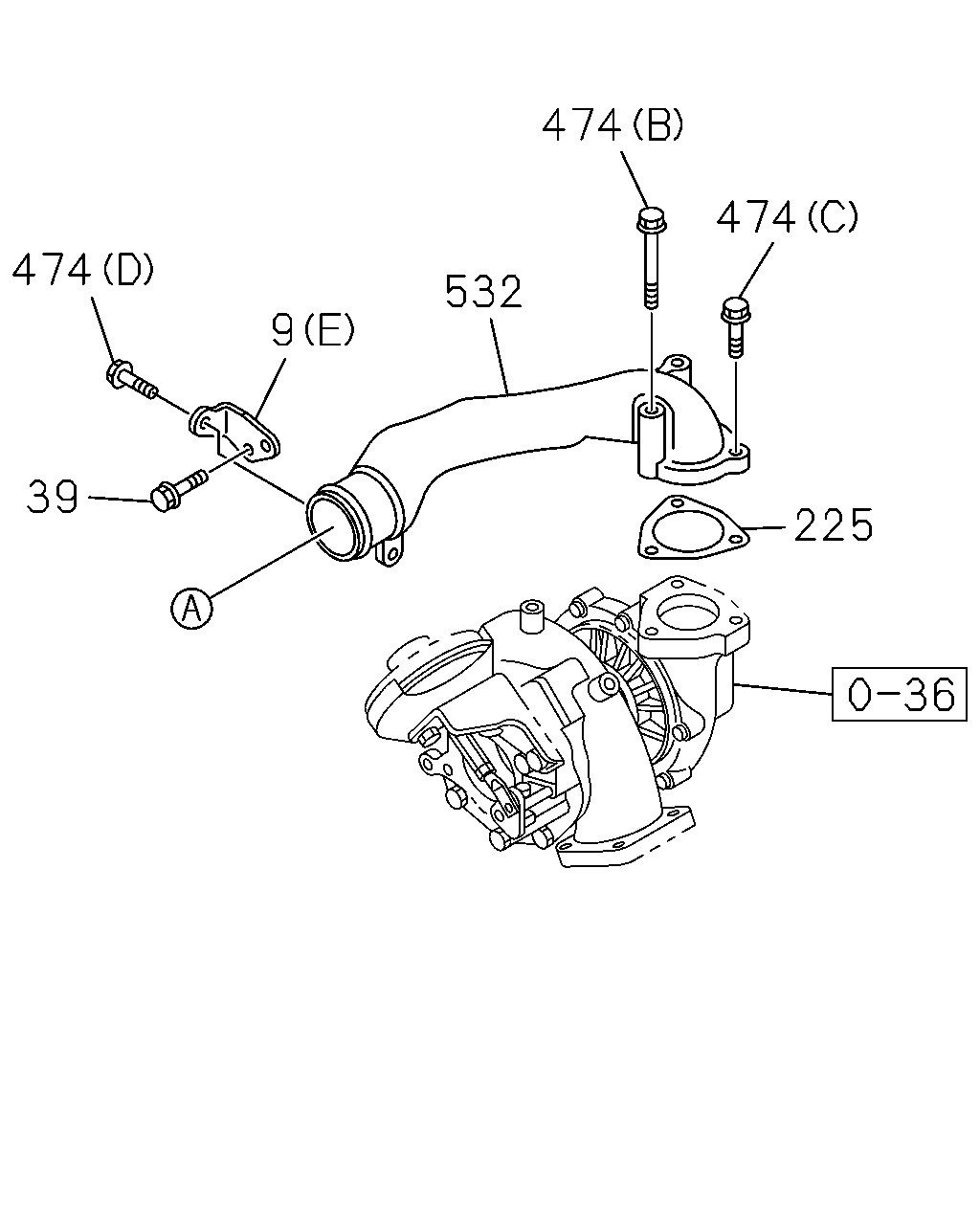

çizim 9404
474 474 474 532 9 39 225
BalonParca AdiParca NoAdetTipApplied Date A B C
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97240-850-0 01 1 0302-0506 ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97240-850-0 01 1 0507-0606 ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97300-772-1 01 1 0302-0506 ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97300-772-1 01 1 0507-0606 ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (C) 		8-97312-472-0 01 1 0302-0506 ● ● ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) (C) 		8-97312-472-0 01 1 0507-0606 ● ● ●
9 03.417 BRACKET; INT PIPE
4JJ1 ENG(LFB) (E) 		8-98009-086-0 01 1 0607- ● ● ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (D) 		8-97300-771-1 01 1 0302-0506 ● ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) (D) 		8-97300-771-1 01 1 0507-0606 ● ●
39 03.417 BOLT; BRKT
4JJ1 ENG(LFB) 03.613 M8X14 FLANGE 		8-97378-075-0 01 1 0607- ● ● ●
225 03.417 GASKET; AIR PIPE
4JJ1 ENG(LFB) 03.270 ID=47 		8-97202-328-1 01 1 0607- ● ● ●
474 03.417 BOLT; PIPE
4JH1 ENG(RJX) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506 ● ● ●
474 03.417 BOLT; PIPE
4JH1-TC ENG(RDM) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512 ● ● ●
474 03.417 BOLT; PIPE
4JH1-TC ENG(RDM) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0606 ● ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 01 1 0607- ● ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) (B) M6X70 FLANGE 		0-28050-670-0 02 1 0607- ● ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 0607- ● ● ●
532 03.417 PIPE; INTAKE
4JJ1 ENG(LFB) 		8-97385-203-1 01 1 0607- ● ● ●

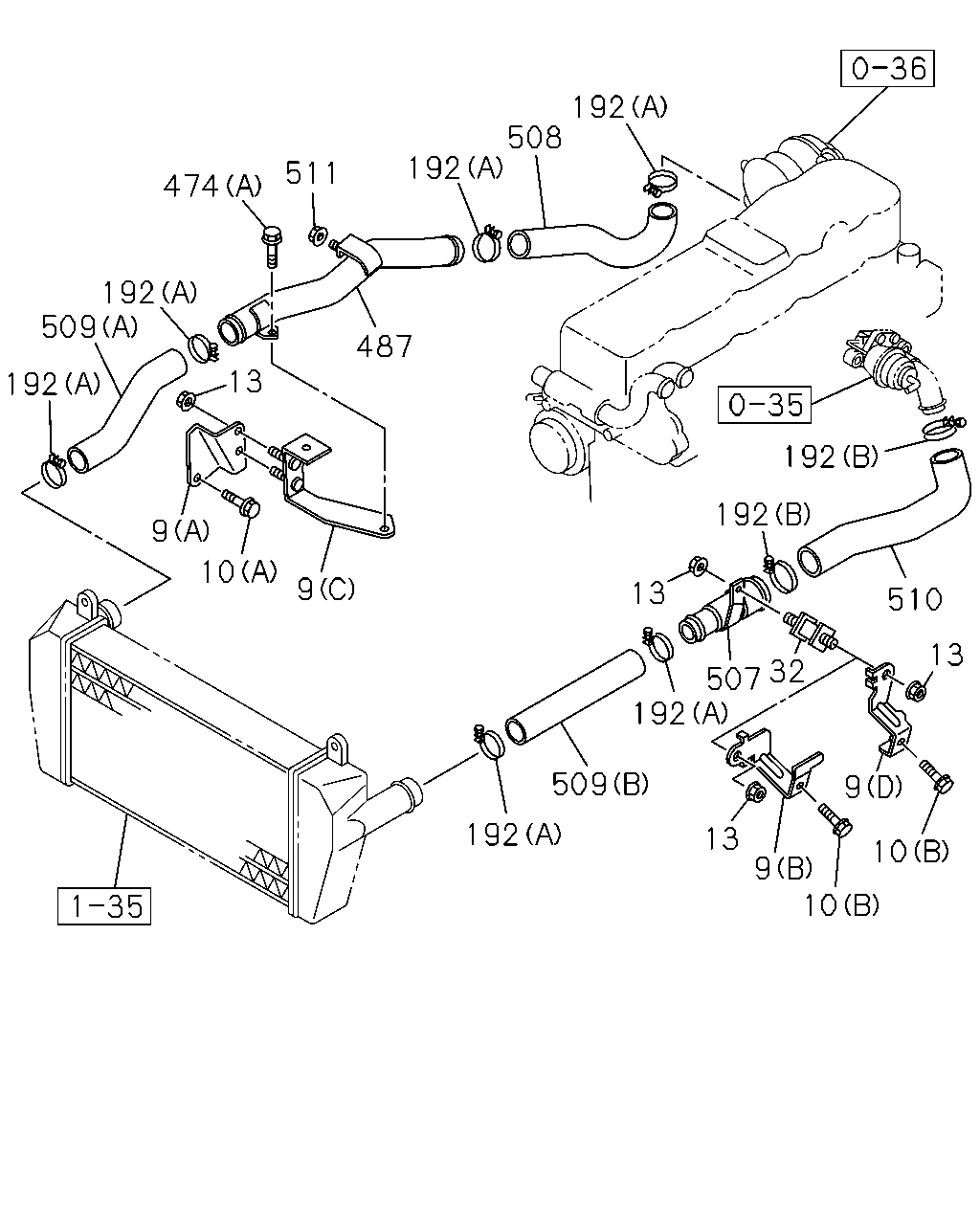

çizim 50764
192 508 192 511 474 192 509 487 13 192 192 192 9 10 9 13 510 13 32 507 192 509 9 192 13 10 9 10
BalonParca AdiParca NoAdetTipApplied Date A B C
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97240-850-0 01 1 0302-0506 ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97240-850-0 01 1 0507-0606 ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97300-772-1 01 1 0302-0506 ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97300-772-1 01 1 0507-0606 ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (C) 		8-97312-472-0 01 1 0302-0506 ● ● ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) (C) 		8-97312-472-0 01 1 0507-0606 ● ● ●
9 03.417 BRACKET; INT PIPE
4JJ1 ENG(LFB) (E) 		8-98009-086-0 01 1 0607- ● ● ●
9 03.417 BRACKET; INT PIPE
4JH1 ENG(RJX) (D) 		8-97300-771-1 01 1 0302-0506 ● ●
9 03.417 BRACKET; INT PIPE
4JH1-TC ENG(RDM) (D) 		8-97300-771-1 01 1 0507-0606 ● ●
10 03.417 BOLT; BRKT FIX
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506 ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512 ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0606 ●
10 03.417 BOLT; BRKT FIX
4JH1 ENG(RJX) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0302-0506 ● ● ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0507-0512 ● ● ●
10 03.417 BOLT; BRKT FIX
4JH1-TC ENG(RDM) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0606 ● ● ●
13 03.417 NUT; BRKT FIX
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ●
13 03.417 NUT; BRKT FIX
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ●
13 03.417 NUT; BRKT FIX
4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ●
32 03.417 RUBBER; AIR DUCT MTG
4JH1 ENG(RJX) 03.405 		8-94158-155-1 01 1 0302-0506 ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JH1-TC ENG(RDM) 03.405 		8-94158-155-1 01 1 0507-0606 ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-69 		1-09707-135-0 06 1 0302-0410 ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-65 		1-09707-204-0 06 1 0411-0506 ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0507-0606 ● ● ●
192 03.407 CLIP; HOSE
4JJ1 ENG(LFB) (C) ID=117 		9-09915-075-1 01 1 0607- ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0302-0403 ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0404-0506 ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) (A) ID=50-65 		1-09707-204-0 06 1 0507-0606 ● ● ●
474 03.417 BOLT; PIPE
4JH1 ENG(RJX) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0506 ● ● ●
474 03.417 BOLT; PIPE
4JH1-TC ENG(RDM) 02.664 (A) M8X20 FLANGE 		0-28680-820-0 01 1 0507-0512 ● ● ●
474 03.417 BOLT; PIPE
4JH1-TC ENG(RDM) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0606 ● ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) 02.343 (D) M8X16 FLANGE 		0-28050-816-0 01 1 0607- ● ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) (B) M6X70 FLANGE 		0-28050-670-0 02 1 0607- ● ● ●
474 03.417 BOLT; PIPE
4JJ1 ENG(LFB) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 0607- ● ● ●
487 03.417 PIPE; TURBO TO CHARGE AIR COOLER
4JH1 ENG(RJX) 		8-97312-536-0 01 1 0302-0506 ● ● ●
487 03.417 PIPE; TURBO TO CHARGE AIR COOLER
4JH1-TC ENG(RDM) 		8-97312-536-0 01 1 0507-0606 ● ● ●
507 03.417 PIPE; CHARGE AIR COOLER TO INL M
4JH1 ENG(RJX) 		8-97240-053-0 01 1 0302-0506 ● ● ●
507 03.417 PIPE; CHARGE AIR COOLER TO INL M
4JH1-TC ENG(RDM) 		8-97240-053-0 01 1 0507-0606 ● ● ●
508 03.417 HOSE; AIR,TURBO TO PIPE
4JH1 ENG(RJX) 		8-97258-837-3 01 1 0302-0506 ● ● ●
508 03.417 HOSE; AIR,TURBO TO PIPE
4JH1-TC ENG(RDM) 		8-97258-837-4 01 1 0507-0606 ● ● ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1 ENG(RJX) (A) 		8-97260-314-5 01 1 0302-0506 ● ● ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1-TC ENG(RDM) (A) 		8-97260-314-6 01 1 0507-0606 ● ● ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1 ENG(RJX) (B) 		8-97300-859-3 01 1 0302-0506 ● ● ●
509 03.417 HOSE; AIR,PIPE TO CHARGE AIR COO
4JH1-TC ENG(RDM) (B) 		8-97300-859-4 01 1 0507-0606 ● ● ●
510 03.417 HOSE; AIR,PIPE TO INL MANIF
4JH1 ENG(RJX) 		8-97300-858-3 01 1 0302-0506 ● ● ●
510 03.417 HOSE; AIR,PIPE TO INL MANIF
4JH1-TC ENG(RDM) 		8-97300-858-4 01 1 0507-0606 ● ● ●
511 03.417 NUT; PIPE
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0302-0506 ● ● ●
511 03.417 NUT; PIPE
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0507-0602 ● ● ●
511 03.417 NUT; PIPE
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-0606 ● ● ●

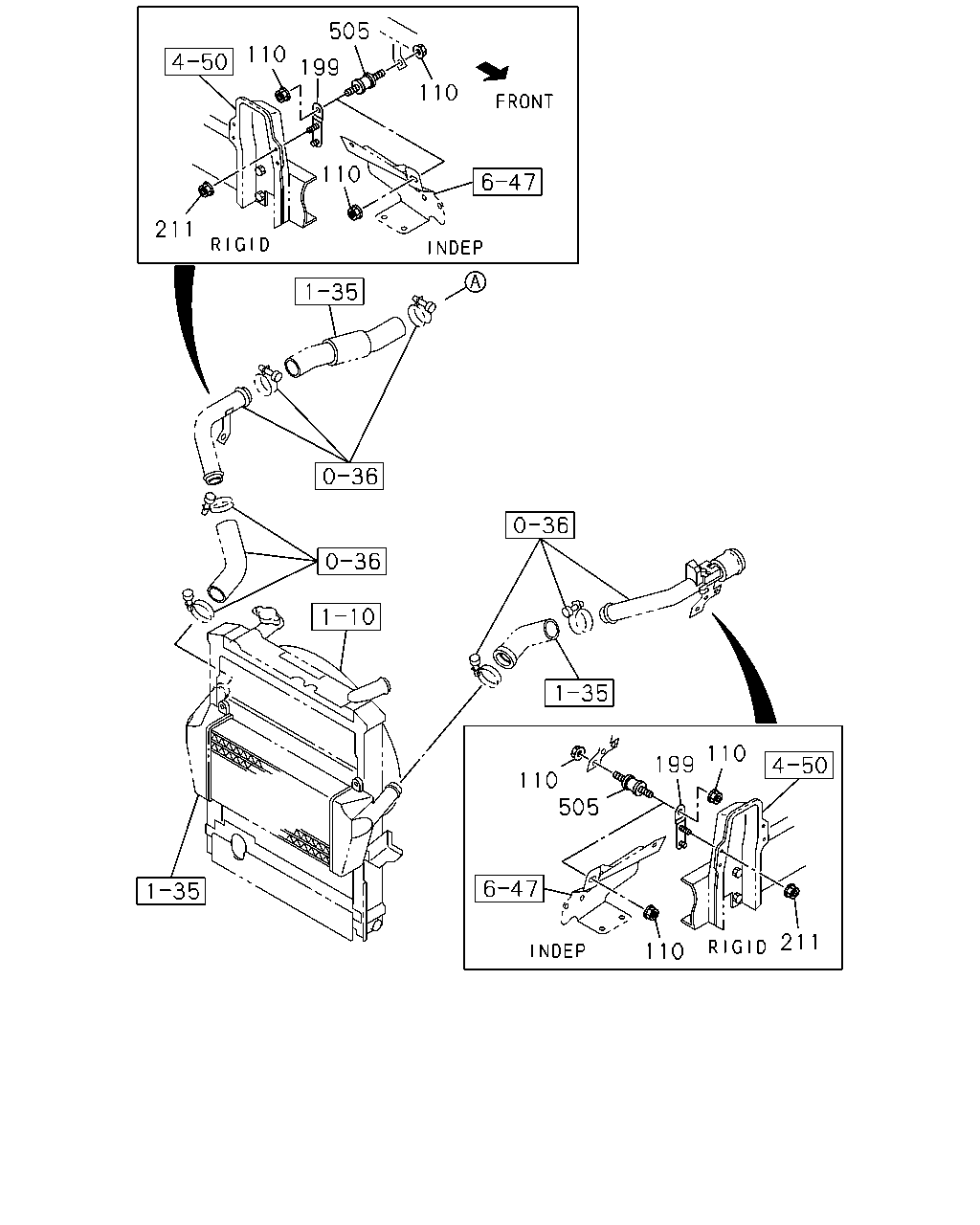

çizim 50781
505 110 199 110 110 211 110 199 110 505 211 110
BalonParca AdiParca NoAdetTipApplied Date A B C
110 03.403 NUT; RUBBER MTG
4JJ1 ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0607- ● ● ●
199 03.417 BRACKET; PIPE
4JJ1 ENG(LFB) 		8-98018-807-1 01 1 0607- ● ●
199 03.417 BRACKET; PIPE
4JJ1 ENG(LFB) 		8-98018-806-1 01 1 0607- ● ●
211 03.405 NUT; BRKT
4JJ1 ENG(LFB) 04.010 M8 FLANGE 		8-97046-127-0 02 1 0607-0610 ● ●
211 03.405 NUT; BRKT
4JJ1 ENG(LFB) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0611- ● ●
505 03.406 RUBBER; MTG
4JJ1 ENG(LFB) 03.417 		8-97077-387-0 02 1 0607- ● ● ●

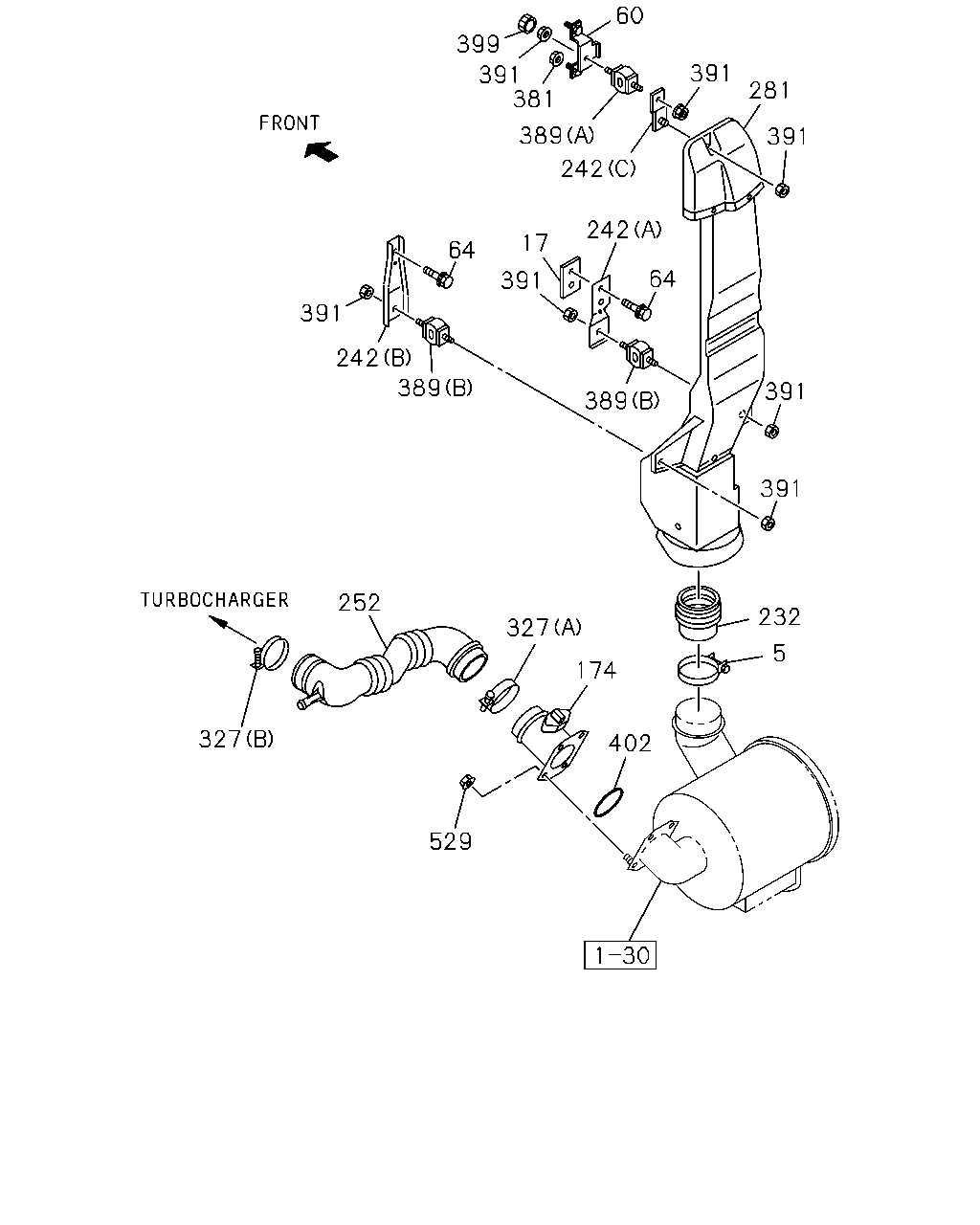

çizim 52281
60 399 391 391 381 281 389 391 242 242 17 64 64 391 391 242 389 391 39 391 252 232 327 5 174 327 402 529
BalonParca AdiParca NoAdetTipApplied Date A B C
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) ID=112 		9-09915-074-1 01 1 0302-0506 ● ● ●
5 03.407 CLIP; AIR DUCT
4JH1-TC ENG(RDM) ID=112 		9-09915-074-1 01 1 0507-0606 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1 ENG(LFB) D=101.6 		9-09915-502-1 01 1 0607- ● ● ●
17 03.403 GASKET; AIR DUCT
4JH1 ENG(RJX) 		8-97853-699-2 01 1 0302-0506 ● ● ●
17 03.403 GASKET; AIR DUCT 8-97853-699-2 01 1 0507-0606 ● ● ●
17 03.403 GASKET; AIR DUCT
4JJ1 ENG(LFB) 		8-97853-699-2 01 1 0607- ● ● ●
39 03.417 BOLT; BRKT
4JJ1 ENG(LFB) 03.613 M8X14 FLANGE 		8-97378-075-0 01 1 0607- ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1 ENG(RJX) 		8-97856-956-0 01 1 0302-0506 ● ● ●
60 03.417 BRACKET; AIR DUCT,UPR
4JH1-TC ENG(RDM) 		8-97856-956-0 01 1 0507-0606 ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0302-0506 ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0507-0606 ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0607- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT
4JH1 ENG(RJX) 		8-97240-057-0 01 1 0302-0506 ● ● ●
174 03.682 SENSOR; AIR FLOW CONT
4JH1-TC ENG(RDM) 		8-97240-057-1 01 1 0507-0606 ● ● ●
232 03.417 HOSE; CONN
4JH1 ENG(RJX) 		8-94456-844-0 01 1 0302-0506 ● ● ●
232 03.417 HOSE; CONN
4JH1-TC ENG(RDM) 		8-94456-844-1 01 1 0507-0606 ● ● ●
232 03.417 HOSE; CONN
4JJ1 ENG(LFB) 		8-97109-423-0 01 1 0607- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97856-932-0 01 1 0302-0506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (A) 		8-97856-932-0 01 1 0507-0606 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (D) 		8-97312-894-1 01 1 0607- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (B) 		8-97856-933-0 01 1 0302-0506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (B) 		8-97856-933-0 01 1 0507-0606 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (E) 		8-97329-201-0 01 1 0607- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (C) 		8-97856-958-0 01 1 0302-0506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (C) 		8-97856-958-0 01 1 0507-0606 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (F) 		8-97329-306-0 01 1 0607- ● ● ●
252 03.417 DUCT; AIR INT
4JH1 ENG(RJX) 		8-97312-540-2 01 1 0302-0506 ● ● ●
252 03.417 DUCT; AIR INT
4JH1-TC ENG(RDM) 		8-97312-540-3 01 1 0507-0606 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) 		8-97300-255-0 01 1 0302-0506 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1-TC ENG(RDM) 		8-97300-255-1 01 1 0507-0606 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) 		8-97369-706-0 01 1 0607- ● ● ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) 03.407 (A) ID=77-95 		1-09707-114-0 01 1 0302-0403 ● ● ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) 03.407 (A) ID=77-95 		1-09707-198-0 01 1 0404-0506 ● ● ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) 03.407 (A) ID=77-95 		1-09707-198-0 01 1 0507-0606 ● ● ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) (B) ID=58-79 		8-94126-771-0 01 1 0302-0403 ● ● ●
327 03.417 CLIP; AIR INT
4JH1 ENG(RJX) 01.159 (B) ID=58-76 		1-09707-203-0 01 1 0404-0506 ● ● ●
327 03.417 CLIP; AIR INT
4JH1-TC ENG(RDM) 01.159 (B) ID=58-76 		1-09707-203-0 01 1 0507-0606 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0302-0506 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
16.800 M6 FLANGE 		1-09984-018-0 02 1 0507-0606 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0607- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (A) 		8-97080-149-0 01 1 0302-0506 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (A) 		8-97080-149-0 01 1 0507-0606 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (A) 		8-97080-149-0 01 1 0607- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (B) 		8-97081-886-0 02 1 0302-0506 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (B) 		8-97081-886-0 02 1 0507-0606 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (B) 		8-97081-886-0 02 1 0607- ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX) M8 FLANGE 		8-94279-517-0 07 1 0302-0506 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1-TC ENG(RDM) M8 FLANGE 		8-94279-517-0 07 1 0507-0606 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 FLANGE 		8-94279-517-0 06 1 0607- ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JH1 ENG(RJX) 		8-94273-605-0 02 1 0302-0506 ● ● ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 0507- ● ● ●
402 03.417 GASKET; RUBBER
4JH1 ENG(RJX) 		8-97240-056-0 01 1 0302-0506 ● ● ●
402 03.417 GASKET; RUBBER
4JH1-TC ENG(RDM) 		8-97240-056-0 01 1 0507-0606 ● ● ●
529 03.425 NUT; SENSOR,AIRFLOW
4JH1 ENG(RJX) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0302-0506 ● ● ●
529 03.425 NUT; SENSOR,AIRFLOW
4JH1-TC ENG(RDM) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0507-0602 ● ● ●
529 03.425 NUT; SENSOR,AIRFLOW
4JH1-TC ENG(RDM) 01.062 M6 FLANGE 		0-91180-106-0 04 1 0603-0606 ● ● ●

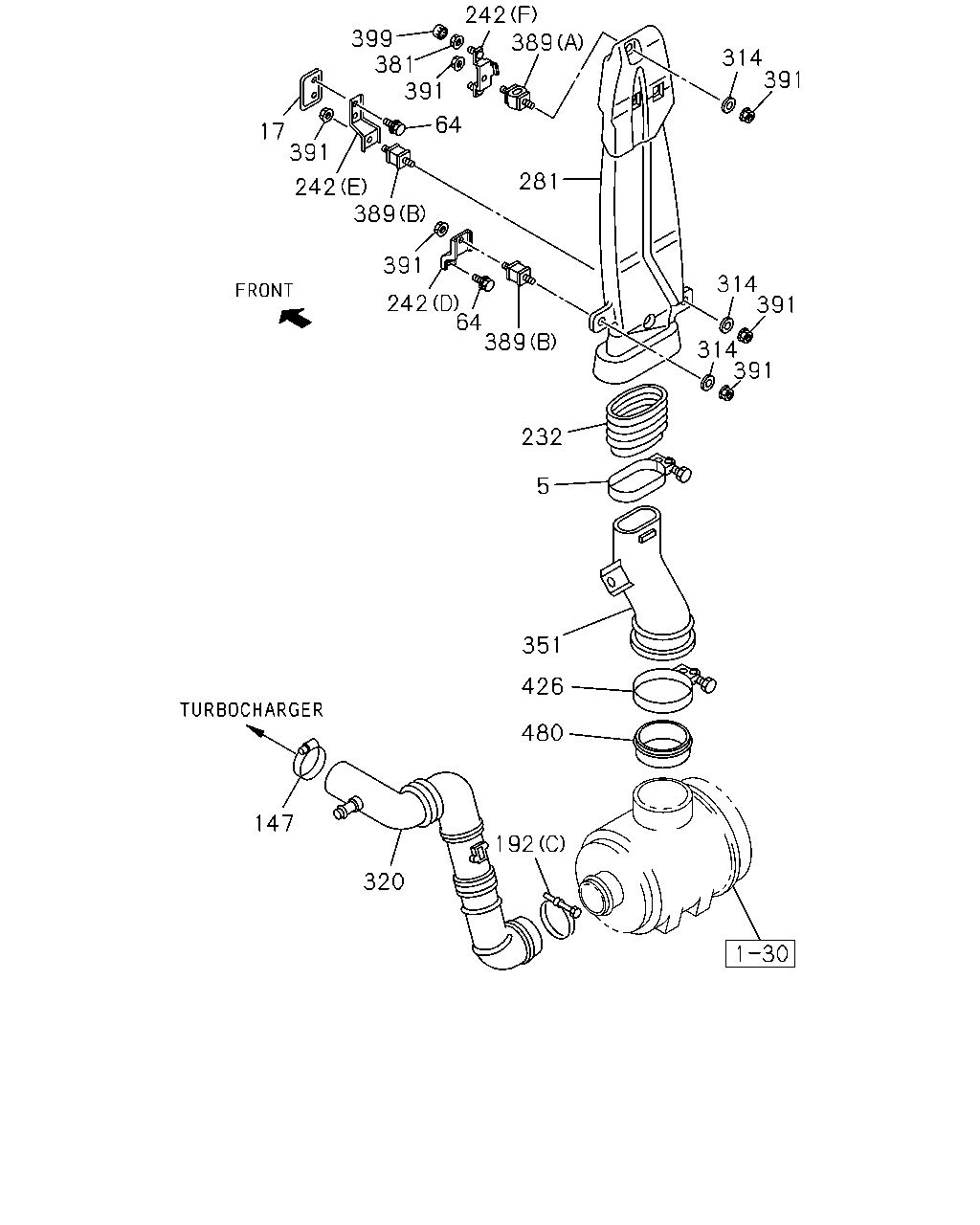

çizim 52979
242 389 399 381 391 314 391 64 17 391 281 242 389 391 314 391 242 64 389 314 391 232 5 351 426 480 147 192 320
BalonParca AdiParca NoAdetTipApplied Date A B C
5 03.407 CLIP; AIR DUCT
4JH1 ENG(RJX) ID=112 		9-09915-074-1 01 1 0302-0506 ● ● ●
5 03.407 CLIP; AIR DUCT
4JH1-TC ENG(RDM) ID=112 		9-09915-074-1 01 1 0507-0606 ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1 ENG(LFB) D=101.6 		9-09915-502-1 01 1 0607- ● ● ●
17 03.403 GASKET; AIR DUCT
4JH1 ENG(RJX) 		8-97853-699-2 01 1 0302-0506 ● ● ●
17 03.403 GASKET; AIR DUCT 8-97853-699-2 01 1 0507-0606 ● ● ●
17 03.403 GASKET; AIR DUCT
4JJ1 ENG(LFB) 		8-97853-699-2 01 1 0607- ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0302-0506 ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0507-0606 ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0607- ● ● ●
147 03.417 CLIP; HOSE TO ENG
4JJ1 ENG(LFB) 03.407 ID=68-85 		1-09707-202-0 01 1 0607- ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-69 		1-09707-135-0 06 1 0302-0410 ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) (A) ID=50-65 		1-09707-204-0 06 1 0411-0506 ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0507-0606 ● ● ●
192 03.407 CLIP; HOSE
4JJ1 ENG(LFB) (C) ID=117 		9-09915-075-1 01 1 0607- ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 03.417 (B) ID=58-79 		8-94126-771-0 02 1 0302-0403 ● ● ●
192 03.407 CLIP; HOSE
4JH1 ENG(RJX) 01.159 (B) ID=58-76 		1-09707-203-0 02 1 0404-0506 ● ● ●
192 03.407 CLIP; HOSE
4JH1-TC ENG(RDM) (A) ID=50-65 		1-09707-204-0 06 1 0507-0606 ● ● ●
232 03.417 HOSE; CONN
4JH1 ENG(RJX) 		8-94456-844-0 01 1 0302-0506 ● ● ●
232 03.417 HOSE; CONN
4JH1-TC ENG(RDM) 		8-94456-844-1 01 1 0507-0606 ● ● ●
232 03.417 HOSE; CONN
4JJ1 ENG(LFB) 		8-97109-423-0 01 1 0607- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (A) 		8-97856-932-0 01 1 0302-0506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (A) 		8-97856-932-0 01 1 0507-0606 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (D) 		8-97312-894-1 01 1 0607- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (B) 		8-97856-933-0 01 1 0302-0506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (B) 		8-97856-933-0 01 1 0507-0606 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (E) 		8-97329-201-0 01 1 0607- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1 ENG(RJX) (C) 		8-97856-958-0 01 1 0302-0506 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JH1-TC ENG(RDM) (C) 		8-97856-958-0 01 1 0507-0606 ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1 ENG(LFB) (F) 		8-97329-306-0 01 1 0607- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1 ENG(RJX) 		8-97300-255-0 01 1 0302-0506 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JH1-TC ENG(RDM) 		8-97300-255-1 01 1 0507-0606 ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1 ENG(LFB) 		8-97369-706-0 01 1 0607- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
4JJ1 ENG(LFB) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0607- ● ● ●
320 03.417 HOSE; CONN,ACL
4JJ1 ENG(LFB) 		8-98048-136-1 01 1 0607- ● ● ●
351 03.407 DUCT; AIR
4JJ1 ENG(LFB) 		8-98019-067-1 01 1 0607- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JH1 ENG(RJX) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0302-0506 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
16.800 M6 FLANGE 		1-09984-018-0 02 1 0507-0606 ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1 ENG(LFB) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0607- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (A) 		8-97080-149-0 01 1 0302-0506 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (A) 		8-97080-149-0 01 1 0507-0606 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (A) 		8-97080-149-0 01 1 0607- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1 ENG(RJX) 03.417 (B) 		8-97081-886-0 02 1 0302-0506 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JH1-TC ENG(RDM) 03.417 (B) 		8-97081-886-0 02 1 0507-0606 ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4JJ1 ENG(LFB) 03.417 (B) 		8-97081-886-0 02 1 0607- ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1 ENG(RJX) M8 FLANGE 		8-94279-517-0 07 1 0302-0506 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JH1-TC ENG(RDM) M8 FLANGE 		8-94279-517-0 07 1 0507-0606 ● ● ●
391 03.417 NUT; SUPPORT RUBBER,UPR
4JJ1 ENG(LFB) M8 FLANGE 		8-94279-517-0 06 1 0607- ● ● ●
399 03.417 CAP; BRKT,AIR DUCT
4JH1 ENG(RJX) 		8-94273-605-0 02 1 0302-0506 ● ● ●
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 0507- ● ● ●
426 03.417 CLIP; DUCT
4JJ1 ENG(LFB) 		9-09915-504-1 01 1 0607- ● ● ●
480 03.417 ADAPTER
4JJ1 ENG(LFB) 		8-97093-075-0 01 1 0607- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
