1-30 — AIR CLEANER (#42018) — 69 parça

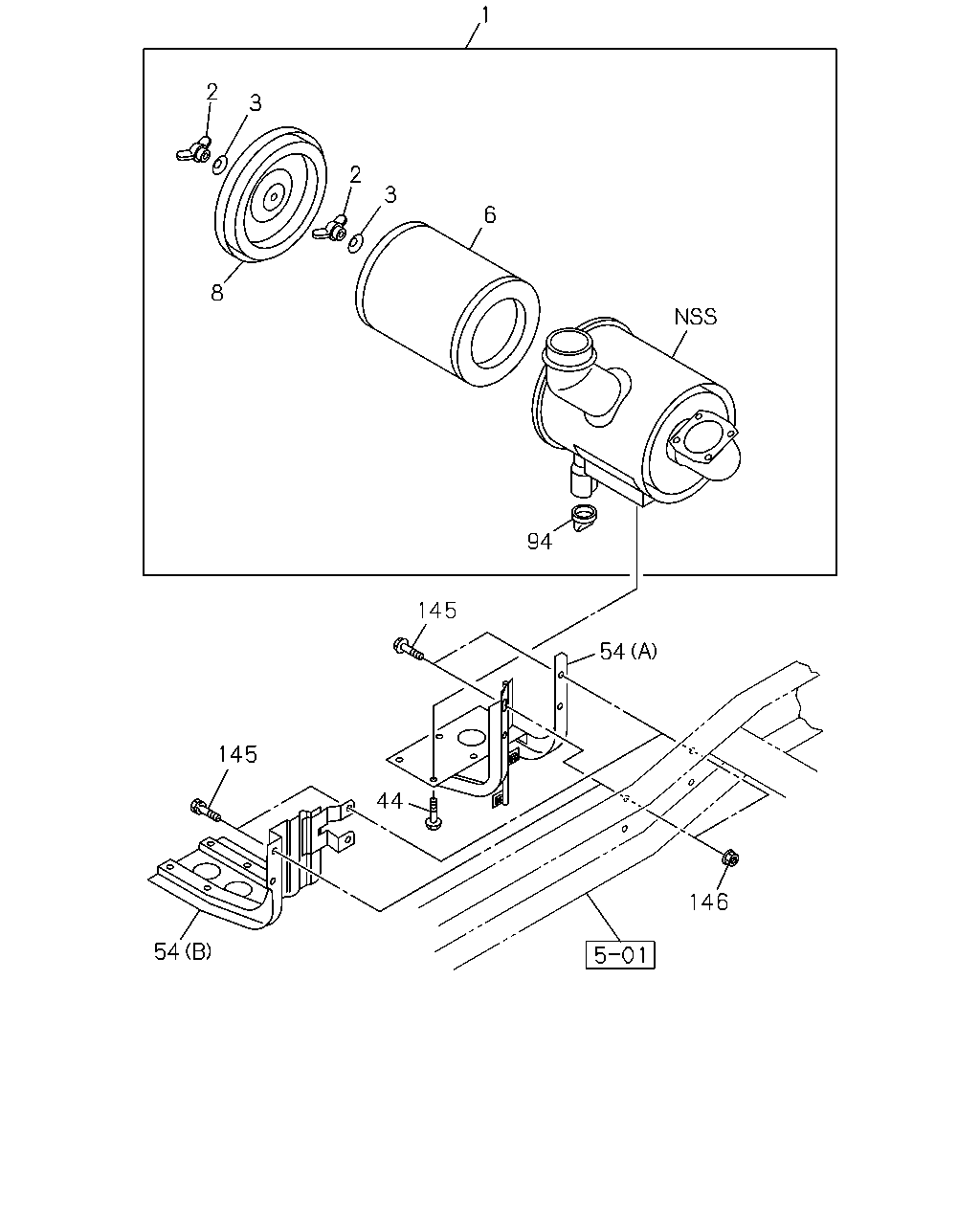

1 2 3 2 3 6 8 94 145 54 145 44 146 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX)	8-97240-054-2	01	1	0302-0506	●	●	●
1	03.402 CLEANER ASM; AIR 4JH1-TC ENG(RDM)	8-97240-054-2	01	1	0507-0606	●	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-97381-529-2	01	1	0607-0607	●	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0608-	●	●	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0302-0506	●	●	●
2	03.403 NUT; WING,ELEMENT 4JH1-TC ENG(RDM)	1-14217-068-0	02	1	0507-0606	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0302-0506	●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1-TC ENG(RDM)	1-14219-225-0	02	1	0507-0606	●	●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0302-0506	●	●	●
6	03.410 FILTER; ACL 4JH1-TC ENG(RDM)	8-94156-052-0	01	1	0507-0606	●	●	●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-97062-294-0	01	1	0607-	●	●	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0302-0506	●	●	●
8	03.410 COVER ASM; ACL 4JH1-TC ENG(RDM)	8-97313-386-0	01	1	0507-0606	●	●	●
8	03.410 COVER ASM; ACL 4JJ1 ENG(LFB)	8-97379-849-0	01	1	0607-0607	●	●	●
8	03.410 COVER ASM; ACL 4JJ1 ENG(LFB)	8-98050-434-1	01	1	0608-	●	●	●
44	03.403 BOLT; ACL 4JH1 ENG(RJX) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0302-0506	●	●	●
44	03.403 BOLT; ACL 4JH1-TC ENG(RDM) 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0507-0606	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97315-605-0	01	1	0302-0506	●
54	03.405 BRACKET; ACL 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97315-605-0	01	1	0507-0606	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (B)	8-97107-139-0	01	1	0302-0506		●	●
54	03.405 BRACKET; ACL 4JH1-TC ENG(RDM) (B)	8-97107-139-0	01	1	0507-0606		●	●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (C)	8-98019-234-1	01	1	0607-0607	●	●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (C)	8-98019-234-1	01	1	0607-	●	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX)	8-94447-157-0	01	1	0302-0506	●	●	●
94	03.415 VALVE; VACUATOR 4JH1-TC ENG(RDM)	8-94447-157-0	01	1	0507-0606	●	●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97352-112-0	01	1	0607-	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0607-		●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0302-0506	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) 09.171 M10X25 FLANGE	0-28051-025-0	04	1	0607-	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	03	1	0607-		●	●

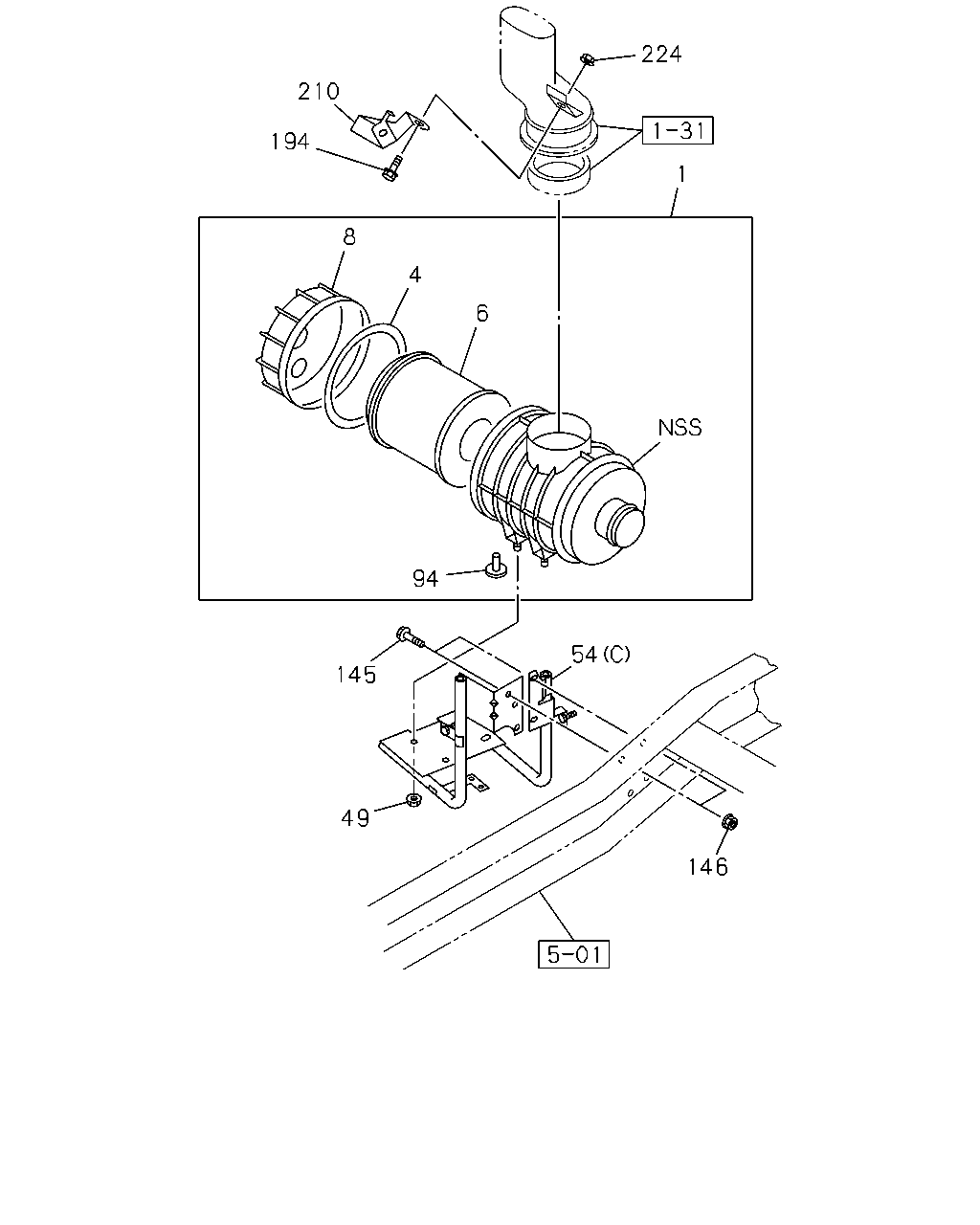

224 210 194 1 8 4 6 94 54 145 49 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX)	8-97240-054-2	01	1	0302-0506	●	●	●
1	03.402 CLEANER ASM; AIR 4JH1-TC ENG(RDM)	8-97240-054-2	01	1	0507-0606	●	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-97381-529-2	01	1	0607-0607	●	●	●
1	03.402 CLEANER ASM; AIR 4JJ1 ENG(LFB)	8-98050-415-2	01	1	0608-	●	●	●
4	03.403 GASKET; COVER TO BODY 4JJ1 ENG(LFB)	8-97352-113-0	01	1	0607-	●	●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0302-0506	●	●	●
6	03.410 FILTER; ACL 4JH1-TC ENG(RDM)	8-94156-052-0	01	1	0507-0606	●	●	●
6	03.410 FILTER; ACL 4JJ1 ENG(LFB)	8-97062-294-0	01	1	0607-	●	●	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0302-0506	●	●	●
8	03.410 COVER ASM; ACL 4JH1-TC ENG(RDM)	8-97313-386-0	01	1	0507-0606	●	●	●
8	03.410 COVER ASM; ACL 4JJ1 ENG(LFB)	8-97379-849-0	01	1	0607-0607	●	●	●
8	03.410 COVER ASM; ACL 4JJ1 ENG(LFB)	8-98050-434-1	01	1	0608-	●	●	●
49	03.403 NUT; ACL 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	0607-	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97315-605-0	01	1	0302-0506	●
54	03.405 BRACKET; ACL 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97315-605-0	01	1	0507-0606	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX) (B)	8-97107-139-0	01	1	0302-0506		●	●
54	03.405 BRACKET; ACL 4JH1-TC ENG(RDM) (B)	8-97107-139-0	01	1	0507-0606		●	●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (C)	8-98019-234-1	01	1	0607-0607	●	●
54	03.405 BRACKET; ACL 4JJ1 ENG(LFB) (C)	8-98019-234-1	01	1	0607-	●	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX)	8-94447-157-0	01	1	0302-0506	●	●	●
94	03.415 VALVE; VACUATOR 4JH1-TC ENG(RDM)	8-94447-157-0	01	1	0507-0606	●	●	●
94	03.415 VALVE; VACUATOR 4JJ1 ENG(LFB)	8-97352-112-0	01	1	0607-	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0607-		●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0302-0506	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0507-0512	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1-TC ENG(RDM) 02.277 M10X35 FLANGE	0-28651-035-0	04	1	0601-0606	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JJ1 ENG(LFB) 09.171 M10X25 FLANGE	0-28051-025-0	04	1	0607-	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606	●	●	●
146	03.405 NUT; BRKT TO FRAME 4JJ1 ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	03	1	0607-		●	●
194	03.417 BOLT; BRKT 4JJ1 ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0607-	●	●	●
210	03.405 BRACKET; ACL MTG 4JJ1 ENG(LFB)	8-98019-069-1	01	1	0607-	●	●	●
224	03.407 NUT; BRKT 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
