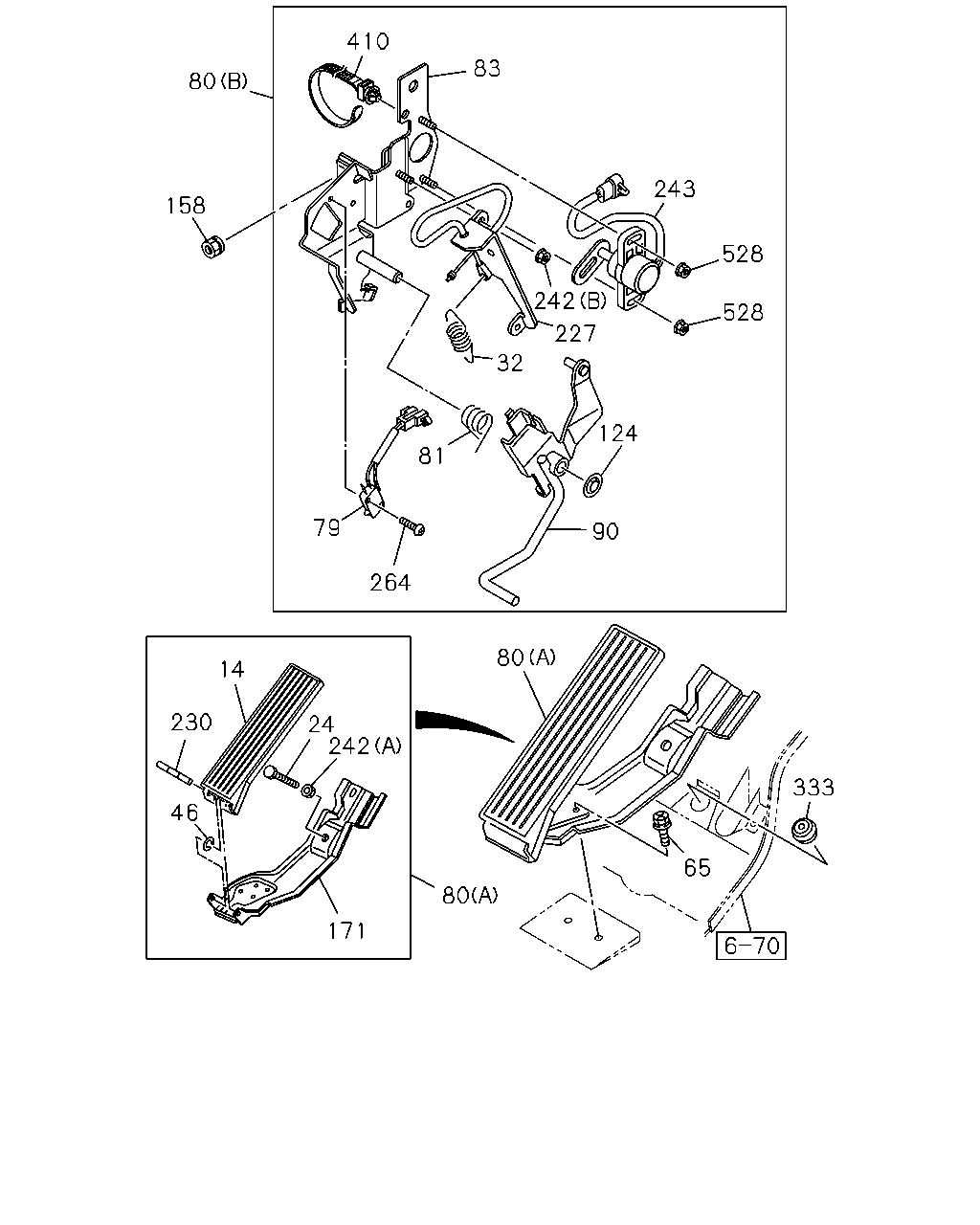

1-01 — ACCELERATOR PEDAL AND CONTROL (#42015) — 59 parça

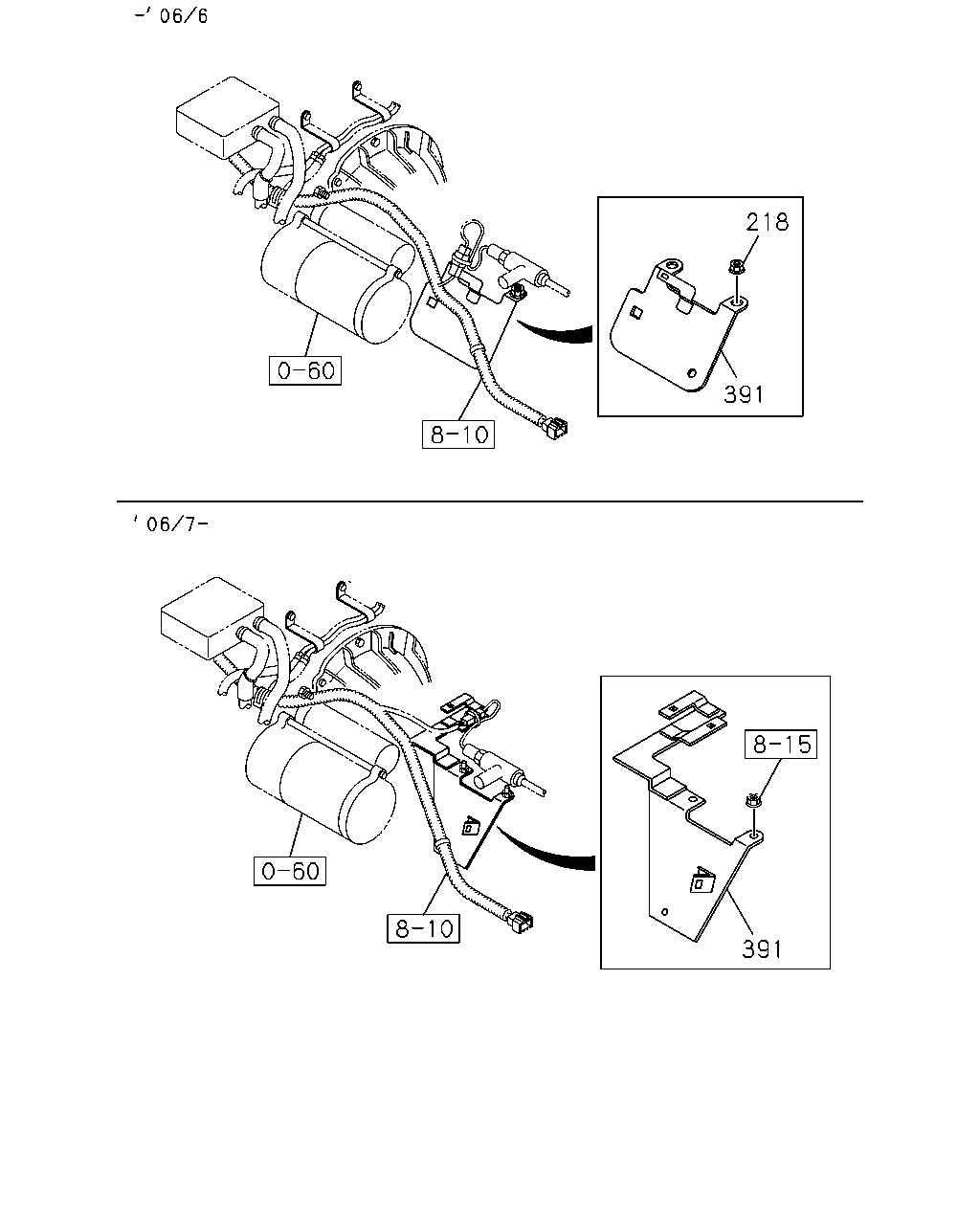

218 391 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●	●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●	●
218	03.452 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●	●
391	03.452 BRACKET; ENG CONT 4JH1 ENG(RJX)	8-97352-772-0	01	1	0302-0506	●	●	●
391	03.452 BRACKET; ENG CONT 4JH1-TC ENG(RDM)	8-97352-772-0	01	1	0507-0606	●	●	●
391	03.452 BRACKET; ENG CONT EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97357-141-0	01	1	0607-	●	●	●

410 83 80 243 158 528 242 528 227 32 124 81 79 90 264 80 14 230 24 242 333 46 65 80 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	03.451 PAD; PEDAL,ACCEL	8-97859-101-0	01	1	0302-	●	●	●
24	03.483 BOLT; BRKT 03.459	0-20800-840-0	01	1	0302-	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97997-917-0	01	1	0302-0506	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97997-917-0	01	1	0507-0606	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JJ1 ENG(LFB)	8-97997-917-0	01	1	0607-	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	0302-0604	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	0302-	●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JH1 ENG(RJX)	8-97224-056-0	01	1	0302-0506	●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97224-056-0	01	1	0507-0606	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97859-100-0	01	1	0302-	●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (B)	8-97994-589-4	01	1	0302-0506	●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1-TC ENG(RDM) (B)	8-97994-589-5	01	1	0507-0606	●	●	●
80	03.452 LINK ASM; ENG CONT 4JJ1 ENG(LFB) (B)	8-98032-148-1	01	1	0607-	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1 ENG(RJX)	8-97853-205-1	01	1	0302-0506	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JH1-TC ENG(RDM)	8-97853-205-1	01	1	0507-0606	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4JJ1 ENG(LFB)	8-97853-205-1	01	1	0607-	●	●	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97994-592-3	01	1	0302-0506	●	●	●
83	03.452 BRACKET; CONT LINK 4JH1-TC ENG(RDM)	8-97994-592-4	01	1	0507-0606	●	●	●
83	03.452 BRACKET; CONT LINK 4JJ1 ENG(LFB)	8-98032-263-1	01	1	0607-	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97994-590-2	01	1	0302-0506	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1-TC ENG(RDM)	8-97994-590-3	01	1	0507-0606	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JJ1 ENG(LFB)	8-97994-590-3	01	1	0607-	●	●	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0302-0506	●	●	●
124	03.463 NUT; LEVER 4JH1-TC ENG(RDM) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0507-0606	●	●	●
124	03.463 NUT; LEVER 4JJ1 ENG(LFB) 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	0607-	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	0302-	●	●	●
171	03.483 BRACKET ASM; ACCEL PEDAL	8-97857-482-1	01	1	0302-	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97892-203-5	01	1	0302-0506	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1-TC ENG(RDM)	8-97892-203-5	01	1	0507-0606	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JJ1 ENG(LFB)	8-97892-203-5	01	1	0607-	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	0302-	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8	9-09110-408-0	01	1	0302-0512	●	●	●
242	03.483 NUT; ACCEL PEDAL 02.334 (A) M8	0-91110-508-0	01	1	0601-	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1 ENG(RJX) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0302-0506	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1-TC ENG(RDM) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0507-0606	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JJ1 ENG(LFB) 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	01	1	0607-	●	●	●
243	03.425 SENSOR; ACCEL 4JH1 ENG(RJX)	8-97305-922-0	01	1	0302-0506	●	●	●
243	03.425 SENSOR; ACCEL 4JH1-TC ENG(RDM)	8-97305-922-0	01	1	0507-0606	●	●	●
243	03.425 SENSOR; ACCEL 4JJ1 ENG(LFB)	8-97384-127-1	01	1	0607-	●	●	●
264	03.425 SCREW; ACCEL SW 4JH1 ENG(RJX) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0302-0506	●	●	●
264	03.425 SCREW; ACCEL SW 4JH1-TC ENG(RDM) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0507-0603	●	●	●
264	03.425 SCREW; ACCEL SW 4JH1-TC ENG(RDM) M3X16 TAPPING	0-71340-316-0	02	1	0604-0606	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0302-0506	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JH1-TC ENG(RDM) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-0606	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JJ1 ENG(LFB) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0607-	●	●	●
410	03.483 CLIP; BAND 4JJ1 ENG(LFB) 02.559 L=155	8-97173-307-0	01	1	0607-	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0302-0506	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JH1-TC ENG(RDM) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0507-0606	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JJ1 ENG(LFB) 12.183 M5	8-94169-022-0	02	1	0607-	●	●	●

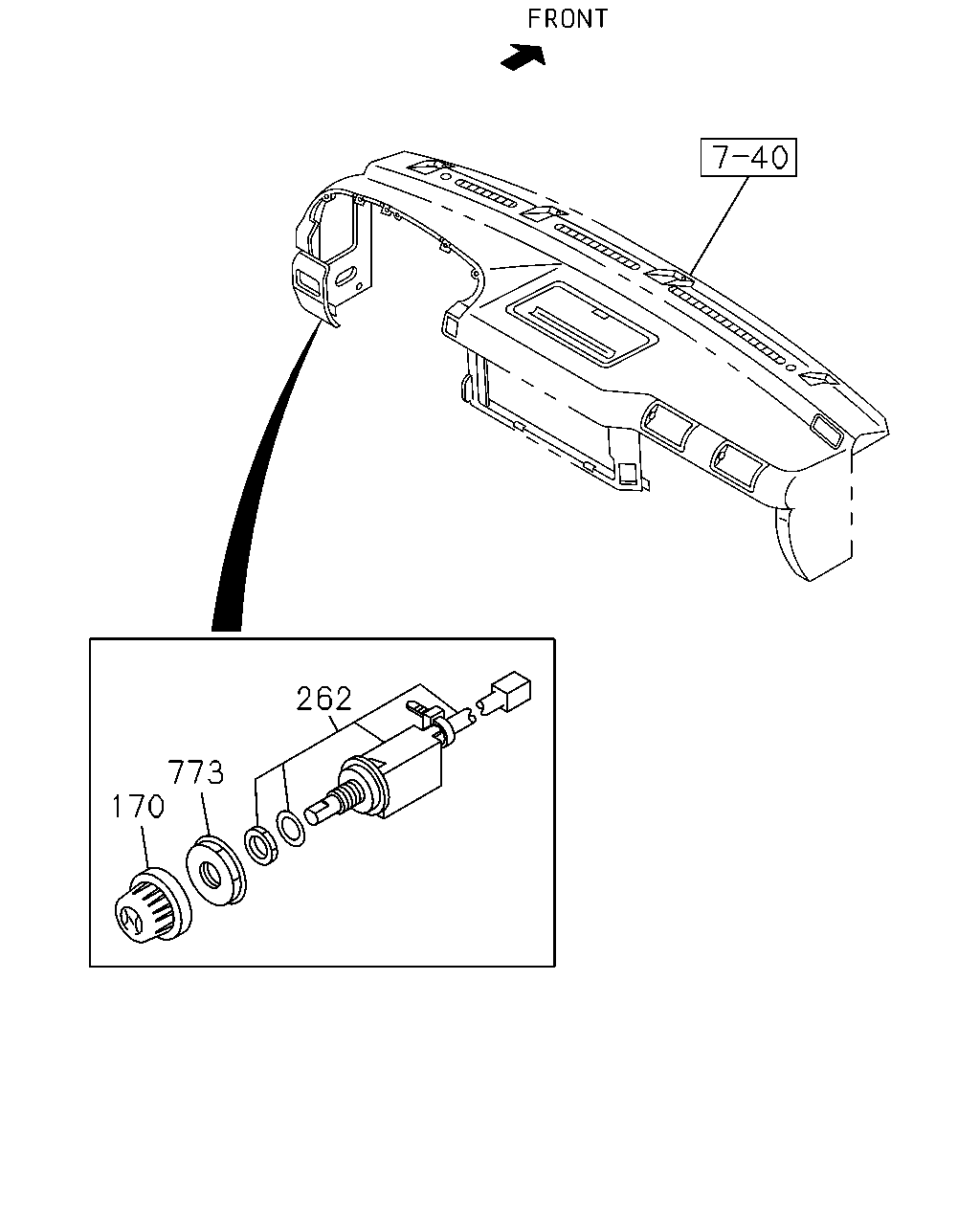

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
170	03.480 KNOB 4JJ1 ENG(LFB)	8-97310-165-0	01	1	0607-	●	●	●
262	03.452 SWITCH; ACCEL,IDLE 4JJ1 ENG(LFB)	8-97215-119-1	01	1	0607-	●	●	●
773	03.452 HOLDER; ACCEL PEDAL 4JJ1 ENG(LFB)	8-97352-127-0	01	1	0607-	●	●	●
