Sayfa 0-40B - Isuzu EPC

0-40B — FUEL INJECTION SYSTEM (#4201) — 455 parça

23 129 128 21 121 19 17 22 129 16 18 20 110 99 99 118 68 122 169 68 68 122 68 68 68 168 69 124 129 129 126 129 126 99 126 122 126 122 126 129 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	PIPE; INJ NO.1	1-15415-929-1	01	1	9603-9901	●
16	PIPE; INJ NO.1	1-15415-929-1	01	1	9905-	●
16	PIPE; INJ NO.1	1-15415-919-1	01	1	9603-9901		●
16	PIPE; INJ NO.1	1-15415-919-1	01	1	9905-		●	●
16	PIPE; INJ NO.1	1-15415-559-1	01	1	9905-				●
17	PIPE; INJ NO.2	1-15415-922-1	01	1	9603-9901	●
17	PIPE; INJ NO.2	1-15415-922-1	01	1	9905-	●
17	PIPE; INJ NO.2	1-15415-920-1	01	1	9603-9901		●
17	PIPE; INJ NO.2	1-15415-920-1	01	1	9905-		●	●
17	PIPE; INJ NO.2	1-15415-560-1	01	1	9905-				●
18	PIPE; INJ NO.3	1-15415-923-1	01	1	9603-9901	●
18	PIPE; INJ NO.3	1-15415-923-1	01	1	9905-	●
18	PIPE; INJ NO.3	1-15415-921-1	01	1	9603-9901		●
18	PIPE; INJ NO.3	1-15415-921-1	01	1	9905-		●	●
18	PIPE; INJ NO.3	1-15415-589-2	01	1	9905-				●
19	PIPE; INJ NO.4	1-15415-924-1	01	1	9603-9901	●
19	PIPE; INJ NO.4	1-15415-924-1	01	1	9905-	●
19	PIPE; INJ NO.4	1-15415-922-1	01	1	9603-9901		●
19	PIPE; INJ NO.4	1-15415-922-1	01	1	9905-		●	●
19	PIPE; INJ NO.4	1-15415-562-1	01	1	9905-				●
20	PIPE; INJ NO.5	1-15415-930-1	01	1	9603-9901	●
20	PIPE; INJ NO.5	1-15415-930-1	01	1	9905-	●
20	PIPE; INJ NO.5	1-15415-923-1	01	1	9603-9901		●
20	PIPE; INJ NO.5	1-15415-923-1	01	1	9905-		●	●
20	PIPE; INJ NO.5	1-15415-563-1	01	1	9905-				●
21	PIPE; INJ NO.6	1-15415-926-1	01	1	9603-9901	●
21	PIPE; INJ NO.6	1-15415-926-1	01	1	9905-	●
21	PIPE; INJ NO.6	1-15415-924-1	01	1	9603-9901		●
21	PIPE; INJ NO.6	1-15415-924-1	01	1	9905-		●	●
21	PIPE; INJ NO.6	1-15415-564-1	01	1	9905-				●
22	PIPE; INJ NO.7	1-15415-927-1	01	1	9603-9901	●
22	PIPE; INJ NO.7	1-15415-927-1	01	1	9905-	●
22	PIPE; INJ NO.7	1-15415-925-1	01	1	9603-9901		●
22	PIPE; INJ NO.7	1-15415-925-1	01	1	9905-		●	●
22	PIPE; INJ NO.7	1-15415-590-2	01	1	9905-				●
23	PIPE; INJ NO.8	1-15415-928-1	01	1	9603-9901	●
23	PIPE; INJ NO.8	1-15415-928-1	01	1	9905-	●
23	PIPE; INJ NO.8	1-15415-926-1	01	1	9603-9901		●
23	PIPE; INJ NO.8	1-15415-926-1	01	1	9905-		●	●
23	PIPE; INJ NO.8	1-15415-566-1	01	1	9905-				●
68	CLIP; INJ PIPE (A)	1-09701-132-0	12	1	9603-9901	●
68	CLIP; INJ PIPE (B)	1-09701-213-0	04	1	9603-9901	●
68	CLIP; INJ PIPE (A)	1-09701-132-1	12	1	9905-	●
68	CLIP; INJ PIPE (B)	1-09701-213-0	04	1	9905-	●
68	CLIP; INJ PIPE (C)	1-09701-180-0	01	1	9603-9901	●	●
68	CLIP; INJ PIPE (D) ID=10 & 10 L=25	8-94393-280-1	01	1	9603-9901	●	●
68	CLIP; INJ PIPE (D) ID=10 & 10 L=25	8-94393-280-1	01	1	9905-	●	●	●	●
68	CLIP; INJ PIPE (C)	1-09701-180-0	01	1	9905-	●	●	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	04	1	9603-9901	●
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	04	1	9905-	●
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	08	1	9603-9901		●
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	08	1	9905-		●	●	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	08	1	9603-9901	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	08	1	9905-	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	15	1	9603-9603		●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	14	1	9604-9901		●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	14	1	9905-		●	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9905-	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9603-9901		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9905-9909		●	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9910-		●	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9603-9901	●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	01	1	9703-9901	●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	01	1	9905-	●
118	BOLT; CLIP,INJ PIPE (A) M6X30 FLANGE	0-28080-630-0	01	1	9603-9901	●	●
118	BOLT; CLIP,INJ PIPE (A) M6X30 FLANGE	0-28080-630-0	01	1	9905-	●	●	●	●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	02	1	9703-9901		●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	02	1	9905-		●	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO(SV1)	1-15415-800-0	01	1	9603-9901	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. ENGINE REAR PTO(SV1)	1-15415-657-0	01	1	9603-9901	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO(SV1)	1-15415-800-0	01	1	9905-	●	●		●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. ENGINE REAR PTO(SV1)	1-15415-657-0	01	1	9905-	●	●	●	●
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-1	02	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-0	02	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-1	02	1	9905-	●	●	●	●
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-0	02	1	9905-	●	●	●	●
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	9905-	●	●	●	●
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	9905-	●	●	●	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	02	1	9905-	●	●	●	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	02	1	9603-9901	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	9603-9901	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	9905-	●	●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9603-9901	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9905-	●	●	●	●
128	PIPE ASM; INJ	1-15415-741-0	01	1	9603-9901	●
128	PIPE ASM; INJ	1-15415-741-0	01	1	9905-	●
128	PIPE ASM; INJ	1-15415-740-0	01	1	9603-9901		●
128	PIPE ASM; INJ	1-15415-740-0	01	1	9905-		●	●	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-621-0	01	1	9603-9901	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-689-0	01	1	9603-9901	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-621-0	01	1	9905-	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-689-0	01	1	9905-	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-390-0	01	1	9603-9901		●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-620-0	01	1	9603-9901		●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-390-0	01	1	9905-		●	●	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-620-0	01	1	9905-		●	●	●
168	BRACKET; FUEL PIPE	1-15419-363-1	02	1	9603-9901	●
168	BRACKET; FUEL PIPE	1-15419-363-1	02	1	9905-9910	●
168	BRACKET; FUEL PIPE	1-15419-622-0	02	1	9911-	●
168	BRACKET; FUEL PIPE	1-15419-363-1	01	1	9603-9901		●
168	BRACKET; FUEL PIPE	1-15419-363-1	01	1	9905-9910		●	●	●
168	BRACKET; FUEL PIPE	1-15419-622-0	01	1	9911-		●	●	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9603-9901	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9905-	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	9603-9901		●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	9905-		●	●	●

21 129 128 19 17 121 24 129 16 18 20 22 110 99 99 118 98 122 169 98 68 122 98 68 98 168 69 124 129 129 126 126 129 99 126 122 126 122 129 124 126 23 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	PIPE; INJ NO.1	1-15415-929-1	01	1	9603-9901	●
16	PIPE; INJ NO.1	1-15415-929-1	01	1	9905-	●
16	PIPE; INJ NO.1	1-15415-919-1	01	1	9603-9901		●
16	PIPE; INJ NO.1	1-15415-919-1	01	1	9905-		●	●
16	PIPE; INJ NO.1	1-15415-559-1	01	1	9905-				●
17	PIPE; INJ NO.2	1-15415-922-1	01	1	9603-9901	●
17	PIPE; INJ NO.2	1-15415-922-1	01	1	9905-	●
17	PIPE; INJ NO.2	1-15415-920-1	01	1	9603-9901		●
17	PIPE; INJ NO.2	1-15415-920-1	01	1	9905-		●	●
17	PIPE; INJ NO.2	1-15415-560-1	01	1	9905-				●
18	PIPE; INJ NO.3	1-15415-923-1	01	1	9603-9901	●
18	PIPE; INJ NO.3	1-15415-923-1	01	1	9905-	●
18	PIPE; INJ NO.3	1-15415-921-1	01	1	9603-9901		●
18	PIPE; INJ NO.3	1-15415-921-1	01	1	9905-		●	●
18	PIPE; INJ NO.3	1-15415-589-2	01	1	9905-				●
19	PIPE; INJ NO.4	1-15415-924-1	01	1	9603-9901	●
19	PIPE; INJ NO.4	1-15415-924-1	01	1	9905-	●
19	PIPE; INJ NO.4	1-15415-922-1	01	1	9603-9901		●
19	PIPE; INJ NO.4	1-15415-922-1	01	1	9905-		●	●
19	PIPE; INJ NO.4	1-15415-562-1	01	1	9905-				●
20	PIPE; INJ NO.5	1-15415-930-1	01	1	9603-9901	●
20	PIPE; INJ NO.5	1-15415-930-1	01	1	9905-	●
20	PIPE; INJ NO.5	1-15415-923-1	01	1	9603-9901		●
20	PIPE; INJ NO.5	1-15415-923-1	01	1	9905-		●	●
20	PIPE; INJ NO.5	1-15415-563-1	01	1	9905-				●
21	PIPE; INJ NO.6	1-15415-926-1	01	1	9603-9901	●
21	PIPE; INJ NO.6	1-15415-926-1	01	1	9905-	●
21	PIPE; INJ NO.6	1-15415-924-1	01	1	9603-9901		●
21	PIPE; INJ NO.6	1-15415-924-1	01	1	9905-		●	●
21	PIPE; INJ NO.6	1-15415-564-1	01	1	9905-				●
22	PIPE; INJ NO.7	1-15415-927-1	01	1	9603-9901	●
22	PIPE; INJ NO.7	1-15415-927-1	01	1	9905-	●
22	PIPE; INJ NO.7	1-15415-925-1	01	1	9603-9901		●
22	PIPE; INJ NO.7	1-15415-925-1	01	1	9905-		●	●
22	PIPE; INJ NO.7	1-15415-590-2	01	1	9905-				●
23	PIPE; INJ NO.8	1-15415-928-1	01	1	9603-9901	●
23	PIPE; INJ NO.8	1-15415-928-1	01	1	9905-	●
23	PIPE; INJ NO.8	1-15415-926-1	01	1	9603-9901		●
23	PIPE; INJ NO.8	1-15415-926-1	01	1	9905-		●	●
23	PIPE; INJ NO.8	1-15415-566-1	01	1	9905-				●
24	PIPE; INJ NO.9	1-15415-927-1	01	1	9603-9901		●
24	PIPE; INJ NO.9	1-15415-927-1	01	1	9905-		●	●
24	PIPE; INJ NO.9	1-15415-567-1	01	1	9905-				●
25	PIPE; INJ NO.10	1-15415-928-1	01	1	9603-9901		●
25	PIPE; INJ NO.10	1-15415-928-1	01	1	9905-		●	●
25	PIPE; INJ NO.10	1-15415-568-1	01	1	9905-				●
68	CLIP; INJ PIPE (A)	1-09701-132-0	12	1	9603-9901	●
68	CLIP; INJ PIPE (B)	1-09701-213-0	04	1	9603-9901	●
68	CLIP; INJ PIPE (A)	1-09701-132-1	12	1	9905-	●
68	CLIP; INJ PIPE (B)	1-09701-213-0	04	1	9905-	●
68	CLIP; INJ PIPE (C)	1-09701-180-0	01	1	9603-9901	●	●
68	CLIP; INJ PIPE (D) ID=10 & 10 L=25	8-94393-280-1	01	1	9603-9901	●	●
68	CLIP; INJ PIPE (D) ID=10 & 10 L=25	8-94393-280-1	01	1	9905-	●	●	●	●
68	CLIP; INJ PIPE (C)	1-09701-180-0	01	1	9905-	●	●	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	04	1	9603-9901	●
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	04	1	9905-	●
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	08	1	9603-9901		●
69	BRACKET; INJ PIPE CLIP	1-15419-391-1	08	1	9905-		●	●	●
98	CLIP; "A",INJ PIPE (A)	1-09701-132-0	22	1	9603-9901		●
98	CLIP; "A",INJ PIPE (B)	1-09701-213-0	06	1	9603-9901		●
98	CLIP; "A",INJ PIPE (A)	1-09701-132-0	22	1	9905-		●	●	●
98	CLIP; "A",INJ PIPE (B)	1-09701-213-0	06	1	9905-		●	●	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	08	1	9603-9901	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	08	1	9905-	●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	15	1	9603-9603		●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	14	1	9604-9901		●
99	BOLT; CLIP,INJ,PIPE M6X30 FLANGE	0-28080-630-0	14	1	9905-		●	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9905-	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9603-9901		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9905-9909		●	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9910-		●	●	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9603-9901	●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	01	1	9703-9901	●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	01	1	9905-	●
118	BOLT; CLIP,INJ PIPE (A) M6X30 FLANGE	0-28080-630-0	01	1	9603-9901	●	●
118	BOLT; CLIP,INJ PIPE (A) M6X30 FLANGE	0-28080-630-0	01	1	9905-	●	●	●	●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	02	1	9703-9901		●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	02	1	9905-		●	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO(SV1)	1-15415-800-0	01	1	9603-9901	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. ENGINE REAR PTO(SV1)	1-15415-657-0	01	1	9603-9901	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO(SV1)	1-15415-800-0	01	1	9905-	●	●		●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. ENGINE REAR PTO(SV1)	1-15415-657-0	01	1	9905-	●	●	●	●
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-1	02	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-0	02	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-1	02	1	9905-	●	●	●	●
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-0	02	1	9905-	●	●	●	●
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	9905-	●	●	●	●
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	9905-	●	●	●	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	02	1	9905-	●	●	●	●
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	02	1	9603-9901	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	9603-9901	●	●
124	BOLT; EYE LEAK OFF PIPE (B) M8X30 FLANGE	1-09675-039-1	01	1	9905-	●	●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9603-9901	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9905-	●	●	●	●
128	PIPE ASM; INJ	1-15415-741-0	01	1	9603-9901	●
128	PIPE ASM; INJ	1-15415-741-0	01	1	9905-	●
128	PIPE ASM; INJ	1-15415-740-0	01	1	9603-9901		●
128	PIPE ASM; INJ	1-15415-740-0	01	1	9905-		●	●	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-621-0	01	1	9603-9901	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-689-0	01	1	9603-9901	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-621-0	01	1	9905-	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-689-0	01	1	9905-	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-390-0	01	1	9603-9901		●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-620-0	01	1	9603-9901		●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15415-390-0	01	1	9905-		●	●	●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15415-620-0	01	1	9905-		●	●	●
168	BRACKET; FUEL PIPE	1-15419-363-1	02	1	9603-9901	●
168	BRACKET; FUEL PIPE	1-15419-363-1	02	1	9905-9910	●
168	BRACKET; FUEL PIPE	1-15419-622-0	02	1	9911-	●
168	BRACKET; FUEL PIPE	1-15419-363-1	01	1	9603-9901		●
168	BRACKET; FUEL PIPE	1-15419-363-1	01	1	9905-9910		●	●	●
168	BRACKET; FUEL PIPE	1-15419-622-0	01	1	9911-		●	●	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9603-9901	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	9905-	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	9603-9901		●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	08	1	9905-		●	●	●

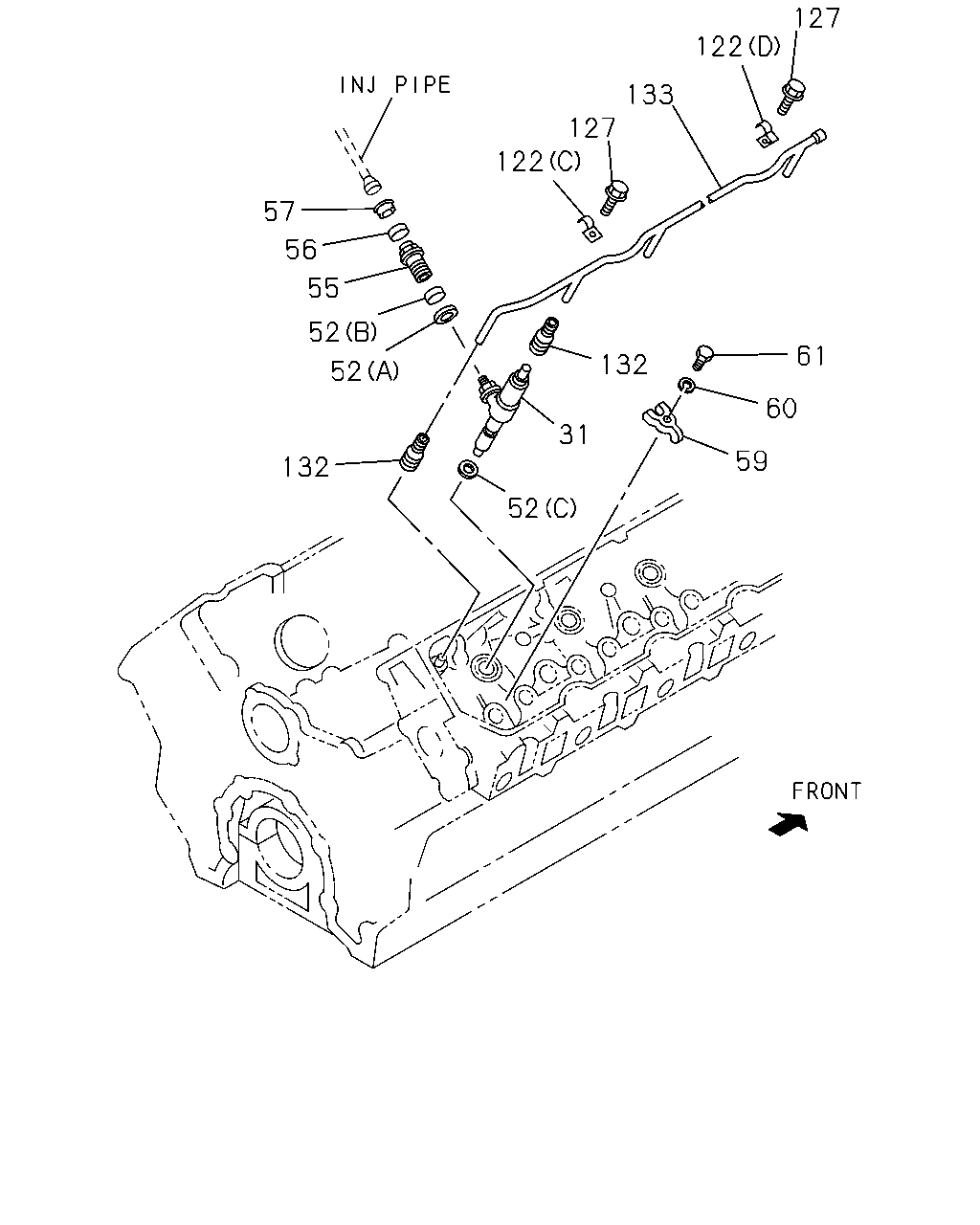

127 122 133 127 122 57 56 55 52 61 132 52 60 31 59 132 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	NOZZLE ASM; INJ	1-15300-204-1	08	1	9603-9901	●
31	NOZZLE ASM; INJ	1-15300-204-1	08	1	9905-	●
31	NOZZLE ASM; INJ	1-15300-204-1	10	1	9603-9901		●
31	NOZZLE ASM; INJ	1-15300-204-1	10	1	9905-		●	●
31	NOZZLE ASM; INJ	1-15300-368-0	10	1	9905-				●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	08	1	9603-9901	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	08	1	9603-9901	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	08	1	9603-9901	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	08	1	9905-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	08	1	9905-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	08	1	9905-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9603-9901		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9603-9901		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9603-9901		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9905-		●	●	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9905-		●	●	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9905-		●	●	●
55	SLEEVE; INJ PUMP	1-15339-094-0	08	1	9603-9901	●
55	SLEEVE; INJ PUMP	1-15339-094-0	08	1	9905-	●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9603-9901		●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9905-		●	●	●
56	COVER	1-15419-028-0	08	1	9603-9901	●
56	COVER	1-15419-028-0	08	1	9905-	●
56	COVER	1-15419-028-0	10	1	9603-9901		●
56	COVER	1-15419-028-0	10	1	9905-		●	●	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	08	1	9603-9901	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	08	1	9905-	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9603-9901		●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9905-		●	●	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	08	1	9603-9901	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	08	1	9905-	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9603-9901		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9905-		●	●	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	08	1	9603-9901	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	08	1	9905-	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9603-9901		●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9905-		●	●	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	08	1	9603-9901	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	08	1	9905-	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9603-9901		●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9905-		●	●	●
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-1	02	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-0	02	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	9603-9901	●	●
122	CLIP; LEAK OFF PIPE (A)	1-09701-172-1	02	1	9905-	●	●	●	●
122	CLIP; LEAK OFF PIPE (B)	1-09701-173-0	02	1	9905-	●	●	●	●
122	CLIP; LEAK OFF PIPE (C) L=19	1-09709-104-0	04	1	9905-	●	●	●	●
122	CLIP; LEAK OFF PIPE (D) L=22	1-09709-156-0	02	1	9905-	●	●	●	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9603-9901	●	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9905-	●	●	●	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	10	1	9603-9901	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	10	1	9905-	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9603-9901		●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9905-		●	●	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-533-0	02	1	9603-9901	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-533-0	02	1	9905-	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9603-9901		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9905-		●	●	●

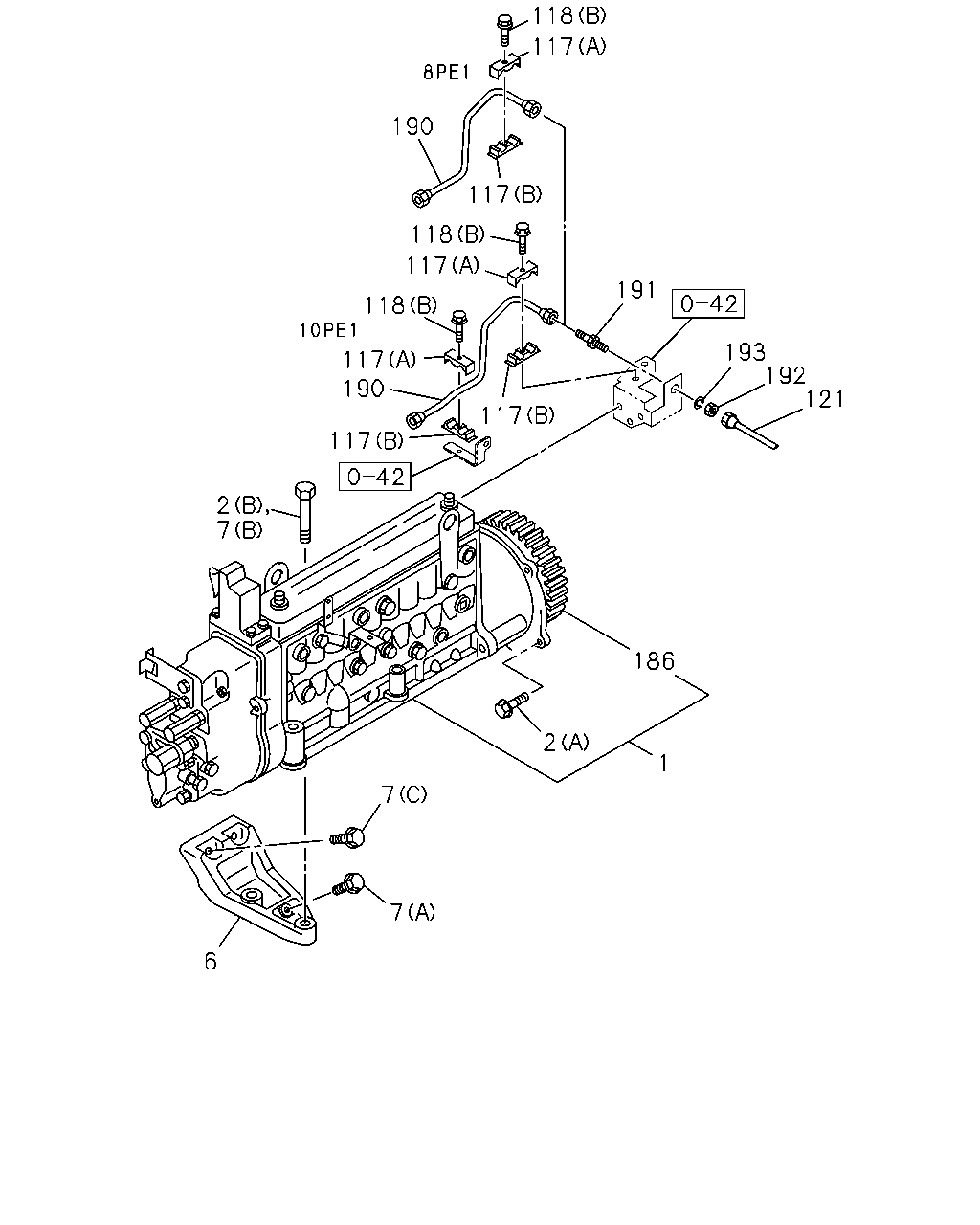

118 117 190 117 118 117 191 118 193 192 121 117 190 117 117 2 7 186 2 1 7 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-208-2	01	1	9905-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-207-2	01	1	9905-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. GOVERNOR CONTROL<W69>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-204-2	01	1	9905-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-063-2	01	1	9603-9702	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-205-0	01	1	9703-9901	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. GOVERNOR CONTROL<W69>	1-15603-205-2	01	1	9905-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-062-2	01	1	9603-9702	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-204-0	01	1	9703-9901	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. GOVERNOR CONTROL<W69>	1-15603-059-2	01	1	9603-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. GOVERNOR CONTROL<W69>	1-15603-201-0	01	1	9703-9901		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,GOVERNOR CONTROL<W69>,INJ PUMP HIGH ALTITUDEANEROID COMPENSATOR(YC4)	1-15603-060-2	01	1	9603-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,GOVERNOR CONTROL<W69>,INJ PUMP HIGH ALTITUDEANEROID COMPENSATOR(YC4)	1-15603-202-0	01	1	9703-9901		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-227-0	01	1	9701-9812		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> GOVERNOR CONTROL<W69> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-227-0	01	1	9901-9901		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69>	1-15603-072-1	01	1	9603-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15603-206-0	01	1	9703-9901		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. GOVERNOR CONTROL<W69> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-15603-315-0	01	1	9901-9901		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. FIRE TRUCK<RA9>	1-15603-061-1	01	1	9603-9608		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,GOVERNOR CONTROL<W69>	1-15603-061-2	01	1	9609-9702		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>,GOVERNOR CONTROL<W69>	1-15603-203-0	01	1	9703-9901		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SHORT CHASSIS(CX***C) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-203-2	01	1	9905-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. CXZ&LONG CHASSIS(CXZ6MF) INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. FIRE TRUCK<RA9>,ENGINE OIL TEMPERATURE GAUGE<UG3>,GOVERNOR CONTROL<W69>	1-15603-203-2	01	1	9905-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. SHORT CHASSIS(CX***C) EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-202-2	01	1	9905-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. CXZ&LONG CHASSIS(CXZ6MF) EXC. FIRE TRUCK<RA9>,ENGINE OIL TEMPERATURE GAUGE<UG3>,GOVERNOR CONTROL<W69>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-202-2	01	1	9905-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ENGINE OIL TEMPERATURE GAUGE<UG3>	1-15603-206-0	01	1	9905-9905		●		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> GOVERNOR CONTROL<W69> ENGINE OIL TEMPERATURE GAUGE<UG3> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-206-2	01	1	9905-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. CXZ&LONG CHASSIS(CXZ6MF) ENGINE OIL TEMPERATURE GAUGE<UG3> EXC. FIRE TRUCK<RA9>,GOVERNOR CONTROL<W69>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-206-2	01	1	9905-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. FIRE TRUCK<RA9>,ENGINE OIL TEMPERATURE GAUGE<UG3>	1-15603-315-2	01	1	9905-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-209-0	01	1	9905-0001				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-209-1	01	1	0002-				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE OIL TEMPERATURE GAUGE<UG3>	1-15603-370-0	01	1	0002-0003				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. MIXER TRUCK<RA2>	1-15603-370-0	01	1	0002-0003				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15603-370-1	01	1	0004-				●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-201-2	01	1	9905-			●
2	BOLT; INJ PUMP (A) M10X80 FLANGE	0-28181-080-0	04	1	9603-9901	●	●
2	BOLT; INJ PUMP (A) M10X80 FLANGE	0-28181-080-0	04	1	9905-	●	●	●	●
2	BOLT; INJ PUMP (B) M10X95 FLANGE	8-94397-027-1	02	1	9603-9901		●
2	BOLT; INJ PUMP (B) M10X95 FLANGE	8-94397-027-1	02	1	9905-		●	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	9603-9901	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	9905-	●	●	●	●
7	BOLT; INJ PUMP BRKT (B) M10X95 FLANGE	8-94397-027-1	02	1	9603-9901	●
7	BOLT; INJ PUMP BRKT (B) M10X95 FLANGE	8-94397-027-1	02	1	9905-	●
7	BOLT; INJ PUMP BRKT (A) M10X22 FLANGE	0-28181-022-0	01	1	9603-9901	●	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28181-040-0	01	1	9603-9901	●	●
7	BOLT; INJ PUMP BRKT (A) M10X22 FLANGE	0-28181-022-0	01	1	9905-	●	●	●	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28181-040-0	01	1	9905-	●	●	●	●
117	CLIP; INJ PIPE (B)	1-09701-195-1	02	1	9905-		●	●	●
117	CLIP; INJ PIPE (B)	1-09701-195-1	01	1	9703-9901	●
117	CLIP; INJ PIPE (A)	1-09701-196-0	01	1	9703-9901	●
117	CLIP; INJ PIPE (B)	1-09701-195-2	01	1	9905-	●
117	CLIP; INJ PIPE (A)	1-09701-196-1	01	1	9905-	●
117	CLIP; INJ PIPE (B)	1-09701-195-1	02	1	9703-9901		●
117	CLIP; INJ PIPE (A)	1-09701-196-0	02	1	9703-9901		●
117	CLIP; INJ PIPE (A)	1-09701-196-0	02	1	9905-		●	●	●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	01	1	9703-9901	●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	01	1	9905-	●
118	BOLT; CLIP,INJ PIPE (A) M6X30 FLANGE	0-28080-630-0	01	1	9603-9901	●	●
118	BOLT; CLIP,INJ PIPE (A) M6X30 FLANGE	0-28080-630-0	01	1	9905-	●	●	●	●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	02	1	9703-9901		●
118	BOLT; CLIP,INJ PIPE (B) M6X35 FLANGE	0-28080-635-0	02	1	9905-		●	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO(SV1)	1-15415-800-0	01	1	9603-9901	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. ENGINE REAR PTO(SV1)	1-15415-657-0	01	1	9603-9901	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION ENGINE REAR PTO(SV1)	1-15415-800-0	01	1	9905-	●	●		●
121	PIPE; FUEL,FEED PUMP,SUCTION EXC. ENGINE REAR PTO(SV1)	1-15415-657-0	01	1	9905-	●	●	●	●
186	GEAR; INJ PUMP	1-12524-085-2	01	1	9603-9901	●	●
186	GEAR; INJ PUMP	1-12524-085-3	01	1	9905-	●	●	●	●
190	PIPE; FUEL INLET	1-15415-916-0	01	1	9703-9901	●
190	PIPE; FUEL INLET	1-15415-916-0	01	1	9905-	●
190	PIPE; FUEL INLET	1-15415-915-0	01	1	9703-9901		●
190	PIPE; FUEL INLET	1-15415-915-0	01	1	9905-		●	●	●
191	UNION; FLARE M20 L=77.5	9-09223-212-1	01	1	9703-9901	●	●
191	UNION; FLARE M20 L=77.5	9-09233-212-1	01	1	9905-	●	●	●	●
192	NUT; UNION M20	9-99110-420-0	01	1	9703-9901	●	●
192	NUT; UNION M20	9-99110-420-0	01	1	9905-	●	●	●	●
193	WASHER; UNION ID=20.2	9-09150-520-0	01	1	9703-9901	●	●
193	WASHER; UNION ID=20.2	9-09150-520-0	01	1	9905-	●	●	●	●

37 38 40 39 143 44 141 140 31 32 47 140 138 45 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	NOZZLE ASM; INJ	1-15300-204-1	08	1	9603-9901	●
31	NOZZLE ASM; INJ	1-15300-204-1	08	1	9905-	●
31	NOZZLE ASM; INJ	1-15300-204-1	10	1	9603-9901		●
31	NOZZLE ASM; INJ	1-15300-204-1	10	1	9905-		●	●
31	NOZZLE ASM; INJ	1-15300-368-0	10	1	9905-				●
32	HOLDER ASM; NOZZLE	1-15330-089-1	08	1	9603-9901	●
32	HOLDER ASM; NOZZLE	1-15330-089-1	08	1	9905-	●
32	HOLDER ASM; NOZZLE	1-15330-089-1	10	1	9603-9901		●
32	HOLDER ASM; NOZZLE	1-15330-089-1	10	1	9905-		●	●
32	HOLDER ASM; NOZZLE	1-15330-109-0	10	1	9905-				●
33	NOZZLE; INJ	1-15311-180-0	08	1	9603-9901	●
33	NOZZLE; INJ	1-15311-180-0	08	1	9905-	●
33	NOZZLE; INJ	1-15311-180-0	10	1	9603-9901		●
33	NOZZLE; INJ	1-15311-180-0	10	1	9905-		●	●
33	NOZZLE; INJ	1-15311-286-0	10	1	9905-				●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	08	1	9603-9901	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	08	1	9905-	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9603-9901		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	10	1	9905-		●	●	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-015-0	08	1	9603-9901	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-015-0	08	1	9905-	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-015-0	10	1	9603-9901		●
37	NUT; CAP,NOZZLE HOLDER	1-15334-015-0	10	1	9905-		●	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-004-0	10	1	9905-				●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	08	1	9603-9901	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	08	1	9905-	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	10	1	9603-9901		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	10	1	9905-		●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	08	1	9603-9901	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	08	1	9905-	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	10	1	9603-9901		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	10	1	9905-		●	●	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	08	1	9603-9901	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	08	1	9905-	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	10	1	9603-9901		●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	10	1	9905-		●	●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	08	1	9603-9901	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	08	1	9905-	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	10	1	9603-9901		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	10	1	9905-		●	●	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	08	1	9603-9901	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	08	1	9905-	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	10	1	9603-9901		●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	10	1	9905-		●	●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-005-0	10	1	9905-				●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	16	1	9603-9901	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	16	1	9905-	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	9603-9901		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	9905-		●	●	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-015-0	08	1	9603-9901	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-015-0	08	1	9905-	●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-015-0	10	1	9603-9901		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER	1-15339-015-0	10	1	9905-		●	●	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	08	1	9603-9901	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	08	1	9905-	●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	10	1	9603-9901		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	10	1	9905-		●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	9603-9901	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	9905-	●	●	●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	9905-	●	●	●	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-005-0	08	1	9603-9901	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-005-0	08	1	9905-	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-005-0	10	1	9603-9901		●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-005-0	10	1	9905-		●	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-004-0	10	1	9905-				●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	08	1	9603-9901	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	08	1	9905-	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	10	1	9603-9901		●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	10	1	9905-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
