0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#42009) — 93 parça

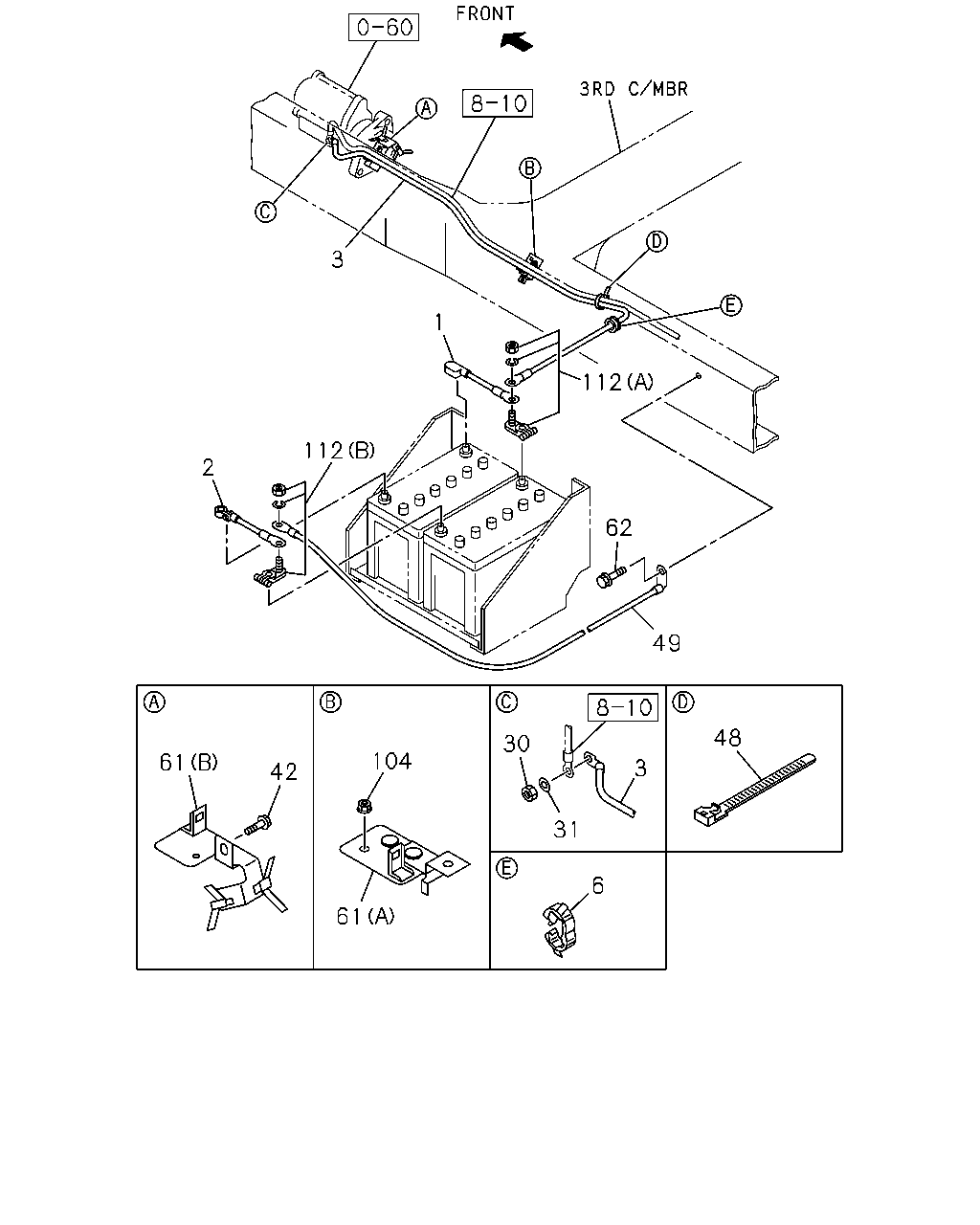

çizim 52633
3 1 112 112 2 62 49 48 30 104 61 3 42 31 6 61
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0507-0606 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0607- ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0302-0506 ●
2 02.341 CABLE; BATTERY
L=180 		8-97230-538-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97359-628-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97359-628-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-627-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97363-573-0 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97363-573-0 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-624-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE(NKC***) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-628-0 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE(NKC***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-625-0 01 1 0607- ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0302-0506 ●
6 02.343 GROMMET; BATTERY CABLE
ID=17 		8-94128-319-2 01 1 0507-0606 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0302-0506 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0507-0512 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-0606 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0607- ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0302-0506 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0507-0603 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-0606 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0607- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0302-0506 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.559 M10X16 FLANGE 		0-28081-016-0 01 1 0507-0512 ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.483 M10X16 FLANGE 		0-28051-016-0 01 1 0601-0606 ●
48 02.343 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 L=250 		5-09707-030-1 01 1 0302-0506 ●
48 02.343 CLIP; CABLE
DUAL RR TIRE(NKC***) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=250 		5-09707-030-1 01 1 0507-0606 ●
48 02.343 CLIP; CABLE
DUAL RR TIRE(NKC***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 L=140 		5-09707-031-1 01 1 0507-0606 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0607- ●
48 02.343 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0607- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0507-0606 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=330 		8-97373-778-0 01 1 0607- ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97353-709-0 01 1 0302-0506 ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97353-709-0 01 1 0507-0606 ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97369-198-1 01 1 0607- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0302-0506 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0507-0606 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0302-0506 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0507-0606 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0607- ●
104 02.343 NUT; BATTERY CABLE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0302-0506 ●
104 02.343 NUT; BATTERY CABLE
04.594 M6 FLANGE 		0-91150-106-0 01 1 0507-0602 ●
104 02.343 NUT; BATTERY CABLE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-0606 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0507-0606 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0607- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0507-0606 ●

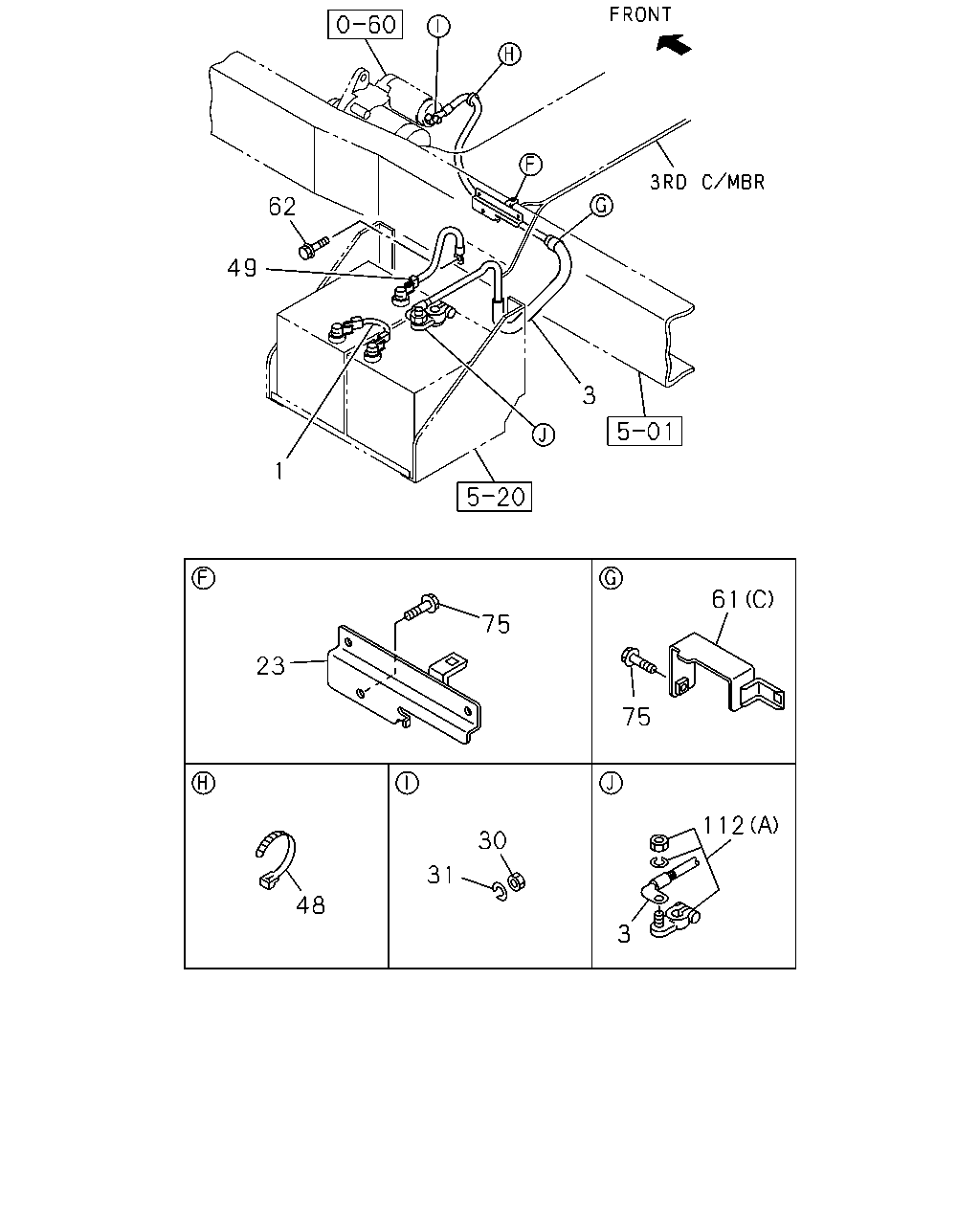

çizim 55161
62 49 3 1 61 75 23 75 112 30 31 48 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0302-0506 ●
1 02.341 CABLE; BATTERY
L=180 		8-97230-530-2 01 1 0507-0606 ●
1 02.341 CABLE; BATTERY
L=280 		8-97230-719-2 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97359-628-1 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97359-628-1 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-627-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97363-573-0 01 1 0302-0506 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97363-573-0 01 1 0507-0606 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-624-1 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE(NKC***) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-628-0 01 1 0607- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE(NKC***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-625-0 01 1 0607- ●
23 02.343 BRACKET; CABLE CLIP TO FRAME 8-98027-977-0 01 1 0607- ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0302-0506 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
02.559 M8 		9-09110-408-0 01 1 0507-0512 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0601-0606 ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 0607- ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0302-0506 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002 ID=8.2 		9-09150-508-0 01 1 0507-0603 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
04.439 ID=8.2 		0-91510-508-0 01 1 0604-0606 ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 0607- ●
48 02.343 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 L=250 		5-09707-030-1 01 1 0302-0506 ●
48 02.343 CLIP; CABLE
DUAL RR TIRE(NKC***) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=250 		5-09707-030-1 01 1 0507-0606 ●
48 02.343 CLIP; CABLE
DUAL RR TIRE(NKC***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 L=140 		5-09707-031-1 01 1 0507-0606 ●
48 02.343 CLIP; CABLE
03.162 L=140 		5-09707-031-1 01 1 0607- ●
48 02.343 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 L=140 		5-09707-031-1 01 1 0607- ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0302-0506 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=500 		8-97035-845-3 01 1 0507-0606 ●
49 02.342 CABLE; BATTERY TO S/MBR,RH
L=330 		8-97373-778-0 01 1 0607- ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97353-709-0 01 1 0302-0506 ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97353-709-0 01 1 0507-0606 ●
61 02.333 BRACKET; BATTERY CABLE
(C) 		8-97369-198-1 01 1 0607- ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0302-0506 ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97362-323-0 01 1 0507-0606 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0302-0506 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0507-0606 ●
62 02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0607- ●
75 02.333 BOLT; BRKT
00.685 M6X25 FLANGE 		0-28650-625-0 01 1 0607- ●
75 02.333 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0607- ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0507-0606 ●
112 02.343 TERMINAL; BATTERY
(A) <+> 		8-97356-925-1 01 1 0607- ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0302-0506 ●
112 02.343 TERMINAL; BATTERY
(B) <-> 		8-97356-926-1 01 1 0507-0606 ●
