0-57 — EMISSION PIPING (#42007) — 162 parça

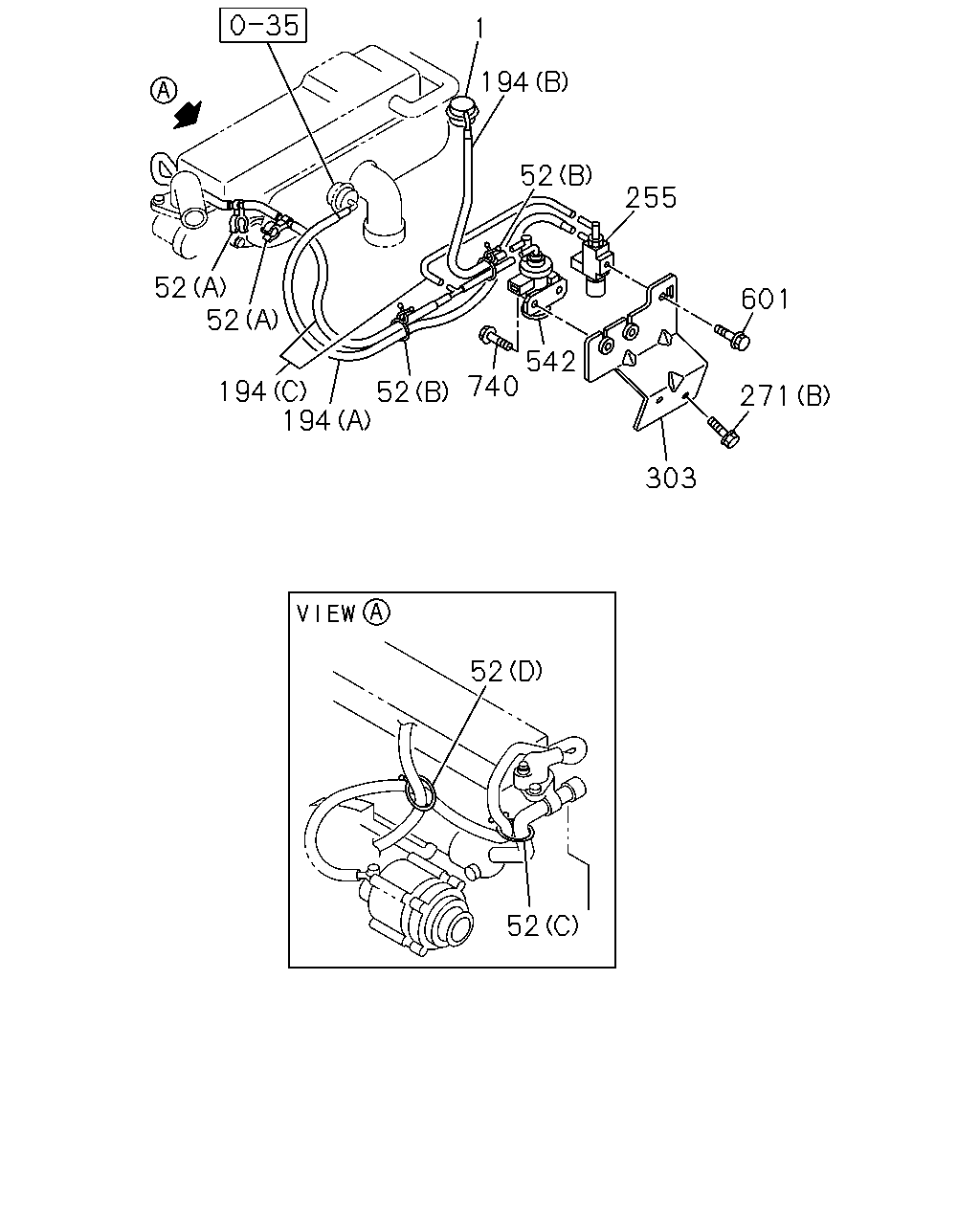

1 194 52 255 52 52 601 542 740 194 194 52 271 303 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0302-0506	●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0507-0606		●
1	03.670 VALVE; EGR	8-97381-560-6	01	1	0607-			●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0302-0506	●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0507-0606		●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0302-0506	●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0507-0606		●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0302-0506	●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0507-0606		●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0302-0506	●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0507-0606		●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0302-0506	●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0507-0606		●
194	03.675 HOSE; VAC (D)	0-04420-270-0	01	1	0607-			●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0302-0506	●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0507-0606		●
194	03.675 HOSE; VAC (E)	8-98031-057-1	01	1	0607-0705			●
194	03.675 HOSE; VAC (E)	8-98085-688-0	01	1	0706-			●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0302-0506	●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0507-0606		●
194	03.675 HOSE; VAC (F)	8-98036-856-0	01	1	0607-			●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0302-0506	●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0507-0606		●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506	●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512		●
271	03.675 BOLT; BRKT 04.338 (A) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606		●
271	03.675 BOLT; BRKT 09.181 (C) M10X45 FLANGE	0-28151-045-0	01	1	0607-			●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●
271	03.675 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●
271	03.675 BOLT; BRKT 02.343 (D) M8X16 FLANGE	0-28050-816-0	01	1	0607-			●
303	03.671 BRACKET; VAC SW	8-97361-243-0	01	1	0302-0506	●
303	03.671 BRACKET; VAC SW	8-97361-243-0	01	1	0507-0606		●
542	03.670 VALVE; VAC REGULATING	8-97240-699-0	01	1	0302-0506	●
542	03.670 VALVE; VAC REGULATING	8-97240-699-0	01	1	0507-0606		●
601	03.417 SCREW; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0302-0506	●
601	03.417 SCREW; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0507-0604		●
601	03.417 SCREW; VSV 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0605-0606		●
740	03.680 BOLT; VAC REG VALVE 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0302-0506	●
740	03.680 BOLT; VAC REG VALVE 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0507-0512		●
740	03.680 BOLT; VAC REG VALVE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-0606		●

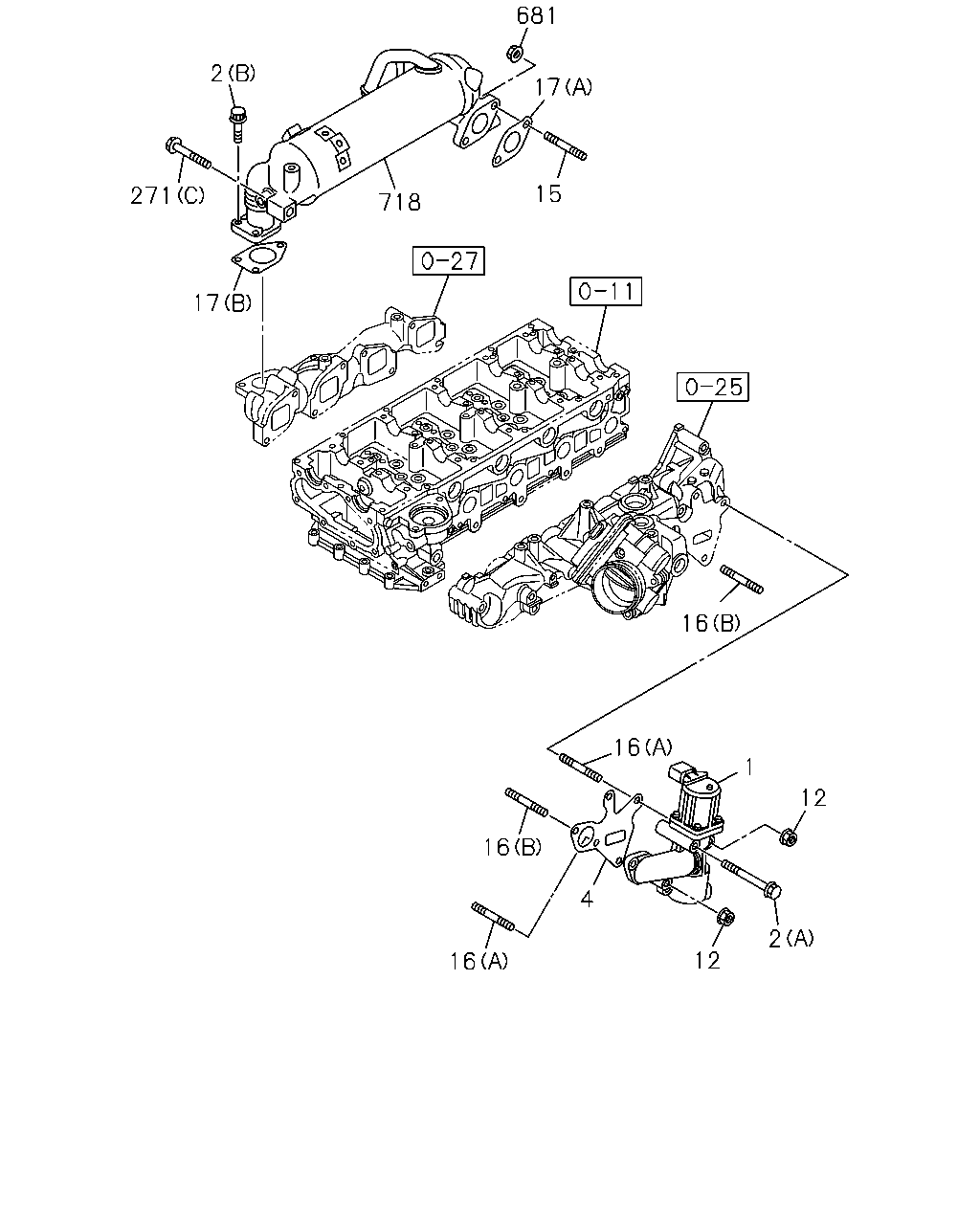

681 2 17 15 271 718 17 16 16 1 12 16 4 2 12 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0302-0506	●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0507-0606		●
1	03.670 VALVE; EGR	8-97381-560-6	01	1	0607-			●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	0607-			●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0607-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0302-0506	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0507-0606		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97384-119-1	01	1	0607-0708			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	01	1	0709-			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0302-0506	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	0607-			●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0607-			●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97104-508-1	04	1	0302-0408	●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0409-0506	●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0507-0606		●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	0607-			●
16	03.275 STUD; EGR VLV 00.413 (C) M8X55 L=67	9-04110-855-0	02	1	0302-0506	●
16	03.275 STUD; EGR VLV 00.413 (C) M8X55 L=67	9-04110-855-0	02	1	0507-0604		●
16	03.275 STUD; EGR VLV 01.097 (C) M8X55 L=67	0-41010-855-0	02	1	0605-0606		●
16	03.275 STUD; EGR VLV (B) M8X25 L=37	0-40210-825-0	02	1	0607-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97357-684-3	01	1	0607-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98017-551-0	01	1	0607-			●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506	●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512		●
271	03.675 BOLT; BRKT 04.338 (A) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606		●
271	03.675 BOLT; BRKT 09.181 (C) M10X45 FLANGE	0-28151-045-0	01	1	0607-			●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●
271	03.675 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●
271	03.675 BOLT; BRKT 02.343 (D) M8X16 FLANGE	0-28050-816-0	01	1	0607-			●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0607-			●

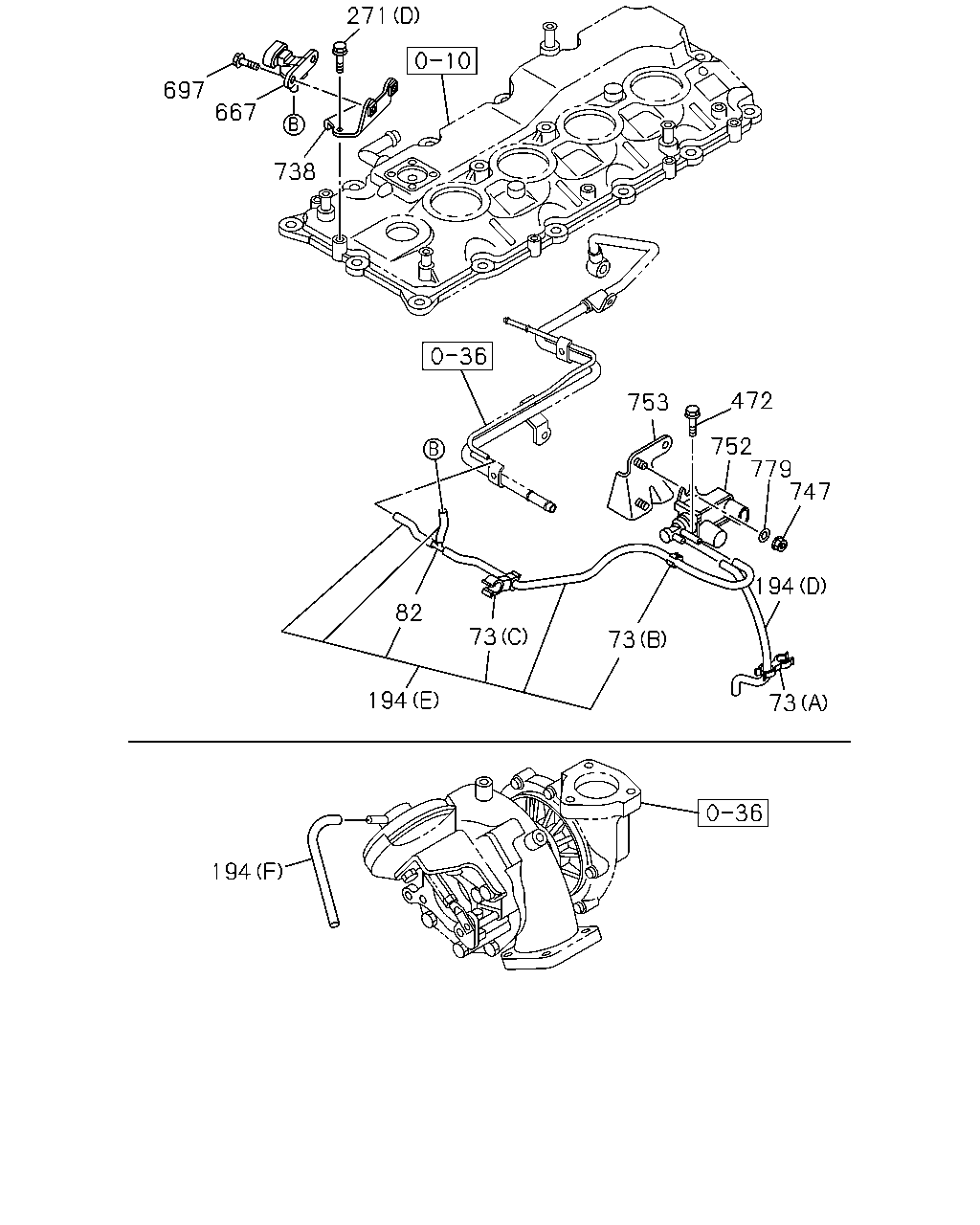

697 667 738 472 753 752 779 747 194 82 73 73 194 73 194 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	0607-			●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	0607-			●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	0607-			●
82	03.680 JOINT; 3 WAY 3WAY	8-98045-385-0	01	1	0607-			●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0302-0506	●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0507-0606		●
194	03.675 HOSE; VAC (D)	0-04420-270-0	01	1	0607-			●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0302-0506	●
194	03.675 HOSE; VAC (B)	8-97249-369-1	01	1	0507-0606		●
194	03.675 HOSE; VAC (E)	8-98031-057-1	01	1	0607-0705			●
194	03.675 HOSE; VAC (E)	8-98085-688-0	01	1	0706-			●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0302-0506	●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0507-0606		●
194	03.675 HOSE; VAC (F)	8-98036-856-0	01	1	0607-			●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506	●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512		●
271	03.675 BOLT; BRKT 04.338 (A) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606		●
271	03.675 BOLT; BRKT 09.181 (C) M10X45 FLANGE	0-28151-045-0	01	1	0607-			●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●
271	03.675 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●
271	03.675 BOLT; BRKT 02.343 (D) M8X16 FLANGE	0-28050-816-0	01	1	0607-			●
472	03.671 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0607-			●
667	03.670 SENSOR; VAC	8-98044-520-0	01	1	0607-			●
697	03.680 BOLT; SENSOR 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0607-			●
738	03.675 BRACKET; SENSOR,VAC	8-98044-607-0	01	1	0607-			●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-			●
752	03.670 VALVE; EVRV	8-97184-183-0	01	1	0607-			●
753	03.670 BRACKET; VALVE	8-97381-571-1	01	1	0607-			●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	0607-			●

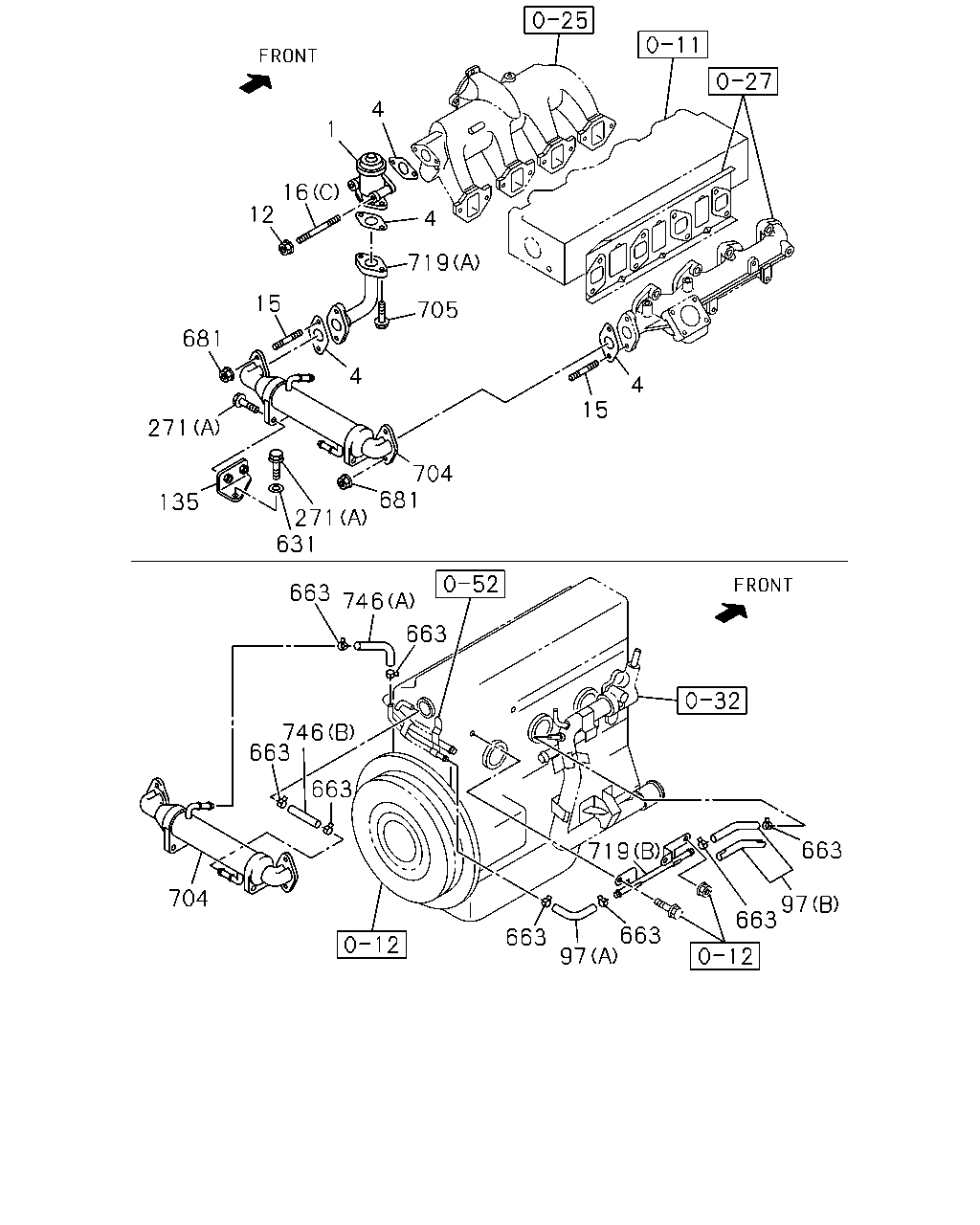

4 1 16 12 4 719 15 705 681 4 4 15 271 704 681 135 271 631 663 746 663 746 663 663 719 663 704 97 663 663 663 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0302-0506	●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0507-0606		●
1	03.670 VALVE; EGR	8-97381-560-6	01	1	0607-			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0302-0506	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0507-0606		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97384-119-1	01	1	0607-0708			●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	01	1	0709-			●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0302-0506	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	0607-			●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0607-			●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97104-508-1	04	1	0302-0408	●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0409-0506	●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0507-0606		●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	0607-			●
16	03.275 STUD; EGR VLV 00.413 (C) M8X55 L=67	9-04110-855-0	02	1	0302-0506	●
16	03.275 STUD; EGR VLV 00.413 (C) M8X55 L=67	9-04110-855-0	02	1	0507-0604		●
16	03.275 STUD; EGR VLV 01.097 (C) M8X55 L=67	0-41010-855-0	02	1	0605-0606		●
16	03.275 STUD; EGR VLV (B) M8X25 L=37	0-40210-825-0	02	1	0607-			●
97	03.675 HOSE; RUBBER (A)	8-97240-636-0	01	1	0302-0506	●
97	03.675 HOSE; RUBBER (A)	8-97240-636-0	01	1	0507-0606		●
97	03.675 HOSE; RUBBER (B)	8-97312-730-0	01	1	0302-0506	●
97	03.675 HOSE; RUBBER (B)	8-97312-730-0	01	1	0507-0606		●
135	03.680 BRACKET; EGR	8-97247-717-2	01	1	0302-0506	●
135	03.680 BRACKET; EGR	8-97247-717-2	01	1	0507-0606		●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506	●
271	03.675 BOLT; BRKT 07.010 (A) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512		●
271	03.675 BOLT; BRKT 04.338 (A) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606		●
271	03.675 BOLT; BRKT 09.181 (C) M10X45 FLANGE	0-28151-045-0	01	1	0607-			●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●
271	03.675 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●
271	03.675 BOLT; BRKT 02.343 (D) M8X16 FLANGE	0-28050-816-0	01	1	0607-			●
631	03.417 WASHER; PL,BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	0302-0506	●
631	03.417 WASHER; PL,BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	0507-0605		●
631	03.417 WASHER; PL,BRKT 06.168 ID=8.4 OD=18	0-91610-608-0	01	1	0606-0606		●
663	03.417 CLIP; HOSE 01.153 ID=12.8	8-94367-943-0	08	1	0302-0506	●
663	03.417 CLIP; HOSE 01.153 ID=12.8	8-94367-943-0	08	1	0507-0606		●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
704	03.337 COOLER ASM; EGR	8-97239-982-3	01	1	0302-0506	●
704	03.337 COOLER ASM; EGR	8-97239-982-3	01	1	0507-0606		●
705	03.675 BOLT; EGR VLV TO EGR PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●
705	03.675 BOLT; EGR VLV TO EGR PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●
705	03.675 BOLT; EGR VLV TO EGR PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●
719	03.675 PIPE; EGR (B)	8-97240-635-2	01	1	0302-0506	●
719	03.675 PIPE; EGR (B)	8-97240-635-2	01	1	0507-0606		●
719	03.675 PIPE; EGR (A)	8-97245-757-2	01	1	0302-0506	●
719	03.675 PIPE; EGR (A)	8-97245-757-2	01	1	0507-0606		●
746	03.675 HOSE; WATER,EGR COOLER 01.097 (B) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0302-0506	●
746	03.675 HOSE; WATER,EGR COOLER 01.097 (B) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0507-0606		●
746	03.675 HOSE; WATER,EGR COOLER (A)	8-97313-126-1	01	1	0302-0506	●
746	03.675 HOSE; WATER,EGR COOLER (A)	8-97313-126-1	01	1	0507-0606		●
