0-40 — FUEL INJECTION SYSTEM (#42001) — 185 parça

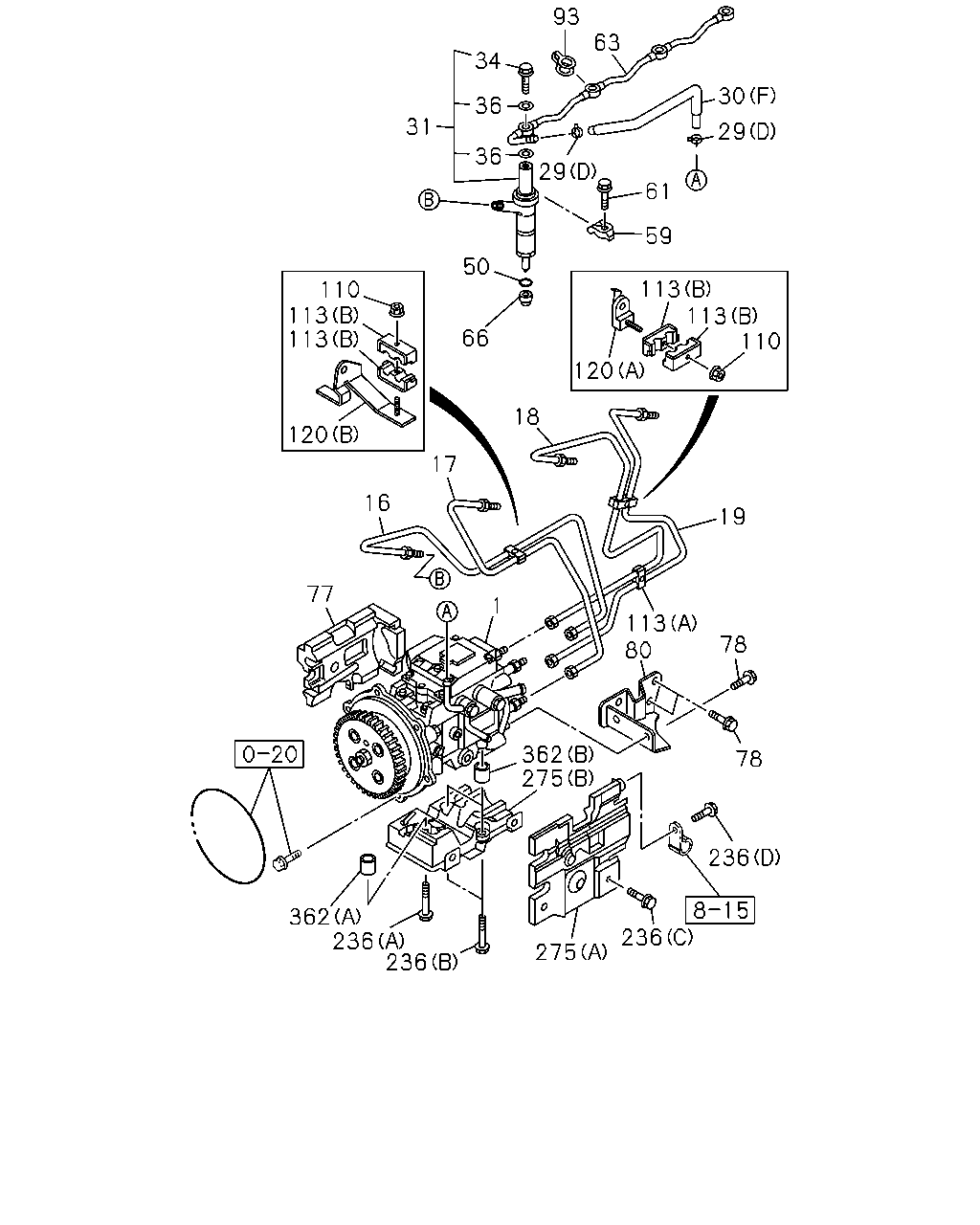

93 63 34 30 36 31 29 36 29 61 59 50 113 113 110 110 113 113 66 120 18 120 17 16 19 77 1 113 80 78 362 275 78 236 236 362 236 236 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97252-341-4	01	1	0302-0506	●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97252-341-5	01	1	0507-0606		●
16	03.330 PIPE; INJ NO.1	8-97255-017-2	01	1	0302-0506	●
16	03.330 PIPE; INJ NO.1	8-97255-017-2	01	1	0507-0606		●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	0607-			●
17	03.330 PIPE; INJ NO.2	8-97255-018-2	01	1	0302-0506	●
17	03.330 PIPE; INJ NO.2	8-97255-018-2	01	1	0507-0606		●
17	03.330 PIPE; INJ NO.2	8-98011-607-0	01	1	0607-			●
18	03.330 PIPE; INJ NO.3	8-97255-019-2	01	1	0302-0506	●
18	03.330 PIPE; INJ NO.3	8-97255-019-2	01	1	0507-0606		●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	0607-			●
19	03.330 PIPE; INJ NO.4	8-97255-020-2	01	1	0302-0506	●
19	03.330 PIPE; INJ NO.4	8-97255-020-2	01	1	0507-0606		●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	0607-			●
29	03.162 CLIP; HOSE 01.219 (D) ID=12	8-94238-610-0	02	1	0302-0302	●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	0302-0506	●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	0507-0606		●
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0607-			●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	0607-			●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320 W/INSULATOR	8-94427-501-2	01	1	0302-0302	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	0302-0506	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	0507-0606		●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0607-			●
31	03.332 NOZZLE ASM; INJ	8-97329-340-0	04	1	0302-0501	●
31	03.332 NOZZLE ASM; INJ	8-97382-949-0	04	1	0502-0506	●
31	03.332 NOZZLE ASM; INJ	8-97382-949-0	04	1	0507-0606		●
31	03.332 NOZZLE ASM; INJ	8-98011-604-2	04	1	0607-			●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0302-0506	●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0507-0606		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE	8-97084-347-0	08	1	0302-0501	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97287-402-1	04	1	0302-0506	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97287-402-2	04	1	0507-0606		●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0302-0506	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0507-0606		●
59	03.332 CLAMP; NOZZLE HOLDER	8-98011-528-2	04	1	0607-			●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0302-0506	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0507-0606		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0302-0506	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97288-702-0	01	1	0507-0606		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0302-0506	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0507-0606		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97251-334-0	04	1	0607-0608			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98057-731-0	04	1	0609-0702			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98077-165-0	04	1	0703-			●
77	03.340 RUBBER; SPACE,INJ PUMP	8-97256-838-1	01	1	0302-0506	●
77	03.340 RUBBER; SPACE,INJ PUMP	8-97256-838-1	01	1	0507-0606		●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0302-0506	●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0507-0512		●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0601-0606		●
80	03.306 BRACKET; PUMP	8-97287-698-3	01	1	0302-0506	●
80	03.306 BRACKET; PUMP	8-97287-698-3	01	1	0507-0606		●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	0403-0506	●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	0507-0606		●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0302-0506	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0507-0602		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-0606		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0607-			●
113	03.162 CLIP; INJ PIPE (B)	1-09701-132-1	04	1	0302-0506	●
113	03.162 CLIP; INJ PIPE (B)	1-09701-132-1	04	1	0507-0606		●
113	03.162 CLIP; INJ PIPE (A)	8-97224-041-1	01	1	0302-0506	●
113	03.162 CLIP; INJ PIPE (A)	8-97224-041-1	01	1	0507-0606		●
120	03.330 BRACKET; INJ PIPE (A)	8-97224-300-0	01	1	0302-0505	●
120	03.330 BRACKET; INJ PIPE (A)	8-98015-024-0	01	1	0506-0506	●
120	03.330 BRACKET; INJ PIPE (A)	8-98015-024-0	01	1	0507-0606		●
120	03.330 BRACKET; INJ PIPE (B)	8-97257-906-0	01	1	0302-0506	●
120	03.330 BRACKET; INJ PIPE (B)	8-97257-906-0	01	1	0507-0606		●
236	03.335 BOLT; COVER 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0302-0506	●
236	03.335 BOLT; COVER 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0507-0512		●
236	03.335 BOLT; COVER 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	0601-0606		●
236	03.335 BOLT; COVER 09.171 (A) M10X45 FLANGE	0-28181-045-0	01	1	0302-0506	●
236	03.335 BOLT; COVER 09.171 (A) M10X45 FLANGE	0-28181-045-0	01	1	0507-0512		●
236	03.335 BOLT; COVER 09.181 (A) M10X45 FLANGE	0-28151-045-0	01	1	0601-0606		●
236	03.335 BOLT; COVER 08.900 (B) M10X50 FLANGE	0-28181-050-0	02	1	0302-0506	●
236	03.335 BOLT; COVER 08.900 (B) M10X50 FLANGE	0-28181-050-0	02	1	0507-0512		●
236	03.335 BOLT; COVER 02.042 (B) M10X50 FLANGE	0-28151-050-0	02	1	0601-0606		●
236	03.335 BOLT; COVER 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	0302-0506	●
236	03.335 BOLT; COVER 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	0507-0512		●
236	03.335 BOLT; COVER 01.531 (D) M8X20 FLANGE	0-28650-820-0	01	1	0601-0606		●
275	03.335 COVER; INJ PUMP (A)	8-97259-887-2	01	1	0302-0302	●
275	03.335 COVER; INJ PUMP (A)	8-97329-014-0	01	1	0303-0506	●
275	03.335 COVER; INJ PUMP (A)	8-97329-014-0	01	1	0507-0606		●
275	03.335 COVER; INJ PUMP (B)	8-97259-888-2	01	1	0302-0302	●
275	03.335 COVER; INJ PUMP (B)	8-97329-016-0	01	1	0303-0506	●
275	03.335 COVER; INJ PUMP (B)	8-97329-016-0	01	1	0507-0606		●
362	03.330 PIPE; GUIDE (A)	8-97287-007-0	01	1	0302-0506	●
362	03.330 PIPE; GUIDE (A)	8-97287-007-0	01	1	0507-0606		●
362	03.330 PIPE; GUIDE (B)	8-97287-008-0	02	1	0302-0506	●
362	03.330 PIPE; GUIDE (B)	8-97287-008-0	02	1	0507-0606		●

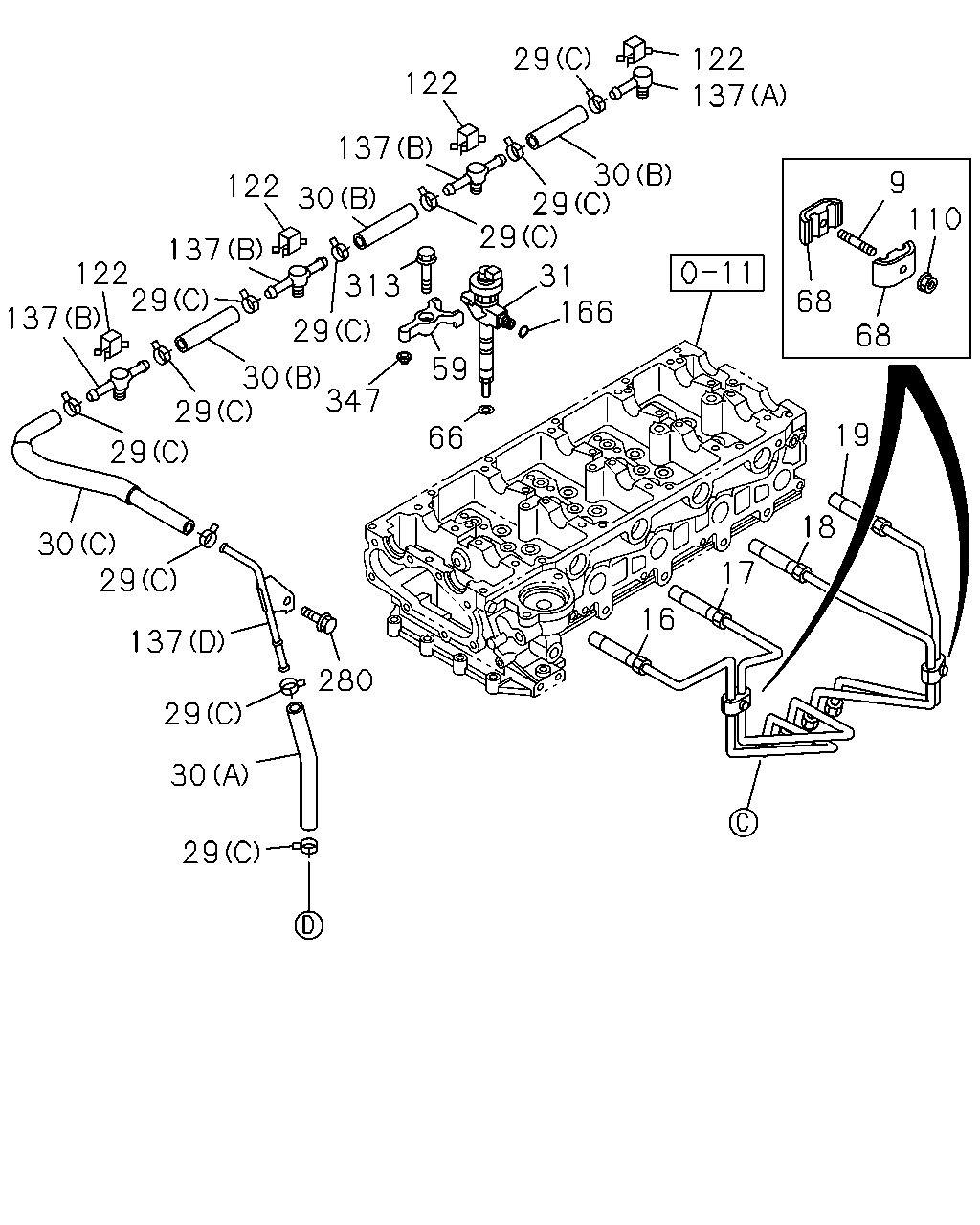

29 122 137 122 137 30 29 29 9 110 122 30 137 122 29 31 166 313 68 137 29 68 59 30 347 29 19 66 29 18 30 29 17 16 137 280 29 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.340 STUD; CLIP 03.162 M6X25 L=36	8-97214-234-1	02	1	0607-			●
16	03.330 PIPE; INJ NO.1	8-97255-017-2	01	1	0302-0506	●
16	03.330 PIPE; INJ NO.1	8-97255-017-2	01	1	0507-0606		●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	0607-			●
17	03.330 PIPE; INJ NO.2	8-97255-018-2	01	1	0302-0506	●
17	03.330 PIPE; INJ NO.2	8-97255-018-2	01	1	0507-0606		●
17	03.330 PIPE; INJ NO.2	8-98011-607-0	01	1	0607-			●
18	03.330 PIPE; INJ NO.3	8-97255-019-2	01	1	0302-0506	●
18	03.330 PIPE; INJ NO.3	8-97255-019-2	01	1	0507-0606		●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	0607-			●
19	03.330 PIPE; INJ NO.4	8-97255-020-2	01	1	0302-0506	●
19	03.330 PIPE; INJ NO.4	8-97255-020-2	01	1	0507-0606		●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	0607-			●
29	03.162 CLIP; HOSE 01.219 (D) ID=12	8-94238-610-0	02	1	0302-0302	●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	0302-0506	●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	0507-0606		●
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0607-			●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	0607-			●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320 W/INSULATOR	8-94427-501-2	01	1	0302-0302	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	0302-0506	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	0507-0606		●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0607-			●
31	03.332 NOZZLE ASM; INJ	8-97329-340-0	04	1	0302-0501	●
31	03.332 NOZZLE ASM; INJ	8-97382-949-0	04	1	0502-0506	●
31	03.332 NOZZLE ASM; INJ	8-97382-949-0	04	1	0507-0606		●
31	03.332 NOZZLE ASM; INJ	8-98011-604-2	04	1	0607-			●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0302-0506	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0507-0606		●
59	03.332 CLAMP; NOZZLE HOLDER	8-98011-528-2	04	1	0607-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0302-0506	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0507-0606		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97251-334-0	04	1	0607-0608			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98057-731-0	04	1	0609-0702			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98077-165-0	04	1	0703-			●
68	03.162 CLIP; INJ PIPE	8-97213-481-0	04	1	0607-			●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0302-0506	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0507-0602		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-0606		●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0607-			●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	0607-			●
137	03.163 PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	0607-			●
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0607-			●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	0607-			●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	0607-			●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	0607-			●
280	03.330 BOLT; CLIP,FUEL HOSE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-			●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-97372-144-0	04	1	0607-			●
347	03.332 PIN	8-97383-286-0	04	1	0607-			●

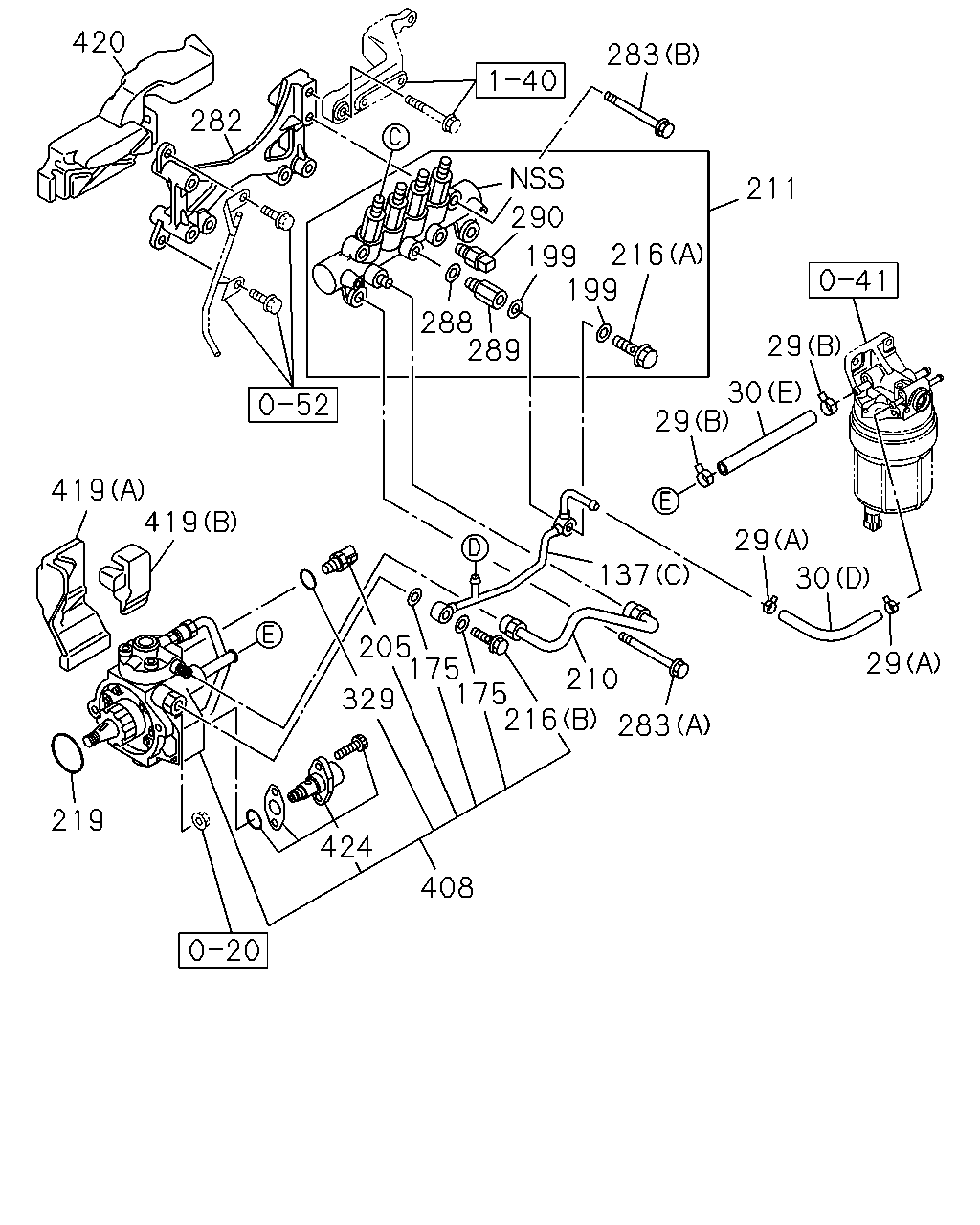

420 283 282 211 290 199 288 289 29 30 29 419 419 29 137 30 205 175 175 216 29 210 329 283 219 424 408 199 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	03.162 CLIP; HOSE 01.219 (D) ID=12	8-94238-610-0	02	1	0302-0302	●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	0302-0506	●
29	03.162 CLIP; HOSE 03.163 (D) ID=11	8-97173-219-0	02	1	0507-0606		●
29	03.162 CLIP; HOSE 00.034 (A) ID=12 WO/PVC COATING	8-94123-526-1	02	1	0607-			●
29	03.162 CLIP; HOSE 01.240 (B) ID=16	8-94392-924-0	02	1	0607-			●
29	03.162 CLIP; HOSE 03.374 (C) ID=10.5	8-97019-473-0	10	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320 W/INSULATOR	8-94427-501-2	01	1	0302-0302	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	0302-0506	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=320	8-97364-773-0	01	1	0507-0606		●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=130	0-01804-130-0	01	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=98	8-97354-652-0	03	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=150	8-97362-306-2	01	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (D) L=110	8-97377-894-0	01	1	0607-			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=265	8-98009-700-2	01	1	0607-			●
137	03.163 PIPE ASM; LEAK OFF (A)	8-97315-230-2	01	1	0607-			●
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0607-			●
137	03.163 PIPE ASM; LEAK OFF (C)	8-98009-699-0	01	1	0607-			●
137	03.163 PIPE ASM; LEAK OFF (D)	8-98036-510-0	01	1	0607-			●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	0607-			●
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	0607-			●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0607-			●
210	03.330 PIPE; INJ,C/R	8-97388-902-0	01	1	0607-			●
211	03.331 RAIL ASM; COMMON	8-98011-888-1	01	1	0607-			●
216	03.162 BOLT; EYE 03.280 (B)	9-88130-088-0	01	1	0607-			●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0607-			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	0607-			●
282	03.163 BRACKET; COMMON RAIL	8-98009-093-3	01	1	0607-0607			●
282	03.163 BRACKET; COMMON RAIL	8-98053-912-0	01	1	0608-			●
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	0607-			●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	0607-			●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0607-			●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	0607-			●
290	03.331 SENSOR; PRESS	8-97318-684-0	01	1	0607-			●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0607-			●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97381-555-4	01	1	0607-			●
419	03.340 RUBBER; SPACE,PUMP (A)	8-98037-442-0	01	1	0607-			●
419	03.340 RUBBER; SPACE,PUMP (B)	8-98037-443-0	01	1	0607-			●
420	03.340 RUBBER; SPACE,COMMON RAIL	8-98037-444-1	01	1	0607-			●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98101-288-0	01	1	0607-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
