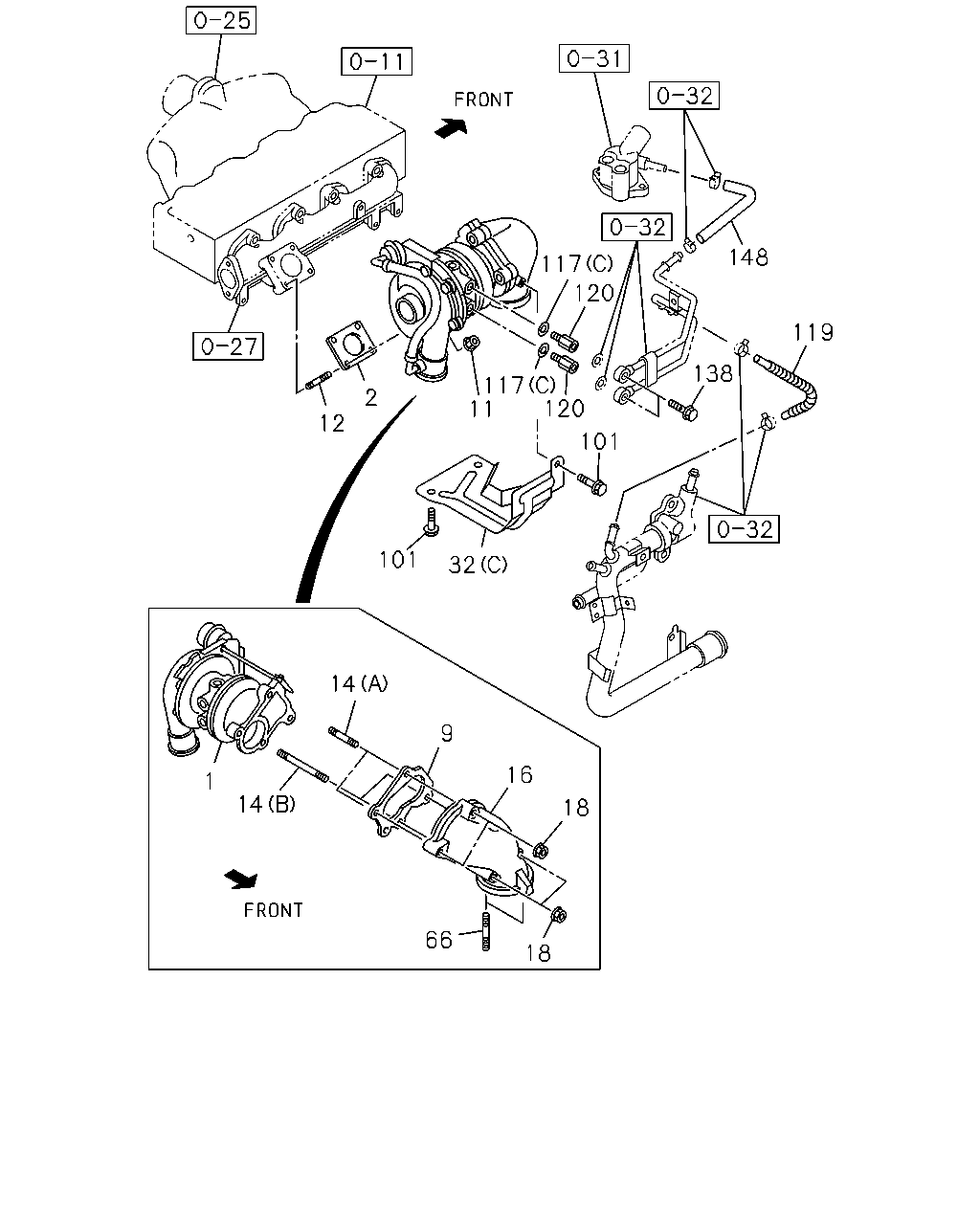

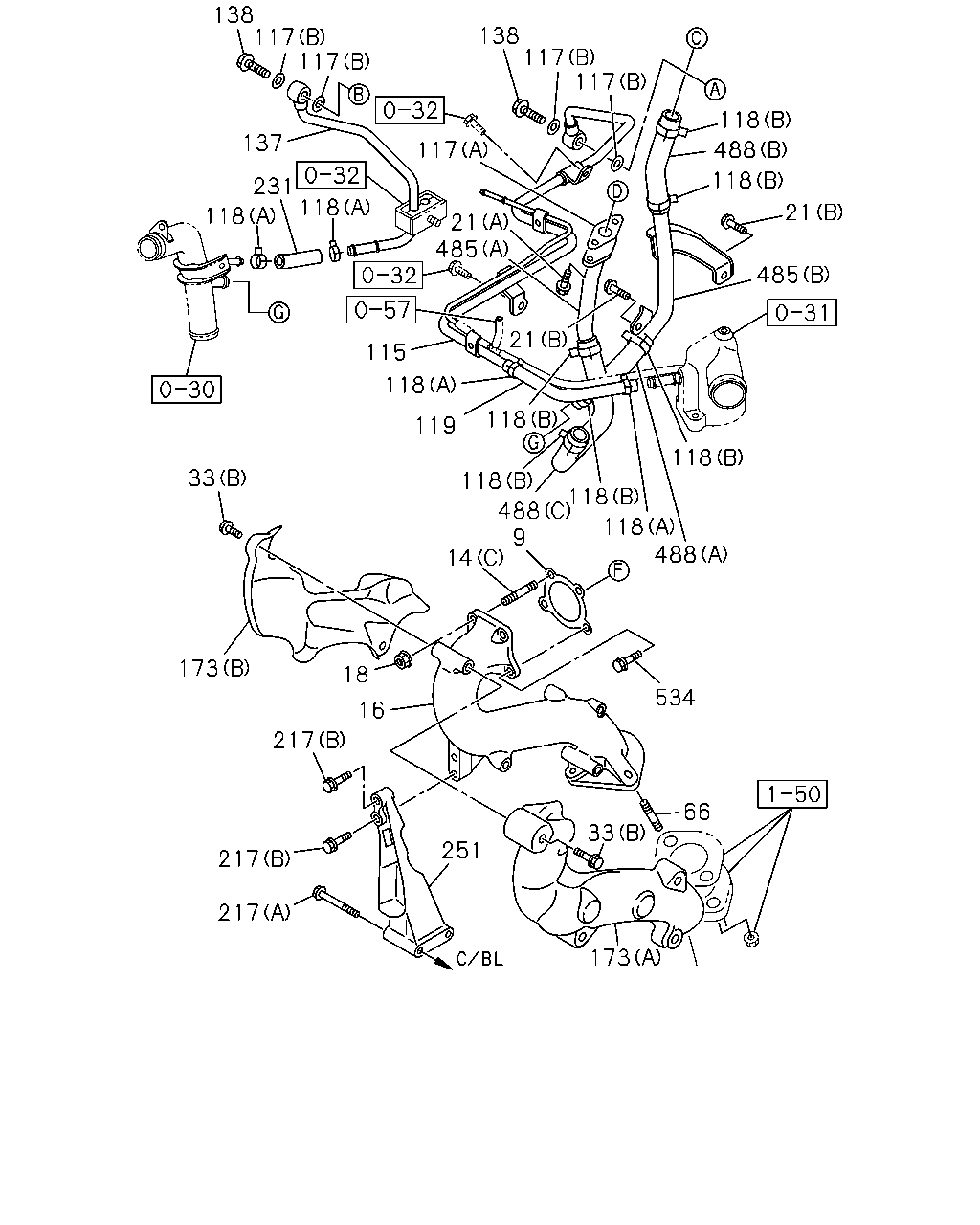

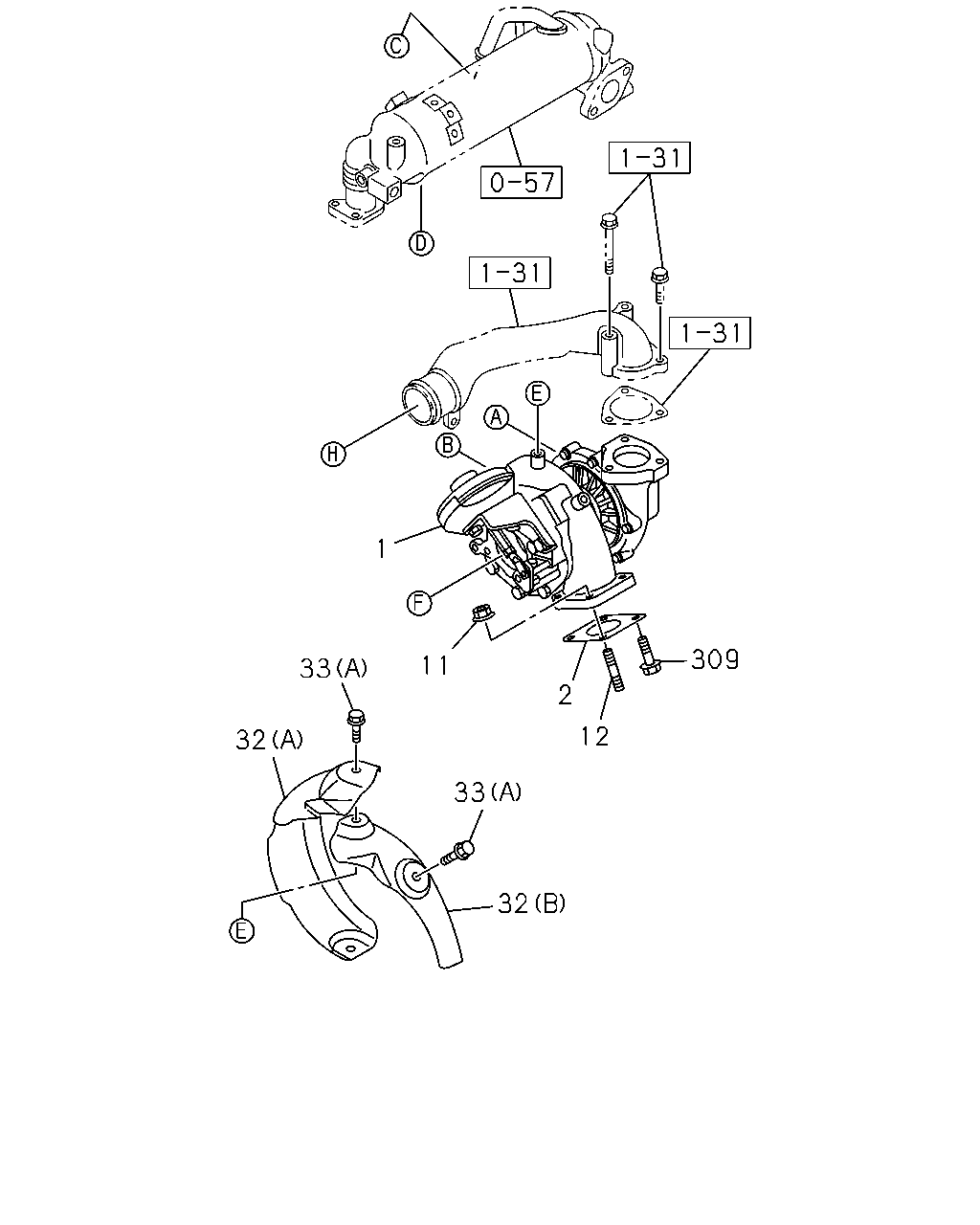

0-36 — TURBOCHARGER SYSTEM (#41999) — 136 parça

138 117 117 138 117 117 118 117 137 488 118 231 118 21 118 21 485 485 21 115 118 118 119 118 33 118 118 488 9 14 118 488 173 18 534 16 217 66 33 251 217 217 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0302-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0507-0606		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	0607-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X81	8-94107-532-1	02	1	0302-0408	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X81 L=92	8-97378-068-0	02	1	0409-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X81 L=92	8-97378-068-0	02	1	0507-0606		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X41 L=52	8-97188-452-0	04	1	0302-0406	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X41 L=52	8-97188-452-0	02	1	0407-0408	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X43 L=54	8-97104-507-1	02	1	0407-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X43 L=54	8-97104-507-1	02	1	0507-0606		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	04	1	0607-0608			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0609-			●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0302-0506	●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0507-0606		●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0607-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0302-0506	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0507-0606		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0607-0608			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0609-			●
21	03.358 BOLT; PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0607-			●
21	03.358 BOLT; PIPE (A) M6X20 HEX SOCKET	0-58330-620-0	02	1	0607-			●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0607-			●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0607-			●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0302-0506	●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0507-0606		●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0607-			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-97381-648-2	01	1	0607-0708			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98091-838-0	01	1	0709-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) T=2.5	8-94472-584-1	02	1	0302-0506	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) T=2.5	8-94472-584-1	02	1	0507-0606		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0607-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0607-			●
118	03.342 CLIP; WATER HOSE 01.153 (A) ID=12.8	8-94367-943-0	04	1	0607-			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=22	8-94382-401-0	06	1	0607-			●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0302-0506	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0507-0606		●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0607-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97381-650-0	01	1	0607-			●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0302-0506	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0507-0606		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0607-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (A)	8-98032-022-3	01	1	0607-			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE (B)	8-98032-024-3	01	1	0607-			●
217	03.417 BOLT; BRKT 03.706 (A) M10X70 FLANGE	0-28051-070-0	02	1	0607-			●
217	03.417 BOLT; BRKT 03.604 (B) M10X30 FLANGE	8-98032-158-0	02	1	0607-			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-98030-402-0	01	1	0607-			●
251	03.417 BRACKET; ADAPTER	8-98009-098-1	01	1	0607-			●
485	01.097 PIPE; WATER EGR (A)	8-97381-651-0	01	1	0607-			●
485	01.097 PIPE; WATER EGR (B)	8-97381-652-0	01	1	0607-			●
488	03.163 HOSE; RUBBER 01.540 (A) L=110 SERVICED BY L=3000	0-03566-300-0	01	1	0607-			●
488	03.163 HOSE; RUBBER 01.540 (B) L=120 SERVICED BY L=3000	0-03566-300-0	01	1	0607-0607			●
488	03.163 HOSE; RUBBER (B) L=120 SERVICED BY L=3000	0-03666-300-0	01	1	0608-			●
488	03.163 HOSE; RUBBER (C)	8-98015-118-0	01	1	0607-			●
534	03.342 BOLT; TURBOCHARGER TO EXH PIPE 03.417 M8X23 FLANGE	8-97378-077-0	01	1	0609-			●

148 117 120 119 138 117 11 120 2 12 101 101 32 14 9 16 1 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0302-0506	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0507-0606		●
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0607-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0302-0506	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0507-0606		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0607-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0302-0506	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-97263-123-0	01	1	0507-0606		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.611	8-98011-532-0	01	1	0607-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0607-			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0302-0408	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0506	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0507-0606		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0607-			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X81	8-94107-532-1	02	1	0302-0408	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X81 L=92	8-97378-068-0	02	1	0409-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X81 L=92	8-97378-068-0	02	1	0507-0606		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X41 L=52	8-97188-452-0	04	1	0302-0406	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X41 L=52	8-97188-452-0	02	1	0407-0408	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X43 L=54	8-97104-507-1	02	1	0407-0506	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X43 L=54	8-97104-507-1	02	1	0507-0606		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	04	1	0607-0608			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE 03.601 (C) M8X25 L=36	8-97378-062-0	03	1	0609-			●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0302-0506	●
16	03.609 ADAPTER; EXH PIPE	8-97240-009-0	01	1	0507-0606		●
16	03.609 ADAPTER; EXH PIPE	8-98009-717-3	01	1	0607-			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0302-0506	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0507-0606		●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0607-0608			●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	03	1	0609-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-97258-821-0	01	1	0302-0506	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-97258-821-0	01	1	0507-0606		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	0607-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0607-			●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0302-0506	●
66	03.342 STUD; EXH PIPE 03.613 M10X45 L=60 PLATING	5-09302-008-1	02	1	0507-0606		●
66	03.342 STUD; EXH PIPE M10X25 L=45	0-43211-025-0	03	1	0607-			●
101	03.602 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0302-0506	●
101	03.602 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0507-0512		●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0601-0606		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) T=2.5	8-94472-584-1	02	1	0302-0506	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) T=2.5	8-94472-584-1	02	1	0507-0606		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (A)	8-97262-117-0	01	1	0607-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	04	1	0607-			●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0302-0506	●
119	03.342 HOSE; WATER,TURBOCHARGER	8-97312-729-0	01	1	0507-0606		●
119	03.342 HOSE; WATER,TURBOCHARGER	8-98022-074-0	01	1	0607-			●
120	01.097 ADAPTER; WATER	8-94472-583-0	02	1	0302-0506	●
120	01.097 ADAPTER; WATER	8-94472-583-0	02	1	0507-0606		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0302-0506	●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0507-0606		●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0607-			●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0302-0506	●
148	03.417 HOSE; TURBOCHARGER,INL 01.097 L=280 SERVICED BY L=3000	0-03559-300-0	01	1	0507-0606		●

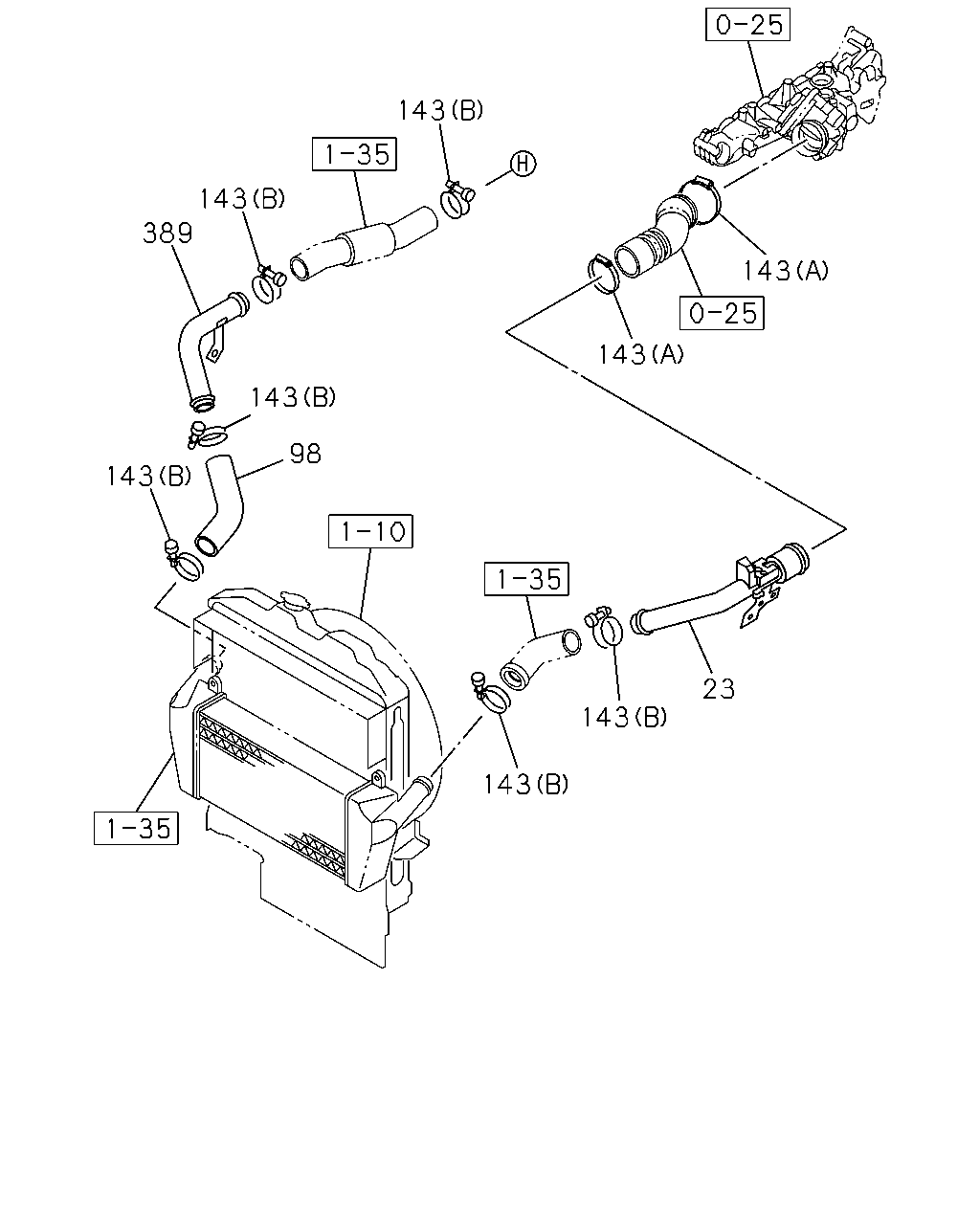

143 143 389 143 143 143 98 143 23 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98048-021-2	01	1	0607-	●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-98040-182-2	01	1	0607-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=68-85	1-09707-202-0	02	1	0607-	●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=50-65	1-09707-204-0	06	1	0607-	●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-98048-096-0	01	1	0607-	●

1 309 11 33 2 12 32 33 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0302-0506	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97240-008-3	01	1	0507-0606		●
1	03.342 TURBOCHARGER ASM	8-97381-507-4	01	1	0607-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0302-0506	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97288-577-0	01	1	0507-0606		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94433-605-0	01	1	0607-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606		●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	02	1	0607-			●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0302-0408	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0506	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0507-0606		●
12	03.342 STUD; TURBOCHARGER 03.601 M8X25 L=36	8-97378-062-0	02	1	0607-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-97258-821-0	01	1	0302-0506	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (C)	8-97258-821-0	01	1	0507-0606		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (A)	8-98034-990-3	01	1	0607-			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER (B)	8-98034-991-1	01	1	0607-			●
33	03.342 BOLT; HEAT PROTECTOR 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0607-			●
33	03.342 BOLT; HEAT PROTECTOR 02.343 (B) M8X12 FLANGE	0-28050-812-0	07	1	0607-			●
309	03.342 BOLT; TURBOCHARGER 02.277 M8X28 FLANGE	8-94396-974-0	02	1	0607-0701			●
309	03.342 BOLT; TURBOCHARGER 03.417 M8X28 FLANGE	8-98043-528-0	02	1	0702-			●
