Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#41996) — 43 parça

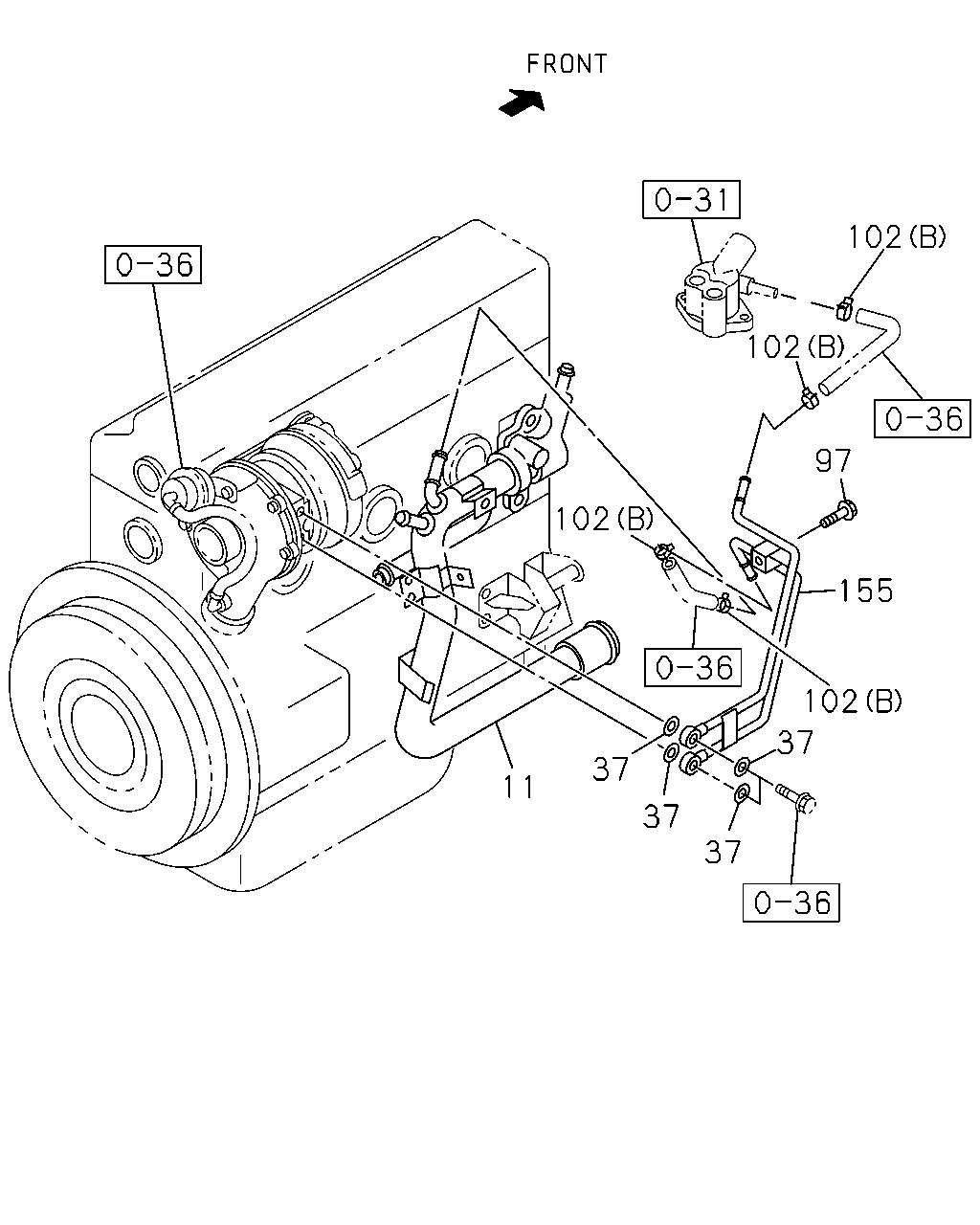

102 102 97 102 155 102 37 37 11 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	01.097 PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0302-0506	●
11	01.097 PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0507-0606		●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=12.2	9-09571-412-0	04	1	0302-0506	●
37	01.242 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=12.2	9-09571-412-0	04	1	0507-0606		●
97	04.866 BOLT; WATER PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0302-0506	●
97	04.866 BOLT; WATER PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●
97	04.866 BOLT; WATER PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606		●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0302-0506	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0507-0606		●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0302-0506	●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0507-0606		●
155	01.153 PIPE ASM; WATER	8-97239-995-0	01	1	0302-0506	●
155	01.153 PIPE ASM; WATER	8-97239-995-0	01	1	0507-0606		●

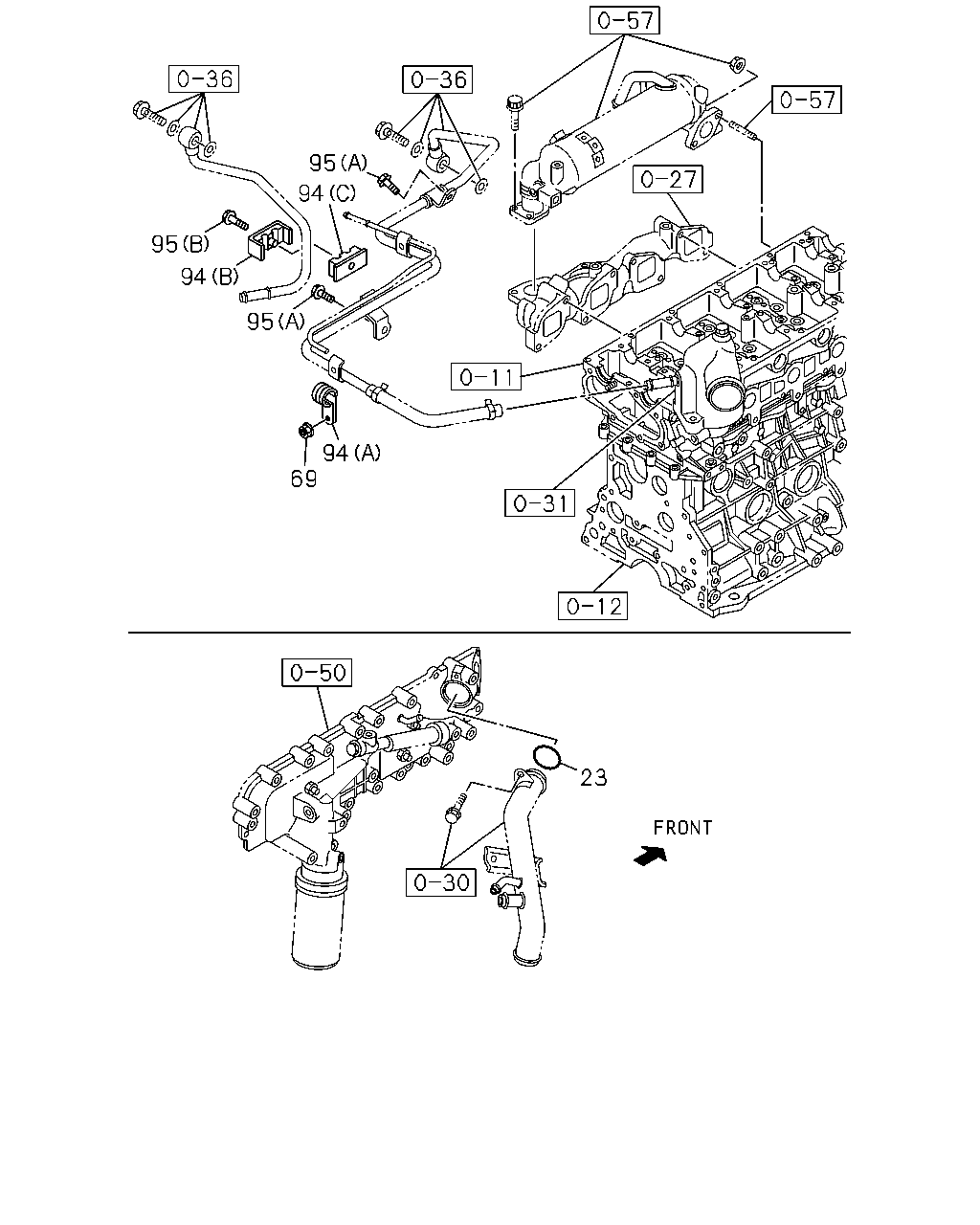

95 94 95 94 95 94 69 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0302-0506	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0507-0606		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	0-95690-338-0	01	1	0607-			●
69	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	01	1	0607-			●
94	01.153 CLIP; WATER PIPE 04.047 (A)	1-09700-911-1	01	1	0607-			●
94	01.153 CLIP; WATER PIPE 01.531 (B)	1-09701-228-2	01	1	0607-			●
94	01.153 CLIP; WATER PIPE 01.531 (C)	1-09701-229-1	01	1	0607-			●
95	01.240 BOLT; CLIP 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	0607-			●
95	01.240 BOLT; CLIP 03.162 (B) M6X35 FLANGE	0-28650-635-0	01	1	0607-			●

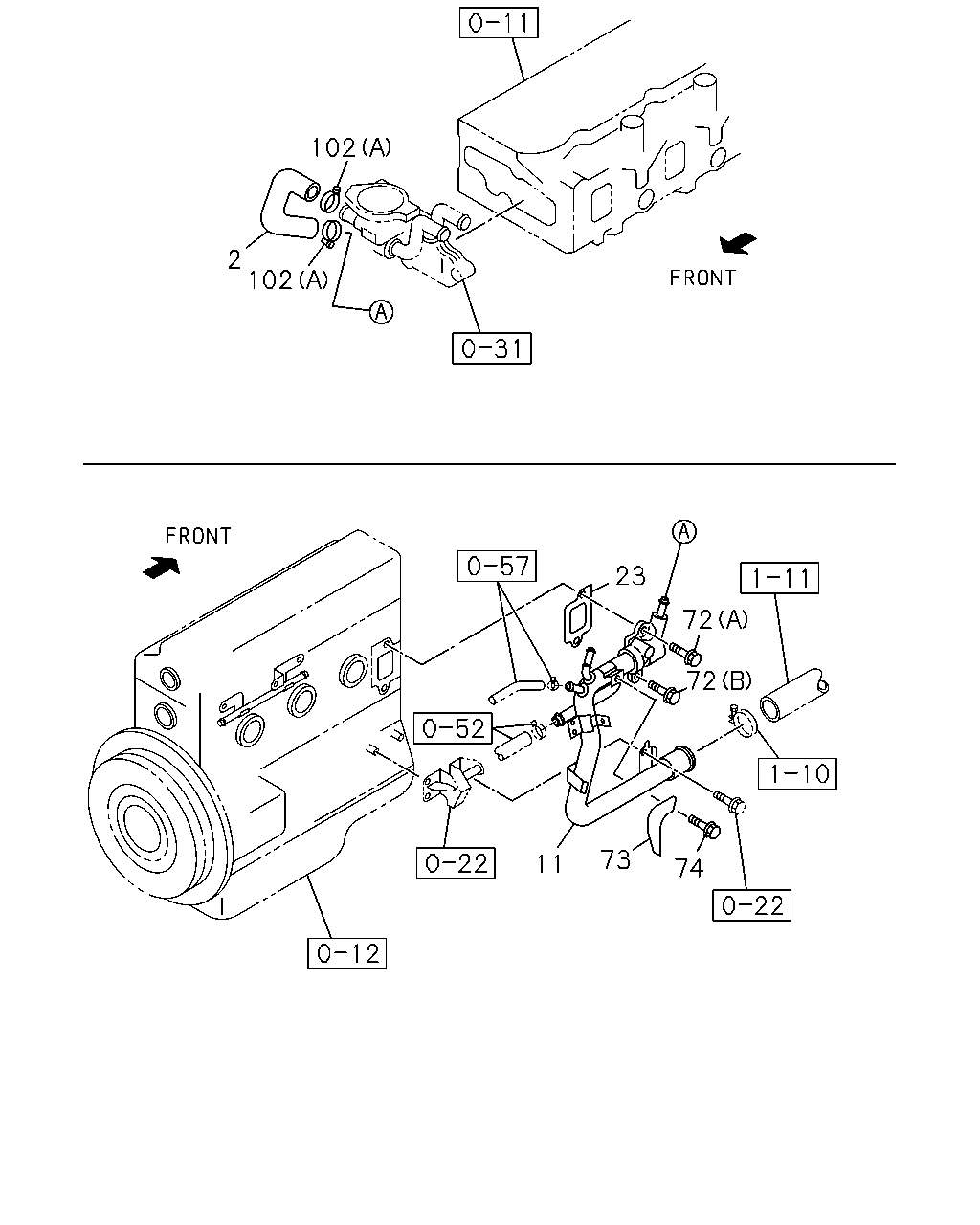

102 2 102 23 72 72 73 11 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0302-0506	●
2	01.097 HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0507-0606		●
11	01.097 PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0302-0506	●
11	01.097 PIPE; INL,WATER PUMP	8-97239-994-3	01	1	0507-0606		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0302-0506	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0507-0606		●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	0-95690-338-0	01	1	0607-			●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0302-0506	●
72	00.206 BOLT; WATER PIPE 07.010 (A) M8X20 FLANGE	0-28080-820-0	01	1	0507-0512		●
72	00.206 BOLT; WATER PIPE 04.338 (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-0606		●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0302-0506	●
72	00.206 BOLT; WATER PIPE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0507-0606		●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0302-0506	●
73	01.097 PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0507-0606		●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0302-0506	●
74	01.097 BOLT; HEAT PROTECTOR FIX 12.187 M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0507-0512		●
74	01.097 BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50640-816-0	03	1	0601-0606		●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0302-0506	●
102	01.252 CLIP; WATER HOSE 01.166 (A) ID=20.8	8-94125-862-1	02	1	0507-0606		●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0302-0506	●
102	01.252 CLIP; WATER HOSE 01.153 (B) ID=12.8	8-94367-943-0	04	1	0507-0606		●
