0-30 — WATER PUMP AND CORROSION RESISTOR (#41994) — 36 parça

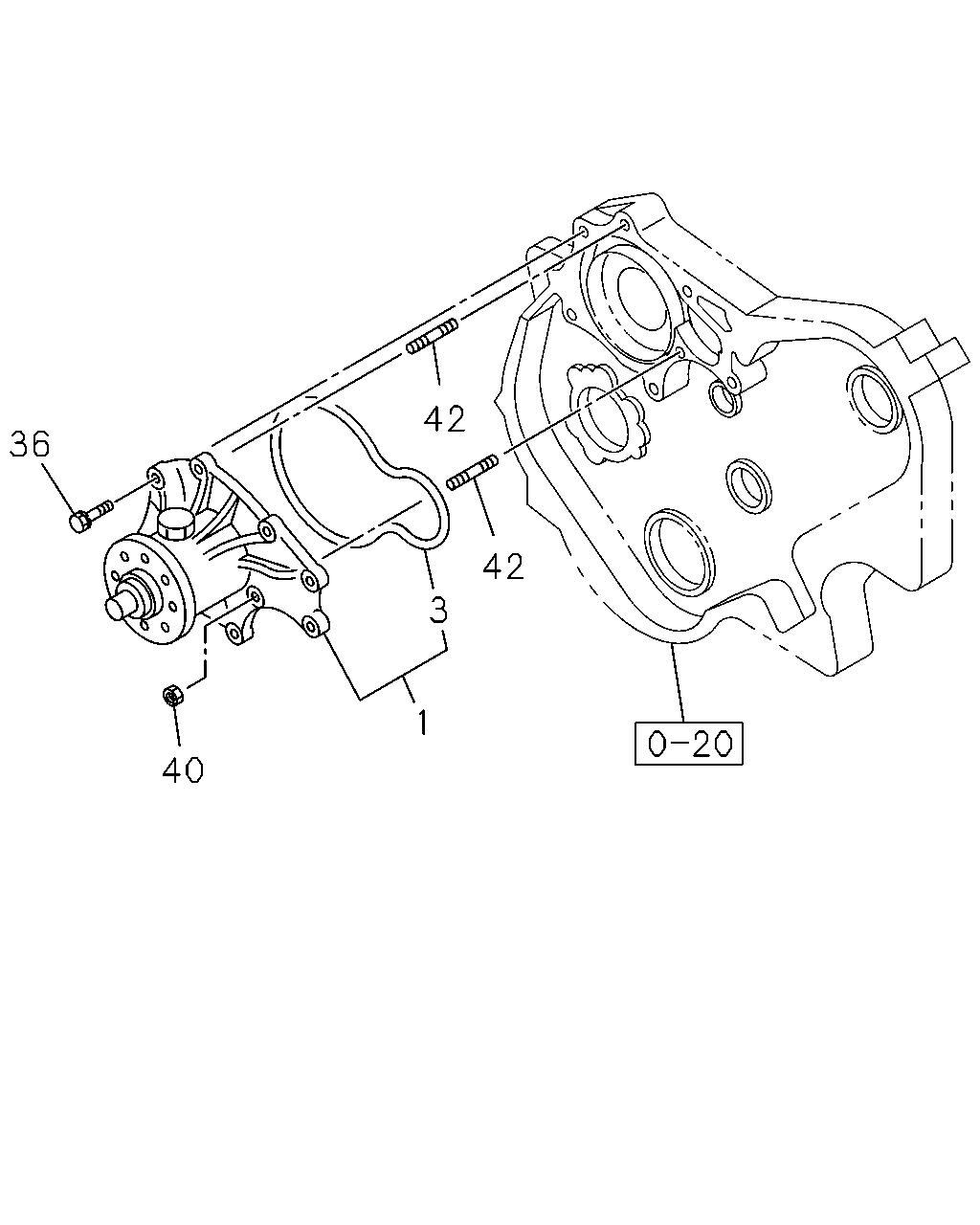

42 36 42 3 1 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-3	01	1	0302-0506	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-3	01	1	0507-0606		●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	0302-0506	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	0507-0606		●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-156-0	01	1	0607-			●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	0302-0506	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	0507-0606		●
36	00.386 BOLT; WATER PUMP TO C/BL 04.686 M8X60 FLANGE	0-28050-860-0	04	1	0607-			●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●
40	07.874 NUT; WATER PUMP 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●
40	07.874 NUT; WATER PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	0302-0506	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	0507-0604		●
42	01.073 STUD; WATER PUMP M8X22 L=34	0-41010-822-0	02	1	0605-0606		●
42	01.073 STUD; WATER PUMP M8X28 L=40	0-41010-828-0	02	1	0607-			●

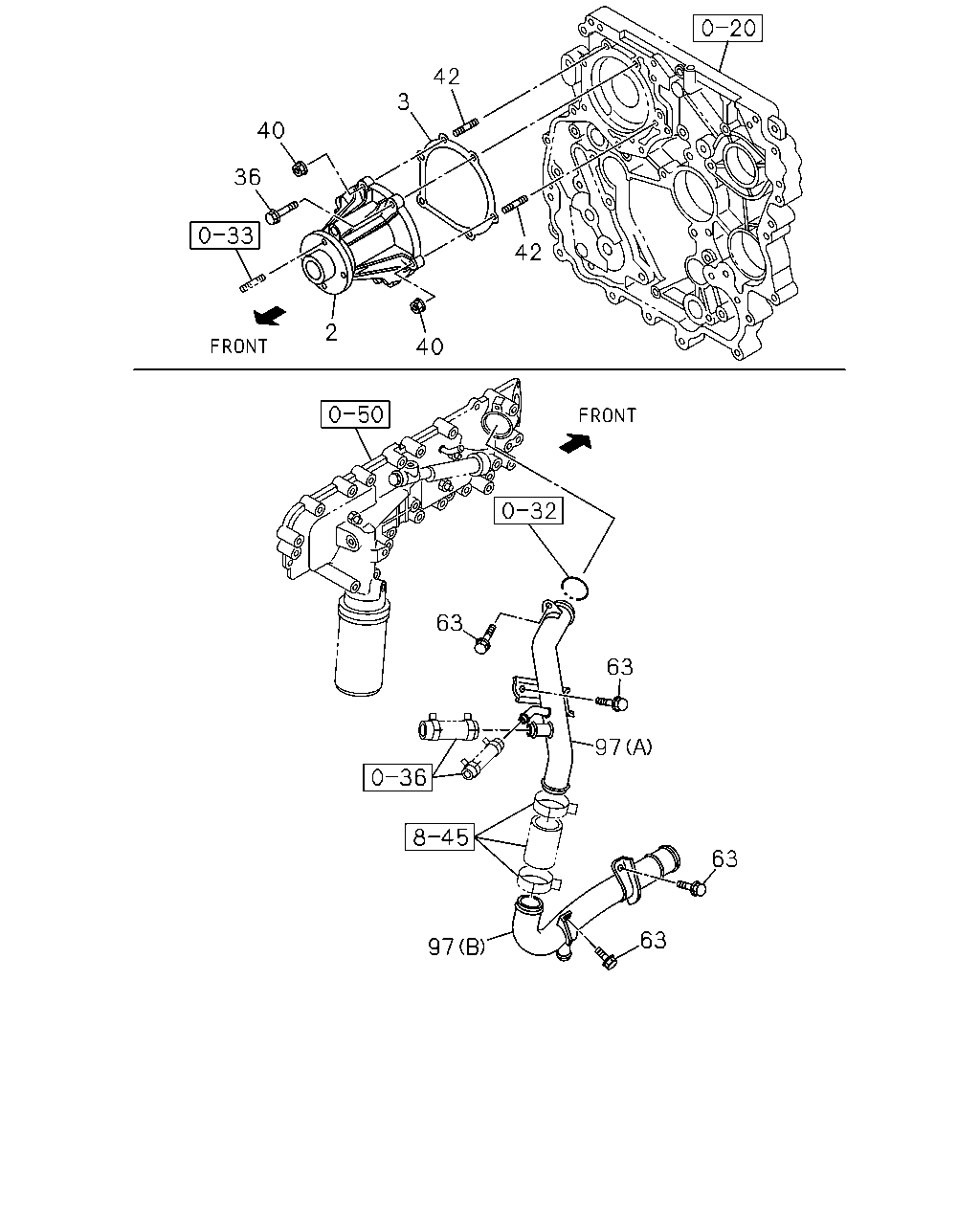

42 3 40 36 42 2 40 1 63 63 97 63 63 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-3	01	1	0302-0506	●
1	01.069 PUMP ASM; WATER,W/GASKET	8-97105-012-3	01	1	0507-0606		●
2	01.069 PUMP ASM; WATER	8-98004-292-2	01	1	0607-			●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	0302-0506	●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94178-081-0	01	1	0507-0606		●
3	01.079 GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-156-0	01	1	0607-			●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	0302-0506	●
36	00.386 BOLT; WATER PUMP TO C/BL 03.330 M8X55 W/LK WASHER	5-09000-084-1	05	1	0507-0606		●
36	00.386 BOLT; WATER PUMP TO C/BL 04.686 M8X60 FLANGE	0-28050-860-0	04	1	0607-			●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●
40	07.874 NUT; WATER PUMP 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●
40	07.874 NUT; WATER PUMP 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●
40	07.874 NUT; WATER PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	0302-0506	●
42	01.073 STUD; WATER PUMP 09.173 M8X22 L=34	9-04110-822-0	02	1	0507-0604		●
42	01.073 STUD; WATER PUMP M8X22 L=34	0-41010-822-0	02	1	0605-0606		●
42	01.073 STUD; WATER PUMP M8X28 L=40	0-41010-828-0	02	1	0607-			●
63	01.073 BOLT; INL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0607-			●
97	01.097 PIPE; WATER (A)	8-97381-499-2	01	1	0607-			●
97	01.097 PIPE; WATER (B)	8-98009-676-3	01	1	0607-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
