0-28 — VENTILATION SYSTEM (#41993) — 21 parça

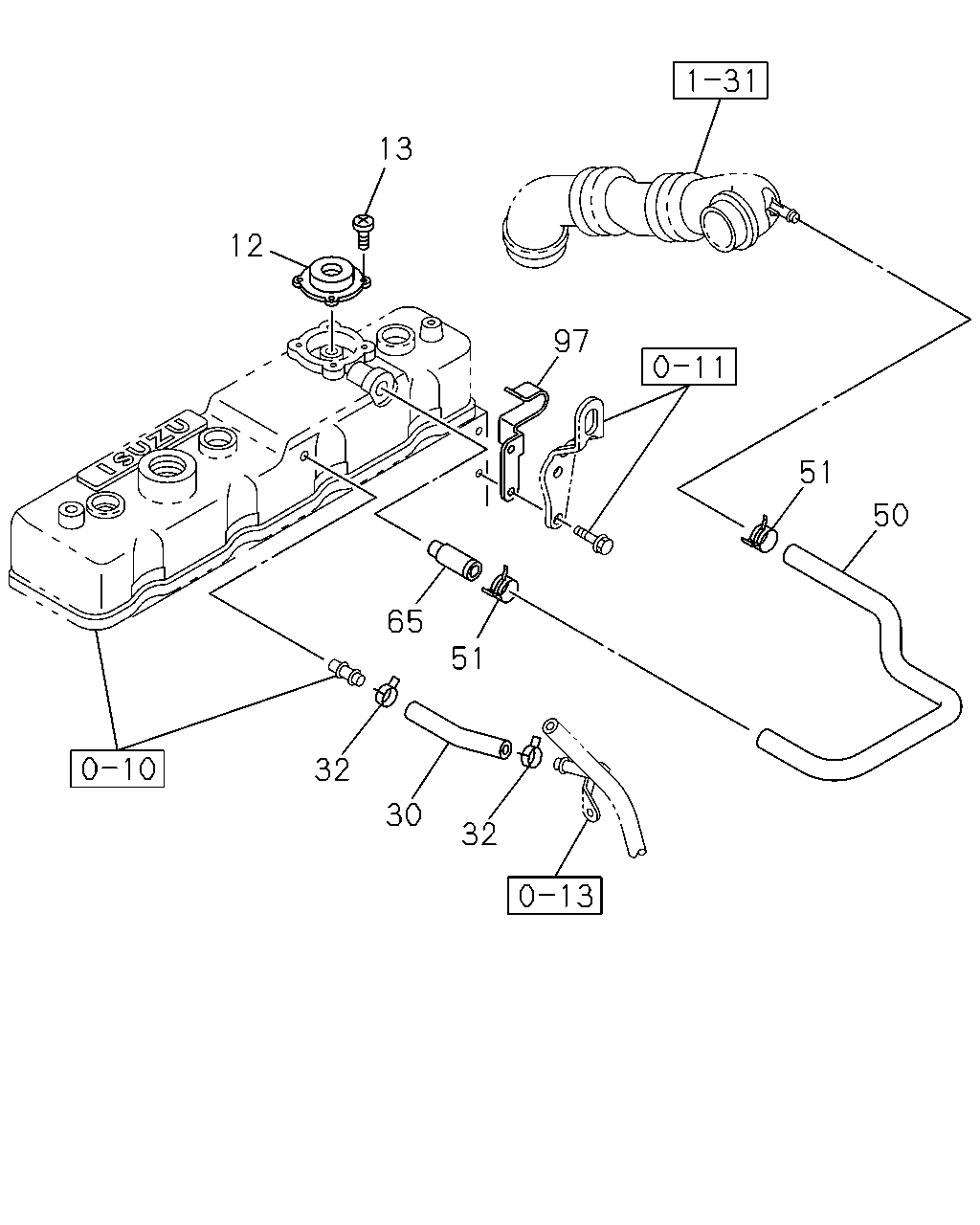

çizim 50296
13 12 97 51 50 65 51 32 30 32
BalonParca AdiParca NoAdetTipApplied Date A B C
12 01.745 VENTILATOR; AIR
03.415 		8-97119-887-0 01 1 0302-0506 ●
12 01.745 VENTILATOR; AIR
03.415 		8-97119-887-0 01 1 0507-0606 ●
13 00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 0302-0506 ●
13 00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER 		9-03910-408-0 04 1 0507-0604 ●
13 00.386 SCREW; VENTILATOR TO HD COVER
00.662 M4X8 W/LK WASHER 		0-36220-408-0 04 1 0605-0606 ●
30 03.417 HOSE; VENTILATOR,CYL HD COVER 8-97240-031-0 01 1 0302-0506 ●
30 03.417 HOSE; VENTILATOR,CYL HD COVER 8-97240-031-0 01 1 0507-0606 ●
32 03.417 CLIP; VENT HOSE
01.097 ID=14.8 		8-94448-727-0 02 1 0302-0506 ●
32 03.417 CLIP; VENT HOSE
01.097 ID=14.8 		8-94448-727-0 02 1 0507-0606 ●
50 03.265 HOSE; PCV 8-97248-984-1 01 1 0302-0506 ●
50 03.265 HOSE; PCV 8-97248-984-1 01 1 0507-0606 ●
51 03.265 CLIP; PCV HOSE
ID=20.4 		8-94121-113-0 02 1 0302-0506 ●
51 03.265 CLIP; PCV HOSE
ID=20.4 		8-94121-113-0 02 1 0507-0606 ●
65 01.762 PIPE; BREATHER 8-94250-615-1 01 1 0302-0506 ●
65 01.762 PIPE; BREATHER 8-94250-615-1 01 1 0507-0606 ●
97 01.750 BRACKET; HOSE 8-97212-350-0 01 1 0302-0506 ●
97 01.750 BRACKET; HOSE 8-97212-350-0 01 1 0507-0606 ●

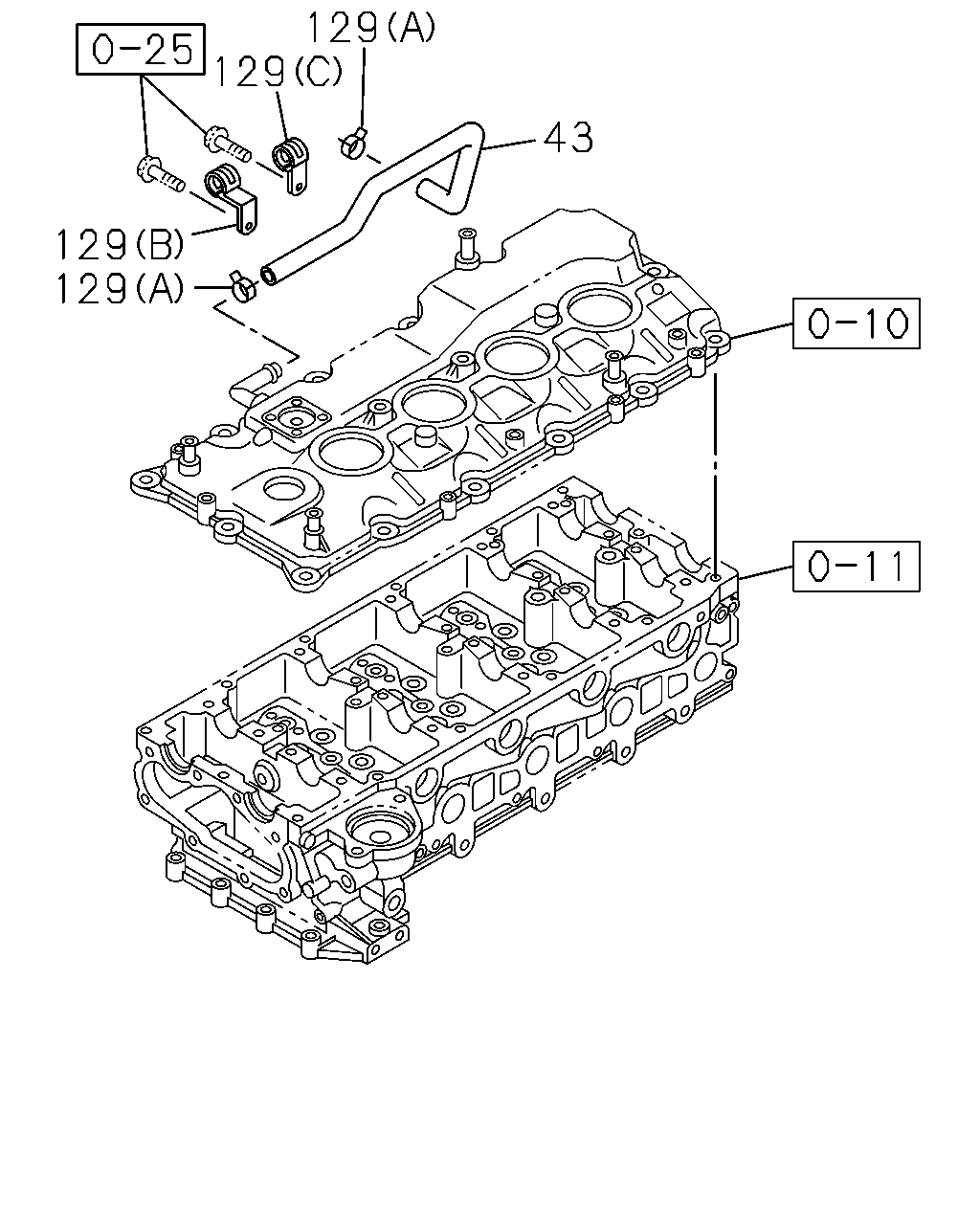

çizim 55280
129 129 43 129 129
BalonParca AdiParca NoAdetTipApplied Date A B C
43 03.278 HOSE; PCV 8-98045-343-0 01 1 0607- ●
129 03.278 CLIP; PCV
04.866 (B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0607- ●
129 03.278 CLIP; PCV
09.242 (C) ID=22 L=22 		5-83574-045-0 01 1 0607- ●
129 03.278 CLIP; PCV
08.846 (A) ID=21.7 		8-97203-074-0 02 1 0607- ●
