Isuzu WW
▶
TRUCKS
▶
NKR
▶
50945 - NKR(EUROPE)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶

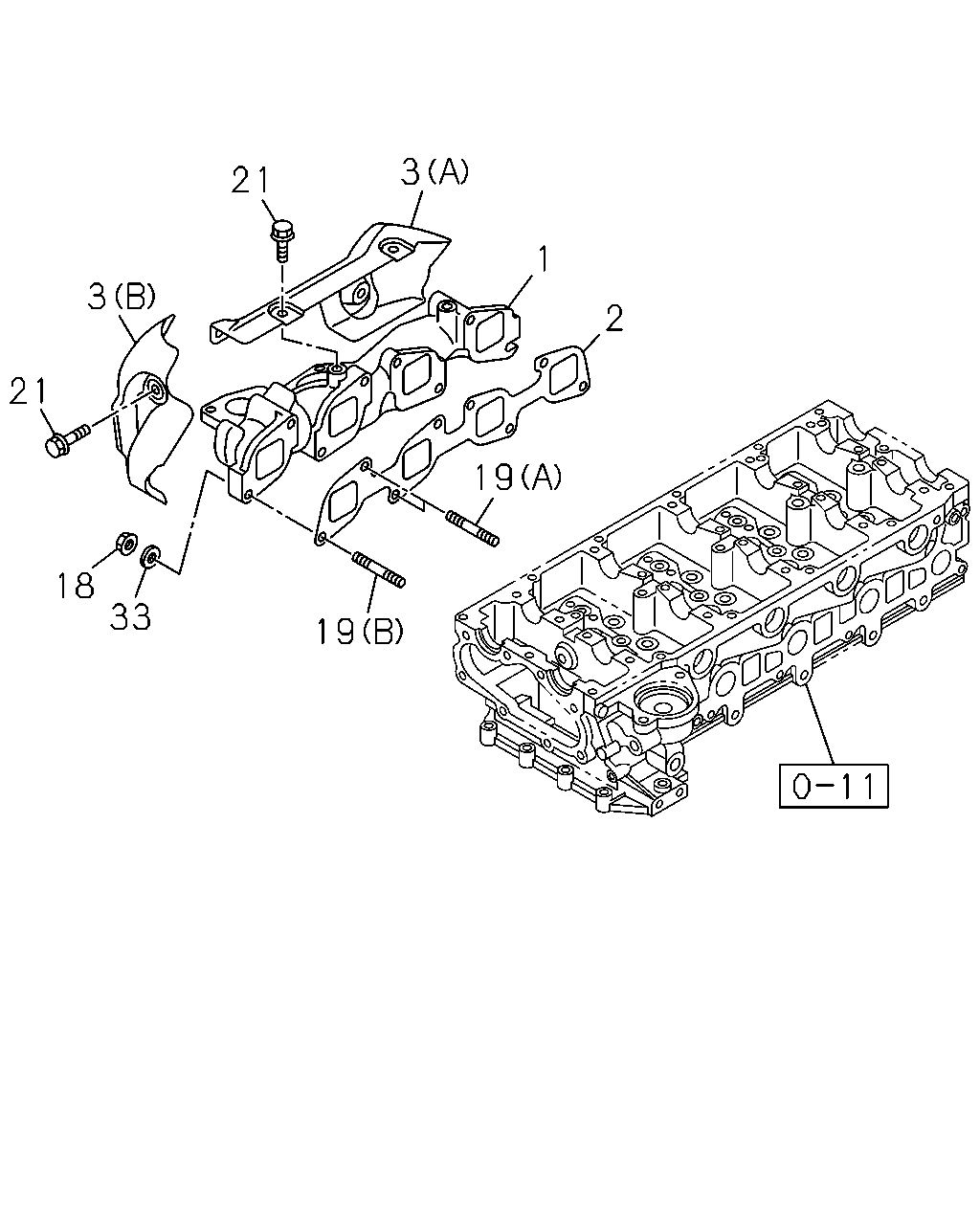

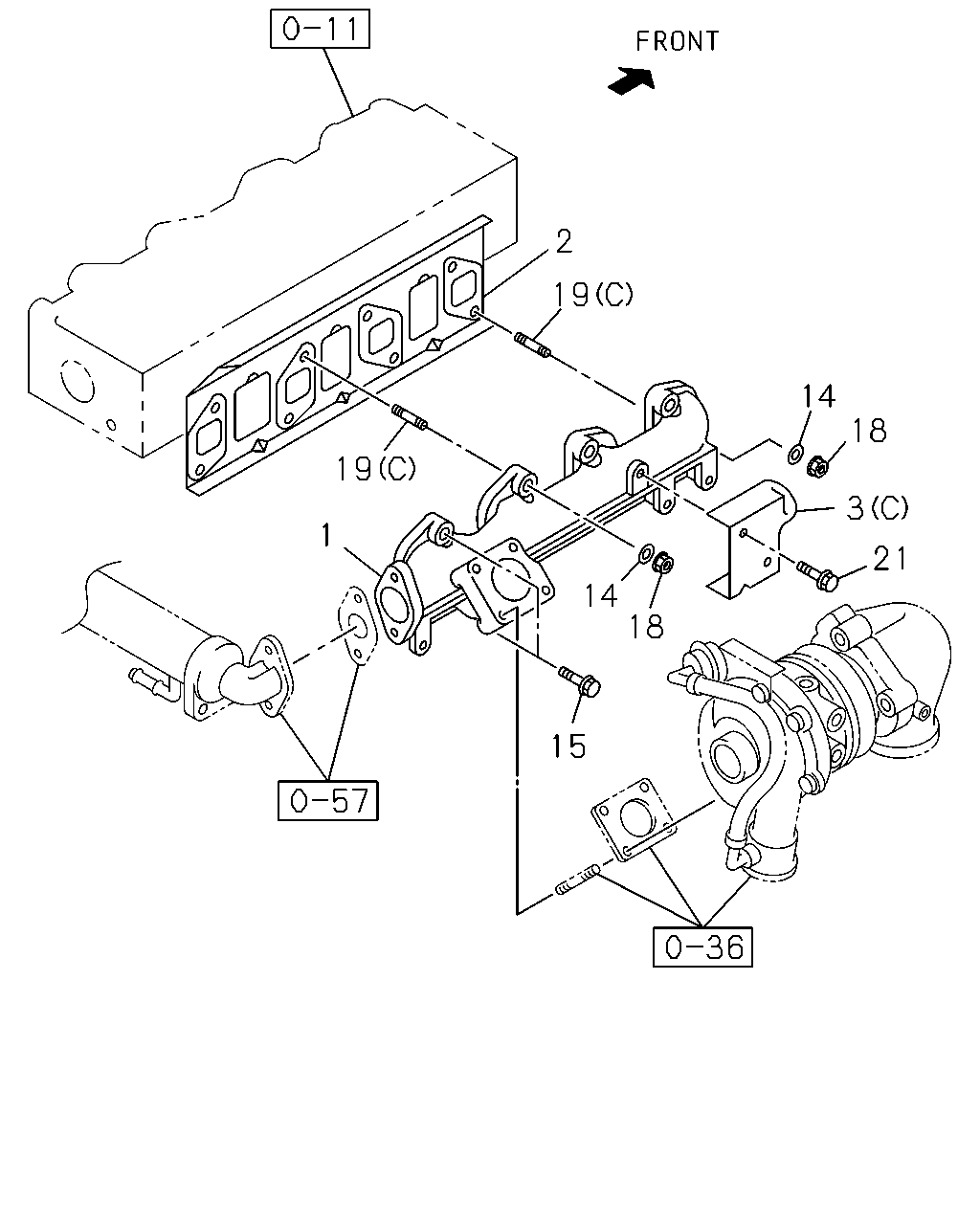

0-27 — EXHAUST MANIFOLD
(#41992) — 53 parça
Tümü
A - 4JH1 ENG
B - 4JH1-TC ENG
C - 4JJ1 ENG
◀
[027A] 4JJ1 (25 parça)
[027A] 4JH1 (28 parça)
▶
3
21
1
3
2
21
19
18
33
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.601 MANIFOLD; EXHAUST
8-97288-575-3
01
1
0302-0506
●
1
03.601 MANIFOLD; EXHAUST
8-97288-575-3
01
1
0507-0606
●
1
03.601 MANIFOLD; EXHAUST
8-98033-941-1
01
1
0607-
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97350-317-0
01
1
0302-0506
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97350-317-0
01
1
0507-0606
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97356-028-2
01
1
0607-
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(C)
8-97259-171-1
01
1
0302-0506
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(C)
8-97259-171-1
01
1
0507-0606
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(A)
8-97381-503-4
01
1
0607-
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(B)
8-98011-523-0
01
1
0607-
●
18
03.604 NUT; EXH MANIF
01.540 M8 FLANGE
0-91150-208-0
02
1
0302-0506
●
18
03.604 NUT; EXH MANIF
01.540 M8 FLANGE
0-91150-208-0
02
1
0507-0602
●
18
03.604 NUT; EXH MANIF
01.540 M8 FLANGE
0-91180-208-0
02
1
0603-0606
●
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
08
1
0607-
●
19
03.604 STUD; MANIF TO CYL HD
(C) M8X35 L=46
8-97048-055-1
02
1
0302-0408
●
19
03.604 STUD; MANIF TO CYL HD
(C) M8X35 L=46
8-97378-065-0
02
1
0409-0506
●
19
03.604 STUD; MANIF TO CYL HD
(C) M8X35 L=46
8-97378-065-0
02
1
0507-0606
●
19
03.604 STUD; MANIF TO CYL HD
(A) M10X70 L=83
8-94391-665-0
04
1
0607-0610
●
19
03.604 STUD; MANIF TO CYL HD
(A) M10X70 L=83
8-98048-446-0
04
1
0611-
●
19
03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48
8-97307-075-2
04
1
0607-
●
21
03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE
0-28080-812-0
02
1
0302-0506
●
21
03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE
0-28080-812-0
02
1
0507-0512
●
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
02
1
0601-0606
●
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
07
1
0607-
●
33
03.604 WASHER; EXH MANIF
03.613 ID=10.5
5-09500-013-0
08
1
0607-
●
2
19
14
18
19
3
1
21
14
18
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.601 MANIFOLD; EXHAUST
8-97288-575-3
01
1
0302-0506
●
1
03.601 MANIFOLD; EXHAUST
8-97288-575-3
01
1
0507-0606
●
1
03.601 MANIFOLD; EXHAUST
8-98033-941-1
01
1
0607-
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97350-317-0
01
1
0302-0506
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97350-317-0
01
1
0507-0606
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97356-028-2
01
1
0607-
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(C)
8-97259-171-1
01
1
0302-0506
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(C)
8-97259-171-1
01
1
0507-0606
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(A)
8-97381-503-4
01
1
0607-
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(B)
8-98011-523-0
01
1
0607-
●
14
03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4
8-97257-914-0
02
1
0302-0506
●
14
03.604 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4
8-97257-914-0
02
1
0507-0606
●
15
03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE
8-97131-597-1
06
1
0302-0506
●
15
03.604 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE
8-97131-597-1
06
1
0507-0606
●
18
03.604 NUT; EXH MANIF
01.540 M8 FLANGE
0-91150-208-0
02
1
0302-0506
●
18
03.604 NUT; EXH MANIF
01.540 M8 FLANGE
0-91150-208-0
02
1
0507-0602
●
18
03.604 NUT; EXH MANIF
01.540 M8 FLANGE
0-91180-208-0
02
1
0603-0606
●
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
08
1
0607-
●
19
03.604 STUD; MANIF TO CYL HD
(C) M8X35 L=46
8-97048-055-1
02
1
0302-0408
●
19
03.604 STUD; MANIF TO CYL HD
(C) M8X35 L=46
8-97378-065-0
02
1
0409-0506
●
19
03.604 STUD; MANIF TO CYL HD
(C) M8X35 L=46
8-97378-065-0
02
1
0507-0606
●
19
03.604 STUD; MANIF TO CYL HD
(A) M10X70 L=83
8-94391-665-0
04
1
0607-0610
●
19
03.604 STUD; MANIF TO CYL HD
(A) M10X70 L=83
8-98048-446-0
04
1
0611-
●
19
03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48
8-97307-075-2
04
1
0607-
●
21
03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE
0-28080-812-0
02
1
0302-0506
●
21
03.604 BOLT; HEAT PROTECTOR
08.900 M8X12 FLANGE
0-28080-812-0
02
1
0507-0512
●
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
02
1
0601-0606
●
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
07
1
0607-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
