Sayfa 0-22 - Isuzu EPC

0-22 — ENGINE MOUNTING (#41990) — 210 parça

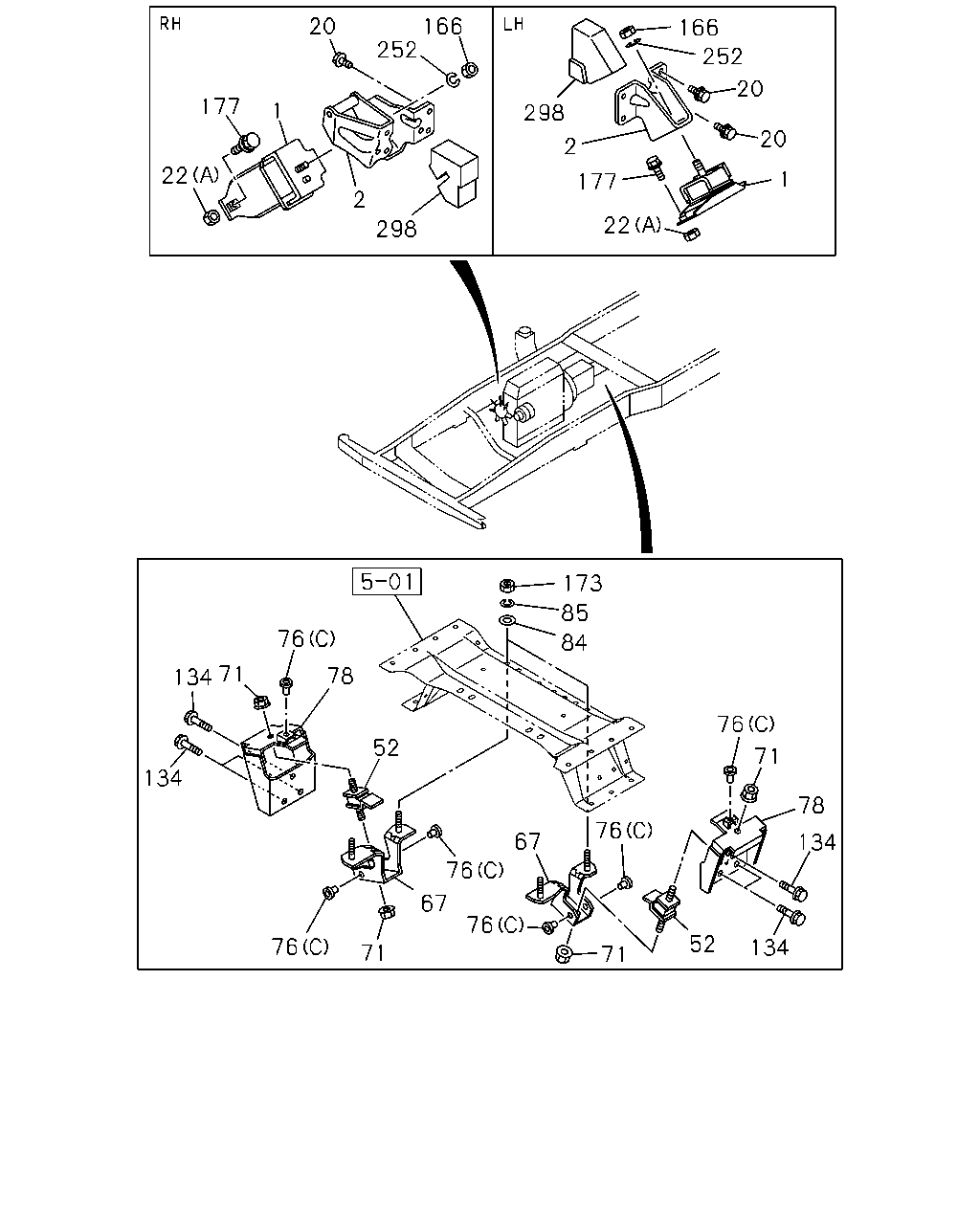

20 166 252 166 252 20 177 1 298 20 2 22 1 177 2 22 298 173 85 76 84 134 71 78 76 52 71 134 78 76 67 134 76 67 76 52 76 134 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP)	8-97122-892-0	01	1	0302-0506	●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP)	8-97122-892-1	01	1	0507-0606		●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***)	8-97383-795-1	01	1	0607-0703			●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***)	8-98053-832-0	01	1	0704-			●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP)	8-97122-890-0	01	1	0302-0506	●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP)	8-97122-890-1	01	1	0507-0606		●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***)	8-97383-794-1	01	1	0607-0703			●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***)	8-98053-831-0	01	1	0704-			●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-97122-895-0	01	1	0302-0506	●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-97122-895-1	01	1	0507-0606		●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-98043-001-0	01	1	0607-			●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-97122-893-0	01	1	0302-0506	●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-97122-893-1	01	1	0507-0606		●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-98043-000-0	01	1	0607-			●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0302-0506	●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0507-0606		●
2	00.029 FOOT; ENG	8-97381-514-2	01	1	0607-			●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	0302-0506	●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	0507-0606		●
2	00.029 FOOT; ENG	8-97381-513-1	01	1	0607-			●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	0302-0506	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	0507-0606		●
20	00.029 BOLT; ENG FOOT 03.706 M10X70 FLANGE	0-28051-070-0	01	1	0607-			●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	0302-0506	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	0507-0512		●
20	00.029 BOLT; ENG FOOT M14X25 W/LK WASHER	0-50541-425-0	01	1	0601-0606		●
20	00.029 BOLT; ENG FOOT 02.343 M10X20 FLANGE	0-28651-020-0	01	1	0607-			●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	0302-0506	●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	0507-0606		●
20	00.029 BOLT; ENG FOOT M10X25 FLANGE	0-28651-025-0	02	1	0607-			●
20	00.029 BOLT; ENG FOOT M10X30 FLANGE	0-28651-030-0	03	1	0607-			●
20	00.029 BOLT; ENG FOOT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0607-			●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (D) M12 FLANGE	0-91180-112-0	02	1	0701-			●
22	00.002 NUT; CUSHION RUBBER TO BRKT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0302-0506	●
22	00.002 NUT; CUSHION RUBBER TO BRKT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0507-0602		●
22	00.002 NUT; CUSHION RUBBER TO BRKT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-0606	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (C) M12	0-91110-512-0	02	1	0607-0607			●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (C) M12	0-91110-512-0	02	1	0608-0612			●
22	00.002 NUT; CUSHION RUBBER TO BRKT SGL TIRE(NKB***) 05.002 (C) M12	0-91110-512-0	02	1	0608-0612			●
22	00.002 NUT; CUSHION RUBBER TO BRKT SGL TIRE(NKB***) 05.002 (C) M12	0-91110-512-0	02	1	0701-			●
22	00.002 NUT; CUSHION RUBBER TO BRKT DUAL RR TIRE(NKC***) 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0302-0506	●
22	00.002 NUT; CUSHION RUBBER TO BRKT DUAL RR TIRE(NKC***) 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0507-0602		●
22	00.002 NUT; CUSHION RUBBER TO BRKT DUAL RR TIRE(NKC***) 04.085 (A) M10 FLANGE	0-91180-210-0	04	1	0603-0606	●
22	00.002 NUT; CUSHION RUBBER TO BRKT (B) M12 FLANGE	8-98039-410-0	02	1	0607-0607			●
22	00.002 NUT; CUSHION RUBBER TO BRKT DUAL RR TIRE(NKC***) (B) M12 FLANGE	8-98039-410-0	02	1	0608-0610			●
22	00.002 NUT; CUSHION RUBBER TO BRKT DUAL RR TIRE(NKC***) (B) M12 FLANGE	8-98046-987-0	02	1	0611-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0302-0506	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0507-0606		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-568-0	01	1	0302-0306	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-919-0	01	1	0307-0506	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-919-0	01	1	0507-0606		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR DUAL RR TIRE(NKC***)	8-97371-919-0	01	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-569-0	01	1	0302-0506	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-569-0	01	1	0507-0606		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR DUAL RR TIRE(NKC***)	8-97325-569-0	01	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR SGL TIRE(NKB***) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98004-325-0	01	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR SGL TIRE(NKB***) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98004-324-0	01	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97354-876-0	01	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97354-877-0	01	1	0607-			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-			●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (C)	8-94111-904-0	06	1	0302-0506	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (C)	8-94111-904-0	06	1	0507-0606		●
76	00.002 STOPPER; ENG MTG RUBBER DUAL RR TIRE(NKC***) 00.027 (C)	8-94111-904-0	06	1	0607-			●
76	00.002 STOPPER; ENG MTG RUBBER SGL TIRE(NKB***) 00.027 (B)	8-94111-904-0	02	1	0607-			●
76	00.002 STOPPER; ENG MTG RUBBER SGL TIRE(NKB***) (A)	8-97039-947-1	04	1	0607-			●
78	00.029 BRACKET; ENG MTG,RR	8-97325-560-0	01	1	0302-0506	●
78	00.029 BRACKET; ENG MTG,RR	8-97325-560-0	01	1	0507-0606		●
78	00.029 BRACKET; ENG MTG,RR DUAL RR TIRE(NKC***)	8-97325-560-0	01	1	0607-			●
78	00.029 BRACKET; ENG MTG,RR	8-97325-561-0	01	1	0302-0506	●
78	00.029 BRACKET; ENG MTG,RR	8-97325-561-0	01	1	0507-0606		●
78	00.029 BRACKET; ENG MTG,RR DUAL RR TIRE(NKC***)	8-97325-561-0	01	1	0607-			●
78	00.029 BRACKET; ENG MTG,RR SGL TIRE(NKB***) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97350-752-0	02	1	0607-			●
78	00.029 BRACKET; ENG MTG,RR SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-756-0	02	1	0607-			●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	0302-0506	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	0507-0605		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-0606		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0607-			●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0302-0506	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0507-0603		●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0604-0606	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0607-0610			●
134	00.029 BOLT; SUPPORT BRKT 03.890 M12X25	0-28781-225-0	06	1	0302-0506	●
134	00.029 BOLT; SUPPORT BRKT 03.890 M12X25	0-28781-225-0	06	1	0507-0512		●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0601-0606		●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0607-			●
166	00.002 NUT; SUPPORT RUBBER 04.634 M12	9-99110-512-0	02	1	0302-0506	●
166	00.002 NUT; SUPPORT RUBBER 04.634 M12	9-99110-512-0	02	1	0507-0512		●
166	00.002 NUT; SUPPORT RUBBER 05.002 M12	0-91110-512-0	02	1	0601-0606		●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	0302-0506	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	0507-0512		●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 M10	0-91110-510-0	04	1	0601-0606		●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 M10	0-91110-510-0	04	1	0607-0610			●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0611-		●
177	00.002 BOLT; BRKT TO CUSHION RUBBER SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	0302-0506	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP) M10X32.5	8-97090-761-0	04	1	0507-0606		●
177	00.002 BOLT; BRKT TO CUSHION RUBBER DUAL RR TIRE(NKC***) M10X37.5	8-94468-733-1	04	1	0302-0506	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER DUAL RR TIRE(NKC***) M10X37.5	8-94468-733-1	04	1	0507-0606		●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0302-0506	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0507-0603		●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-0606		●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0607-0612			●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97264-926-0	01	1	0302-0506	●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97264-926-0	01	1	0507-0606		●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97264-925-0	01	1	0302-0506	●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97264-925-0	01	1	0507-0606		●

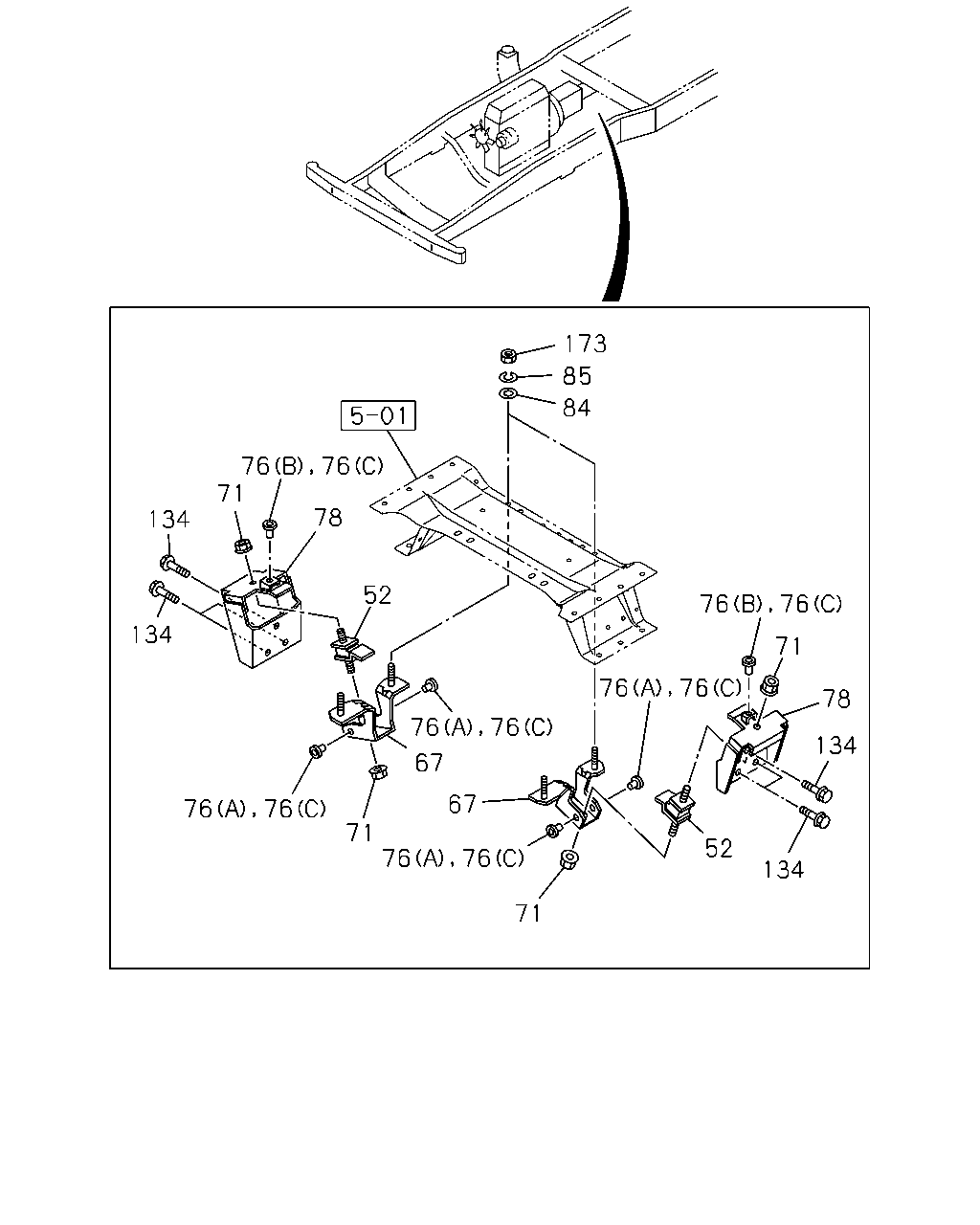

173 85 84 71 78 134 52 134 71 76 76 78 76 76 134 67 67 76 76 71 52 76 76 134 71 76 76 76 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0302-0506	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0507-0606		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-568-0	01	1	0302-0306	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-919-0	01	1	0307-0506	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97371-919-0	01	1	0507-0606		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR DUAL RR TIRE(NKC***)	8-97371-919-0	01	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-569-0	01	1	0302-0506	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97325-569-0	01	1	0507-0606		●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR DUAL RR TIRE(NKC***)	8-97325-569-0	01	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR SGL TIRE(NKB***) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98004-325-0	01	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR SGL TIRE(NKB***) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98004-324-0	01	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97354-876-0	01	1	0607-			●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97354-877-0	01	1	0607-			●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0302-0506	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0507-0602		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-0606		●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0607-			●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (C)	8-94111-904-0	06	1	0302-0506	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (C)	8-94111-904-0	06	1	0507-0606		●
76	00.002 STOPPER; ENG MTG RUBBER DUAL RR TIRE(NKC***) 00.027 (C)	8-94111-904-0	06	1	0607-			●
76	00.002 STOPPER; ENG MTG RUBBER SGL TIRE(NKB***) 00.027 (B)	8-94111-904-0	02	1	0607-			●
76	00.002 STOPPER; ENG MTG RUBBER SGL TIRE(NKB***) (A)	8-97039-947-1	04	1	0607-			●
78	00.029 BRACKET; ENG MTG,RR	8-97325-560-0	01	1	0302-0506	●
78	00.029 BRACKET; ENG MTG,RR	8-97325-560-0	01	1	0507-0606		●
78	00.029 BRACKET; ENG MTG,RR DUAL RR TIRE(NKC***)	8-97325-560-0	01	1	0607-			●
78	00.029 BRACKET; ENG MTG,RR	8-97325-561-0	01	1	0302-0506	●
78	00.029 BRACKET; ENG MTG,RR	8-97325-561-0	01	1	0507-0606		●
78	00.029 BRACKET; ENG MTG,RR DUAL RR TIRE(NKC***)	8-97325-561-0	01	1	0607-			●
78	00.029 BRACKET; ENG MTG,RR SGL TIRE(NKB***) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97350-752-0	02	1	0607-			●
78	00.029 BRACKET; ENG MTG,RR SGL TIRE(NKB***) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-756-0	02	1	0607-			●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	0302-0506	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	0507-0605		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-0606		●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0607-			●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0302-0506	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0507-0603		●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0604-0606	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0607-0610			●
134	00.029 BOLT; SUPPORT BRKT 03.890 M12X25	0-28781-225-0	06	1	0302-0506	●
134	00.029 BOLT; SUPPORT BRKT 03.890 M12X25	0-28781-225-0	06	1	0507-0512		●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0601-0606		●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0607-			●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	0302-0506	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	0507-0512		●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 M10	0-91110-510-0	04	1	0601-0606		●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 M10	0-91110-510-0	04	1	0607-0610			●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0611-		●

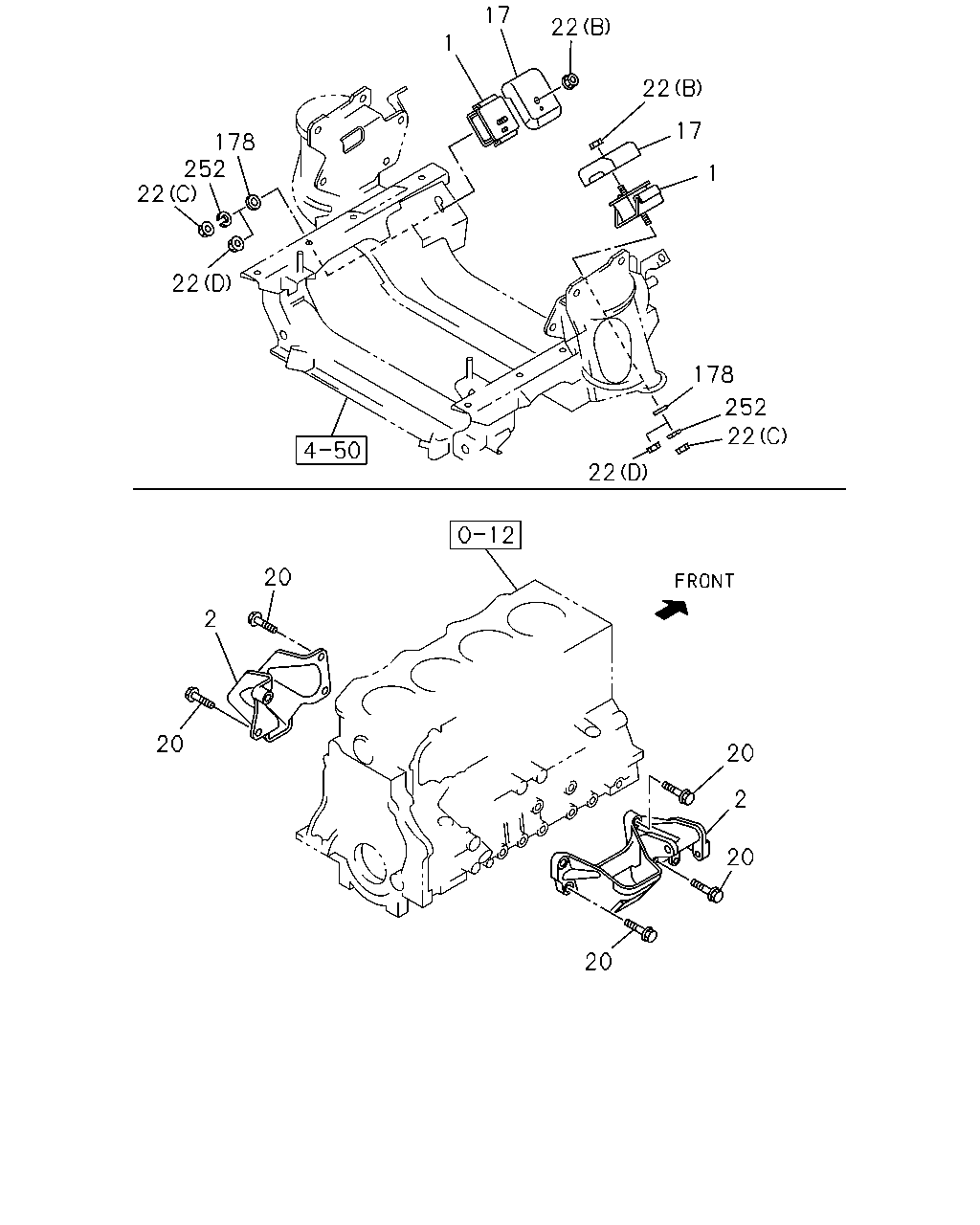

17 22 1 22 17 178 252 22 1 22 178 252 22 22 20 2 20 20 2 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP)	8-97122-892-0	01	1	0302-0506	●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP)	8-97122-892-1	01	1	0507-0606		●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***)	8-97383-795-1	01	1	0607-0703			●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***)	8-98053-832-0	01	1	0704-			●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP)	8-97122-890-0	01	1	0302-0506	●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP)	8-97122-890-1	01	1	0507-0606		●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***)	8-97383-794-1	01	1	0607-0703			●
1	00.027 RUBBER; ENG FOOT,FRT SGL TIRE(NKB***)	8-98053-831-0	01	1	0704-			●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-97122-895-0	01	1	0302-0506	●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-97122-895-1	01	1	0507-0606		●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-98043-001-0	01	1	0607-			●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-97122-893-0	01	1	0302-0506	●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-97122-893-1	01	1	0507-0606		●
1	00.027 RUBBER; ENG FOOT,FRT DUAL RR TIRE(NKC***)	8-98043-000-0	01	1	0607-			●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0302-0506	●
2	00.029 FOOT; ENG	8-97300-156-0	01	1	0507-0606		●
2	00.029 FOOT; ENG	8-97381-514-2	01	1	0607-			●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	0302-0506	●
2	00.029 FOOT; ENG	8-97287-639-2	01	1	0507-0606		●
2	00.029 FOOT; ENG	8-97381-513-1	01	1	0607-			●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97229-825-0	01	1	0607-			●
17	00.027 COVER; CUSHION RUBBER,FRT	8-97383-796-0	01	1	0607-			●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	0302-0506	●
20	00.029 BOLT; ENG FOOT 02.277 M10X22 W/LK WASHER	0-50041-022-0	05	1	0507-0606		●
20	00.029 BOLT; ENG FOOT 03.706 M10X70 FLANGE	0-28051-070-0	01	1	0607-			●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	0302-0506	●
20	00.029 BOLT; ENG FOOT 00.002 M14X25 W/LK WASHER	0-50041-425-0	01	1	0507-0512		●
20	00.029 BOLT; ENG FOOT M14X25 W/LK WASHER	0-50541-425-0	01	1	0601-0606		●
20	00.029 BOLT; ENG FOOT 02.343 M10X20 FLANGE	0-28651-020-0	01	1	0607-			●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	0302-0506	●
20	00.029 BOLT; ENG FOOT 00.034 M10X28	8-94329-952-1	02	1	0507-0606		●
20	00.029 BOLT; ENG FOOT M10X25 FLANGE	0-28651-025-0	02	1	0607-			●
20	00.029 BOLT; ENG FOOT M10X30 FLANGE	0-28651-030-0	03	1	0607-			●
20	00.029 BOLT; ENG FOOT 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0607-			●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (D) M12 FLANGE	0-91180-112-0	02	1	0701-			●
22	00.002 NUT; CUSHION RUBBER TO BRKT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0302-0506	●
22	00.002 NUT; CUSHION RUBBER TO BRKT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP) 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	0507-0602		●
22	00.002 NUT; CUSHION RUBBER TO BRKT SGL TIRE(NKB***) FRT INDEPENDENT SUSPENSION(6PP) 04.085 (A) M10 FLANGE	0-91180-210-0	02	1	0603-0606	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (C) M12	0-91110-512-0	02	1	0607-0607			●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (C) M12	0-91110-512-0	02	1	0608-0612			●
22	00.002 NUT; CUSHION RUBBER TO BRKT SGL TIRE(NKB***) 05.002 (C) M12	0-91110-512-0	02	1	0608-0612			●
22	00.002 NUT; CUSHION RUBBER TO BRKT SGL TIRE(NKB***) 05.002 (C) M12	0-91110-512-0	02	1	0701-			●
22	00.002 NUT; CUSHION RUBBER TO BRKT DUAL RR TIRE(NKC***) 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0302-0506	●
22	00.002 NUT; CUSHION RUBBER TO BRKT DUAL RR TIRE(NKC***) 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0507-0602		●
22	00.002 NUT; CUSHION RUBBER TO BRKT DUAL RR TIRE(NKC***) 04.085 (A) M10 FLANGE	0-91180-210-0	04	1	0603-0606	●
22	00.002 NUT; CUSHION RUBBER TO BRKT (B) M12 FLANGE	8-98039-410-0	02	1	0607-0607			●
22	00.002 NUT; CUSHION RUBBER TO BRKT DUAL RR TIRE(NKC***) (B) M12 FLANGE	8-98039-410-0	02	1	0608-0610			●
22	00.002 NUT; CUSHION RUBBER TO BRKT DUAL RR TIRE(NKC***) (B) M12 FLANGE	8-98046-987-0	02	1	0611-			●
178	00.002 WASHER; PL,CUSHION RUBBER TO BRK SGL TIRE(NKB***) 07.529 ID=12.5 OD=32	0-91614-712-0	02	1	0608-			●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0302-0506	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0507-0603		●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-0606		●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0607-0612			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
