Sayfa 0-39B - Isuzu EPC

0-39B — AIR COMPRESSOR; BRAKE (#4199) — 395 parça

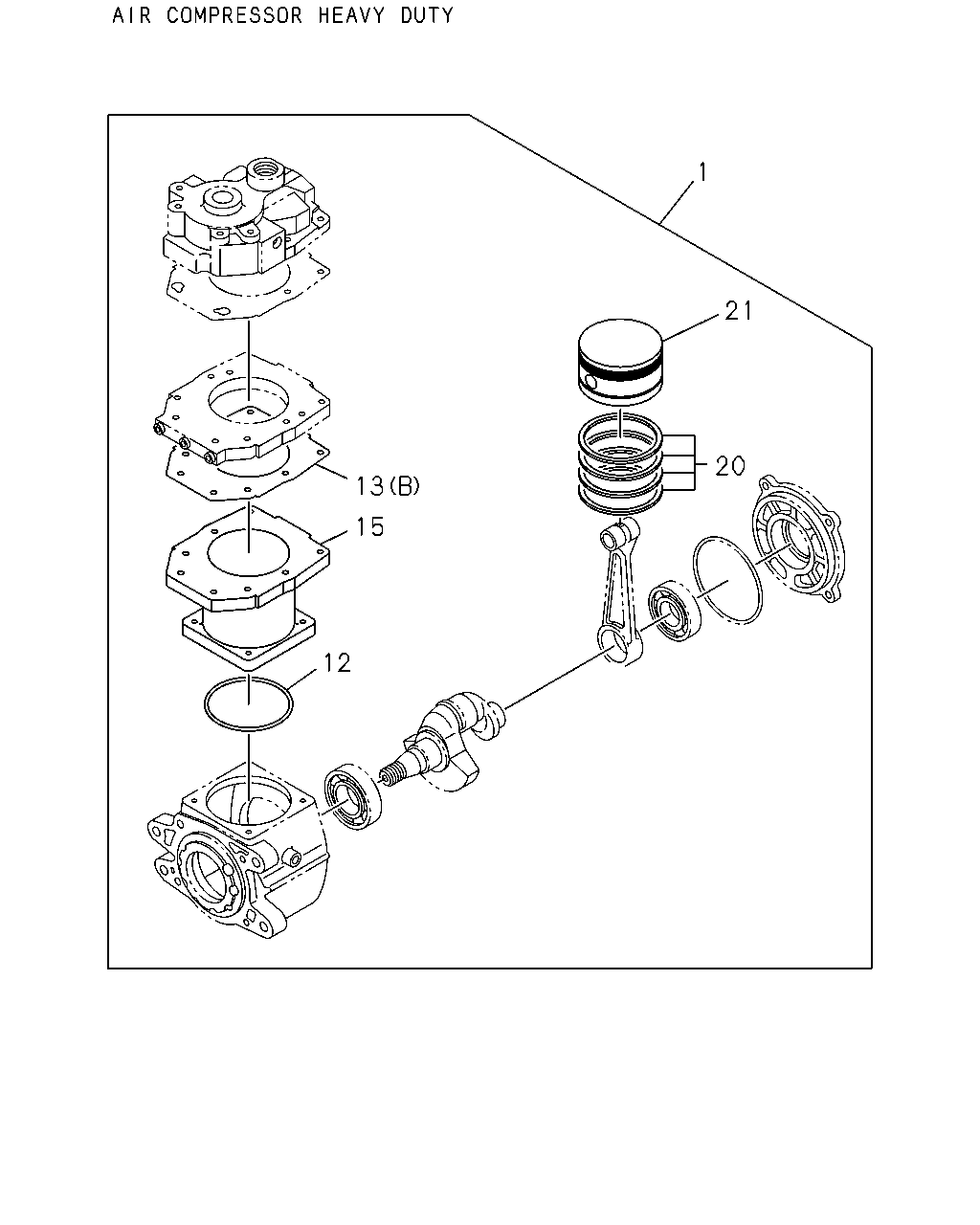

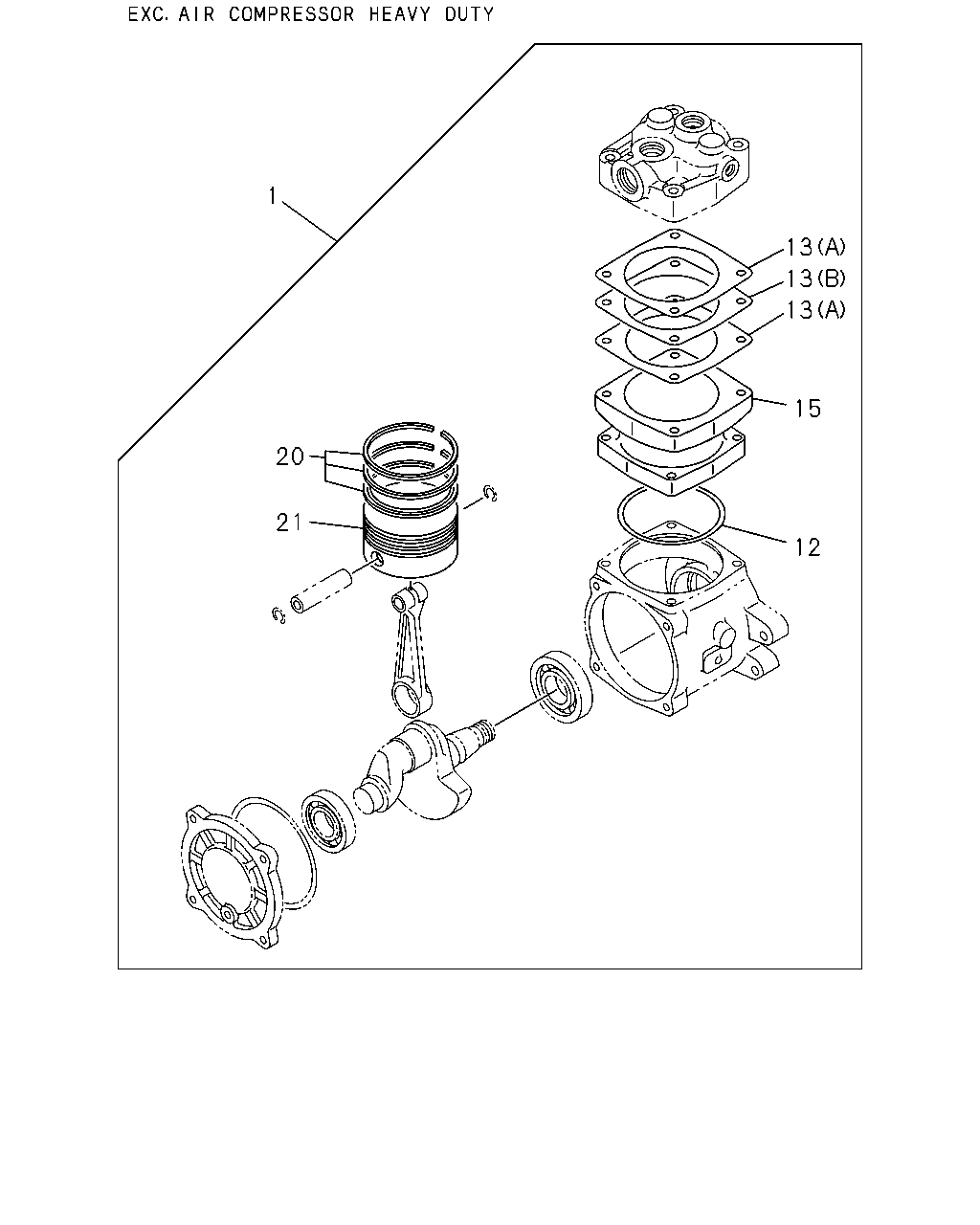

1 21 20 13 15 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-019-0	01	1	9603-9901	●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-019-0	01	1	9905-	●	●	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-056-1	01	1	9603-9611		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-056-1	01	1	9612-9901	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-061-0	01	1	9905-		●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9603-9901	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-539-0	01	1	9905-	●	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-614-0	01	1	9905-		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9603-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9603-9608	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	01	1	9609-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9905-	●	●	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9905-	●	●	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-615-0	01	1	9905-		●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19115-012-0	01	1	9905-		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9603-9901	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9905-	●	●	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9603-9611		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9612-9901	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-279-0	01	1	9905-		●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9603-9901	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9905-	●	●	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9603-9611		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9612-9901	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-058-0	01	1	9905-		●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9603-9901	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9905-	●	●	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9603-9611		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9612-9901	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-022-0	01	1	9905-		●	●

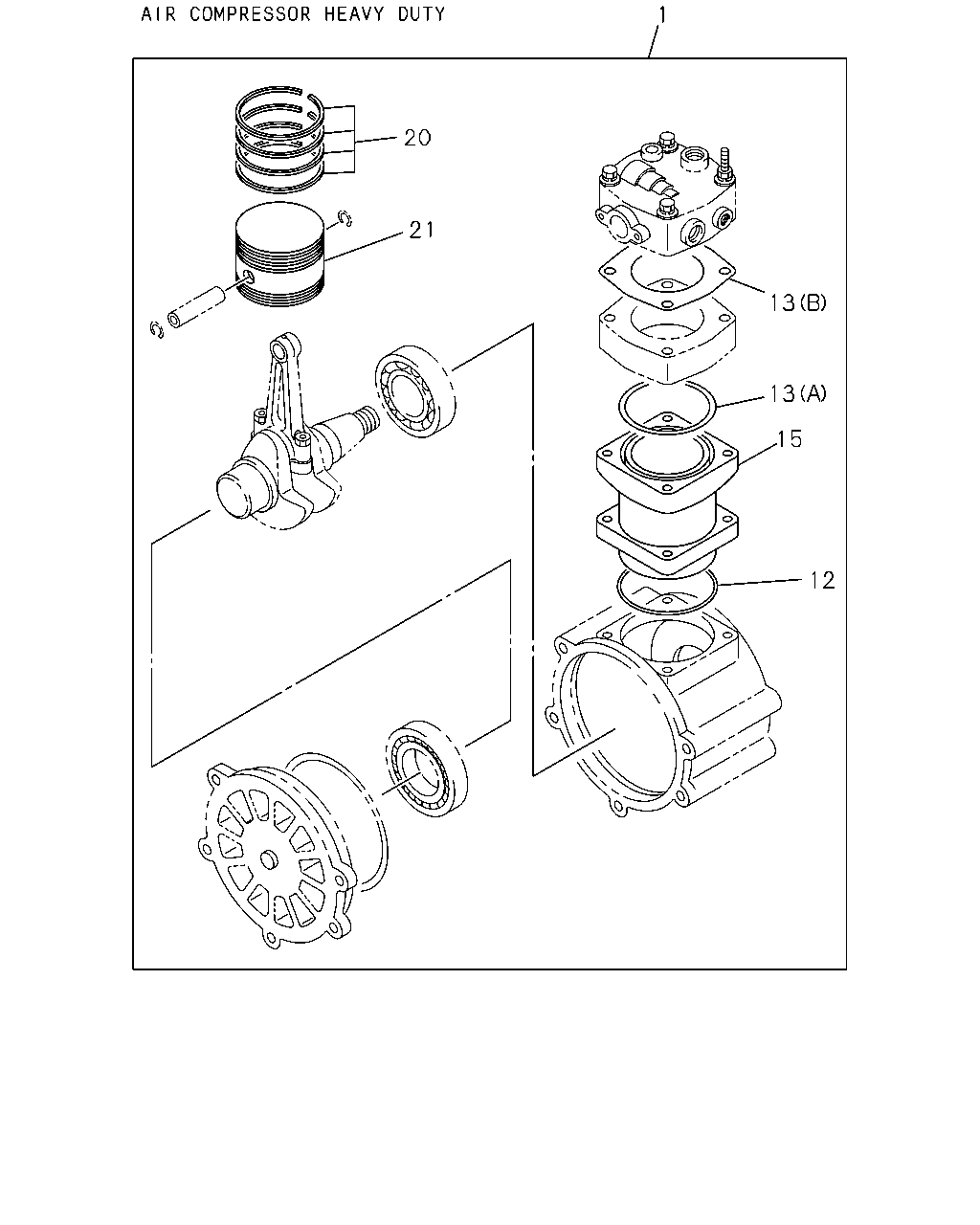

1 13 13 13 15 20 21 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-019-0	01	1	9603-9901	●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-019-0	01	1	9905-	●	●	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-056-1	01	1	9603-9611		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-056-1	01	1	9612-9901	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-061-0	01	1	9905-		●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9603-9901	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-539-0	01	1	9905-	●	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-614-0	01	1	9905-		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9603-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9603-9608	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	01	1	9609-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9905-	●	●	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9905-	●	●	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-615-0	01	1	9905-		●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19115-012-0	01	1	9905-		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9603-9901	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9905-	●	●	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9603-9611		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9612-9901	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-279-0	01	1	9905-		●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9603-9901	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9905-	●	●	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9603-9611		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9612-9901	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-058-0	01	1	9905-		●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9603-9901	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9905-	●	●	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9603-9611		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9612-9901	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-022-0	01	1	9905-		●	●

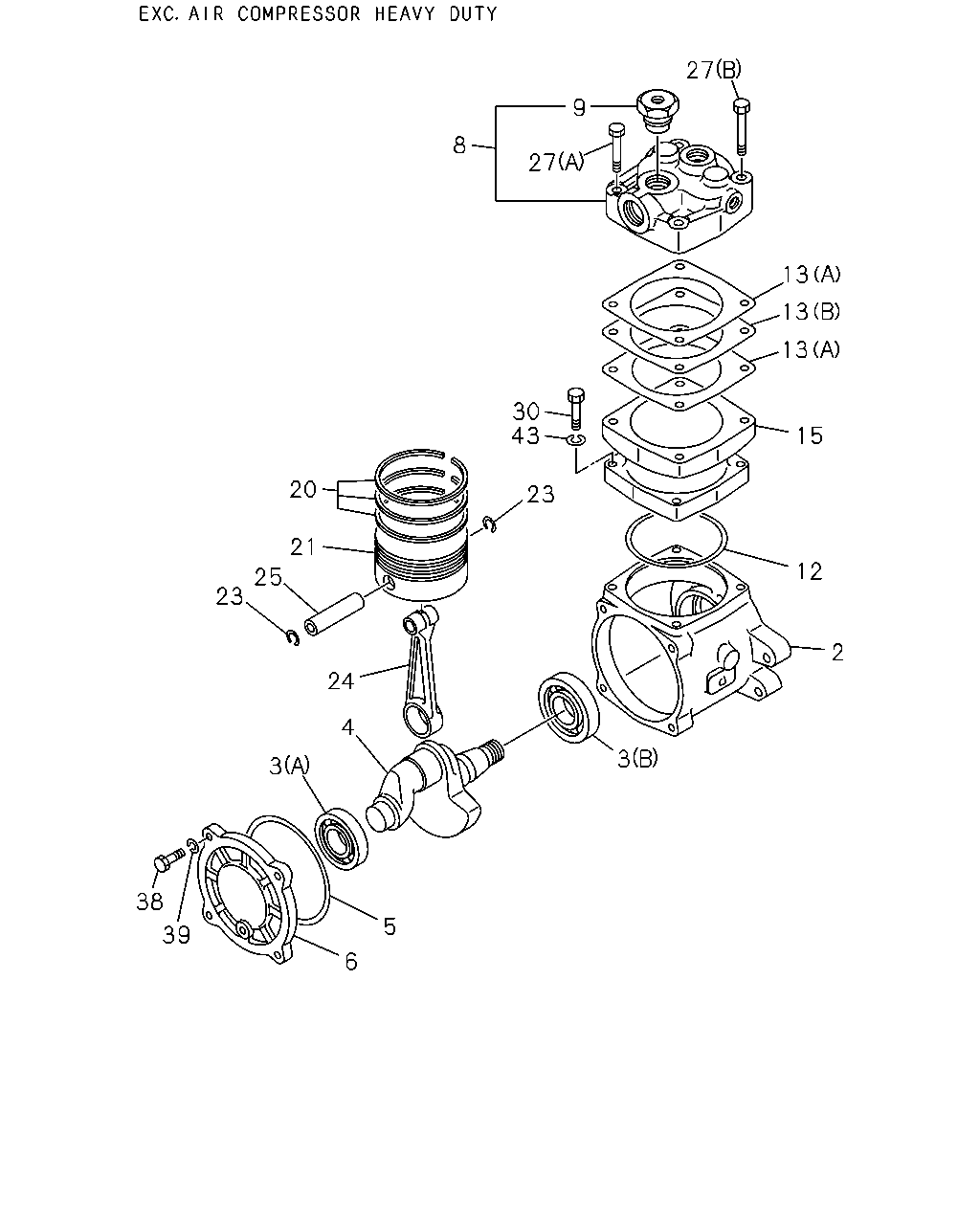

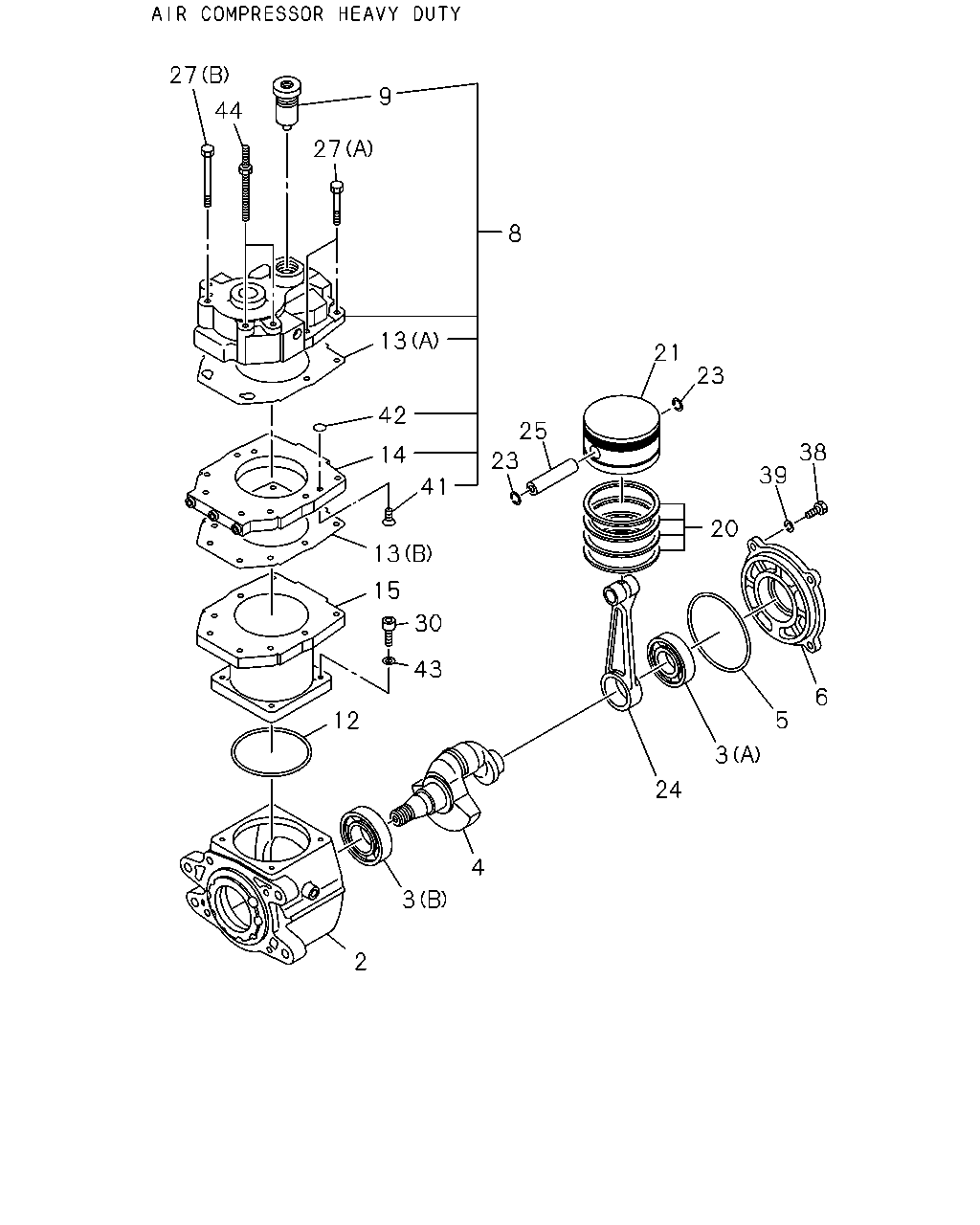

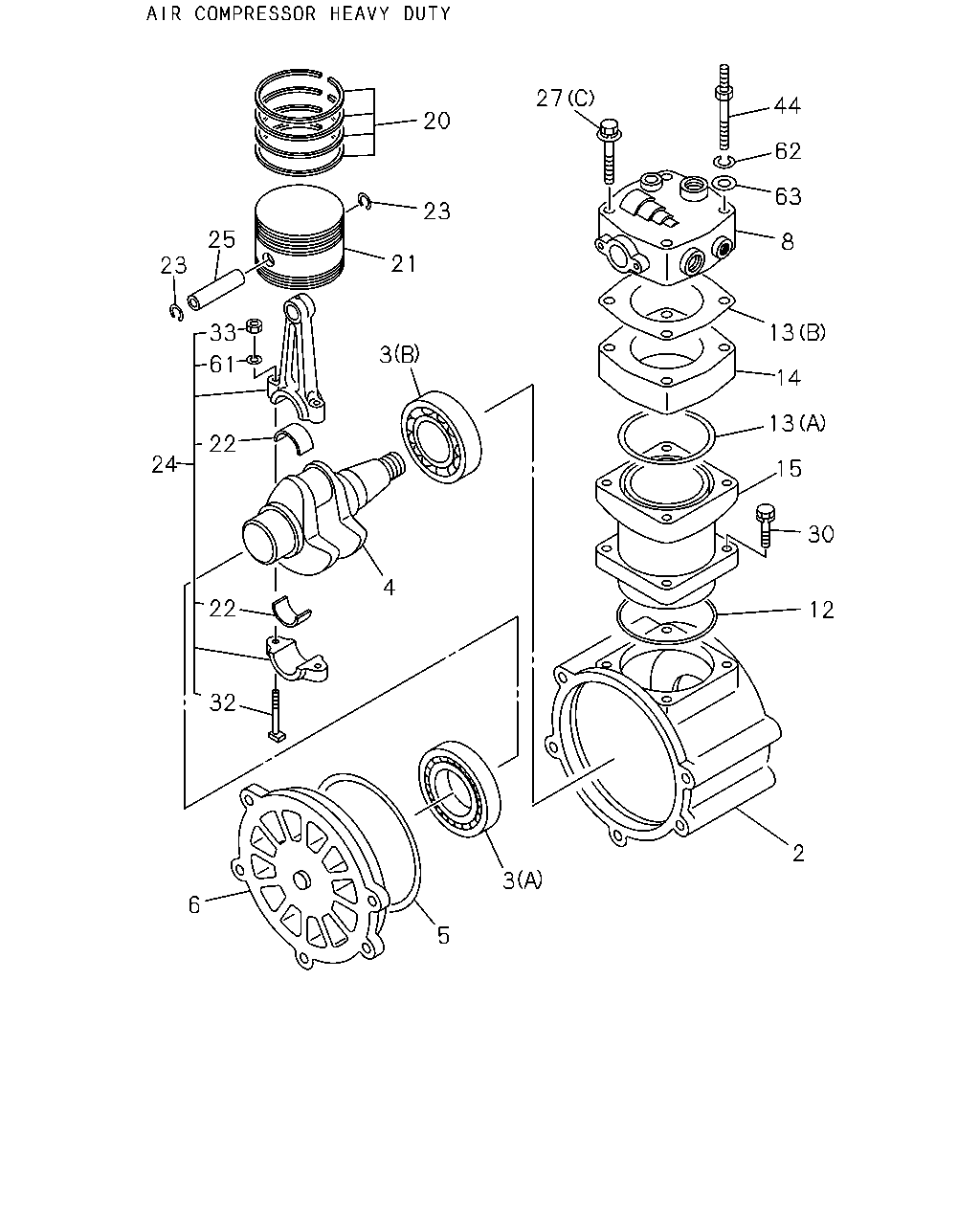

27 9 8 27 13 13 13 30 43 15 20 23 21 12 25 23 2 24 4 3 3 38 5 39 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-220-0	01	1	9603-9901	●	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-220-0	01	1	9905-	●	●	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-238-0	01	1	9603-9611		●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-238-0	01	1	9612-9901	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-281-0	01	1	9905-		●	●
3	BEARING; AIR CMPR (A)	9-00006-206-0	01	1	9603-9901	●	●
3	BEARING; AIR CMPR (B)	9-00090-152-0	01	1	9603-9901	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-00006-206-0	01	1	9905-	●	●	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-00090-152-0	01	1	9905-	●	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09800-268-0	01	1	9905-		●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09800-269-0	01	1	9905-		●	●
4	CRANKSHAFT; AIR CMPR	1-19171-031-0	01	1	9603-9901	●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-031-0	01	1	9905-	●	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-071-0	01	1	9905-		●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9603-9901	●	●
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-361-0	01	1	9905-	●	●	●	●
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-624-0	01	1	9905-		●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9603-9901	●	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-039-0	01	1	9905-	●	●	●	●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-074-0	01	1	9905-		●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-048-1	01	1	9603-9901	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-048-1	01	1	9905-	●	●	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-049-3	01	1	9603-9611		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-049-3	01	1	9612-9901	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-061-0	01	1	9905-		●	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9603-9901	●	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9905-	●	●	●	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-018-1	01	1	9603-9611		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-018-1	01	1	9612-9901	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9603-9901	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-539-0	01	1	9905-	●	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-614-0	01	1	9905-		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9603-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9603-9608	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	01	1	9609-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9905-	●	●	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9905-	●	●	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-615-0	01	1	9905-		●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19115-012-0	01	1	9905-		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9603-9901	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9905-	●	●	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9603-9611		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9612-9901	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-279-0	01	1	9905-		●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9603-9901	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9905-	●	●	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9603-9611		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9612-9901	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-058-0	01	1	9905-		●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9603-9901	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9905-	●	●	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9603-9611		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9612-9901	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-022-0	01	1	9905-		●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-008-0	02	1	9603-9901	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-008-0	02	1	9905-	●	●	●	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-005-0	02	1	9603-9611		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-005-0	02	1	9612-9901	●	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-003-0	02	1	9905-		●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9603-9901	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9905-	●	●	●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-012-0	01	1	9603-9611		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-012-0	01	1	9612-9901	●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-019-0	01	1	9905-		●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9603-9901	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9905-	●	●	●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-007-0	01	1	9603-9611		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-007-0	01	1	9612-9901	●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-004-0	01	1	9905-		●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9603-9901	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9603-9901	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9905-	●	●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9905-	●	●	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19119-013-0	04	1	9603-9611		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19119-013-0	04	1	9612-9901	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19119-014-0	02	1	9603-9611		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19119-014-0	02	1	9612-9901	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19119-024-0	02	1	9905-0002		●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9603-9901	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9905-	●	●	●	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) SOCKET HEAD	1-19159-007-0	04	1	9603-9611		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) SOCKET HEAD	1-19159-007-0	04	1	9612-9901	●	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X30	1-19119-026-0	05	1	9905-		●	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9603-9901	●	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-011-0	04	1	9905-	●	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9603-9901	●	●
39	WASHER; LK,COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.2	9-09150-608-0	04	1	9905-	●	●	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9603-9901	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9905-	●	●	●	●

27 44 20 62 63 23 25 8 21 23 13 33 3 61 14 13 22 24 15 30 4 22 12 32 2 3 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-220-0	01	1	9603-9901	●	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-220-0	01	1	9905-	●	●	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-238-0	01	1	9603-9611		●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-238-0	01	1	9612-9901	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-281-0	01	1	9905-		●	●
3	BEARING; AIR CMPR (A)	9-00006-206-0	01	1	9603-9901	●	●
3	BEARING; AIR CMPR (B)	9-00090-152-0	01	1	9603-9901	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-00006-206-0	01	1	9905-	●	●	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-00090-152-0	01	1	9905-	●	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09800-268-0	01	1	9905-		●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09800-269-0	01	1	9905-		●	●
4	CRANKSHAFT; AIR CMPR	1-19171-031-0	01	1	9603-9901	●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-031-0	01	1	9905-	●	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-071-0	01	1	9905-		●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9603-9901	●	●
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-361-0	01	1	9905-	●	●	●	●
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-624-0	01	1	9905-		●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9603-9901	●	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-039-0	01	1	9905-	●	●	●	●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-074-0	01	1	9905-		●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-048-1	01	1	9603-9901	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-048-1	01	1	9905-	●	●	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-049-3	01	1	9603-9611		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-049-3	01	1	9612-9901	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-061-0	01	1	9905-		●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9603-9901	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-539-0	01	1	9905-	●	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-614-0	01	1	9905-		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9603-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9603-9608	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	01	1	9609-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9905-	●	●	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9905-	●	●	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-615-0	01	1	9905-		●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19115-012-0	01	1	9905-		●	●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19111-017-3	01	1	9603-9611		●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19111-017-3	01	1	9612-9901	●	●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19130-008-0	01	1	9905-		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9603-9901	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9905-	●	●	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9603-9611		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9612-9901	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-279-0	01	1	9905-		●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9603-9901	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9905-	●	●	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9603-9611		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9612-9901	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-058-0	01	1	9905-		●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9603-9901	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9905-	●	●	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9603-9611		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9612-9901	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-022-0	01	1	9905-		●	●
22	METAL; CONNROD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19177-008-0	02	1	9905-		●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-008-0	02	1	9603-9901	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-008-0	02	1	9905-	●	●	●	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-005-0	02	1	9603-9611		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-005-0	02	1	9612-9901	●	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-003-0	02	1	9905-		●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9603-9901	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9905-	●	●	●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-012-0	01	1	9603-9611		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-012-0	01	1	9612-9901	●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-019-0	01	1	9905-		●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9603-9901	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9905-	●	●	●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-007-0	01	1	9603-9611		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-007-0	01	1	9612-9901	●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-004-0	01	1	9905-		●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9603-9901	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9603-9901	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9905-	●	●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9905-	●	●	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19119-013-0	04	1	9603-9611		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19119-013-0	04	1	9612-9901	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19119-014-0	02	1	9603-9611		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19119-014-0	02	1	9612-9901	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19119-024-0	02	1	9905-0002		●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9603-9901	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9905-	●	●	●	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) SOCKET HEAD	1-19159-007-0	04	1	9603-9611		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) SOCKET HEAD	1-19159-007-0	04	1	9612-9901	●	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X30	1-19119-026-0	05	1	9905-		●	●
32	BOLT; CONNROD AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-021-0	02	1	9905-		●	●
33	NUT; CONNROD BOLT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-023-0	02	1	9905-		●	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-002-0	02	1	9603-9611		●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-002-0	02	1	9612-9901	●	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-025-0	02	1	9905-0002		●	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-025-0	04	1	0003-		●	●
61	WASHER; LK,CONNROD BOLT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-022-0	02	1	9905-		●	●
62	WASHER; LK,STUD AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-510-0	02	1	9905-		●	●
63	WASHER; PL,STUD AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=18	9-09160-510-0	02	1	9905-		●	●

27 9 44 27 8 13 21 23 42 25 38 14 23 39 41 20 13 15 30 43 6 12 5 3 24 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-220-0	01	1	9603-9901	●	●
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-220-0	01	1	9905-	●	●	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-238-0	01	1	9603-9611		●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-238-0	01	1	9612-9901	●	●
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-281-0	01	1	9905-		●	●
3	BEARING; AIR CMPR (A)	9-00006-206-0	01	1	9603-9901	●	●
3	BEARING; AIR CMPR (B)	9-00090-152-0	01	1	9603-9901	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-00006-206-0	01	1	9905-	●	●	●	●
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-00090-152-0	01	1	9905-	●	●	●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09800-268-0	01	1	9905-		●	●
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-09800-269-0	01	1	9905-		●	●
4	CRANKSHAFT; AIR CMPR	1-19171-031-0	01	1	9603-9901	●	●
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-031-0	01	1	9905-	●	●	●	●
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-071-0	01	1	9905-		●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	9603-9901	●	●
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-361-0	01	1	9905-	●	●	●	●
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-624-0	01	1	9905-		●	●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	9603-9901	●	●
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-039-0	01	1	9905-	●	●	●	●
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-074-0	01	1	9905-		●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-048-1	01	1	9603-9901	●	●
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-048-1	01	1	9905-	●	●	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-049-3	01	1	9603-9611		●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-049-3	01	1	9612-9901	●	●
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-061-0	01	1	9905-		●	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9603-9901	●	●
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	9905-	●	●	●	●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-018-1	01	1	9603-9611		●
9	VALVE ASM; UNLOADER,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-018-1	01	1	9612-9901	●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9603-9901	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-539-0	01	1	9905-	●	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-614-0	01	1	9905-		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9603-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9603-9608	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	01	1	9609-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9905-	●	●	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9905-	●	●	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-615-0	01	1	9905-		●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19115-012-0	01	1	9905-		●	●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19111-017-3	01	1	9603-9611		●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19111-017-3	01	1	9612-9901	●	●
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19130-008-0	01	1	9905-		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9603-9901	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9905-	●	●	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9603-9611		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9612-9901	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-279-0	01	1	9905-		●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9603-9901	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9905-	●	●	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9603-9611		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9612-9901	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-058-0	01	1	9905-		●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9603-9901	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9905-	●	●	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9603-9611		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9612-9901	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-022-0	01	1	9905-		●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-008-0	02	1	9603-9901	●	●
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-008-0	02	1	9905-	●	●	●	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-005-0	02	1	9603-9611		●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-005-0	02	1	9612-9901	●	●
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19169-003-0	02	1	9905-		●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9603-9901	●	●
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	9905-	●	●	●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-012-0	01	1	9603-9611		●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-012-0	01	1	9612-9901	●	●
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-019-0	01	1	9905-		●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9603-9901	●	●
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	9905-	●	●	●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-007-0	01	1	9603-9611		●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-007-0	01	1	9612-9901	●	●
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19167-004-0	01	1	9905-		●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9603-9901	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9603-9901	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X45	9-01066-045-0	02	1	9905-	●	●	●	●
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X60	9-01066-060-0	02	1	9905-	●	●	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19119-013-0	04	1	9603-9611		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19119-013-0	04	1	9612-9901	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19119-014-0	02	1	9603-9611		●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19119-014-0	02	1	9612-9901	●	●
27	BOLT; HD AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19119-024-0	02	1	9905-0002		●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9603-9901	●	●
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	9905-	●	●	●	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) SOCKET HEAD	1-19159-007-0	04	1	9603-9611		●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) SOCKET HEAD	1-19159-007-0	04	1	9612-9901	●	●
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) M10X30	1-19119-026-0	05	1	9905-		●	●
38	BOLT; COVER FIX	1-19179-011-0	04	1	9603-9901	●	●
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-011-0	04	1	9905-	●	●	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	9603-9901	●	●
39	WASHER; LK,COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.2	9-09150-608-0	04	1	9905-	●	●	●	●
41	SCREW; PLATE TO HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09100-018-0	02	1	9603-9611		●
41	SCREW; PLATE TO HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09100-018-0	02	1	9612-9901	●	●
42	GASKET; PLATE TO HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-402-0	02	1	9603-9611		●
42	GASKET; PLATE TO HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-402-0	02	1	9612-9901	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	9603-9901	●	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	9905-	●	●	●	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-002-0	02	1	9603-9611		●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-002-0	02	1	9612-9901	●	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-025-0	02	1	9905-0002		●	●
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19119-025-0	04	1	0003-		●	●

1 20 21 13 13 15 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-019-0	01	1	9603-9901	●	●
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-019-0	01	1	9905-	●	●	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-056-1	01	1	9603-9611		●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-056-1	01	1	9612-9901	●	●
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-061-0	01	1	9905-		●	●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	9603-9901	●	●
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-539-0	01	1	9905-	●	●	●	●
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-614-0	01	1	9905-		●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9603-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9603-9608	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	01	1	9609-9901	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=14.5	1-19139-003-0	01	1	9905-	●	●	●	●
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) T=0.8	1-19139-004-0	02	1	9905-	●	●	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19139-007-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9603-9611		●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-009-0	01	1	9612-9901	●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09623-615-0	01	1	9905-		●	●
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19115-012-0	01	1	9905-		●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9603-9901	●	●
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	9905-	●	●	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9603-9611		●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-236-0	01	1	9612-9901	●	●
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-279-0	01	1	9905-		●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9603-9901	●	●
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	9905-	●	●	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9603-9611		●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-055-1	01	1	9612-9901	●	●
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-058-0	01	1	9905-		●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9603-9901	●	●
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	9905-	●	●	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9603-9611		●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-014-0	01	1	9612-9901	●	●
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-022-0	01	1	9905-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
