Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#41989) — 193 parça

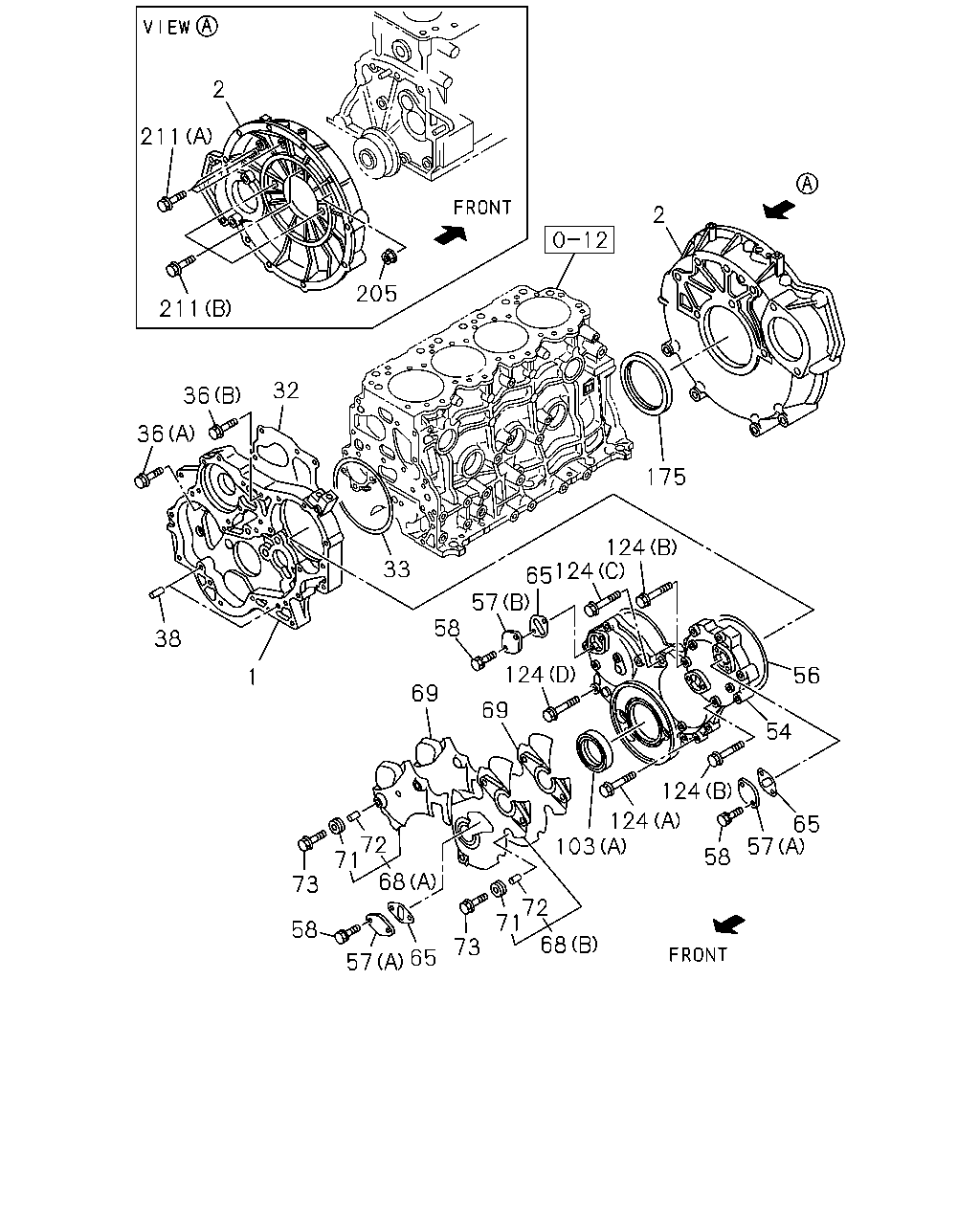

2 211 2 205 211 32 36 36 175 124 124 65 57 33 58 38 124 56 1 69 69 54 124 124 103 65 57 72 71 58 68 73 72 71 58 68 73 65 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0302-0506	●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0507-0606		●
1	00.206 CASE; TIMING GEAR	8-97945-261-1	01	1	0607-			●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0302-0506	●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0507-0606		●
2	00.683 HOUSING; FLYWHEEL	8-97381-492-2	01	1	0607-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0302-0506	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0507-0606		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0607-			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0302-0506	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0507-0606		●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0302-0506	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0507-0606		●
36	00.206 BOLT; GEAR CASE 04.338 (I) M8X20 FLANGE	0-28050-820-0	12	1	0607-			●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0302-0503	●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0506	●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0507-0606		●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 02.343 (H) M8X16 FLANGE	0-28050-816-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0607-			●
36	00.206 BOLT; GEAR CASE 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	0607-			●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0506	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0507-0606		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0607-			●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0302-0506	●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0507-0606		●
54	00.206 COVER; GEAR CASE	8-98012-960-1	01	1	0607-			●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0302-0506	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0507-0606		●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0302-0506	●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0507-0606		●
57	00.206 COVER; TIMING CHECK HOLE (B)	8-97304-608-1	01	1	0302-0506	●
57	00.206 COVER; TIMING CHECK HOLE (B)	8-97304-608-1	01	1	0507-0606		●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0302-0403	●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0404-0506	●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0507-0512		●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	0601-0606		●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0302-0311	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0312-0506	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0507-0606		●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0302-0506	●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0507-0606		●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-98009-466-2	01	1	0607-			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0302-0506	●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0507-0606		●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-97255-035-1	01	1	0302-0302	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-97329-009-0	01	1	0303-0506	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-97329-009-0	01	1	0507-0606		●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-97358-025-0	01	1	0302-0302	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-97329-011-0	01	1	0303-0506	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-97329-011-0	01	1	0507-0606		●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0302-0506	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0507-0606		●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0302-0506	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0507-0606		●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0302-0403	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0506	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0507-0512		●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-0606		●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0302-0506	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0507-0606		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97382-606-0	01	1	0607-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0607-			●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-0606		●
124	00.206 BOLT; TIMING COVER 09.242 (E) M6X16 FLANGE	0-28050-616-0	03	1	0607-			●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-0606		●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0302-0506	●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-0606		●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0507-0606		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0302-0506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0507-0606		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0607-			●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0302-0506	●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0507-0602		●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0606		●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0607-			●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0302-0506	●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0507-0512		●
211	00.669 BOLT; HSG 03.890 (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-0606		●
211	00.669 BOLT; HSG 09.003 (D) M12X35 FLANGE	0-28651-235-0	06	1	0607-			●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0302-0506	●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0507-0606		●
211	00.669 BOLT; HSG 00.683 (E) M12X25	5-09000-227-0	03	1	0607-			●
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	0607-			●

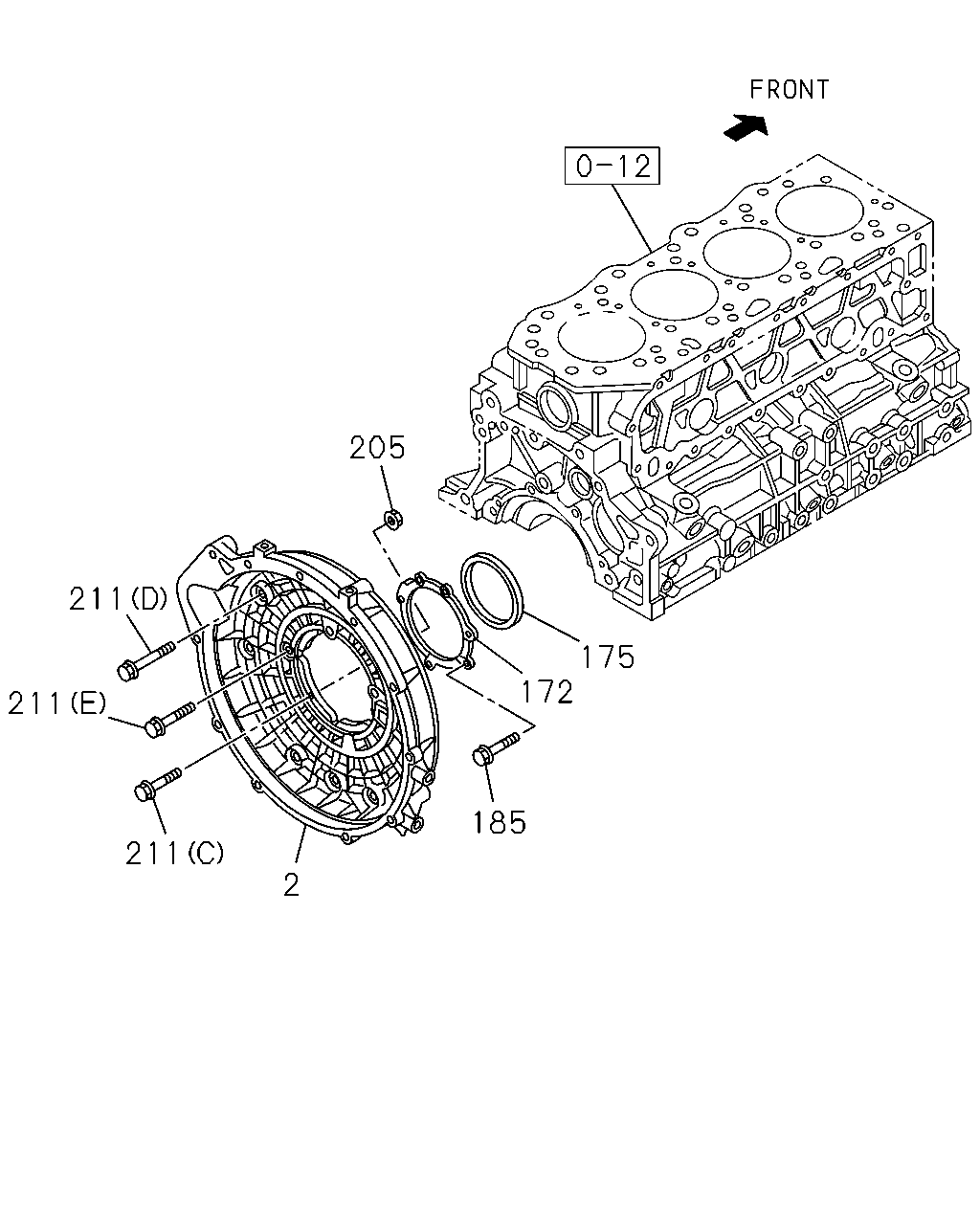

205 211 175 172 211 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0302-0506	●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0507-0606		●
2	00.683 HOUSING; FLYWHEEL	8-97381-492-2	01	1	0607-			●
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	0607-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0302-0506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0507-0606		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0607-			●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0607-			●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0302-0506	●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0507-0602		●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0606		●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0607-			●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0302-0506	●
211	00.669 BOLT; HSG 00.685 (A) M10X30 FLANGE	0-28081-030-0	03	1	0507-0512		●
211	00.669 BOLT; HSG 03.890 (A) M10X30 FLANGE	0-28051-030-0	03	1	0601-0606		●
211	00.669 BOLT; HSG 09.003 (D) M12X35 FLANGE	0-28651-235-0	06	1	0607-			●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0302-0506	●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0507-0606		●
211	00.669 BOLT; HSG 00.683 (E) M12X25	5-09000-227-0	03	1	0607-			●
211	00.669 BOLT; HSG 00.862 (C) M10X43	9-09606-535-0	01	1	0607-			●

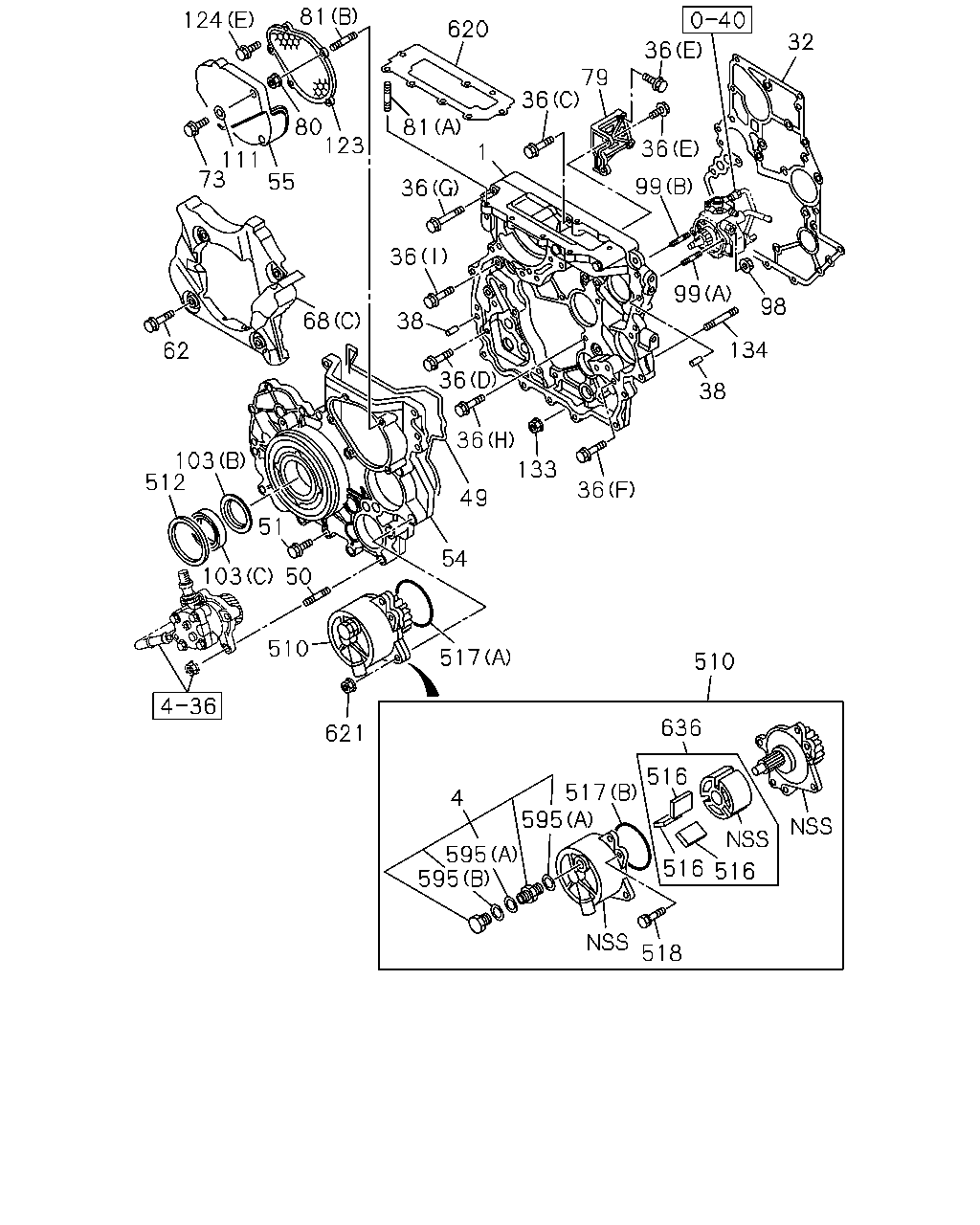

81 124 620 32 36 79 36 80 123 81 36 111 73 1 55 99 36 36 99 98 68 38 134 62 36 38 36 103 512 133 36 49 51 54 103 50 510 517 510 636 621 516 517 595 4 595 595 516 516 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0302-0506	●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0507-0606		●
1	00.206 CASE; TIMING GEAR	8-97945-261-1	01	1	0607-			●
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0607-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0302-0506	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0507-0606		●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0302-0506	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0507-0606		●
36	00.206 BOLT; GEAR CASE 04.338 (I) M8X20 FLANGE	0-28050-820-0	12	1	0607-			●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0302-0503	●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0506	●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0507-0606		●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 02.343 (H) M8X16 FLANGE	0-28050-816-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0607-			●
36	00.206 BOLT; GEAR CASE 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0607-			●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	0607-			●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0506	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0507-0606		●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0607-			●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	0607-			●
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0607-			●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	0607-			●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0302-0506	●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0507-0606		●
54	00.206 COVER; GEAR CASE	8-98012-960-1	01	1	0607-			●
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	0607-			●
62	00.206 BOLT; COVER 03.162 M6X20 FLANGE	0-28650-620-0	04	1	0607-			●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0302-0506	●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0507-0606		●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-98009-466-2	01	1	0607-			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0302-0506	●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0507-0606		●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0302-0403	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0506	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0507-0512		●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-0606		●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-			●
79	00.219 BRACKET; GEAR CASE COVER	8-97370-390-2	01	1	0607-			●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	0607-			●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	0607-			●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	0607-			●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	01	1	0607-			●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	0607-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0302-0506	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0507-0606		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97382-606-0	01	1	0607-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0607-			●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0607-			●
123	00.206 COVER; TIMING,LWR	8-97371-720-1	01	1	0607-			●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-0606		●
124	00.206 BOLT; TIMING COVER 09.242 (E) M6X16 FLANGE	0-28050-616-0	03	1	0607-			●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-0606		●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0302-0506	●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0507-0512		●
124	00.206 BOLT; TIMING COVER (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-0606		●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0302-0506	●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0507-0606		●
133	00.206 NUT; TIMING GEAR CASE 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
134	00.669 STUD; TIMING GEAR CASE 02.510 M8X20 L=32	0-41010-820-0	02	1	0607-			●
510	04.895 PUMP ASM; VACUUM	8-98005-250-0	01	1	0607-			●
512	04.895 RUBBER; SPACE	8-97322-675-0	01	1	0607-			●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	0607-			●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	0607-			●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A)	9-09566-271-0	01	1	0607-			●
518	04.895 BOLT; VAC PUMP	8-98049-523-0	03	1	0607-			●
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	0607-			●
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	0607-			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	0607-			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	0607-			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	0607-			●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	0607-			●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0607-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
