0-13 — OIL PAN AND LEVEL GAUGE (#41986) — 71 parça

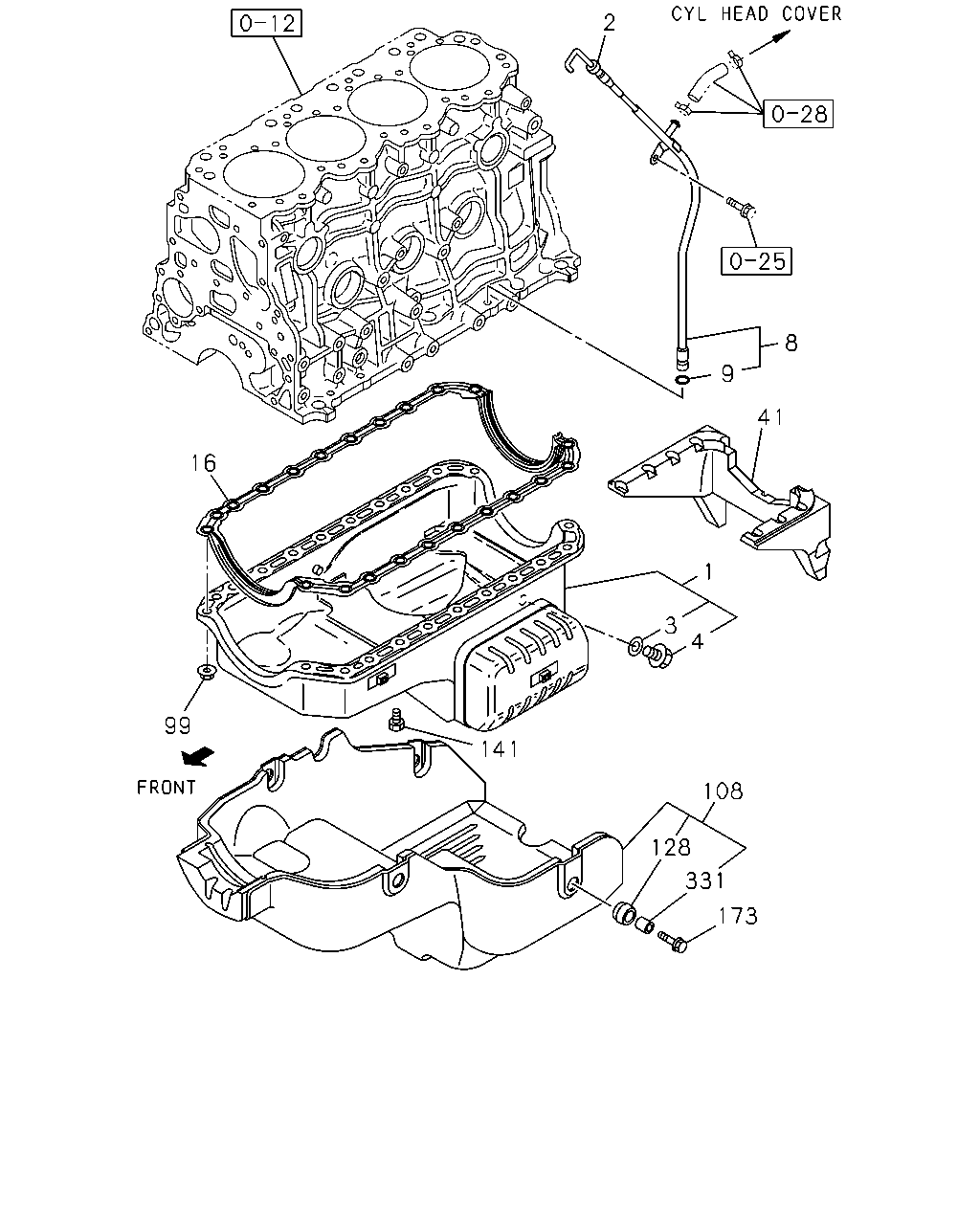

çizim 52291
2 8 9 41 16 1 3 4 141 99 108 128 331 173
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.426 PAN ASM; OIL 8-97223-955-0 01 1 0302-0411 ●
1 01.426 PAN ASM; OIL 8-98000-124-0 01 1 0412-0506 ●
1 01.426 PAN ASM; OIL 8-98000-124-0 01 1 0507-0606 ●
1 01.426 PAN ASM; OIL 8-97383-067-3 01 1 0607- ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0302-0506 ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0507-0606 ●
2 01.516 GAUGE; OIL LEVEL 8-98017-398-3 01 1 0607-0607 ●
2 01.516 GAUGE; OIL LEVEL 8-98054-701-0 01 1 0607-0608 ●
2 01.516 GAUGE; OIL LEVEL 8-98058-659-0 01 1 0609- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0302-0506 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0507-0606 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0607- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0302-0506 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0507-0606 ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0607- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97239-977-0 01 1 0302-0506 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97239-977-0 01 1 0507-0606 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97381-490-3 01 1 0607- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 0302-0506 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 0507-0606 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 0607- ●
16 01.429 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 0302-0506 ●
16 01.429 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 0507-0606 ●
41 00.137 RUBBER; SPACE 8-97286-992-0 01 1 0302-0506 ●
41 00.137 RUBBER; SPACE 8-97286-992-0 01 1 0507-0606 ●
99 01.453 NUT; BRKT TO OIL PAN FIX
06.164 M8 FLANGE 		5-09440-010-0 10 1 0302-0506 ●
99 01.453 NUT; BRKT TO OIL PAN FIX
06.164 M8 FLANGE 		5-09440-010-0 10 1 0507-0606 ●
108 01.426 COVER; OIL PAN 8-97248-296-2 01 1 0302-0305 ●
108 01.426 COVER; OIL PAN 8-97370-031-0 01 1 0306-0506 ●
108 01.426 COVER; OIL PAN 8-97370-031-0 01 1 0507-0606 ●
128 01.516 RUBBER; MTG,OIL PAN 8-97227-521-0 04 1 0302-0506 ●
128 01.516 RUBBER; MTG,OIL PAN 8-97227-521-0 04 1 0507-0606 ●
141 01.428 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 0302-0506 ●
141 01.428 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 0507-0606 ●
173 01.428 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0302-0506 ●
173 01.428 BOLT; COVER
00.034 M8X22 W/LK&PL WASHER 		8-94329-953-1 04 1 0507-0606 ●
331 01.516 COLLAR; MTG RUBBER 8-97224-450-0 04 1 0302-0506 ●
331 01.516 COLLAR; MTG RUBBER 8-97224-450-0 04 1 0507-0606 ●

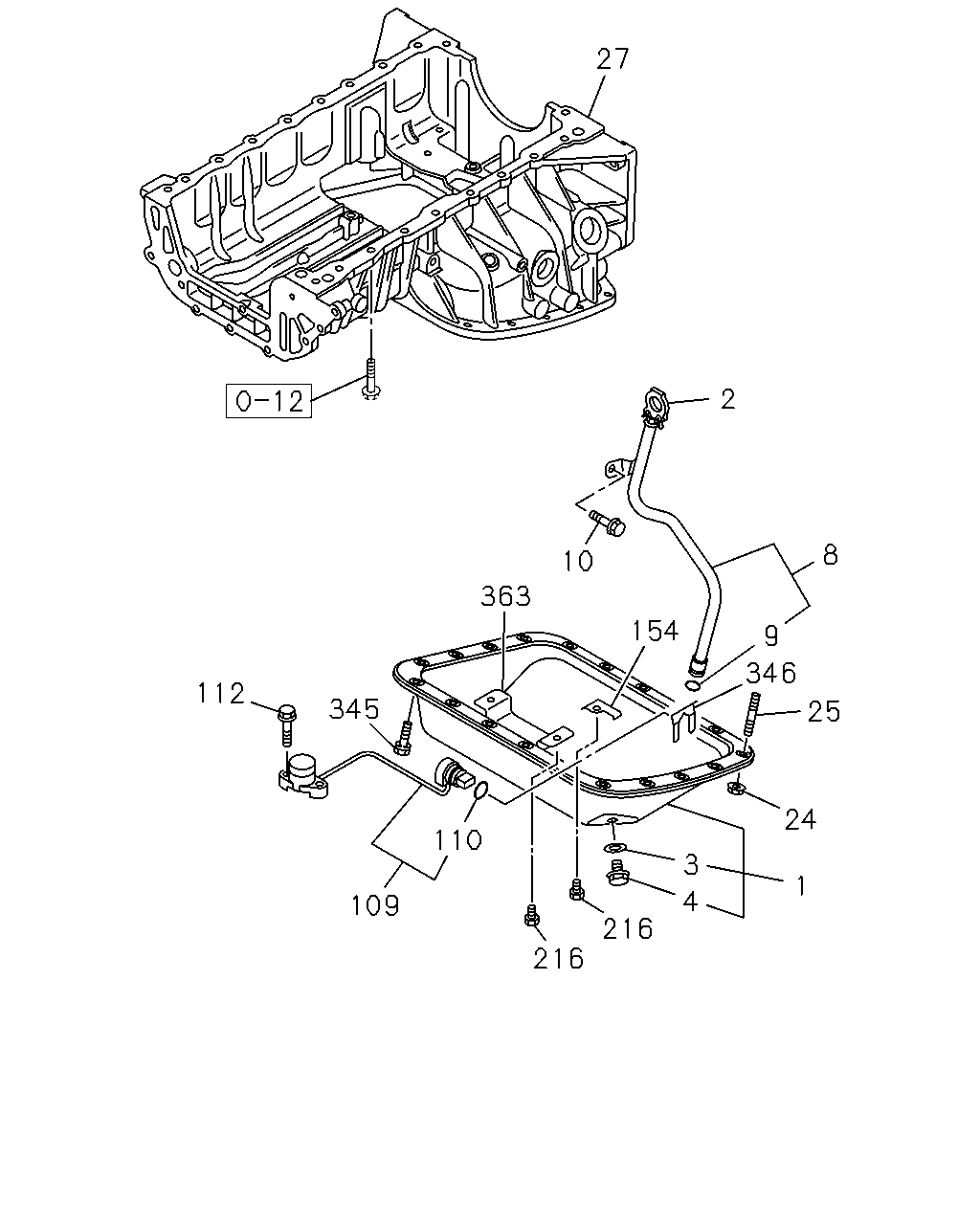

çizim 52527
27 2 8 10 363 154 9 346 112 345 25 24 110 3 1 4 109 216 216
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.426 PAN ASM; OIL 8-97223-955-0 01 1 0302-0411 ●
1 01.426 PAN ASM; OIL 8-98000-124-0 01 1 0412-0506 ●
1 01.426 PAN ASM; OIL 8-98000-124-0 01 1 0507-0606 ●
1 01.426 PAN ASM; OIL 8-97383-067-3 01 1 0607- ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0302-0506 ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0507-0606 ●
2 01.516 GAUGE; OIL LEVEL 8-98017-398-3 01 1 0607-0607 ●
2 01.516 GAUGE; OIL LEVEL 8-98054-701-0 01 1 0607-0608 ●
2 01.516 GAUGE; OIL LEVEL 8-98058-659-0 01 1 0609- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0302-0506 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0507-0606 ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0607- ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0302-0506 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0507-0606 ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0607- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97239-977-0 01 1 0302-0506 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97239-977-0 01 1 0507-0606 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97381-490-3 01 1 0607- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 0302-0506 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 0507-0606 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 0607- ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0607- ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 0607- ●
25 01.453 STUD; OIL PAN
M8X16 L=28 		0-41010-816-0 02 1 0607- ●
27 01.426 CRANKCASE 8-97381-483-5 01 1 0607- ●
109 01.516 SWITCH; OIL LEVEL 8-97328-879-0 01 1 0607- ●
110 01.456 GASKET; SW,OIL LEVEL 8-98048-191-0 01 1 0607- ●
112 01.516 BOLT; SW,OIL LEVEL
03.680 M6X30 FLANGE 		0-28650-630-0 02 1 0607- ●
154 01.428 BRACKET; CLIP,ENG HARNESS 8-97386-380-0 01 1 0607- ●
216 01.429 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0607- ●
345 01.516 BOLT; SENSOR,OIL LEVEL
02.343 M8X12 FLANGE 		0-28050-812-0 17 1 0607- ●
346 01.516 CLIP; OIL LEVEL SW
04.047 ID=19.2 		8-97211-011-0 01 1 0607- ●
363 01.516 BRACKET; OIL LEVEL SW 8-97381-486-0 01 1 0607- ●
