0-11 — CYLINDER HEAD (#41984) — 121 parça

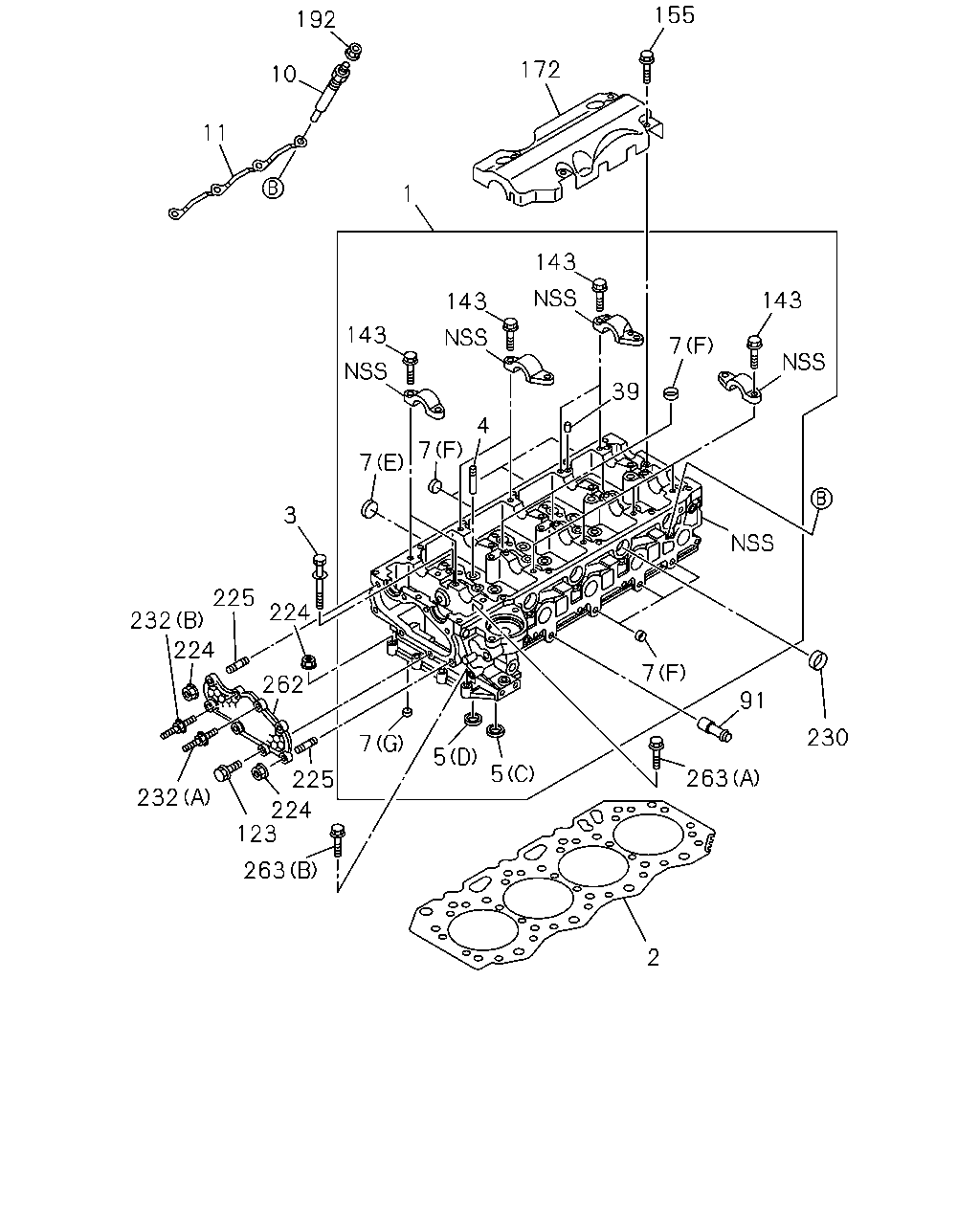

çizim 11223
155 192 172 10 11 1 143 143 143 143 7 39 4 7 7 3 225 232 224 224 7 262 91 7 230 225 5 5 263 232 224 123 263 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0507-0606 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0607- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 0607- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 0607- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0507-0606 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X114 		8-97144-583-2 18 1 0607- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0302-0506 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0507-0606 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0607- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0607- ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0302-0404 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0405-0506 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 		8-97311-378-0 08 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		1-09600-012-2 02 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0302-0503 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=18 		5-11219-008-0 13 1 0607- ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-8 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0507-0606 ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0607- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0302-0506 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 0607- ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 0607- ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 0607- ●
123 00.206 BOLT; COVER
M8X20 FLANGE 		8-97366-632-0 04 1 0607- ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 0607- ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 0607- ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98016-865-0 01 1 0607- ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 0607- ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 0607- ●
225 00.349 STUD; COVER
M8X15.5 L=33.5 		8-98017-062-0 02 1 0607- ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.306 OD=30 		1-09639-034-0 04 1 0607- ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97366-633-0 01 1 0607- ●
232 00.413 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 0607- ●
262 00.206 COVER; CYL HEAD 8-97355-516-4 01 1 0607- ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 0607- ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 0607- ●

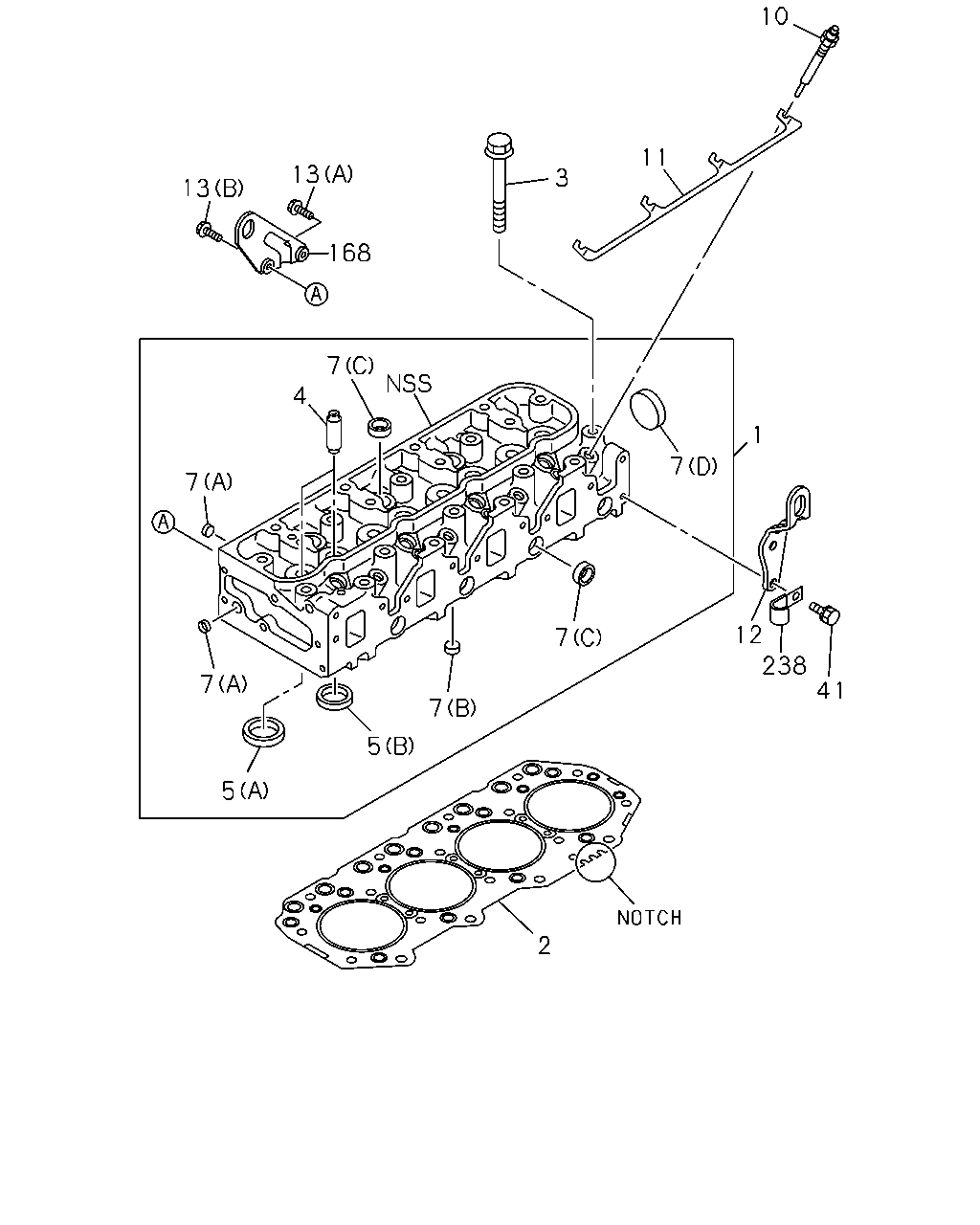

çizim 52256
10 11 13 3 13 168 7 4 1 7 7 12 7 238 41 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0507-0606 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0607- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 0607- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 0607- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0507-0606 ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X114 		8-97144-583-2 18 1 0607- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0302-0506 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0507-0606 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0607- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0607- ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0302-0404 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0405-0506 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(C) INLET ID=29 OD=35 		8-97311-378-0 08 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (E) OD=32 		1-09600-012-2 02 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (G) OD=14 		5-11219-011-0 07 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0302-0503 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=18 		5-11219-008-0 13 1 0607- ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-8 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0507-0606 ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0607- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0302-0506 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 0607- ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 0302-0506 ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 0507-0606 ●
13 00.004 BOLT; HANGER
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 0302-0506 ●
13 00.004 BOLT; HANGER
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 0507-0512 ●
13 00.004 BOLT; HANGER
09.171 (B) M10X25 FLANGE 		0-28051-025-0 01 1 0601-0606 ●
13 00.004 BOLT; HANGER
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0302-0506 ●
13 00.004 BOLT; HANGER
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0507-0512 ●
13 00.004 BOLT; HANGER
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0606 ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0302-0410 ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0411-0506 ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ●
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0606 ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 0302-0506 ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 0507-0606 ●
238 02.559 CLIP; GLOW HARNESS
04.205 L=60 		1-09700-304-0 01 1 0302-0506 ●
238 02.559 CLIP; GLOW HARNESS
04.205 L=60 		1-09700-304-0 01 1 0507-0606 ●
