Sayfa 0-80 - Isuzu EPC

0-80 — INJECTION PUMP (#41978) — 165 parça

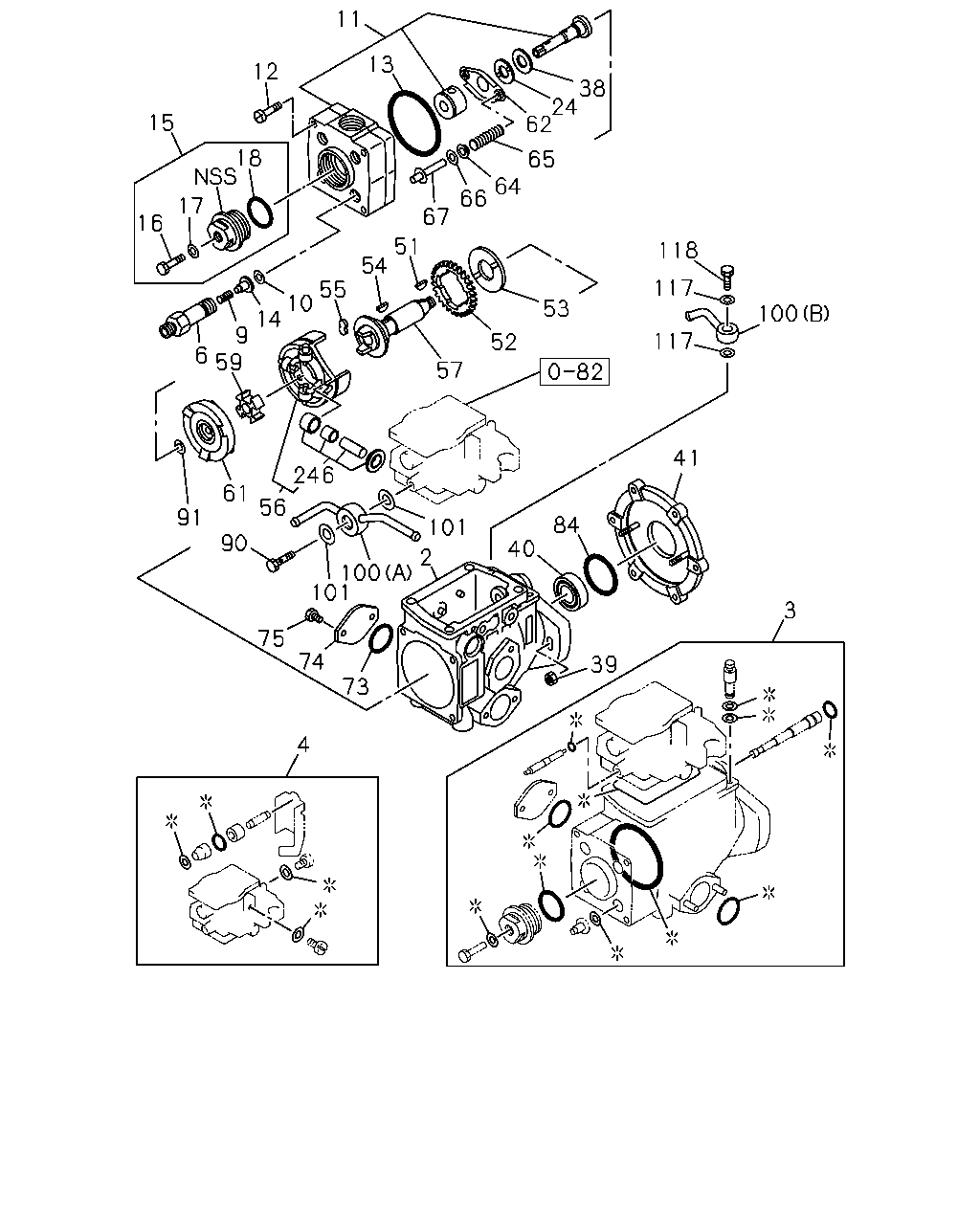

11 13 12 38 24 62 15 18 17 65 64 66 67 51 54 16 118 117 100 117 55 10 14 9 6 59 53 52 57 41 246 61 56 91 84 101 2 100 101 90 40 3 75 74 39 73 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING ASM; PUMP,FUEL INJ THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94177-921-0	01	1	-
3	REPAIR KIT; FUEL INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94228-545-0	01	1	-
4	GASKET KIT; INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94151-402-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94367-330-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94174-803-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94247-716-0	04	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97032-166-0	01	1	-
12	SCREW; DISTR HD,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94257-670-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-527-0	01	1	-
14	VALVE; DELIVERY,INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97166-977-0	04	1	-
15	PLUG ASM; DISTR,INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97144-354-0	01	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94174-818-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94433-808-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-637-0	01	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-515-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-514-0	01	1	-
39	NUT; MTG BRKT FIX ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97119-344-0	02	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97147-034-0	01	1	-
41	BRACKET; INJ PUMP HSG ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94174-843-0	01	1	-
41	BRACKET; INJ PUMP HSG ASM PART: A = 8-97214-093-4	8-97231-631-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94239-370-0	01	1	-
52	GEAR; GOV DRIVE,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-483-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-484-0	01	1	-
54	KEY; FEED PUMP,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-481-0	01	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94169-528-0	02	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94433-760-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94433-759-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94433-761-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97125-528-0	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-516-1	01	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-517-0	02	1	-
65	SPRING KIT; PLUNGER,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94433-816-0	01	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-518-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-519-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-520-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-521-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-522-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-523-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-524-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94433-204-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94433-205-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94433-206-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94433-207-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.60 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94433-208-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.70 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94433-209-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97146-139-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97146-140-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97146-141-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97146-142-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-360-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-361-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-362-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-363-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-364-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-365-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-366-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-367-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-368-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-369-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-370-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-371-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-372-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-373-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97189-374-0	AR	1	-
67	PIN; GUIDE,PLUNGER SPRING THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97185-285-0	02	1	-
73	GASKET; COVER TO HSG THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-491-0	01	1	-
74	COVER; HSG,INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97125-525-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94313-276-0	02	1	-
84	GASKET; BRKT TO HSG ASM PART: A = 8-97214-093-4	8-97141-471-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97144-333-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97214-093-4	8-97238-595-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.74 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94111-658-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.76 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94111-659-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.78 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94111-660-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.80 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94111-661-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.82 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94111-662-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.84 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94111-663-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.86 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94111-664-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.88 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94111-665-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-528-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.92 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-529-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.94 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-530-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.96 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-531-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.98 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-532-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.00 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-533-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.02 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-534-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.04 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-535-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.06 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-536-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.08 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-537-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.10 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-538-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.12 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-539-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.14 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-540-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.16 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-541-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.18 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-542-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-543-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.22 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-544-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.24 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-545-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.26 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-546-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.28 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-547-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.30 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-548-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.32 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-549-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.34 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-550-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.36 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-551-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.38 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-552-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-553-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.42 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-554-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.44 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-555-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.46 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-556-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.48 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-557-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.50 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-558-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.52 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-559-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.54 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-560-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.56 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-561-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.58 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-562-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.60 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-563-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.62 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-564-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.64 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-565-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.66 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-566-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.68 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-567-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-568-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.72 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-569-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.74 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-570-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.76 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-571-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.78 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-572-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.80 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-573-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.82 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-574-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.84 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-575-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.86 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-576-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.88 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-577-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94227-578-0	AR	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97119-194-0	01	1	-
100	PIPE; FUEL INJ PUMP (B), THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97163-182-0	01	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97214-093-4	8-97238-593-0	01	1	-
100	PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-97214-093-4	8-97238-594-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97119-187-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: A = 8-97214-093-4	8-97141-182-0	02	1	0010-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-97214-093-4	8-97249-640-0	02	1	-0009
117	GASKET; EYE BOLT,INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97119-187-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP (A), ID=12.2 ASM PART: A = 8-97214-093-4	8-97141-182-0	03	1	0010-
117	GASKET; EYE BOLT,INJ PUMP (A), ID=12.2 ASM PART: A = 8-97214-093-4	8-97141-182-0	01	1	-0009
117	GASKET; EYE BOLT,INJ PUMP (B) ASM PART: A = 8-97214-093-4	8-97249-640-0	02	1	-0009
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94379-688-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97214-093-4	8-97261-353-0	01	1	-
246	ROLLER KIT; INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97163-172-0	01	1	-

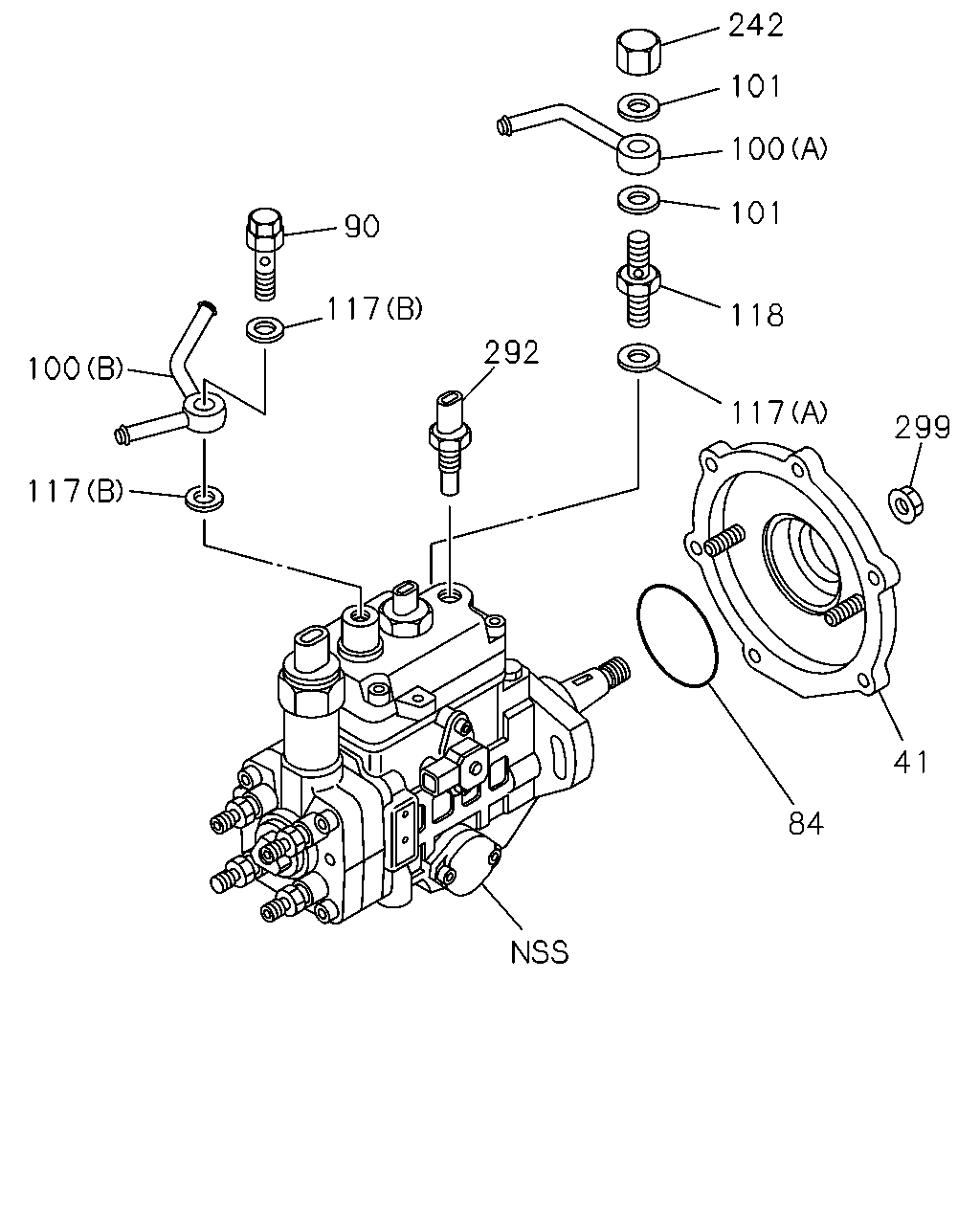

242 101 100 101 90 117 118 292 100 117 299 117 41 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	BRACKET; INJ PUMP HSG ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94174-843-0	01	1	-
41	BRACKET; INJ PUMP HSG ASM PART: A = 8-97214-093-4	8-97231-631-0	01	1	-
84	GASKET; BRKT TO HSG ASM PART: A = 8-97214-093-4	8-97141-471-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97144-333-0	01	1	-
90	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97214-093-4	8-97238-595-0	01	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97119-194-0	01	1	-
100	PIPE; FUEL INJ PUMP (B), THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97163-182-0	01	1	-
100	PIPE; FUEL INJ PUMP (A) ASM PART: A = 8-97214-093-4	8-97238-593-0	01	1	-
100	PIPE; FUEL INJ PUMP (B) ASM PART: A = 8-97214-093-4	8-97238-594-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97119-187-0	02	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ID=12.2 ASM PART: A = 8-97214-093-4	8-97141-182-0	02	1	0010-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: A = 8-97214-093-4	8-97249-640-0	02	1	-0009
117	GASKET; EYE BOLT,INJ PUMP THA ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-97119-187-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP (A), ID=12.2 ASM PART: A = 8-97214-093-4	8-97141-182-0	03	1	0010-
117	GASKET; EYE BOLT,INJ PUMP (A), ID=12.2 ASM PART: A = 8-97214-093-4	8-97141-182-0	01	1	-0009
117	GASKET; EYE BOLT,INJ PUMP (B) ASM PART: A = 8-97214-093-4	8-97249-640-0	02	1	-0009
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 8-97226-332-1, C = 8-97226-333-1	8-94379-688-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 8-97214-093-4	8-97261-353-0	01	1	-
242	NUT; CAP ASM PART: A = 8-97214-093-4	8-97141-252-0	01	1	-
292	SENSOR; FUEL TEMPERATURE ASM PART: A = 8-97214-093-4	8-97238-596-0	01	1	-
299	NUT; LOCK ASM PART: A = 8-97214-093-4	8-97141-469-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
