0-66 — GENERATOR (#41977) — 134 parça

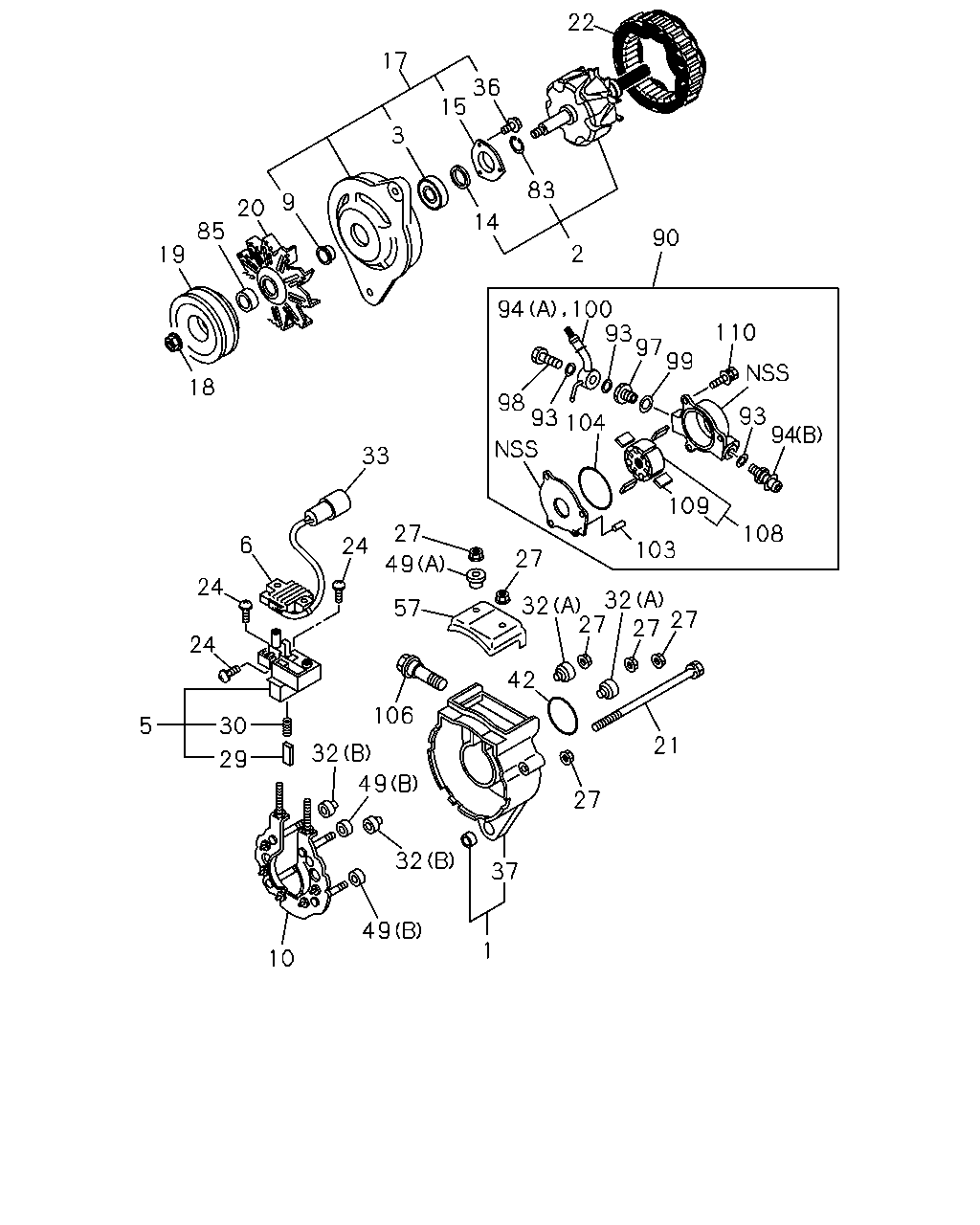

22 17 36 15 3 83 9 20 85 19 14 90 2 94 100 93 97 99 110 18 98 93 104 93 94 33 109 27 24 49 108 6 103 32 32 27 27 27 27 24 57 24 42 106 5 30 29 21 32 49 27 32 37 49 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN THA ASM PART: C = 8-97941-845-1	8-94456-598-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: B = 8-97941-597-2	8-97288-962-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97941-426-2	8-97941-557-0	01	1	-
2	ROTOR; GEN THA ASM PART: C = 8-97941-845-1	8-97258-992-0	01	1	-
2	ROTOR; GEN THA ASM PART: B = 8-97941-597-2	8-97288-961-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97941-426-2	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97941-426-2	8-97148-112-0	01	1	-
5	HOLDER; BRUSH,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94342-673-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN THA ASM PART: C = 8-97941-845-1	8-94342-680-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN THA ASM PART: B = 8-97941-597-2	8-97288-978-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94453-231-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: C = 8-97941-845-1	8-94342-672-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: B = 8-97941-597-2	8-97288-965-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: A = 8-97941-426-2	8-97941-564-0	01	1	-
14	COLLAR; STEEL THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94453-225-0	01	1	-
15	RETAINER; ROTOR,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94453-229-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: C = 8-97941-845-1	8-94456-588-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: B = 8-97941-597-2	8-97288-960-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97941-426-2	8-97941-560-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94167-948-0	01	1	-
19	PULLEY; GEN THA ASM PART: C = 8-97941-845-1	8-94456-585-0	01	1	-
19	PULLEY; GEN THA ASM PART: B = 8-97941-597-2	8-97288-957-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97941-426-2	8-97941-561-0	01	1	-
20	FAN; GEN THA ASM PART: C = 8-97941-845-1	8-97258-991-0	01	1	-0112
20	FAN; GEN THA ASM PART: B = 8-97941-597-2	8-97288-959-0	01	1	-0112
20	FAN; GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-97942-841-0	01	1	0201-
21	BOLT; THROUGH,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	1-81229-031-0	03	1	-0112
21	BOLT; THROUGH,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-97942-840-0	03	1	0201-
22	STATOR; GEN THA ASM PART: C = 8-97941-845-1	8-97259-163-0	01	1	-
22	STATOR; GEN THA ASM PART: B = 8-97941-597-2	8-97288-969-0	01	1	-
22	STATOR; GEN THA ASM PART: A = 8-97941-426-2	8-97941-673-0	01	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	1-81229-409-0	01	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: B = 8-97941-597-2	1-81229-419-0	04	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: C = 8-97941-845-1	8-97259-011-0	03	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: A = 8-97941-426-2	8-97941-562-0	01	1	-
27	NUT; RECTIFIER,GEN THA ASM PART: C = 8-97941-845-1	8-94206-188-0	08	1	-
27	NUT; RECTIFIER,GEN THA ASM PART: B = 8-97941-597-2	8-94206-188-0	07	1	-
29	BRUSH; GEN THA ASM PART: B = 8-97941-597-2	5-81215-018-0	02	1	-
29	BRUSH; GEN THA ASM PART: C = 8-97941-845-1	8-97258-993-0	02	1	-
30	SPRING; BRUSH,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	5-81216-002-0	02	1	-
32	TERMINAL; RECTIFIER,GEN (A), THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	1-81229-410-0	02	1	-
32	TERMINAL; RECTIFIER,GEN (B), THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	1-81229-411-0	02	1	-
33	WIRE; LEAD,GEN THA ASM PART: C = 8-97941-845-1	8-94342-676-0	01	1	-
33	WIRE; LEAD,GEN THA ASM PART: B = 8-97941-597-2	8-97288-970-0	01	1	-
36	SCREW; FRT COVER THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94453-227-0	03	1	-
37	BUSHING; RR COVER,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94456-599-0	01	1	-
42	GASKET; RR COVER,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94456-608-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A), THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	1-81229-413-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B), THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	5-81229-105-0	02	1	-
57	COVER; BRUSH,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94342-674-0	01	1	-
83	RING; SLIP,ROTOR,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	5-81229-109-0	01	1	-
85	SPACER; PULLEY,GEN THA ASM PART: C = 8-97941-845-1	8-94453-234-0	01	1	-
85	SPACER; PULLEY,GEN THA ASM PART: B = 8-97941-597-2	8-97288-958-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: A = 8-97941-426-2	8-97236-692-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: B = 8-97941-597-2	8-97288-971-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: C = 8-97941-845-1	8-97940-248-0	01	1	-
93	GASKET; CONN,VAC PUMP THA ASM PART: B = 8-97941-597-2	9-88130-081-0	02	1	-
93	GASKET; CONN,VAC PUMP THA ASM PART: C = 8-97941-845-1	9-88130-081-0	03	1	-
94	CONNECTOR; VAC PUMP (B), THA ASM PART: C = 8-97941-845-1	8-94342-679-0	01	1	-
94	CONNECTOR; VAC PUMP (A), THA ASM PART: B = 8-97941-597-2	8-97288-973-0	01	1	-
97	VALVE; VAC PUMP THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94456-612-0	01	1	-
98	BOLT; VAC PUMP THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	5-09000-134-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97941-426-2	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97941-426-2	8-94223-993-0	01	1	-
99	GASKET; VAC PUMP THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP THA ASM PART: A = 8-97941-426-2	8-97166-553-0	01	1	-
100	CONNECTOR; VAC PUMP THA ASM PART: C = 8-97941-845-1	8-97940-250-0	01	1	-
103	PIN; VAC PUMP THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	9-88130-099-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97941-426-2	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97941-426-2	8-97941-675-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: A = 8-97941-426-2	8-94223-989-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94456-605-0	01	1	-
108	ROTOR; VAC PUMP THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-97063-383-0	01	1	-
108	ROTOR; VAC PUMP (A), THA ASM PART: A = 8-97941-426-2	8-97236-693-0	01	1	-
108	ROTOR; VAC PUMP (B), THA ASM PART: A = 8-97941-426-2	8-97941-563-0	01	1	-
109	VANE; VAC PUMP THA ASM PART: A = 8-97941-426-2	8-94223-985-0	03	1	-
109	VANE; VAC PUMP THA ASM PART: B = 8-97941-597-2	8-94456-610-0	04	1	-
109	VANE; VAC PUMP THA ASM PART: C = 8-97941-845-1	8-97259-164-0	04	1	-
110	BOLT; THROUGH THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94456-611-0	03	1	-

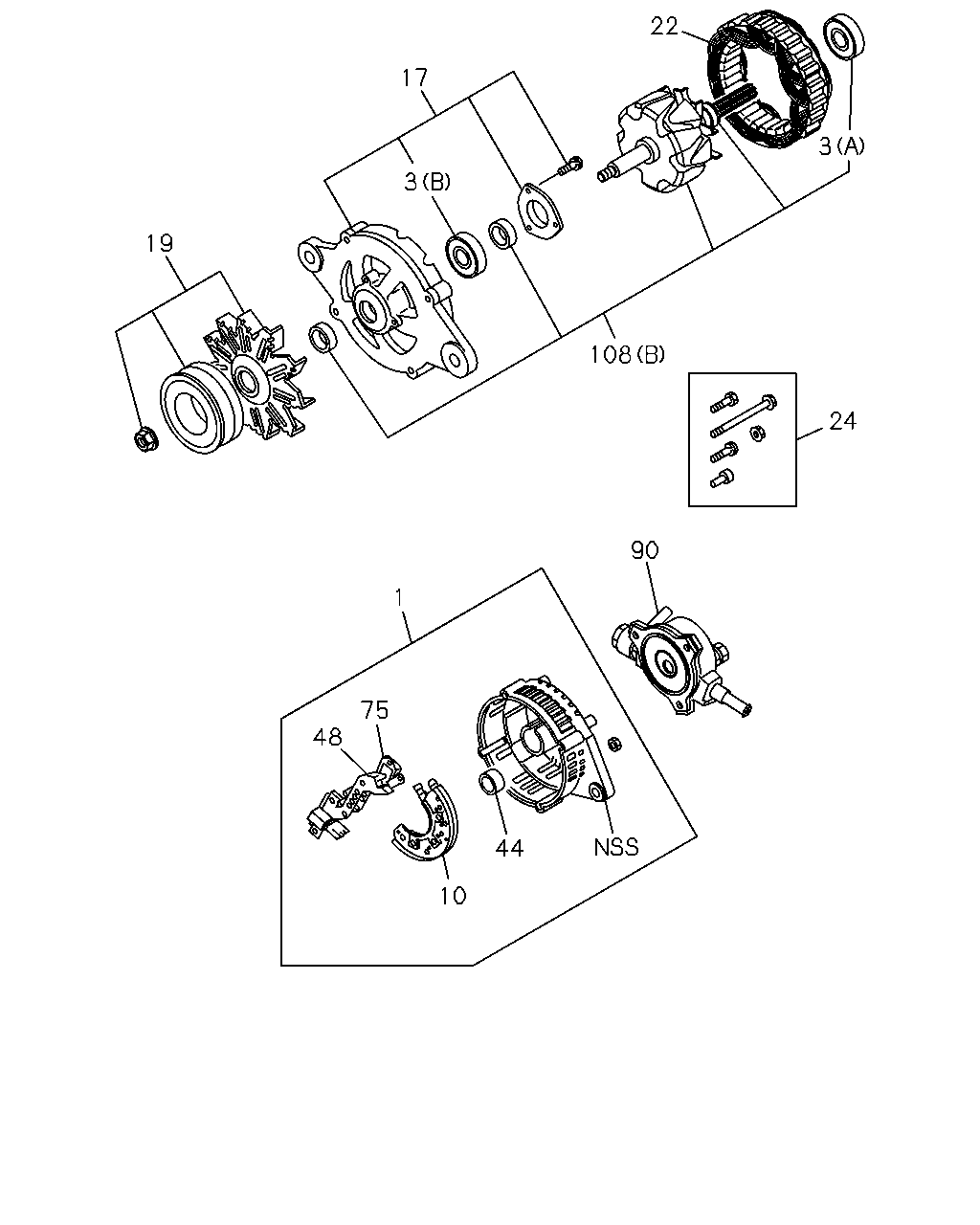

22 17 3 3 19 108 24 90 1 75 48 44 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN THA ASM PART: C = 8-97941-845-1	8-94456-598-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: B = 8-97941-597-2	8-97288-962-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97941-426-2	8-97941-557-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97941-426-2	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97941-426-2	8-97148-112-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: C = 8-97941-845-1	8-94342-672-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: B = 8-97941-597-2	8-97288-965-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: A = 8-97941-426-2	8-97941-564-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: C = 8-97941-845-1	8-94456-588-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: B = 8-97941-597-2	8-97288-960-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97941-426-2	8-97941-560-0	01	1	-
19	PULLEY; GEN THA ASM PART: C = 8-97941-845-1	8-94456-585-0	01	1	-
19	PULLEY; GEN THA ASM PART: B = 8-97941-597-2	8-97288-957-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97941-426-2	8-97941-561-0	01	1	-
22	STATOR; GEN THA ASM PART: C = 8-97941-845-1	8-97259-163-0	01	1	-
22	STATOR; GEN THA ASM PART: B = 8-97941-597-2	8-97288-969-0	01	1	-
22	STATOR; GEN THA ASM PART: A = 8-97941-426-2	8-97941-673-0	01	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	1-81229-409-0	01	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: B = 8-97941-597-2	1-81229-419-0	04	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: C = 8-97941-845-1	8-97259-011-0	03	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: A = 8-97941-426-2	8-97941-562-0	01	1	-
44	SEAL; RR COVER,GEN THA ASM PART: A = 8-97941-426-2	8-97941-674-0	01	1	-
48	DIODE; GEN THA ASM PART: A = 8-97941-426-2	8-97941-559-0	01	1	-
75	REGULATOR; VOLTAGE,GEN THA ASM PART: A = 8-97941-426-2	8-97236-691-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: A = 8-97941-426-2	8-97236-692-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: B = 8-97941-597-2	8-97288-971-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: C = 8-97941-845-1	8-97940-248-0	01	1	-
108	ROTOR; VAC PUMP THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-97063-383-0	01	1	-
108	ROTOR; VAC PUMP (A), THA ASM PART: A = 8-97941-426-2	8-97236-693-0	01	1	-
108	ROTOR; VAC PUMP (B), THA ASM PART: A = 8-97941-426-2	8-97941-563-0	01	1	-

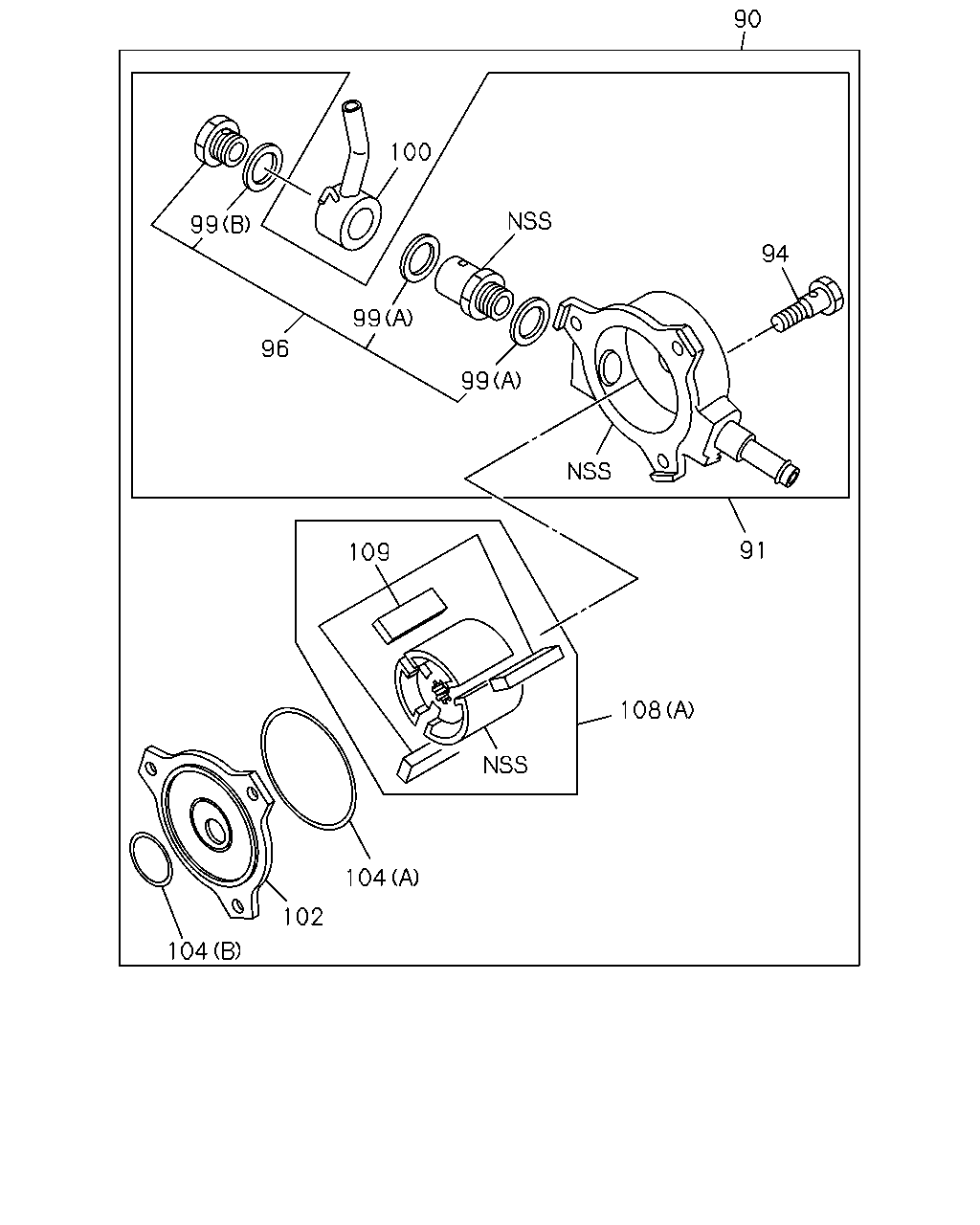

90 100 99 94 99 96 99 91 109 108 104 102 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
90	PUMP ASM; VAC,GEN THA ASM PART: A = 8-97941-426-2	8-97236-692-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: B = 8-97941-597-2	8-97288-971-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: C = 8-97941-845-1	8-97940-248-0	01	1	-
91	BODY; VAC PUMP THA ASM PART: A = 8-97941-426-2	8-97236-694-0	01	1	-
94	CONNECTOR; VAC PUMP (B), THA ASM PART: C = 8-97941-845-1	8-94342-679-0	01	1	-
94	CONNECTOR; VAC PUMP (A), THA ASM PART: B = 8-97941-597-2	8-97288-973-0	01	1	-
96	VALVE ASM; VAC PUMP THA ASM PART: A = 8-97941-426-2	8-94223-991-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97941-426-2	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97941-426-2	8-94223-993-0	01	1	-
99	GASKET; VAC PUMP THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP THA ASM PART: A = 8-97941-426-2	8-97166-553-0	01	1	-
100	CONNECTOR; VAC PUMP THA ASM PART: C = 8-97941-845-1	8-97940-250-0	01	1	-
102	COVER; FRT,VAC PUMP THA ASM PART: A = 8-97941-426-2	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	5-09623-017-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97941-426-2	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97941-426-2	8-97941-675-0	01	1	-
108	ROTOR; VAC PUMP THA ASM PART: B = 8-97941-597-2, C = 8-97941-845-1	8-97063-383-0	01	1	-
108	ROTOR; VAC PUMP (A), THA ASM PART: A = 8-97941-426-2	8-97236-693-0	01	1	-
108	ROTOR; VAC PUMP (B), THA ASM PART: A = 8-97941-426-2	8-97941-563-0	01	1	-
109	VANE; VAC PUMP THA ASM PART: A = 8-97941-426-2	8-94223-985-0	03	1	-
109	VANE; VAC PUMP THA ASM PART: B = 8-97941-597-2	8-94456-610-0	04	1	-
109	VANE; VAC PUMP THA ASM PART: C = 8-97941-845-1	8-97259-164-0	04	1	-
