0-81C — GOVERNOR; INJECTION PUMP (#41975) — 151 parça

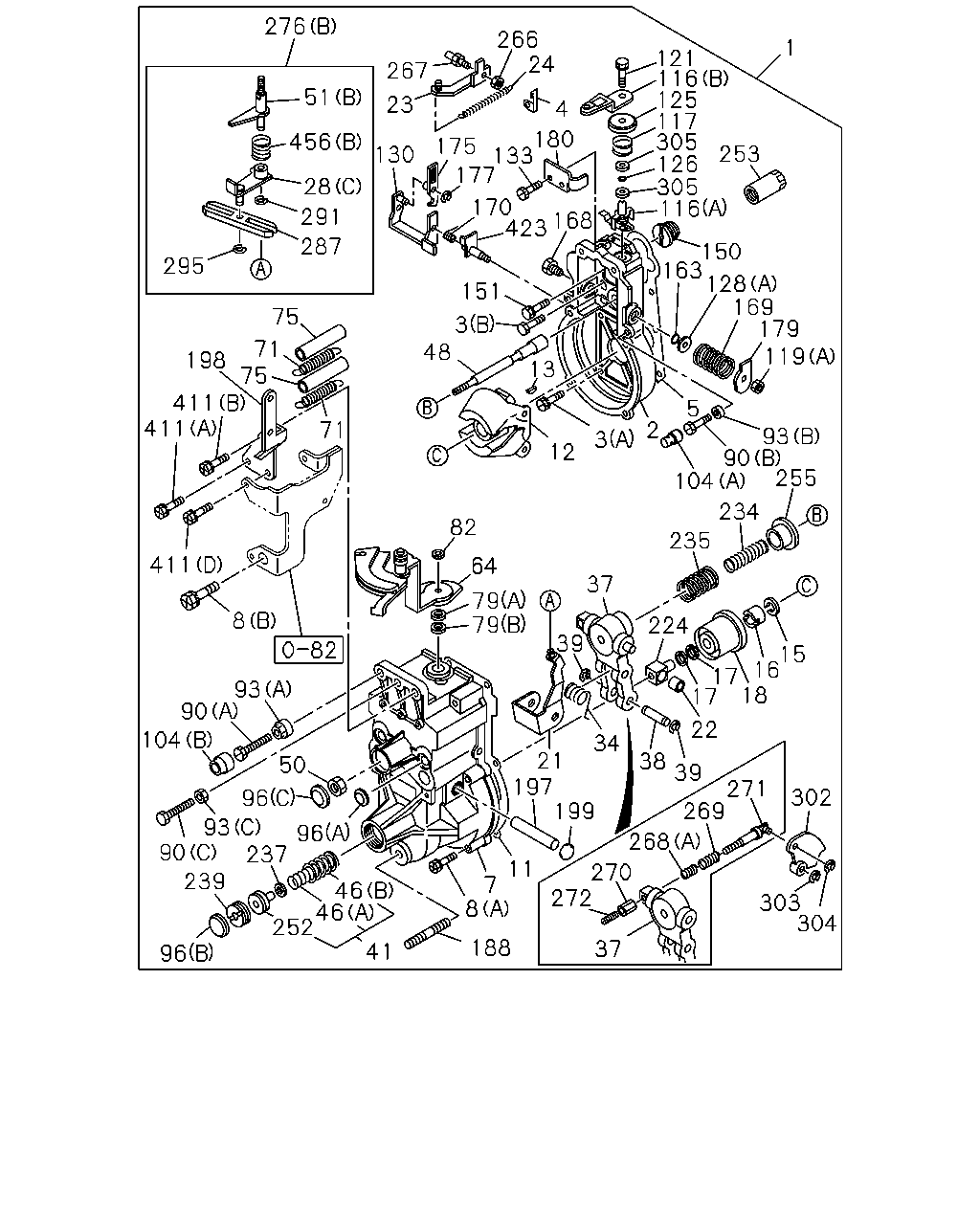

çizim 12256
276 266 24 1 121 116 125 117 305 126 305 116 267 51 23 4 180 133 177 456 175 253 130 28 170 168 423 291 287 150 163 128 169 179 119 295 151 75 3 48 71 75 411 411 198 13 5 71 2 93 90 104 255 3 12 234 82 235 411 64 37 79 79 8 224 39 15 16 17 17 18 93 90 22 104 34 21 197 199 50 38 39 271 269 302 96 93 90 237 96 268 11 270 272 239 7 8 46 46 252 303 304 188 37 41 96
BalonParca AdiParca NoAdetTipApplied Date
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380 		8-97223-285-0 01 1 -
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: C = 8-97203-383-0, 97203383 		8-97224-003-0 01 1 -
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: D = 8-97203-384-0, 97203384 		8-97224-391-0 01 1 -
1 03.308 GOVERNOR ASM; INJ PUMP
ASM PART: B = 8-97203-381-0, 97203381 		8-97225-679-0 01 1 -
2 03.308 HOUSING; GOV,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15721-209-0 01 1 -
3 03.318 BOLT; GOV HSG,INJ PUMP
(A), M6X15 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15729-027-0 05 1 -
3 03.318 BOLT; GOV HSG,INJ PUMP
(B), M6X16 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15729-071-0 01 1 -
4 03.306 PLATE; START SPRING,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15779-591-0 01 1 -
5 03.308 GASKET; GOV TO INJ PUMP HSG
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15779-093-0 01 1 -
7 03.308 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, D = 8-97203-384-0, 97203384 		8-97142-961-0 01 1 -
7 03.308 COVER; GOV HSG,INJ PUMP
ASM PART: C = 8-97203-383-0, 97203383 		8-97142-963-0 01 1 -
8 01.531 BOLT; GOV COVER,INJ PUMP
(B) ASM PART: B = 8-97203-381-0, 97203381 		1-15729-535-0 01 1 -
8 01.531 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: A = 8-97203-380-0, 97203380, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15729-033-0 07 1 -
8 01.531 BOLT; GOV COVER,INJ PUMP
(A) ASM PART: B = 8-97203-381-0, 97203381 		5-15729-033-0 06 1 -
11 03.308 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15779-107-0 01 1 -
12 03.308 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15722-017-0 01 1 -
13 03.308 KEY; FLYWEIGHT,GOV
16MM ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-19619-049-0 01 1 -
15 03.308 WASHER; LK,FLYWEIGHT FIX,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15729-034-0 01 1 -
16 03.308 NUT; FLYWEIGHT FIX,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-086-0 01 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=2.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-891-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=3.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-892-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=4.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-893-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15729-286-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15729-287-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.20 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-088-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-551-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=0.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-552-0 AR 1 -
17 03.308 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-553-0 AR 1 -
18 03.308 SLEEVE; GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15729-372-0 01 1 -
21 03.308 LEVER ASM; GUIDE,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94339-977-0 01 1 -
22 03.308 COLLAR; LEVER,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94368-298-1 01 1 -
23 03.308 LINK; LEVER TO CONT RACK,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15725-928-0 01 1 -
24 03.308 SPRING; START,GOV,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15723-035-0 01 1 -
28 03.308 LEVER; SUPPORTING,GOV
(C) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-152-0 01 1 -
34 03.308 SPRING; SPD CONT LEVER,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-140-1 01 1 -
37 03.308 LEVER ASM; TENSION,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94339-976-0 01 1 -
38 03.308 PIN; TENSION LEVER,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-370-0 01 1 -
39 03.308 RING; SNAP,LEVER PIN,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-88410-201-0 02 1 -
41 03.308 SPRING CAPSULE; IDLE CONT,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97026-922-0 01 1 -
46 03.308 SPRING; GOV,INJ PUMP
(A) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97115-982-0 01 1 -
46 03.308 SPRING; GOV,INJ PUMP
(B) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97115-984-0 01 1 -
48 03.308 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-146-1 01 1 -
50 03.308 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-147-0 01 1 -
51 03.308 SHAFT; LOAD CONT LEVER,GOV
(B) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94325-501-0 01 1 -
64 03.308 LEVER; LOAD CONT,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97026-934-1 01 1 -
71 03.306 SPRING; CONT LEVER,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97026-929-0 02 1 -
75 03.308 TUBE; RETURN SPRING,STOPPER LEVE
03.306 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-963-0 02 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.95 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-076-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.20 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-077-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.25 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-078-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-079-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.35 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-080-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-081-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-082-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.70 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-617-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.90 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-618-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.80 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-619-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(B), T=0.60 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-896-0 AR 1 -
79 03.308 SHIM; LEVER SETTING,GOV
(A) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97066-844-0 01 1 -
82 03.308 NUT; CONT LEVER FIX,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-236-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(A), M8X62 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-642-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(A),(C), M8X65 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-761-0 02 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X33 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-799-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X34 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-800-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X35 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-801-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X36 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-802-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X37 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-803-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X31 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-842-0 01 1 -
90 03.308 SCREW; FULL LOAD ADJ,GOV
(B), M6X32 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-843-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
03.308, (A) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-643-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
01.531, (B) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-807-0 01 1 -
93 03.162 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97026-924-0 01 1 -
96 03.308 PLUG; LEVER SHAFT,GOV
(A) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15729-076-0 01 1 -
96 03.308 PLUG; LEVER SHAFT,GOV
(B) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-145-0 01 1 -
96 03.308 PLUG; LEVER SHAFT,GOV
(C) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-148-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(A) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97085-021-0 01 1 -
104 03.308 CAP; LOCK NUT,ADJ SCREW
(B) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97085-022-0 01 1 -
116 03.300 LEVER; ENG STOP,GOV
(A) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97121-631-0 01 1 -
116 03.300 LEVER; ENG STOP,GOV
(B) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97121-632-0 01 1 -
117 03.308 SPRING; STOP LEVER,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94336-925-0 01 1 -
119 03.308 NUT; ENG STOP LEVER,GOV
(A) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-236-0 01 1 -
121 03.308 BOLT; ENG STOP LEVER,GOV
04.665, M6X12 W/LK WASHER ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-01910-612-0 01 1 -
125 03.308 CAP; STOP LEVER SPRING,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-168-0 01 1 -
126 03.308 GASKET; STOP LEVER,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-853-0 01 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.60 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-897-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.80 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-898-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.90 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-899-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-556-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-557-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-558-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.25 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-559-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.35 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-560-0 AR 1 -
128 03.306 SHIM; CONT SHAFT,GOV
(A), T=0.20 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-88410-421-0 AR 1 -
130 03.306 LEVER; CONT,GOV
ASM PART: C = 8-97203-383-0, 97203383 		1-15725-496-0 01 1 -
130 03.306 LEVER; CONT,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, D = 8-97203-384-0, 97203384 		1-15725-527-0 01 1 -
133 03.308 BOLT; BRKT FIX,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-834-0 02 1 -
150 03.308 ADAPTER; GOV HSG,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81315-065-0 01 1 -
151 03.671 BOLT; ADAPTER,GOV HSG,INJ PUMP
M8X18 W/LK WASHER ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-01900-818-0 01 1 -
163 03.306 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15629-859-0 01 1 -
168 03.306 PLUG; CONT SHAFT,GOV HSG
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-796-0 01 1 -
169 03.306 SPRING; LEVER SET,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15723-032-0 01 1 -
170 03.306 SPRING; LEVER TO LEVER,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15723-033-0 01 1 -
175 03.306 LEVER; GOV,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97176-488-0 01 1 -
177 03.306 RING; SNAP,GOV LEVER,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-445-0 01 1 -
179 03.308 LEVER; SPD ADJ,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-132-0 01 1 -
180 03.308 PLATE; GOV COVER
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97121-643-0 01 1 -
188 03.308 STUD; COVER
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-790-0 01 1 -
197 03.308 SHAFT; LEVER,GOV COVER
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15725-008-0 01 1 -
198 03.306 BRACKET; COVER
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, D = 8-97203-384-0, 97203384 		8-97026-928-0 01 1 -
198 03.306 BRACKET; COVER
ASM PART: C = 8-97203-383-0, 97203383 		8-97085-014-0 01 1 -
199 03.308 PLUG; LEVER SHAFT,GOV COVER
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15729-076-0 02 1 -
224 03.308 SHIFTER; TENSION LEVER,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-142-0 01 1 -
234 03.308 SPRING; INNER,GOV,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94368-299-1 01 1 -
235 03.308 SPRING; OUTER,GOV,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15723-094-0 01 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-966-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.50 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-967-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.80 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-968-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.10 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94472-268-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.20 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94472-269-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=0.25 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94472-270-0 AR 1 -
237 03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94472-271-0 AR 1 -
239 03.308 SCREW; GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-144-0 01 1 -
252 03.308 SCREW; GUIDE
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15779-003-1 01 1 -
253 03.308 LIMITTER; GOV CONT
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94167-792-0 01 1 -
255 03.308 SEAT; GOV SPRING,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-173-0 01 1 -
266 03.308 NUT; PIN TO LINK,CONT RACK,GOV
17.185, M5 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-99110-405-0 01 1 -
267 03.308 BOLT; CONN,CONT RACK,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-858-0 01 1 -
268 03.308 SPRING; ROD INNER,TORQUE CAM,GOV
(A) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15723-056-0 01 1 -
269 03.308 SPRING; ROD OUTER,TORQUE CAM,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15723-070-1 01 1 -
270 03.308 NUT; TORQUE ROD LK,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15729-051-0 01 1 -
271 03.308 ROD; TORQUE CAM,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15725-009-1 01 1 -
272 03.308 SCREW; ADJ,TORQUE CAM ROD,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94171-138-0 01 1 -
276 03.308 LEVER ASM; LOAD CONT,GOV
(B) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94325-500-0 01 1 -
287 03.308 LEVER; GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15725-542-0 01 1 -
291 03.308 RING; SNAP,CONT SHAFT,GOV
03.306 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-445-0 01 1 -
295 03.308 RING; SNAP
03.306 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-445-0 01 1 -
302 03.308 PLATE; CAM,GOV
ASM PART: D = 8-97203-384-0, 97203384 		8-97142-964-0 01 1 -
302 03.308 PLATE; CAM,GOV
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383 		8-97176-489-0 01 1 -
303 03.308 RING; SNAP,CAM PLATE,GOV
03.320 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		5-15729-023-0 01 1 -
304 03.308 RING; SNAP,LINK TO CAM PLATE,GOV
04.040, ID=4 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-09185-404-0 01 1 -
305 03.308 SHIM; STOP LEVER,GOV
T=0.20 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97089-308-0 AR 1 -
305 03.308 SHIM; STOP LEVER,GOV
T=0.30 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97089-309-0 AR 1 -
305 03.308 SHIM; STOP LEVER,GOV
T=0.40 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97089-310-0 AR 1 -
305 03.308 SHIM; STOP LEVER,GOV
T=0.60 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97089-311-0 AR 1 -
305 03.308 SHIM; STOP LEVER,GOV
T=0.80 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-97089-312-0 AR 1 -
305 03.308 SHIM; STOP LEVER,GOV
T=1.00 ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		9-81325-553-0 01 1 -
411 03.306 BOLT; BRKT
03.330, (D) ASM PART: B = 8-97203-381-0, 97203381 		1-15619-187-0 01 1 -
411 03.306 BOLT; BRKT
03.330, (A) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, D = 8-97203-384-0, 97203384 		1-15719-005-0 02 1 -
411 03.306 BOLT; BRKT
01.531, (B) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, D = 8-97203-384-0, 97203384 		5-15729-304-0 01 1 -
423 03.306 SHAFT; CONT,GOV HSG,INJ PUMP
ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		1-15729-820-0 01 1 -
456 03.308 SPRING; LEVER,GOV
(B) ASM PART: A = 8-97203-380-0, 97203380, B = 8-97203-381-0, 97203381, C = 8-97203-383-0, 97203383, D = 8-97203-384-0, 97203384 		8-94413-728-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
