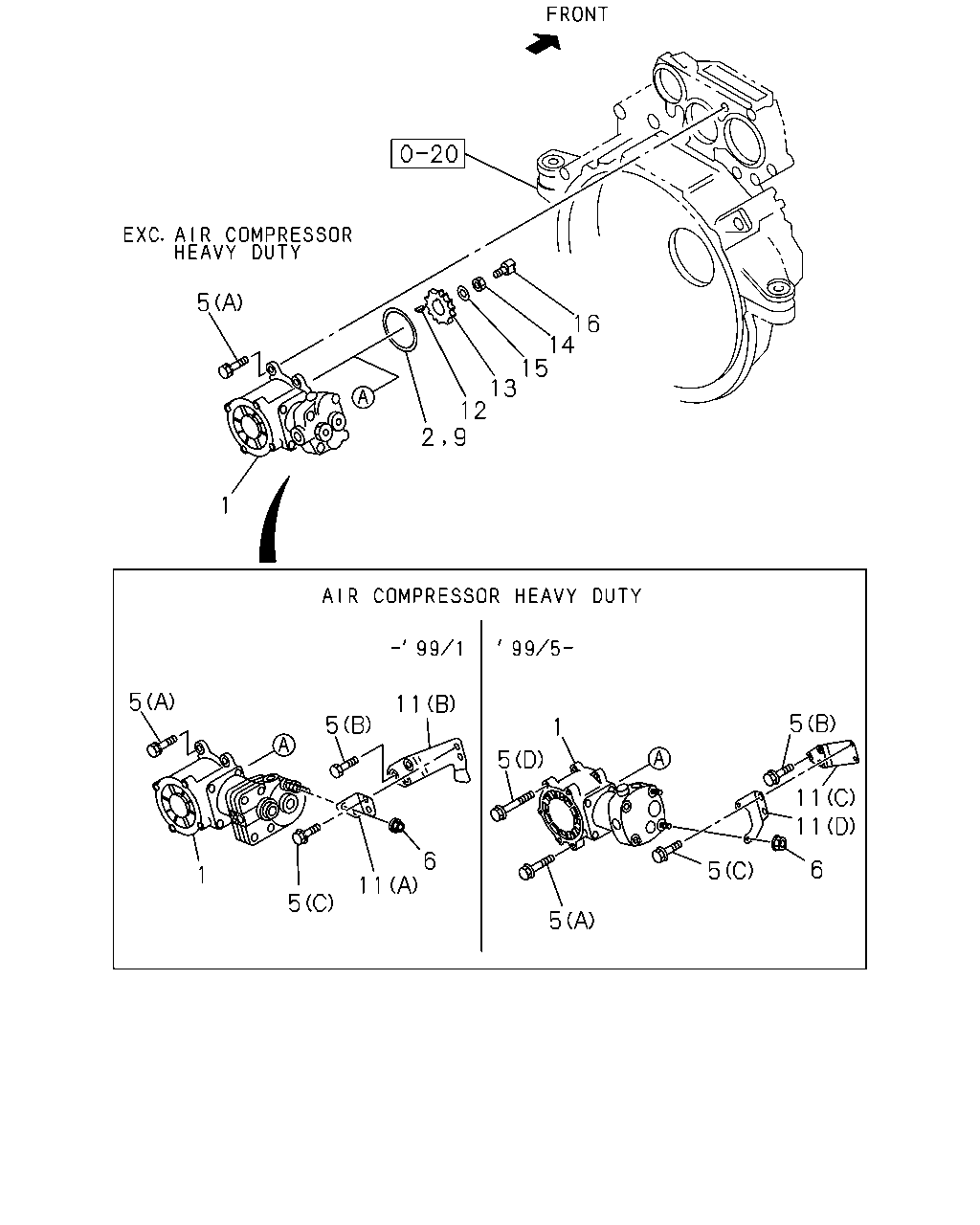

0-38B — AIR COMPRESSOR PIPING; ENGINE SIDE (#4197) — 100 parça

5 16 14 15 13 12 1 5 11 5 5 1 5 11 11 6 6 5 1 11 5 5 2 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-177-5	01	1	9603-9901	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-177-5	01	1	9905-	●	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-212-6	01	1	9603-9611		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-212-6	01	1	9612-9901	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-305-2	01	1	9905-		●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	9603-9901		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	9905-		●	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X20 FLANGE	0-28081-020-0	02	1	9612-9901	●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M12X35 FLANGE	0-28181-235-0	04	1	9703-9901	●
5	BOLT; AIR CMPR FIX (A) M12X35 FLANGE	0-28181-235-0	04	1	9703-9901		●
5	BOLT; AIR CMPR FIX (A) M12X40 W/LK&PL WASHER	0-50151-240-0	04	1	9603-9603	●	●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M12X40 W/LK&PL WASHER	0-50151-240-0	04	1	9604-9702	●
5	BOLT; AIR CMPR FIX (A) M12X40 W/LK&PL WASHER	0-50151-240-0	04	1	9604-9702		●
5	BOLT; AIR CMPR FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M12X35 FLANGE	0-28181-235-0	04	1	9905-	●	●	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X18 FLANGE	0-28181-018-0	03	1	9603-9611		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X18 FLANGE	0-28181-018-0	03	1	9612-9901	●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	9603-9901		●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X18 FLANGE	0-28181-018-0	03	1	9905-		●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M12X90 FLANGE	0-28181-290-0	01	1	9905-		●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) (D) M12X140 FLANGE	0-28186-214-0	03	1	9905-		●	●
5	BOLT; AIR CMPR FIX AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M10X20 W/LK&PL WASHER	0-50141-020-0	01	1	9905-		●	●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M10 FLANGE	0-91150-210-0	02	1	9603-9611		●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M10 FLANGE	0-91150-210-0	02	1	9612-9901	●	●
6	NUT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M10 FLANGE	0-91150-210-0	02	1	9905-		●	●
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	9603-9901	●
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	9905-	●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19187-018-0	01	1	9603-9611		●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19187-018-0	01	1	9612-9901	●	●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19187-023-1	01	1	9603-9611		●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19187-023-1	01	1	9612-9901	●	●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19187-030-0	01	1	9905-		●	●
11	BRACKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (D)	1-19187-031-0	01	1	9905-		●	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9603-9901	●	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9905-	●	●	●	●
13	GEAR; AIR CMPR DRIVE Z=26	1-12524-044-0	01	1	9603-9901	●	●
13	GEAR; AIR CMPR DRIVE Z=26	1-12524-044-1	01	1	9905-	●	●	●	●
14	NUT; GEAR M20	9-99111-520-0	01	1	9603-9901	●	●
14	NUT; GEAR M20	9-99111-520-0	01	1	9905-	●	●	●	●
15	WASHER; GEAR ID=21	9-09164-520-0	01	1	9603-9901	●	●
15	WASHER; GEAR ID=21	9-09164-520-0	01	1	9905-	●	●	●	●
16	ADAPTER	1-12539-010-0	01	1	9603-9901	●	●
16	ADAPTER	1-12539-010-0	01	1	9905-	●	●	●	●

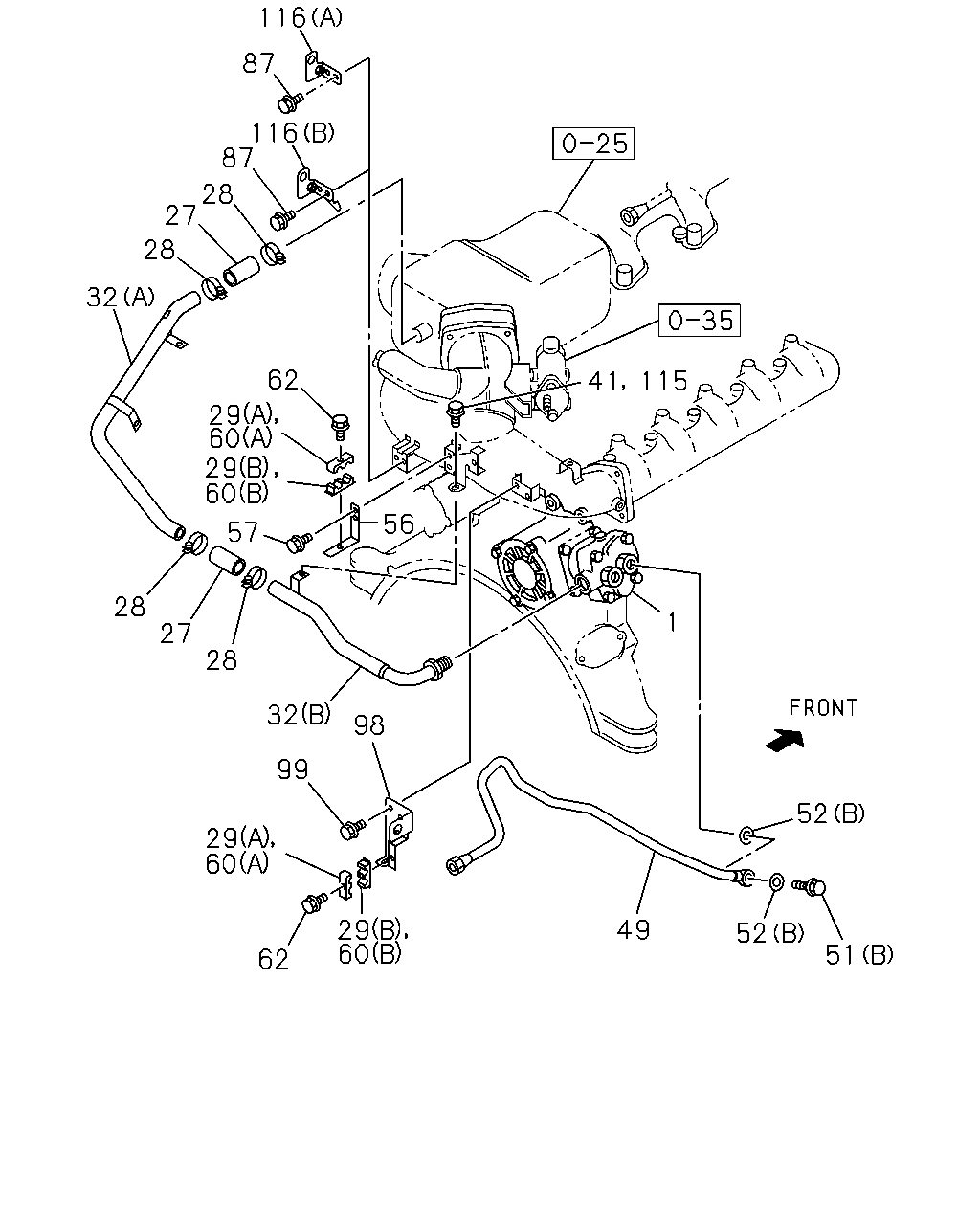

116 87 116 87 28 27 28 32 62 115 41 29 60 29 60 56 57 28 1 27 28 32 98 99 52 29 60 49 29 60 52 51 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-177-5	01	1	9603-9901	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-177-5	01	1	9905-	●	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-212-6	01	1	9603-9611		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-212-6	01	1	9612-9901	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-305-2	01	1	9905-		●	●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	9603-9901	●	●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	9905-	●	●	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	9603-9901	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	9905-	●	●	●	●
29	CLIP; AIR PIPE (A)	1-09701-193-1	02	1	9603-9901		●
29	CLIP; AIR PIPE (B)	1-09701-194-0	02	1	9603-9901		●
29	CLIP; AIR PIPE (A)	1-09701-193-1	02	1	9905-		●	●	●
29	CLIP; AIR PIPE (B)	1-09701-194-0	02	1	9905-		●	●	●
32	PIPE; AIR,AIR CMPR (A)	1-19192-902-0	01	1	9603-9901	●	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-927-0	01	1	9603-9605	●	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-983-0	01	1	9606-9901	●	●
32	PIPE; AIR,AIR CMPR (A)	1-19192-902-0	01	1	9905-	●	●	●	●
32	PIPE; AIR,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-983-0	01	1	9905-	●	●	●	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-881-0	01	1	9603-9605		●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-981-0	01	1	9606-9611		●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-981-0	01	1	9612-9901	●	●
32	PIPE; AIR,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19192-984-0	01	1	9905-		●	●
41	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	03	1	9603-9901	●
41	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	03	1	9905-	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19192-882-0	01	1	9603-9901	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1)	1-19192-928-0	01	1	9603-9901	●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-956-0	01	1	9603-9901	●	●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19192-956-0	01	1	9905-	●	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1)	1-19192-928-0	01	1	9905-	●	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1)	1-19192-957-0	01	1	9603-9901		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19193-073-0	01	1	9905-9905		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19193-073-0	01	1	9905-		●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	9603-9901	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	9905-	●	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	9603-9901	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	9905-	●	●	●	●
56	BRACKET; AIR PIPE FIX	1-19199-228-0	01	1	9603-9901	●	●
56	BRACKET; AIR PIPE FIX	1-19199-228-0	01	1	9905-	●	●	●	●
57	BOLT; BRKT,AIR PIPE M6X12 FLANGE	0-28080-612-0	02	1	9603-9901	●	●
57	BOLT; BRKT,AIR PIPE M6X12 FLANGE	0-28080-612-0	02	1	9905-	●	●	●	●
60	CLIP; AIR PIPE (A)	1-09701-193-1	02	1	9603-9901	●
60	CLIP; AIR PIPE (B)	1-09701-194-0	02	1	9603-9901	●
60	CLIP; AIR PIPE (A)	1-09701-193-1	02	1	9905-	●
60	CLIP; AIR PIPE (B)	1-09701-194-1	02	1	9905-	●
62	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	02	1	9603-9901	●	●
62	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	02	1	9905-	●	●	●	●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9603-9901	●	●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9905-	●	●	●	●
98	BRACKET; AIR & OIL PIPE	1-19199-227-0	01	1	9603-9901	●	●
98	BRACKET; AIR & OIL PIPE	1-19199-227-0	01	1	9905-	●	●	●	●
99	BOLT; BRKT AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9603-9901	●	●
99	BOLT; BRKT AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9905-	●	●	●	●
115	BOLT; AIR PIPE M6X12 FLANGE	0-28080-612-0	03	1	9603-9901	●	●
115	BOLT; AIR PIPE M6X12 FLANGE	0-28080-612-0	03	1	9905-	●	●	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (B)	1-13319-028-0	01	1	9603-9901	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (A)	1-22196-326-1	01	1	9603-9901	●	●
116	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (B)	1-13319-028-0	01	1	9905-	●	●	●
116	BRACKET; AIR PIPE EXC. ENGINE REAR PTO(SV1) (A)	1-22196-326-1	01	1	9905-	●	●	●	●
