Sayfa 0-66 - Isuzu EPC

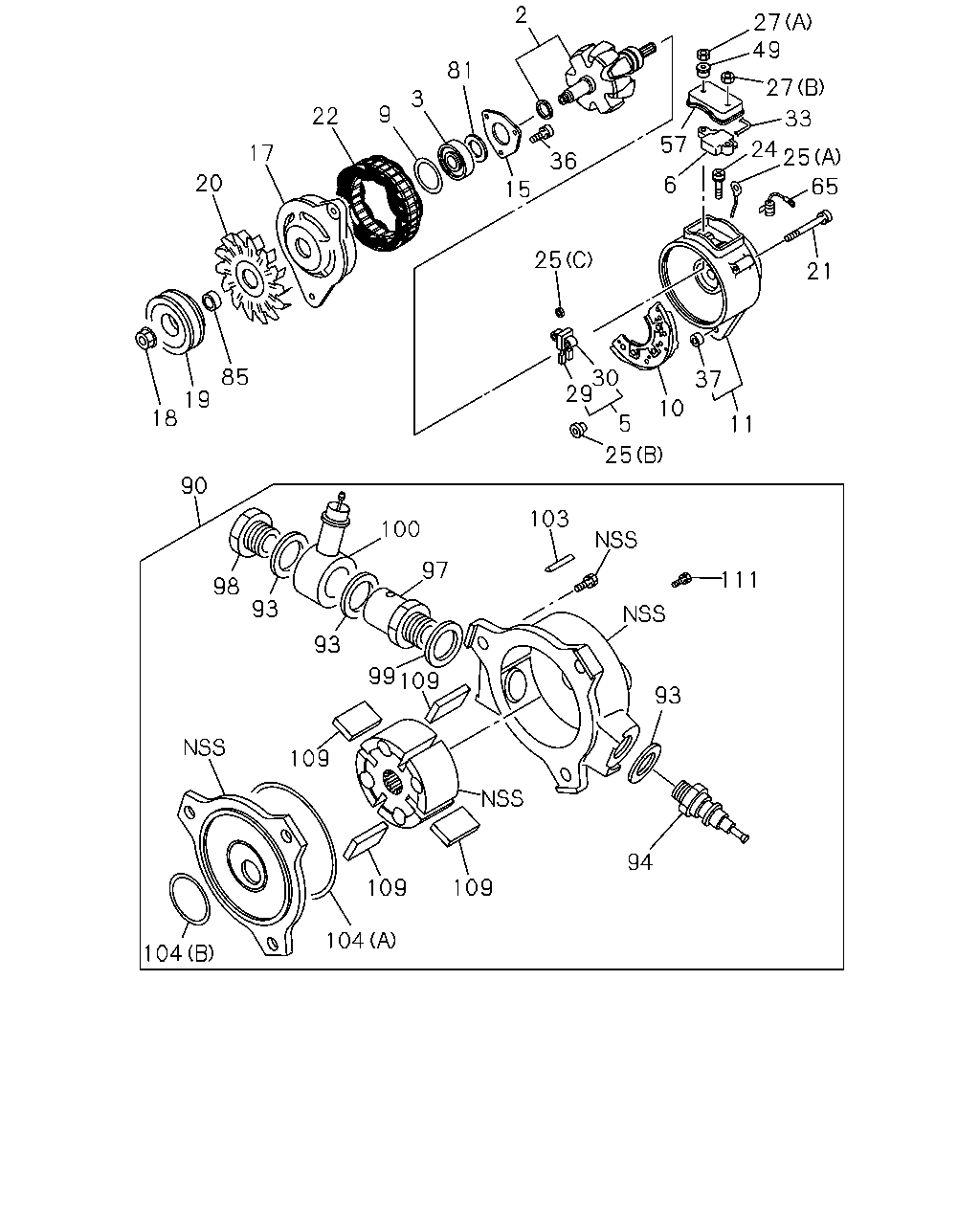

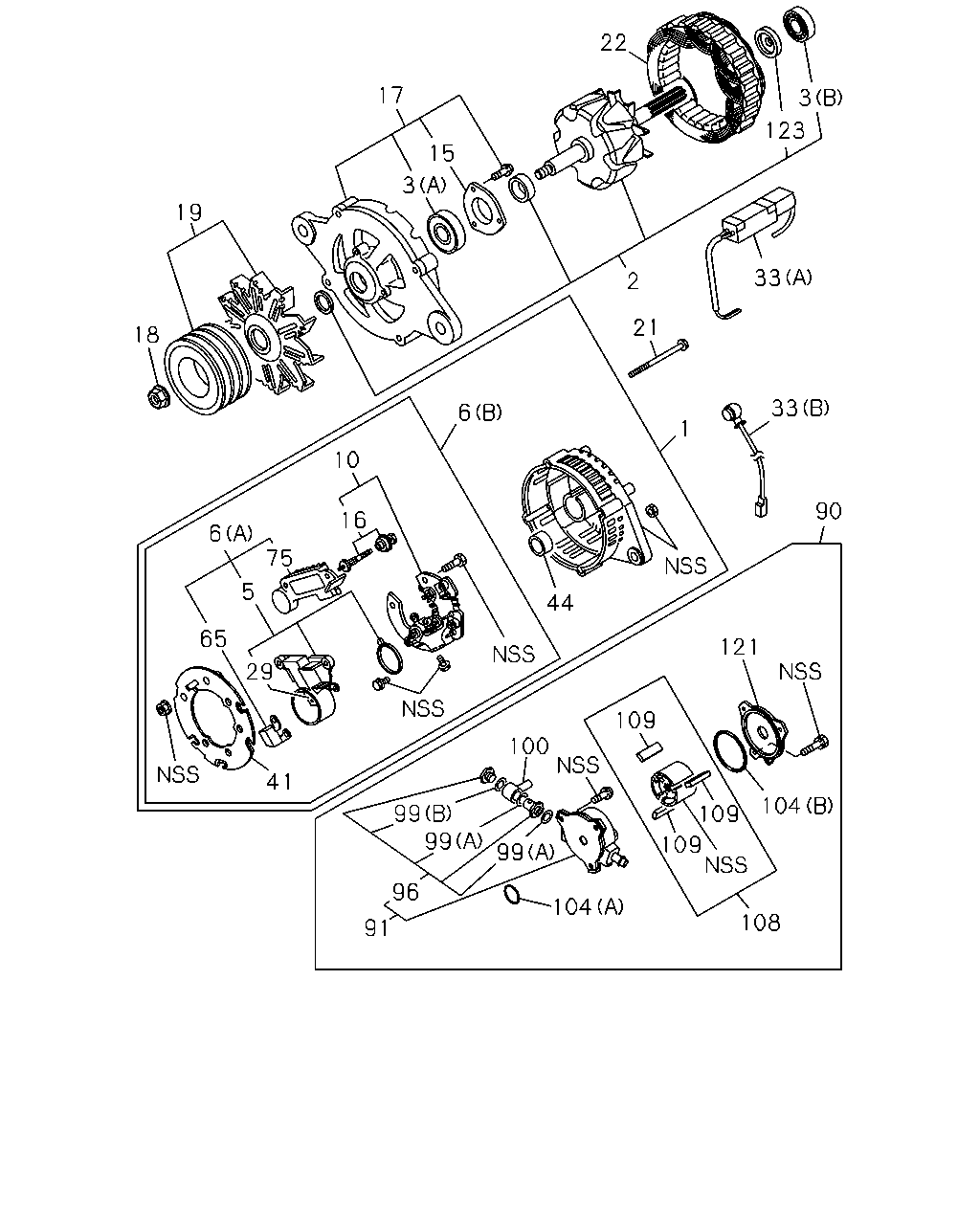

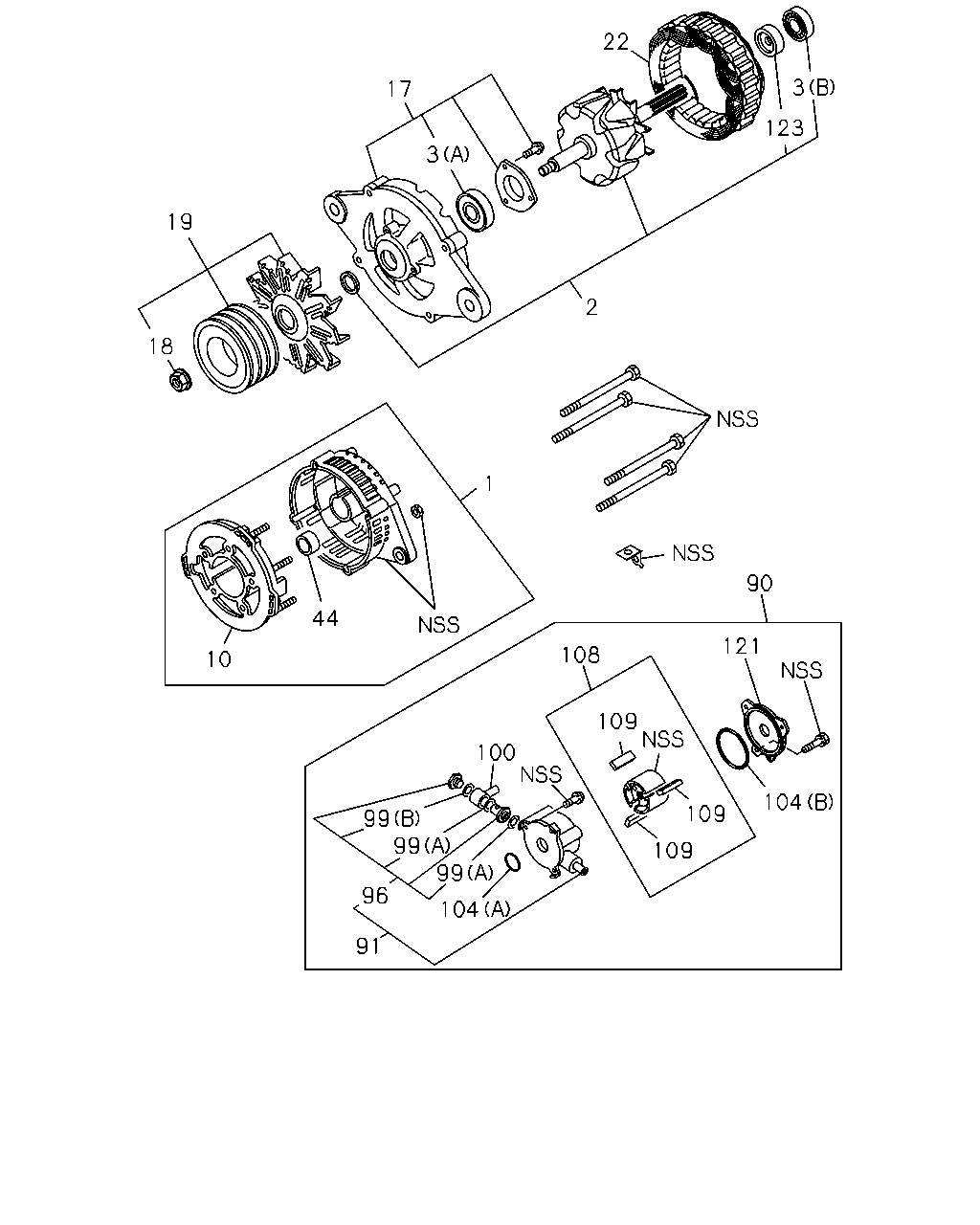

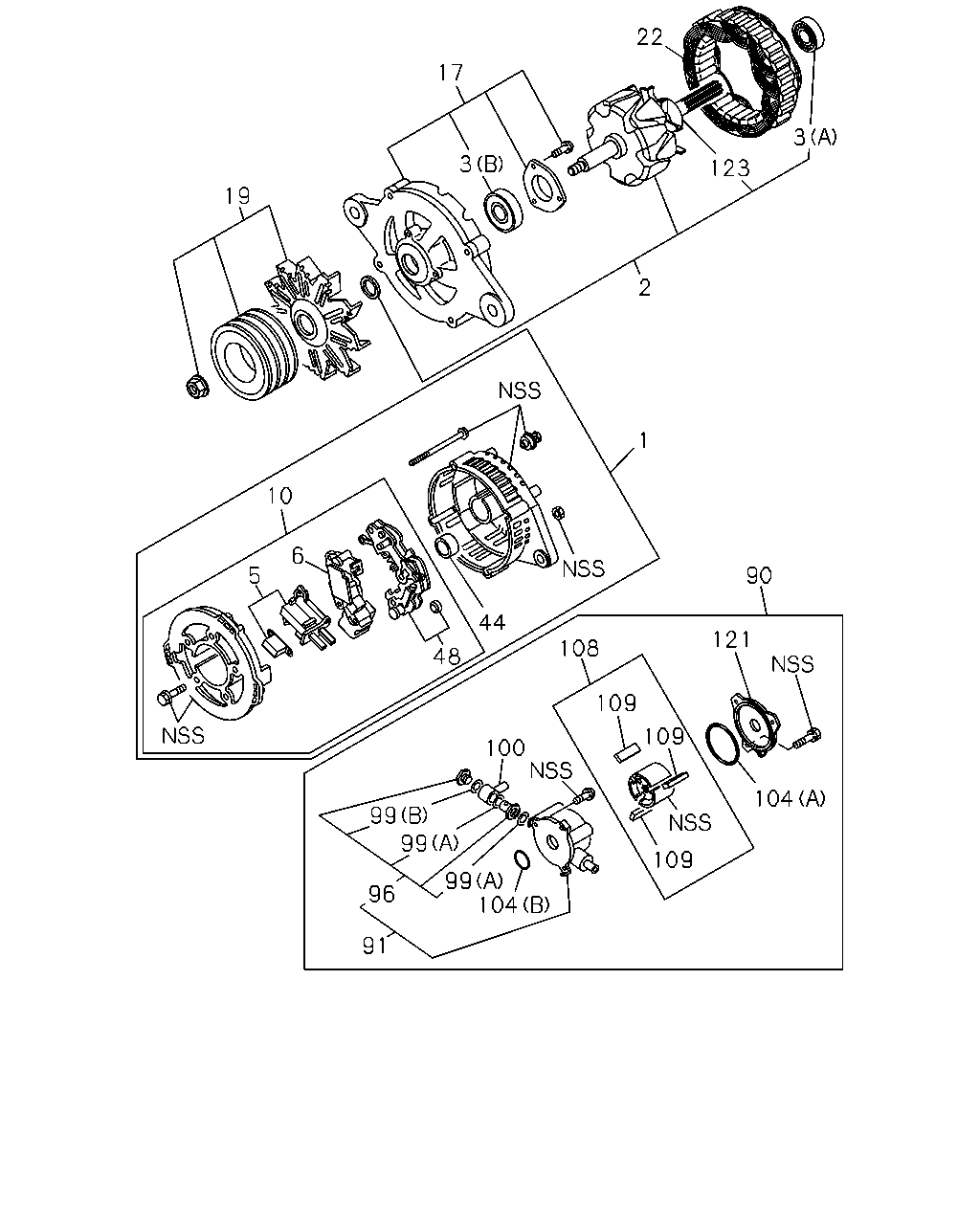

0-66 — GENERATOR (#41968) — 367 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-97115-044-0, 97115044	1-81229-419-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, G = 8-97300-353-0, 97300353	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97175-390-1, 97175390	8-97189-263-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97258-681-0	01	1	-

22 17 3 123 15 3 19 33 2 21 18 33 6 1 10 90 16 6 75 5 44 65 121 29 109 100 41 104 99 99 109 109 99 96 104 108 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-107-1	01	1	-0003
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97148-107-1	01	1	-9909
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97144-392-1, 97144392	8-97148-107-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97210-709-0	01	1	9910-0003
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97175-390-1, 97175390	8-97211-162-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-370-0	01	1	0004-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97253-379-0	01	1	0004-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97258-679-0	01	1	-0006
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97264-867-0	01	1	0007-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-702-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-039-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-700-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-97115-044-0, 97115044	1-81229-466-1	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: C = 8-97170-163-2, 97170163	8-94121-178-0	01	1	-9909
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: B = 8-97144-392-1, 97144392	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97186-551-1, 97186551	8-94121-178-0	01	1	-0003
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97186-551-1, 97186551	8-97248-128-0	01	1	0004-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97170-163-2, 97170163, G = 8-97300-353-0, 97300353	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-283-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-045-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97148-108-1	01	1	-0003
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97144-392-1, 97144392	8-97148-108-1	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97111-263-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97111-264-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-032-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: B = 8-97144-392-1, 97144392	8-97148-109-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: C = 8-97170-163-2, 97170163	8-97148-109-0	01	1	-0003
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97250-258-1, 97250258	8-97083-286-0	01	1	-0006
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97175-390-1, 97175390	8-97083-286-0	01	1	-
10	02.319 RECTIFIER; GEN LOWER ASM PART: A = 8-97115-044-0, 97115044	8-97128-042-0	01	1	-
10	02.319 RECTIFIER; GEN UPPER ASM PART: A = 8-97115-044-0, 97115044	8-97128-043-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-169-1	01	1	-0003
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97144-392-1, 97144392	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97249-333-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97170-163-2, 97170163	8-97253-381-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-577-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97250-258-1, 97250258	8-97264-868-0	01	1	0007-
15	02.279 RETAINER; ROTOR,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-291-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-038-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97083-287-0	01	1	-0006
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: D = 8-97175-390-1, 97175390	8-97083-287-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97264-869-0	01	1	0007-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-037-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-703-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-97115-044-0, 97115044	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-293-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-036-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-113-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-97115-044-0, 97115044	5-81229-106-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97168-206-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-048-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-701-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97084-356-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-046-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-049-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97136-584-0	01	1	-9909
33	02.500 WIRE; LEAD,GEN ASM PART: D = 8-97175-390-1, 97175390	8-97178-244-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: C = 8-97170-163-2, 97170163	8-97210-711-0	01	1	9910-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: F = 8-97250-258-1, 97250258	8-97210-711-0	01	1	0007-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: F = 8-97250-258-1, 97250258	8-97258-682-0	01	1	-0006
33	02.500 WIRE; LEAD,GEN (B) ASM PART: F = 8-97250-258-1, 97250258	8-97264-870-0	01	1	0007-
41	02.274 GUIDE; FAN,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-288-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-94156-589-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97084-357-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-050-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97111-267-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-033-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97148-114-1	01	1	-0003
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97144-392-1, 97144392, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, G = 8-97300-353-0, 97300353	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97253-433-0	01	1	0004-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97258-675-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-117-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (A) ASM PART: A = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-115-1	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551, G = 8-97300-353-0, 97300353	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-274-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-97115-044-0, 97115044	1-81229-419-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, G = 8-97300-353-0, 97300353	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97175-390-1, 97175390	8-97189-263-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97258-681-0	01	1	-

2 27 49 81 27 3 9 22 33 57 24 25 17 36 20 6 65 15 25 21 85 30 29 37 19 18 10 5 11 25 90 103 100 97 111 98 93 93 99 109 93 109 94 109 109 104 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.279 ROTOR; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-039-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-700-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-97115-044-0, 97115044	1-81229-466-1	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: C = 8-97170-163-2, 97170163	8-94121-178-0	01	1	-9909
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: B = 8-97144-392-1, 97144392	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97186-551-1, 97186551	8-94121-178-0	01	1	-0003
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97186-551-1, 97186551	8-97248-128-0	01	1	0004-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97170-163-2, 97170163, G = 8-97300-353-0, 97300353	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-283-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-045-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97148-108-1	01	1	-0003
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97144-392-1, 97144392	8-97148-108-1	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97111-263-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97111-264-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-032-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: B = 8-97144-392-1, 97144392	8-97148-109-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: C = 8-97170-163-2, 97170163	8-97148-109-0	01	1	-0003
9	02.307 COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-97115-044-0, 97115044	1-81214-102-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97250-258-1, 97250258	8-97083-286-0	01	1	-0006
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97175-390-1, 97175390	8-97083-286-0	01	1	-
10	02.319 RECTIFIER; GEN LOWER ASM PART: A = 8-97115-044-0, 97115044	8-97128-042-0	01	1	-
10	02.319 RECTIFIER; GEN UPPER ASM PART: A = 8-97115-044-0, 97115044	8-97128-043-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-169-1	01	1	-0003
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97144-392-1, 97144392	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97249-333-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97170-163-2, 97170163	8-97253-381-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-577-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97250-258-1, 97250258	8-97264-868-0	01	1	0007-
11	02.305 COVER; RR,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-040-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-291-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-038-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-037-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-703-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-97115-044-0, 97115044	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-293-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-036-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-113-0	01	1	-
20	02.274 FAN; GEN ASM PART: A = 8-97115-044-0, 97115044	1-81223-008-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-97115-044-0, 97115044	5-81229-106-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97168-206-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-048-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-701-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-97115-044-0, 97115044	1-81229-419-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, G = 8-97300-353-0, 97300353	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97175-390-1, 97175390	8-97189-263-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97258-681-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL (A) ASM PART: A = 8-97115-044-0, 97115044	1-81229-410-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL (B) LOWER ASM PART: A = 8-97115-044-0, 97115044	1-81229-411-0	02	1	-
25	02.313 BUSHING; INSULATION TERMINAL (B) UPPER ASM PART: A = 8-97115-044-0, 97115044	5-81229-105-0	02	1	-
25	02.313 BUSHING; INSULATION TERMINAL (C) ASM PART: A = 8-97115-044-0, 97115044	8-97128-044-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (A) ASM PART: A = 8-97115-044-0, 97115044	8-94206-186-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-97115-044-0, 97115044	8-94206-188-0	06	1	-
29	02.285 BRUSH; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97084-356-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-046-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-97115-044-0, 97115044	5-81216-002-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-049-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97136-584-0	01	1	-9909
33	02.500 WIRE; LEAD,GEN ASM PART: D = 8-97175-390-1, 97175390	8-97178-244-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: C = 8-97170-163-2, 97170163	8-97210-711-0	01	1	9910-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: F = 8-97250-258-1, 97250258	8-97210-711-0	01	1	0007-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: F = 8-97250-258-1, 97250258	8-97258-682-0	01	1	-0006
33	02.500 WIRE; LEAD,GEN (B) ASM PART: F = 8-97250-258-1, 97250258	8-97264-870-0	01	1	0007-
36	02.277 SCREW; FRT COVER 02.307 ASM PART: A = 8-97115-044-0, 97115044	1-81229-406-0	03	1	-
37	02.291 BUSHING; RR COVER,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-041-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN ASM PART: A = 8-97115-044-0, 97115044	1-81229-413-0	01	1	-
57	02.277 COVER; BRUSH,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-047-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97084-357-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-050-0	01	1	-
81	02.307 SPACER; ROTOR,GEN ASM PART: A = 8-97115-044-0, 97115044	1-81229-403-0	01	1	-
85	02.277 SPACER; PULLEY,GEN 02.307 ASM PART: A = 8-97115-044-0, 97115044	1-81229-415-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-033-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97148-114-1	01	1	-0003
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97144-392-1, 97144392, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, G = 8-97300-353-0, 97300353	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97253-433-0	01	1	0004-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97258-675-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	9-88130-081-0	03	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	8-97128-031-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	8-94456-612-0	01	1	-
98	03.280 BOLT; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	5-09000-134-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
103	03.286 PIN; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	9-88130-099-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (A) ASM PART: A = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-304-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-
111	03.280 BOLT; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	8-94456-611-0	03	1	-

22 17 3 3 123 19 2 1 10 6 90 5 44 121 108 48 109 109 100 104 99 99 109 99 104 96 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-107-1	01	1	-0003
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97148-107-1	01	1	-9909
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97144-392-1, 97144392	8-97148-107-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97210-709-0	01	1	9910-0003
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97175-390-1, 97175390	8-97211-162-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-370-0	01	1	0004-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97253-379-0	01	1	0004-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97258-679-0	01	1	-0006
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97264-867-0	01	1	0007-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-702-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-039-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-700-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-97115-044-0, 97115044	1-81229-466-1	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: C = 8-97170-163-2, 97170163	8-94121-178-0	01	1	-9909
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: B = 8-97144-392-1, 97144392	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97186-551-1, 97186551	8-94121-178-0	01	1	-0003
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97186-551-1, 97186551	8-97248-128-0	01	1	0004-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97170-163-2, 97170163, G = 8-97300-353-0, 97300353	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-283-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-045-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97148-108-1	01	1	-0003
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97144-392-1, 97144392	8-97148-108-1	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97111-263-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97111-264-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-032-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: B = 8-97144-392-1, 97144392	8-97148-109-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: C = 8-97170-163-2, 97170163	8-97148-109-0	01	1	-0003
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97250-258-1, 97250258	8-97083-286-0	01	1	-0006
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97175-390-1, 97175390	8-97083-286-0	01	1	-
10	02.319 RECTIFIER; GEN LOWER ASM PART: A = 8-97115-044-0, 97115044	8-97128-042-0	01	1	-
10	02.319 RECTIFIER; GEN UPPER ASM PART: A = 8-97115-044-0, 97115044	8-97128-043-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-169-1	01	1	-0003
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97144-392-1, 97144392	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97249-333-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97170-163-2, 97170163	8-97253-381-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-577-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97250-258-1, 97250258	8-97264-868-0	01	1	0007-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-037-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-703-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-036-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-113-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-048-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-701-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: C = 8-97170-163-2, 97170163	8-97148-110-1	01	1	-0003
48	02.319 DIODE; GEN ASM PART: B = 8-97144-392-1, 97144392	8-97148-110-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-033-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97148-114-1	01	1	-0003
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97144-392-1, 97144392, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, G = 8-97300-353-0, 97300353	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97253-433-0	01	1	0004-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97258-675-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-117-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (A) ASM PART: A = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-115-1	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551, G = 8-97300-353-0, 97300353	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-274-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-97115-044-0, 97115044	1-81229-419-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, G = 8-97300-353-0, 97300353	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97175-390-1, 97175390	8-97189-263-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97258-681-0	01	1	-

22 3 17 123 3 19 2 18 1 90 44 121 108 10 109 100 104 109 99 99 99 109 96 104 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-107-1	01	1	-0003
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97148-107-1	01	1	-9909
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97144-392-1, 97144392	8-97148-107-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97210-709-0	01	1	9910-0003
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97175-390-1, 97175390	8-97211-162-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-370-0	01	1	0004-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97253-379-0	01	1	0004-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97258-679-0	01	1	-0006
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97264-867-0	01	1	0007-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-702-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-039-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-700-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-97115-044-0, 97115044	1-81229-466-1	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: C = 8-97170-163-2, 97170163	8-94121-178-0	01	1	-9909
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: B = 8-97144-392-1, 97144392	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97186-551-1, 97186551	8-94121-178-0	01	1	-0003
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97186-551-1, 97186551	8-97248-128-0	01	1	0004-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97170-163-2, 97170163, G = 8-97300-353-0, 97300353	8-97248-128-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97250-258-1, 97250258	8-97083-286-0	01	1	-0006
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97175-390-1, 97175390	8-97083-286-0	01	1	-
10	02.319 RECTIFIER; GEN LOWER ASM PART: A = 8-97115-044-0, 97115044	8-97128-042-0	01	1	-
10	02.319 RECTIFIER; GEN UPPER ASM PART: A = 8-97115-044-0, 97115044	8-97128-043-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-169-1	01	1	-0003
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97144-392-1, 97144392	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97249-333-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97170-163-2, 97170163	8-97253-381-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-577-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97250-258-1, 97250258	8-97264-868-0	01	1	0007-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-037-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-703-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-97115-044-0, 97115044	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-293-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-036-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551	8-97148-113-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-048-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97300-353-0, 97300353	8-97302-701-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97115-044-0, 97115044	8-97128-033-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97148-114-1	01	1	-0003
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97144-392-1, 97144392, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, G = 8-97300-353-0, 97300353	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97170-163-2, 97170163	8-97253-433-0	01	1	0004-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97250-258-1, 97250258	8-97258-675-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-117-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (A) ASM PART: A = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-115-1	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, D = 8-97175-390-1, 97175390, E = 8-97186-551-1, 97186551, F = 8-97250-258-1, 97250258, G = 8-97300-353-0, 97300353	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97144-392-1, 97144392, C = 8-97170-163-2, 97170163, E = 8-97186-551-1, 97186551, G = 8-97300-353-0, 97300353	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: D = 8-97175-390-1, 97175390, F = 8-97250-258-1, 97250258	8-97083-274-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
