Sayfa 0-65 - Isuzu EPC

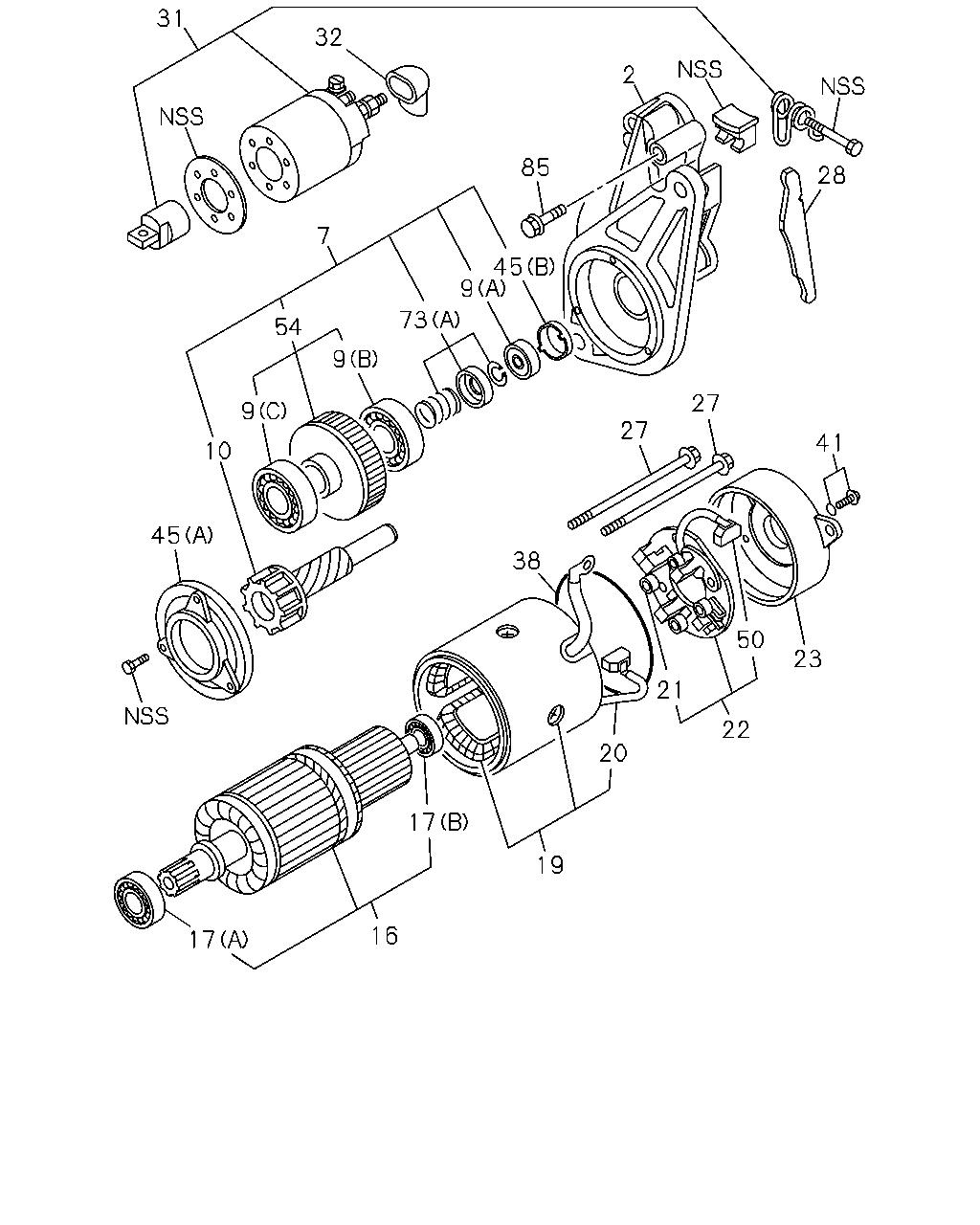

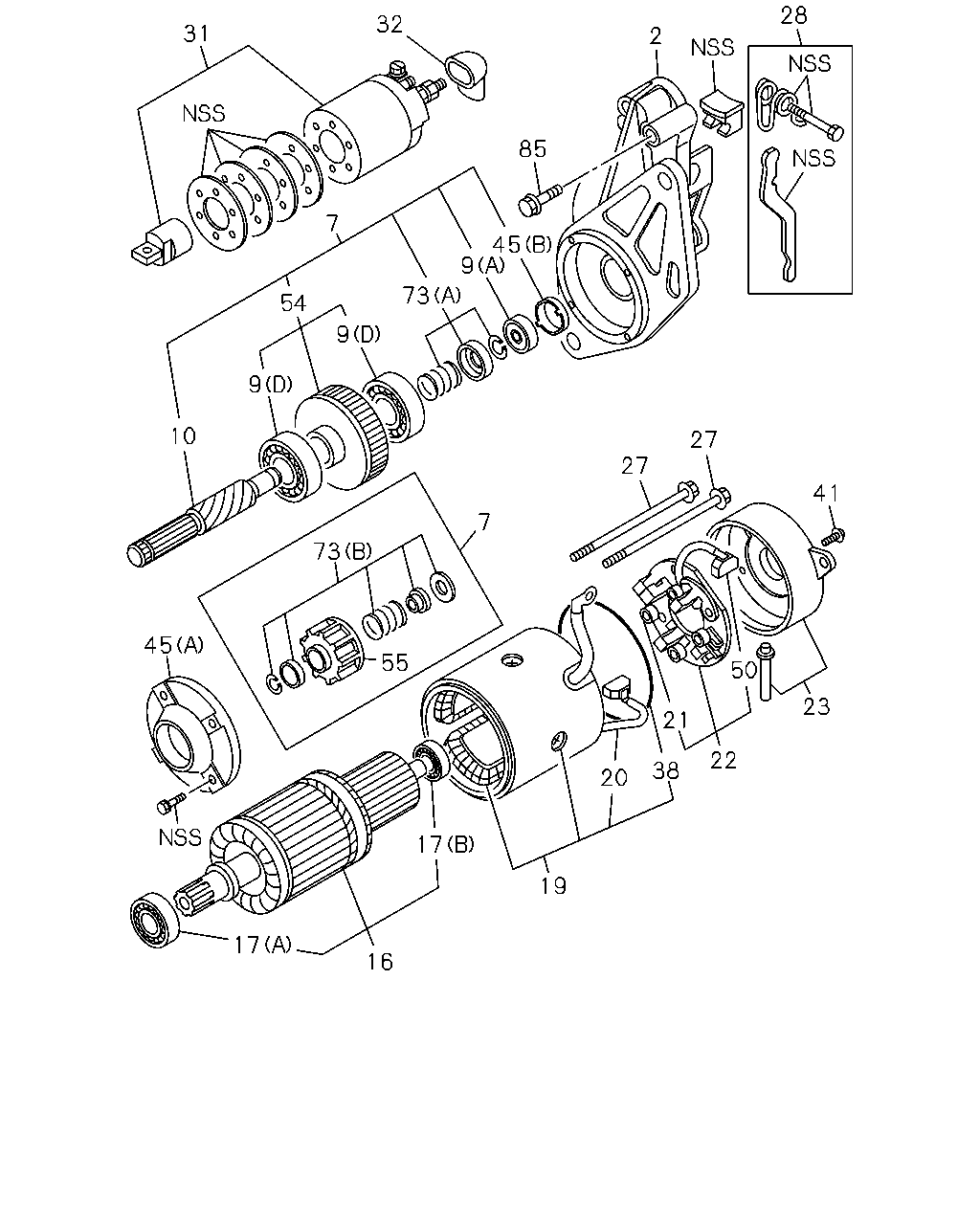

0-65 — STARTER (#41967) — 124 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-403-0	01	1	-
	51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-778-0	01	1	-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-403-0	01	1	-
	51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-778-0	01	1	-

28 32 31 2 85 7 45 9 73 54 9 9 10 27 27 41 7 73 45 55 50 23 21 22 38 20 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-400-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97095-811-5, 97095811, C = 8-97216-185-0, 97216185	8-97179-775-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-97172-211-1, 97172211	8-97227-902-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-770-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-564-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97232-475-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER 24V 4.0KW(C) 24V 4.5KW(D) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97025-673-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER 24V 4.0KW(C) 24V 4.5KW(D) ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97025-673-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97025-674-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97025-676-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-395-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-772-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97025-667-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97095-811-5, 97095811, C = 8-97216-185-0, 97216185	8-97179-769-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-97172-211-1, 97172211	8-97192-299-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-97216-186-1, 97216186	5-81129-113-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-387-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-97095-811-5, 97095811	8-97171-491-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-97172-211-1, 97172211	8-97192-301-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97217-567-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97216-185-0, 97216185	8-97221-347-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-558-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-94152-970-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97078-462-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-560-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97216-186-1, 97216186	5-81117-012-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-94152-972-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97025-670-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97078-463-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-562-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-97095-811-5, 97095811, C = 8-97216-185-0, 97216185	8-97171-493-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97217-568-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-97172-211-1, 97172211	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-561-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97030-404-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-97095-811-5, 97095811, C = 8-97216-185-0, 97216185	8-97117-106-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: B = 8-97172-211-1, 97172211, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97192-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-402-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-776-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97217-569-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97217-570-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97115-763-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-559-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97117-107-0	02	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-94435-567-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-401-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-774-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-94152-973-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97078-464-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-563-0	02	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-771-0	01	1	-
55	02.086 PINION; CLU,STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-569-0	01	1	-
55	02.086 PINION; CLU,STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97232-458-0	01	1	-
73	02.063 STOPPER SET; PINION REAR ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-396-0	01	1	-
73	02.063 STOPPER SET; PINION FRONT ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-398-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-94408-500-0	02	1	-

31 32 2 85 28 7 45 9 73 54 9 27 9 27 41 10 45 38 50 23 21 22 20 17 19 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-400-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97095-811-5, 97095811, C = 8-97216-185-0, 97216185	8-97179-775-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-97172-211-1, 97172211	8-97227-902-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-770-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-564-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97232-475-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER 24V 4.0KW(C) 24V 4.5KW(D) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97025-673-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER 24V 4.0KW(C) 24V 4.5KW(D) ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97025-673-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97025-674-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97025-676-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-395-0	01	1	-
10	02.086 SHAFT; GEAR STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-772-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97025-667-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97095-811-5, 97095811, C = 8-97216-185-0, 97216185	8-97179-769-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-97172-211-1, 97172211	8-97192-299-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-97216-186-1, 97216186	5-81129-113-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-387-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-97095-811-5, 97095811	8-97171-491-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-97172-211-1, 97172211	8-97192-301-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97217-567-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: C = 8-97216-185-0, 97216185	8-97221-347-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-558-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-94152-970-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97078-462-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-560-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-97216-186-1, 97216186	5-81117-012-0	04	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-94152-972-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97025-670-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97078-463-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-562-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-97095-811-5, 97095811, C = 8-97216-185-0, 97216185	8-97171-493-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97217-568-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-97172-211-1, 97172211	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-561-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97030-404-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-97095-811-5, 97095811, C = 8-97216-185-0, 97216185	8-97117-106-0	02	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: B = 8-97172-211-1, 97172211, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97192-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-402-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-776-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97217-569-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97217-570-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97115-763-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-559-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97117-107-0	02	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-94435-567-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-401-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-774-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-94152-973-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: D = 8-97216-186-1, 97216186	8-97078-464-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97230-563-0	02	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185	8-97179-771-0	01	1	-
73	02.063 STOPPER SET; PINION REAR ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-396-0	01	1	-
73	02.063 STOPPER SET; PINION FRONT ASM PART: D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-97030-398-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-97095-811-5, 97095811, B = 8-97172-211-1, 97172211, C = 8-97216-185-0, 97216185, D = 8-97216-186-1, 97216186, E = 8-97226-787-1, 97226787, F = 8-97323-935-0, 97323935	8-94408-500-0	02	1	-
