◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#41965) — 191 parça
çizim 47695
219 418 555 211 613
BalonParca AdiParca NoAdetTipApplied Date A B C
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-9812 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ● ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. ENGINE POWER N-SPEC(7QV) 02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 9811- ●
418 02.559 BOLT; CLIP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 9811- ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 9811- ● ●
555 03.485 BRACKET; ENG STOP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-039-2 01 1 9811- ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97113-497-1 01 1 9811-9812 ● ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (B) 		8-97113-497-1 01 1 9811-9812 ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97188-280-0 01 1 9811- ●
613 03.670 CONTROL UNIT; ENG
TURBOCHARGER(K51) 		8-97187-466-5 01 1 9811- ●
613 03.670 CONTROL UNIT; ENG
SUP LONG(NP***S) 		8-97261-162-2 01 1 0106- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97212-110-0 01 1 9811-9901 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97223-182-1 01 1 9902-0105 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97223-182-1 01 1 0106- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97212-111-0 01 1 9811-9901 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97223-183-1 01 1 9902-0109 ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1),EURO2 SPECIFICATION<7AF> 		8-97223-183-1 01 1 0110- ●

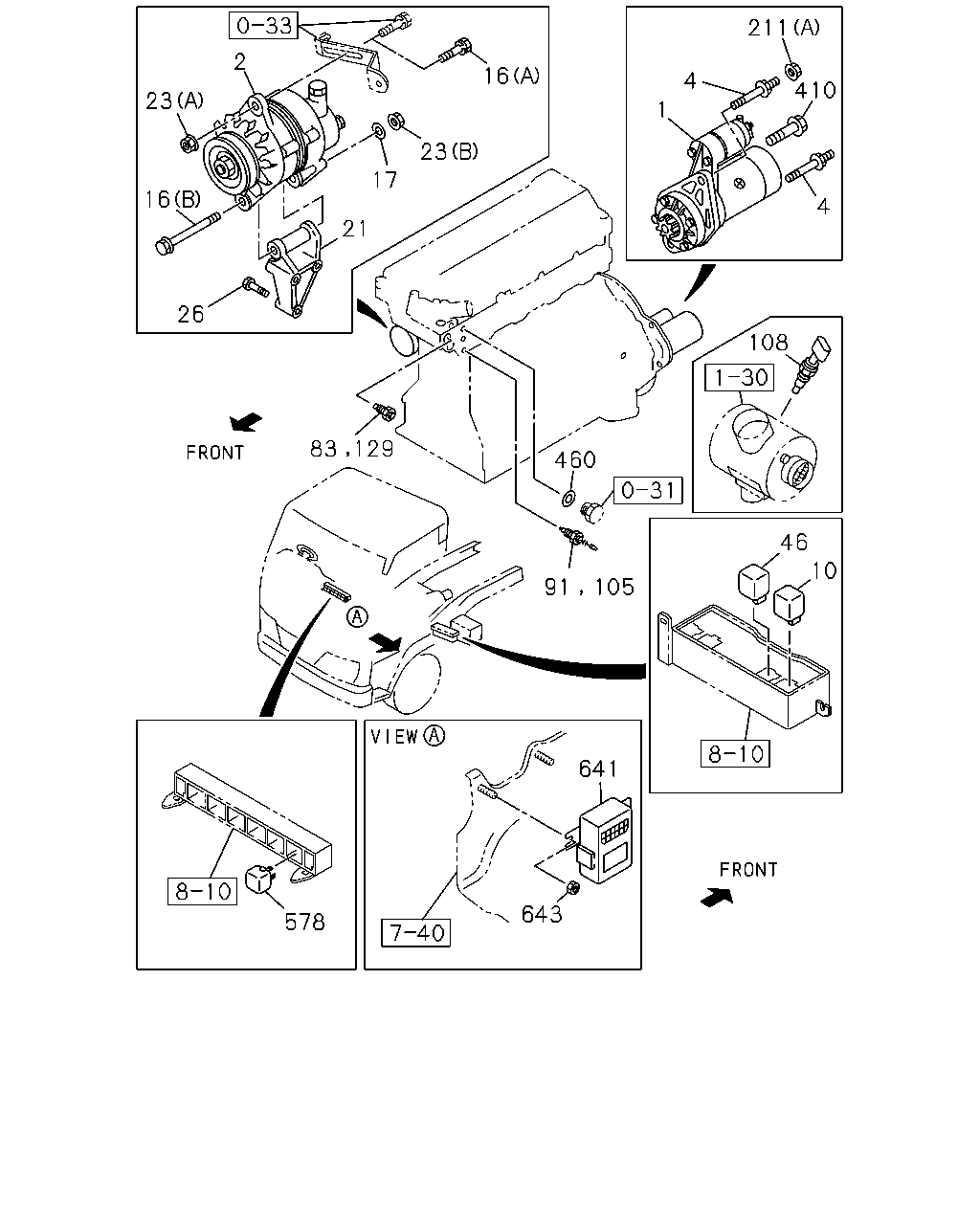

çizim 47810
211 2 16 410 4 23 1 23 17 16 4 21 26 108 460 46 10 91 105 641 643 578 83 129
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),GENERATOR DENSO(7KH) 24V 50A 		8-97144-392-1 01 1 9811-0001 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),GENERATOR DENSO(7KH) 24V 50A 		8-97186-551-1 01 1 0002-0105 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97186-551-1 01 1 0106- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97175-390-1 01 1 9811-0002 ● ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97175-390-1 01 1 0003-0201 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97300-353-0 01 1 0202- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A 		8-97250-258-2 01 1 0003- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2),GENERATOR DENSO(7KH) 24V 50A 		8-97170-163-2 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A 		8-97170-163-2 01 1 0106- ●
4 02.042 BOLT; STARTER
A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) M10X15,M14X75 L=103 		8-97072-825-1 02 1 9811-9904 ● ● ●
4 02.042 BOLT; STARTER
FLOOR REMOTE SHIFT<M11> M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811-9904 ● ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9905- ● ● ●
10 02.100 RELAY; STARTER
02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ● ● ●
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0107- ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60), GENERATOR DENSO(7KH) 02.317 (A) M8X40 W/WASHER 		8-97011-792-4 01 1 9811-0105 ● ● ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (A) M8X40 W/WASHER 		8-97011-792-4 01 1 0106- ● ● ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) (B) M10X133 		8-97146-998-0 01 1 9811-0105 ● ● ●
16 02.277 BOLT; GEN
(B) M10X133 		8-97146-998-0 01 1 0106- ● ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 03.415 (A) M8X35 FLANGE 		0-28080-835-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) (B) M10X120 FLANGE 		0-28086-012-0 01 1 9811-0105 ●
17 02.277 WASHER; PL,GEN
GENERATOR DENSO(7KH) 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9811-0105 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9811- ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9811- ● ● ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811- ● ● ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9811- ● ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9811- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> 24V 50A 		8-97173-947-0 01 1 9811- ● ● ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) DENSO 		8-94235-691-0 01 1 9811- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811- ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> DENSO 		8-94235-691-0 01 1 9811- ●
83 01.150 THERMOMETER UNIT
EXC. TURBOCHARGER(K51) YAZAKI 		8-94237-861-0 01 1 9811- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811- ●
83 01.150 THERMOMETER UNIT
EXC. CHARGE AIR COOLER<6PL> YAZAKI 		8-94237-861-0 01 1 9811- ●
91 01.150 SWITCH; THERMO HTR
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> 03.883 		8-97038-625-0 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
EXC. TURBOCHARGER(K51) 		8-94121-152-1 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9811- ●
105 01.150 SWITCH; THERMO,QOS
EXC. CHARGE AIR COOLER<6PL> 		8-94121-152-1 01 1 9811- ●
108 01.150 SWITCH; THERMO
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97189-295-0 01 1 9811-0112 ●
108 01.150 SWITCH; THERMO
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1),EURO2 SPECIFICATION<7AF> 		8-97189-295-0 01 1 0201- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TURBOCHARGER(K51) UNISIA JECS 		8-97167-008-0 01 1 9811- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
CHARGE AIR COOLER<6PL> UNISIA JECS 		8-97167-008-0 01 1 9811- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
TURBOCHARGER(K51) TRANSTRON 		8-97170-327-0 01 1 9811- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
CHARGE AIR COOLER<6PL> TRANSTRON 		8-97170-327-0 01 1 9811- ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-9812 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ● ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811- ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9811- ● ● ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 04.868 ID=16.2 		1-09630-086-0 01 1 9811-0003 ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 9811-0003 ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 04.868 ID=16.2 		1-09630-086-0 01 1 0004- ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0004- ●
578 02.510 RELAY; CHARGE WARNING 8-97063-440-2 01 1 9811- ● ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 		8-97215-648-0 01 1 9811-9812 ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97215-648-0 01 1 9811-9812 ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 		8-97215-648-0 01 1 9901- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 9901- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 		8-97215-648-0 01 1 9901- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-9812 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-9812 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9901- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9901- ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9901- ●

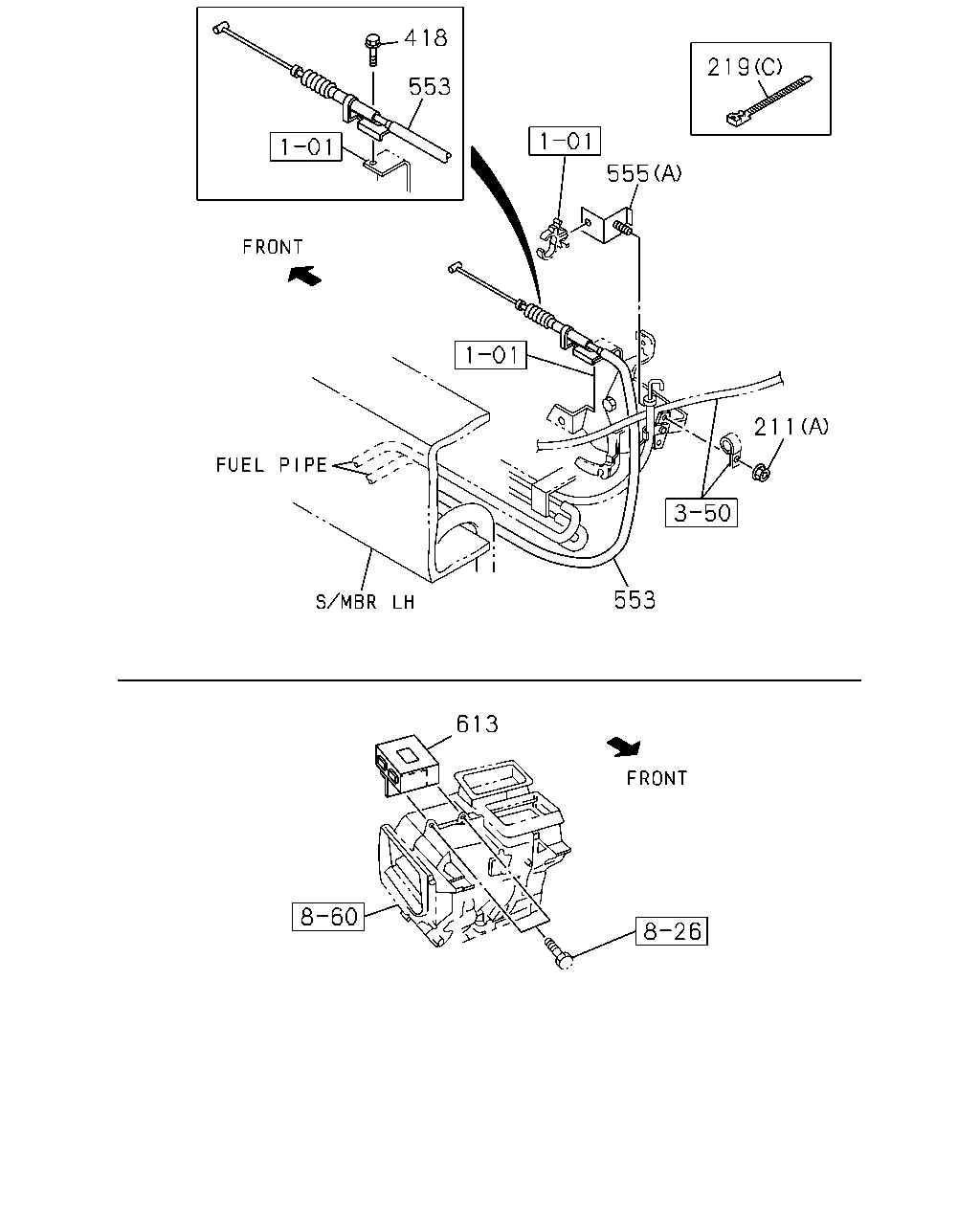

çizim 51006
418 219 553 555 211 553 613
BalonParca AdiParca NoAdetTipApplied Date A B C
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-9812 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ● ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. ENGINE POWER N-SPEC(7QV) 02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 9811- ●
418 02.559 BOLT; CLIP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 9811- ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97189-552-0 01 1 9811-9910 ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97189-552-0 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97231-002-0 01 1 9911-0004 ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97231-002-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97255-069-0 01 1 0005- ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-069-0 01 1 0005- ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97189-550-0 01 1 9811-9812 ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97189-550-0 01 1 9811-9812 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97217-565-0 01 1 9901-9910 ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-565-0 01 1 9901-9910 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97231-001-0 01 1 9911-0004 ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97231-001-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0005- ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97255-068-0 01 1 0005- ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97170-348-2 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97234-347-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97255-071-0 01 1 0005- ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 9811- ● ●
555 03.485 BRACKET; ENG STOP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-039-2 01 1 9811- ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97113-497-1 01 1 9811-9812 ● ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (B) 		8-97113-497-1 01 1 9811-9812 ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97188-280-0 01 1 9811- ●
613 03.670 CONTROL UNIT; ENG
TURBOCHARGER(K51) 		8-97187-466-5 01 1 9811- ●
613 03.670 CONTROL UNIT; ENG
SUP LONG(NP***S) 		8-97261-162-2 01 1 0106- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97212-110-0 01 1 9811-9901 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97223-182-1 01 1 9902-0105 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97223-182-1 01 1 0106- ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97212-111-0 01 1 9811-9901 ●
613 03.670 CONTROL UNIT; ENG
SGL CAB(NP**S*) CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97223-183-1 01 1 9902-0109 ●
613 03.670 CONTROL UNIT; ENG
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1),EURO2 SPECIFICATION<7AF> 		8-97223-183-1 01 1 0110- ●

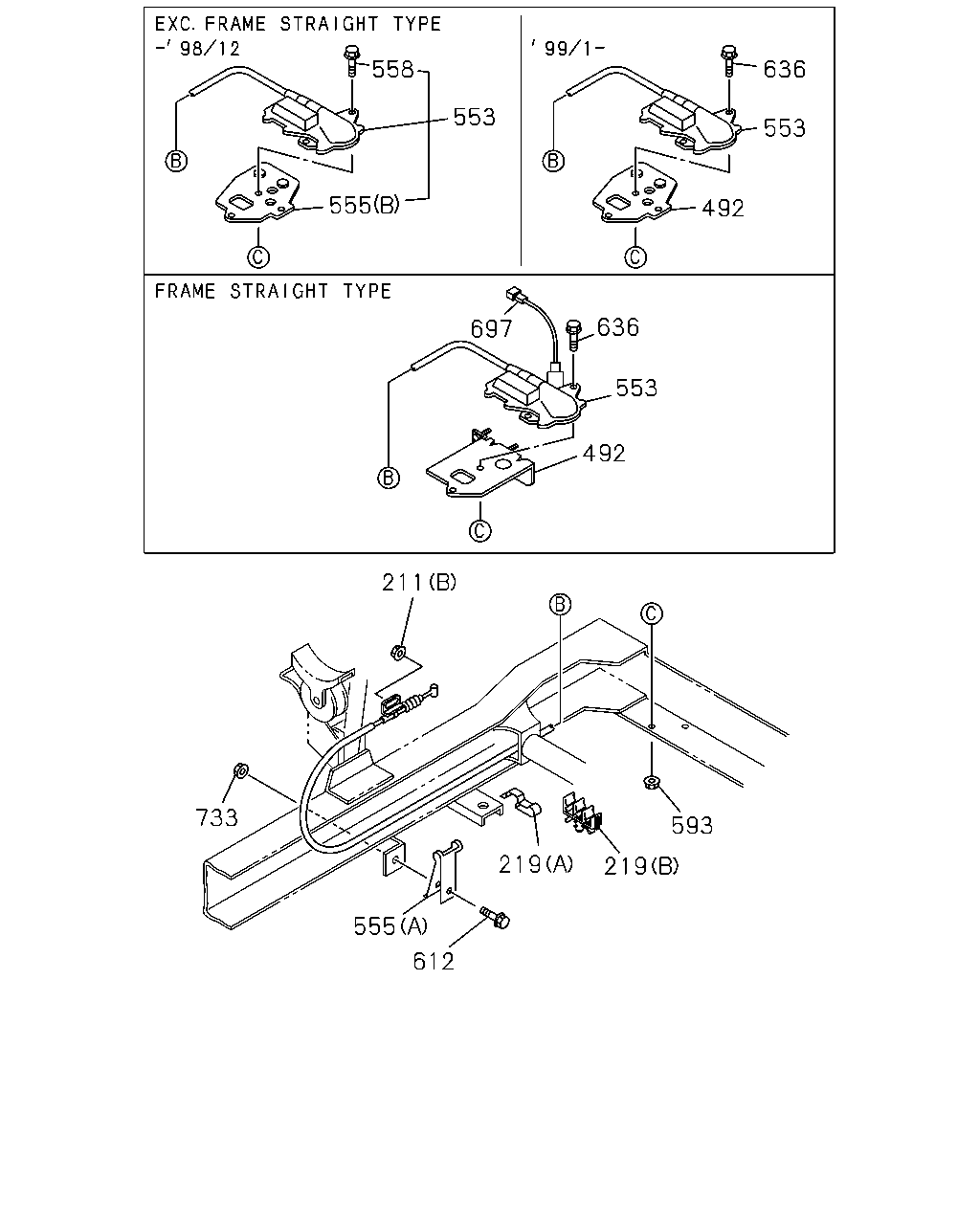

çizim 51497
558 636 553 553 555 492 636 697 553 492 211 733 593 219 219 555 612
BalonParca AdiParca NoAdetTipApplied Date A B C
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9811-9812 ● ● ●
211 02.343 NUT; CABLE FIX
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ● ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 9901- ●
211 02.343 NUT; CABLE FIX
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. ENGINE POWER N-SPEC(7QV) 02.525 (A) T=4.5 & 9 		5-09709-023-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 03.162 (B) ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 9811- ● ●
219 03.483 CLIP; ENG STOP CABLE
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.115 (A) T=9 & 10.5 		8-97041-091-0 01 1 9811- ●
219 03.483 CLIP; ENG STOP CABLE
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 03.162 (C) L=140 		5-09707-031-1 01 1 9811- ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> 		8-97127-037-0 01 1 9811- ● ●
492 03.483 BRACKET; ENG STOPPER
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97127-037-0 01 1 9811- ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ> 03.485 		8-97113-497-1 01 1 9901- ● ●
492 03.483 BRACKET; ENG STOPPER
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 03.485 		8-97113-497-1 01 1 9901- ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97189-552-0 01 1 9811-9910 ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97189-552-0 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97231-002-0 01 1 9911-0004 ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97231-002-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 		8-97255-069-0 01 1 0005- ● ●
553 03.485 MOTOR ASM; ENG STOP
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-069-0 01 1 0005- ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97189-550-0 01 1 9811-9812 ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97189-550-0 01 1 9811-9812 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97217-565-0 01 1 9901-9910 ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97217-565-0 01 1 9901-9910 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97231-001-0 01 1 9911-0004 ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97231-001-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97255-068-0 01 1 0005- ● ●
553 03.485 MOTOR ASM; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 		8-97255-068-0 01 1 0005- ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97170-348-2 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97234-347-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> 		8-97255-071-0 01 1 0005- ●
555 03.485 BRACKET; ENG STOP
(A) 		8-97119-039-2 01 1 9811- ● ●
555 03.485 BRACKET; ENG STOP
EXC. ENGINE POWER N-SPEC(7QV) (A) 		8-97119-039-2 01 1 9811- ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97113-497-1 01 1 9811-9812 ● ●
555 03.485 BRACKET; ENG STOP
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) (B) 		8-97113-497-1 01 1 9811-9812 ●
555 03.485 BRACKET; ENG STOP
CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97188-280-0 01 1 9811- ●
558 03.485 SCREW; BRKT TO MOTOR
EXC. FRAME STRAIGHT TYPE<7KJ> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811-9812 ● ●
558 03.485 SCREW; BRKT TO MOTOR
EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811-9812 ●
593 02.483 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 02 1 9811- ● ●
593 02.483 NUT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811- ●
612 02.510 BOLT; BRKT
16.585 M8X20 		1-09981-468-0 01 1 9811- ● ●
612 02.510 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 16.585 M8X20 		1-09981-468-0 01 1 9811- ●
636 02.510 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-9812 ● ●
636 02.510 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811-9812 ●
636 02.510 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9901- ● ●
636 02.510 BOLT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9901- ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> 		8-97126-038-0 01 1 9811- ● ●
697 03.726 HARNESS; CABLE
FRAME STRAIGHT TYPE<7KJ> EXC. ENGINE POWER N-SPEC(7QV) 		8-97126-038-0 01 1 9811- ●
733 02.343 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ● ●
733 02.343 NUT; BRKT
EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
