0-52 — OIL AND VACUUM PIPING; ENGINE (#41962) — 166 parça

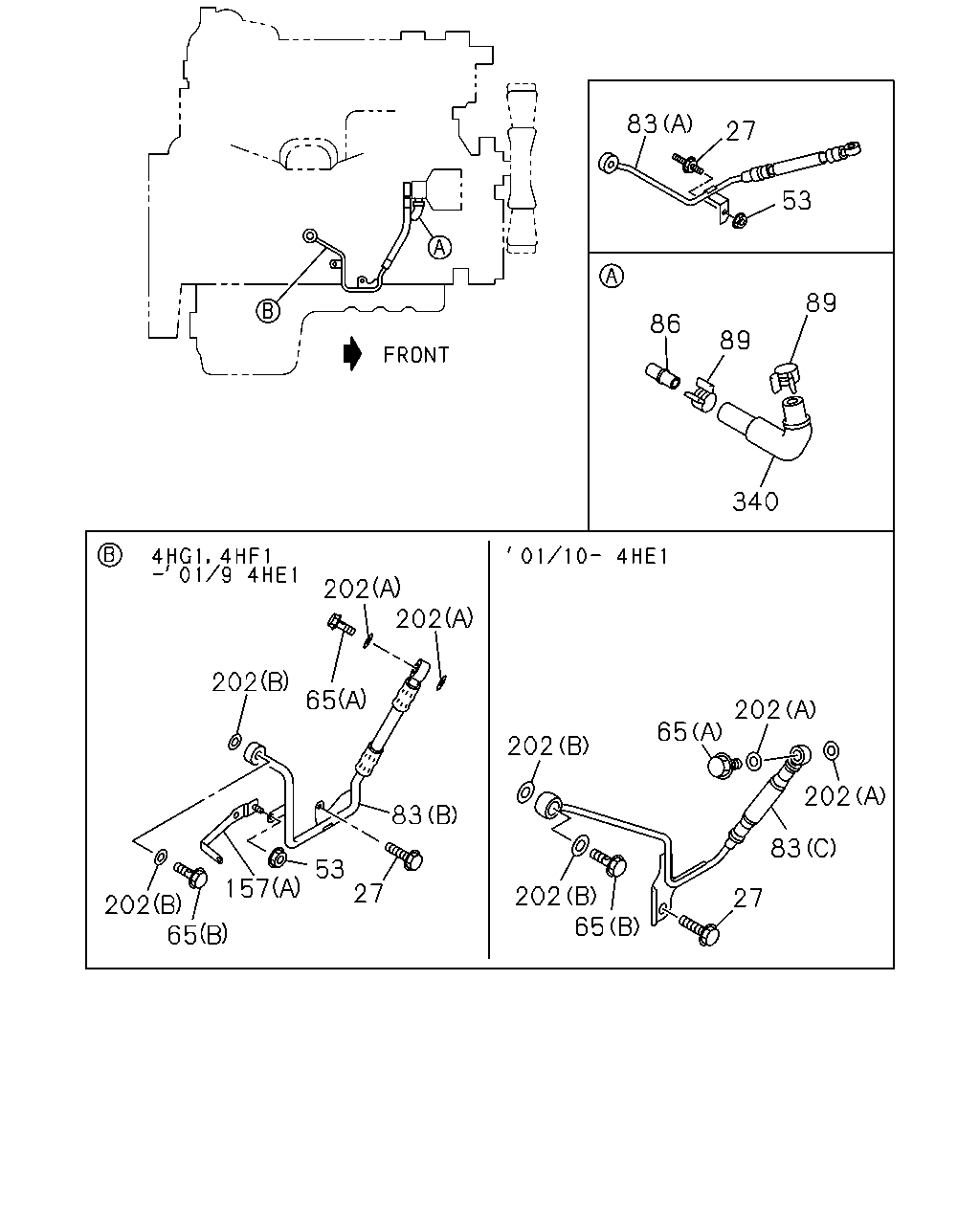

çizim 47735
83 27 53 89 86 89 340 202 202 202 65 202 65 202 202 83 83 53 27 157 202 65 27 202 65
BalonParca AdiParca NoAdetTipApplied Date A B C
27 01.531 BOLT; OIL PIPE FIX
EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106-0109 ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106-0109 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ● ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ●
27 01.531 BOLT; OIL PIPE FIX
TURBOCHARGER(K51) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9811-0002 ● ●
27 01.531 BOLT; OIL PIPE FIX
GENERATOR DENSO(7KH) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9811-0002 ●
27 01.531 BOLT; OIL PIPE FIX
GENERATOR DENSO(7KH) M8X12,M10X20 L=42 		8-97118-911-0 01 1 0003-0105 ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9811- ●
53 01.531 NUT; OIL PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0002 ● ●
53 01.531 NUT; OIL PIPE
GENERATOR DENSO(7KH) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0003-0105 ●
65 01.531 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 9811- ● ● ●
65 01.531 BOLT; JOINT,OIL PIPE
03.162 (B) M14X27 FLANGE 		1-09675-086-0 01 1 9811- ● ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
TURBOCHARGER(K51) (B) 		8-97210-859-0 01 1 9811-9910 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. GENERATOR DENSO(7KH) (B) 		8-97228-670-0 01 1 9911-0105 ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97228-670-0 01 1 0106- ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
EXC. TURBOCHARGER(K51),GENERATOR DENSO(7KH) (B) 		8-97139-538-0 01 1 9811-9910 ● ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
GENERATOR DENSO(7KH) (A) 		8-97117-095-0 01 1 9811-0105 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(B) 		8-97029-287-1 01 1 9811-0109 ●
83 01.519 PIPE; OIL,C/BL TO VAC PUMP
(C) 		8-97228-671-0 01 1 0110- ●
86 01.519 PIPE; OIL,VAC PUMP RETURN
01.430 		8-94455-311-1 01 1 9811- ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811- ● ● ●
89 04.681 CLIP; VAC HOSE
03.280 ID=17.1 		8-94122-679-0 01 1 9811- ● ● ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 9811-0105 ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> (B) 		8-97181-586-0 01 1 9811-0105 ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 0106-0112 ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-97181-586-0 01 1 0106-0112 ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 0201- ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) 		8-97181-586-0 01 1 0201- ●
157 01.519 BRACKET; OIL PIPE
EXC. TURBOCHARGER(K51),POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
202 01.531 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ● ● ●
202 01.531 GASKET; OIL PIPE
03.163 (B) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9811- ● ● ●
340 03.280 HOSE; VAC PUMP,RETURN
EXC. GENERATOR DENSO(7KH) 04.681 		8-94339-073-3 01 1 9811-0105 ● ● ●
340 03.280 HOSE; VAC PUMP,RETURN
04.681 		8-94339-073-3 01 1 0106- ● ● ●
340 03.280 HOSE; VAC PUMP,RETURN
GENERATOR DENSO(7KH) 04.681 		8-97117-121-0 01 1 9811-0105 ●
çizim 48889
157 304 68 3 3 63 479 40 27 1 63
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
TURBOCHARGER(K51) 		8-97200-615-2 01 1 9811- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97093-547-1 01 1 9811- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97148-923-3 01 1 9811-0104 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97314-008-0 01 1 0105- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-2 01 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ●
27 01.531 BOLT; OIL PIPE FIX
EXC. GENERATOR DENSO(7KH) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811-0105 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106-0109 ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106-0109 ●
27 01.531 BOLT; OIL PIPE FIX
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ● ● ●
27 01.531 BOLT; OIL PIPE FIX
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0110- ●
27 01.531 BOLT; OIL PIPE FIX
TURBOCHARGER(K51) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9811-0002 ● ●
27 01.531 BOLT; OIL PIPE FIX
GENERATOR DENSO(7KH) M8X12,M10X20 L=42 		8-97118-911-0 01 1 9811-0002 ●
27 01.531 BOLT; OIL PIPE FIX
GENERATOR DENSO(7KH) M8X12,M10X20 L=42 		8-97118-911-0 01 1 0003-0105 ●
27 01.531 BOLT; OIL PIPE FIX
EXC. CHARGE AIR COOLER<6PL> 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9811- ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER(K51) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ●
40 01.531 BOLT; OIL PIPE
CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE 		0-28181-016-0 02 1 9811- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97210-076-3 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97232-015-0 01 1 9908-0204 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97349-474-0 01 1 0205- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9811-0112 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97214-394-0 01 1 0201-0207 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97214-394-0 01 1 0208- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97260-199-1 01 1 0106-0207 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 		8-97260-199-1 01 1 0208- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
TURBOCHARGER(K51) M12X28 FLANGE 		8-97166-518-0 01 1 9811- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
CHARGE AIR COOLER<6PL> M12X28 FLANGE 		8-97166-518-0 01 1 9811- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
EXC. CHARGE AIR COOLER<6PL> M10X26 		8-97081-817-0 01 1 9811- ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 9811-0105 ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> (B) 		8-97181-586-0 01 1 9811-0105 ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 0106-0112 ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-97181-586-0 01 1 0106-0112 ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 0201- ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) 		8-97181-586-0 01 1 0201- ●
157 01.519 BRACKET; OIL PIPE
EXC. TURBOCHARGER(K51),POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
304 01.540 BOLT; BRKT,OIL PIPE
CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811-0112 ●
304 01.540 BOLT; BRKT,OIL PIPE
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0201-0207 ●
304 01.540 BOLT; BRKT,OIL PIPE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0208- ●
479 01.531 ADAPTER
TURBOCHARGER(K51) 01.800 		8-94436-891-0 01 1 9811- ●
479 01.531 ADAPTER
CHARGE AIR COOLER<6PL> 01.800 		8-94436-891-0 01 1 9811- ●
çizim 49689
63 3 3 2 3 3 2 472 480 1 3 3 1 3 3 2 472 480 2 63 3 3 3 1 3 3 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
TURBOCHARGER(K51) 		8-97200-615-2 01 1 9811- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 		8-97093-547-1 01 1 9811- ● ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97148-923-3 01 1 9811-0104 ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
CHARGE AIR COOLER<6PL> 		8-97314-008-0 01 1 0105- ●
1 01.519 PIPE; OIL,INJ PUMP TO C/BL
EXC. CHARGE AIR COOLER<6PL> 		8-97074-790-2 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) (A) M10X40 FLANGE 		8-97182-847-0 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) 03.280 (B) M10X24 		9-09906-205-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A),(B) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ● ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97210-076-3 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97232-015-0 01 1 9908-0204 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97349-474-0 01 1 0205- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9811-0112 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97214-394-0 01 1 0201-0207 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97214-394-0 01 1 0208- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97260-199-1 01 1 0106-0207 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 		8-97260-199-1 01 1 0208- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
472 01.519 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811-0003 ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) 08.971 M10X7 		9-09202-310-0 02 1 9811-9901 ●
480 01.519 PLUG; OIL FILTER
ENGINE POWER N-SPEC(7QV) M10X10 		1-09604-074-0 02 1 9902-0003 ●

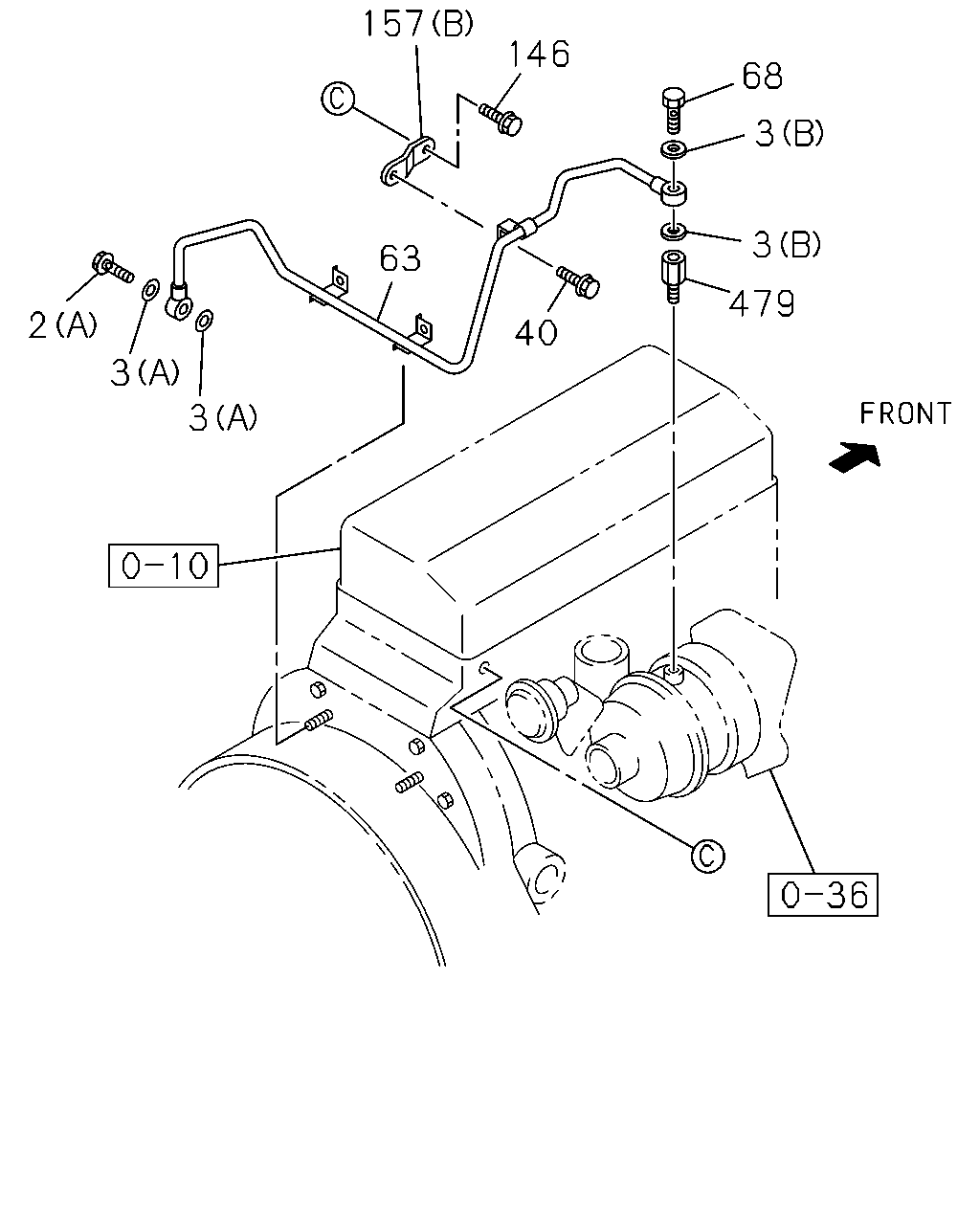

çizim 50149
157 146 68 3 3 63 479 2 40 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) (A) M10X40 FLANGE 		8-97182-847-0 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
CHARGE AIR COOLER<6PL> (A) M10X40 FLANGE 		8-97182-847-0 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER(K51) 03.280 (B) M10X24 		9-09906-205-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
03.280 (B) M10X24 		9-09906-205-1 01 1 9811- ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A),(B) M10X21 FLANGE 		1-09675-077-0 02 1 9811- ● ●
2 01.531 BOLT; EYE,OIL PIPE
EXC. CHARGE AIR COOLER<6PL> (A) M10X36 		1-09675-183-0 01 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 05 1 9811-0207 ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 06 1 0208- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 08.955 (B) ID=12.2 		9-09571-412-0 02 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ● ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9811- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9811- ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER(K51) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ●
40 01.531 BOLT; OIL PIPE
CHARGE AIR COOLER<6PL> 03.604 M10X16 FLANGE 		0-28181-016-0 02 1 9811- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97210-076-3 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97232-015-0 01 1 9908-0204 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER(K51) 		8-97349-474-0 01 1 0205- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> 		8-97214-394-0 01 1 9811-0112 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97214-394-0 01 1 0201-0207 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97214-394-0 01 1 0208- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97260-199-1 01 1 0106-0207 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 		8-97260-199-1 01 1 0208- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97182-990-0 01 1 9811-9907 ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
EXC. CHARGE AIR COOLER<6PL> 		8-97229-042-0 01 1 9908- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
TURBOCHARGER(K51) M12X28 FLANGE 		8-97166-518-0 01 1 9811- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
CHARGE AIR COOLER<6PL> M12X28 FLANGE 		8-97166-518-0 01 1 9811- ●
68 01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER
EXC. CHARGE AIR COOLER<6PL> M10X26 		8-97081-817-0 01 1 9811- ●
146 01.531 BOLT; BRKT
TURBOCHARGER(K51) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 9811-0105 ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> (B) 		8-97181-586-0 01 1 9811-0105 ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 0106-0112 ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-97181-586-0 01 1 0106-0112 ●
157 01.519 BRACKET; OIL PIPE
TURBOCHARGER(K51) (B) 		8-97181-586-0 01 1 0201- ●
157 01.519 BRACKET; OIL PIPE
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (B) 		8-97181-586-0 01 1 0201- ●
157 01.519 BRACKET; OIL PIPE
EXC. TURBOCHARGER(K51),POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
157 01.519 BRACKET; OIL PIPE
EXC. POWER STEERING<N40> (A) 		8-97209-355-0 01 1 9811-0006 ●
479 01.531 ADAPTER
TURBOCHARGER(K51) 01.800 		8-94436-891-0 01 1 9811- ●
479 01.531 ADAPTER
CHARGE AIR COOLER<6PL> 01.800 		8-94436-891-0 01 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
