Sayfa 0-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

0-50 — OIL COOLER AND OIL FILTER (#41960) — 81 parça

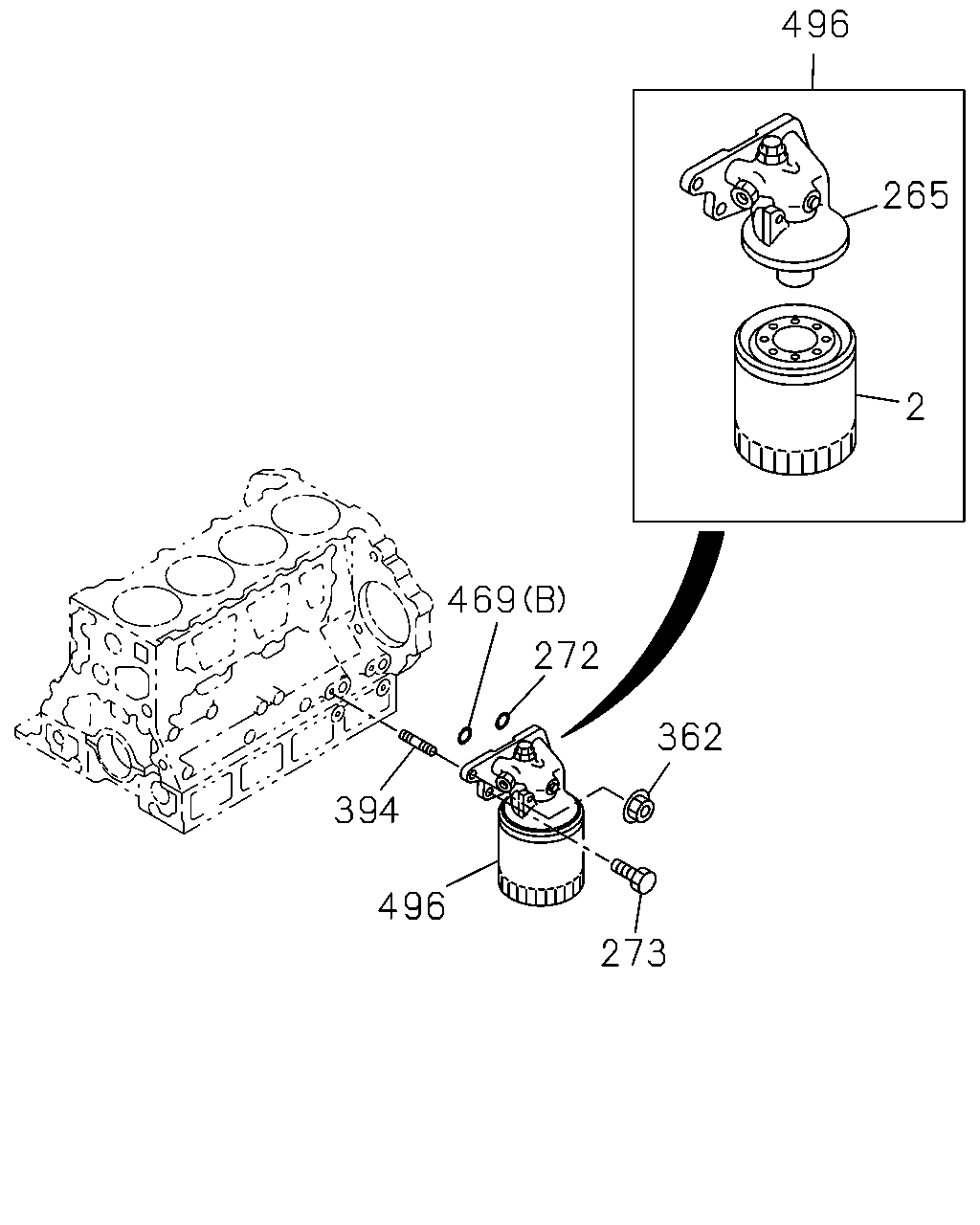

496 265 2 469 272 362 394 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	9811-	●	●	●
265	01.837 BODY; OIL FILTER	8-97096-677-2	01	1	9811-0003	●	●	●
265	01.837 BODY; OIL FILTER	8-97096-677-3	01	1	0004-	●		●
265	01.837 BODY; OIL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97096-677-3	01	1	0004-		●
265	01.837 BODY; OIL FILTER ENGINE POWER N-SPEC(7QV)	8-97247-088-1	01	1	0004-		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-676-0	02	1	9811-0211	●	●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0212-	●	●	●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9811-	●	●	●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-	●	●	●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	9811-	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9811-	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9811-0211	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0212-	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9811-0211	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0212-	●	●	●
496	01.835 FILTER ASM; OIL	8-97148-268-1	01	1	9811-0003	●	●	●
496	01.835 FILTER ASM; OIL	8-97148-268-2	01	1	0004-	●		●
496	01.835 FILTER ASM; OIL EXC. ENGINE POWER N-SPEC(7QV)	8-97148-268-2	01	1	0004-		●
496	01.835 FILTER ASM; OIL ENGINE POWER N-SPEC(7QV)	8-97247-082-1	01	1	0004-		●

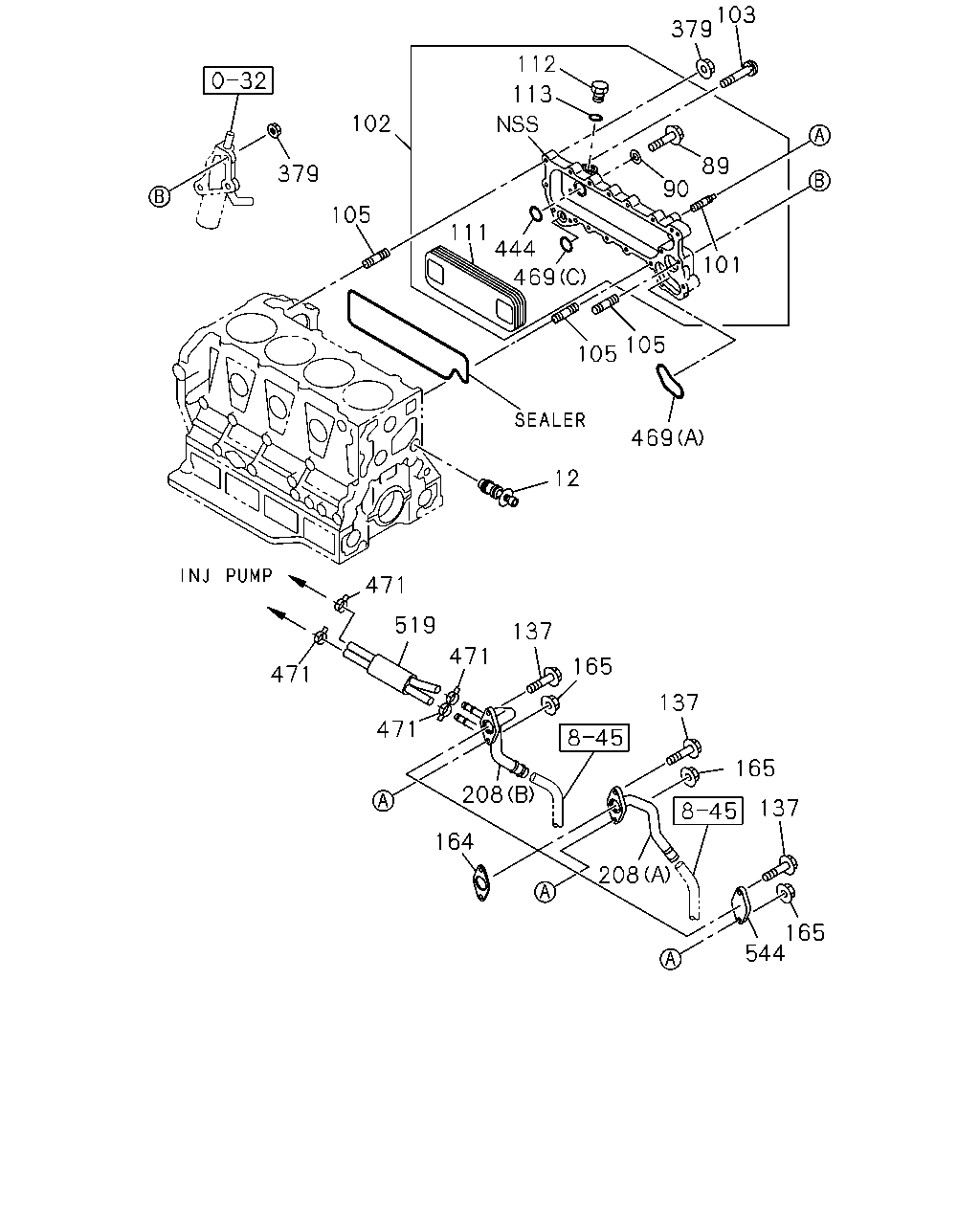

103 379 112 113 102 89 379 90 105 111 444 101 469 105 105 469 12 471 519 137 471 165 471 137 471 165 208 137 164 208 165 544

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	01.540 VALVE ASM; BYPASS	8-97075-754-0	01	1	9811-0107	●	●
12	01.540 VALVE ASM; BYPASS CHARGE AIR COOLER<6PL>	8-97075-754-0	01	1	9811-0107			●
12	01.540 VALVE ASM; BYPASS CHARGE AIR COOLER<6PL>	8-97075-754-0	01	1	0108-			●
12	01.540 VALVE ASM; BYPASS EXC. CHARGE AIR COOLER<6PL>	8-97013-566-2	01	1	9811-0112			●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0201-	●	●
12	01.540 VALVE ASM; BYPASS EXC. CHARGE AIR COOLER<6PL>	8-97013-566-2	01	1	0201-			●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9811-	●	●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	9811-	●	●	●
101	01.540 STUD; OIL COOLER TO PIPE 03.407 M8X20 L=38	0-49740-820-0	01	1	9811-0206	●	●	●
102	01.540 COOLER ASM; OIL	8-97178-779-1	01	1	9811-9908	●	●
102	01.540 COOLER ASM; OIL	8-97212-334-0	01	1	9909-0206	●	●
102	01.540 COOLER ASM; OIL	8-97333-783-0	01	1	0207-	●	●
102	01.540 COOLER ASM; OIL	8-97178-814-1	01	1	9811-9906			●
102	01.540 COOLER ASM; OIL	8-97212-763-0	01	1	9907-0206			●
102	01.540 COOLER ASM; OIL	8-97333-784-0	01	1	0207-0208			●
102	01.540 COOLER ASM; OIL	8-97333-877-0	01	1	0209-			●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	07	1	9811-	●	●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	07	1	9811-	●	●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	08	1	9811-			●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	08	1	9811-			●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	9811-	●	●	●
111	01.540 CORE; OIL COOLER	8-97028-739-0	01	1	9811-9908	●	●
111	01.540 CORE; OIL COOLER	8-97222-512-0	01	1	9909-0206	●	●
111	01.540 CORE; OIL COOLER	8-97334-101-0	01	1	0207-	●	●
111	01.540 CORE; OIL COOLER	8-97033-802-0	01	1	9811-0206			●
111	01.540 CORE; OIL COOLER	8-97334-100-0	01	1	0207-			●
112	01.540 PLUG; OIL COOLER CASE 04.104 M18X12	9-99202-318-0	01	1	9811-9908	●	●
112	01.540 PLUG; OIL COOLER CASE	8-97028-587-0	01	1	9811-9906			●
113	01.540 GASKET; PLUG,OIL COOLER CASE 06.673 ID=18	9-09571-418-0	01	1	9811-9906	●	●	●
113	01.540 GASKET; PLUG,OIL COOLER CASE 06.673 ID=18	9-09571-418-0	01	1	9907-9908	●	●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0206	●	●	●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0207-	●	●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	9811-	●	●	●
165	01.540 NUT; HTR PIPE 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0206	●	●	●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A)	8-97146-519-0	01	1	9811-9903	●
208	01.540 PIPE; WATER,HTR TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97146-519-0	01	1	9811-9903	●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97146-519-0	01	1	9811-9903		●
208	01.540 PIPE; WATER,HTR CHARGE AIR COOLER<6PL> (A)	8-97146-519-0	01	1	9811-9903			●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A)	8-97146-519-0	01	1	9904-0207	●
208	01.540 PIPE; WATER,HTR TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97146-519-0	01	1	9904-0207	●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. ENGINE POWER N-SPEC(7QV) (A)	8-97146-519-0	01	1	9904-0207		●
208	01.540 PIPE; WATER,HTR (A)	8-97146-519-0	01	1	9904-0207			●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A)	8-97146-519-0	01	1	0208-	●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER(K51) (A)	8-97146-519-0	01	1	0208-	●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97146-519-0	01	1	0208-		●
208	01.540 PIPE; WATER,HTR HEATER & DEFROSTER(C41) (A)	8-97146-519-0	01	1	0208-			●
208	01.540 PIPE; WATER,HTR TURBOCHARGER(K51) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97211-322-1	01	1	9811-	●
208	01.540 PIPE; WATER,HTR ENGINE POWER N-SPEC(7QV) (B)	8-97139-585-1	01	1	9811-		●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	9811-	●	●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	9811-	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	9811-	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-713-0	01	1	9811-0211	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0212-	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.35	8-97137-500-0	01	1	9811-0211	●	●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0212-	●	●	●
471	01.540 CLIP; HOSE ENGINE POWER N-SPEC(7QV) 03.162 ID=15.5	8-94221-519-0	04	1	9811-		●
519	01.540 HOSE; RUBBER ENGINE POWER N-SPEC(7QV)	8-97160-961-1	01	1	9811-		●
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV)	8-97147-028-0	01	1	9811-9903	●	●
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97147-028-0	01	1	9811-9903			●
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV)	8-97147-028-0	01	1	9904-0205	●	●
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97147-028-0	01	1	0206-	●		●
544	08.845 COVER; HEATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),ENGINE POWER N-SPEC(7QV)	8-97147-028-0	01	1	0206-		●
