◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-38A - AIR COMPRESSOR PIPING; ENGINE SIDE ▶

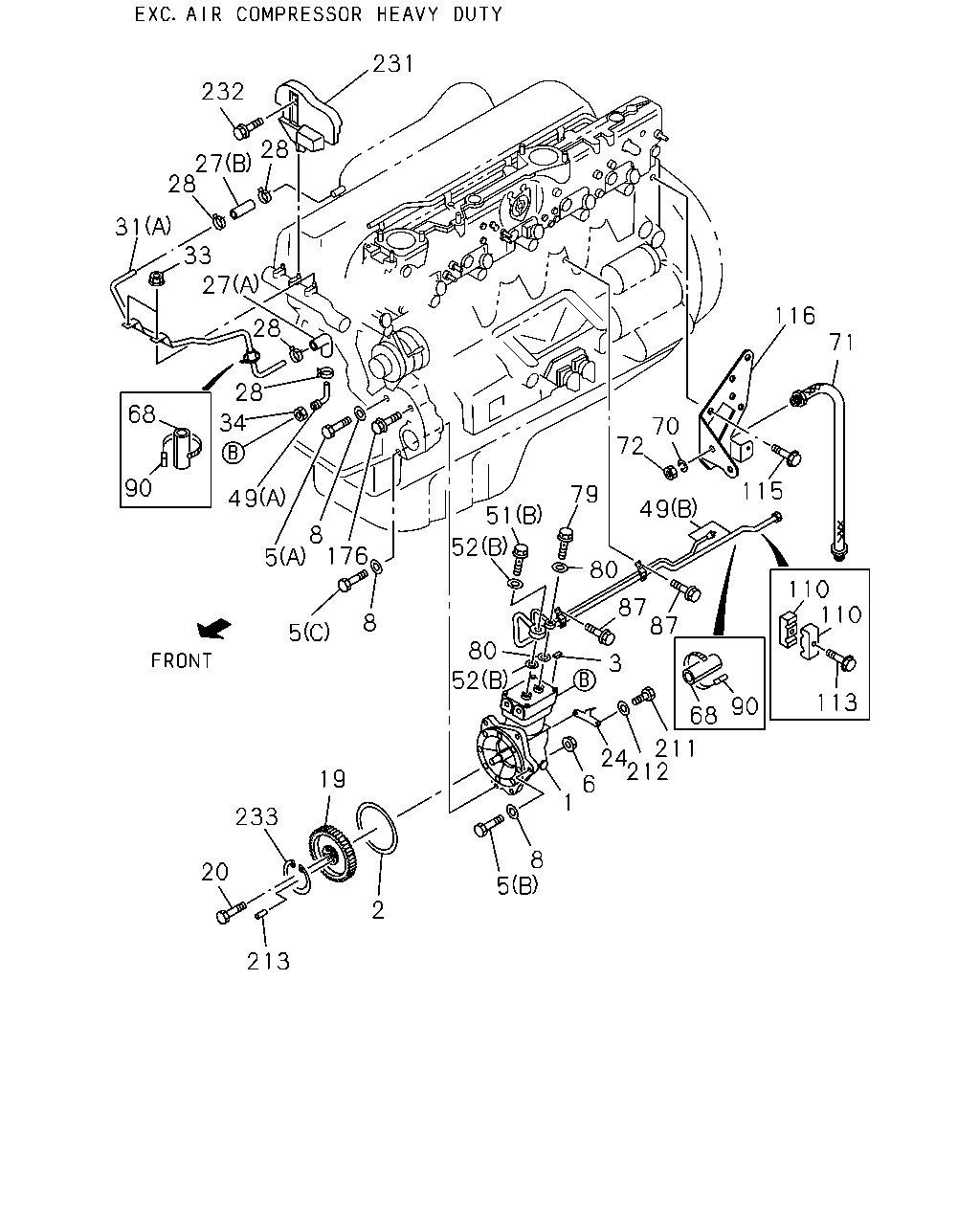

0-38A — AIR COMPRESSOR PIPING; ENGINE SIDE (#4196) — 822 parça

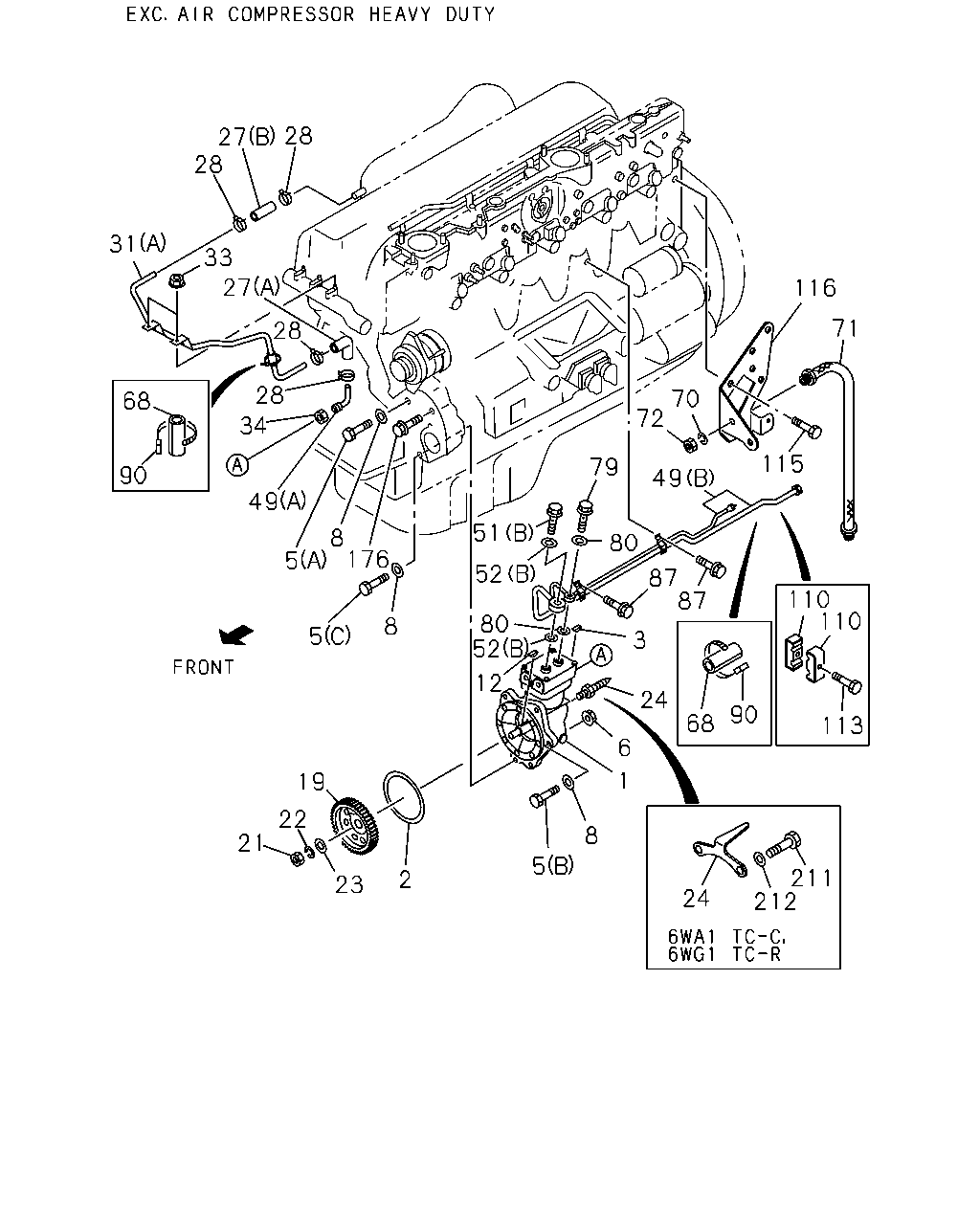

çizim 5583
28 27 28 31 3 27 116 71 28 28 70 72 68 115 34 79 90 49 49 51 8 176 80 5 52 87 87 110 110 80 52 8 5 3 12 24 90 68 113 6 1 19 22 8 21 5 211 212 2 23 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-268-9 01 1 9603-9606 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-2 01 1 9607-9901 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-2 01 1 9902-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-2 01 1 9905-9909 ● ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-4 01 1 9910- ● ● ● ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-266-8 01 1 9603-9606 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-299-2 01 1 9607-9901 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-299-2 01 1 9902-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-299-3 01 1 9905- ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-292-3 01 1 9902-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-292-4 01 1 9905- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9603-9901 ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9902-9904 ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9905-9909 ● ● ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9910- ● ● ● ● ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9603-9901 ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9902-9904 ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9905-9905 ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9905-9905 ● ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9905-9909 ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9905-9909 ● ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9910- ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9910- ● ● ●
3 KEY; COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-516-0 01 1 9603-9901 ●
3 KEY; COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-516-0 01 1 9902-9904 ●
3 KEY; COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-516-0 01 1 9905- ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9905-9909 ● ● ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9910- ● ● ● ● ●
5 BOLT; AIR CMPR FIX
(C) M14X100 		9-91666-400-0 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9905-9909 ● ● ●
5 BOLT; AIR CMPR FIX
(C) M14X100 		9-91666-400-0 01 1 9905-9909 ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9910- ● ● ● ●
5 BOLT; AIR CMPR FIX
(C) M14X100 		9-91666-400-0 01 1 9910- ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9905-9909 ● ● ● ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9910- ● ● ● ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9905-9909 ● ● ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9910- ● ● ● ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9603-9901 ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9902-9904 ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9905-9909 ● ● ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9910- ● ● ● ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9603-9901 ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9902-9904 ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9905-9909 ● ● ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9910- ● ● ● ● ●
12 KEY; AIR CMPR GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-519-0 01 1 9603-9901 ●
12 KEY; AIR CMPR GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-519-0 01 1 9902-9904 ●
12 KEY; AIR CMPR GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-519-0 01 1 9905- ● ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-087-6 01 1 9603-9604 ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-111-1 01 1 9605-9901 ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9902-9904 ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9905-9905 ● ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-111-1 01 1 9905-9909 ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9905-9909 ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-111-1 01 1 9910- ● ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9910- ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-086-5 01 1 9603-9604 ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-113-1 01 1 9605-9901 ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-113-1 01 1 9902-9904 ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-113-1 01 1 9905- ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-151-0 01 1 9905- ●
21 NUT; PUMP GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M24 		9-99111-524-0 01 1 9603-9901 ●
21 NUT; PUMP GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M24 		9-99111-524-0 01 1 9902-9904 ●
21 NUT; PUMP GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M24 		9-99111-524-0 01 1 9905- ● ●
22 WASHER; LK,INJ PUMP GEAR FIX
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 		9-09150-524-0 01 1 9603-9901 ●
22 WASHER; LK,INJ PUMP GEAR FIX
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 		9-09150-524-0 01 1 9902-9904 ●
22 WASHER; LK,INJ PUMP GEAR FIX
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 		9-09150-524-0 01 1 9905- ● ●
23 WASHER; PL,PUMP GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=25 		9-09160-524-0 01 1 9603-9901 ●
23 WASHER; PL,PUMP GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=25 		9-09160-524-0 01 1 9902-9904 ●
23 WASHER; PL,PUMP GEAR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=25 		9-09160-524-0 01 1 9905- ● ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-0 01 1 9603-9901 ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-0 01 1 9902-9904 ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-0 01 1 9905-9909 ● ● ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-1 01 1 9910- ● ● ● ● ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-11327-031-0 01 1 9603-9901 ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-11327-031-0 01 1 9902-9904 ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-11327-031-0 01 1 9905- ● ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-040-1 01 1 9902-9904 ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-040-1 01 1 9905- ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 01 1 9902-9904 ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 01 1 9905- ● ● ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 01 1 9902-9904 ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 01 1 9905- ● ● ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 01 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9902-9904 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9905-9909 ● ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9910- ● ● ● ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 01 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9902-9904 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9905-9909 ● ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9910- ● ● ● ● ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9603-9901 ●
28 CLIP; HOSE,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 04 1 9902-9904 ● ●
28 CLIP; HOSE,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 04 1 9905- ● ● ● ●
28 CLIP; HOSE,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 04 1 9603-9901 ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9902-9904 ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9905-9909 ● ● ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9910- ● ● ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
(A) 		1-19192-659-0 01 1 9603-9901 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. CAB UP +110MM<TGG> (A) 		1-19192-659-0 01 1 9902-9904 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. CAB UP +110MM<TGG> (A) 		1-19192-659-0 01 1 9905- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-993-0 01 1 9603-9901 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9902-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9905-9905 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9905-9910 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9905-9910 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9911- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-992-0 01 1 9902-9902 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B) 		1-19192-992-0 01 1 9903-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B) 		1-19192-992-0 01 1 9905-9909 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B) 		1-19192-992-0 01 1 9910- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
CAB UP +110MM<TGG> (A) 		1-19192-991-0 01 1 9902-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
CAB UP +110MM<TGG> (A) 		1-19192-991-0 01 1 9905-9909 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
CAB UP +110MM<TGG> (A) 		1-19192-991-0 01 1 9910- ● ● ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9603-9901 ●
34 NUT; LK SUCTION PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 01 1 9902-9904 ● ●
34 NUT; LK SUCTION PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 01 1 9905- ● ● ● ●
34 NUT; LK SUCTION PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 01 1 9603-9901 ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9902-9904 ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9905-9909 ● ● ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9910- ● ● ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9603-9901 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 01 1 9902-9904 ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 01 1 9905- ● ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 		1-19192-661-2 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-661-2 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-661-2 01 1 9905-9905 ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B) 		1-19192-661-2 01 1 9905-9909 ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-661-2 01 1 9910- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B) 		1-19192-661-2 01 1 9910- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> (B) 		1-19192-985-0 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
SHORT CHASSIS(CX***C) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-019-0 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
SHORT CHASSIS(CX***C) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-019-0 01 1 9905-9905 ● ●
49 PIPE; AIR,CHARGE
SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-019-0 01 1 9906- ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9902-9904 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9905-9909 ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9910- ● ● ● ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 		1-19192-986-0 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-986-0 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-986-0 01 1 9905- ● ●
49 PIPE; AIR,CHARGE
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-785-2 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-785-2 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-785-2 01 1 9905-9907 ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FIRE TRUCK<RA9> (B) 		1-19192-785-2 01 1 9908- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (B) 		1-19193-018-0 01 1 9908- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-985-0 01 1 9905- ●
49 PIPE; AIR,CHARGE
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-293-1 01 1 9909- ●
51 BOLT; EYE,AIR PIPE TO CMPR
(A) M10X21 FLANGE 		1-09675-077-0 01 1 9603-9901 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE 		1-09675-077-0 01 1 9902-9904 ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE 		1-09675-077-0 01 1 9905- ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9603-9901 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9902-9904 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9905-9909 ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9910- ● ● ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 01 1 9603-9901 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 01 1 9902-9904 ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 01 1 9905- ● ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9603-9901 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9902-9904 ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9905- ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9603-9901 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9902-9904 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9905-9909 ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9910- ● ● ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9603-9901 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9902-9904 ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9905- ● ● ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9603-9901 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9902-9904 ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9902-9904 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9905 ● ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9905 ●
68 SLEEVE; RUBBER
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9905 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9909 ● ● ●
68 SLEEVE; RUBBER
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9909 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910- ● ● ●
68 SLEEVE; RUBBER
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910- ●
68 SLEEVE; RUBBER
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910- ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9603-9901 ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9902-9902 ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9903-9904 ● ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9905- ● ● ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9902-9904 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9905-9909 ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9910- ● ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9603-9901 ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9902-9904 ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9905-9909 ● ● ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9910- ● ● ● ● ●
71 HOSE; FLEX,AIR GOV
L=520 		0-07030-520-0 01 1 9603-9607 ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9608-9901 ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9902-9902 ● ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9903-9904 ●
71 HOSE; FLEX,AIR GOV
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) L=520 		1-09363-657-0 01 1 9903-9904 ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9905-9909 ● ● ● ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9910- ● ● ● ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9603-9901 ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9902-9904 ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9905-9909 ● ● ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9910- ● ● ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9603-9901 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9902-9904 ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9905- ● ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9603-9901 ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9902-9904 ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9905-9909 ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9910- ● ● ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9603-9901 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9902-9904 ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9901 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9902-9904 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9905-9909 ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9910- ● ● ● ● ●
87 BOLT; BRKT FIX
M10X18 FLANGE 		0-28181-018-0 02 1 9603-9604 ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9605-9901 ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9902-9904 ● ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9905-9909 ● ● ● ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9910- ● ● ● ● ●
90 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9902-9904 ●
90 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9905-9909 ● ●
90 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9910- ● ● ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9603-9901 ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9902-9904 ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9905-9909 ● ● ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9910- ● ● ● ● ●
110 CLIP; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-208-0 02 1 9603-9901 ●
110 CLIP; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-208-0 02 1 9902-9904 ● ●
110 CLIP; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-208-0 02 1 9905- ● ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9603-9901 ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9902-9904 ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9905-9909 ● ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9910- ● ● ● ● ●
115 BOLT; AIR PIPE
M10X18 FLANGE 		0-28181-018-0 02 1 9603-9604 ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9605-9901 ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9902-9904 ● ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9905-9909 ● ● ● ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9910- ● ● ● ● ●
116 BRACKET; AIR PIPE 1-19199-212-0 01 1 9603-9901 ●
116 BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) 		1-19199-212-0 01 1 9902-9904 ● ●
116 BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) 		1-19199-212-0 01 1 9905-9909 ● ● ● ●
116 BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) 		1-19199-212-0 01 1 9910- ● ● ● ● ●
116 BRACKET; AIR PIPE
SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) 		1-19199-286-0 01 1 9902-9904 ●
116 BRACKET; AIR PIPE
SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) 		1-19199-286-0 01 1 9905- ● ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9603-9901 ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9902-9904 ● ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9905-9909 ● ● ● ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9910- ● ● ● ● ●
211 BOLT; POINTER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16 		0-23801-016-0 02 1 9902-9904 ●
211 BOLT; POINTER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16 		0-23801-016-0 02 1 9905- ● ●
212 WASHER; LK,POINTER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2 		9-09150-510-0 02 1 9902-9904 ●
212 WASHER; LK,POINTER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2 		9-09150-510-0 02 1 9905- ● ●
çizim 5584
231 232 28 27 28 31 33 27 116 28 71 28 68 34 70 72 115 90 79 49 49 51 8 176 52 5 80 110 110 87 87 8 5 80 3 52 113 90 68 211 24 212 6 19 1 233 8 5 20 2 213
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-268-9 01 1 9603-9606 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-2 01 1 9607-9901 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-2 01 1 9902-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-2 01 1 9905-9909 ● ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-4 01 1 9910- ● ● ● ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-266-8 01 1 9603-9606 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-299-2 01 1 9607-9901 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-299-2 01 1 9902-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-299-3 01 1 9905- ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-292-3 01 1 9902-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-292-4 01 1 9905- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9603-9901 ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9902-9904 ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9905-9909 ● ● ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9910- ● ● ● ● ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9603-9901 ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9902-9904 ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9905-9905 ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9905-9905 ● ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9905-9909 ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9905-9909 ● ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9910- ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9910- ● ● ●
3 KEY; COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-516-0 01 1 9603-9901 ●
3 KEY; COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-516-0 01 1 9902-9904 ●
3 KEY; COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-516-0 01 1 9905- ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9905-9909 ● ● ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9910- ● ● ● ● ●
5 BOLT; AIR CMPR FIX
(C) M14X100 		9-91666-400-0 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9905-9909 ● ● ●
5 BOLT; AIR CMPR FIX
(C) M14X100 		9-91666-400-0 01 1 9905-9909 ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9910- ● ● ● ●
5 BOLT; AIR CMPR FIX
(C) M14X100 		9-91666-400-0 01 1 9910- ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9905-9909 ● ● ● ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9910- ● ● ● ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9905-9909 ● ● ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9910- ● ● ● ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9603-9901 ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9902-9904 ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9905-9909 ● ● ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9910- ● ● ● ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9603-9901 ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9902-9904 ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9905-9909 ● ● ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9910- ● ● ● ● ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-087-6 01 1 9603-9604 ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-111-1 01 1 9605-9901 ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9902-9904 ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9905-9905 ● ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-111-1 01 1 9905-9909 ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9905-9909 ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-111-1 01 1 9910- ● ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9910- ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-086-5 01 1 9603-9604 ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-113-1 01 1 9605-9901 ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-113-1 01 1 9902-9904 ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-113-1 01 1 9905- ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-151-0 01 1 9905- ●
20 BOLT; GEAR TO SHAFT
AIR COMPRESSOR HEAVY DUTY(E1Q) 12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9603-9806 ●
20 BOLT; GEAR TO SHAFT
AIR COMPRESSOR HEAVY DUTY(E1Q) 12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9806-9901 ●
20 BOLT; GEAR TO SHAFT
12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9902-9904 ●
20 BOLT; GEAR TO SHAFT
AIR COMPRESSOR HEAVY DUTY(E1Q) 12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9905-9905 ●
20 BOLT; GEAR TO SHAFT
12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9905-9905 ● ●
20 BOLT; GEAR TO SHAFT
AIR COMPRESSOR HEAVY DUTY(E1Q) 12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9905-9909 ● ●
20 BOLT; GEAR TO SHAFT
12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9905-9909 ● ●
20 BOLT; GEAR TO SHAFT
AIR COMPRESSOR HEAVY DUTY(E1Q) 12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9910- ● ●
20 BOLT; GEAR TO SHAFT
12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9910- ● ● ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-0 01 1 9603-9901 ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-0 01 1 9902-9904 ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-0 01 1 9905-9909 ● ● ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-1 01 1 9910- ● ● ● ● ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-11327-031-0 01 1 9603-9901 ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-11327-031-0 01 1 9902-9904 ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-11327-031-0 01 1 9905- ● ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-040-1 01 1 9902-9904 ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-040-1 01 1 9905- ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 01 1 9902-9904 ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 01 1 9905- ● ● ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 01 1 9902-9904 ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 01 1 9905- ● ● ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 01 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9902-9904 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9905-9909 ● ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9910- ● ● ● ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 01 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9902-9904 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9905-9909 ● ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9910- ● ● ● ● ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9603-9901 ●
28 CLIP; HOSE,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 04 1 9902-9904 ● ●
28 CLIP; HOSE,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 04 1 9905- ● ● ● ●
28 CLIP; HOSE,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 04 1 9603-9901 ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9902-9904 ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9905-9909 ● ● ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9910- ● ● ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
(A) 		1-19192-659-0 01 1 9603-9901 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. CAB UP +110MM<TGG> (A) 		1-19192-659-0 01 1 9902-9904 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. CAB UP +110MM<TGG> (A) 		1-19192-659-0 01 1 9905- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-993-0 01 1 9603-9901 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9902-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9905-9905 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9905-9910 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9905-9910 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9911- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-992-0 01 1 9902-9902 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B) 		1-19192-992-0 01 1 9903-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B) 		1-19192-992-0 01 1 9905-9909 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B) 		1-19192-992-0 01 1 9910- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
CAB UP +110MM<TGG> (A) 		1-19192-991-0 01 1 9902-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
CAB UP +110MM<TGG> (A) 		1-19192-991-0 01 1 9905-9909 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
CAB UP +110MM<TGG> (A) 		1-19192-991-0 01 1 9910- ● ● ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9603-9901 ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9905-9909 ● ● ● ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9910- ● ● ● ● ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9603-9901 ●
34 NUT; LK SUCTION PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 01 1 9902-9904 ● ●
34 NUT; LK SUCTION PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 01 1 9905- ● ● ● ●
34 NUT; LK SUCTION PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 01 1 9603-9901 ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9902-9904 ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9905-9909 ● ● ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9910- ● ● ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9603-9901 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 01 1 9902-9904 ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 01 1 9905- ● ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 		1-19192-661-2 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-661-2 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-661-2 01 1 9905-9905 ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B) 		1-19192-661-2 01 1 9905-9909 ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-661-2 01 1 9910- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B) 		1-19192-661-2 01 1 9910- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> (B) 		1-19192-985-0 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
SHORT CHASSIS(CX***C) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-019-0 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
SHORT CHASSIS(CX***C) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-019-0 01 1 9905-9905 ● ●
49 PIPE; AIR,CHARGE
SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-019-0 01 1 9906- ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9902-9904 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9905-9909 ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9910- ● ● ● ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 		1-19192-986-0 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-986-0 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-986-0 01 1 9905- ● ●
49 PIPE; AIR,CHARGE
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-785-2 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-785-2 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-785-2 01 1 9905-9907 ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FIRE TRUCK<RA9> (B) 		1-19192-785-2 01 1 9908- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (B) 		1-19193-018-0 01 1 9908- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-985-0 01 1 9905- ●
49 PIPE; AIR,CHARGE
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-293-1 01 1 9909- ●
51 BOLT; EYE,AIR PIPE TO CMPR
(A) M10X21 FLANGE 		1-09675-077-0 01 1 9603-9901 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE 		1-09675-077-0 01 1 9902-9904 ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE 		1-09675-077-0 01 1 9905- ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9603-9901 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9902-9904 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9905-9909 ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9910- ● ● ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 01 1 9603-9901 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 01 1 9902-9904 ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 01 1 9905- ● ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9603-9901 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9902-9904 ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9905- ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9603-9901 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9902-9904 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9905-9909 ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9910- ● ● ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9603-9901 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9902-9904 ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9905- ● ● ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9603-9901 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9902-9904 ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9902-9904 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9905 ● ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9905 ●
68 SLEEVE; RUBBER
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9905 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9909 ● ● ●
68 SLEEVE; RUBBER
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9909 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910- ● ● ●
68 SLEEVE; RUBBER
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910- ●
68 SLEEVE; RUBBER
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910- ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9603-9901 ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9902-9902 ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9903-9904 ● ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9905- ● ● ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9902-9904 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9905-9909 ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9910- ● ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9603-9901 ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9902-9904 ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9905-9909 ● ● ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9910- ● ● ● ● ●
71 HOSE; FLEX,AIR GOV
L=520 		0-07030-520-0 01 1 9603-9607 ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9608-9901 ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9902-9902 ● ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9903-9904 ●
71 HOSE; FLEX,AIR GOV
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) L=520 		1-09363-657-0 01 1 9903-9904 ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9905-9909 ● ● ● ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9910- ● ● ● ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9603-9901 ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9902-9904 ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9905-9909 ● ● ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9910- ● ● ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9603-9901 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9902-9904 ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9905- ● ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9603-9901 ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9902-9904 ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9905-9909 ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9910- ● ● ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9603-9901 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9902-9904 ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9901 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9902-9904 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9905-9909 ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9910- ● ● ● ● ●
87 BOLT; BRKT FIX
M10X18 FLANGE 		0-28181-018-0 02 1 9603-9604 ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9605-9901 ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9902-9904 ● ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9905-9909 ● ● ● ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9910- ● ● ● ● ●
90 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9902-9904 ●
90 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9905-9909 ● ●
90 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9910- ● ● ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9603-9901 ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9902-9904 ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9905-9909 ● ● ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9910- ● ● ● ● ●
110 CLIP; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-208-0 02 1 9603-9901 ●
110 CLIP; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-208-0 02 1 9902-9904 ● ●
110 CLIP; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-208-0 02 1 9905- ● ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9603-9901 ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9902-9904 ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9905-9909 ● ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9910- ● ● ● ● ●
115 BOLT; AIR PIPE
M10X18 FLANGE 		0-28181-018-0 02 1 9603-9604 ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9605-9901 ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9902-9904 ● ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9905-9909 ● ● ● ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9910- ● ● ● ● ●
116 BRACKET; AIR PIPE 1-19199-212-0 01 1 9603-9901 ●
116 BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) 		1-19199-212-0 01 1 9902-9904 ● ●
116 BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) 		1-19199-212-0 01 1 9905-9909 ● ● ● ●
116 BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) 		1-19199-212-0 01 1 9910- ● ● ● ● ●
116 BRACKET; AIR PIPE
SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) 		1-19199-286-0 01 1 9902-9904 ●
116 BRACKET; AIR PIPE
SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) 		1-19199-286-0 01 1 9905- ● ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9603-9901 ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9902-9904 ● ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9905-9909 ● ● ● ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9910- ● ● ● ● ●
211 BOLT; POINTER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16 		0-23801-016-0 02 1 9902-9904 ●
211 BOLT; POINTER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X16 		0-23801-016-0 02 1 9905- ● ●
212 WASHER; LK,POINTER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2 		9-09150-510-0 02 1 9902-9904 ●
212 WASHER; LK,POINTER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2 		9-09150-510-0 02 1 9905- ● ●
213 PIN; AIR CMPR GEAR
AIR COMPRESSOR HEAVY DUTY(E1Q) OD=5 L=10 		9-08150-510-0 01 1 9603-9901 ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9902-9904 ●
213 PIN; AIR CMPR GEAR
AIR COMPRESSOR HEAVY DUTY(E1Q) OD=5 L=10 		9-08150-510-0 01 1 9905-9905 ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9905-9905 ● ●
213 PIN; AIR CMPR GEAR
AIR COMPRESSOR HEAVY DUTY(E1Q) OD=5 L=10 		9-08150-510-0 01 1 9905-9909 ● ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9905-9909 ● ●
213 PIN; AIR CMPR GEAR
AIR COMPRESSOR HEAVY DUTY(E1Q) OD=5 L=10 		9-08150-510-0 01 1 9910- ● ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9910- ● ● ●
231 INSULATOR; HEAD COVER
FRAME ENG MTG SEPARATE TYPE<SGM> 		1-19389-208-1 01 1 9905-9909 ●
231 INSULATOR; HEAD COVER
FRAME ENG MTG SEPARATE TYPE<SGM> 		1-19389-208-1 01 1 9910- ● ●
232 BOLT; INSULATOR
FRAME ENG MTG SEPARATE TYPE<SGM> M8X12 FLANGE 		0-28080-812-0 01 1 9905-9909 ●
232 BOLT; INSULATOR
FRAME ENG MTG SEPARATE TYPE<SGM> M8X12 FLANGE 		0-28080-812-0 01 1 9910- ● ●
233 RING; FRICTION 1-12529-003-0 01 1 9905-9909 ●
233 RING; FRICTION 1-12529-003-0 01 1 9910- ● ●
çizim 5585
231 94 232 179 132 52 28 27 28 27 28 51 31 52 33 28 31 28 28 116 71 27 27 28 49 8 70 72 115 68 28 34 49 87 79 34 176 90 49 5 80 87 51 52 68 110 110 8 80 79 5 80 80 90 51 52 52 3 113 52 24 2 19 6 233 20 1 8 5 213
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-268-9 01 1 9603-9606 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-2 01 1 9607-9901 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-2 01 1 9902-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-2 01 1 9905-9909 ● ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-300-4 01 1 9910- ● ● ● ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-266-8 01 1 9603-9606 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-299-2 01 1 9607-9901 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-299-2 01 1 9902-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-299-3 01 1 9905- ● ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-292-3 01 1 9902-9904 ●
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-19100-292-4 01 1 9905- ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9603-9901 ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9902-9904 ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9905-9909 ● ● ● ●
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-476-0 01 1 9910- ● ● ● ● ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9603-9901 ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9902-9904 ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9905-9905 ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9905-9905 ● ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9905-9909 ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9905-9909 ● ●
3 KEY; COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-622-0 01 1 9910- ● ●
3 KEY; COUPLING,INJ PUMP 9-08055-622-0 01 1 9910- ● ● ●
3 KEY; COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-516-0 01 1 9603-9901 ●
3 KEY; COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-516-0 01 1 9902-9904 ●
3 KEY; COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-08055-516-0 01 1 9905- ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9905-9909 ● ● ● ●
5 BOLT; AIR CMPR FIX
(A) M14X128 		8-94399-253-1 01 1 9910- ● ● ● ● ●
5 BOLT; AIR CMPR FIX
(C) M14X100 		9-91666-400-0 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9905-9909 ● ● ●
5 BOLT; AIR CMPR FIX
(C) M14X100 		9-91666-400-0 01 1 9905-9909 ●
5 BOLT; AIR CMPR FIX
HEATER & DEFROSTER(C41) (C) M14X100 		9-91666-400-0 01 1 9910- ● ● ● ●
5 BOLT; AIR CMPR FIX
(C) M14X100 		9-91666-400-0 01 1 9910- ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9905-9909 ● ● ● ●
5 BOLT; AIR CMPR FIX
(B) M14X90 		9-91666-490-0 01 1 9910- ● ● ● ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9603-9901 ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9902-9904 ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9905-9909 ● ● ● ●
5 BOLT; AIR CMPR FIX
AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X140 		1-09020-112-0 01 1 9910- ● ● ● ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9603-9901 ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9902-9904 ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9905-9909 ● ● ● ●
6 NUT; AIR CMPR
M14 FLANGE 		0-91150-114-0 01 1 9910- ● ● ● ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9603-9901 ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9902-9904 ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9905-9909 ● ● ● ●
8 WASHER; PL,AIR CMPR
ID=15 OD=26 		9-09164-514-0 03 1 9910- ● ● ● ● ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-087-6 01 1 9603-9604 ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-111-1 01 1 9605-9901 ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9902-9904 ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9905-9905 ● ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-111-1 01 1 9905-9909 ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9905-9909 ●
19 GEAR; INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-111-1 01 1 9910- ● ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-111-1 01 1 9910- ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-086-5 01 1 9603-9604 ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-113-1 01 1 9605-9901 ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-113-1 01 1 9902-9904 ●
19 GEAR; INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) Z=54 		1-12524-113-1 01 1 9905- ● ●
19 GEAR; INJ PUMP
Z=54 		1-12524-151-0 01 1 9905- ●
20 BOLT; GEAR TO SHAFT
AIR COMPRESSOR HEAVY DUTY(E1Q) 12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9603-9806 ●
20 BOLT; GEAR TO SHAFT
AIR COMPRESSOR HEAVY DUTY(E1Q) 12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9806-9901 ●
20 BOLT; GEAR TO SHAFT
12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9902-9904 ●
20 BOLT; GEAR TO SHAFT
AIR COMPRESSOR HEAVY DUTY(E1Q) 12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9905-9905 ●
20 BOLT; GEAR TO SHAFT
12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9905-9905 ● ●
20 BOLT; GEAR TO SHAFT
AIR COMPRESSOR HEAVY DUTY(E1Q) 12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9905-9909 ● ●
20 BOLT; GEAR TO SHAFT
12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9905-9909 ● ●
20 BOLT; GEAR TO SHAFT
AIR COMPRESSOR HEAVY DUTY(E1Q) 12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9910- ● ●
20 BOLT; GEAR TO SHAFT
12-POINT HEAD M12X39 FLANGE 		1-09070-116-0 05 1 9910- ● ● ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-0 01 1 9603-9901 ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-0 01 1 9902-9904 ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-0 01 1 9905-9909 ● ● ●
24 POINTER; AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-017-1 01 1 9910- ● ● ● ● ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-11327-031-0 01 1 9603-9901 ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-11327-031-0 01 1 9902-9904 ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-11327-031-0 01 1 9905- ● ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-040-1 01 1 9902-9904 ●
24 POINTER; AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-11327-040-1 01 1 9905- ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 01 1 9902-9904 ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 01 1 9905- ● ● ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 01 1 9902-9904 ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 01 1 9905- ● ● ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 01 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9902-9904 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9905-9909 ● ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=80 		0-02117-080-0 02 1 9910- ● ● ● ● ●
27 HOSE; AIR CMPR,SUCTION
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 01 1 9603-9901 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9902-9904 ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9905-9909 ● ● ●
27 HOSE; AIR CMPR,SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		1-09360-916-0 02 1 9910- ● ● ● ● ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9603-9901 ●
28 CLIP; HOSE,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 04 1 9902-9904 ● ●
28 CLIP; HOSE,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 04 1 9905- ● ● ● ●
28 CLIP; HOSE,AIR CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 04 1 9603-9901 ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9902-9904 ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9905-9909 ● ● ●
28 CLIP; HOSE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7 		8-94466-382-0 08 1 9910- ● ● ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
(A) 		1-19192-659-0 01 1 9603-9901 ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. CAB UP +110MM<TGG> (A) 		1-19192-659-0 01 1 9902-9904 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. CAB UP +110MM<TGG> (A) 		1-19192-659-0 01 1 9905- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-993-0 01 1 9603-9901 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9902-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9905-9905 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9905-9910 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9905-9910 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. CAB UP +110MM<TGG> (B) 		1-19192-993-0 01 1 9911- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-992-0 01 1 9902-9902 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B) 		1-19192-992-0 01 1 9903-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B) 		1-19192-992-0 01 1 9905-9909 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
AIR COMPRESSOR HEAVY DUTY(E1Q) CAB UP +110MM<TGG> (B) 		1-19192-992-0 01 1 9910- ● ● ●
31 PIPE; AIR,AIR CMPR SUCTION
CAB UP +110MM<TGG> (A) 		1-19192-991-0 01 1 9902-9904 ●
31 PIPE; AIR,AIR CMPR SUCTION
CAB UP +110MM<TGG> (A) 		1-19192-991-0 01 1 9905-9909 ● ●
31 PIPE; AIR,AIR CMPR SUCTION
CAB UP +110MM<TGG> (A) 		1-19192-991-0 01 1 9910- ● ● ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9603-9901 ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9902-9904 ● ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9905-9909 ● ● ● ●
33 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9910- ● ● ● ● ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9603-9901 ●
34 NUT; LK SUCTION PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 01 1 9902-9904 ● ●
34 NUT; LK SUCTION PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 01 1 9905- ● ● ● ●
34 NUT; LK SUCTION PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 01 1 9603-9901 ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9902-9904 ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9905-9909 ● ● ●
34 NUT; LK SUCTION PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-09840-254-0 02 1 9910- ● ● ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9603-9901 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 01 1 9902-9904 ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 01 1 9905- ● ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 		1-19192-661-2 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-661-2 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-661-2 01 1 9905-9905 ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B) 		1-19192-661-2 01 1 9905-9909 ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-661-2 01 1 9910- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B) 		1-19192-661-2 01 1 9910- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> (B) 		1-19192-985-0 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
SHORT CHASSIS(CX***C) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-019-0 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
SHORT CHASSIS(CX***C) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-019-0 01 1 9905-9905 ● ●
49 PIPE; AIR,CHARGE
SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-019-0 01 1 9906- ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9902-9904 ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9905-9909 ● ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) 		9-19119-032-0 02 1 9910- ● ● ● ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) 		1-19192-986-0 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-986-0 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-986-0 01 1 9905- ● ●
49 PIPE; AIR,CHARGE
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-785-2 01 1 9603-9901 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-785-2 01 1 9902-9904 ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-785-2 01 1 9905-9907 ● ●
49 PIPE; AIR,CHARGE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FIRE TRUCK<RA9> (B) 		1-19192-785-2 01 1 9908- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO(SV1) (B) 		1-19193-018-0 01 1 9908- ● ●
49 PIPE; AIR,CHARGE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19192-985-0 01 1 9905- ●
49 PIPE; AIR,CHARGE
CXZ&LONG CHASSIS(CXZ6MF) FIRE TRUCK<RA9> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-19193-293-1 01 1 9909- ●
51 BOLT; EYE,AIR PIPE TO CMPR
(A) M10X21 FLANGE 		1-09675-077-0 01 1 9603-9901 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE 		1-09675-077-0 01 1 9902-9904 ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. ELECTRONIC GOV RED3(KG5) (A) M10X21 FLANGE 		1-09675-077-0 01 1 9905- ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9603-9901 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9902-9904 ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9905-9909 ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 02 1 9910- ● ● ● ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 01 1 9603-9901 ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 01 1 9902-9904 ● ●
51 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M24X39 		1-09675-175-1 01 1 9905- ● ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9603-9901 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9902-9904 ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ELECTRONIC GOV RED3(KG5) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 9905- ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9603-9901 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9902-9904 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9905-9909 ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 04 1 9910- ● ● ● ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9603-9901 ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9902-9904 ● ●
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=24.5 OD=32 		9-09571-424-0 02 1 9905- ● ● ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9603-9901 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9902-9904 ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9902-9904 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9905 ● ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9905 ●
68 SLEEVE; RUBBER
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9905 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9909 ● ● ●
68 SLEEVE; RUBBER
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9905-9909 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910- ● ● ●
68 SLEEVE; RUBBER
CXZ(CXZ***) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910- ●
68 SLEEVE; RUBBER
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 OD=22 L=25 		8-94412-773-0 01 1 9910- ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9603-9901 ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9902-9902 ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9903-9904 ● ●
68 SLEEVE; RUBBER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=9 OD=14 L=35 		8-94127-043-0 01 1 9905- ● ● ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9902-9904 ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9905-9909 ● ●
68 SLEEVE; RUBBER
ID=18 OD=22 L=25 		8-94412-773-0 02 1 9910- ● ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9603-9901 ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9902-9904 ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9905-9909 ● ● ● ●
70 WASHER; LK
ID=12.2 		9-09150-512-0 01 1 9910- ● ● ● ● ●
71 HOSE; FLEX,AIR GOV
L=520 		0-07030-520-0 01 1 9603-9607 ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9608-9901 ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9902-9902 ● ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9903-9904 ●
71 HOSE; FLEX,AIR GOV
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) L=520 		1-09363-657-0 01 1 9903-9904 ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9905-9909 ● ● ● ●
71 HOSE; FLEX,AIR GOV
L=520 		1-09363-657-0 01 1 9910- ● ● ● ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9603-9901 ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9902-9904 ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9905-9909 ● ● ● ●
72 NUT; GOV HOSE
M12 		9-09840-280-0 01 1 9910- ● ● ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9603-9901 ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9902-9904 ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9905- ● ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 01 1 9603-9901 ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9902-9904 ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9905-9909 ● ● ●
79 BOLT; EYE,AIR PIPE TO CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE 		1-09675-086-0 02 1 9910- ● ● ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9603-9901 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9902-9904 ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9901 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9902-9904 ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9905-9909 ● ● ●
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 04 1 9910- ● ● ● ● ●
87 BOLT; BRKT FIX
M10X18 FLANGE 		0-28181-018-0 02 1 9603-9604 ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9605-9901 ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9902-9904 ● ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9905-9909 ● ● ● ●
87 BOLT; BRKT FIX
M10X20 FLANGE 		0-28181-020-0 02 1 9910- ● ● ● ● ●
90 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9902-9904 ●
90 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9905-9909 ● ●
90 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9910- ● ● ●
94 PIPE; AIR,BOOST 1-19192-975-0 01 1 9603-9901 ●
94 PIPE; AIR,BOOST 1-19192-975-0 01 1 9902-9904 ●
94 PIPE; AIR,BOOST 1-19192-975-0 01 1 9905- ● ●
94 PIPE; AIR,BOOST 1-19193-109-0 01 1 9902- ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9603-9901 ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9902-9904 ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9905-9909 ● ● ●
110 CLIP; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-210-0 02 1 9910- ● ● ● ● ●
110 CLIP; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-208-0 02 1 9603-9901 ●
110 CLIP; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-208-0 02 1 9902-9904 ● ●
110 CLIP; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-09701-208-0 02 1 9905- ● ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9603-9901 ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9902-9904 ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9905-9909 ● ● ● ●
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9910- ● ● ● ● ●
115 BOLT; AIR PIPE
M10X18 FLANGE 		0-28181-018-0 02 1 9603-9604 ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9605-9901 ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9902-9904 ● ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9905-9909 ● ● ● ●
115 BOLT; AIR PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9910- ● ● ● ● ●
116 BRACKET; AIR PIPE 1-19199-212-0 01 1 9603-9901 ●
116 BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) 		1-19199-212-0 01 1 9902-9904 ● ●
116 BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) 		1-19199-212-0 01 1 9905-9909 ● ● ● ●
116 BRACKET; AIR PIPE
EXC. ENGINE REAR PTO(SV1) 		1-19199-212-0 01 1 9910- ● ● ● ● ●
116 BRACKET; AIR PIPE
SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) 		1-19199-286-0 01 1 9902-9904 ●
116 BRACKET; AIR PIPE
SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) 		1-19199-286-0 01 1 9905- ● ●
132 NUT; CLIP
M6 FLANGE 		0-91150-106-0 01 1 9603-9901 ●
132 NUT; CLIP
EXC. ELECTRONIC GOV RED3(KG5) M6 FLANGE 		0-91150-106-0 01 1 9902-9904 ● ●
132 NUT; CLIP
EXC. ELECTRONIC GOV RED3(KG5) M6 FLANGE 		0-91150-106-0 01 1 9905- ● ● ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9603-9901 ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9902-9904 ● ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9905-9909 ● ● ● ●
176 BOLT; BRKT FIX
W/FLANGE M10X135 		8-94397-139-1 01 1 9910- ● ● ● ● ●
179 CLIP; PIPE 1-09701-132-0 02 1 9603-9901 ●
179 CLIP; PIPE
EXC. ELECTRONIC GOV RED3(KG5) 		1-09701-132-0 02 1 9902-9904 ● ●
179 CLIP; PIPE
EXC. ELECTRONIC GOV RED3(KG5) 		1-09701-132-1 02 1 9905- ● ● ●
213 PIN; AIR CMPR GEAR
AIR COMPRESSOR HEAVY DUTY(E1Q) OD=5 L=10 		9-08150-510-0 01 1 9603-9901 ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9902-9904 ●
213 PIN; AIR CMPR GEAR
AIR COMPRESSOR HEAVY DUTY(E1Q) OD=5 L=10 		9-08150-510-0 01 1 9905-9905 ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9905-9905 ● ●
213 PIN; AIR CMPR GEAR
AIR COMPRESSOR HEAVY DUTY(E1Q) OD=5 L=10 		9-08150-510-0 01 1 9905-9909 ● ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9905-9909 ● ●
213 PIN; AIR CMPR GEAR
AIR COMPRESSOR HEAVY DUTY(E1Q) OD=5 L=10 		9-08150-510-0 01 1 9910- ● ●
213 PIN; AIR CMPR GEAR
OD=5 L=10 		9-08150-510-0 01 1 9910- ● ● ●
231 INSULATOR; HEAD COVER
FRAME ENG MTG SEPARATE TYPE<SGM> 		1-19389-208-1 01 1 9905-9909 ●
231 INSULATOR; HEAD COVER
FRAME ENG MTG SEPARATE TYPE<SGM> 		1-19389-208-1 01 1 9910- ● ●
232 BOLT; INSULATOR
FRAME ENG MTG SEPARATE TYPE<SGM> M8X12 FLANGE 		0-28080-812-0 01 1 9905-9909 ●
232 BOLT; INSULATOR
FRAME ENG MTG SEPARATE TYPE<SGM> M8X12 FLANGE 		0-28080-812-0 01 1 9910- ● ●
233 RING; FRICTION 1-12529-003-0 01 1 9905-9909 ●
233 RING; FRICTION 1-12529-003-0 01 1 9910- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
