Sayfa 0-42 - Isuzu EPC

0-42 — FUEL PUMP AND PIPE (#41959) — 225 parça

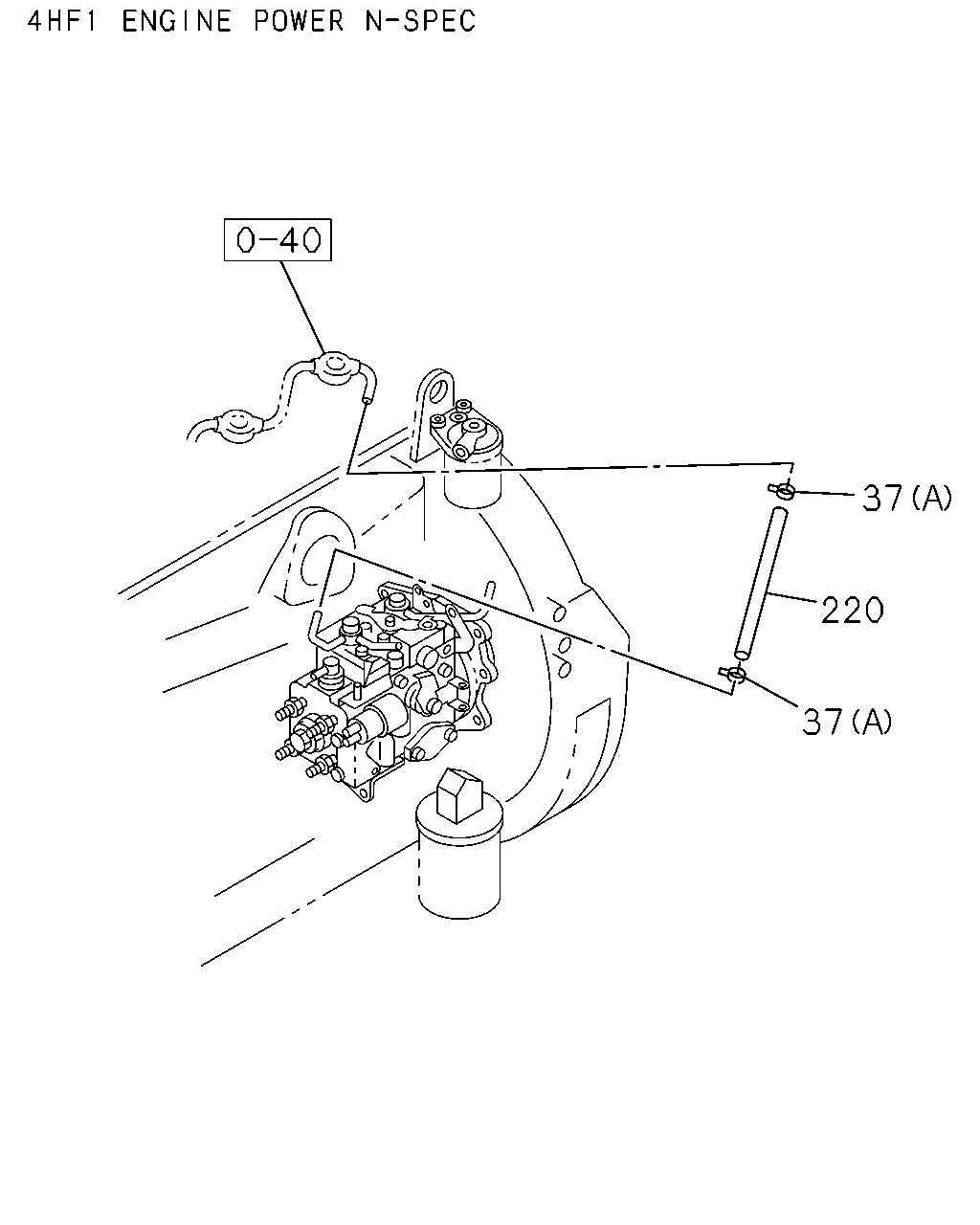

207 207

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	207	03.890 GASKET; EYE BOLT EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-	●	●
	207	03.890 GASKET; EYE BOLT EXC. CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-			●

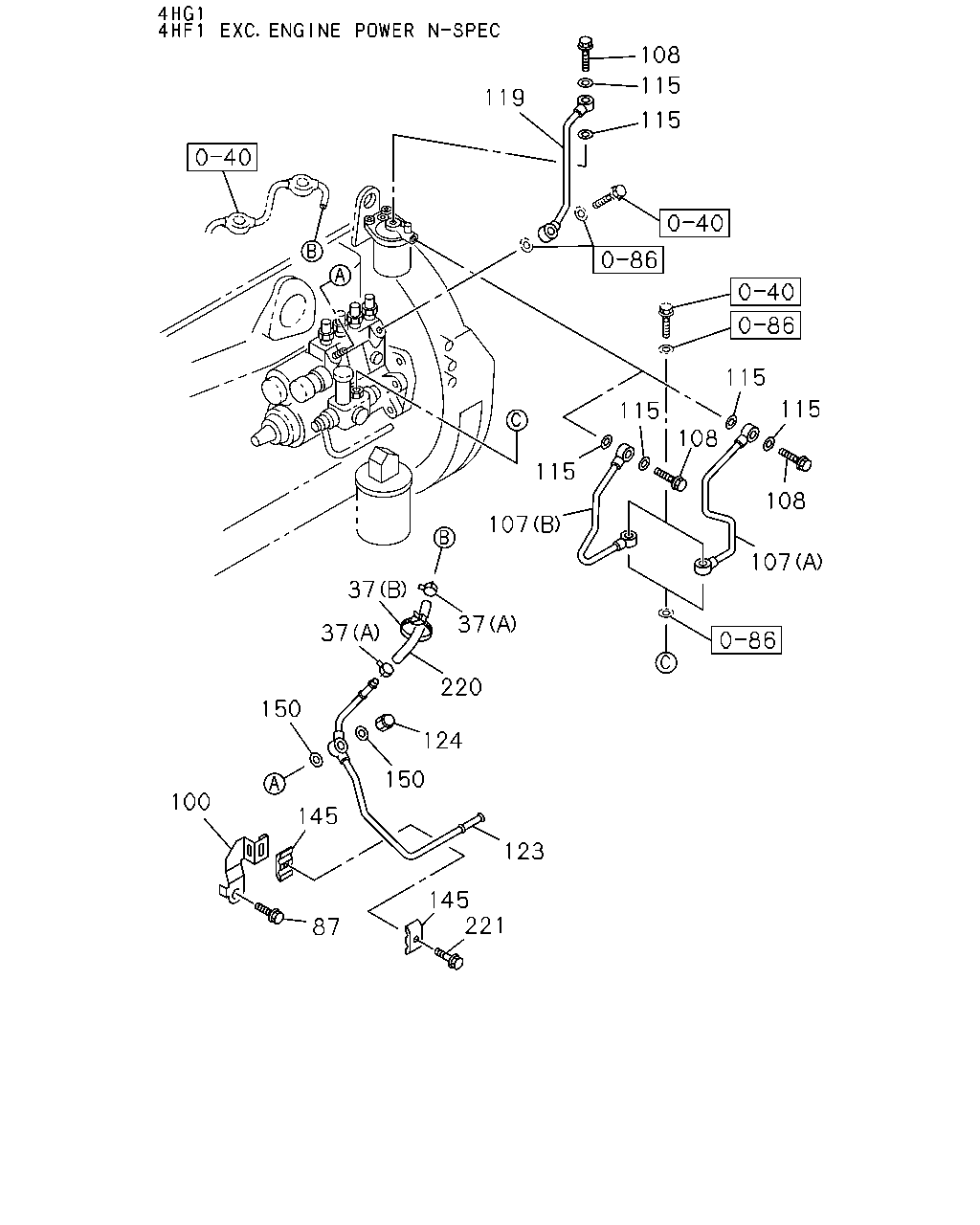

108 115 119 115 115 115 115 108 115 108 107 107 37 37 37 220 150 124 150 100 145 123 145 221 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	03.162 CLIP; FUEL HOSE TURBOCHARGER(K51) (B) L=140	5-09707-031-1	01	1	9901-	●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	9811-	●	●	●
87	03.162 BOLT; STAY,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-0003	●	●
87	03.162 BOLT; STAY,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-0003			●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-	●
87	03.162 BOLT; STAY,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-		●
87	03.162 BOLT; STAY,FUEL PIPE CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-			●
87	03.162 BOLT; STAY,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-			●
100	03.162 CLIP; "B",FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV)	8-97108-315-0	01	1	9811-	●	●
100	03.162 CLIP; "B",FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97108-315-0	01	1	9811-			●
100	03.162 CLIP; "B",FUEL PIPE CHARGE AIR COOLER<6PL>	8-97108-315-0	01	1	9811-			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL TURBOCHARGER(K51) (A)	8-97210-721-1	01	1	9811-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (B)	8-97088-046-3	01	1	9811-	●	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL CHARGE AIR COOLER<6PL>	8-97148-967-3	01	1	9811-			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. CHARGE AIR COOLER<6PL>	8-97147-786-0	01	1	9811-			●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	9811-0011	●	●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	9811-0011			●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	0012-0112	●	●	●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	0201-	●	●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	0201-			●
108	03.162 BOLT; JOINT,FUEL FILTER CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	02	1	0201-			●
108	03.162 BOLT; JOINT,FUEL FILTER CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	01	1	9811-0112			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-0011	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-0011			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0012-0112	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-0112			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU TURBOCHARGER(K51)	8-97211-323-1	01	1	9811-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV)	8-97088-047-0	01	1	9811-	●	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97211-149-0	01	1	9811-0210			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97357-237-0	01	1	0211-			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. CHARGE AIR COOLER<6PL>	8-97078-801-1	01	1	9811-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF TURBOCHARGER(K51)	8-97223-179-0	01	1	9901-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE POWER N-SPEC(7QV)	8-97118-894-1	01	1	9811-9812	●	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97118-894-1	01	1	9811-9812			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV)	8-97118-894-1	01	1	9901-	●	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. CHARGE AIR COOLER<6PL>	8-97118-894-1	01	1	9901-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-970-2	01	1	9811-			●
124	03.162 NUT; CAP,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M14	1-09468-002-1	01	1	9811-0011	●	●
124	03.162 NUT; CAP,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14	1-09468-002-1	01	1	9811-0011			●
124	03.162 NUT; CAP,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M14	1-09468-002-1	01	1	0012-0112	●	●	●
124	03.162 NUT; CAP,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M14	1-09468-002-1	01	1	0201-	●	●
124	03.162 NUT; CAP,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14	1-09468-002-1	01	1	0201-			●
145	03.162 CLIP; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9811-	●	●
145	03.162 CLIP; FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9811-			●
145	03.162 CLIP; FUEL PIPE CHARGE AIR COOLER<6PL> 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9811-			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-			●
220	03.163 HOSE; FUEL TURBOCHARGER(K51)	8-97208-874-0	01	1	9811-	●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9912	●	●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9912			●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-0003	●	●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-0003			●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0004-	●	●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV)	8-97145-019-2	01	1	9811-9901		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV)	8-97118-903-0	01	1	9902-9902		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-903-0	01	1	9903-		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97145-019-2	01	1	9903-		●
220	03.163 HOSE; FUEL CHARGE AIR COOLER<6PL> L=180 SERVICED BY L=3000	0-01256-300-0	01	1	9811-			●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0004-			●
221	03.163 BOLT; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M6X40 FLANGE	0-28680-640-0	01	1	9811-	●	●
221	03.163 BOLT; FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M6X40 FLANGE	0-28680-640-0	01	1	9811-			●
221	03.163 BOLT; FUEL PIPE CHARGE AIR COOLER<6PL> M6X40 FLANGE	0-28680-640-0	01	1	9811-			●

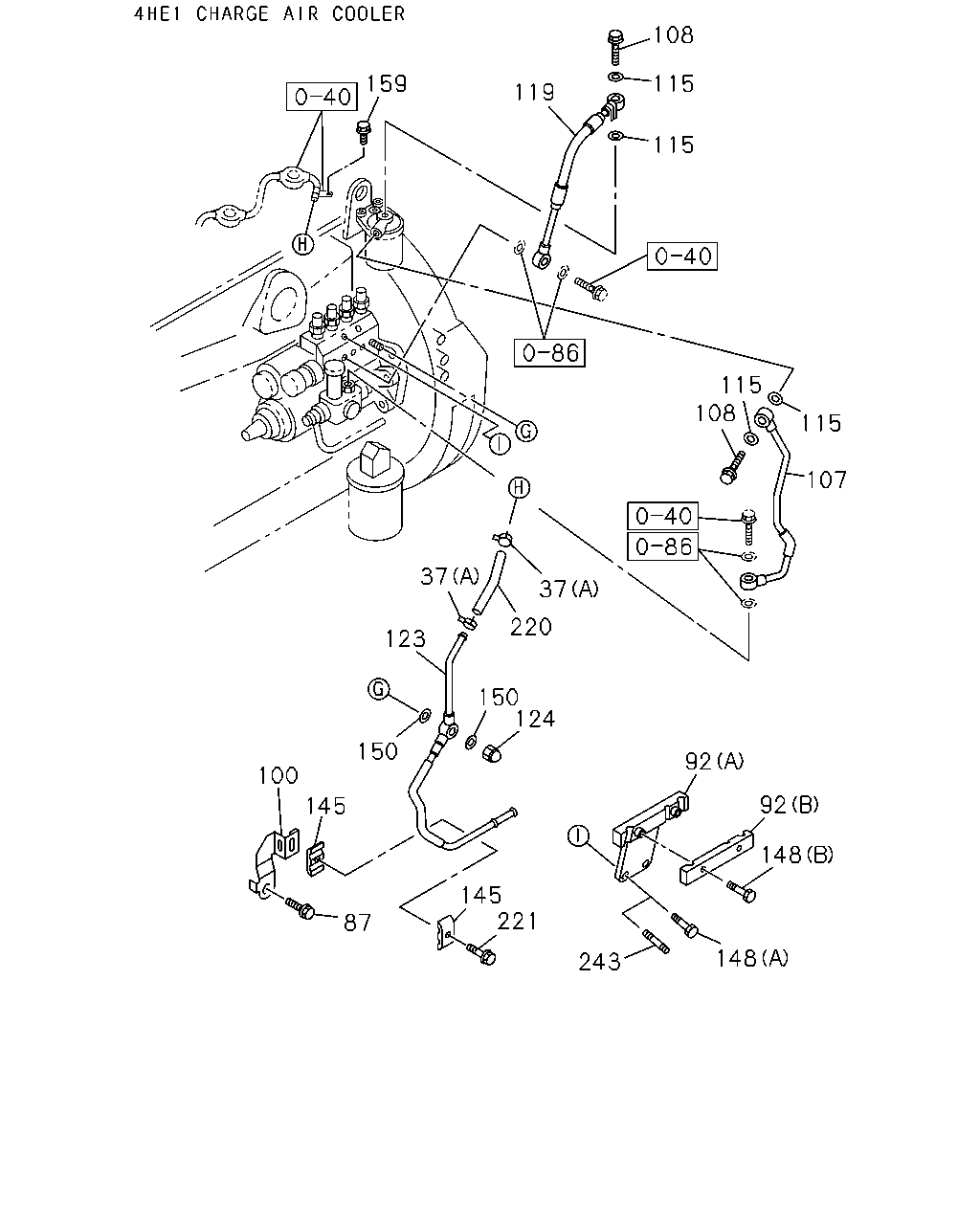

108 159 115 119 115 115 108 115 107 37 37 220 123 150 124 150 92 100 92 145 148 145 221 87 148 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	03.162 CLIP; FUEL HOSE TURBOCHARGER(K51) (B) L=140	5-09707-031-1	01	1	9901-	●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	9811-	●	●	●
87	03.162 BOLT; STAY,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-0003	●	●
87	03.162 BOLT; STAY,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-0003			●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-	●
87	03.162 BOLT; STAY,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-		●
87	03.162 BOLT; STAY,FUEL PIPE CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-			●
87	03.162 BOLT; STAY,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-			●
92	03.162 BRACKET; FUEL PIPE CHARGE AIR COOLER<6PL> (A)	8-97166-995-1	01	1	9811-			●
92	03.162 BRACKET; FUEL PIPE CHARGE AIR COOLER<6PL> (B)	8-97173-465-1	01	1	9811-			●
100	03.162 CLIP; "B",FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV)	8-97108-315-0	01	1	9811-	●	●
100	03.162 CLIP; "B",FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97108-315-0	01	1	9811-			●
100	03.162 CLIP; "B",FUEL PIPE CHARGE AIR COOLER<6PL>	8-97108-315-0	01	1	9811-			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL TURBOCHARGER(K51) (A)	8-97210-721-1	01	1	9811-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (B)	8-97088-046-3	01	1	9811-	●	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL CHARGE AIR COOLER<6PL>	8-97148-967-3	01	1	9811-			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. CHARGE AIR COOLER<6PL>	8-97147-786-0	01	1	9811-			●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	9811-0011	●	●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	9811-0011			●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	0012-0112	●	●	●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	0201-	●	●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	0201-			●
108	03.162 BOLT; JOINT,FUEL FILTER CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	02	1	0201-			●
108	03.162 BOLT; JOINT,FUEL FILTER CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	01	1	9811-0112			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-0011	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-0011			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0012-0112	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-0112			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU TURBOCHARGER(K51)	8-97211-323-1	01	1	9811-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV)	8-97088-047-0	01	1	9811-	●	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97211-149-0	01	1	9811-0210			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97357-237-0	01	1	0211-			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. CHARGE AIR COOLER<6PL>	8-97078-801-1	01	1	9811-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF TURBOCHARGER(K51)	8-97223-179-0	01	1	9901-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE POWER N-SPEC(7QV)	8-97118-894-1	01	1	9811-9812	●	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97118-894-1	01	1	9811-9812			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV)	8-97118-894-1	01	1	9901-	●	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. CHARGE AIR COOLER<6PL>	8-97118-894-1	01	1	9901-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-970-2	01	1	9811-			●
124	03.162 NUT; CAP,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M14	1-09468-002-1	01	1	9811-0011	●	●
124	03.162 NUT; CAP,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14	1-09468-002-1	01	1	9811-0011			●
124	03.162 NUT; CAP,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M14	1-09468-002-1	01	1	0012-0112	●	●	●
124	03.162 NUT; CAP,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M14	1-09468-002-1	01	1	0201-	●	●
124	03.162 NUT; CAP,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14	1-09468-002-1	01	1	0201-			●
145	03.162 CLIP; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9811-	●	●
145	03.162 CLIP; FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9811-			●
145	03.162 CLIP; FUEL PIPE CHARGE AIR COOLER<6PL> 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9811-			●
148	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 00.724 (A) M8X16 FLANGE	0-28090-816-0	01	1	0112-			●
148	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.334 (B) M6X25 FLANGE	0-28680-625-0	02	1	9811-			●
148	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 00.724 (A) M8X16 FLANGE	0-28090-816-0	01	1	9811-0003			●
148	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 00.724 (A) M8X16 FLANGE	0-28090-816-0	02	1	9811-0003			●
148	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 00.724 (A) M8X16 FLANGE	0-28090-816-0	02	1	0004-0111			●
148	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 00.724 (A) M8X16 FLANGE	0-28090-816-0	02	1	0112-			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-			●
159	03.162 BOLT; CLIP CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-			●
220	03.163 HOSE; FUEL TURBOCHARGER(K51)	8-97208-874-0	01	1	9811-	●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9912	●	●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9912			●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-0003	●	●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-0003			●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0004-	●	●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV)	8-97145-019-2	01	1	9811-9901		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV)	8-97118-903-0	01	1	9902-9902		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-903-0	01	1	9903-		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97145-019-2	01	1	9903-		●
220	03.163 HOSE; FUEL CHARGE AIR COOLER<6PL> L=180 SERVICED BY L=3000	0-01256-300-0	01	1	9811-			●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0004-			●
221	03.163 BOLT; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M6X40 FLANGE	0-28680-640-0	01	1	9811-	●	●
221	03.163 BOLT; FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M6X40 FLANGE	0-28680-640-0	01	1	9811-			●
221	03.163 BOLT; FUEL PIPE CHARGE AIR COOLER<6PL> M6X40 FLANGE	0-28680-640-0	01	1	9811-			●
243	03.278 STUD; BRKT CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M6X14,M8X17 L=42	5-09309-006-1	01	1	0112-			●
243	03.278 STUD; BRKT CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> M6X14,M8X17 L=42	5-09309-006-1	01	1	9811-0003			●

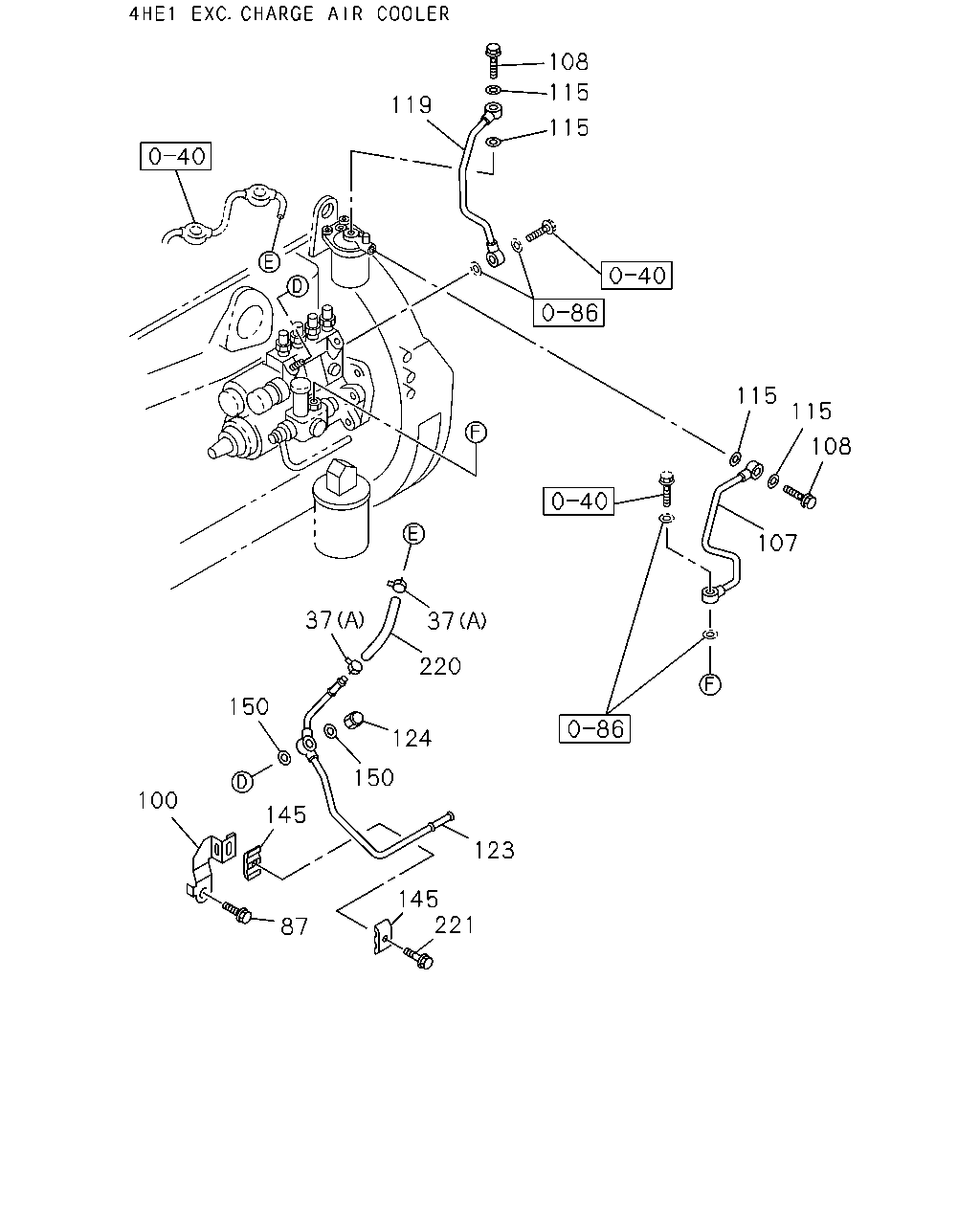

108 115 119 115 115 115 108 107 37 37 220 150 124 150 100 145 123 145 221 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	03.162 CLIP; FUEL HOSE TURBOCHARGER(K51) (B) L=140	5-09707-031-1	01	1	9901-	●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	9811-	●	●	●
87	03.162 BOLT; STAY,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-0003	●	●
87	03.162 BOLT; STAY,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-0003			●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-	●
87	03.162 BOLT; STAY,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-		●
87	03.162 BOLT; STAY,FUEL PIPE CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-			●
87	03.162 BOLT; STAY,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0004-			●
100	03.162 CLIP; "B",FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV)	8-97108-315-0	01	1	9811-	●	●
100	03.162 CLIP; "B",FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97108-315-0	01	1	9811-			●
100	03.162 CLIP; "B",FUEL PIPE CHARGE AIR COOLER<6PL>	8-97108-315-0	01	1	9811-			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL TURBOCHARGER(K51) (A)	8-97210-721-1	01	1	9811-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (B)	8-97088-046-3	01	1	9811-	●	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL CHARGE AIR COOLER<6PL>	8-97148-967-3	01	1	9811-			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL EXC. CHARGE AIR COOLER<6PL>	8-97147-786-0	01	1	9811-			●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	9811-0011	●	●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	9811-0011			●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	0012-0112	●	●	●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	0201-	●	●
108	03.162 BOLT; JOINT,FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14X27 FLANGE	1-09675-086-0	02	1	0201-			●
108	03.162 BOLT; JOINT,FUEL FILTER CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	02	1	0201-			●
108	03.162 BOLT; JOINT,FUEL FILTER CHARGE AIR COOLER<6PL> M14X27 FLANGE	1-09675-086-0	01	1	9811-0112			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-0011	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9811-0011			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0012-0112	●	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-	●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0201-			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-0112			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU TURBOCHARGER(K51)	8-97211-323-1	01	1	9811-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV)	8-97088-047-0	01	1	9811-	●	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97211-149-0	01	1	9811-0210			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU CHARGE AIR COOLER<6PL>	8-97357-237-0	01	1	0211-			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU EXC. CHARGE AIR COOLER<6PL>	8-97078-801-1	01	1	9811-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF TURBOCHARGER(K51)	8-97223-179-0	01	1	9901-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE POWER N-SPEC(7QV)	8-97118-894-1	01	1	9811-9812	●	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97118-894-1	01	1	9811-9812			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV)	8-97118-894-1	01	1	9901-	●	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF EXC. CHARGE AIR COOLER<6PL>	8-97118-894-1	01	1	9901-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF CHARGE AIR COOLER<6PL>	8-97148-970-2	01	1	9811-			●
124	03.162 NUT; CAP,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M14	1-09468-002-1	01	1	9811-0011	●	●
124	03.162 NUT; CAP,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14	1-09468-002-1	01	1	9811-0011			●
124	03.162 NUT; CAP,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M14	1-09468-002-1	01	1	0012-0112	●	●	●
124	03.162 NUT; CAP,FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M14	1-09468-002-1	01	1	0201-	●	●
124	03.162 NUT; CAP,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M14	1-09468-002-1	01	1	0201-			●
145	03.162 CLIP; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9811-	●	●
145	03.162 CLIP; FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9811-			●
145	03.162 CLIP; FUEL PIPE CHARGE AIR COOLER<6PL> 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9811-			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-	●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 03.107 ID=14.2 OD=23.0	9-09572-014-0	02	1	9811-			●
220	03.163 HOSE; FUEL TURBOCHARGER(K51)	8-97208-874-0	01	1	9811-	●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9912	●	●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9912			●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-0003	●	●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-0003			●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0004-	●	●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV)	8-97145-019-2	01	1	9811-9901		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV)	8-97118-903-0	01	1	9902-9902		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-903-0	01	1	9903-		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97145-019-2	01	1	9903-		●
220	03.163 HOSE; FUEL CHARGE AIR COOLER<6PL> L=180 SERVICED BY L=3000	0-01256-300-0	01	1	9811-			●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0004-			●
221	03.163 BOLT; FUEL PIPE EXC. ENGINE POWER N-SPEC(7QV) M6X40 FLANGE	0-28680-640-0	01	1	9811-	●	●
221	03.163 BOLT; FUEL PIPE EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) M6X40 FLANGE	0-28680-640-0	01	1	9811-			●
221	03.163 BOLT; FUEL PIPE CHARGE AIR COOLER<6PL> M6X40 FLANGE	0-28680-640-0	01	1	9811-			●

37 220 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
37	03.162 CLIP; FUEL HOSE TURBOCHARGER(K51) (B) L=140	5-09707-031-1	01	1	9901-	●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	9811-	●	●	●
220	03.163 HOSE; FUEL TURBOCHARGER(K51)	8-97208-874-0	01	1	9811-	●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9912	●	●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9811-9912			●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-0003	●	●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-0003			●
220	03.163 HOSE; FUEL EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0004-	●	●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV)	8-97145-019-2	01	1	9811-9901		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV)	8-97118-903-0	01	1	9902-9902		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) HIGH ALTITUDE COMPENSATOR(EE2)	8-97118-903-0	01	1	9903-		●
220	03.163 HOSE; FUEL ENGINE POWER N-SPEC(7QV) EXC. HIGH ALTITUDE COMPENSATOR(EE2)	8-97145-019-2	01	1	9903-		●
220	03.163 HOSE; FUEL CHARGE AIR COOLER<6PL> L=180 SERVICED BY L=3000	0-01256-300-0	01	1	9811-			●
220	03.163 HOSE; FUEL EXC. CHARGE AIR COOLER<6PL> L=280 SERVICED BY L=3000	0-01256-300-0	01	1	0004-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
