0-41 — FUEL FILTER AND BRACKET (#41958) — 84 parça

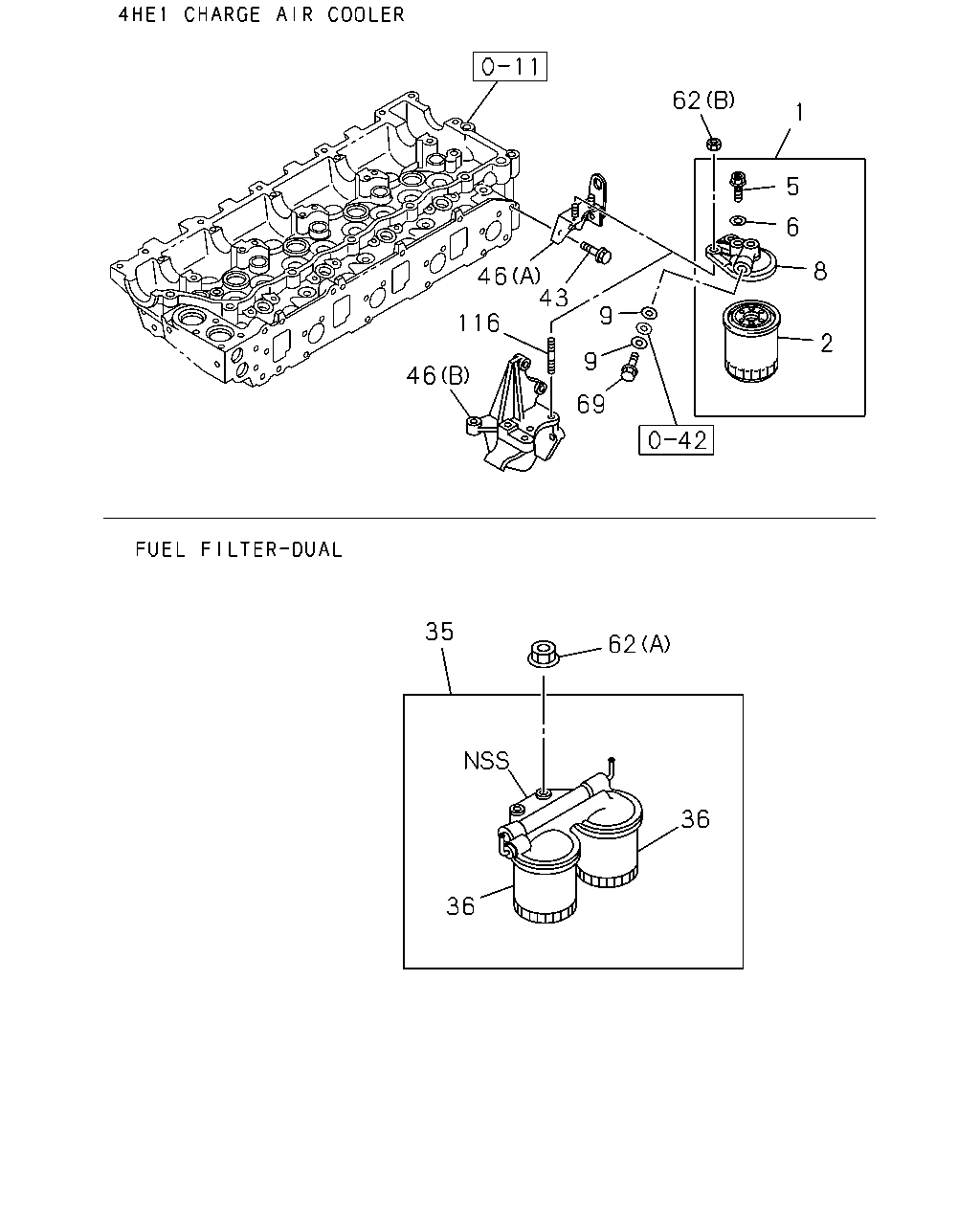

62 1 5 6 46 8 43 9 116 2 9 46 69 35 62 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97171-451-2	01	1	9811-	●	●
1	03.890 FILTER ASM; FUEL EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97171-451-2	01	1	9811-			●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-3	01	1	9811-			●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-549-1	01	1	9811-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97172-549-1	01	1	9811-			●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	9811-			●
5	03.890 BOLT; FUEL FILTER CHARGE AIR COOLER<6PL> 08.971 M14X9	9-99202-314-0	01	1	9811-0206			●
6	03.890 GASKET; FUEL FILTER CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	01	1	9811-0206			●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-543-1	01	1	9811-	●	●
8	03.890 COVER; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97172-543-1	01	1	9811-			●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-108-0	01	1	9811-0206			●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-159-2	01	1	0207-			●
9	03.890 GASKET; EYE JOINT ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-0112			●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	9811-	●	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	9811-	●	●	●
43	03.890 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	9811-0105	●	●
43	03.890 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0106-0207	●	●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0106-0207			●
43	03.890 BOLT; BRKT DUAL RR TIRE(NPC***) EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0208-	●	●
43	03.890 BOLT; BRKT DUAL RR TIRE(NPC***) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0208-			●
43	03.890 BOLT; BRKT DUAL RR TIRE(NPC***) CHARGE AIR COOLER<6PL> 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0208-			●
43	03.890 BOLT; BRKT ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE	0-28181-220-0	02	1	9811-0002		●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> M12X25	0-28781-225-0	02	1	9811-0112			●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) M12X25	0-28781-225-0	02	1	0201-0207			●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> M12X25	0-28781-225-0	02	1	0208-			●
46	03.890 BRACKET TURBOCHARGER(K51)	8-97061-452-0	01	1	9811-	●
46	03.890 BRACKET EXC. CHARGE AIR COOLER<6PL>	8-97061-452-0	01	1	9811-			●
46	03.890 BRACKET EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV)	8-94313-323-1	01	1	9811-	●	●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> (A)	8-97148-962-2	01	1	9811-0112			●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-97148-962-2	01	1	0201-0207			●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97148-962-2	01	1	0208-			●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) (B)	8-97241-009-2	01	1	0106-0207			●
46	03.890 BRACKET M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (B)	8-97241-009-2	01	1	0208-			●
62	03.895 NUT; FUEL FILTER EXC. TURBOCHARGER(K51) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9811-0002	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9811-0002		●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9811-0002			●
62	03.895 NUT; FUEL FILTER EXC. TURBOCHARGER(K51) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-	●
62	03.895 NUT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-		●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-			●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-	●	●	●
69	03.890 BOLT; EYE,FUEL FILTER CHARGE AIR COOLER<6PL>	1-15619-310-0	01	1	9811-0112			●
116	03.407 STUD; BRKT,FUEL FILTER CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 03.275 M10X25 L=40	0-49841-025-0	02	1	0106-0207			●
116	03.407 STUD; BRKT,FUEL FILTER M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 03.275 M10X25 L=40	0-49841-025-0	02	1	0208-			●

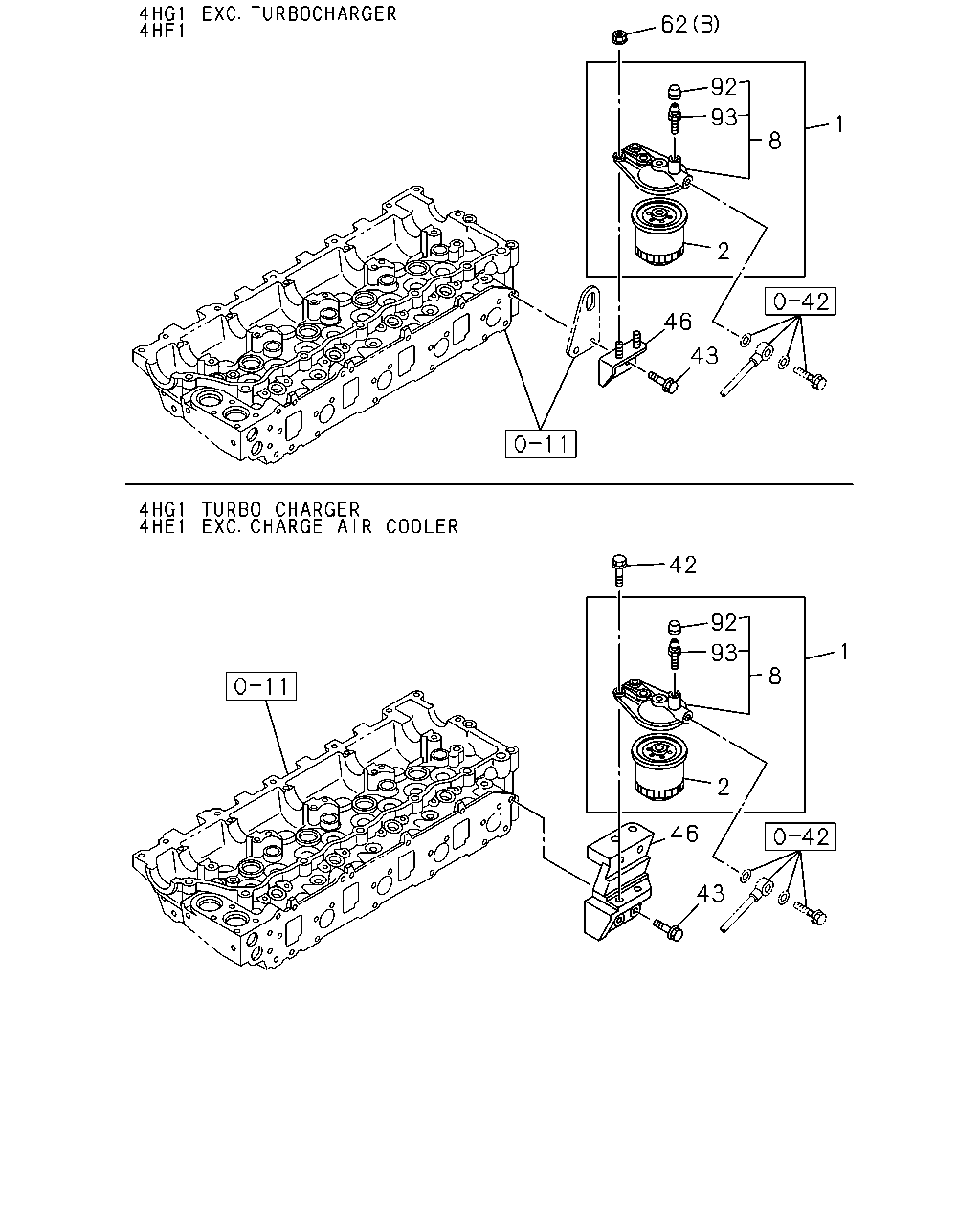

62 92 93 1 8 2 46 43 42 92 1 93 8 2 46 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL EXC. ENGINE POWER N-SPEC(7QV)	8-97171-451-2	01	1	9811-	●	●
1	03.890 FILTER ASM; FUEL EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97171-451-2	01	1	9811-			●
1	03.890 FILTER ASM; FUEL CHARGE AIR COOLER<6PL>	1-13200-890-3	01	1	9811-			●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-549-1	01	1	9811-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97172-549-1	01	1	9811-			●
2	03.890 ELEMENT KIT; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13240-079-1	01	1	9811-			●
8	03.890 COVER; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-543-1	01	1	9811-	●	●
8	03.890 COVER; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97172-543-1	01	1	9811-			●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-108-0	01	1	9811-0206			●
8	03.890 COVER; FUEL FILTER CHARGE AIR COOLER<6PL>	1-13212-159-2	01	1	0207-			●
42	03.890 BOLT; FUEL FILTER TURBOCHARGER(K51) 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9811-	●
42	03.890 BOLT; FUEL FILTER EXC. CHARGE AIR COOLER<6PL> 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9811-			●
43	03.890 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	9811-0105	●	●
43	03.890 BOLT; BRKT EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0106-0207	●	●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0106-0207			●
43	03.890 BOLT; BRKT DUAL RR TIRE(NPC***) EXC. ENGINE POWER N-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0208-	●	●
43	03.890 BOLT; BRKT DUAL RR TIRE(NPC***) EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV) 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0208-			●
43	03.890 BOLT; BRKT DUAL RR TIRE(NPC***) CHARGE AIR COOLER<6PL> 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0208-			●
43	03.890 BOLT; BRKT ENGINE POWER N-SPEC(7QV) 02.483 M12X20 FLANGE	0-28181-220-0	02	1	9811-0002		●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> M12X25	0-28781-225-0	02	1	9811-0112			●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) M12X25	0-28781-225-0	02	1	0201-0207			●
43	03.890 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> M12X25	0-28781-225-0	02	1	0208-			●
46	03.890 BRACKET TURBOCHARGER(K51)	8-97061-452-0	01	1	9811-	●
46	03.890 BRACKET EXC. CHARGE AIR COOLER<6PL>	8-97061-452-0	01	1	9811-			●
46	03.890 BRACKET EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV)	8-94313-323-1	01	1	9811-	●	●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> (A)	8-97148-962-2	01	1	9811-0112			●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-97148-962-2	01	1	0201-0207			●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> (A)	8-97148-962-2	01	1	0208-			●
46	03.890 BRACKET CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) (B)	8-97241-009-2	01	1	0106-0207			●
46	03.890 BRACKET M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (B)	8-97241-009-2	01	1	0208-			●
62	03.895 NUT; FUEL FILTER EXC. TURBOCHARGER(K51) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9811-0002	●
62	03.895 NUT; FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9811-0002		●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9811-0002			●
62	03.895 NUT; FUEL FILTER EXC. TURBOCHARGER(K51) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-	●
62	03.895 NUT; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV) 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-		●
62	03.895 NUT; FUEL FILTER CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0003-			●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL<S6B> 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9811-	●	●	●
92	03.417 CAP; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-548-0	01	1	9811-	●	●
92	03.417 CAP; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97172-548-0	01	1	9811-			●
93	03.890 CONNECTOR; FUEL FILTER EXC. ENGINE POWER N-SPEC(7QV)	8-97172-546-1	01	1	9811-	●	●
93	03.890 CONNECTOR; FUEL FILTER EXC. CHARGE AIR COOLER<6PL>,ENGINE POWERN-SPEC(7QV)	8-97172-546-1	01	1	9811-			●
