◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶
0-37 — TURBOCHARGER (#41956) — 19 parça

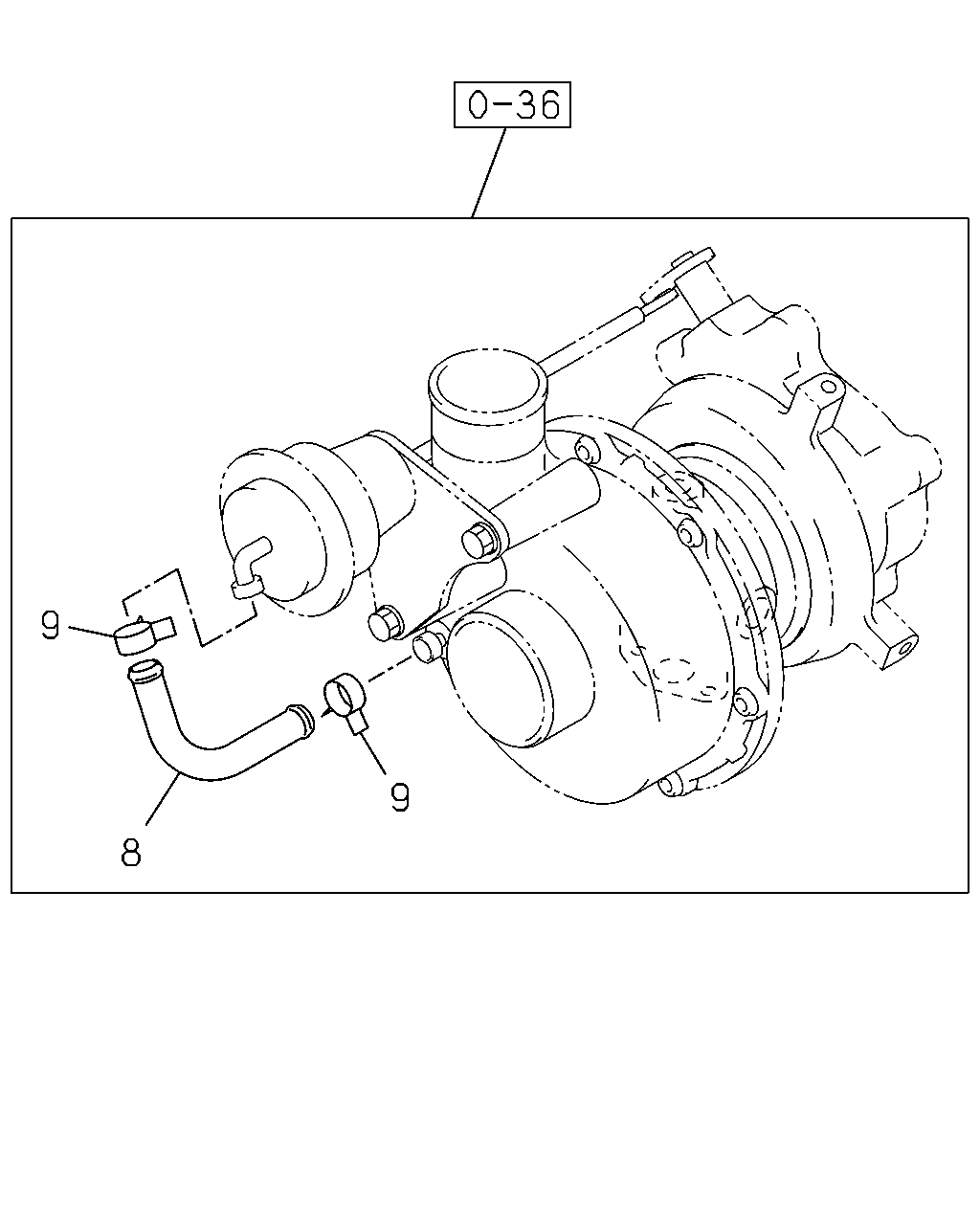

çizim 10120
9 9 8
BalonParca AdiParca NoAdetTipApplied Date
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: B = 8-97208-352-0, 97208352, E = 8-97326-752-0, 97326752 		8-97213-591-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: C = 8-97208-966-3, 97208966, D = 8-97258-811-0, 97258811 		8-97215-553-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-97103-857-0, 97103857 		8-97219-075-0 01 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97103-857-0, 97103857 		5-09707-057-0 02 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: B = 8-97208-352-0, 97208352, C = 8-97208-966-3, 97208966, E = 8-97326-752-0, 97326752 		8-97182-742-0 02 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: D = 8-97258-811-0, 97258811 		8-97213-592-0 02 1 -

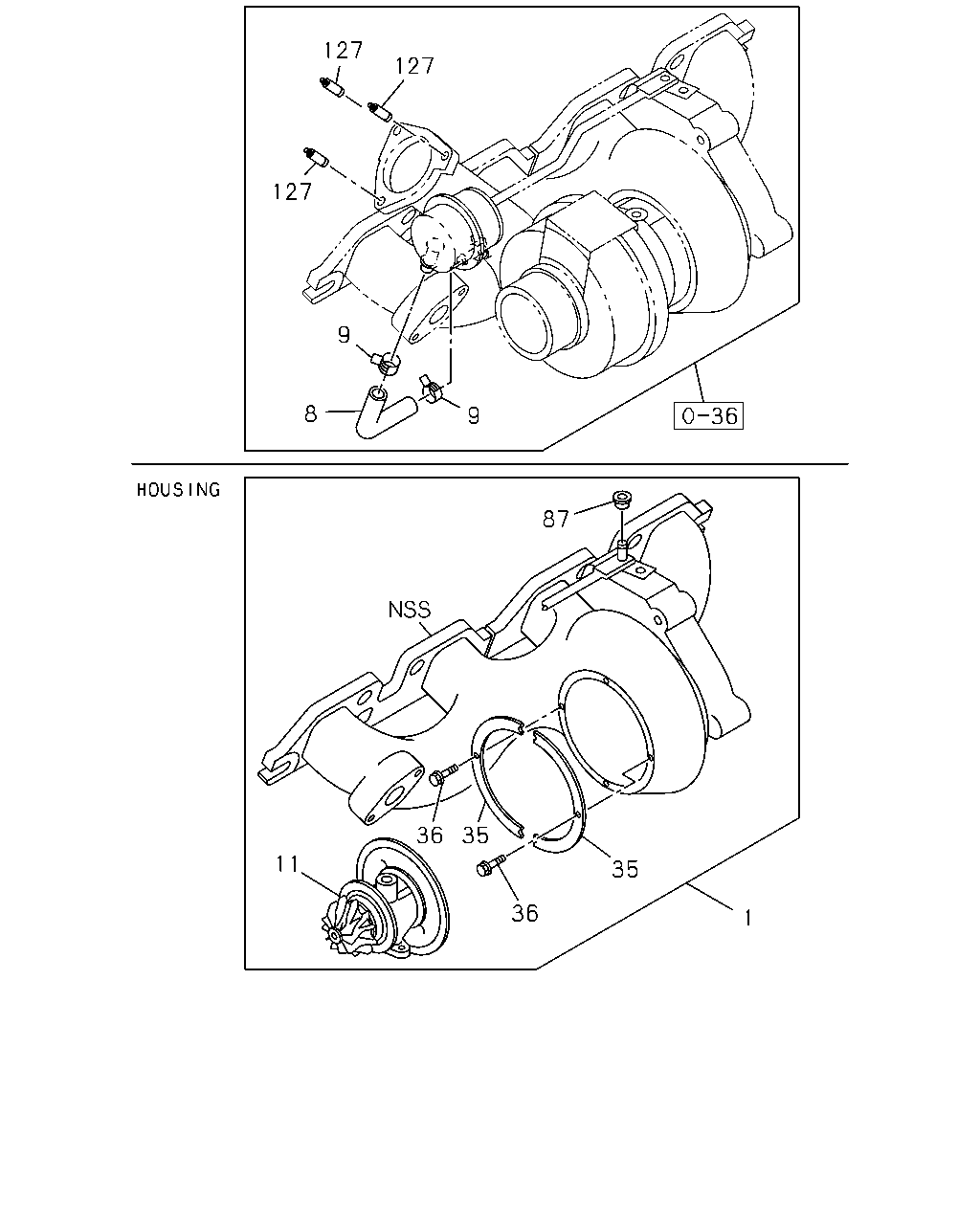

çizim 46761
127 127 127 9 8 9 87 36 35 11 35 36 1
BalonParca AdiParca NoAdetTipApplied Date
1 03.346 HOUSING; TURBINE,TURBOCHARGER
ASM PART: B = 8-97208-352-0, 97208352, E = 8-97326-752-0, 97326752 		8-97223-905-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: B = 8-97208-352-0, 97208352, E = 8-97326-752-0, 97326752 		8-97213-591-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: C = 8-97208-966-3, 97208966, D = 8-97258-811-0, 97258811 		8-97215-553-0 01 1 -
8 03.342 HOSE; ACTUATOR TO BLOWER HSG,TC
ASM PART: A = 8-97103-857-0, 97103857 		8-97219-075-0 01 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: A = 8-97103-857-0, 97103857 		5-09707-057-0 02 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: B = 8-97208-352-0, 97208352, C = 8-97208-966-3, 97208966, E = 8-97326-752-0, 97326752 		8-97182-742-0 02 1 -
9 03.342 CLIP; ACTUATOR HOSE,TURBOCHARGER
ASM PART: D = 8-97258-811-0, 97258811 		8-97213-592-0 02 1 -
11 03.346 HOUSING ASM; TURBOCHARGER
ASM PART: B = 8-97208-352-0, 97208352 		8-97213-584-0 01 1 -
11 03.346 HOUSING ASM; TURBOCHARGER
ASM PART: E = 8-97326-752-0, 97326752 		8-97326-280-0 01 1 -
35 03.346 CLAMP; TURBINE HSG,TURBOCHARGER
ASM PART: B = 8-97208-352-0, 97208352, E = 8-97326-752-0, 97326752 		8-97213-590-0 02 1 -
36 03.348 BOLT; LK PLATE,TURBINE HSG,TURBO
ASM PART: B = 8-97208-352-0, 97208352, E = 8-97326-752-0, 97326752 		8-97213-579-0 04 1 -
87 03.346 RING; ACTUATOR,TURBOCHARGER
ASM PART: B = 8-97208-352-0, 97208352, E = 8-97326-752-0, 97326752 		8-97213-588-0 01 1 -
127 03.348 STUD; TURBOCHARGER
ASM PART: B = 8-97208-352-0, 97208352, E = 8-97326-752-0, 97326752 		8-97213-578-0 03 1 -
