Sayfa 0-36 - Isuzu EPC

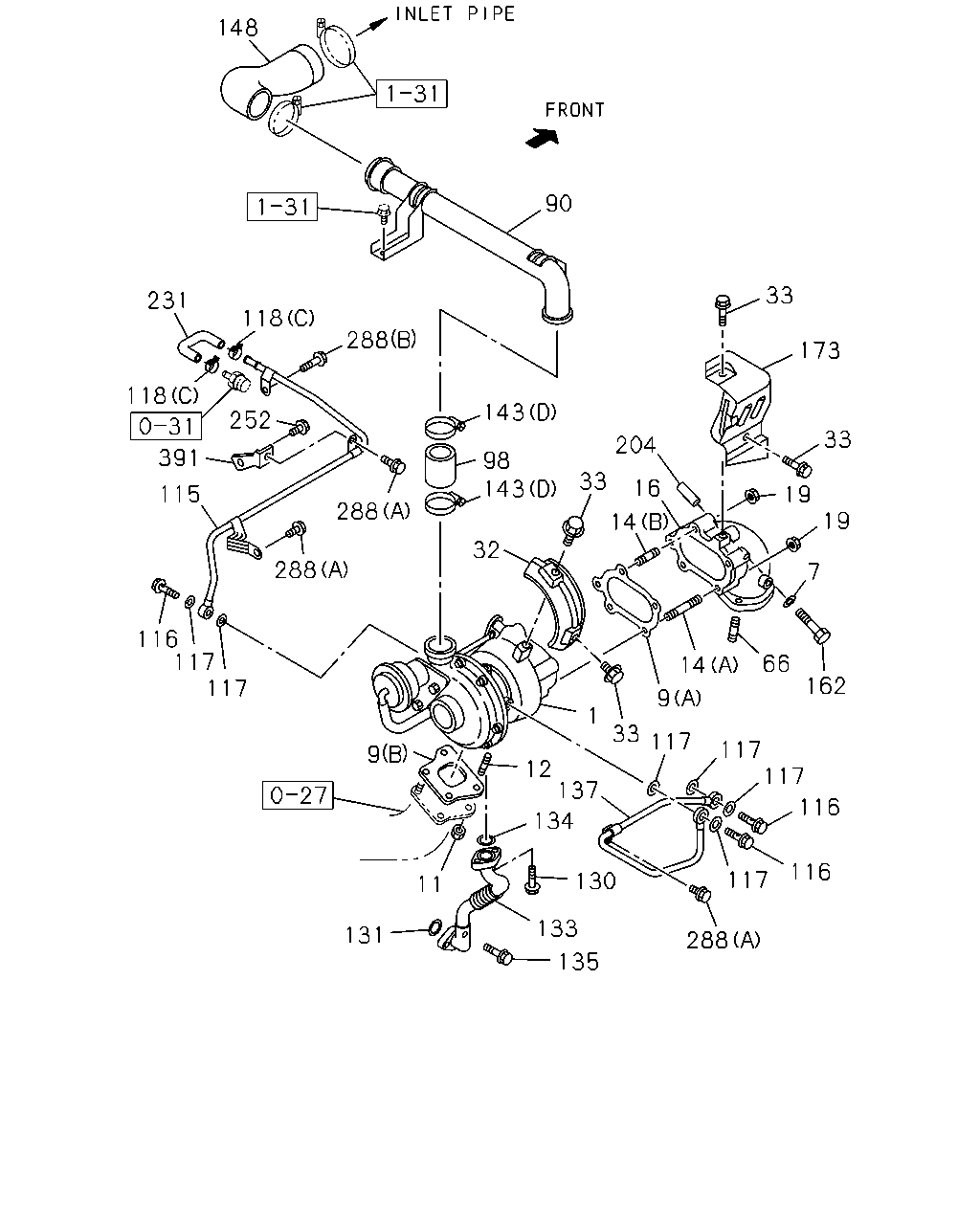

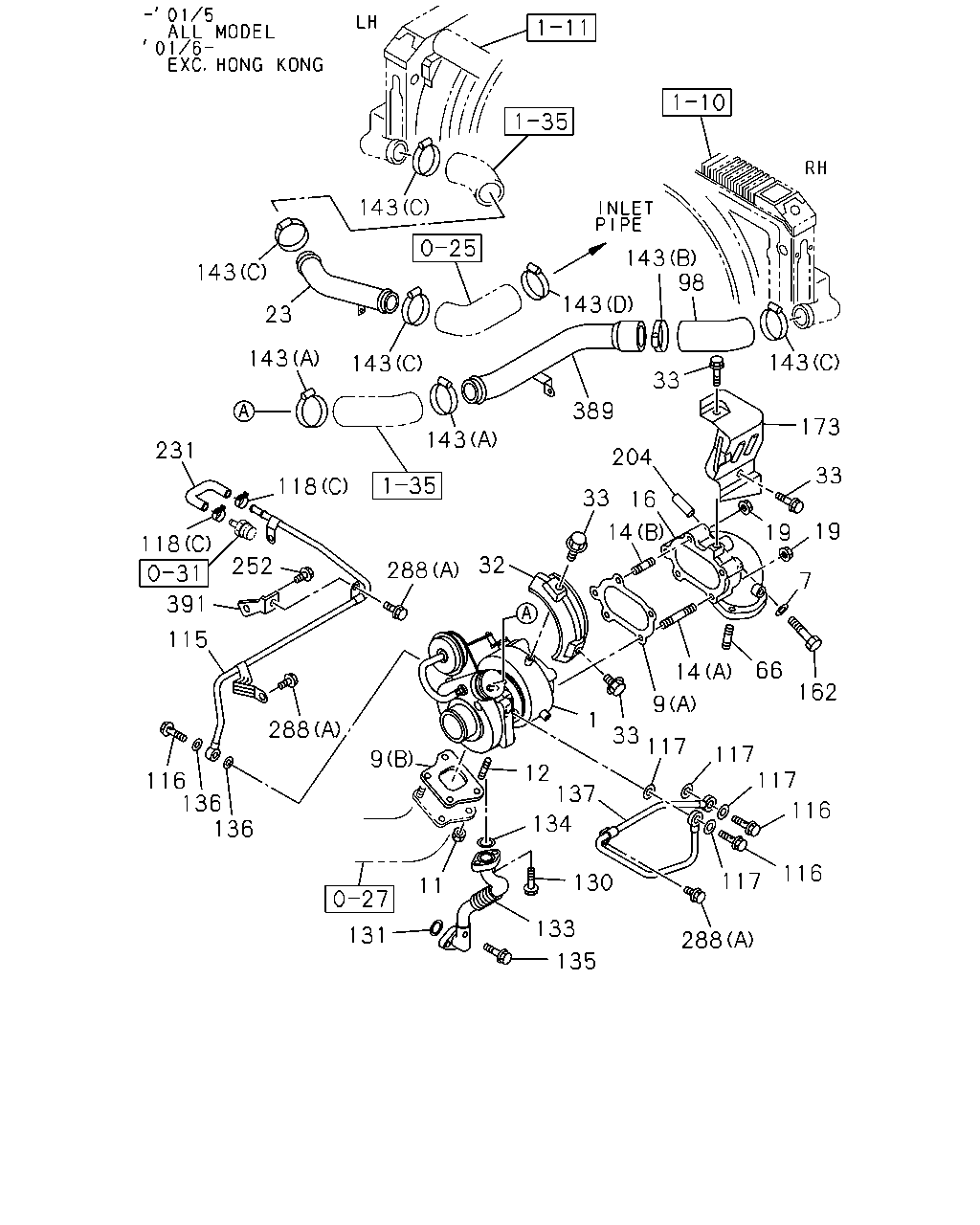

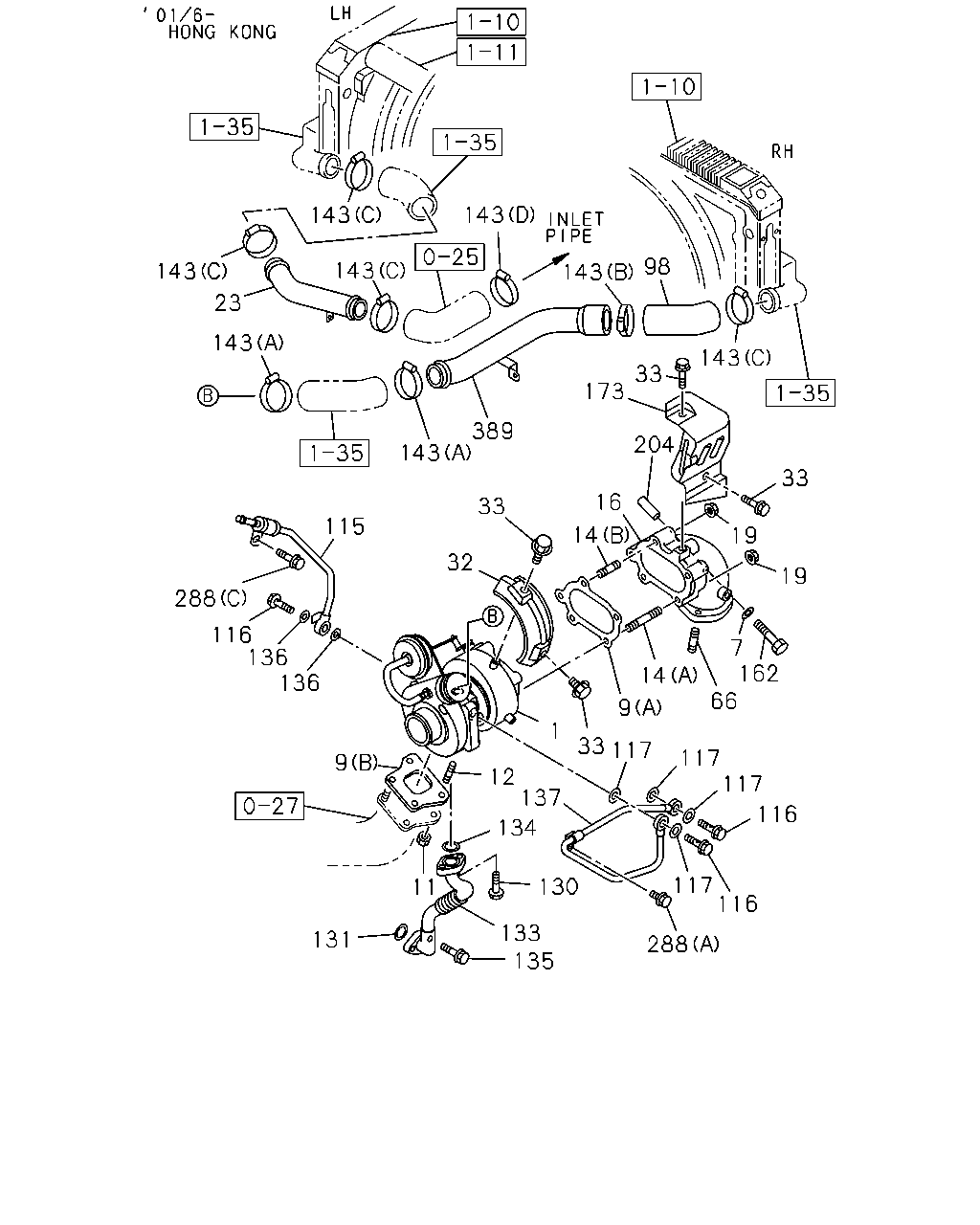

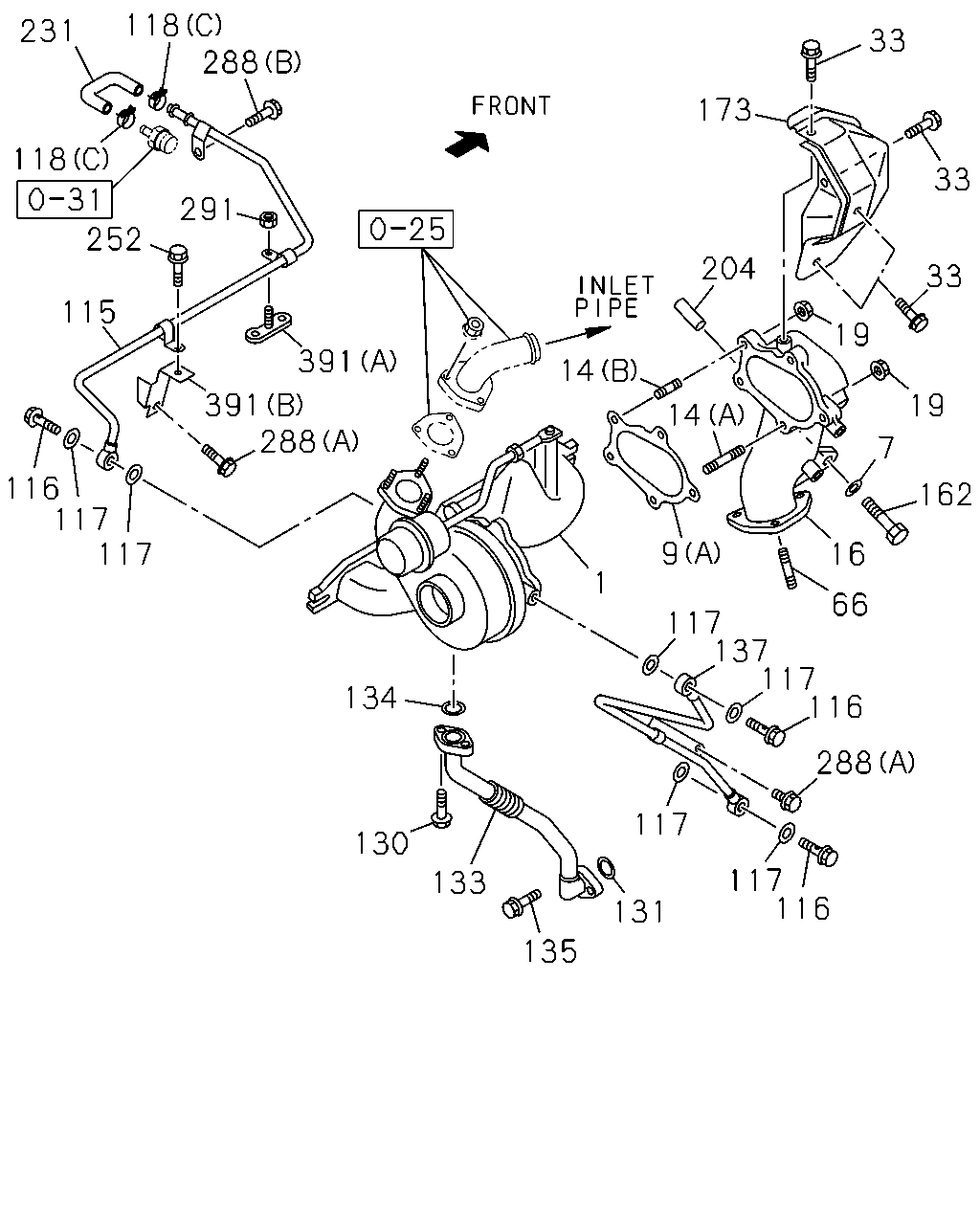

0-36 — TURBOCHARGER SYSTEM (#41955) — 644 parça

148 90 33 231 118 288 173 118 143 252 33 204 391 98 143 33 16 115 19 288 19 14 32 288 7 116 117 117 66 14 162 9 1 33 117 117 117 9 12 137 116 134 116 117 130 11 133 131 288 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97208-352-0	01	1	9811-0111	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97326-752-0	01	1	0112-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-2	01	1	9811-0112		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97208-966-2	01	1	0201-0207		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97208-966-3	01	1	0208-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1)	8-97258-811-0	01	1	0106-0207		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3>	8-97258-811-0	01	1	0208-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9811-		●
7	03.613 WASHER; PL,BRKT TURBOCHARGER(K51) ID=8 OD=18 T=3	8-94174-537-0	01	1	9811-	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9811-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	9811-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	9811-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97063-602-0	01	1	9811-		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9811-		●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	9811-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (A) M8X94 L=108	8-97019-477-0	02	1	9811-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9811-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (B) M8X49 L=63	8-97019-478-0	03	1	9811-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9811-		●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER(K51)	8-97178-488-1	01	1	9811-	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9811-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER TURBOCHARGER(K51) 03.604 M8 FLANGE	8-94170-486-0	05	1	9811-	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	9811-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97190-590-1	01	1	0112-0205		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97190-590-1	01	1	9811-0003		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97064-417-1	01	1	9811-0003		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97064-417-1	01	1	9811-0003		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97064-417-1	01	1	0004-0112		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97064-417-1	01	1	0201-0205		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0206-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M6X28 W/LK&PL WASHER	8-97028-387-1	05	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 03.604 M6X12 FLANGE	8-97108-669-0	01	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0206-		●
33	03.342 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	9811-	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	04	1	9811-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> M6X28 W/LK&PL WASHER	8-97028-387-1	06	1	9811-0001		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> M6X28 W/LK&PL WASHER	8-97028-387-1	05	1	0002-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.604 M6X12 FLANGE	8-97108-669-0	01	1	0002-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	9811-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0004-0111		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	02	1	9811-		●
66	03.342 STUD; EXH PIPE TURBOCHARGER(K51) 03.275 M10X25 L=40	9-04411-025-0	03	1	9811-	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9811-		●
90	03.407 PIPE; INL,TURBOCHARGER TO MANIF SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>	8-97173-981-0	01	1	9811-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97189-628-0	01	1	9811-9811		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	9812-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	9811-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97210-077-2	01	1	9811-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97148-946-0	01	1	9811-9906		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97229-039-0	01	1	9907-0112		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97229-039-0	01	1	0201-0207		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97229-039-0	01	1	0208-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1)	8-97302-224-1	01	1	0106-0207		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3>	8-97302-224-1	01	1	0208-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97066-699-1	01	1	9811-9909		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97229-038-0	01	1	9910-		●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) M14X30 EYE-BOLT	8-94455-144-0	03	1	9811-	●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	9811-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9811-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9811-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9811-		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	9811-0105	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	9811-0105		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0106-0112	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0106-0112		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0201-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 03.162 (C) ID=15.5	8-94221-519-0	02	1	0201-		●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 03.162 (B) L=140	5-09707-031-1	01	1	0106-0207		●
118	03.342 CLIP; WATER HOSE M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 03.162 (B) L=140	5-09707-031-1	01	1	0208-		●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 01.153 (A) ID=12.8	8-94367-943-0	06	1	0106-0207		●
118	03.342 CLIP; WATER HOSE M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8	8-94367-943-0	06	1	0208-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D TURBOCHARGER(K51) 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9811-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9811-		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 01.550 ID=27.7	9-09565-228-0	01	1	9811-0211	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=27.7	9-09565-228-0	01	1	9811-0211		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=27.7	9-09566-228-0	01	1	0212-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0212-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER TURBOCHARGER(K51)	8-97178-508-1	01	1	9811-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	9811-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	9811-		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=22.8	1-09623-462-0	01	1	9811-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	9811-		●
135	01.531 BOLT; OIL PIPE TO C/BL TURBOCHARGER(K51) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97355-911-0	01	1	0208-0212		●
137	01.097 PIPE; WATER,TURBOCHARGER IN M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97357-769-0	01	1	0301-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0112-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER(K51)	8-97178-481-0	01	1	9811-9906	●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER(K51)	8-97229-036-0	01	1	9907-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97181-850-0	01	1	9811-9906		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97229-035-0	01	1	9907-0003		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97148-945-3	01	1	9811-0003		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97148-945-3	01	1	0004-0111		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97148-945-3	01	1	0112-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97189-625-0	01	1	9811-9907		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	9908-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=50-69	1-09707-135-0	02	1	9811-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	9811-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9811-9812		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-97222-448-0	04	1	9901-9902		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9903-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9811-0109		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	0110-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL> (D) ID=50-69	8-94316-991-0	02	1	9811-		●
148	03.417 HOSE; TURBOCHARGER,INL SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>	8-97182-220-0	01	1	9811-		●
162	03.613 BOLT; ADAPTER TURBOCHARGER(K51) M8X57	5-09000-275-0	01	1	9811-	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	9811-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97250-283-0	01	1	0112-0205		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE TURBOCHARGER(K51)	8-97178-497-2	01	1	9811-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97190-569-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97250-283-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97039-752-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97039-752-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97250-282-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97250-282-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97250-282-0	01	1	0004-0112		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97250-282-0	01	1	0201-0205		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0206-		●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97040-893-0	01	1	9811-9812	●
204	03.342 COLLAR; PIPE ADAPTER	8-97040-893-0	01	1	9811-9812		●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97214-384-0	01	1	9901-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-0	01	1	9901-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	9811-0105	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	9811-0105		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0106-0106	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. HONG KONG EQUIPMENT(PQ1)	8-97209-950-0	01	1	0106-0106		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0106-0112	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97209-950-0	01	1	0106-0112		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0201-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97209-950-0	01	1	0201-		●
252	03.417 BOLT; BRKT TURBOCHARGER(K51) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-	●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	9811-0105		●
252	03.417 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> M12X19	8-97079-809-0	01	1	0106-0112		●
252	03.417 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) M12X19	8-97079-809-0	01	1	0106-0112		●
252	03.417 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> M12X19	8-97079-809-0	01	1	0201-		●
252	03.417 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> M12X19	8-97079-809-0	01	1	0201-		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9811-0105	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9811-0105		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9811-	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9811-		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	9811-0112		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0106-0207		●
288	03.342 BOLT; WATER PIPE CLIP M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-0207		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
391	03.342 BRACKET; WATER PIPE TURBOCHARGER(K51) (A)	8-97210-078-0	01	1	9811-	●
391	03.342 BRACKET; WATER PIPE TURBOCHARGER(K51) (B)	8-97221-061-0	01	1	9811-	●
391	03.342 BRACKET; WATER PIPE	8-97068-554-0	01	1	9811-0105		●
391	03.342 BRACKET; WATER PIPE EXC. CHARGE AIR COOLER<6PL>	8-97068-554-0	01	1	0106-0112		●
391	03.342 BRACKET; WATER PIPE CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97068-554-0	01	1	0106-0112		●
391	03.342 BRACKET; WATER PIPE EXC. CHARGE AIR COOLER<6PL>	8-97068-554-0	01	1	0201-		●
391	03.342 BRACKET; WATER PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97068-554-0	01	1	0201-		●

143 143 98 143 143 143 23 143 143 33 173 389 204 143 33 16 33 115 14 1 32 19 288 116 136 136 7 162 66 14 9 1 33 117 117 117 9 12 137 116 134 117 116 130 11 133 135 131 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97208-352-0	01	1	9811-0111	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97326-752-0	01	1	0112-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-2	01	1	9811-0112		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97208-966-2	01	1	0201-0207		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97208-966-3	01	1	0208-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1)	8-97258-811-0	01	1	0106-0207		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3>	8-97258-811-0	01	1	0208-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9811-		●
7	03.613 WASHER; PL,BRKT TURBOCHARGER(K51) ID=8 OD=18 T=3	8-94174-537-0	01	1	9811-	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9811-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	9811-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	9811-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97063-602-0	01	1	9811-		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9811-		●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	9811-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (A) M8X94 L=108	8-97019-477-0	02	1	9811-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9811-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (B) M8X49 L=63	8-97019-478-0	03	1	9811-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9811-		●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER(K51)	8-97178-488-1	01	1	9811-	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9811-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER TURBOCHARGER(K51) 03.604 M8 FLANGE	8-94170-486-0	05	1	9811-	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	9811-		●
23	03.417 PIPE; INTAKE,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97189-601-0	01	1	9811-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97190-590-1	01	1	0112-0205		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97190-590-1	01	1	9811-0003		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97064-417-1	01	1	9811-0003		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97064-417-1	01	1	9811-0003		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97064-417-1	01	1	0004-0112		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97064-417-1	01	1	0201-0205		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0206-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M6X28 W/LK&PL WASHER	8-97028-387-1	05	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 03.604 M6X12 FLANGE	8-97108-669-0	01	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0206-		●
33	03.342 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	9811-	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	04	1	9811-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> M6X28 W/LK&PL WASHER	8-97028-387-1	06	1	9811-0001		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> M6X28 W/LK&PL WASHER	8-97028-387-1	05	1	0002-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.604 M6X12 FLANGE	8-97108-669-0	01	1	0002-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	9811-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0004-0111		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	02	1	9811-		●
66	03.342 STUD; EXH PIPE TURBOCHARGER(K51) 03.275 M10X25 L=40	9-04411-025-0	03	1	9811-	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9811-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97189-628-0	01	1	9811-9811		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	9812-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	9811-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97210-077-2	01	1	9811-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97148-946-0	01	1	9811-9906		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97229-039-0	01	1	9907-0112		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97229-039-0	01	1	0201-0207		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97229-039-0	01	1	0208-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1)	8-97302-224-1	01	1	0106-0207		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3>	8-97302-224-1	01	1	0208-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97066-699-1	01	1	9811-9909		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97229-038-0	01	1	9910-		●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) M14X30 EYE-BOLT	8-94455-144-0	03	1	9811-	●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	9811-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9811-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9811-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9811-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D TURBOCHARGER(K51) 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9811-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9811-		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 01.550 ID=27.7	9-09565-228-0	01	1	9811-0211	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=27.7	9-09565-228-0	01	1	9811-0211		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=27.7	9-09566-228-0	01	1	0212-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0212-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER TURBOCHARGER(K51)	8-97178-508-1	01	1	9811-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	9811-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	9811-		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=22.8	1-09623-462-0	01	1	9811-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	9811-		●
135	01.531 BOLT; OIL PIPE TO C/BL TURBOCHARGER(K51) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-		●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97355-911-0	01	1	0208-0212		●
137	01.097 PIPE; WATER,TURBOCHARGER IN M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97357-769-0	01	1	0301-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0112-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER(K51)	8-97178-481-0	01	1	9811-9906	●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER(K51)	8-97229-036-0	01	1	9907-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97181-850-0	01	1	9811-9906		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97229-035-0	01	1	9907-0003		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97148-945-3	01	1	9811-0003		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97148-945-3	01	1	0004-0111		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97148-945-3	01	1	0112-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97189-625-0	01	1	9811-9907		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	9908-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=50-69	1-09707-135-0	02	1	9811-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	9811-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9811-9812		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-97222-448-0	04	1	9901-9902		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9903-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9811-0109		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	0110-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL> (D) ID=50-69	8-94316-991-0	02	1	9811-		●
162	03.613 BOLT; ADAPTER TURBOCHARGER(K51) M8X57	5-09000-275-0	01	1	9811-	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	9811-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97250-283-0	01	1	0112-0205		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE TURBOCHARGER(K51)	8-97178-497-2	01	1	9811-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97190-569-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97250-283-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97039-752-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97039-752-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97250-282-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97250-282-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97250-282-0	01	1	0004-0112		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97250-282-0	01	1	0201-0205		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0206-		●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97040-893-0	01	1	9811-9812	●
204	03.342 COLLAR; PIPE ADAPTER	8-97040-893-0	01	1	9811-9812		●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97214-384-0	01	1	9901-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-0	01	1	9901-		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9811-0105	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9811-0105		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9811-	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9811-		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	9811-0112		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0106-0207		●
288	03.342 BOLT; WATER PIPE CLIP M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-0207		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97204-013-1	01	1	9811-		●

143 143 98 143 143 23 143 143 143 33 389 173 143 231 204 33 118 33 16 19 14 19 118 32 252 288 7 391 115 66 14 162 9 1 288 33 117 117 117 9 12 137 116 136 136 116 134 116 117 130 11 133 131 288 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97208-352-0	01	1	9811-0111	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97326-752-0	01	1	0112-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-2	01	1	9811-0112		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97208-966-2	01	1	0201-0207		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97208-966-3	01	1	0208-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1)	8-97258-811-0	01	1	0106-0207		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3>	8-97258-811-0	01	1	0208-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9811-		●
7	03.613 WASHER; PL,BRKT TURBOCHARGER(K51) ID=8 OD=18 T=3	8-94174-537-0	01	1	9811-	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9811-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	9811-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	9811-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97063-602-0	01	1	9811-		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	9811-		●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	9811-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (A) M8X94 L=108	8-97019-477-0	02	1	9811-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9811-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (B) M8X49 L=63	8-97019-478-0	03	1	9811-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9811-		●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER(K51)	8-97178-488-1	01	1	9811-	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9811-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER TURBOCHARGER(K51) 03.604 M8 FLANGE	8-94170-486-0	05	1	9811-	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	9811-		●
23	03.417 PIPE; INTAKE,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97189-601-0	01	1	9811-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97190-590-1	01	1	0112-0205		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97190-590-1	01	1	9811-0003		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97064-417-1	01	1	9811-0003		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97064-417-1	01	1	9811-0003		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97064-417-1	01	1	0004-0112		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97064-417-1	01	1	0201-0205		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0206-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M6X28 W/LK&PL WASHER	8-97028-387-1	05	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 03.604 M6X12 FLANGE	8-97108-669-0	01	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0206-		●
33	03.342 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	9811-	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	04	1	9811-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> M6X28 W/LK&PL WASHER	8-97028-387-1	06	1	9811-0001		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> M6X28 W/LK&PL WASHER	8-97028-387-1	05	1	0002-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.604 M6X12 FLANGE	8-97108-669-0	01	1	0002-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	9811-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0004-0111		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	02	1	9811-		●
66	03.342 STUD; EXH PIPE TURBOCHARGER(K51) 03.275 M10X25 L=40	9-04411-025-0	03	1	9811-	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9811-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97189-628-0	01	1	9811-9811		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	9812-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>	8-97041-096-0	01	1	9811-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97210-077-2	01	1	9811-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97148-946-0	01	1	9811-9906		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97229-039-0	01	1	9907-0112		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97229-039-0	01	1	0201-0207		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97229-039-0	01	1	0208-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1)	8-97302-224-1	01	1	0106-0207		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3>	8-97302-224-1	01	1	0208-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97066-699-1	01	1	9811-9909		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97229-038-0	01	1	9910-		●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) M14X30 EYE-BOLT	8-94455-144-0	03	1	9811-	●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	9811-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9811-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9811-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9811-		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	9811-0105	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	9811-0105		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0106-0112	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0106-0112		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0201-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 03.162 (C) ID=15.5	8-94221-519-0	02	1	0201-		●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 03.162 (B) L=140	5-09707-031-1	01	1	0106-0207		●
118	03.342 CLIP; WATER HOSE M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 03.162 (B) L=140	5-09707-031-1	01	1	0208-		●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 01.153 (A) ID=12.8	8-94367-943-0	06	1	0106-0207		●
118	03.342 CLIP; WATER HOSE M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8	8-94367-943-0	06	1	0208-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D TURBOCHARGER(K51) 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9811-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9811-		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 01.550 ID=27.7	9-09565-228-0	01	1	9811-0211	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=27.7	9-09565-228-0	01	1	9811-0211		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=27.7	9-09566-228-0	01	1	0212-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0212-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER TURBOCHARGER(K51)	8-97178-508-1	01	1	9811-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	9811-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	9811-		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=22.8	1-09623-462-0	01	1	9811-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	9811-		●
135	01.531 BOLT; OIL PIPE TO C/BL TURBOCHARGER(K51) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-		●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97355-911-0	01	1	0208-0212		●
137	01.097 PIPE; WATER,TURBOCHARGER IN M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97357-769-0	01	1	0301-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0112-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER(K51)	8-97178-481-0	01	1	9811-9906	●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER(K51)	8-97229-036-0	01	1	9907-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97181-850-0	01	1	9811-9906		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97229-035-0	01	1	9907-0003		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97148-945-3	01	1	9811-0003		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97148-945-3	01	1	0004-0111		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97148-945-3	01	1	0112-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97189-625-0	01	1	9811-9907		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	9908-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (A) ID=50-69	1-09707-135-0	02	1	9811-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=58-79	1-09707-136-0	01	1	9811-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9811-9812		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-85	8-97222-448-0	04	1	9901-9902		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (C) ID=68-89	1-09707-137-0	04	1	9903-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	9811-0109		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=77-99	1-09707-141-0	01	1	0110-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL> (D) ID=50-69	8-94316-991-0	02	1	9811-		●
162	03.613 BOLT; ADAPTER TURBOCHARGER(K51) M8X57	5-09000-275-0	01	1	9811-	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	9811-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97250-283-0	01	1	0112-0205		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE TURBOCHARGER(K51)	8-97178-497-2	01	1	9811-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97190-569-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97250-283-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97039-752-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97039-752-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97250-282-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97250-282-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97250-282-0	01	1	0004-0112		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97250-282-0	01	1	0201-0205		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0206-		●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97040-893-0	01	1	9811-9812	●
204	03.342 COLLAR; PIPE ADAPTER	8-97040-893-0	01	1	9811-9812		●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97214-384-0	01	1	9901-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-0	01	1	9901-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	9811-0105	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	9811-0105		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0106-0106	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. HONG KONG EQUIPMENT(PQ1)	8-97209-950-0	01	1	0106-0106		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0106-0112	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97209-950-0	01	1	0106-0112		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0201-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97209-950-0	01	1	0201-		●
252	03.417 BOLT; BRKT TURBOCHARGER(K51) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-	●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	9811-0105		●
252	03.417 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> M12X19	8-97079-809-0	01	1	0106-0112		●
252	03.417 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) M12X19	8-97079-809-0	01	1	0106-0112		●
252	03.417 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> M12X19	8-97079-809-0	01	1	0201-		●
252	03.417 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> M12X19	8-97079-809-0	01	1	0201-		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9811-0105	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9811-0105		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9811-	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9811-		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	9811-0112		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0106-0207		●
288	03.342 BOLT; WATER PIPE CLIP M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-0207		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97204-013-1	01	1	9811-		●
391	03.342 BRACKET; WATER PIPE TURBOCHARGER(K51) (A)	8-97210-078-0	01	1	9811-	●
391	03.342 BRACKET; WATER PIPE TURBOCHARGER(K51) (B)	8-97221-061-0	01	1	9811-	●
391	03.342 BRACKET; WATER PIPE	8-97068-554-0	01	1	9811-0105		●
391	03.342 BRACKET; WATER PIPE EXC. CHARGE AIR COOLER<6PL>	8-97068-554-0	01	1	0106-0112		●
391	03.342 BRACKET; WATER PIPE CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97068-554-0	01	1	0106-0112		●
391	03.342 BRACKET; WATER PIPE EXC. CHARGE AIR COOLER<6PL>	8-97068-554-0	01	1	0201-		●
391	03.342 BRACKET; WATER PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97068-554-0	01	1	0201-		●

118 288 231 33 173 118 33 291 252 204 33 115 19 391 14 391 288 19 14 7 116 117 117 162 9 16 1 66 117 137 117 116 134 288 117 130 117 116 133 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97208-352-0	01	1	9811-0111	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER(K51)	8-97326-752-0	01	1	0112-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL>	8-97208-966-2	01	1	9811-0112		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97208-966-2	01	1	0201-0207		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97208-966-3	01	1	0208-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1)	8-97258-811-0	01	1	0106-0207		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3>	8-97258-811-0	01	1	0208-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. CHARGE AIR COOLER<6PL>	8-97103-857-0	01	1	9811-		●
7	03.613 WASHER; PL,BRKT TURBOCHARGER(K51) ID=8 OD=18 T=3	8-94174-537-0	01	1	9811-	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9811-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER(K51) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	9811-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97039-777-1	01	1	9811-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97063-602-0	01	1	9811-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (A) M8X94 L=108	8-97019-477-0	02	1	9811-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	9811-		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE TURBOCHARGER(K51) (B) M8X49 L=63	8-97019-478-0	03	1	9811-	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	9811-		●
16	03.609 ADAPTER; EXH PIPE TURBOCHARGER(K51)	8-97178-488-1	01	1	9811-	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	9811-		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER TURBOCHARGER(K51) 03.604 M8 FLANGE	8-94170-486-0	05	1	9811-	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	9811-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> M6X28 W/LK&PL WASHER	8-97028-387-1	05	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 03.604 M6X12 FLANGE	8-97108-669-0	01	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0206-		●
33	03.342 BOLT; HEAT PROTECTOR TURBOCHARGER(K51) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	9811-	●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	04	1	9811-		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> M6X28 W/LK&PL WASHER	8-97028-387-1	06	1	9811-0001		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> M6X28 W/LK&PL WASHER	8-97028-387-1	05	1	0002-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 03.604 M6X12 FLANGE	8-97108-669-0	01	1	0002-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	9811-0003		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0004-0111		●
33	03.342 BOLT; HEAT PROTECTOR CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0112-0205		●
33	03.342 BOLT; HEAT PROTECTOR EXC. CHARGE AIR COOLER<6PL> 03.604 M6X12 FLANGE	8-97108-669-0	02	1	9811-		●
66	03.342 STUD; EXH PIPE TURBOCHARGER(K51) 03.275 M10X25 L=40	9-04411-025-0	03	1	9811-	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	9811-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97210-077-2	01	1	9811-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97148-946-0	01	1	9811-9906		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL>	8-97229-039-0	01	1	9907-0112		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97229-039-0	01	1	0201-0207		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97229-039-0	01	1	0208-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1)	8-97302-224-1	01	1	0106-0207		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3>	8-97302-224-1	01	1	0208-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97066-699-1	01	1	9811-9909		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT EXC. CHARGE AIR COOLER<6PL>	8-97229-038-0	01	1	9910-		●
116	03.342 BOLT; WATER PIPE TURBOCHARGER(K51) M14X30 EYE-BOLT	8-94455-144-0	03	1	9811-	●
116	03.342 BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	9811-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51) 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9811-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	06	1	9811-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	04	1	9811-		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	9811-0105	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	9811-0105		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0106-0112	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0106-0112		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0201-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 03.162 (C) ID=15.5	8-94221-519-0	02	1	0201-		●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 03.162 (B) L=140	5-09707-031-1	01	1	0106-0207		●
118	03.342 CLIP; WATER HOSE M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 03.162 (B) L=140	5-09707-031-1	01	1	0208-		●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 01.153 (A) ID=12.8	8-94367-943-0	06	1	0106-0207		●
118	03.342 CLIP; WATER HOSE M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8	8-94367-943-0	06	1	0208-		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D TURBOCHARGER(K51) 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9811-	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	9811-		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). 01.550 ID=27.7	9-09565-228-0	01	1	9811-0211	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 ID=27.7	9-09565-228-0	01	1	9811-0211		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=27.7	9-09566-228-0	01	1	0212-	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0212-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER TURBOCHARGER(K51)	8-97178-508-1	01	1	9811-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97148-925-1	01	1	9811-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER EXC. CHARGE AIR COOLER<6PL>	8-97039-763-1	01	1	9811-		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER(K51). ID=22.8	1-09623-462-0	01	1	9811-	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	9811-		●
135	01.531 BOLT; OIL PIPE TO C/BL TURBOCHARGER(K51) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97355-911-0	01	1	0208-0212		●
137	01.097 PIPE; WATER,TURBOCHARGER IN M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97357-769-0	01	1	0301-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97229-035-0	01	1	0112-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER(K51)	8-97178-481-0	01	1	9811-9906	●
137	01.097 PIPE; WATER,TURBOCHARGER IN TURBOCHARGER(K51)	8-97229-036-0	01	1	9907-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97181-850-0	01	1	9811-9906		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97229-035-0	01	1	9907-0003		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97148-945-3	01	1	9811-0003		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL>	8-97148-945-3	01	1	0004-0111		●
137	01.097 PIPE; WATER,TURBOCHARGER IN CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97148-945-3	01	1	0112-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97189-625-0	01	1	9811-9907		●
137	01.097 PIPE; WATER,TURBOCHARGER IN EXC. CHARGE AIR COOLER<6PL>	8-97229-034-0	01	1	9908-		●
162	03.613 BOLT; ADAPTER TURBOCHARGER(K51) M8X57	5-09000-275-0	01	1	9811-	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	9811-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF>	8-97250-283-0	01	1	0112-0205		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE TURBOCHARGER(K51)	8-97178-497-2	01	1	9811-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97190-569-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97250-283-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97039-752-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97039-752-0	01	1	9811-0001		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97250-282-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97250-282-0	01	1	0002-0003		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97250-282-0	01	1	0004-0112		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE EXC. NOISE PACK FOR REGULATION VAR.2<7TF>	8-97250-282-0	01	1	0201-0205		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0206-		●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97040-893-0	01	1	9811-9812	●
204	03.342 COLLAR; PIPE ADAPTER	8-97040-893-0	01	1	9811-9812		●
204	03.342 COLLAR; PIPE ADAPTER TURBOCHARGER(K51)	8-97214-384-0	01	1	9901-	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-0	01	1	9901-		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	9811-0105	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	9811-0105		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0106-0106	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT EXC. HONG KONG EQUIPMENT(PQ1)	8-97209-950-0	01	1	0106-0106		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0106-0112	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97209-950-0	01	1	0106-0112		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT TURBOCHARGER(K51)	8-97209-950-0	01	1	0201-	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97209-950-0	01	1	0201-		●
252	03.417 BOLT; BRKT TURBOCHARGER(K51) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9811-	●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	9811-0105		●
252	03.417 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> M12X19	8-97079-809-0	01	1	0106-0112		●
252	03.417 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) M12X19	8-97079-809-0	01	1	0106-0112		●
252	03.417 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> M12X19	8-97079-809-0	01	1	0201-		●
252	03.417 BOLT; BRKT CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> M12X19	8-97079-809-0	01	1	0201-		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9811-0105	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9811-0105		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0106-0112		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9811-	●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 03.604 (B) M10X16 FLANGE	0-28181-016-0	01	1	9811-		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	9811-0112		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0201-0207		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC),A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0106-0207		●
288	03.342 BOLT; WATER PIPE CLIP M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9811-0207		●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP TURBOCHARGER(K51) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-	●
288	03.342 BOLT; WATER PIPE CLIP M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MBP6P(RNC) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
288	03.342 BOLT; WATER PIPE CLIP M/T MXA5R(RMT),M/T MBP6P(RNC) EXC. CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
291	03.374 NUT; PIPE TO BRKT TURBOCHARGER(K51) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●
391	03.342 BRACKET; WATER PIPE TURBOCHARGER(K51) (A)	8-97210-078-0	01	1	9811-	●
391	03.342 BRACKET; WATER PIPE TURBOCHARGER(K51) (B)	8-97221-061-0	01	1	9811-	●
391	03.342 BRACKET; WATER PIPE	8-97068-554-0	01	1	9811-0105		●
391	03.342 BRACKET; WATER PIPE EXC. CHARGE AIR COOLER<6PL>	8-97068-554-0	01	1	0106-0112		●
391	03.342 BRACKET; WATER PIPE CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1)	8-97068-554-0	01	1	0106-0112		●
391	03.342 BRACKET; WATER PIPE EXC. CHARGE AIR COOLER<6PL>	8-97068-554-0	01	1	0201-		●
391	03.342 BRACKET; WATER PIPE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3>	8-97068-554-0	01	1	0201-		●

118 118 118 118 406 112 118 208 478

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
112	03.417 BOLT; CLIP CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-0207		●
112	03.417 BOLT; CLIP M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0208-		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	9811-0105	●
118	03.342 CLIP; WATER HOSE 03.162 (C) ID=15.5	8-94221-519-0	02	1	9811-0105		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0106-0112	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0106-0112		●
118	03.342 CLIP; WATER HOSE TURBOCHARGER(K51) 03.162 (C) ID=15.5	8-94221-519-0	02	1	0201-	●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 03.162 (C) ID=15.5	8-94221-519-0	02	1	0201-		●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 03.162 (B) L=140	5-09707-031-1	01	1	0106-0207		●
118	03.342 CLIP; WATER HOSE M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 03.162 (B) L=140	5-09707-031-1	01	1	0208-		●
118	03.342 CLIP; WATER HOSE CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 01.153 (A) ID=12.8	8-94367-943-0	06	1	0106-0207		●
118	03.342 CLIP; WATER HOSE M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 01.153 (A) ID=12.8	8-94367-943-0	06	1	0208-		●
208	03.417 CLIP; WATER HOSE FIX CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 06.602 ID=15 H=24 L=20	1-09700-606-0	01	1	0106-0207		●
208	03.417 CLIP; WATER HOSE FIX M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 06.602 ID=15 H=24 L=20	1-09700-606-0	01	1	0208-		●
406	03.417 PLUG CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 01.252 PT3/4	9-09664-005-0	01	1	0106-0207		●
406	03.417 PLUG M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 01.252 PT3/4	9-09664-005-0	01	1	0208-		●
478	01.097 PIPE; WATER SUCTION CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1)	8-97240-999-1	01	1	0106-0207		●
478	01.097 PIPE; WATER SUCTION M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3>	8-97240-999-1	01	1	0208-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
