0-32 — WATER PIPING; ENGINE (#41952) — 38 parça

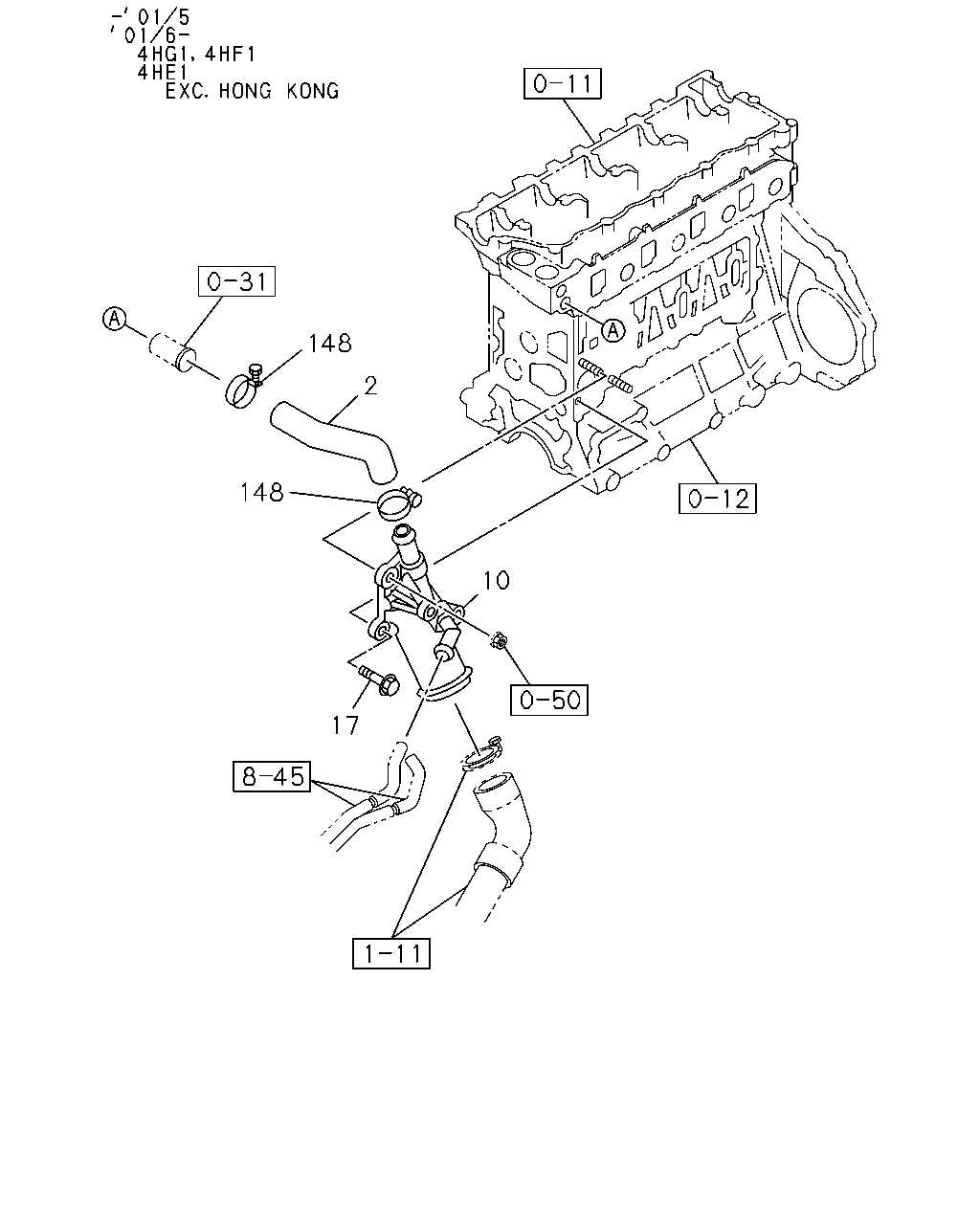

çizim 10649
148 2 148 10 17
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.097 HOSE; WATER,BY-PASS 8-97087-597-1 01 1 9811-9812 ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 9901- ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 9811- ●
10 01.153 PIPE; SUCTION 8-97216-157-0 01 1 9811-0105 ● ● ●
10 01.153 PIPE; SUCTION 8-97216-157-0 01 1 0106-0112 ● ●
10 01.153 PIPE; SUCTION
EXC. CHARGE AIR COOLER<6PL> 		8-97216-157-0 01 1 0106-0112 ●
10 01.153 PIPE; SUCTION
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97216-157-0 01 1 0106-0112 ●
10 01.153 PIPE; SUCTION 8-97216-157-0 01 1 0201-0205 ● ●
10 01.153 PIPE; SUCTION
EXC. CHARGE AIR COOLER<6PL> 		8-97216-157-0 01 1 0201-0205 ●
10 01.153 PIPE; SUCTION
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97216-157-0 01 1 0201-0205 ●
10 01.153 PIPE; SUCTION 8-97216-157-0 01 1 0206- ● ●
10 01.153 PIPE; SUCTION
EXC. EURO3 SPECIFICATION<NT3> 		8-97216-157-0 01 1 0206- ●
10 01.153 PIPE; SUCTION
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97240-998-2 01 1 0106-0207 ●
10 01.153 PIPE; SUCTION
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 		8-97240-998-2 01 1 0208- ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 9811- ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 9811- ● ● ●

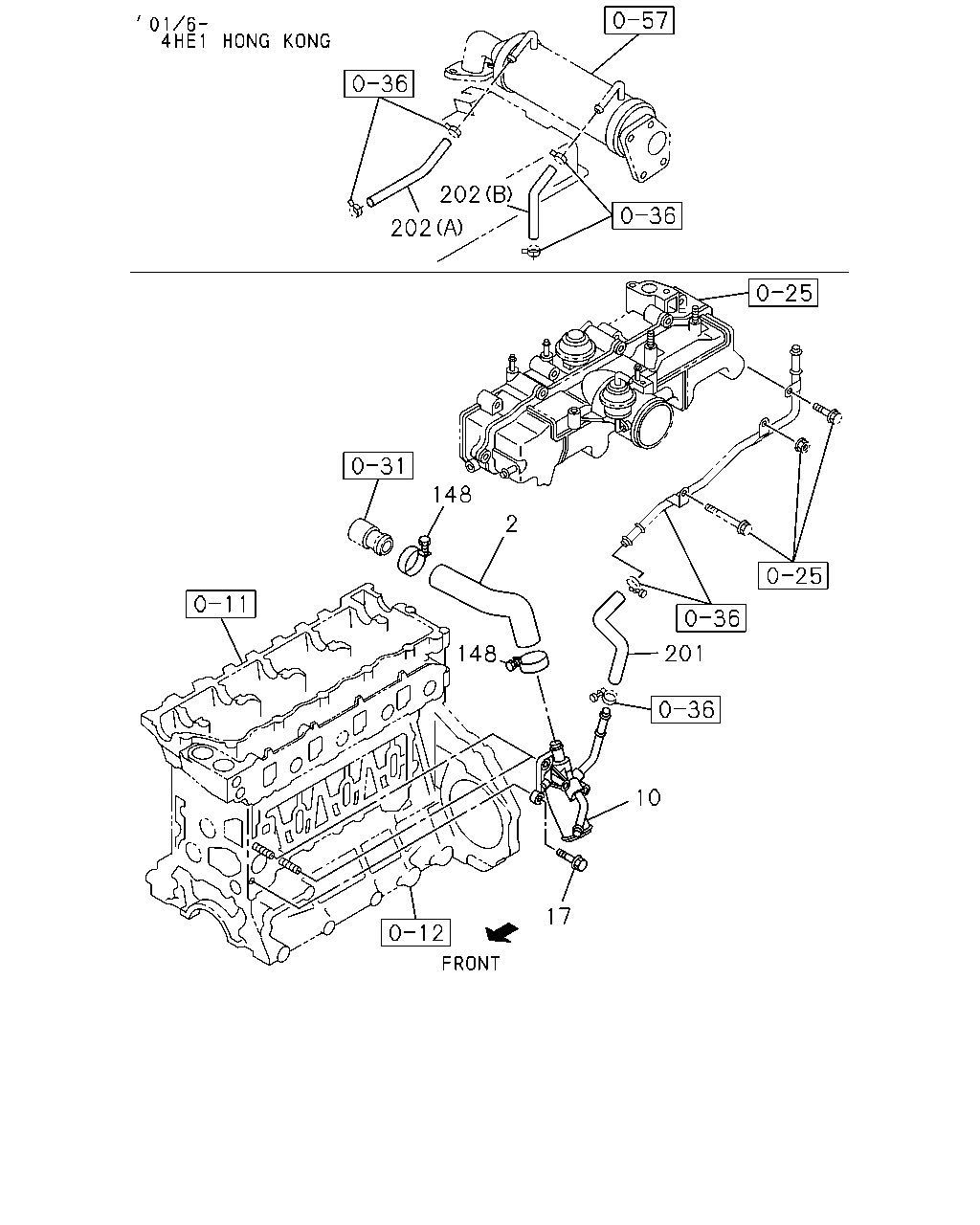

çizim 50933
202 202 148 2 201 148 10 17
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.097 HOSE; WATER,BY-PASS 8-97087-597-1 01 1 9811-9812 ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-948-0 01 1 9901- ● ●
2 01.097 HOSE; WATER,BY-PASS 8-97209-949-0 01 1 9811- ●
10 01.153 PIPE; SUCTION 8-97216-157-0 01 1 9811-0105 ● ● ●
10 01.153 PIPE; SUCTION 8-97216-157-0 01 1 0106-0112 ● ●
10 01.153 PIPE; SUCTION
EXC. CHARGE AIR COOLER<6PL> 		8-97216-157-0 01 1 0106-0112 ●
10 01.153 PIPE; SUCTION
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97216-157-0 01 1 0106-0112 ●
10 01.153 PIPE; SUCTION 8-97216-157-0 01 1 0201-0205 ● ●
10 01.153 PIPE; SUCTION
EXC. CHARGE AIR COOLER<6PL> 		8-97216-157-0 01 1 0201-0205 ●
10 01.153 PIPE; SUCTION
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97216-157-0 01 1 0201-0205 ●
10 01.153 PIPE; SUCTION 8-97216-157-0 01 1 0206- ● ●
10 01.153 PIPE; SUCTION
EXC. EURO3 SPECIFICATION<NT3> 		8-97216-157-0 01 1 0206- ●
10 01.153 PIPE; SUCTION
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97240-998-2 01 1 0106-0207 ●
10 01.153 PIPE; SUCTION
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 		8-97240-998-2 01 1 0208- ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 9811- ● ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 9811- ● ● ●
201 01.097 HOSE; RUBBER,SUCTION
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) 		8-97306-130-1 01 1 0106-0207 ●
201 01.097 HOSE; RUBBER,SUCTION
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> 		8-97306-130-1 01 1 0208- ●
202 01.240 HOSE; RUBBER,EGR COOLER
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) (A) 		8-97212-146-2 01 1 0106-0207 ●
202 01.240 HOSE; RUBBER,EGR COOLER
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (A) 		8-97212-146-2 01 1 0208- ●
202 01.240 HOSE; RUBBER,EGR COOLER
CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) (B) 		8-97306-129-2 01 1 0106-0207 ●
202 01.240 HOSE; RUBBER,EGR COOLER
M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> (B) 		8-97306-129-2 01 1 0208- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
